REVIT_Usage of Collaborate tool_Week 6
Question : Open an architectural template . Using Manage tab set project base point and project shared coordinates for the project
Answer:
Aim:
To opening a architectural tempelate and setup a basepoint and project shared coordinates for the project
Tools Used:
* Tempelate
* Manage
* Project parameter
* Shared coordinates
Procedure:
Step 1:
1) Open Revit Application
2) Select New and choose Architectural tempelate
Step 2:

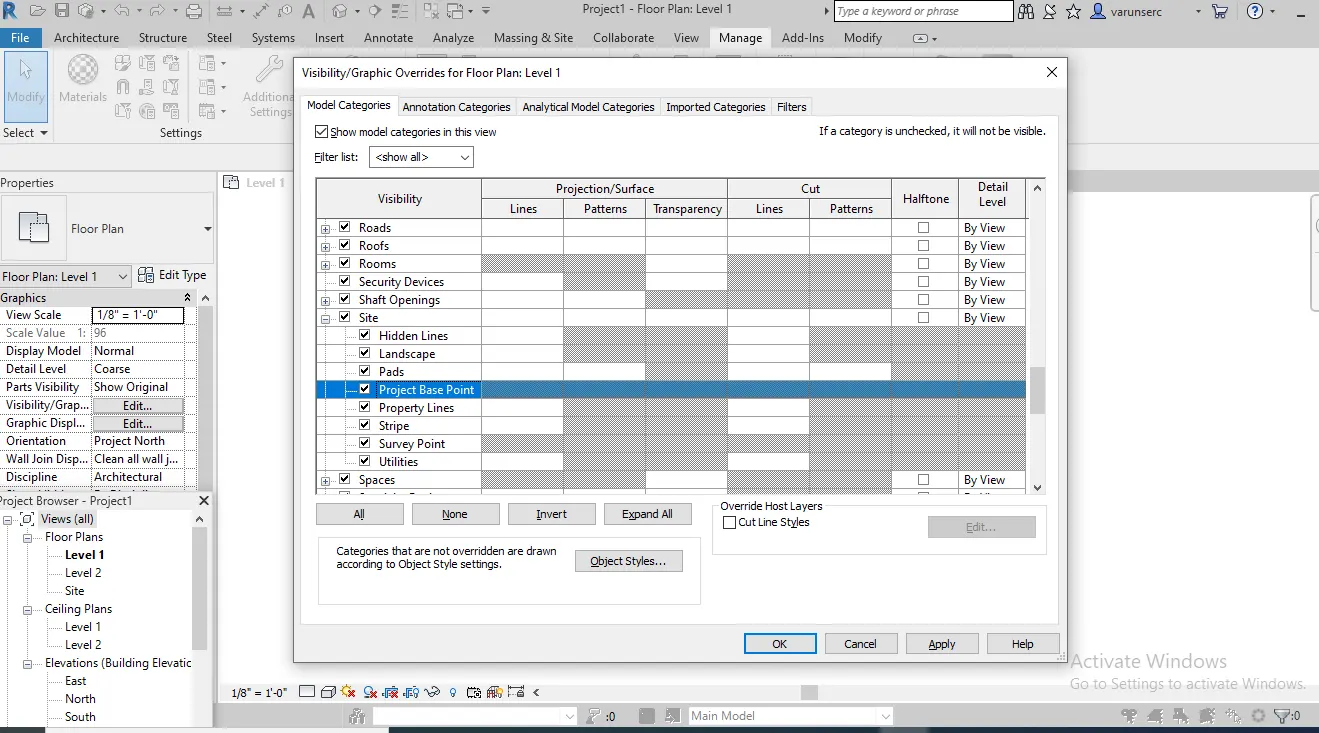

1) Type the command VG (Visibility Graphic)
2) Enlarge Site option
3) Check the project base point and survey point
4) Click ok and close the dialogue box
Step 3:

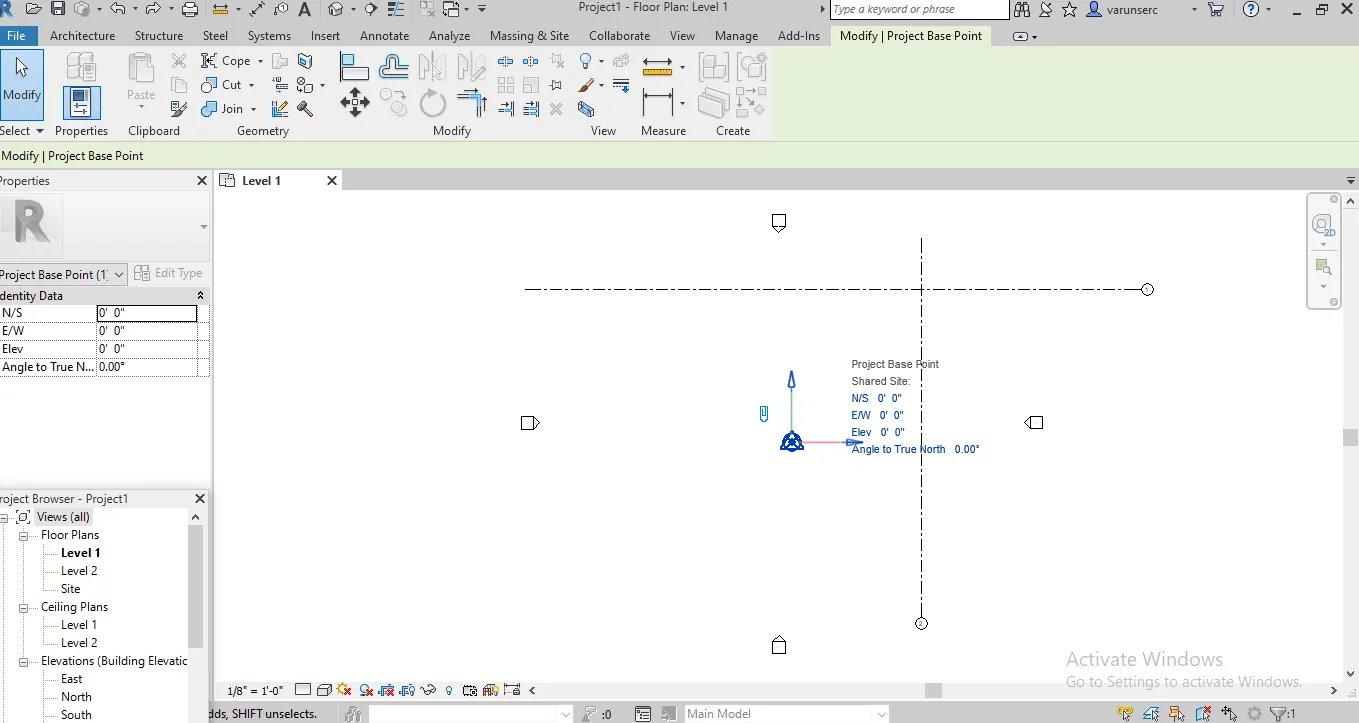

1) Click the project base point under the manage tab
2) Place the base point at suitable place
Step 4:

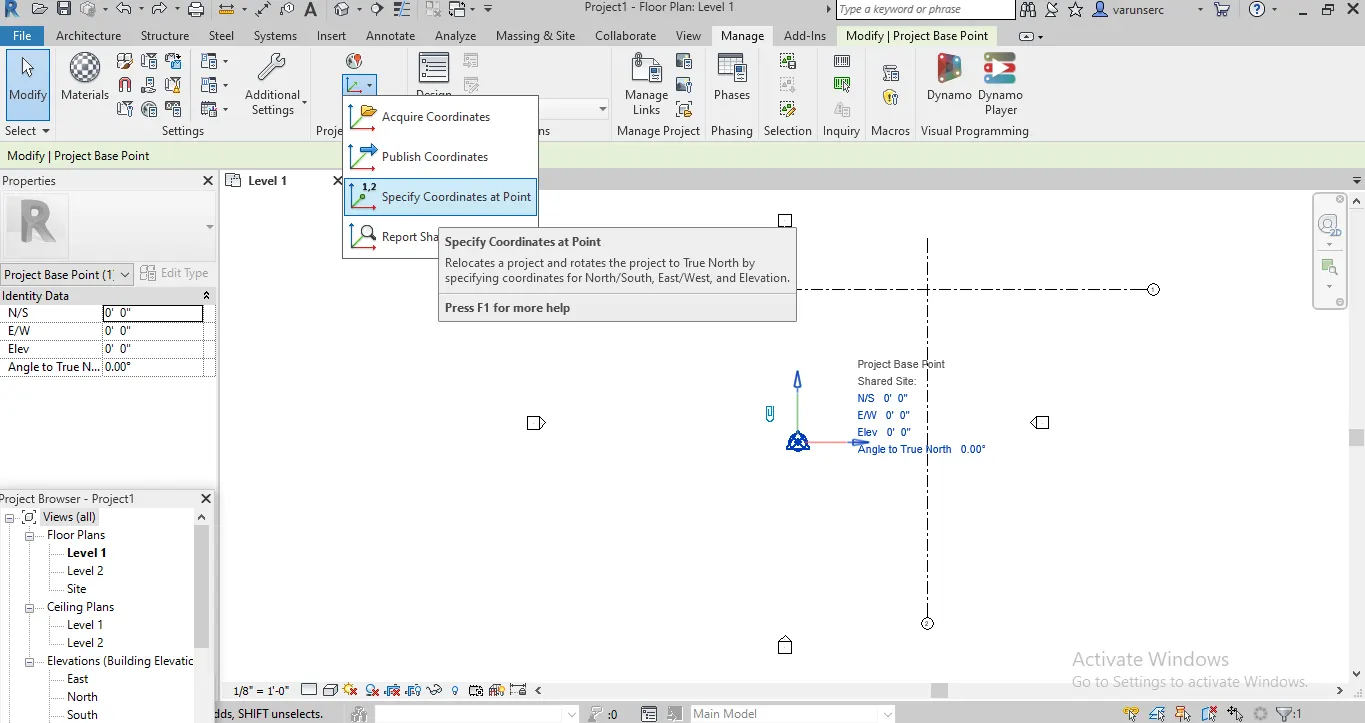

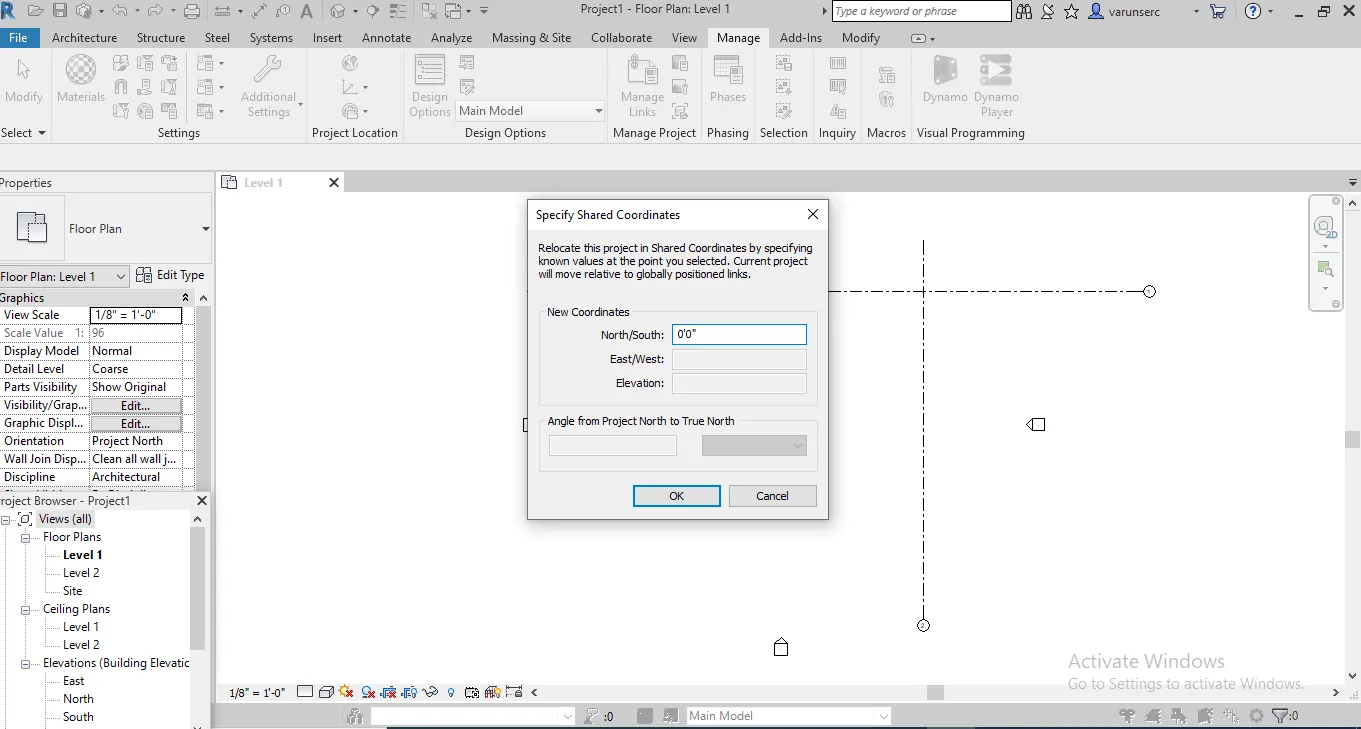

1) Click Shared coordinat tool under manage tab
2) Choose specify coordinate at point option
3) Place it according to the drawing
Step 5:
1) Change the coordinate point after selecting the grid lines
2) Click ok
Step 6:

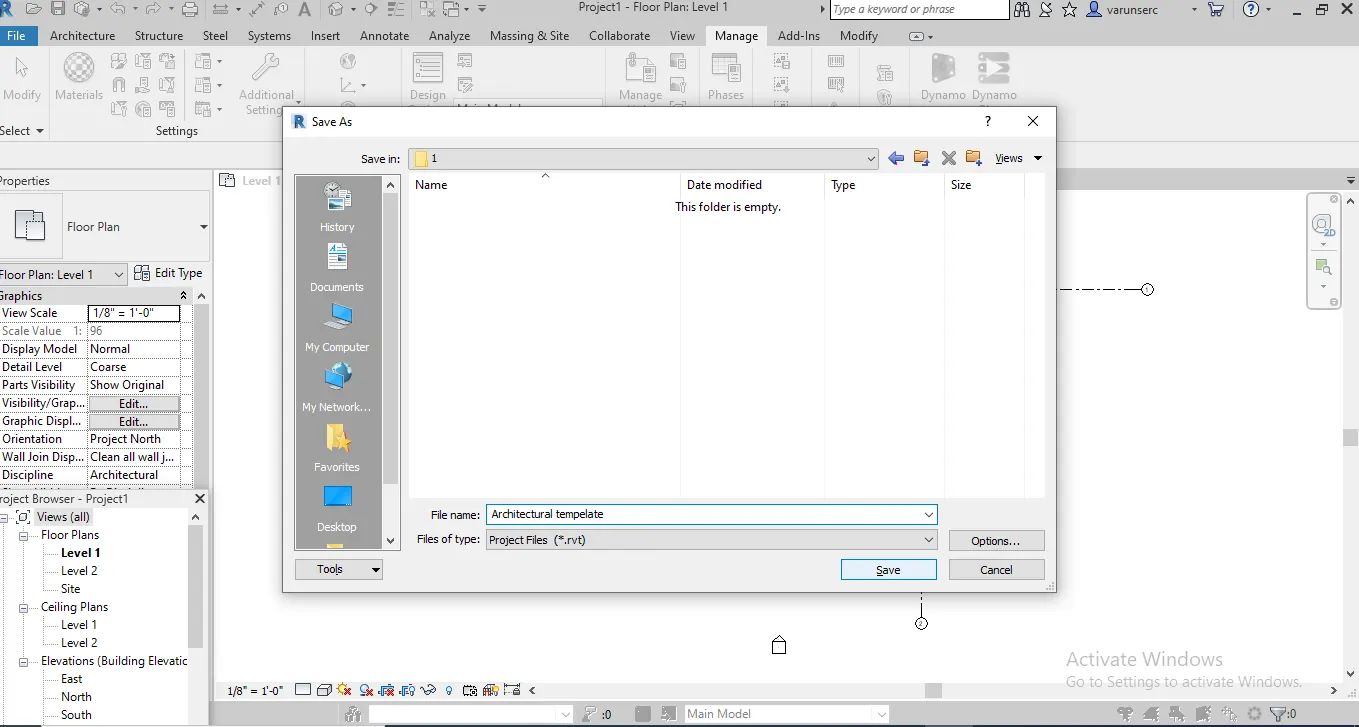

1) After creating the base point and shared coordinates click save as
2) Choose the destintion folder and rename it
3) Click Save.
Question : Open another new file but with structural template. Using manage tab set project parameters same as architectural model. Copy the parameters from architectural model to the structural template or enter the parameters manually to the structural model
Aim:
To creating a structural tempelate and copying the parameters from architectural to structural tempelate.
Tools Used:
* Tempelate
* Project parameter
Procedure:
Step 1:

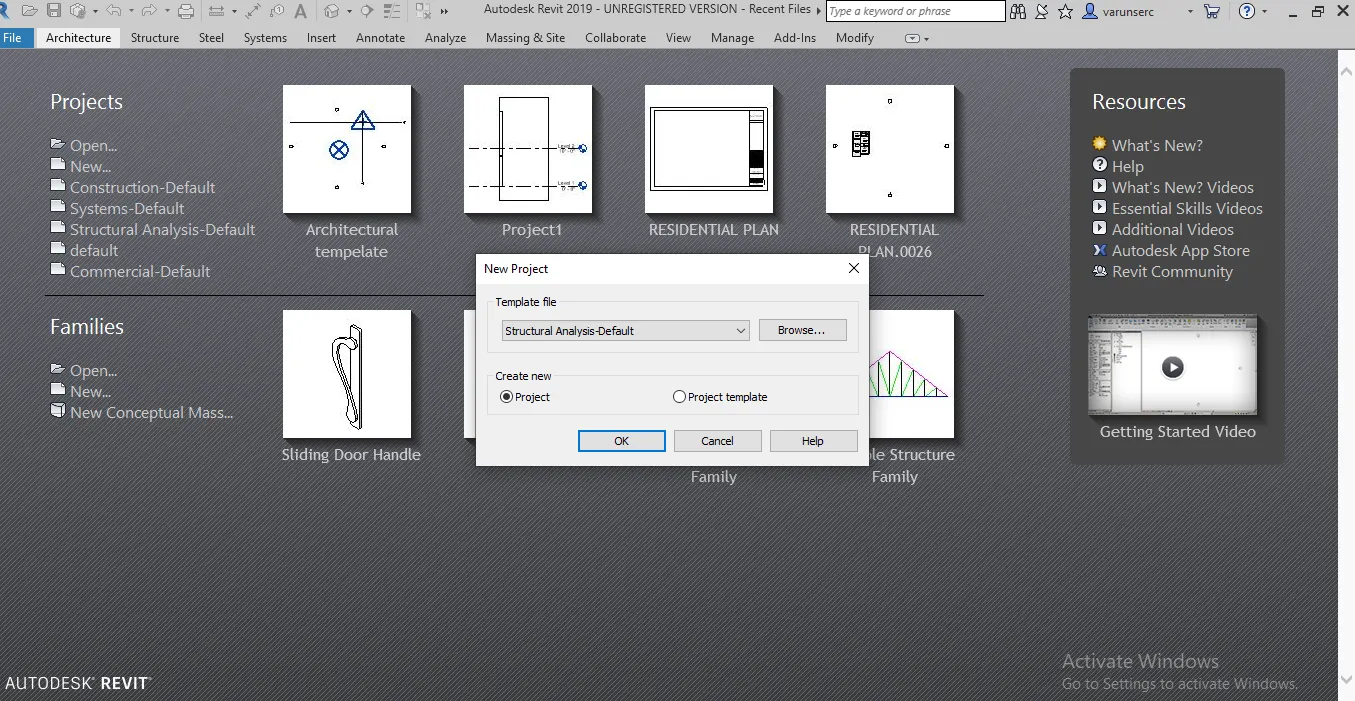

1) Open Revit application and select New
2) Choose Structural tempelate
Step 2:

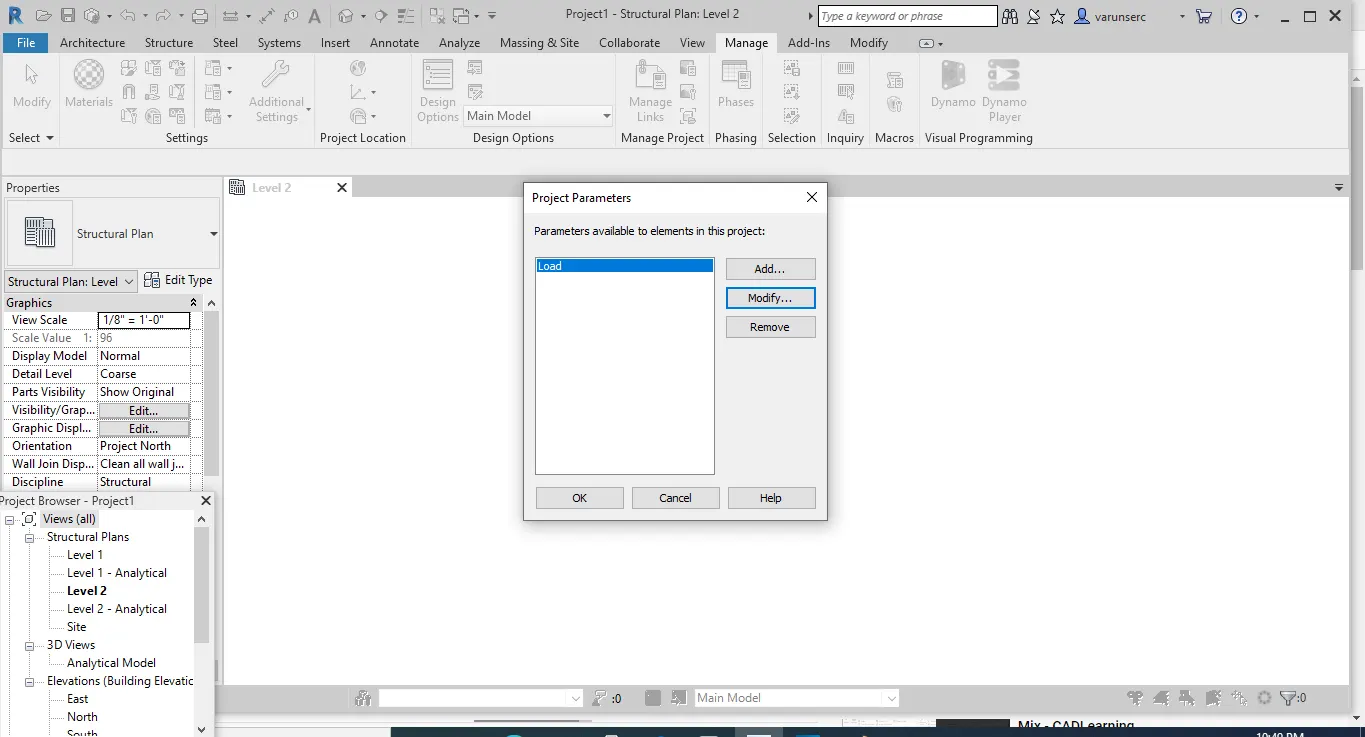

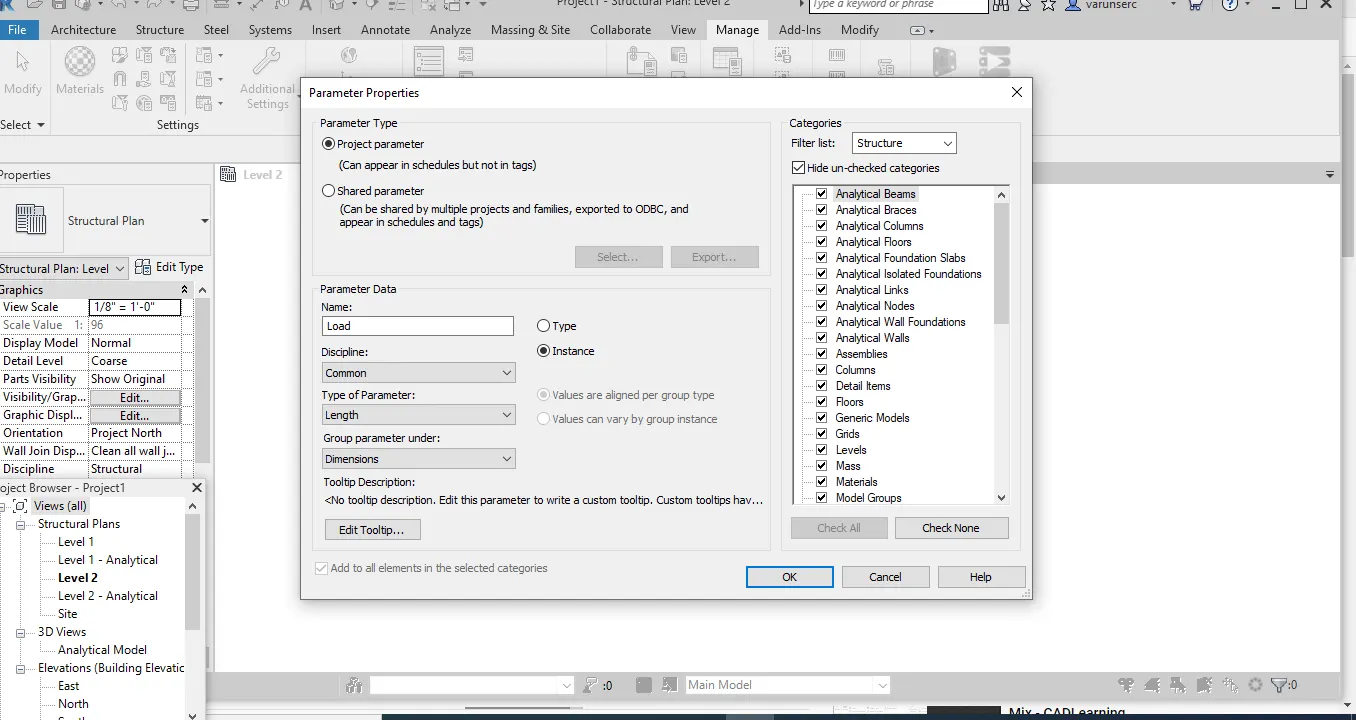

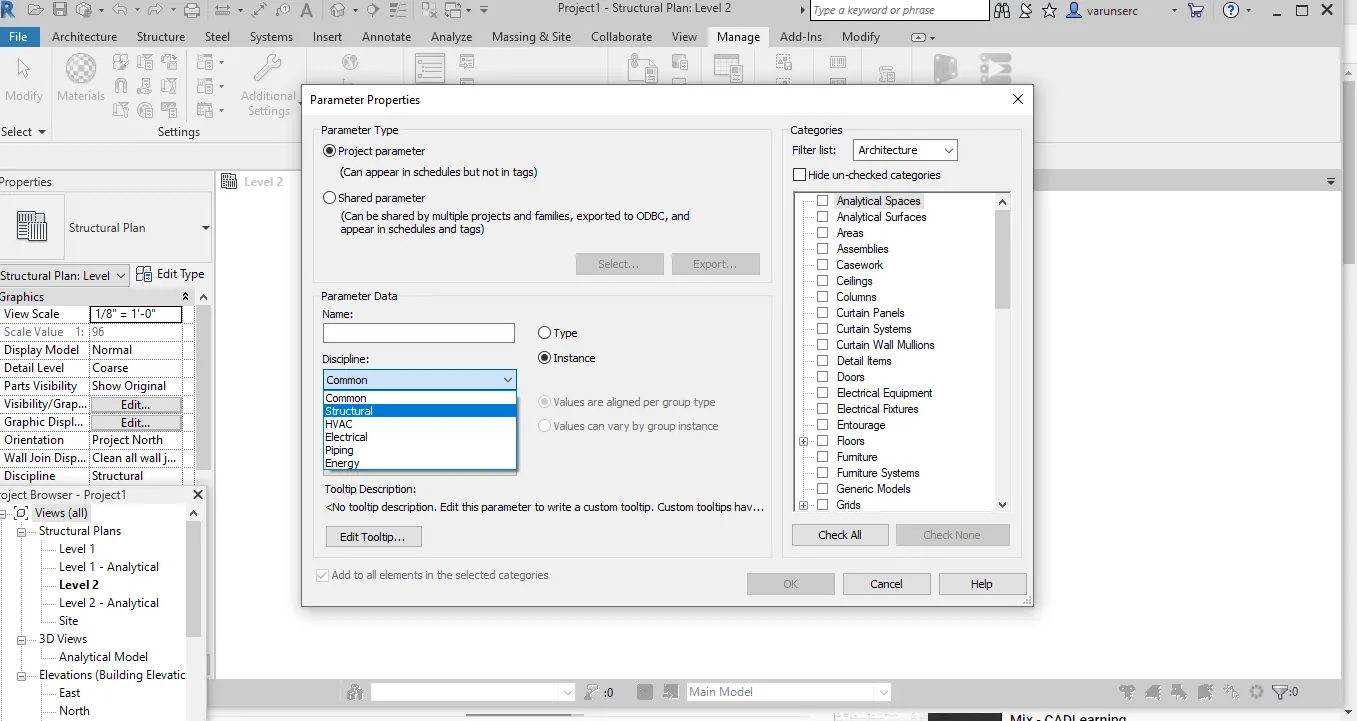

1) Click Project parameter under the manage tab
2) Name it and select the discipline as Structural
3) Filter the Architectural tool and select all.
Step 4:
Step 5:
1) After creating the parameters it will shown property browser
2) Click save as and choose destination folder.
Question : Re-open the architectural model. Using the tools under Collaborate tab make the architectural model as a central model ( enabling simultaneous working on the model )
Aim:
To make the central model of architectural tempelate usig colloborate tab.
Tools Used:
* Tempelate
* Colloborate
* Synchronize
Step 1:

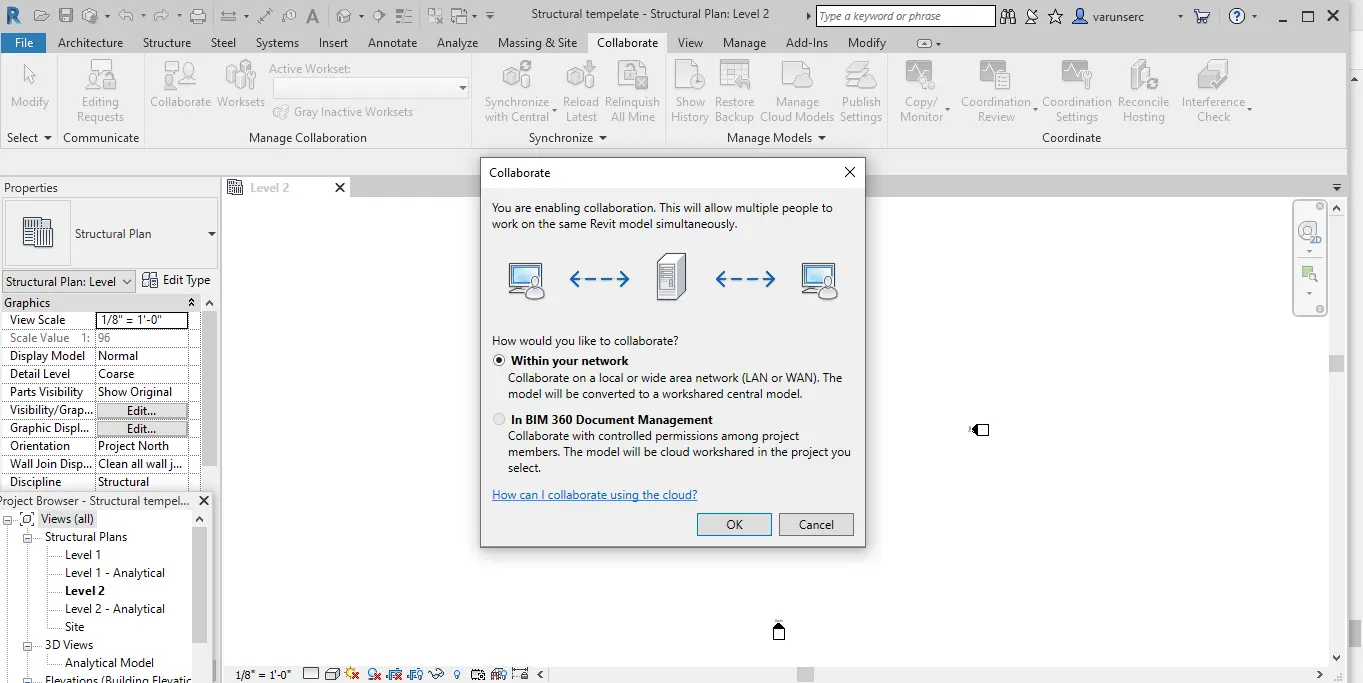

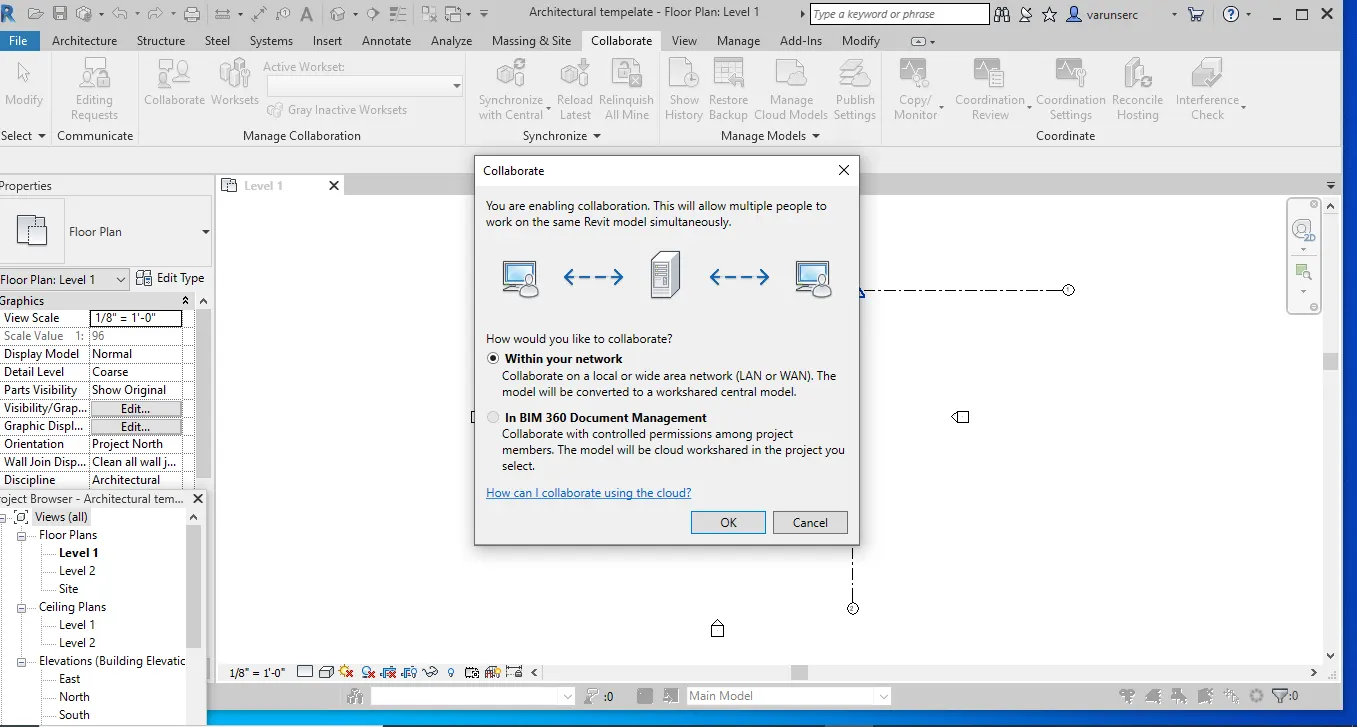

1) Click Colloborate tool under colloborate tab
2) Seelct within your network option and click ok
Step 2:

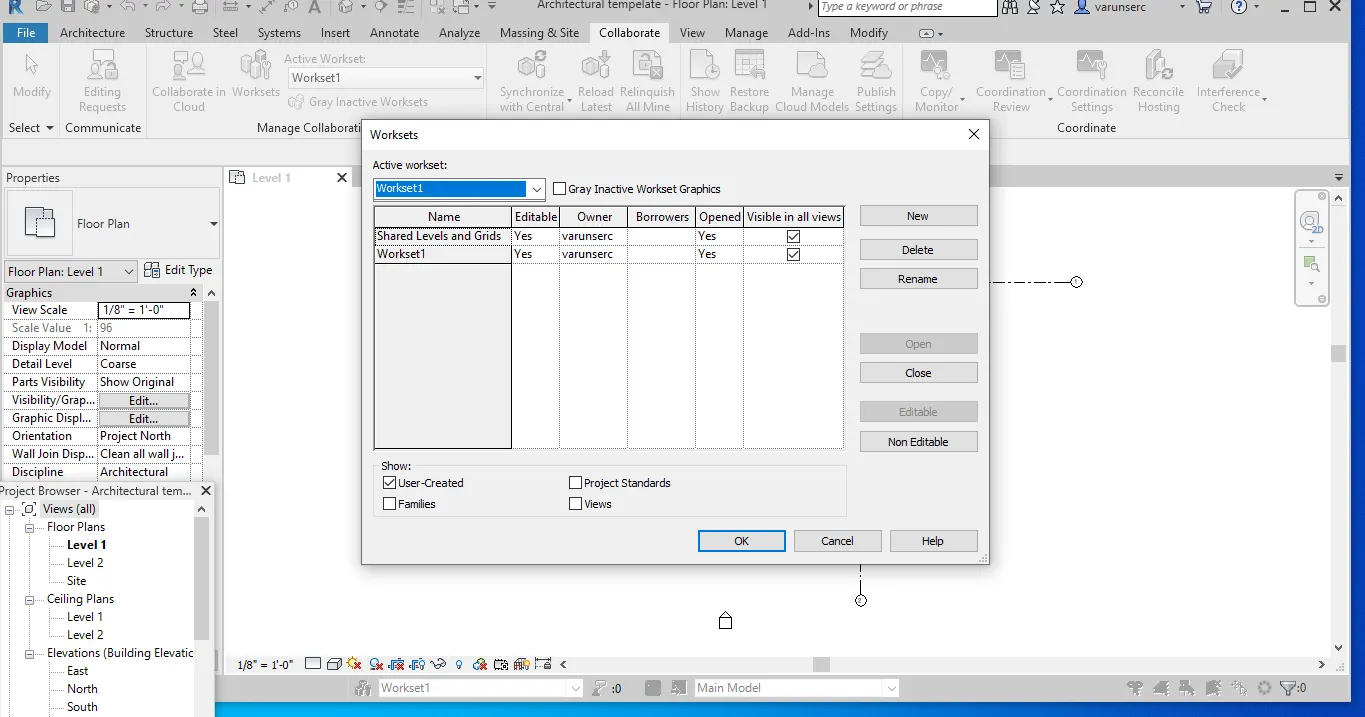

1) After setting the colloborate click workset
2) Check workset tool is it visible or not
3) Click ok
Step 3:

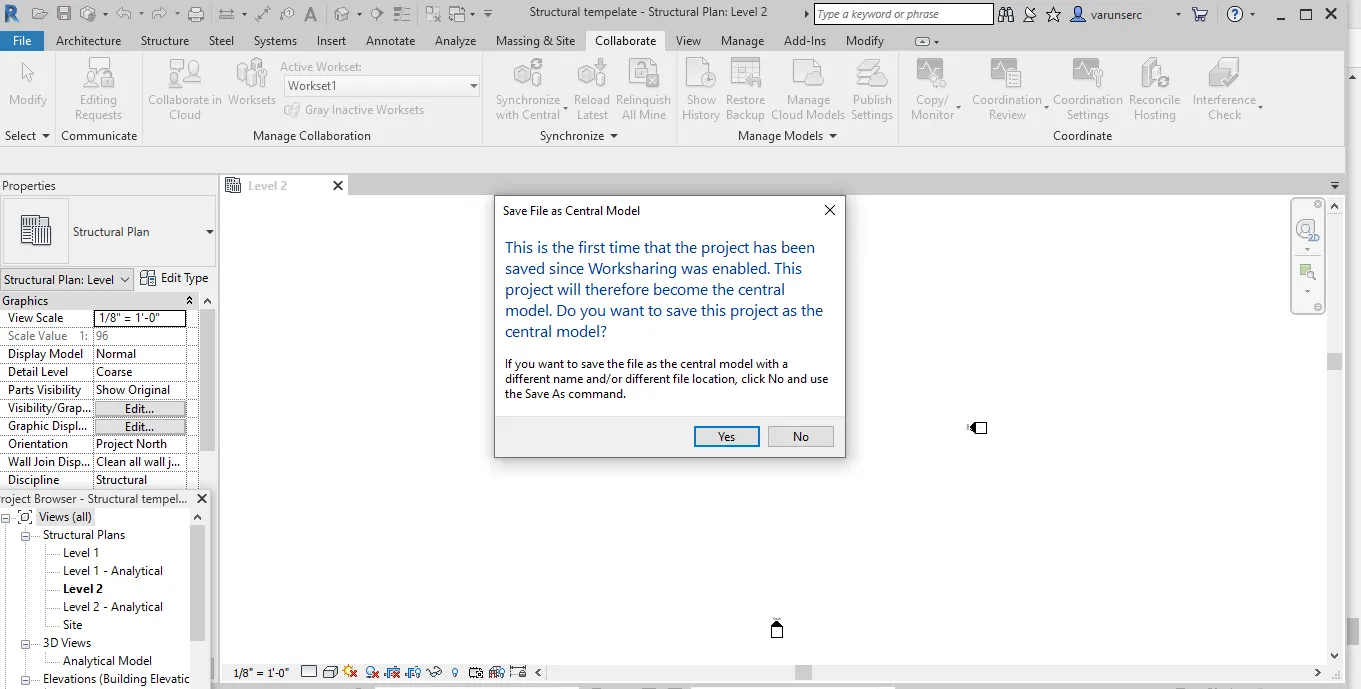

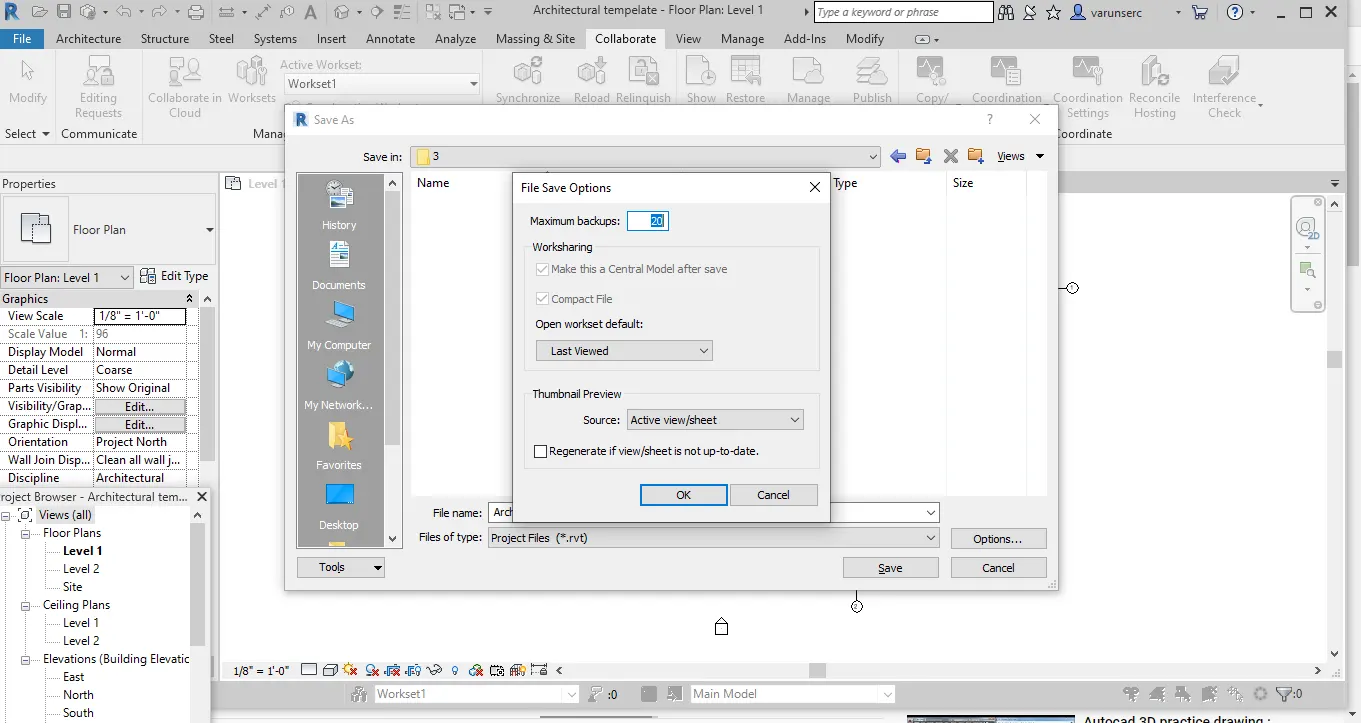

1) Click Synchronize with central tool under manage tab
2)click Save as and Choose the destination folder
3) Click ok
Step 4:
1) After creating the central model click save as
2) choose destination folder, rename it and click ok
Question : Create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2
Aim:
To Creating he Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2
Tools used:
* Tempelate
* Grids
* Offset
Procedure:

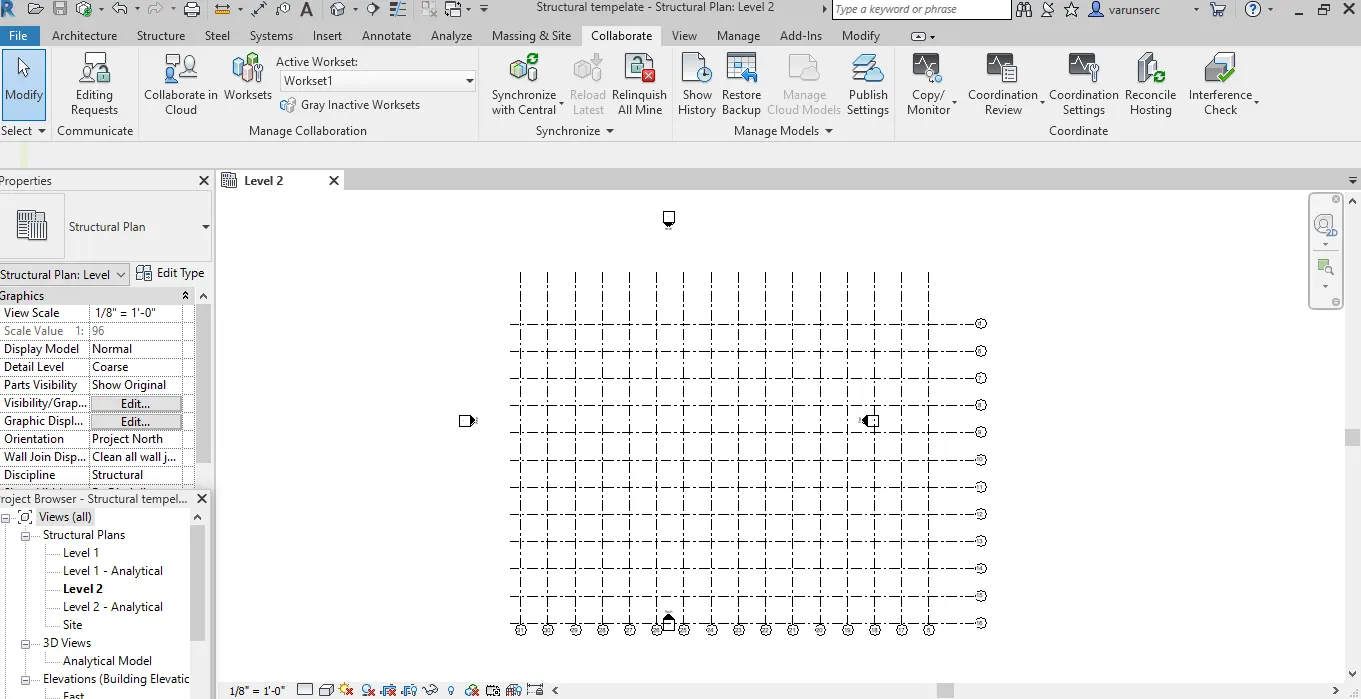

Step 1:

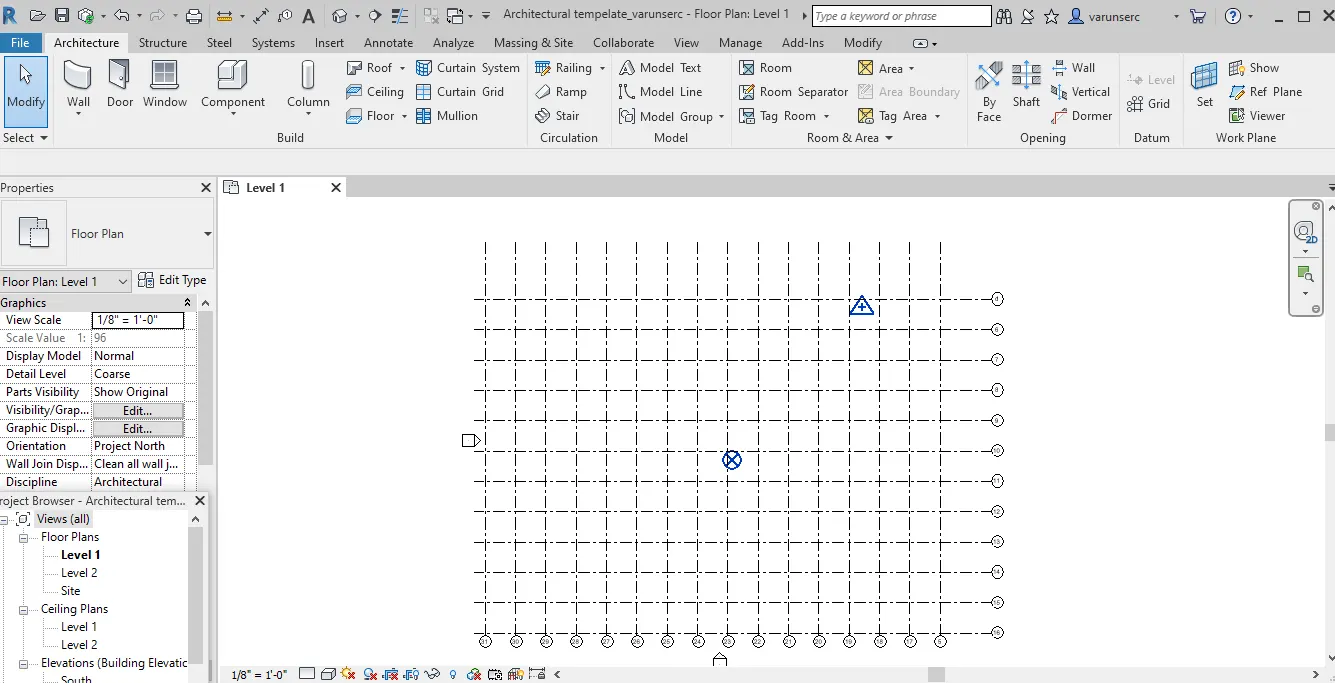

1) Open Revit and choose new tempelate
2) Select grid tool from architectural tab
3) Select pick point and change offset value as 10'
4) Draw the grids longitudinally and transversely
Question : Synchronize the changes from the local copy to the central file of architectural model.
Aim:
To Synchronizing the changes from the local copy to the central file of architectural model.
Tools used:
* Tempelate
* Collaborate
* Synchronize
Procedure:
Step 1:
1) Click Colloborate tool under colloborate tab
2) Selct within your network option and click ok
3) After setting the colloborate click workset
4) Check workset tool is it visible or not

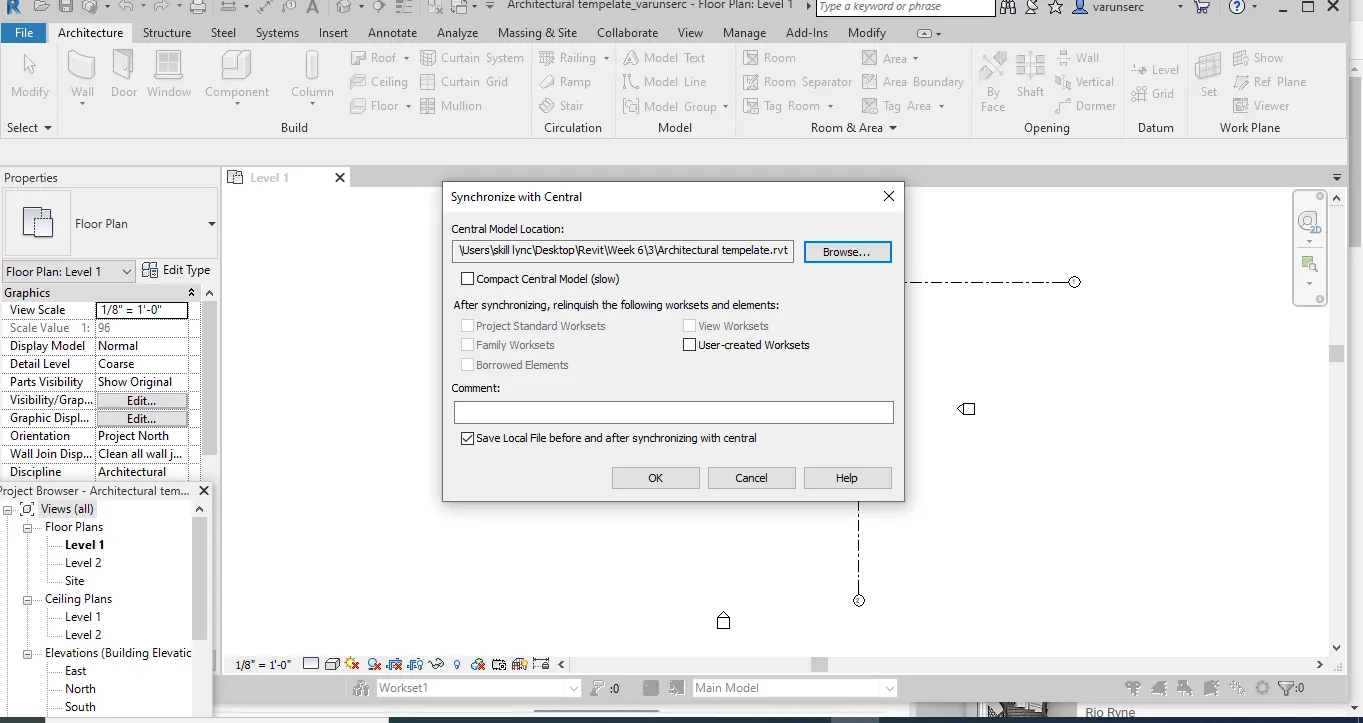

5) Click Synchronize with central tool under manage tab
6)click Save as and Choose the destination folder
7) Click ok
Question 6: Open the structural model and using collaborate tools save the model as central file.
Aim:
To Opening the structural model and using collaborate tools save the model as central file
Tools used:
* Tempelate
* Collaborate
* Synchronize
Procedure:
Step 1:
1) Click to open the structural model which is already created
Step 2:
1) After setting the colloborate click workset
2) choose within a network option
3) Click ok
Step 3:

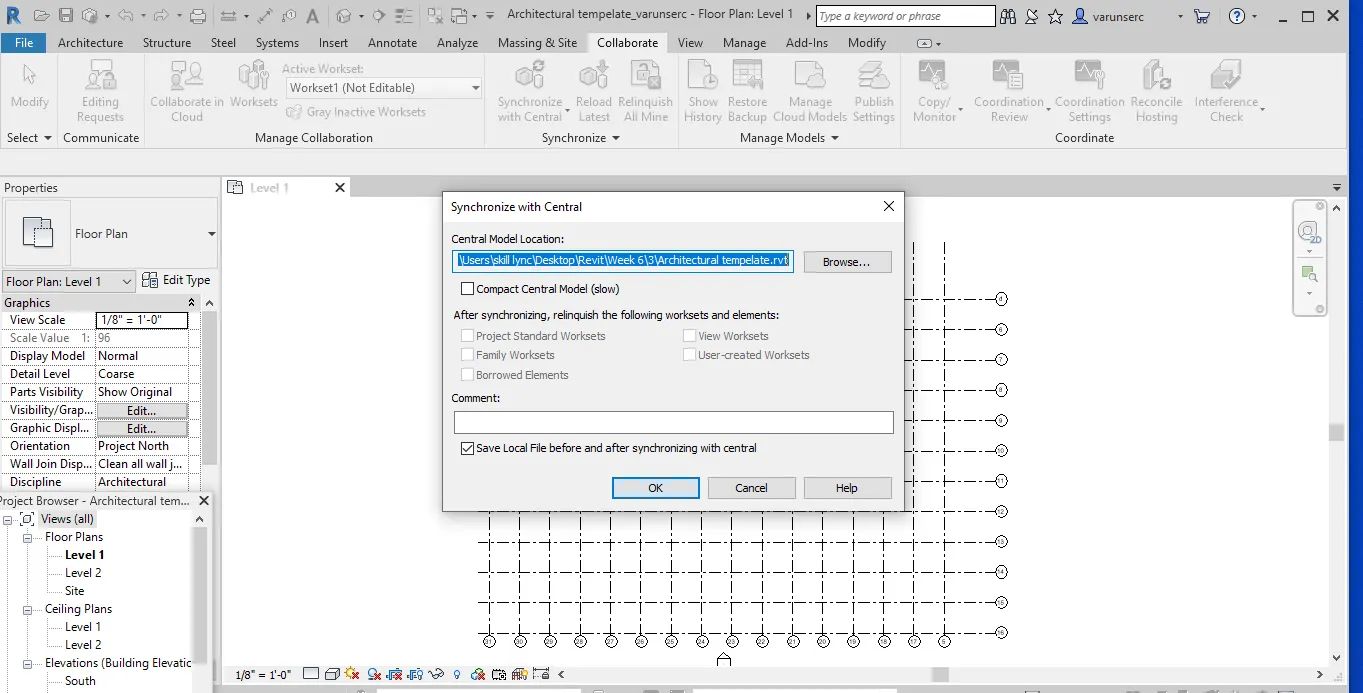

1) Click Synchronize with central tool under manage tab

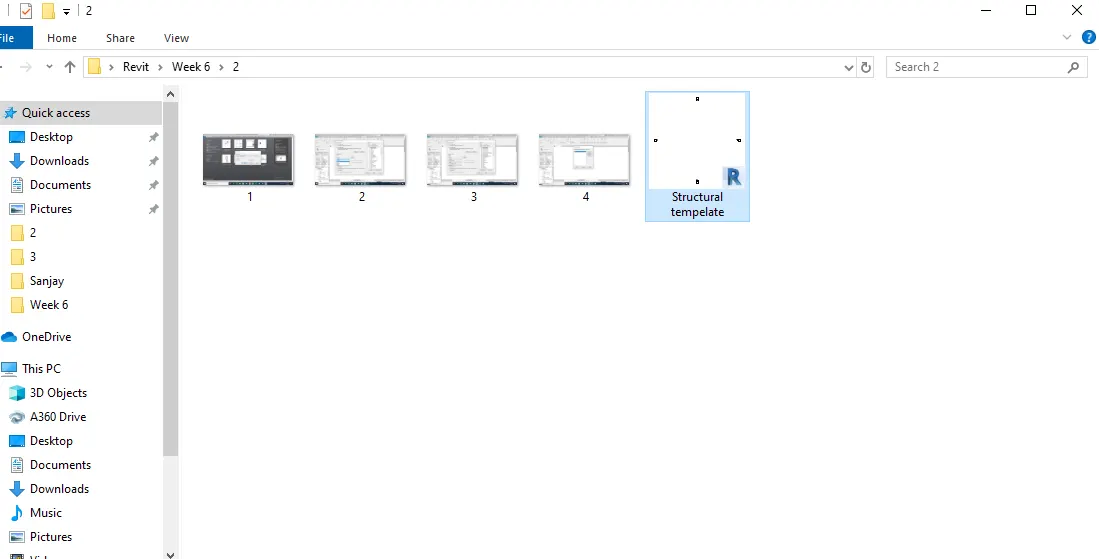

2)click Save as and Choose the destination folder
3) Click ok
Question : Under Collaborate tab, select the grids and levels from architectural model and using Copy Monitor try to copy the grids to structural model. See what happens when the copy monitored grid is moved around in the structural model
Aim:
To copy the grids and levels from architectural to structural model using copy monitor tool
Tools used:
* Tempelate
* Collaborate
* Copy monitor
Procedure:
Step 1:
1) Open the architectural model which we created as a central model file
Step 2:

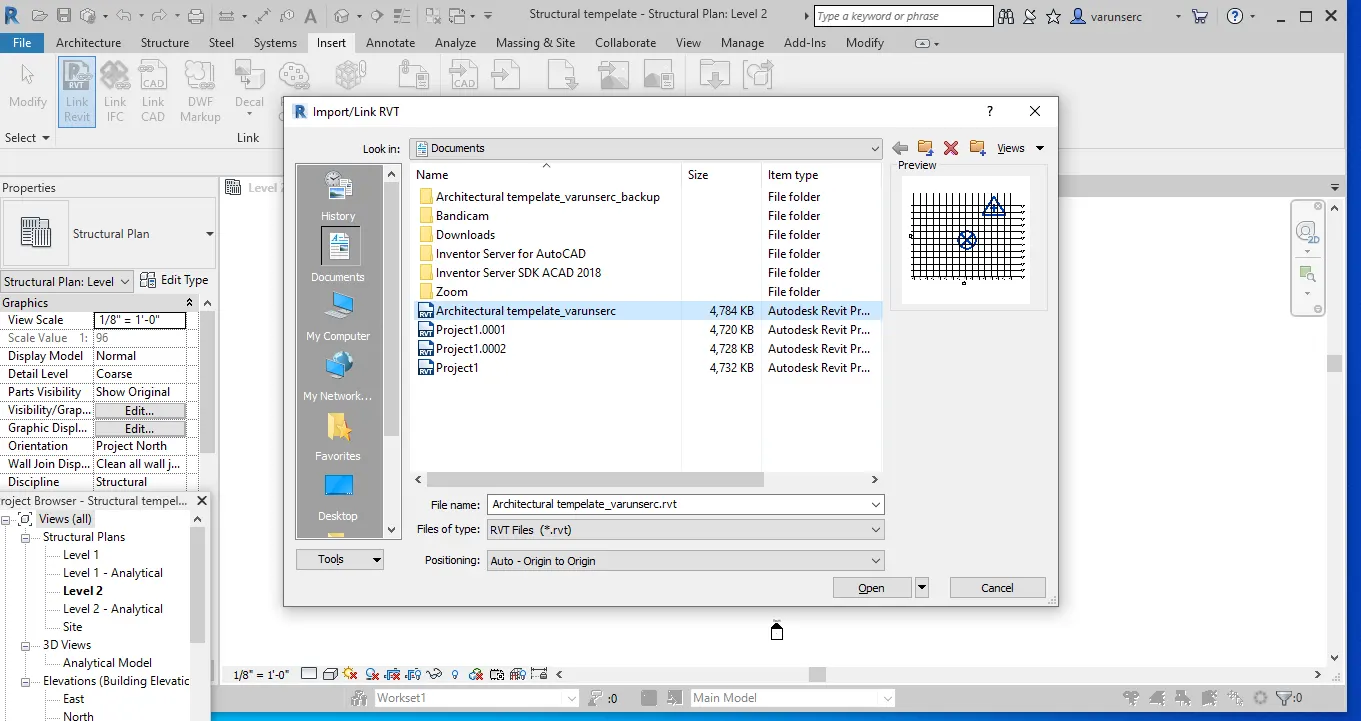

1) Click link under manage tab
2) Add the structural model into the current project using link option

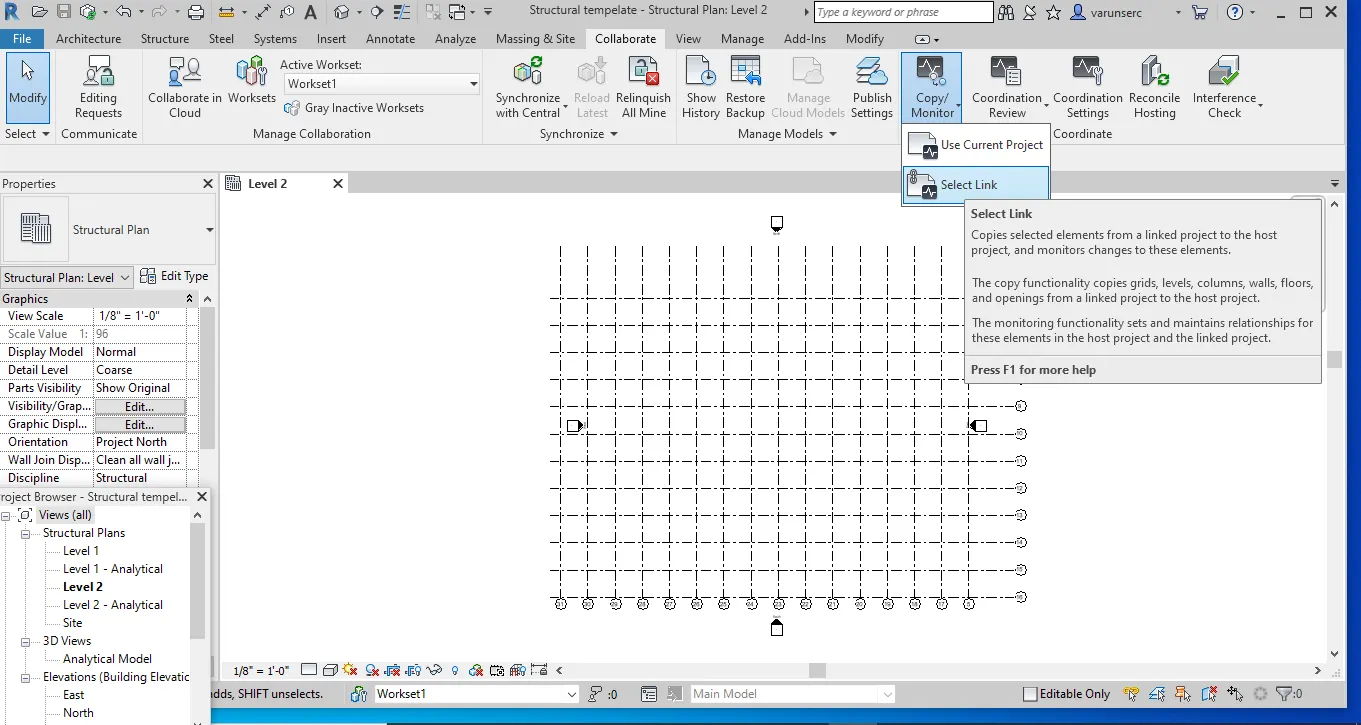

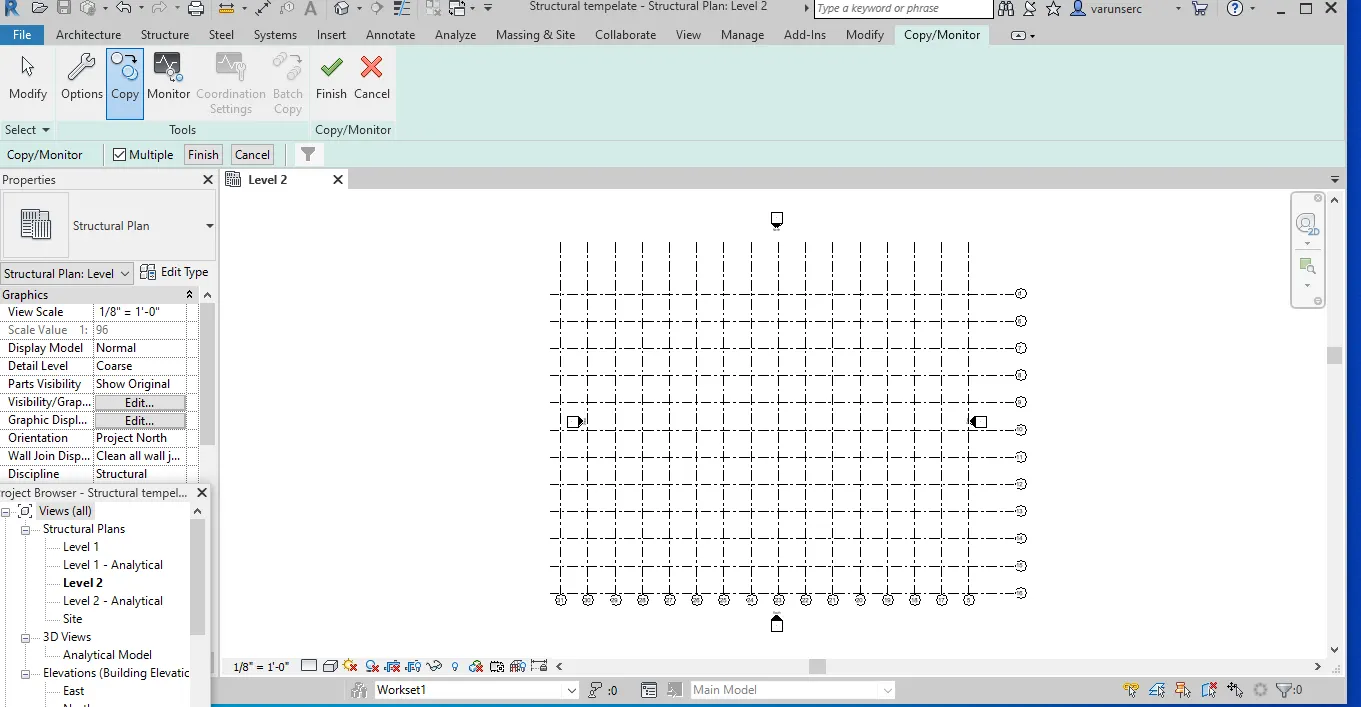

3) Click Copy monitor tool under colaborate tab and choose select link
Step 3:
1) Select copy option
2) Tick the multiple option so that we can copy all the object in a single click
3) Select the object which we want to copy
Step 4:
1) Click the tick mark and complete the copy monitor process
2) Hence the objects from architecture to structure model completed sucessfully

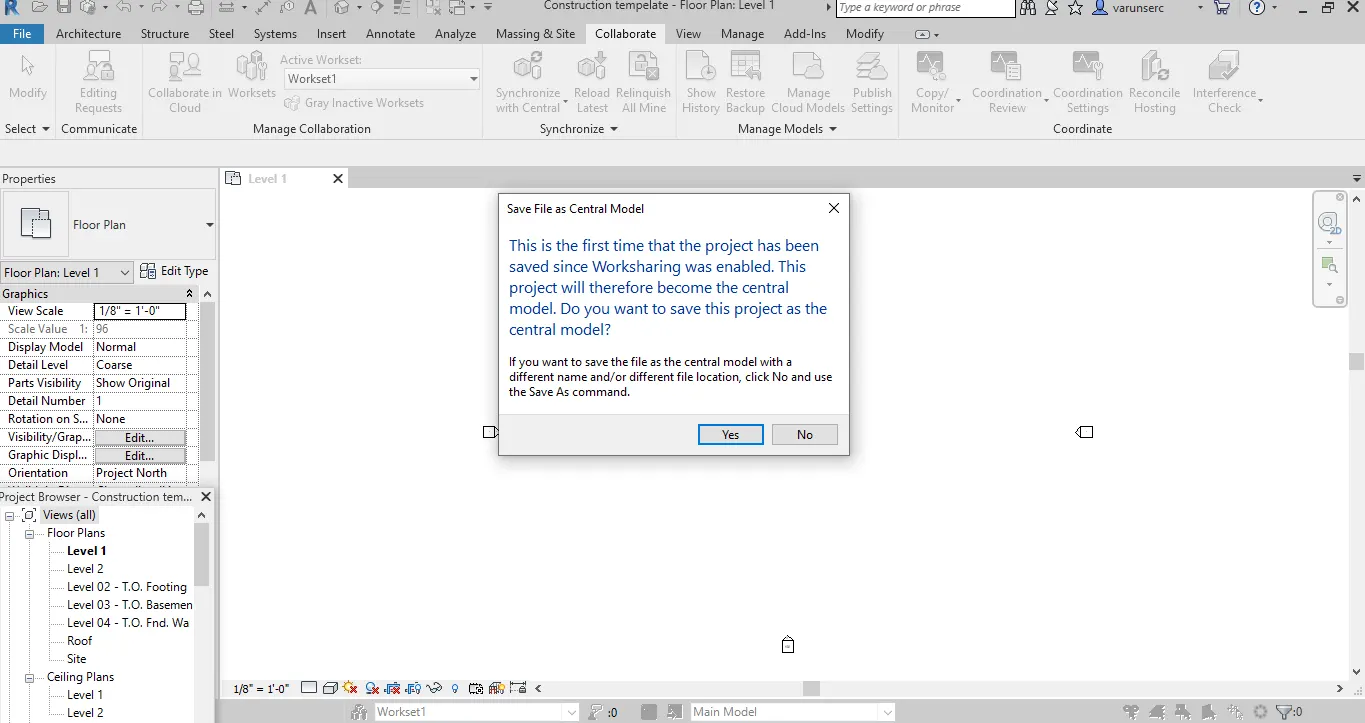

Question : Create another new file with construction template. Save the new file as central model. This file will include both architectural and structural model. Under manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.
Aim:
To creating a new file and link both architectural and structural tempalate.
Tools used:
* Tempelate
* Colaborate
* Synchronize
* Link
Procedure:
Step 1:
1) Open Revit Application
2) Select New and choose Construction tempelate
Step 2:

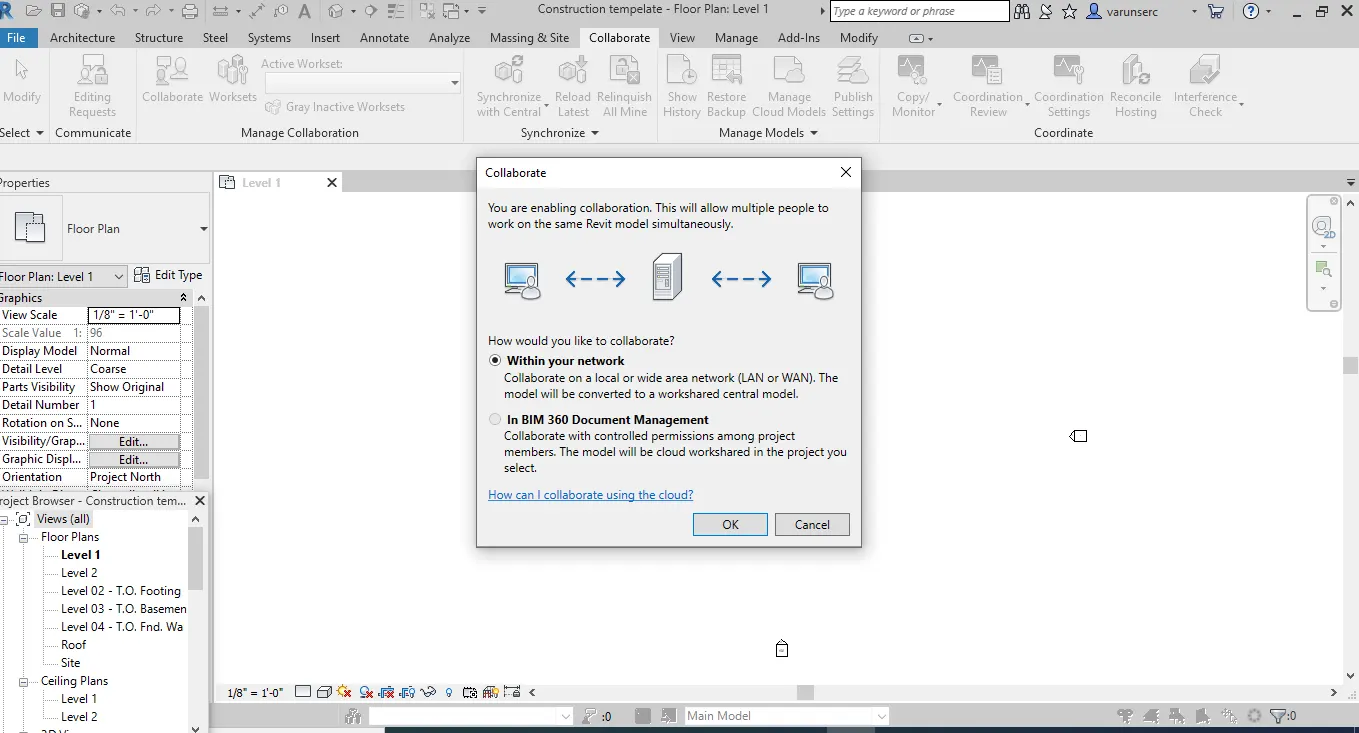

1) Click Colloborate tool under colloborate tab
2) Selct within your network option and click ok
3) After setting the colloborate click workset
4) Check workset tool is it visible or not
5) Click Synchronize with central tool under manage tab
6)click Save as and Choose the destination folder
7) Click ok
Step 3:
1) After creating the colaboration and click save as
2) Choose destination folder and rename it
Step 4:

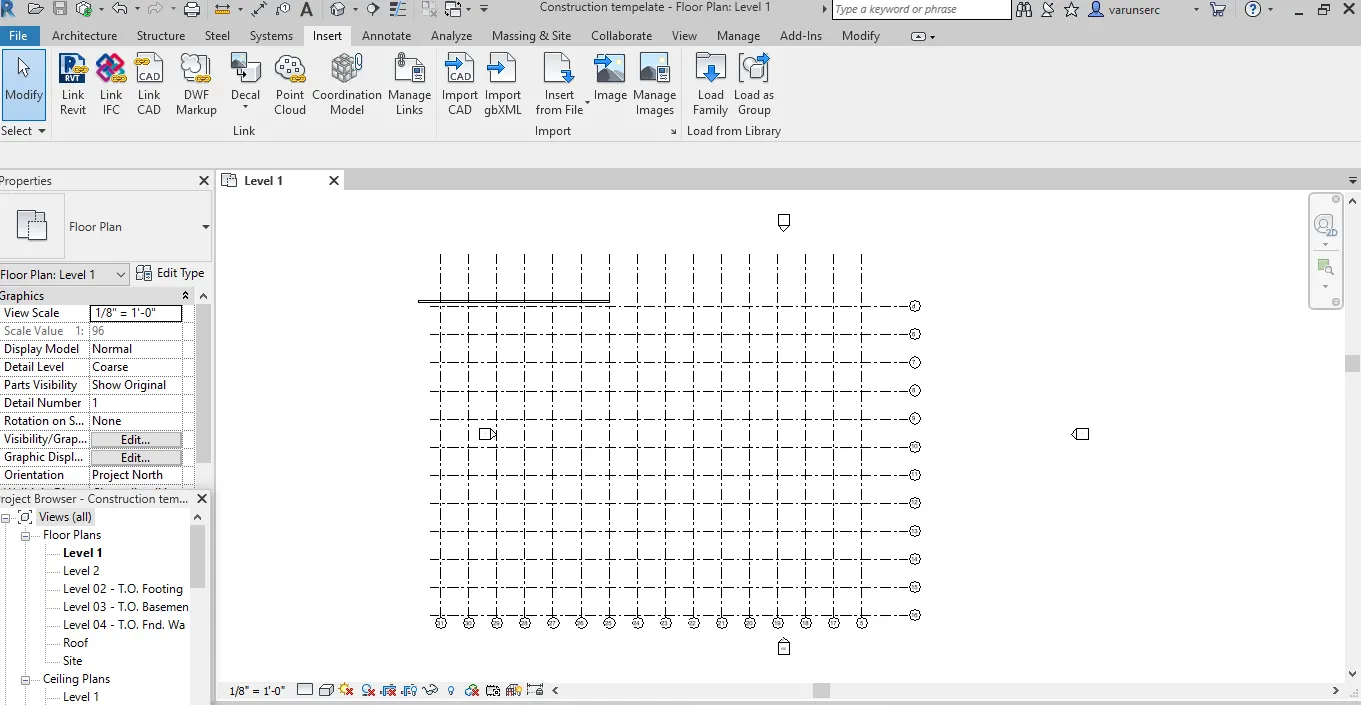

1) Click link under manage tab
2) Add the structural and architectural model into the current project using link option
3) Click ok
4) Click save as and save it
