Week 5 Challenge : Surface wrap on Automotive Assembly
Objective:
To perform surface wrap on automotive assembly
Target length for Wrap = 3 mm
Procedure:
Topo cleanup for all parts is done
Merging all the components
Closing all the holes before proceeding for surface wrap
Creating surface wrap for the full assembly using the wrap option in the mesh toolbar
Learning outcomes:
- Merging of 2 or more components
- Surface wraping

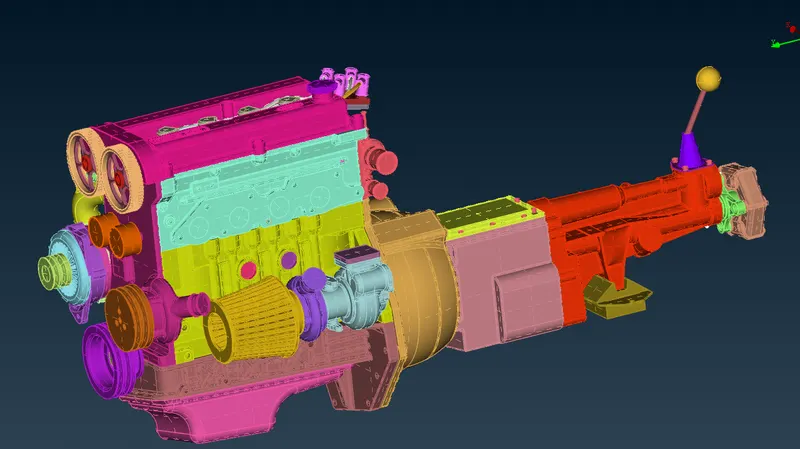

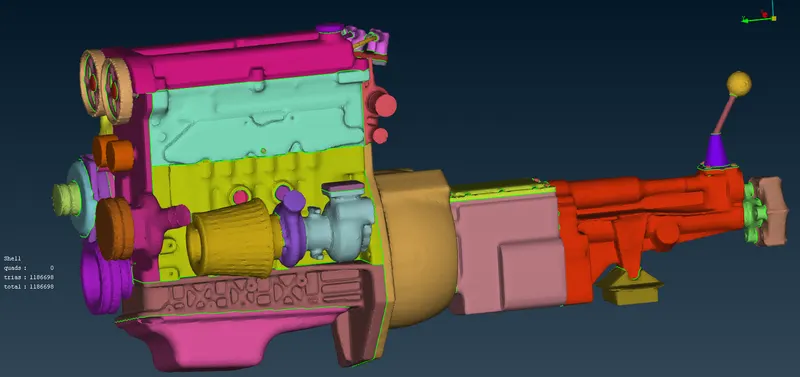

Results:
