Week 5 Challenge : Surface wrap on Automotive Assembly

Aim : Surface wrap an automotive assembly

procedure :

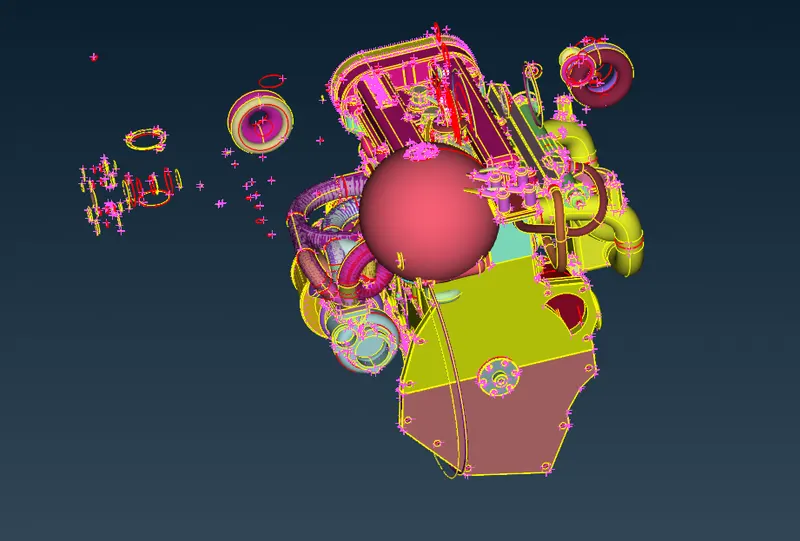

• Import the geometry

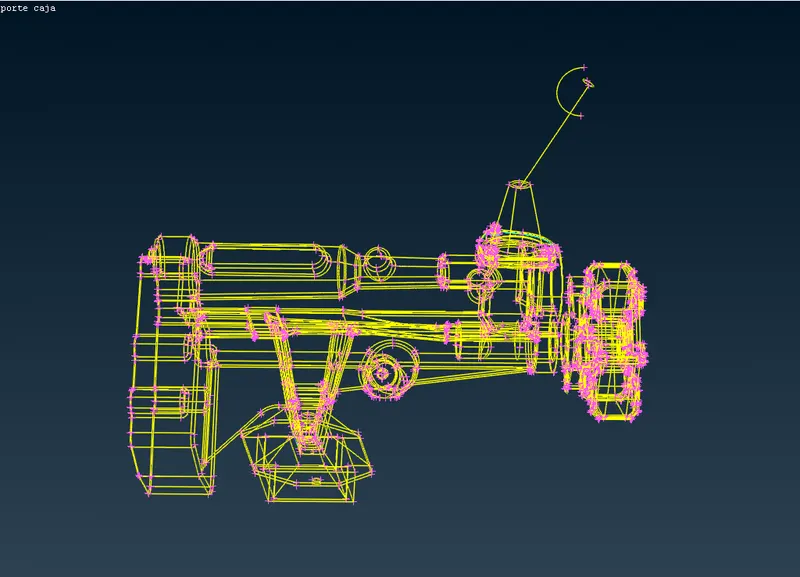

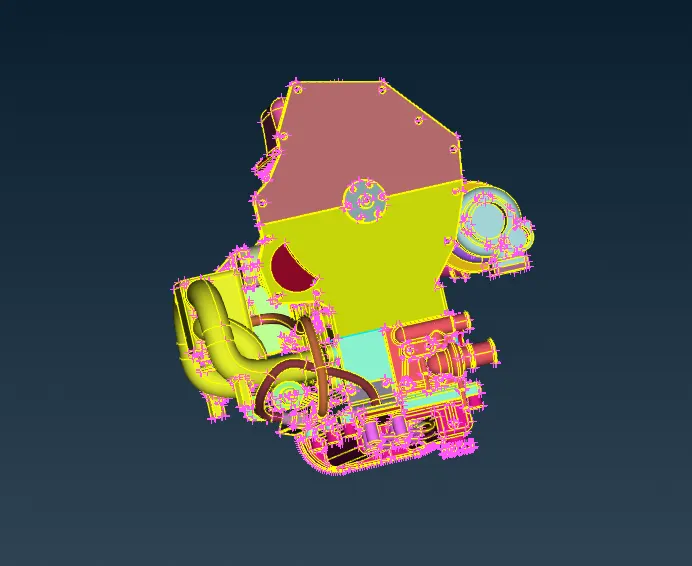

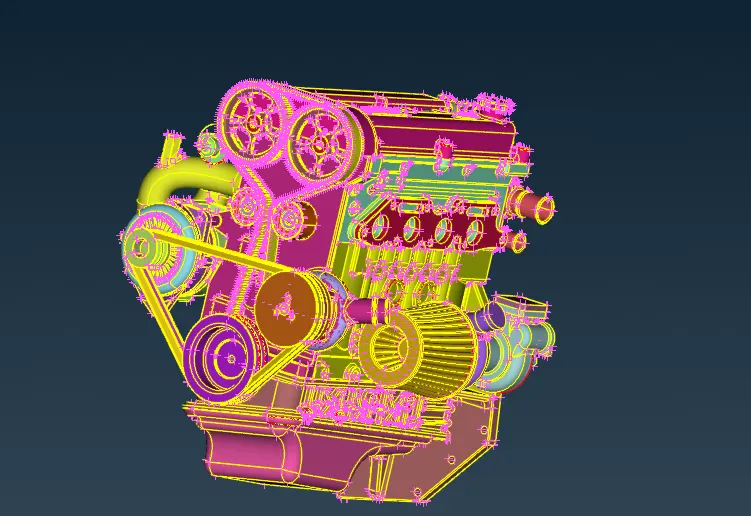

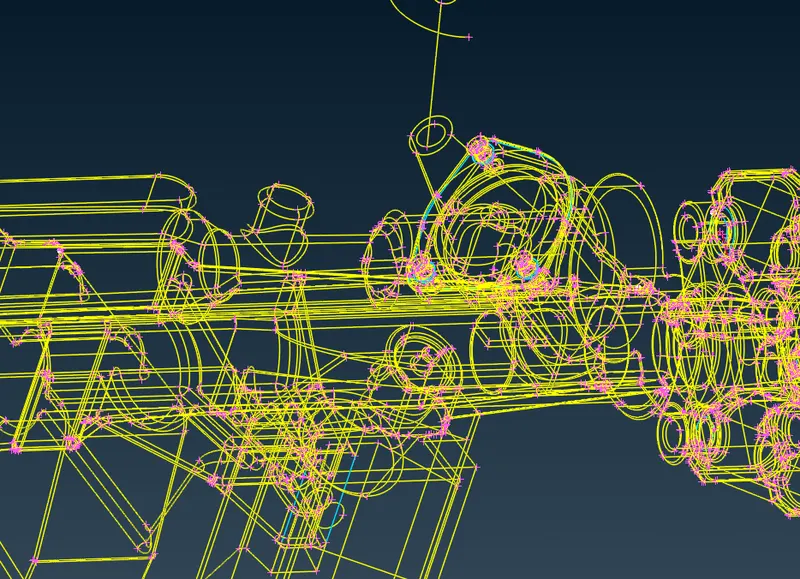

• Toplogy of the surface of the geometry
• Merge the geometries
• Surface wrap the assembly

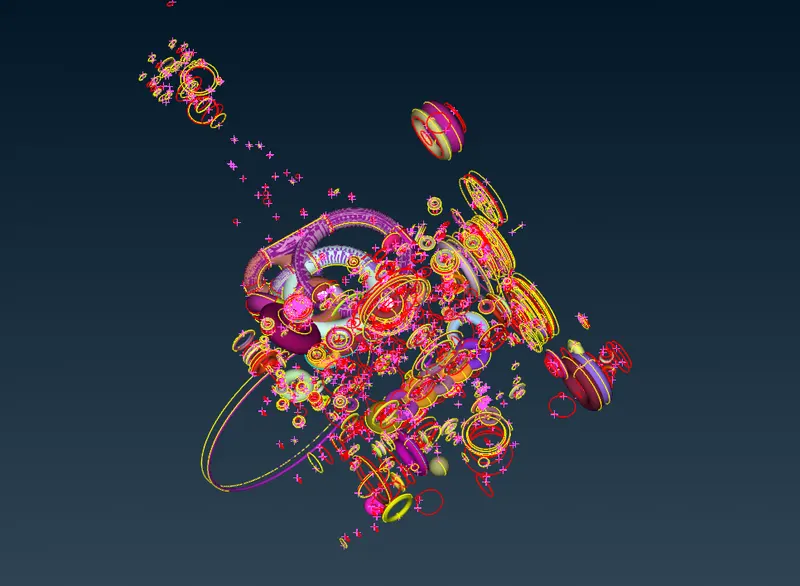

Remove unwanted entities that are not connected to the geometry and inside the geometry.

isolate the unwanted entities using not function or Inot function

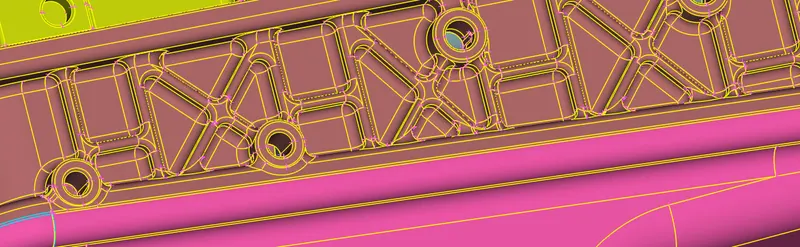

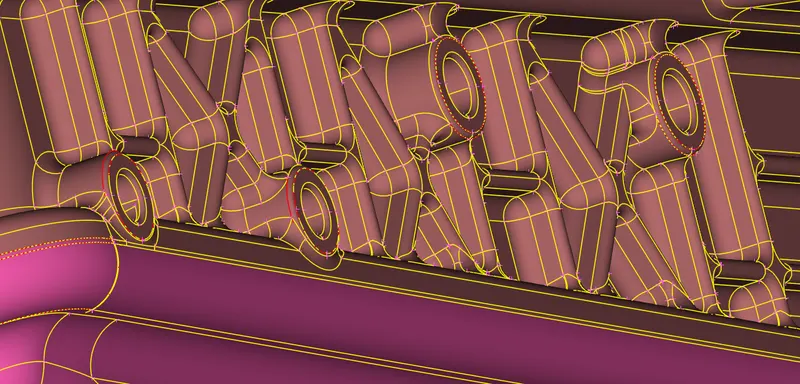

chec for visible surface errors and solve the errors. and use toppo to clear tolerance errors on the surface

after clearing errors on the surface save the file and do the same for the other parts of the assembly.

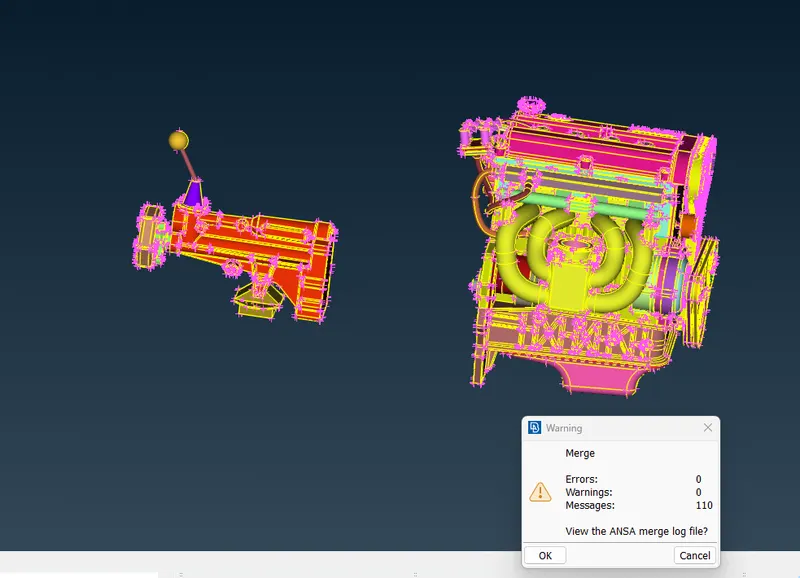

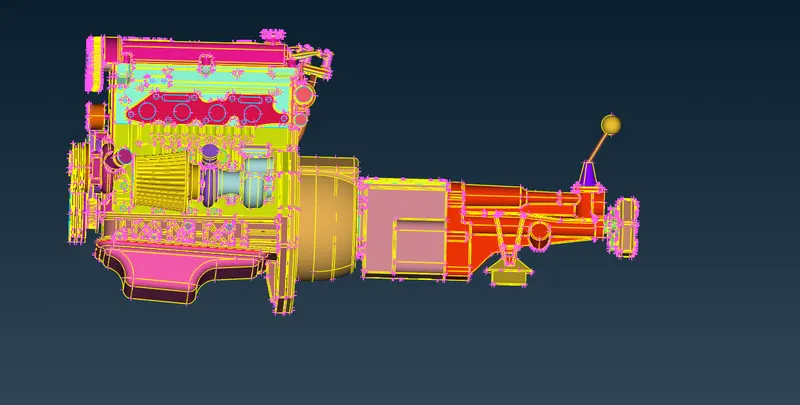

after completing toplogy of the other assembly parts use merge option to merge the imported file.

File > merge > select file > confirm

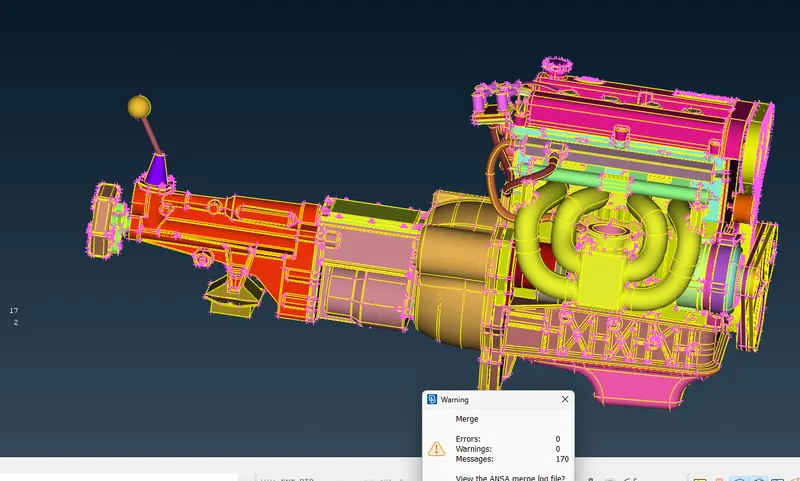

confirm if errors is zero for all mergings and proceed.

after merging file close all holes on the surface of the assembly.

Use compress option to remove unwanted PIDs

start surface wrap

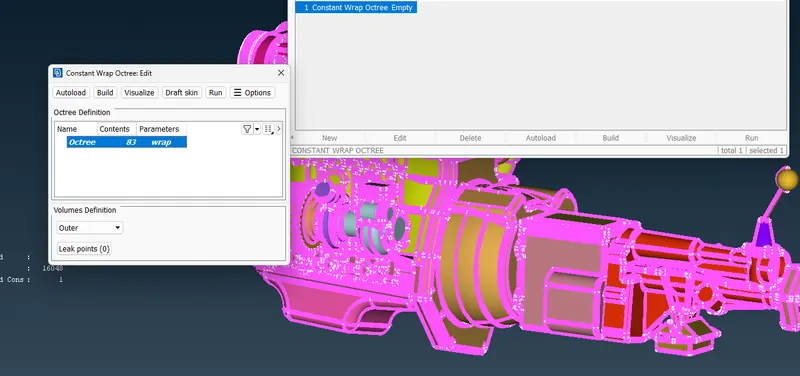

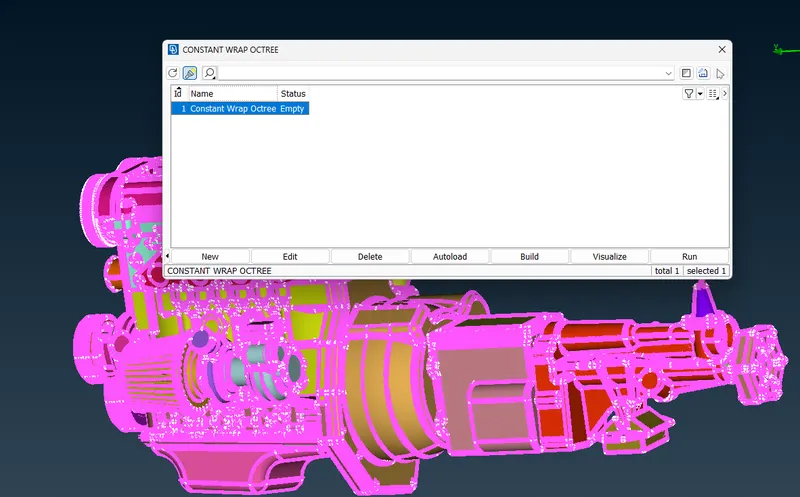

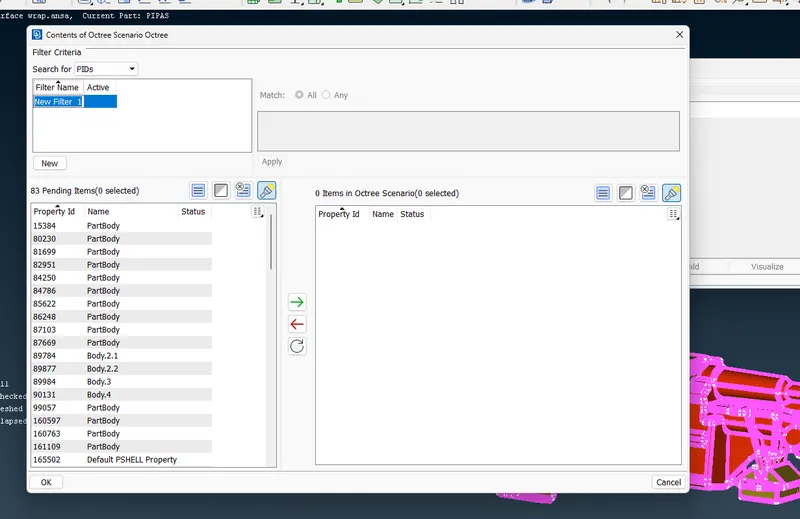

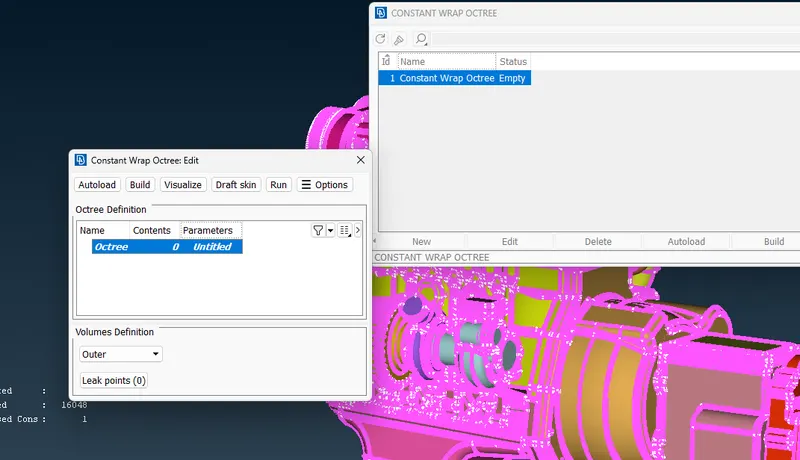

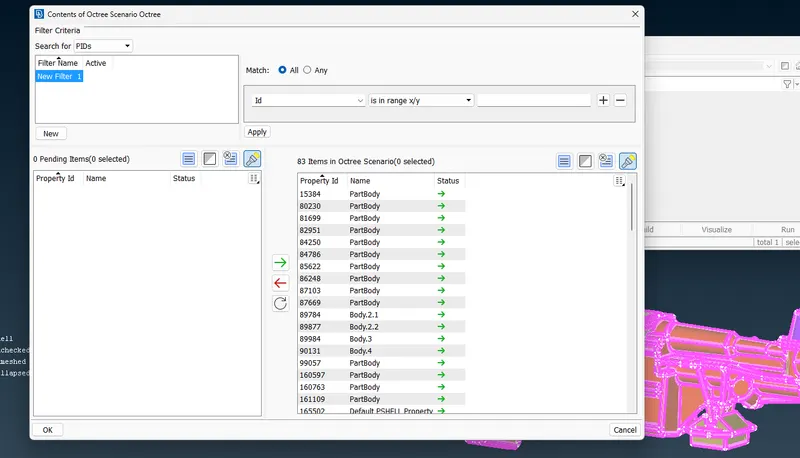

mesh > Octree > wrap > constant length > constant wrap octree > parametres > name > target length 3mm > ok > contents > select all PIDs > move > ok > Run >

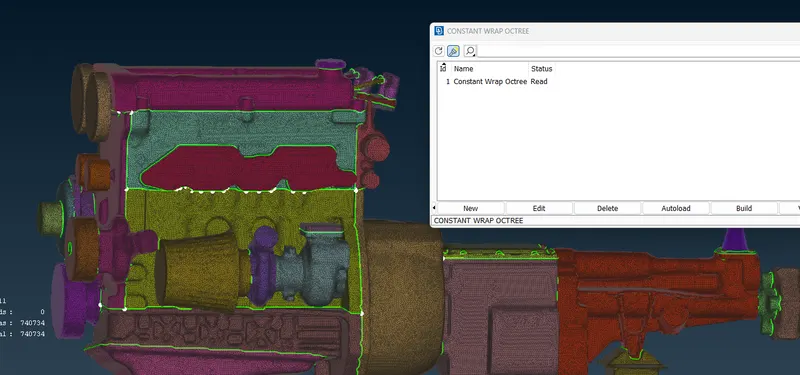

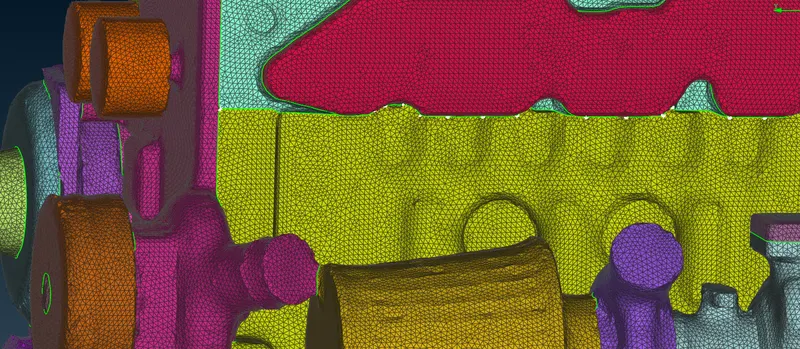

Result : Surface wrapped an automoive assembly.

Conclusion : The method for surface wrapping a complex geometry was learned.

link for surface wrapped automotive assembly

https://drive.google.com/file/d/1znNpYns73NO_3LzDfRv_2pCivSOMc1jB/view?usp=sharing
