Week 5 Challenge : Surface wrap on Automotive Assembly

Surface wrap on Automotive Assembly

AIM :-

For the given models, check for the geometrical errors and delete surfaces which are unwanted for Surface wrap as shown in the videos. After clearing geometry, Merge all 3 models and perform surface wrap.

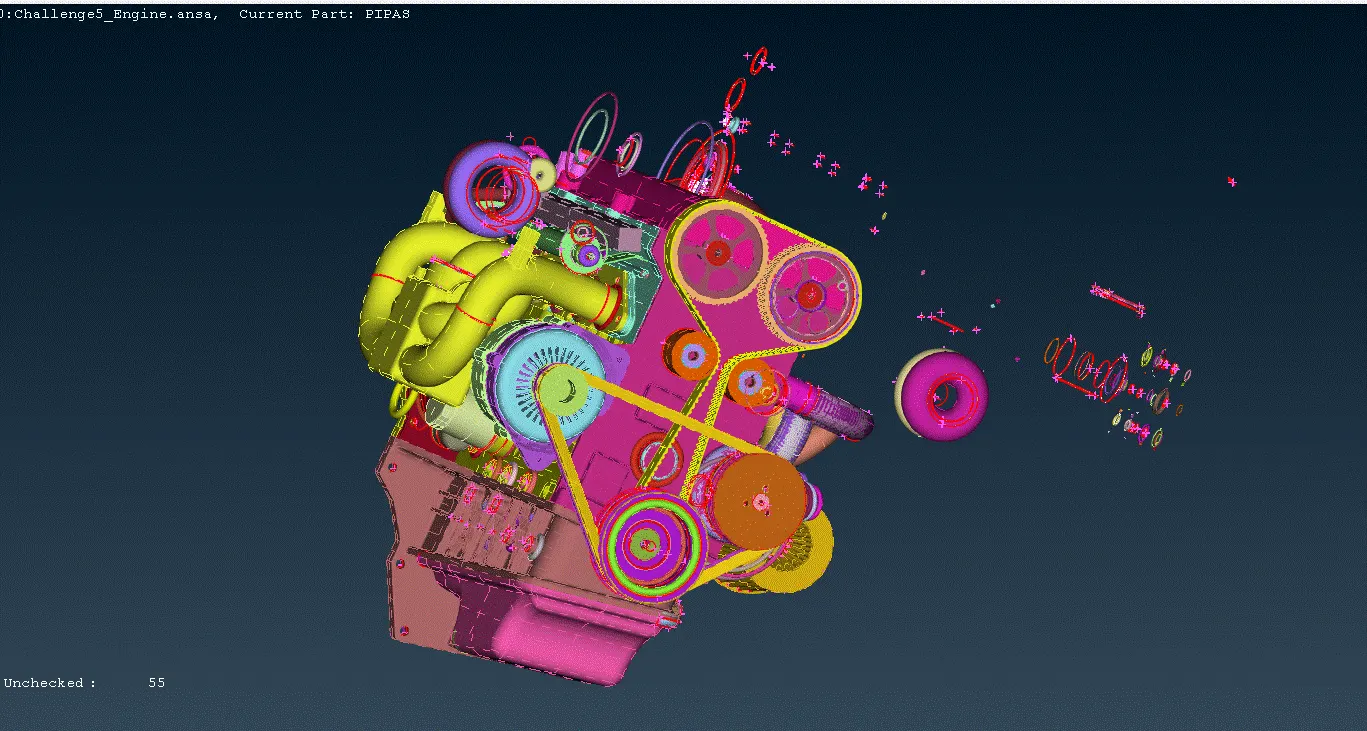

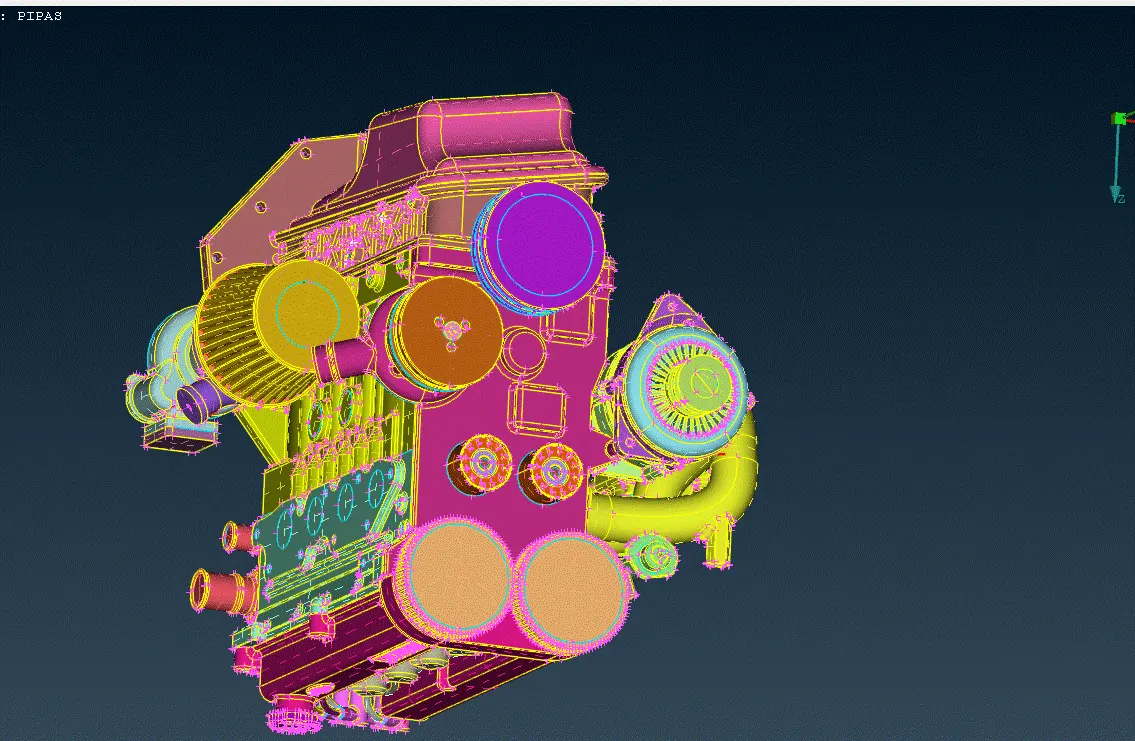

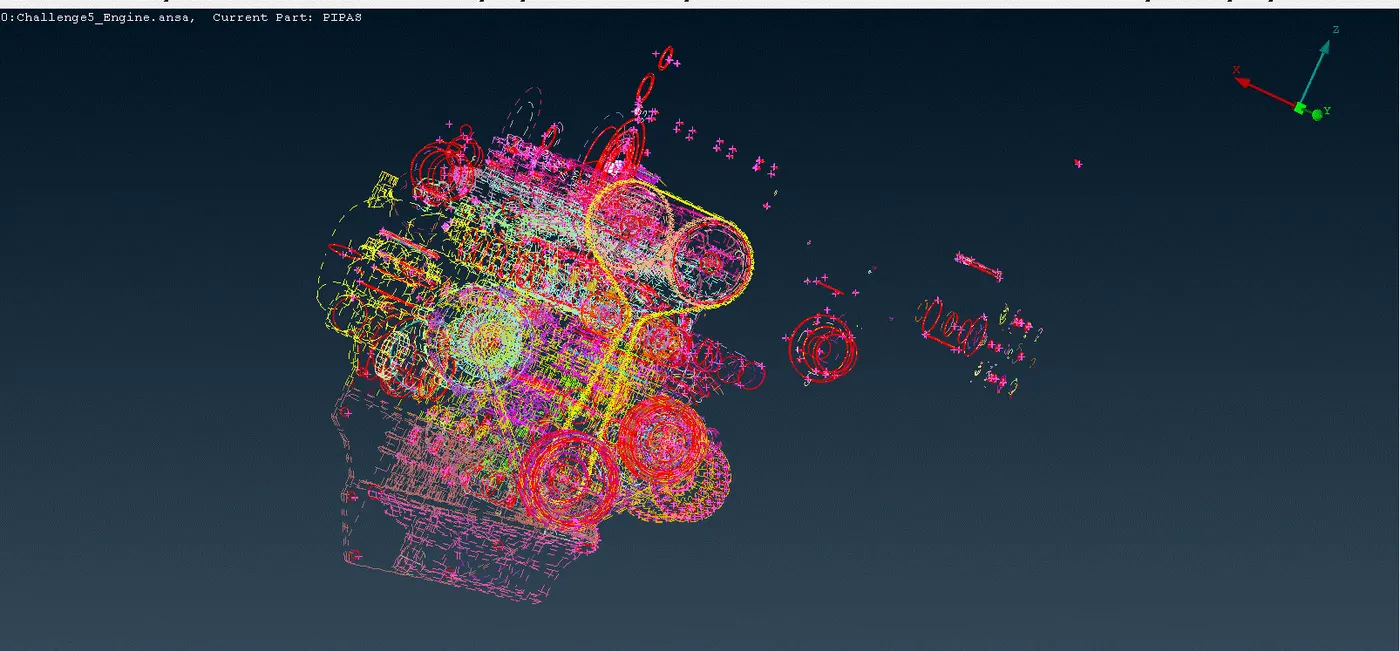

(1) Engine model

TOPO Clean up :-

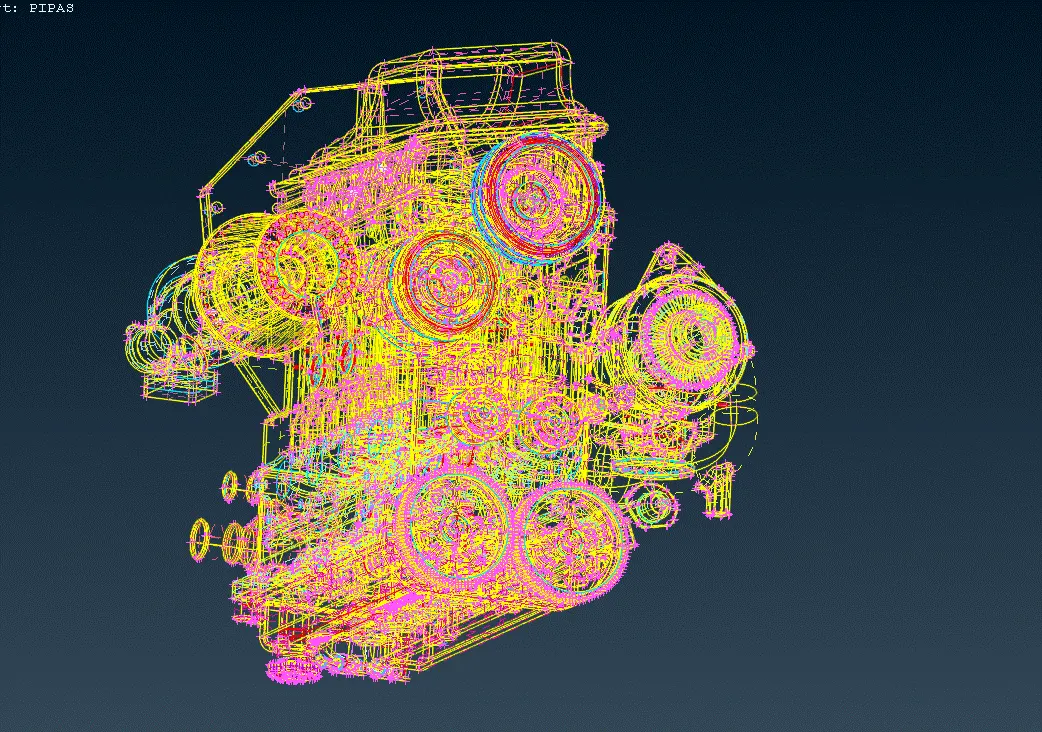

After TOPO Clean up

https://drive.google.com/file/d/16FJE7tXMBkC0oTmvmp1Ah6Wa_Y0nn3eK/view?usp=sharing

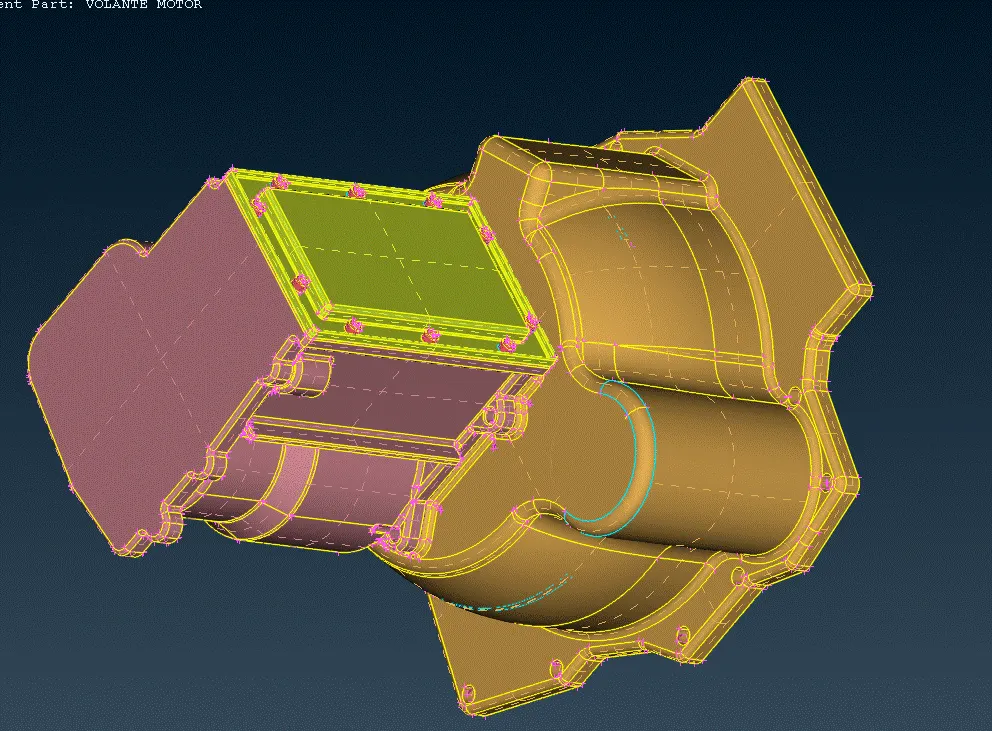

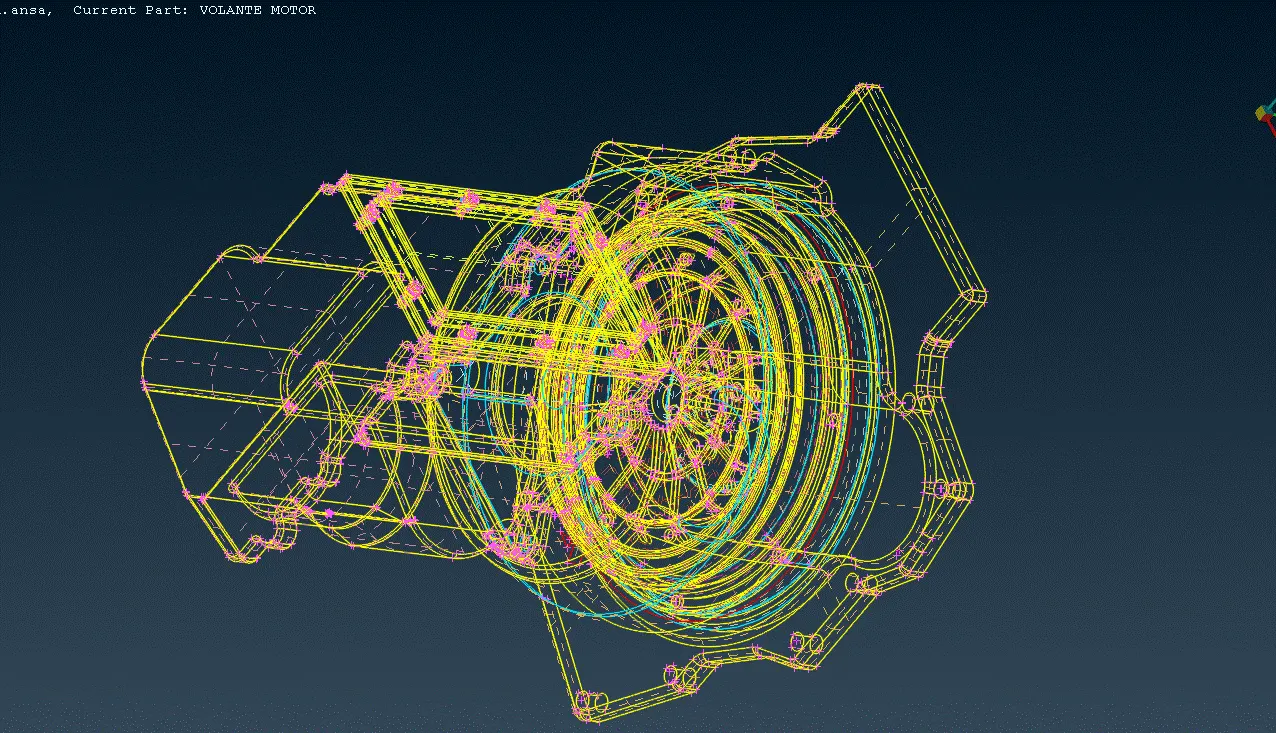

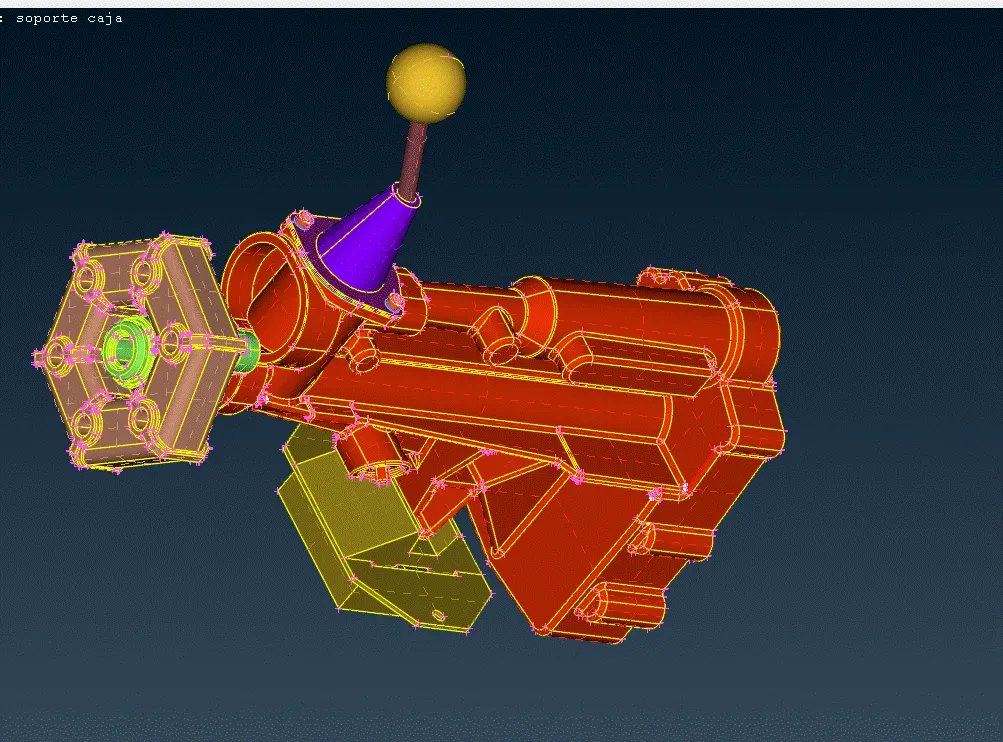

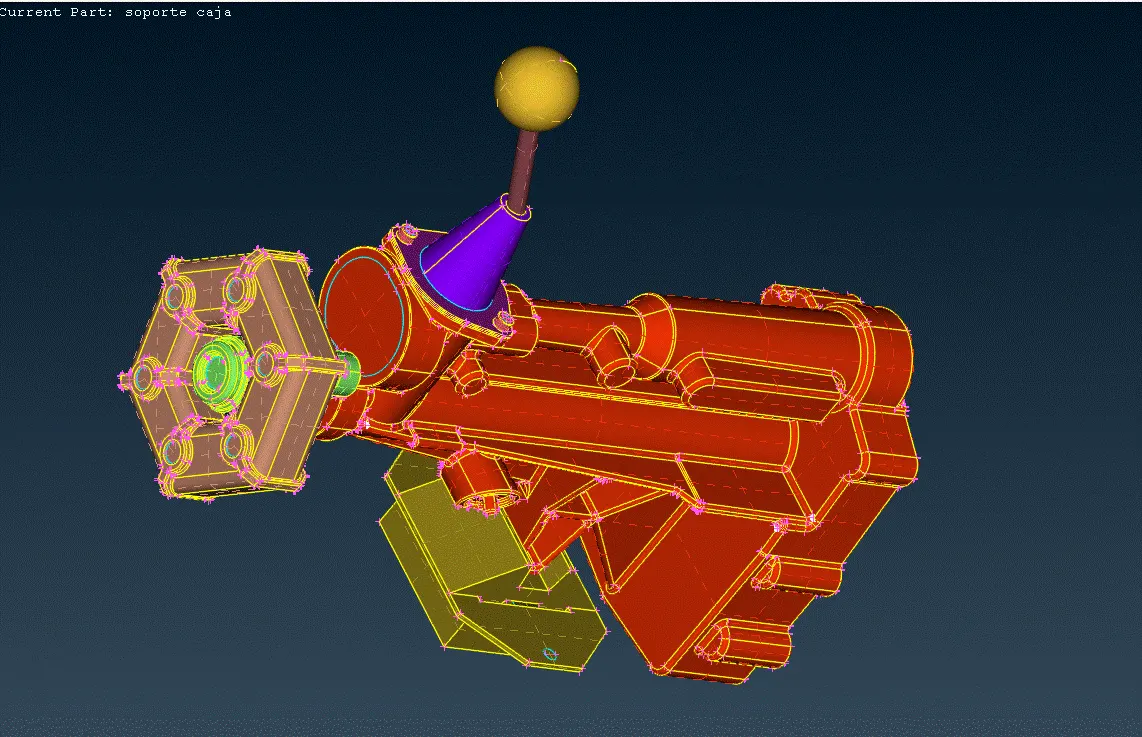

(2) Gearbox model:-

TOPO Clean up :-

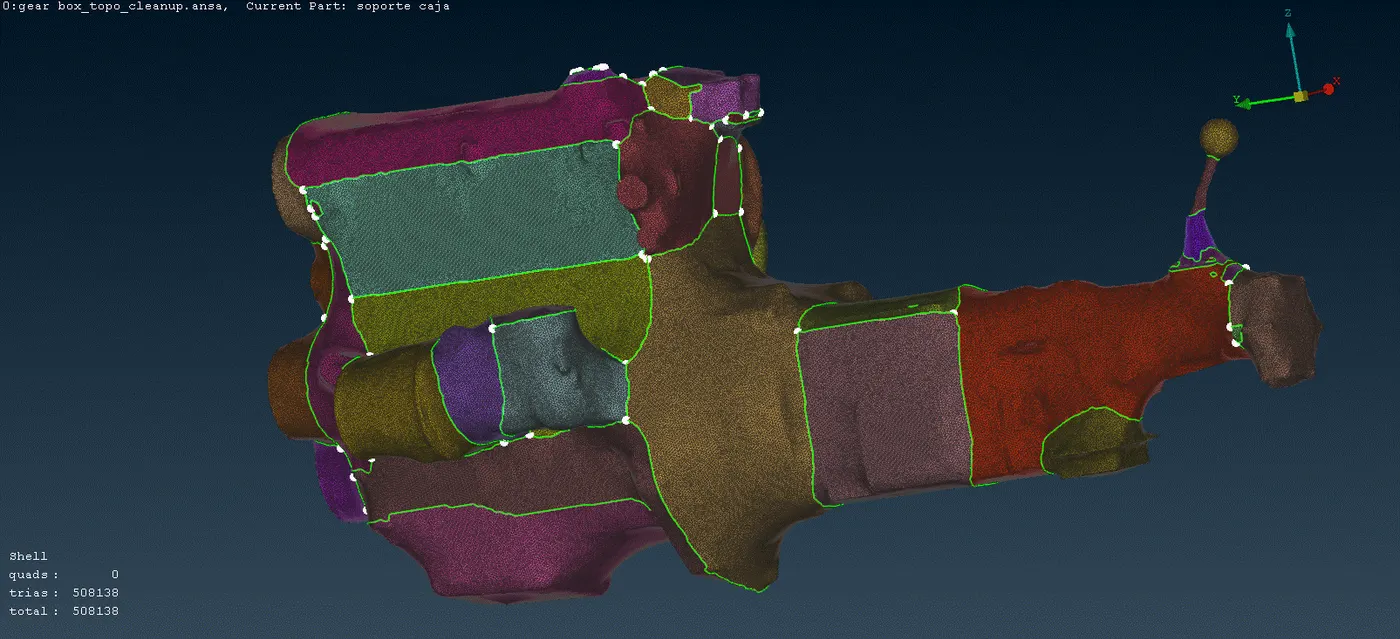

After TOPO Clean up

https://drive.google.com/file/d/1hNNItWahRDQO3GpErXnvTlqUdxlRSmM-/view?usp=sharing

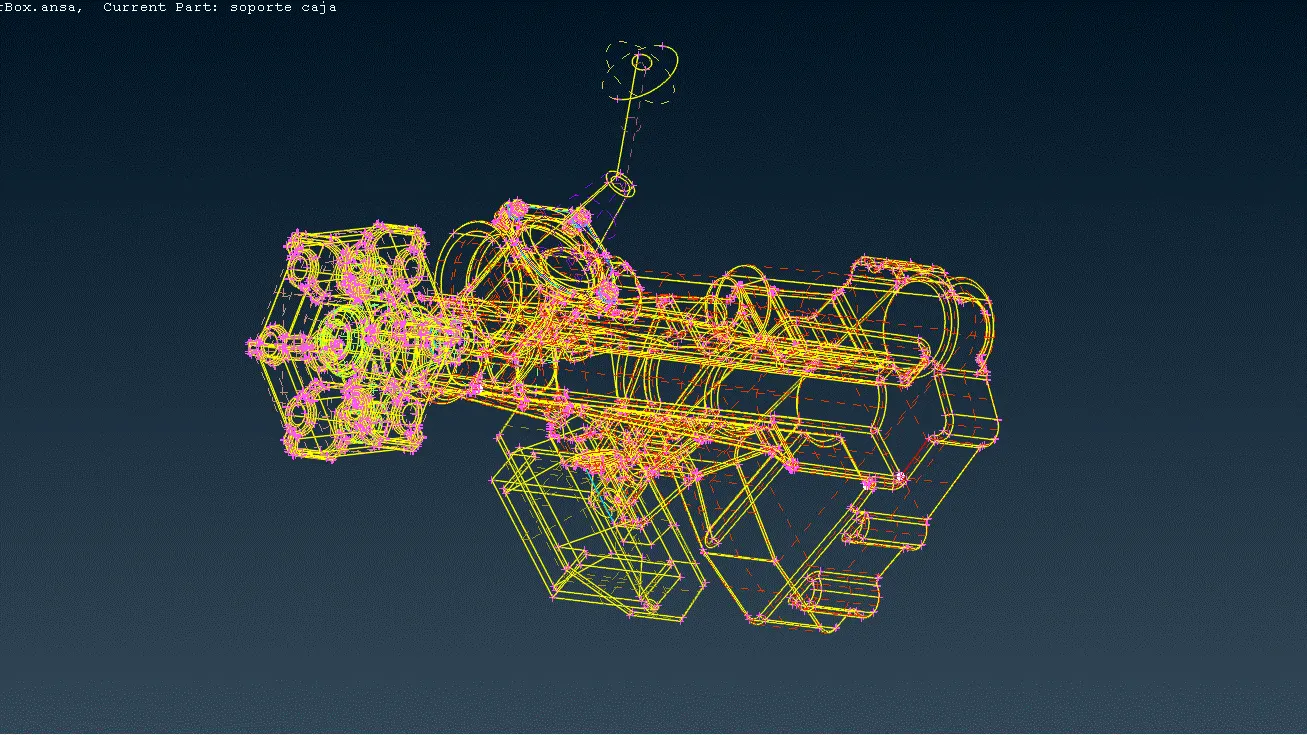

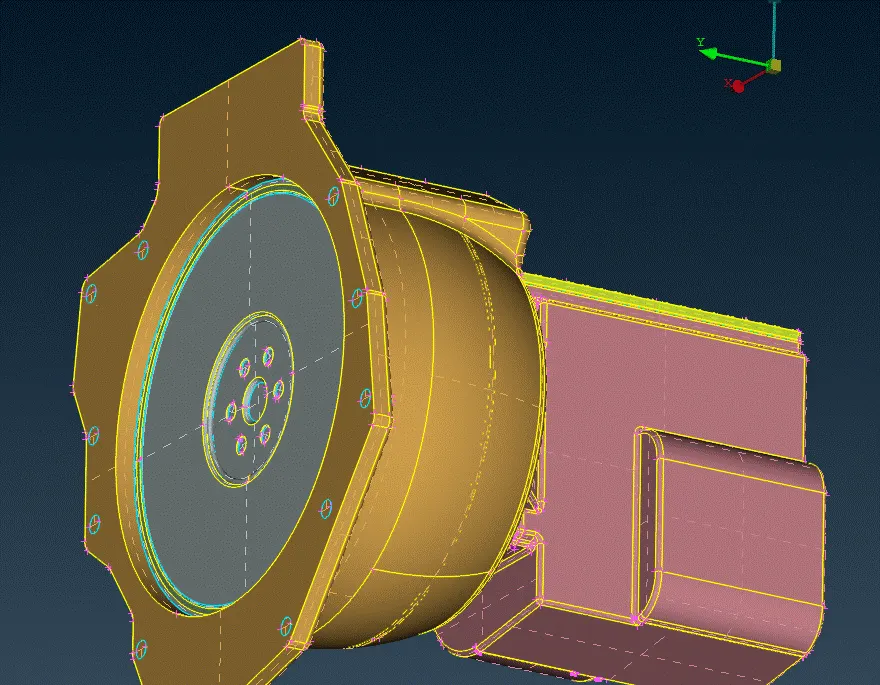

Transmission model :-

TOPO Clean up

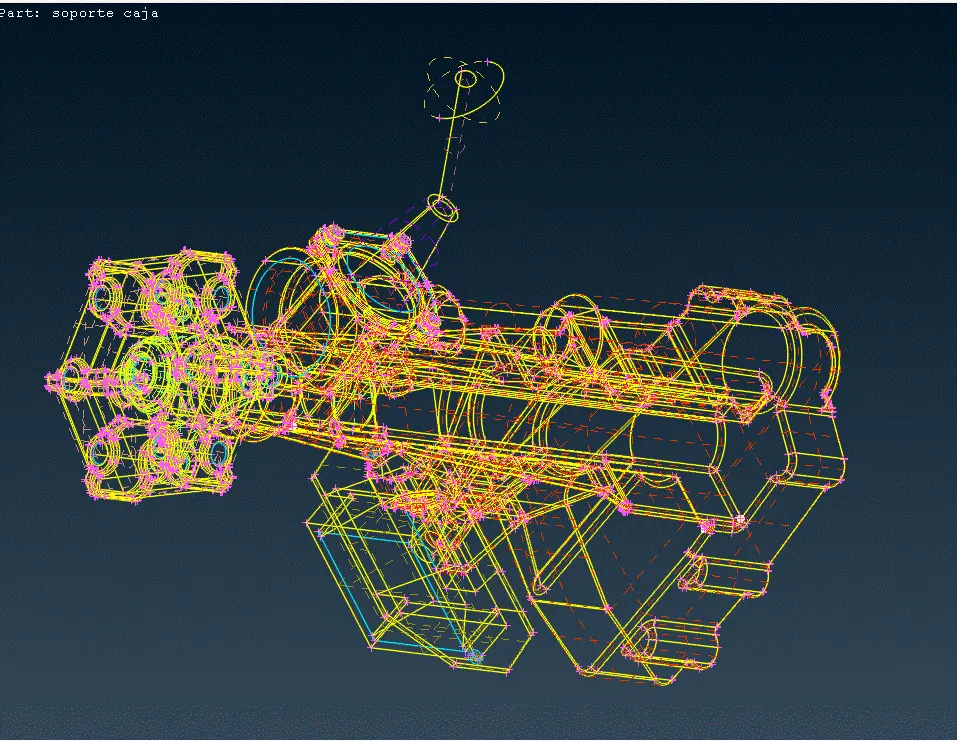

After TOPO Clean up

https://drive.google.com/file/d/14m2mBF0ZrVnHaLgb-xM64jlMtD5kMr_O/view?usp=sharing

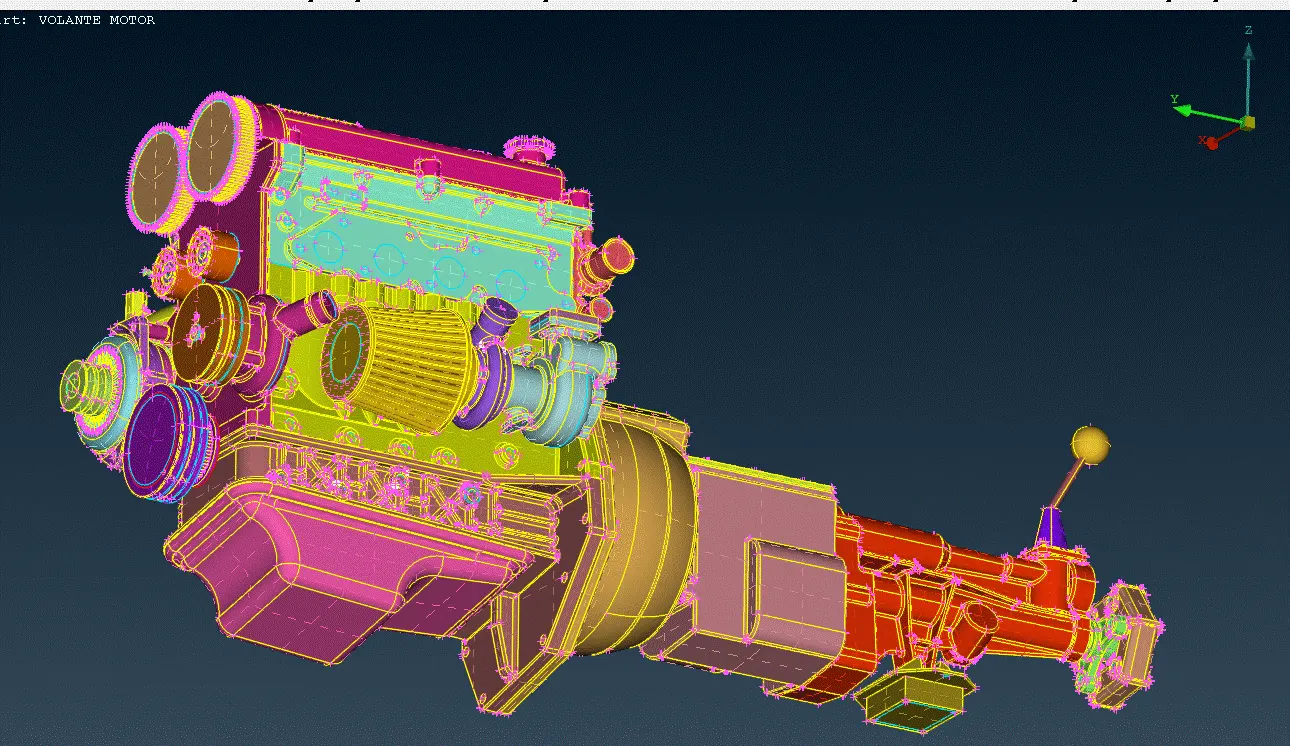

Merge :-

https://drive.google.com/file/d/1tFv1-0zt7hi15J-GK2kw7Z-mRLhiy_6W/view?usp=sharing

TOOLS

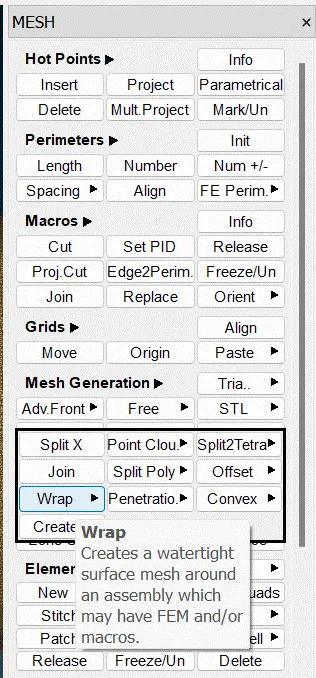

Wrap:-

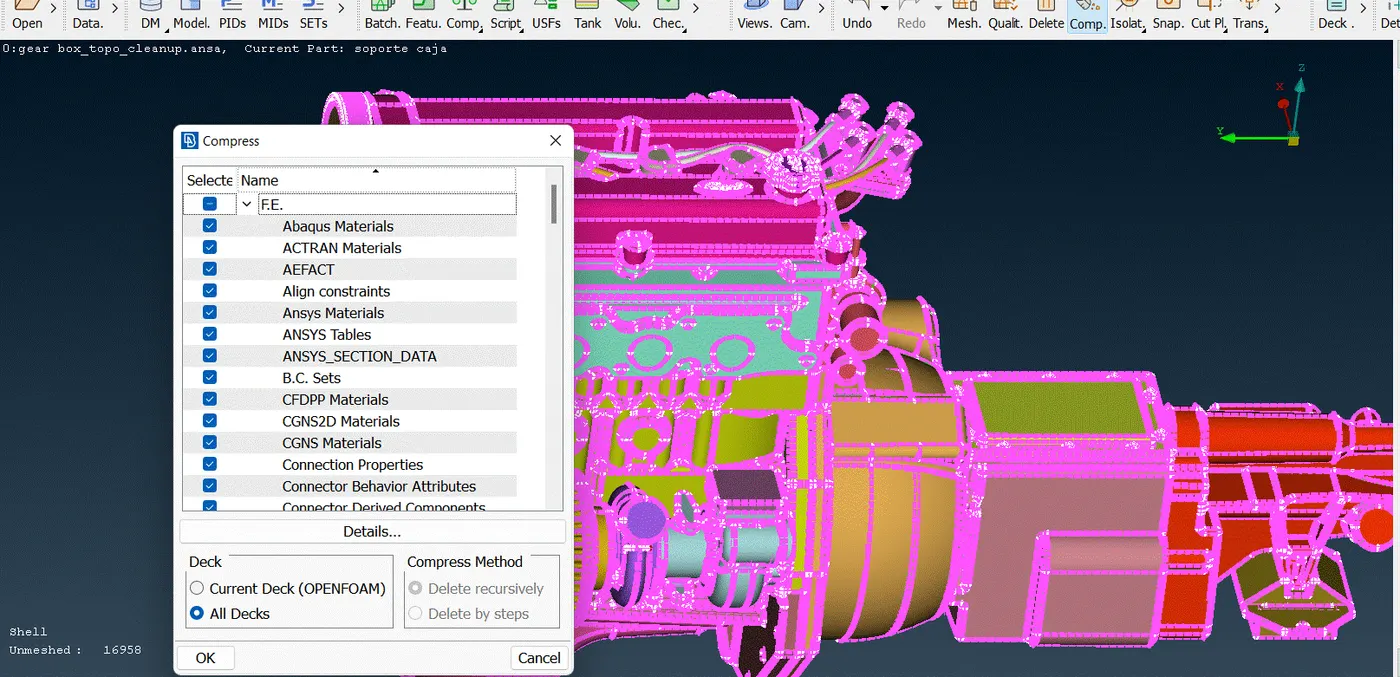

Compress:-

deleting unwanted PID's from PID's list

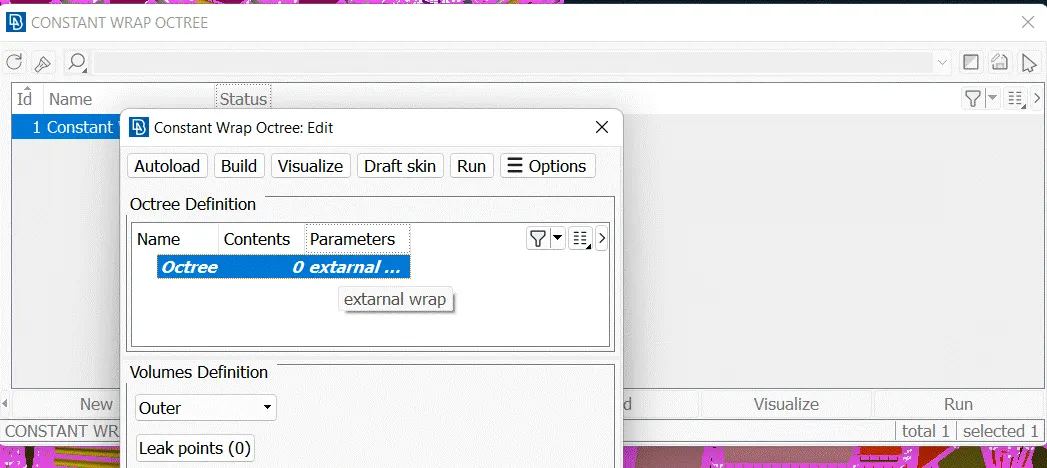

Constant Wrap Octree :-

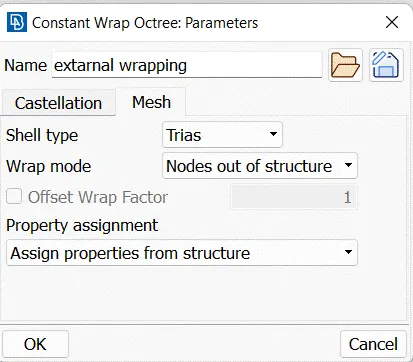

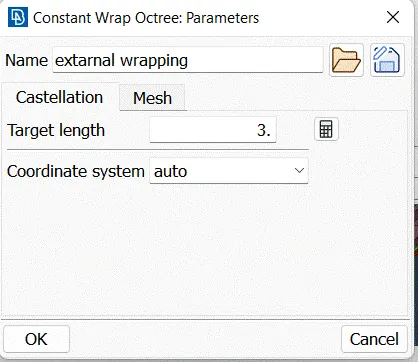

Constant Wrap Octree Parameters:-

Target length for Wrap = 3 mm

Mesh Octree Parametrs:-

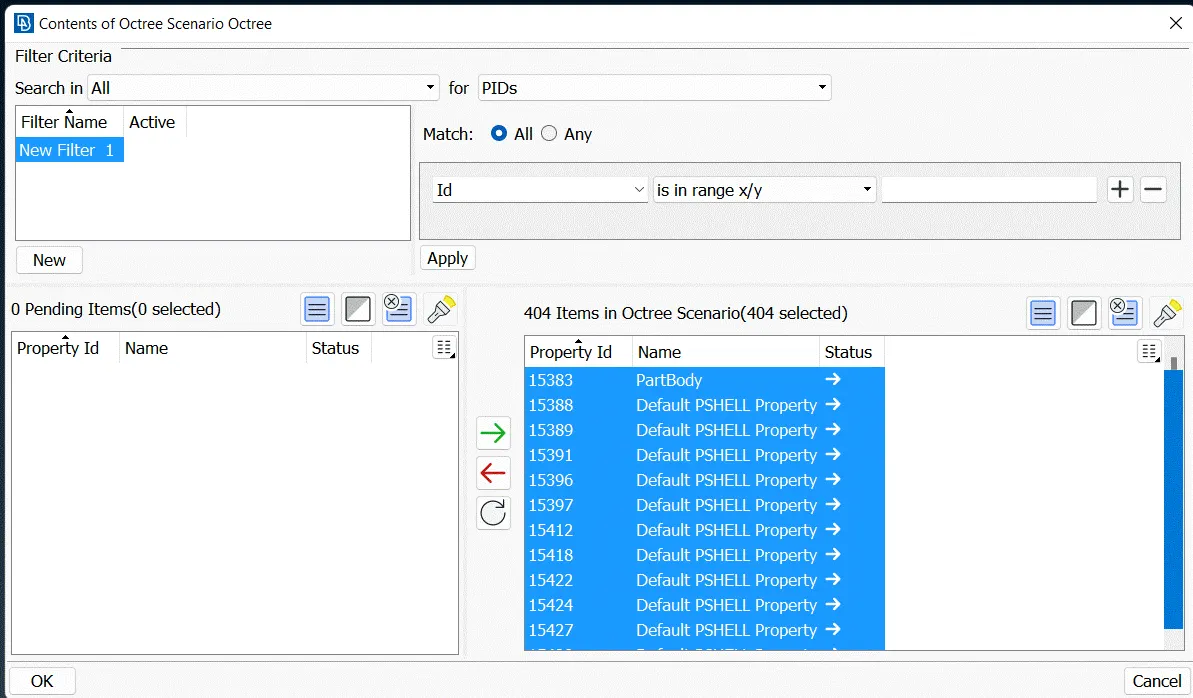

Taking all PID's for Wrap surface:-

Target length for Wrap = 3 mm

Wrap surfaces :-

One volume :-

Target length for Wrap = 3 mm

https://drive.google.com/file/d/1vQkDJzz3gBNwv9Jryw_7Lg0sM4bY4iA7/view?usp=sharing
