Project 1 - Parsing NASA thermodynamic data
AIM:-To write a program in matlab to parse the NASA thermodynamic data file and then calculate the thermodynamic properties of various gas species.
OBJECTIVE:-
. To write of function that extracts the 14co-efficiebt and calculates the enthalpy,entropy and specific heats for all species in the data file.
. Calculating the molecular weight of each species and displaying it in command window .
. Plotting cp,enthalpy and entropy for local temperature range specific for each species.
. Save the plot as images with appropriate names and dump them in separate folders for each species with suitable name.
EQUATIONS:-
The equatiion that we are going to use in the functions to calculate CP,H,S are
Where
CP = Specific heat
R = molar gas constant
T = Temperature
S = Entropy
H = Enthalpy
A = Coefficients
MAIN CODE OF THE FUNCTION:-
clear all
close all
clc
% open the dat file and read
f = fopen("THERMO.dat","r");
% skiping the 1 st 5 lines
for o=1:5
fgetl(f);
end
% parcing of all the species from the file
for i=1:53
% frist line of the frist species "o"
a=fgetl(f)
% splitting the string
b=strsplit(a," ");
speciesname=b{1};
% position of low ,high and mid temp
Z = length(b);
% extracting the local temp
low_temp=str2double(b{Z-3});
high_temp=str2double(b{Z-2});
mid_temp=str2double(b{Z-1});
% extracting the coefficinet
%line 1
co_line1=fgetl(f);
% finding the positions of E in line 1
pos_e1=strfind(co_line1,"E");
% ALL COEFFICIENTS OF LINE 1
a1=str2double(co_line1(1:pos_e1(1)+3));
a2=str2double(co_line1(pos_e1(1)+4:pos_e1(2)+3));
a3=str2double(co_line1(pos_e1(2)+4:pos_e1(3)+3));
a4=str2double(co_line1(pos_e1(3)+4:pos_e1(4)+3));
a5=str2double(co_line1(pos_e1(4)+4:pos_e1(5)+3));
% line 2
co_line2=fgetl(f);
% finding the position of E in line 2
pos_e2=strfind(co_line2,"E")
% ALL COEFFICIENTS OF LINE 2
a6=str2double(co_line2(1:pos_e2(1)+3));
a7=str2double(co_line2(pos_e2(1)+4:pos_e2(2)+3));
a8=str2double(co_line2(pos_e2(2)+4:pos_e2(3)+3));
a9=str2double(co_line2(pos_e2(3)+4:pos_e2(4)+3));
a10=str2double(co_line2(pos_e2(4)+4:pos_e2(5)+3));
% line 3
co_line3=fgetl(f);
% finding the positions of E in line 3
pos_e3=strfind(co_line3,"E");
% ALL COEFFICIENTS OF LINE 3
a11=str2double(co_line3(1:pos_e3(1)+3));
a12=str2double(co_line3(pos_e3(1)+4:pos_e3(2)+3));
a13=str2double(co_line3(pos_e3(2)+4:pos_e3(3)+3));
a14=str2double(co_line3(pos_e3(3)+4:pos_e3(4)+3));
% save the species in the folder
mkdir(['C:\Users\akbar\OneDrive\Documents\MATLAB\species\',speciesname]);
% universal gas constant(R)
R= 8.3145;
% calculating specific heat ,entropy and enthalpy
% a1-a7 high temp co_effi , a8-a14 low temp co_effi
T=linspace(low_temp,high_temp,1000);
for k = 1:length(T);
if T(k)>mid_temp
% high temp co_effi
Cp(k)=(a1+a2*T(k)+a3*T(k)^2+a4*T(k)^3+a5*T(k)^4)*R;
H(k)=(a1+(a2*T(k))/2+(a3*T(k)^2)/33+(a4*T(k)^3)/4+(a5*T(k)^4)/5+a6/T(k))*R*T(k);
S(k)=(a1*log(T(k))+a2*T(k)+(a13*T(k)^2)/2+(a4*T(k)^3)/3+(a5*T(k)^4)/4+a7)*R;
else
% low temp coeffi
Cp(k)=(a8+a9*T(k)+a10*T(k)^2+a11*T(k)^3+a12*T(k)^4)*R;
H(k)=(a8+(a9*T(k))/2+(a10*T(k)^2)/3+(a11*T(k)^3)/4+(a12*T(k)^4)/5+a13/T(k))*R*T(k);
S(k)=(a8*log(T(k))+a9*T(k)+(a10*T(k)^2)/2+(a11*T(k)^3)/3+(a12*T(k)^4)/4+a14)*R;
end
end
% saving the file in the folder
cd(['C:\Users\akbar\OneDrive\Documents\MATLAB\species\',speciesname]);
% plotting
figure(1);
plot(T,Cp,"Linewidth",3,"Color","g");
xlabel("temperature");
ylabel("specific heat");
title("species name ,speciesname");
legend("Temperature vs specific heat");
grid on
saveas(1,"specific heat","jpg");
figure(2);
plot(T,H,"Linewidth",3,"Color","g");
xlabel("temperature");
ylabel("Entropy");
title("species name ",speciesname);
legend("Temperature vs entropy");
grid on ;
saveas(2,"Entropy","jpg");
figure(3);
plot(T,S,"Linewidth",3,"Color","g");
xlabel("temperature");
ylabel("Enthalpy");
title("species name ",speciesname);
legend("Temperature vs Enthalpy");
grid on;
saveas(3,"Enthalpy","jpg");
% calulating the moleculer weigth
elements = ['H','C','N','O','A'];
atomic_weight =[1.0079,12.0107,14.0067,15.999,39.948];
mol_mass=0;
for l=1:length(speciesname)
for m=1:length(atomic_weight)
if strcmp(speciesname(l),elements(m))
mol_mass=mol_mass+atomic_weight(m);
position=m
end
end
n=str2double(speciesname(l));
if n>1
mol_mass=mol_mass+atomic_weight(position)*(n-1);
end
end
sprintf('molecular weight of %s is %f',speciesname,mol_mass)
end
fclose(f)

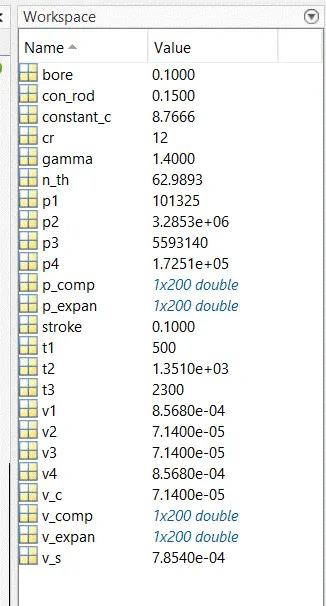

OUTPUT IN WORKSPACE:-
OUTPUT:-

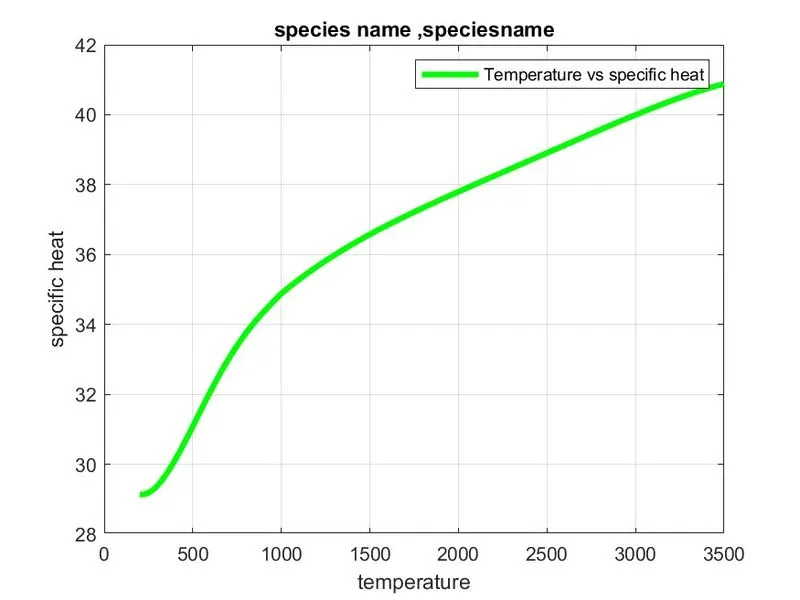

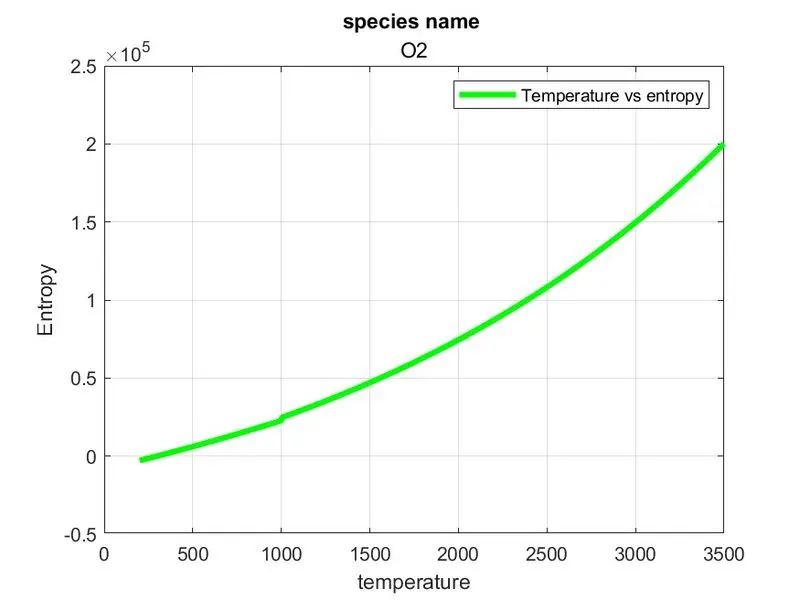

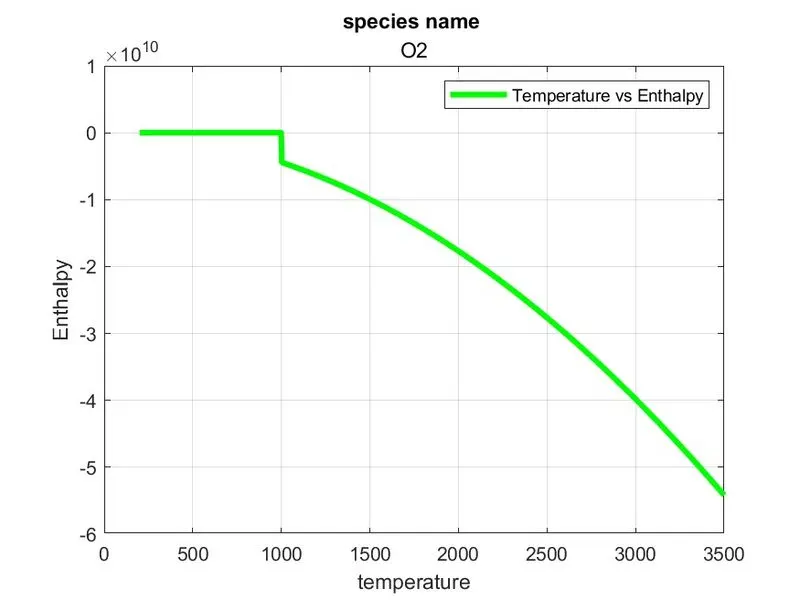

plot for oxygen(O2):-
OUTPUT:-

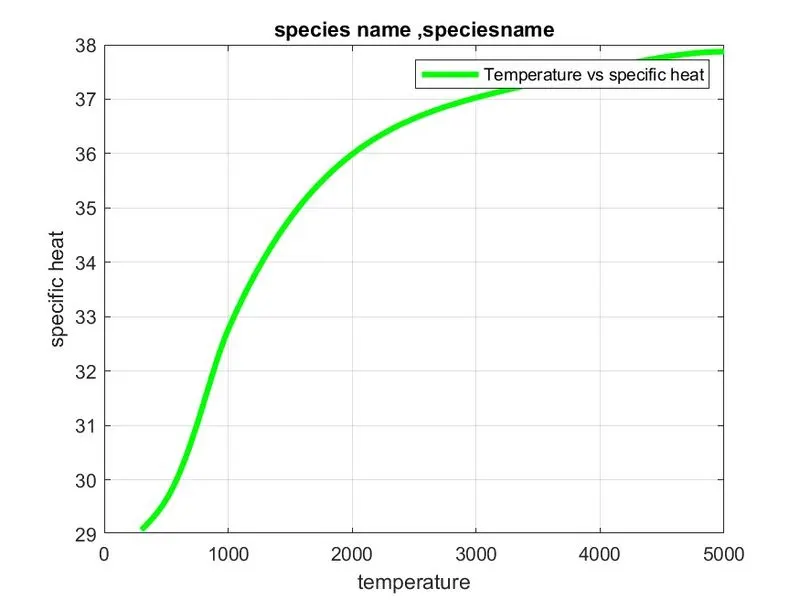

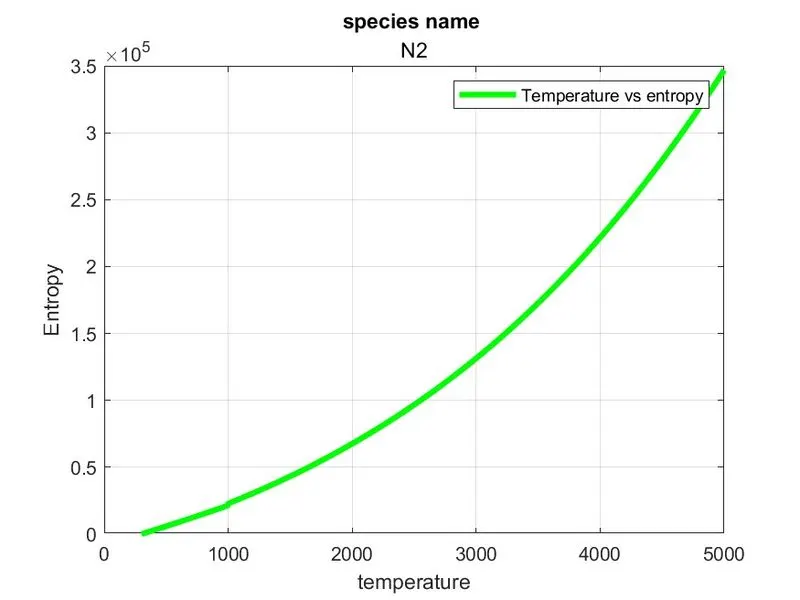

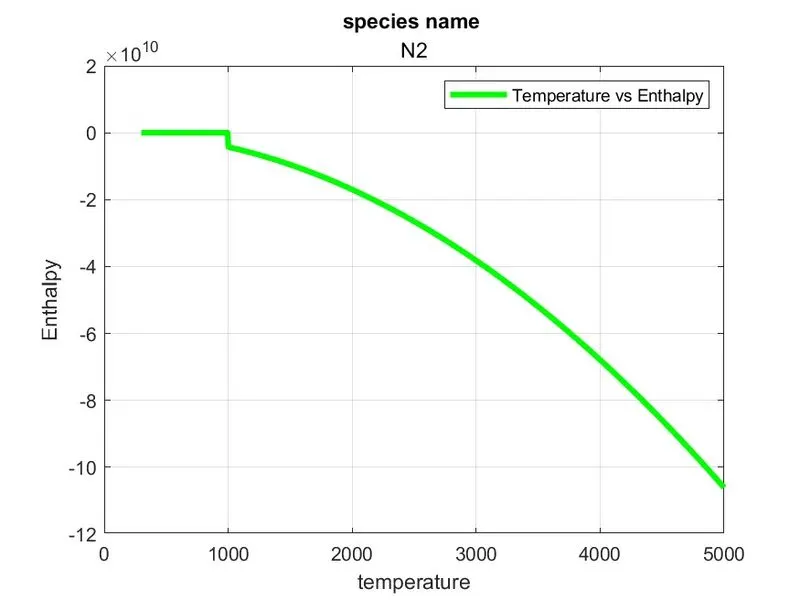

plot for Nitrogen (N2):-
OUTPUT:-

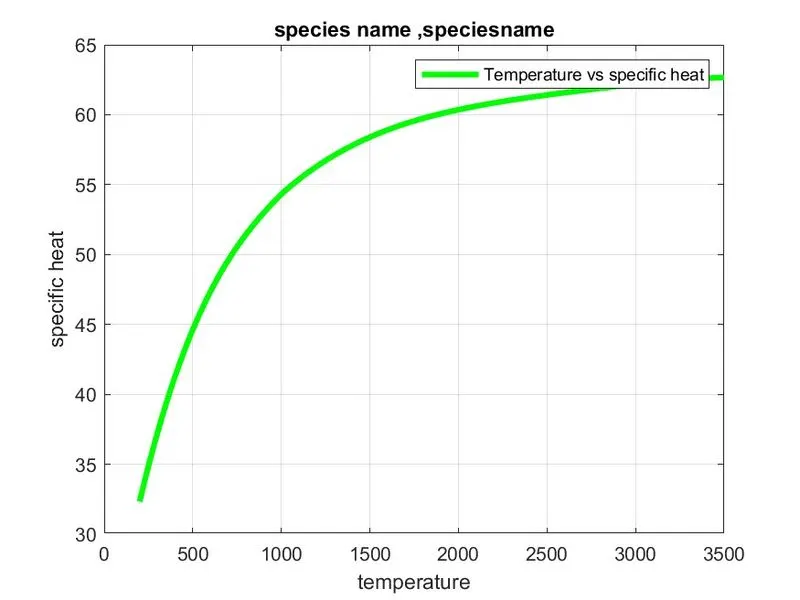

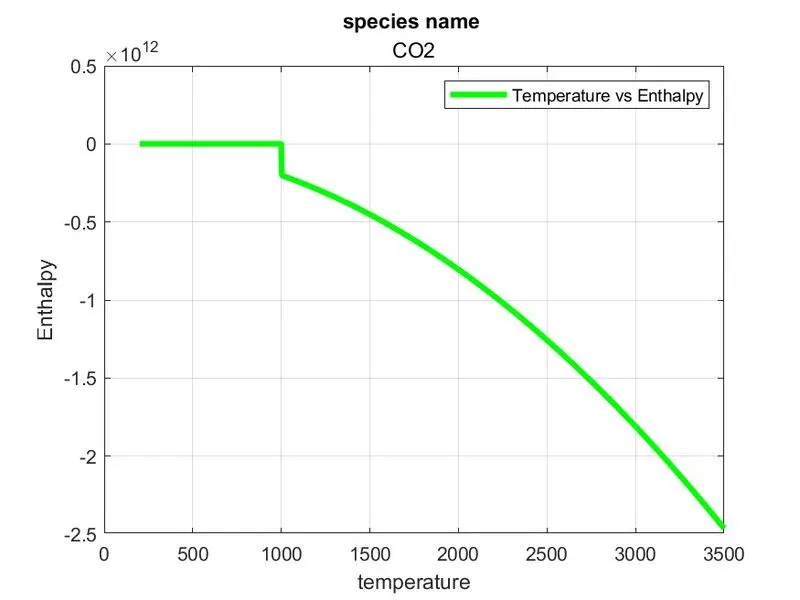

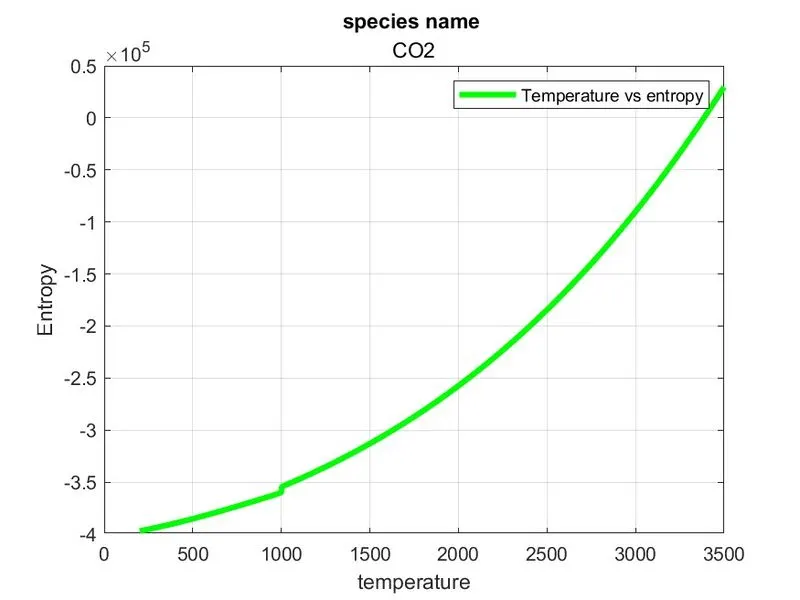

Plot for Carbon Dioxide (CO2):-

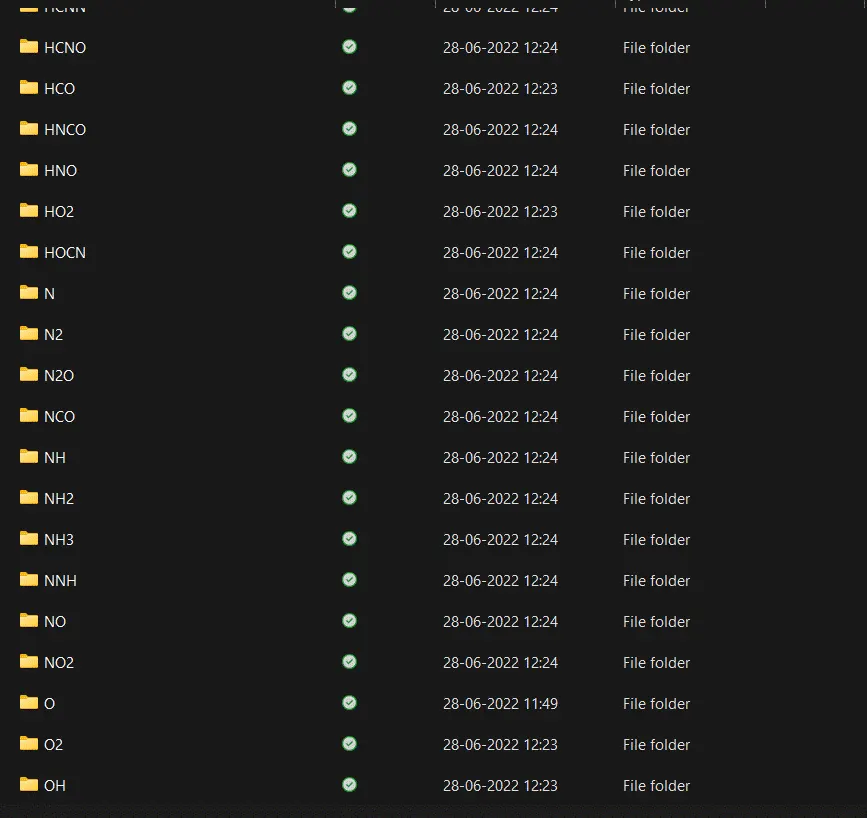

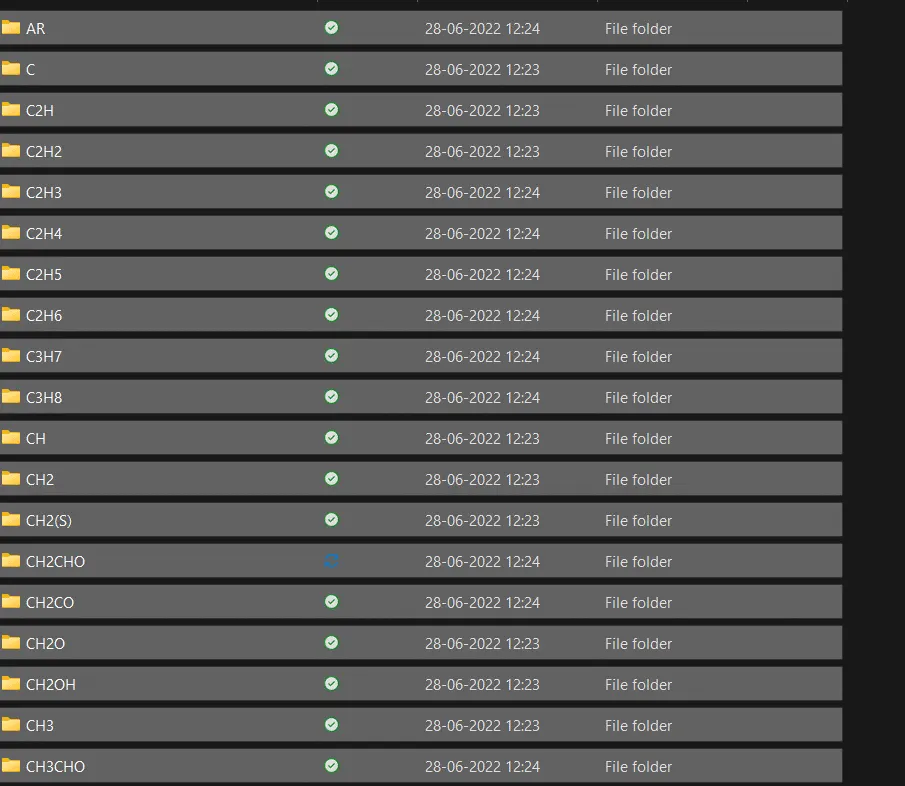

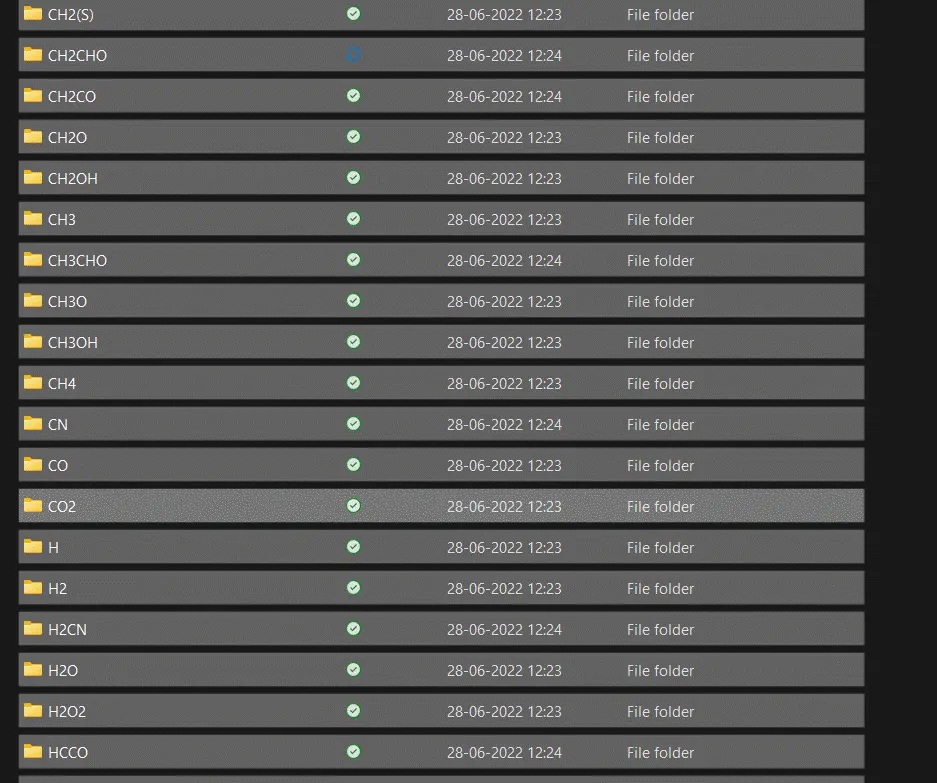

OUTPUT FILES FOR 53 SPECIE'S:-
OUTPUT IN COMMAND WINDOW:-
a =
'O L 1/90O 1 G 200.000 3500.000 1000.000 1'
pos_e2 =
12 27 42 57 72
Warning: Directory already exists.
> In file_parsing_2 (line 90)
position =
4
ans =
'molecular weight of O is 15.999000'
