Week 4 Session 5

Aim: To design a model to control the speed of a direct current DC motor. Software used : Matlab (Simulink ) Specification : Controlling dc motor using PID controller kp- proportional gain, kd- derivative gain, ki-integral gain. Theory :   Mathematical modeling from the first principles Legend:uS – field…

Project 1 : Solve the simple harmonic oscillator equation [m . dx² / dt²  = -k.x ] for a given m (mass) and k (spring constant) values using ‘ode45’  and ‘ode23’ solver in MATLAB. Plot x, x_dot (ẋ) & x_dot_dot (ẍ).  Use…

Create a MATLAB model of electric car which uses a battery and a DC motor. Choose suitable blocks from Powertrain block set. Prepare a report about your model including following: Objectives:         1. System level configurations        2. Model parameters      …

Part A: 1. Search and list out the total weight of various types of aircrafts.  MTOW = Maximum take-off weight, MLW = Maximum landing weight, TOR = Take-off run (SL, ISA+15°, MTOW), LR = Landing run (SL, ISA+15°, MLW)   Type MTOW [kg] MLW [tonnes] TOR [m] LR [m] ICAO category FAA category Antonov…

Q1. For a defined driving cycle, calculate the energy required for braking. Answer :-   Deceleration conditions are similar to acceleration conditions. Acceleration increase in speed and deceleration is a reduction in speed. So similar way to calculate braking power. Where M= mass of the vehicle.  …

1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’. Answer :-      BJT H-BRIDGE:                 An H-bridge is an arrangement of transistors that allows a circuit full control over a standard electric DC motor.…

1.What is the difference between the mapped and dynamic model of engine, motor, and generator? How can you change the model type?   MAPPED models: Mapped models are used when the behavior of a particular model is not of our interest and can be modeled with predefined values in the form of lookup tables. eg: mapped motor:…

AIM: Use the ADVISOR tool and simulation the following: Q.1: For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle. Conclude your observations. Q.2: In the above case, try changing the battery capacity and repeat the simulation. Q.3: Perform…

Aim :- A)To find maximum heat generation of battery .            B) The SOC of the battery at 2 *104second of the battery operation Specification :- Battery resistance =0.5 mohm , delta time =0.1 , Entropic factor =2  1. The max heat generation of the battery  There are 2 heat…

1.Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell.        a. Design the battery pack configuration.         b. Draw the BMS topology for this battery pack Answer:- Considering a battery back having specification  150…

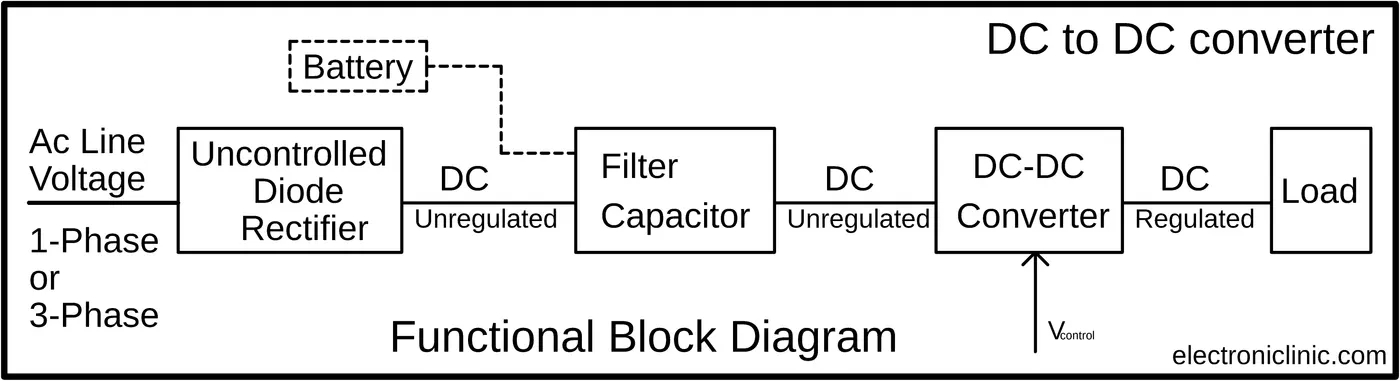

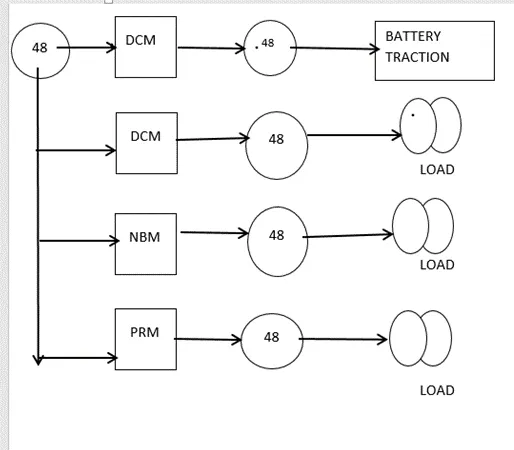

Explain the various applications of Power converters in an Electric vehicle. For Example what type of converter will you use for Horn which requires DC and less than 10V. Likewise come up with different applications. Answer:- DC to DC converter block diagram  DC-DC converter is an electronic circuit that converts…

                                                                Question no 1       The power converters used in the EV and HEV vehicles are…

Program:- data=readtable('VI.xlsx'); t=-17.3:0.1:0.9; x=sin(2*pi*30*t)+sin(2*pi*60*t); y=interp(x,4); subplot(211); stem(x); title('original signal'); subplot(212); stem(y); title('Interpolated Signal');     here, readtable....to read data from xcel file. interp(x,4).....interp function with resprct to four factor…
