Week 4- Rolling operation

COPPER ROLLING OPERATION

AIM:

IN THIS ANALYSIS, WE NEED TO FIND THE PLASTIC DEFORMATION OF THE COPPER ALLOY MATERIAL (WORKPIECE) AND TO PROVE THAT THE DISPLACEMENT OF THE WORKPIECE HAS BEEN DISPLACED TO 90mm.

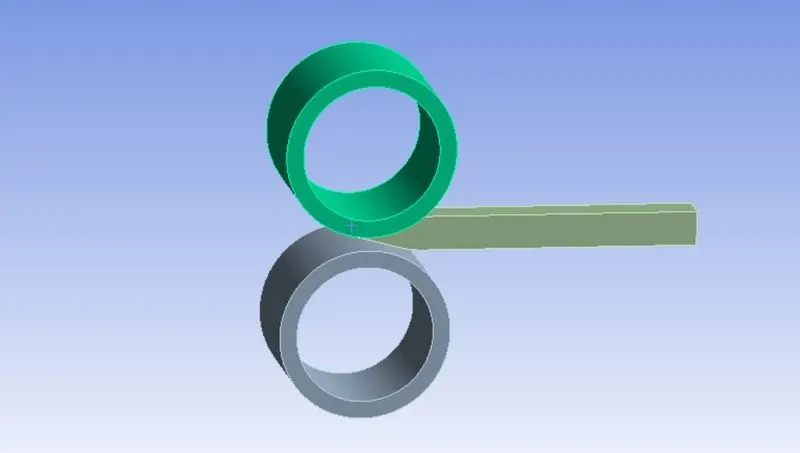

MODEL:

THE MODEL CONSISTS OF TWO WHEEL AND THE WORKPIECE,

MATERIAL:

THERE ARE TWO DIFFERENT MATERIALS ALLOTED FOR THE SIMULATION OF THE COPPER ROLLING OPERATION, WHERE THE WORKPIECE HAS BEEN ALLOTED WITH THE COPPER ALLOY (WITH NON-LINEARITY). AND THE WHEELS HAVE BEEN ALLOTED WITH THE STRUCTURAL STEEL.

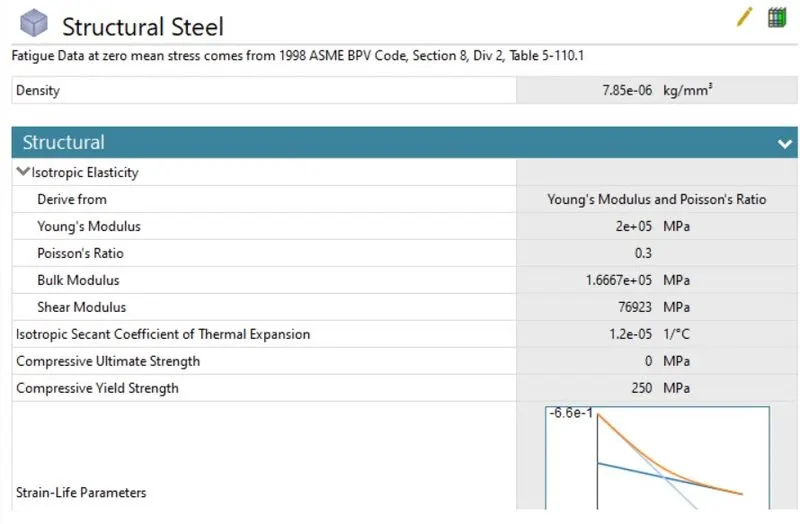

STRUCTURAL STEEL :

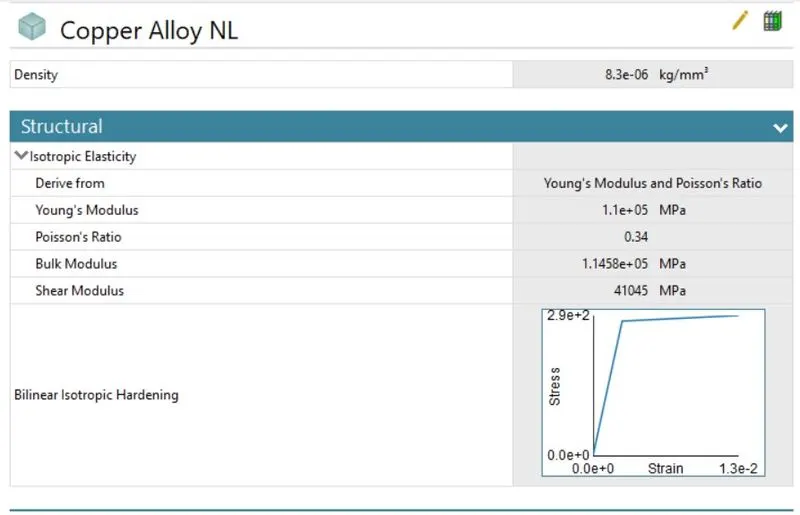

COPPER ALLOY NL :

CONTACTS:

THERE ARE TWO CONTACTS IN THE MODEL, THE WORKPIECE AND THE ROLLER, THE UPPER FACE OF THE WORKPIECE AND THE ROLLER 1 AND THE LOWER FACE OF THE WORKPIECE AND THE ROLLER 2. BOTH THESE CONTACTS ARE FRICTIONAL WITH CO-EFFICIENT OF FRICTION OF 0.2 AND THE FORMULATION IS SET OT AUGMENTED LAGRANAGE AND THE BEHAVIOUR SET TO ADD OFFSET AND RAMPED EFFECTS.

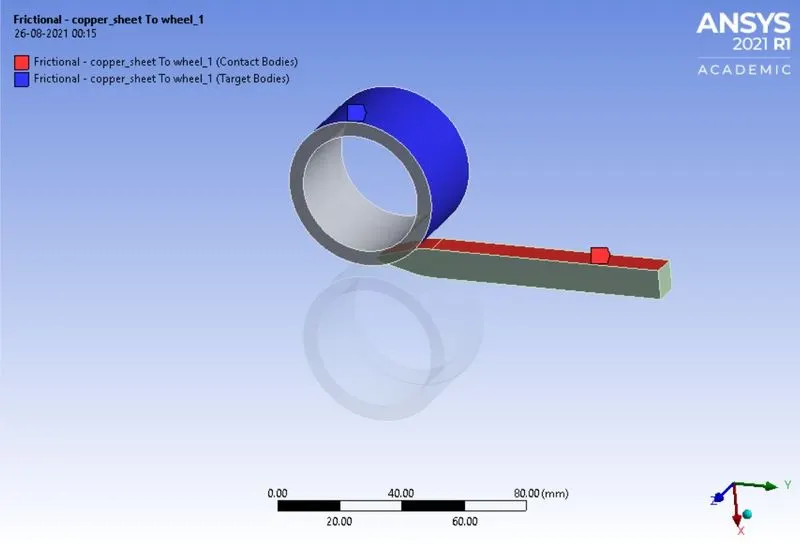

CONTACT 1: WHEEL1 AND THE UPPER SURFACE OF THE WORKPIECE

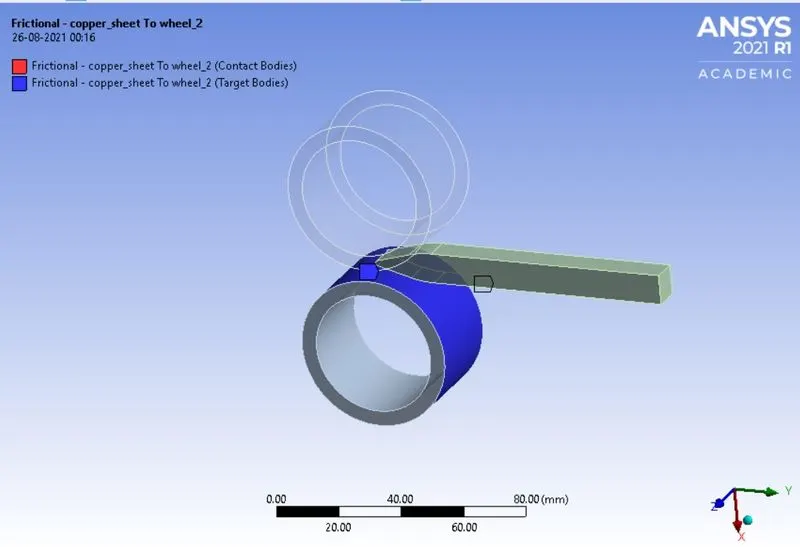

CONTACT 2 : LOWER SURFACE OF THE WORKPIECE AND THE WHEEL 2

JOINTS:

THE MODEL HAS TWO JOINT LOADS FOR THE TWO DIFFERENT ROLLER ONE WITH THE ROTATION WITH CLOCKWISE DIRECTION AND THE OTHER ROLLER WITH THE ANTI-CLOCKWISE DIRECTION.

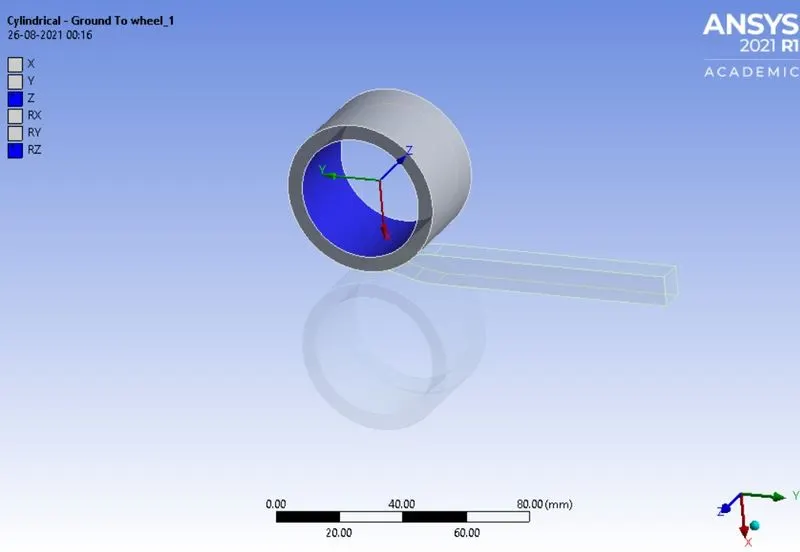

JOINT 1 : CLOCKWISE ROTATION - WHEEL 1 :

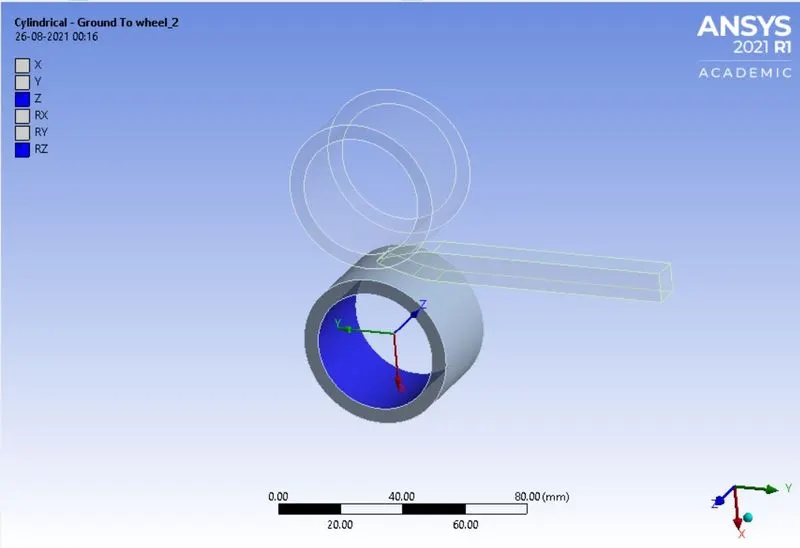

JOINT_2 : ANTI-CLOCKWISE_ROTATION_ WHEEL 2:

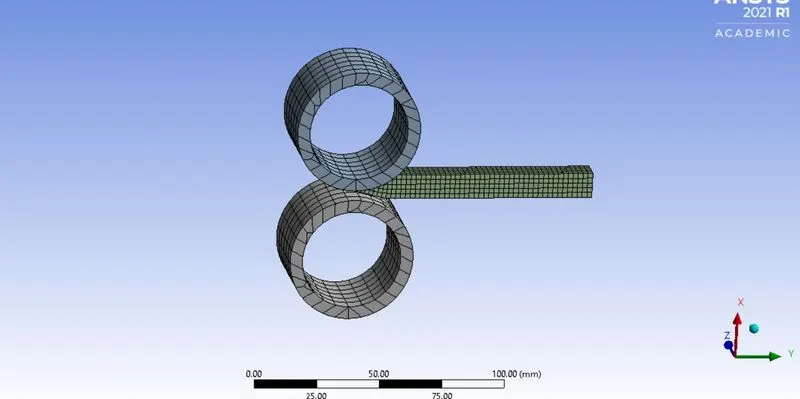

MESH:

THE MESH HAS BEEN SET TO GRID DEPENDENCY TEST FOR THE ROLLER USING ADAPTIVE MESH SIZE AND THE WORKPIECE MESH SIZE HAS BEEN REFINED TO 2mm.

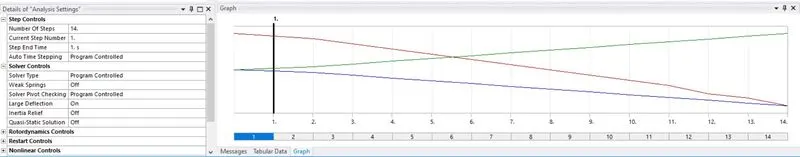

ANALYSIS SETTINGS:

THE ANALYSIS HAS BEEN CARRIED OUT IN 14 STEPS ON AUTO- TIMING, SINCE THE ANALYSIS IS AN NON-LINEAR ANALYSIS, THE NON- LINEAR CONTROLS HAS BEEN MODIFIED, WHERE THE ENERGY DISSIPATION – RATIO HAS BEEN SET TO 0.1 CONSTANT VALUE.

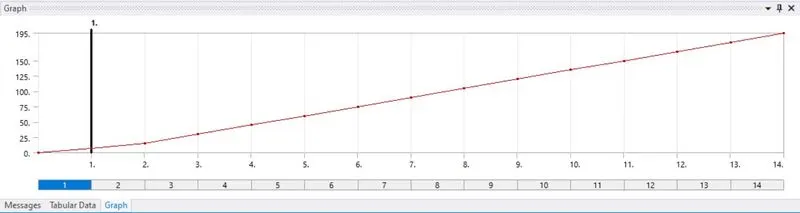

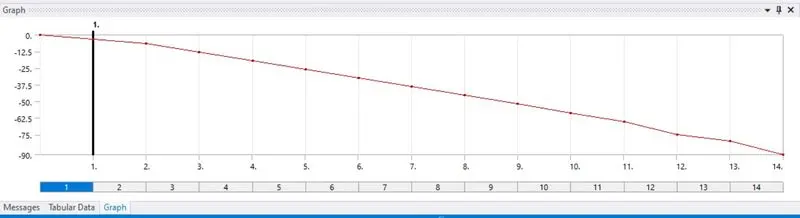

DISPLACEMENT :

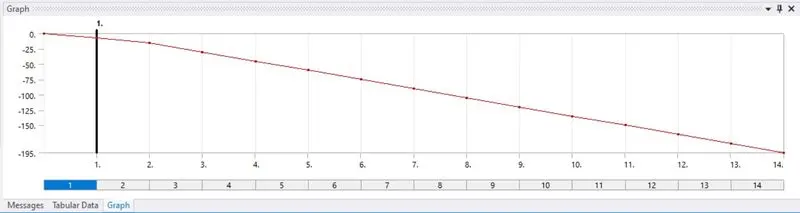

JOINT-LOAD1:

JOINT-LOAD2:

SIMULATION :

THE SIMULATION IS RUNNED FOR 14 STEPS WITH RANDOM DISPLACEMENT VALUES ,

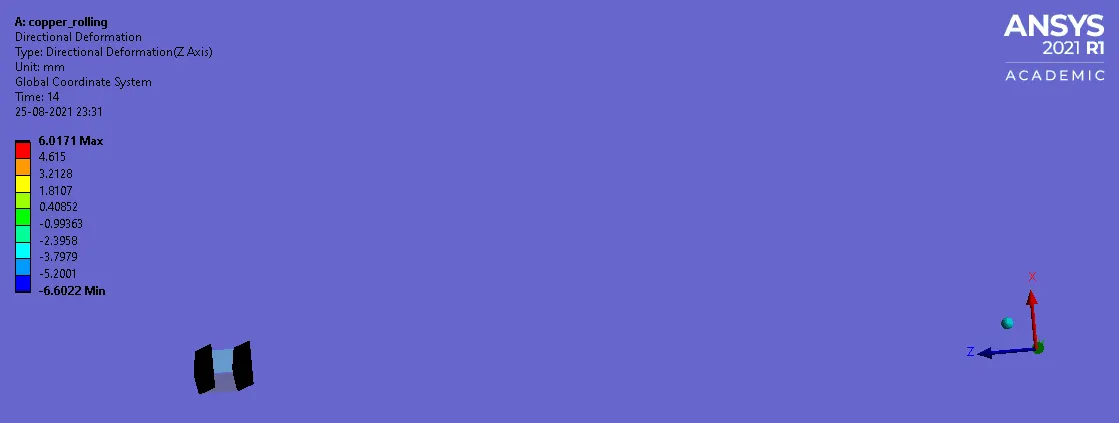

DIRECTIONAL DEFORMATION:

THE DEFORMATION OF THE WORKPIECE IN THE Z-AXIS HAS BEEN SIMULATED AND THE RESULTS HAVE BEEN ATTACHED .

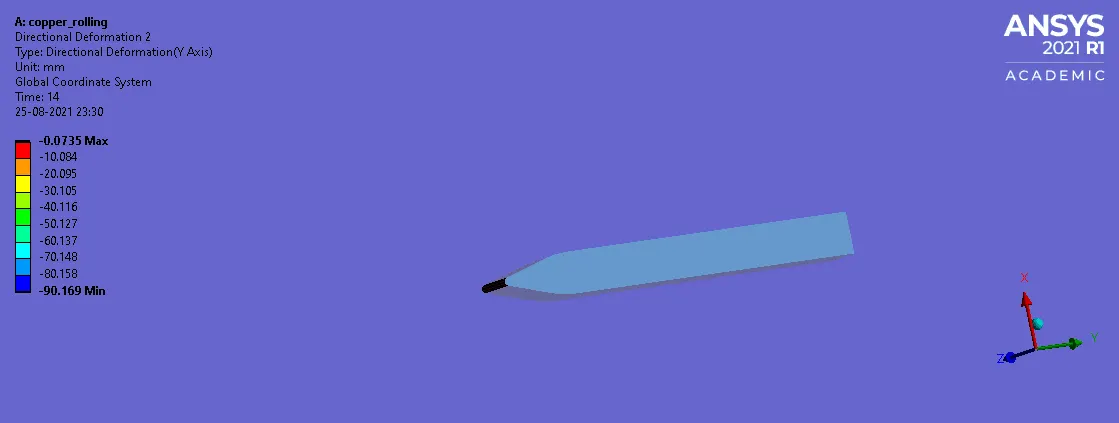

DIRECTIONAL DEFORMATION 2:

THE DEFORMATION OF THE WORKPIECE , IN THE Y-DIRECTION HAS BEEN SIMULATED AND ATTACHED .

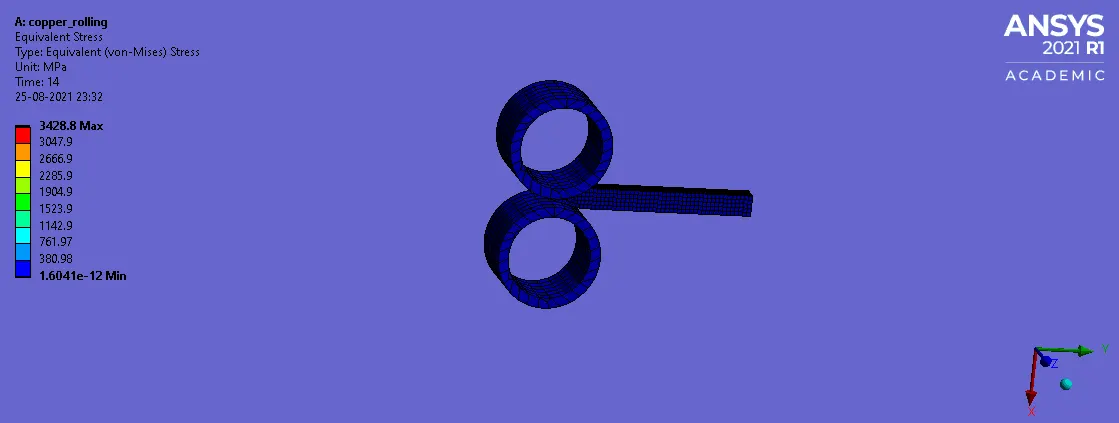

EQUIVALENT STRESS:

THE EQUIVALENT STRESSS OF THE ENTIRE MODEL HAS BEEN CALCULATED AND SIMULATED AND ATTACHED .

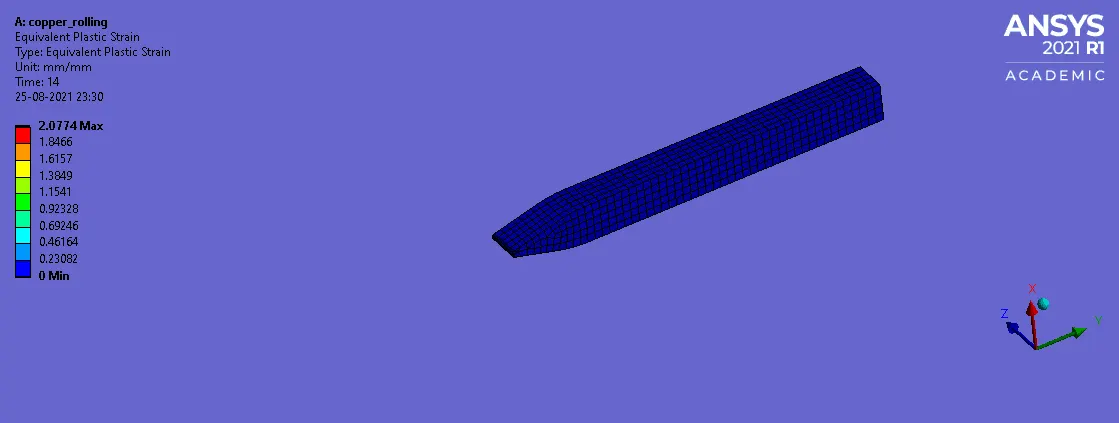

EQUIVALENT PLASTIC STRAIN:

CONTACT:

PRESSURE:

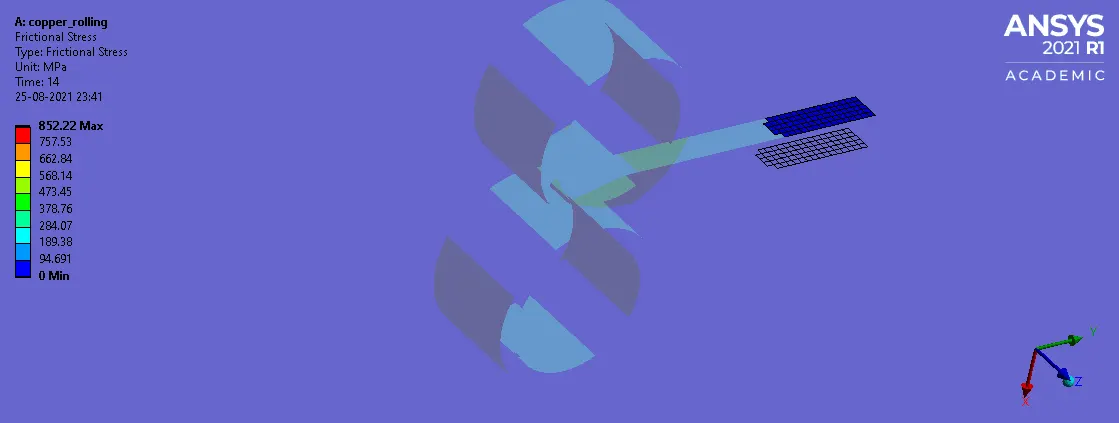

FRICTIONAL STRESS:

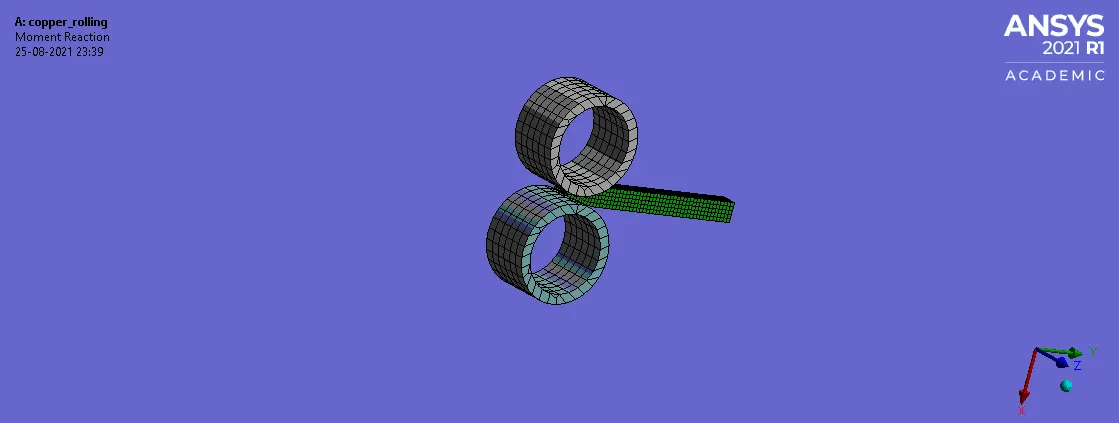

MOMENT REACTION:

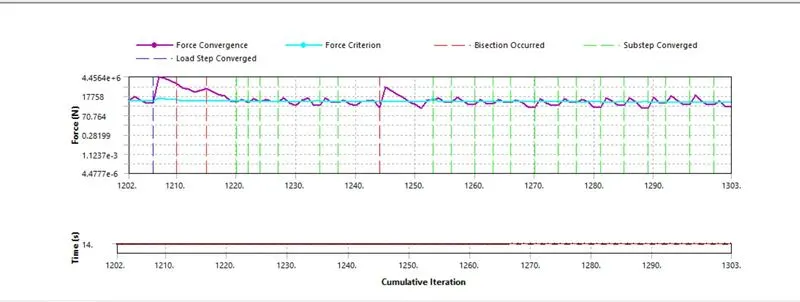

FORCE CONVERGENCE :

RESULT:

THUS WE PROVED THAT , THE MODEL HAS BEEN DISPLACED TO 90mm.
