Week 4:- Pin Unit Design Challenge

AIM

To design the fixed and retractable pin units with round and daimond ppins to the car panel using CATIA V5.

Q-12 Describe Fixed Pin units & their purpose

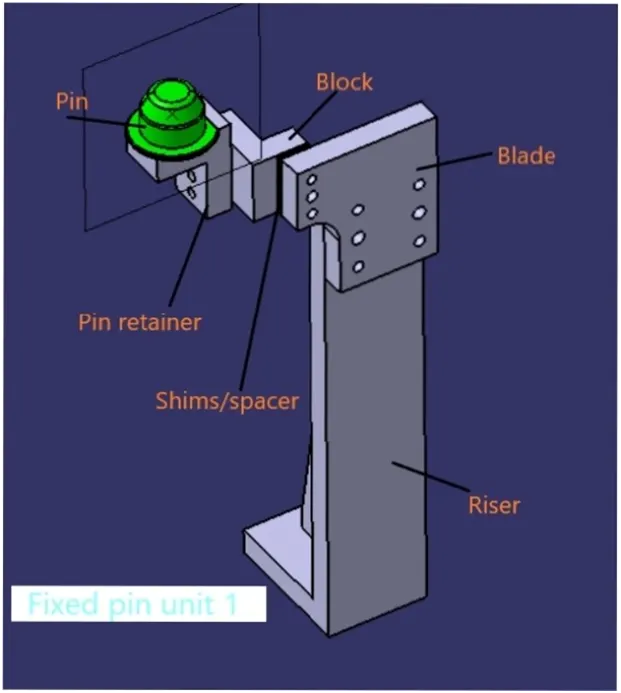

Fixed Pin Uni t is non movable locating unit which arrest movement of component in fixture. Fig. shows an example of fixed pin unit. It consist of pin, pin retainer, blade, two way shims or spacer which control X, Y direction adjustment, block and riser.

PurP-ose of Fixed Pin Unit are as below:

• Main purpose of fixed pin unit is to locate component
• This unit is used arrest 6 degrees of freedom of component
• Two pins are used to locate First pin restricts 4 translational motion and other one restricts 2 rotational motion.

Q-13 What are the different parts of a fixed unit?

Fixed Pin Unit is non movable locating unit which arrest movement of component in fixture.Fig. shows an example of fixed pin unit. It consist of pin, pin retainer, blade, two way shims or spacer which control X, Y direction adjustment, block and riser.

Purpose of Fixed Pi n Unit are as bel ow:

• Main purpose of fixed pin unit is to locate component
• This unit is used arrest 6 degrees of freedom of component
• Two pins are used to locate First pin restricts 4 translational motion and other one restricts 2 rotational motion.

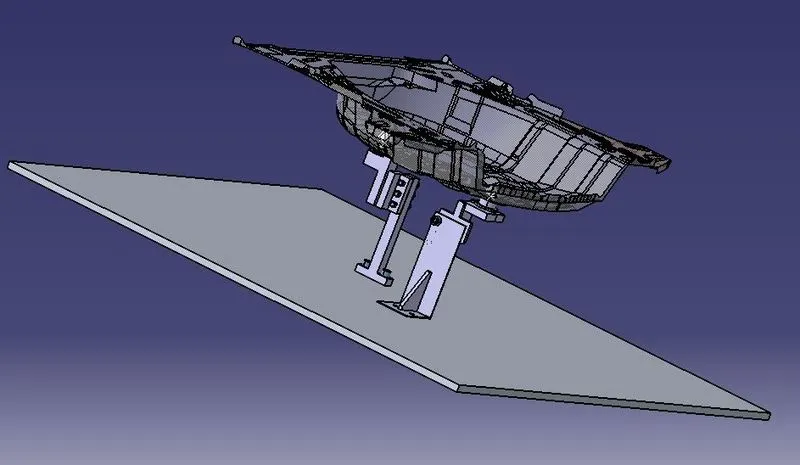

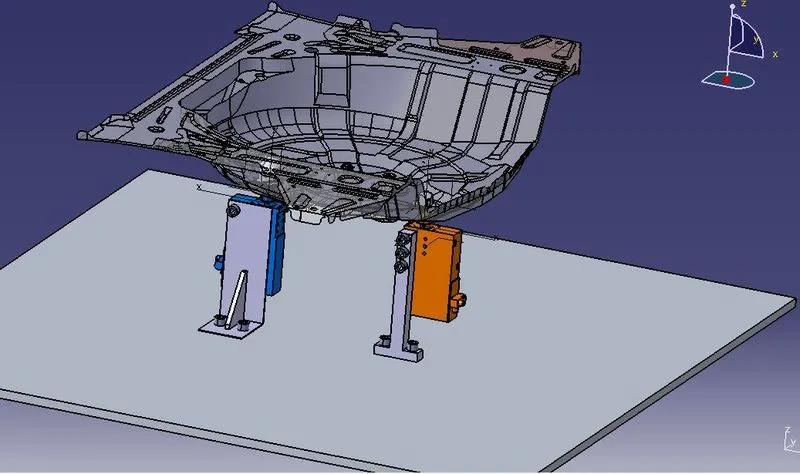

design componentrs of fixed pins

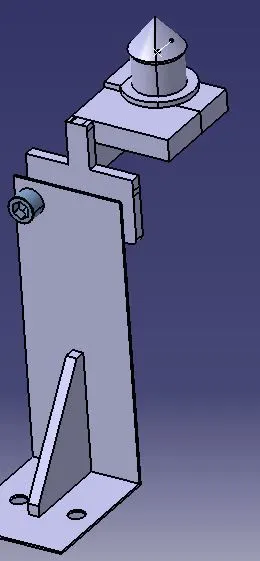

fixed with round and daimond point

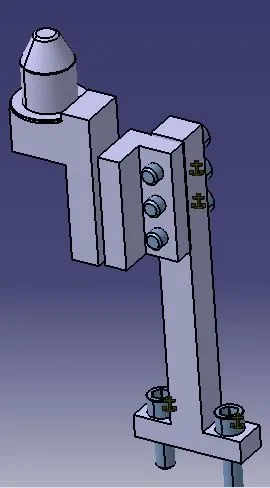

retractable pin unit
