Week 4 Challenge : CFD Meshing for BMW car
CFD Meshing for BMW car
Objective :-
- Do topo cleanup for BMW car
- Do 2D meshing, check quality criterias
- Use hidden mode to check failed meshes on quality criteria
- Use reconstruct option to view and clear failed meshes
- Do 3D Meshing for car
- Create a wind tunnel , either in 2D or 3D mesh depending on capacity of your system

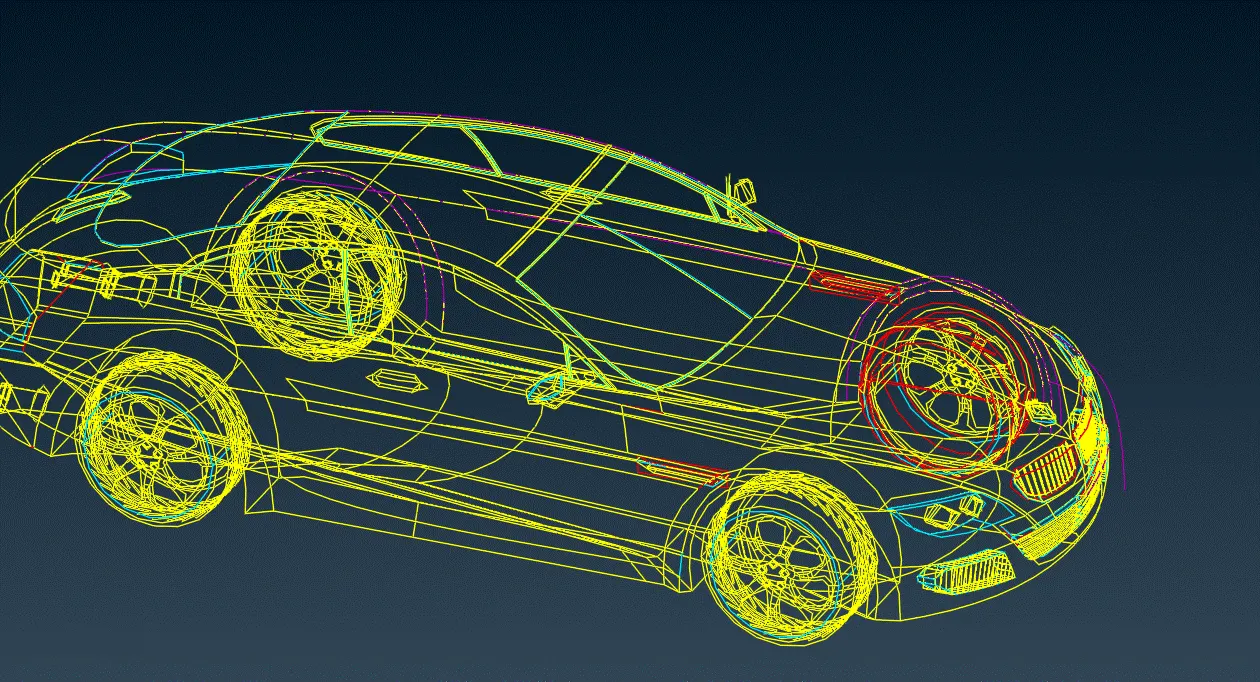

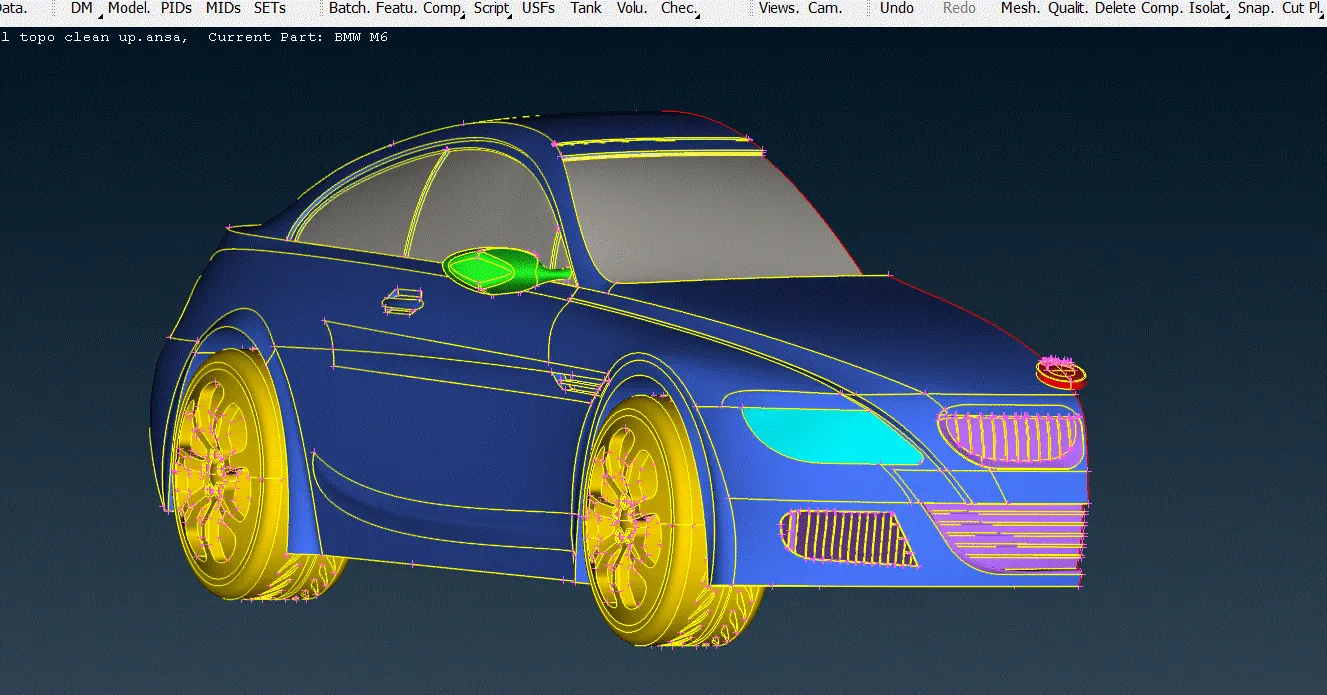

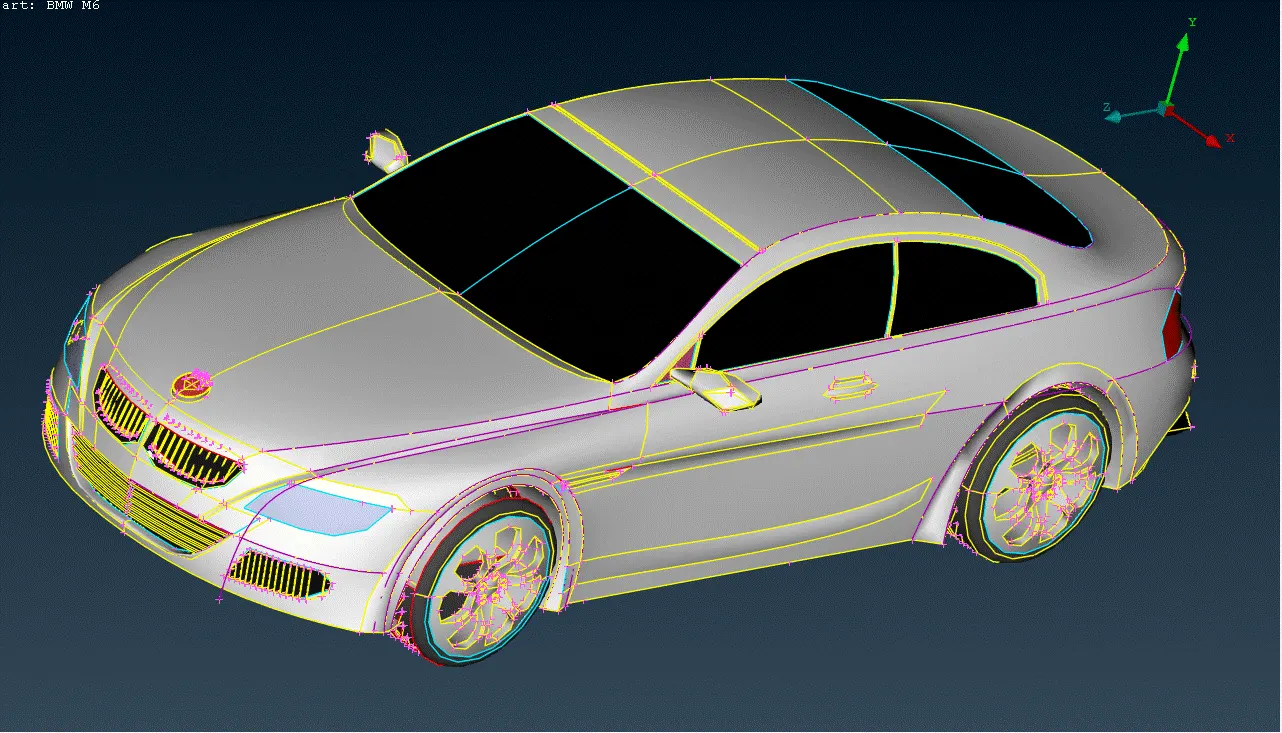

Here we start the topo clean up for each surfaces

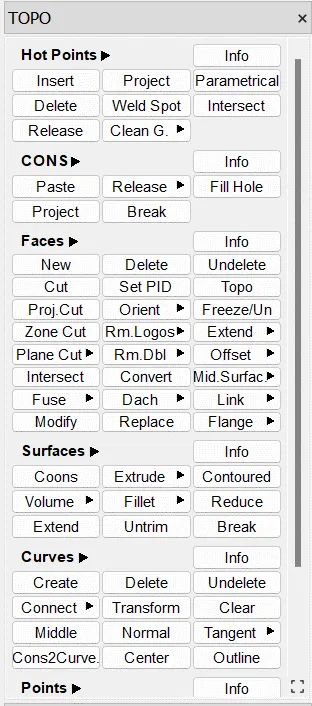

TOPO CLEAN UP :-
topo cleanup is basically cleaning geometry by removing unwanted surfaces and solving triple and double cons

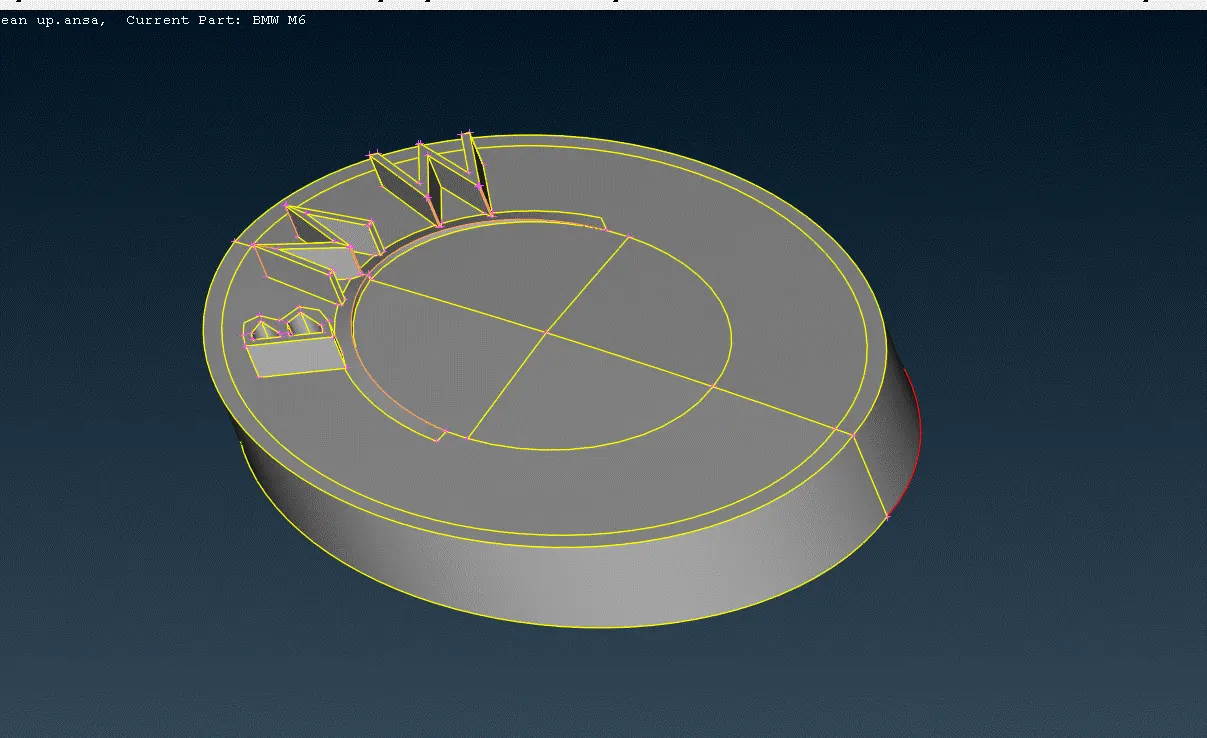

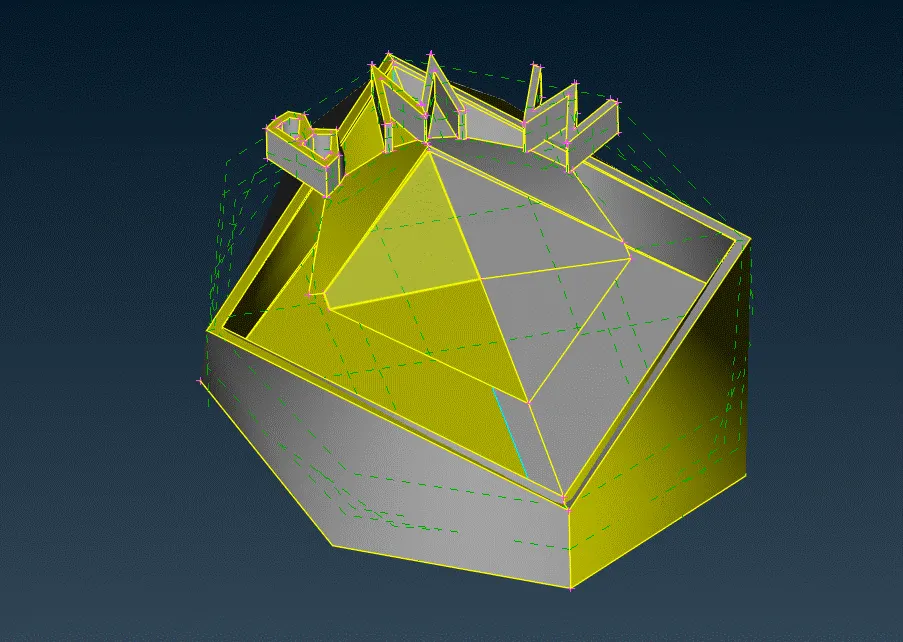

Logo Topo Clean up :-
Topo Clean up link - https://drive.google.com/file/d/12CrFnNs0LeM0sF2Sc36f2A9H9v8ubdrm/view?usp=share_link

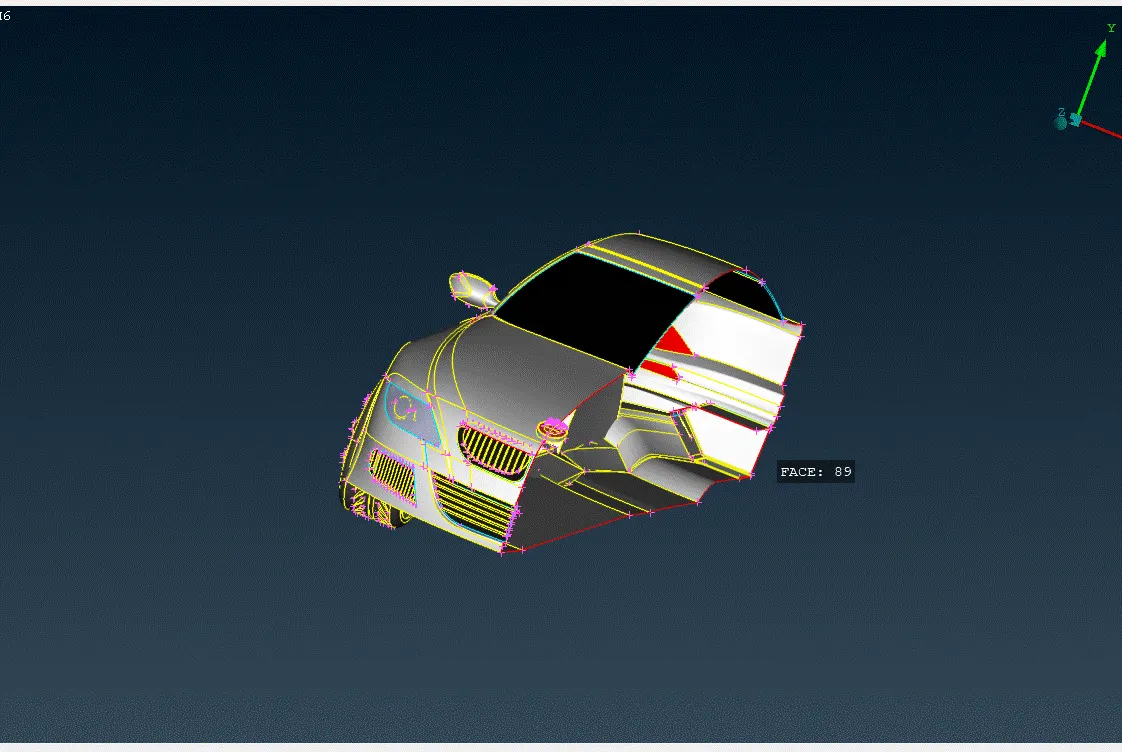

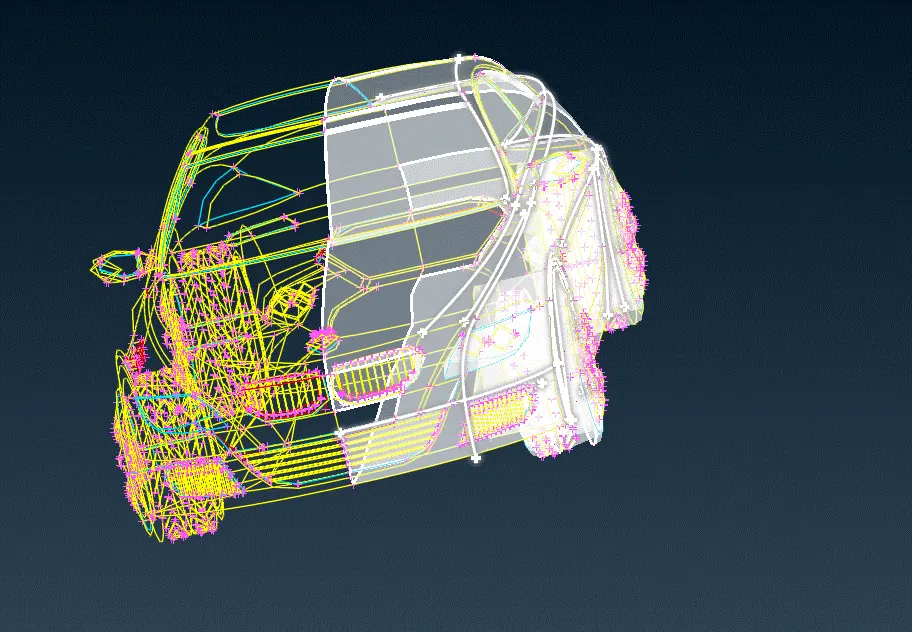

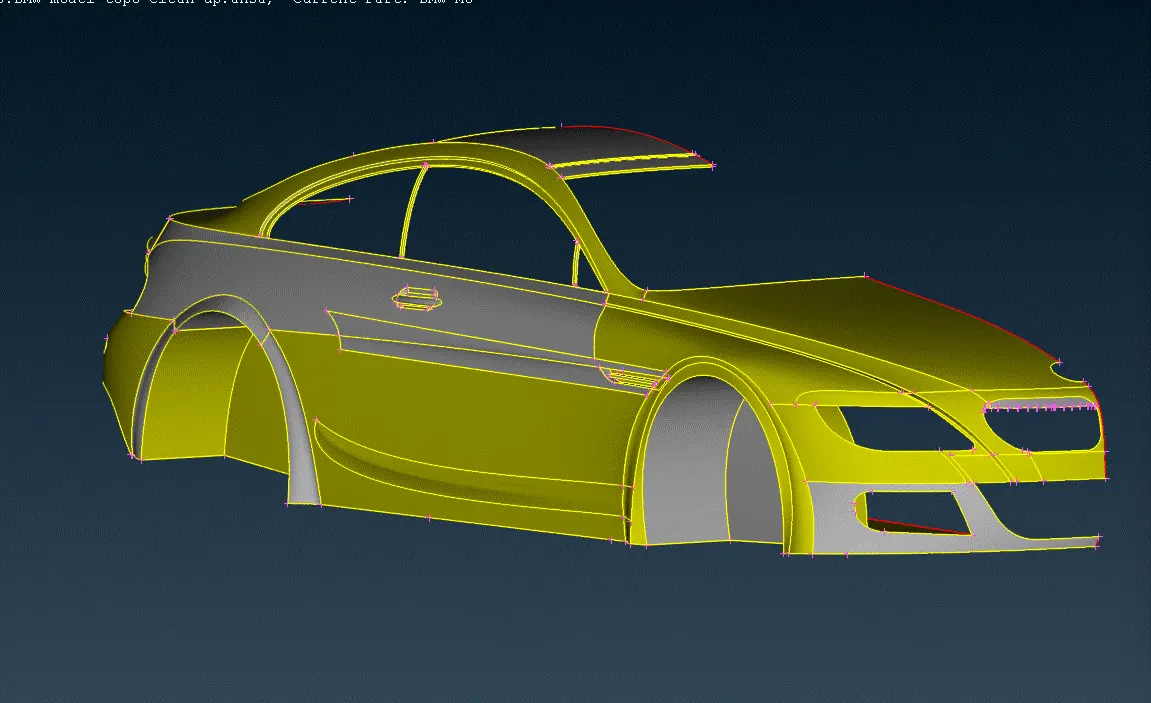

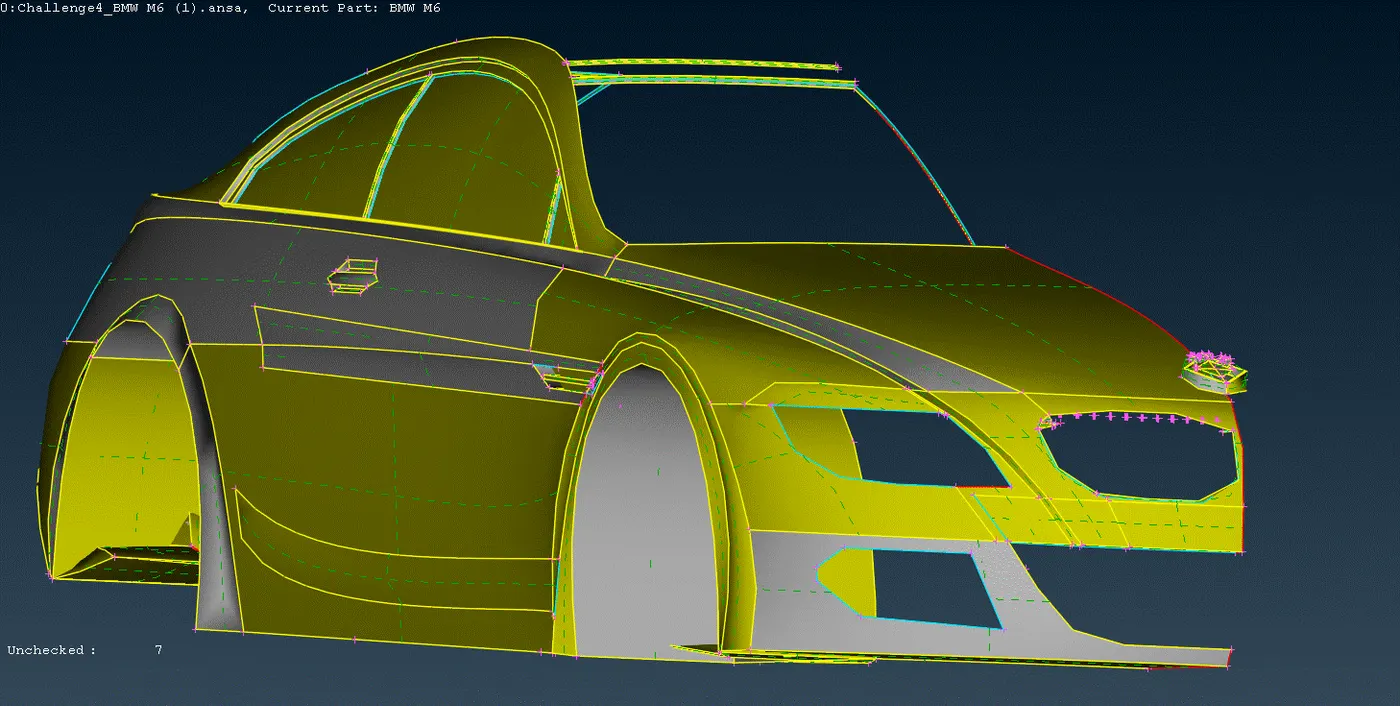

Body topo clean up :-
body topo clean up link - https://drive.google.com/file/d/12ysQ8w9afqEPBvNVsNgk6H1uRuHLk8_b/view?usp=share_link

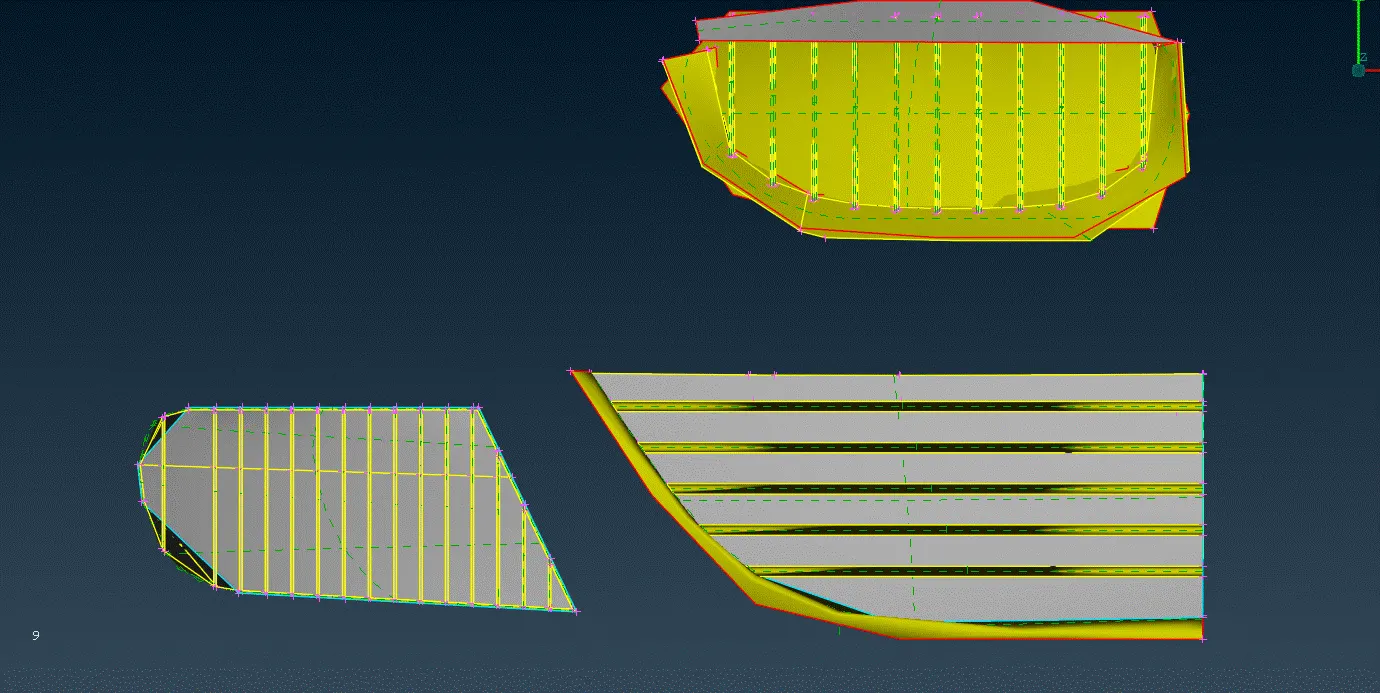

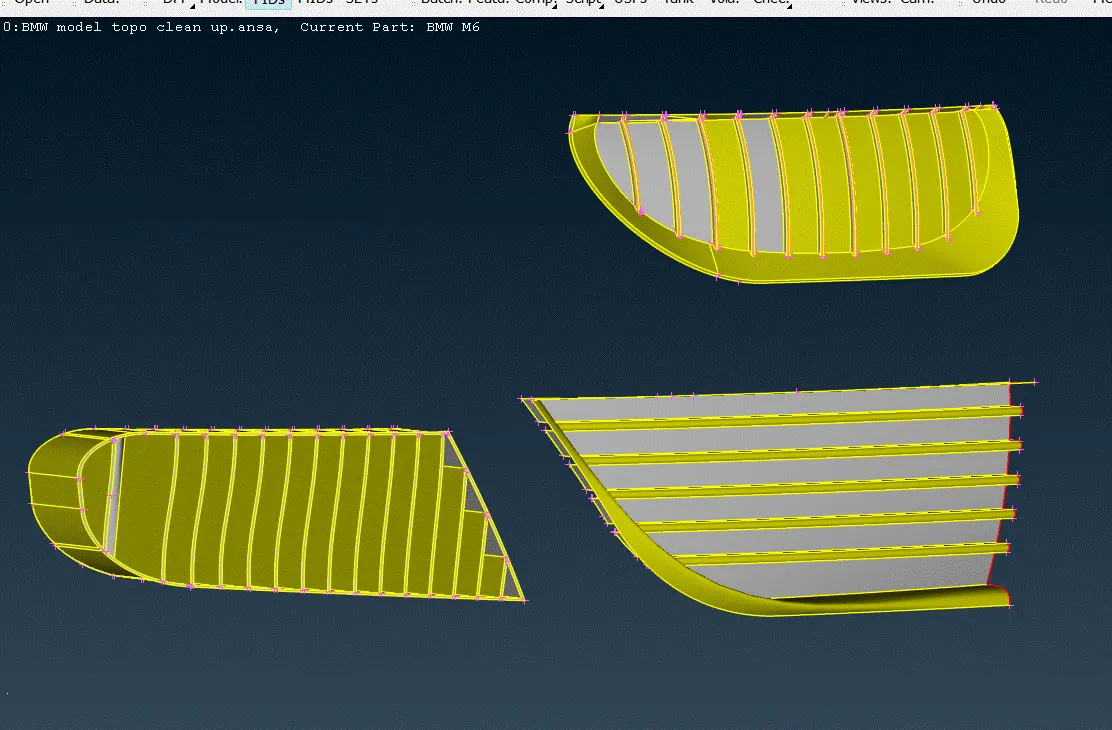

Grils topo clean up :-
Grils topo clean up link

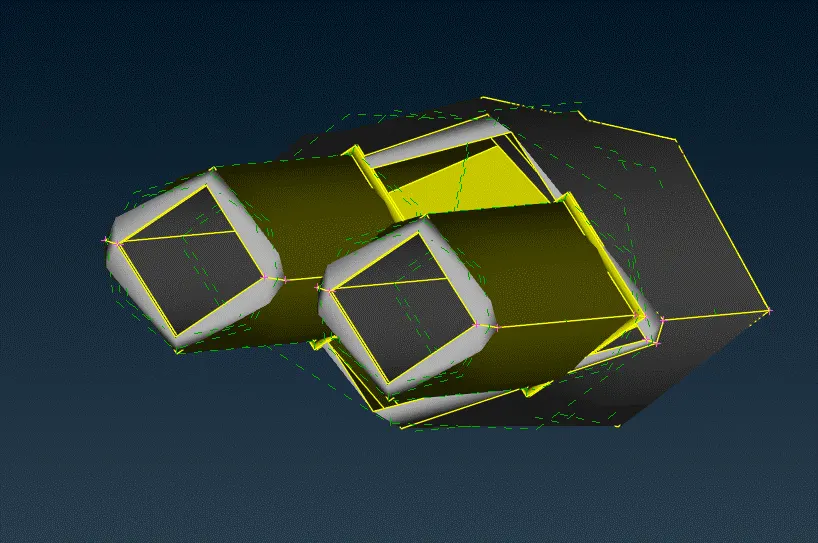

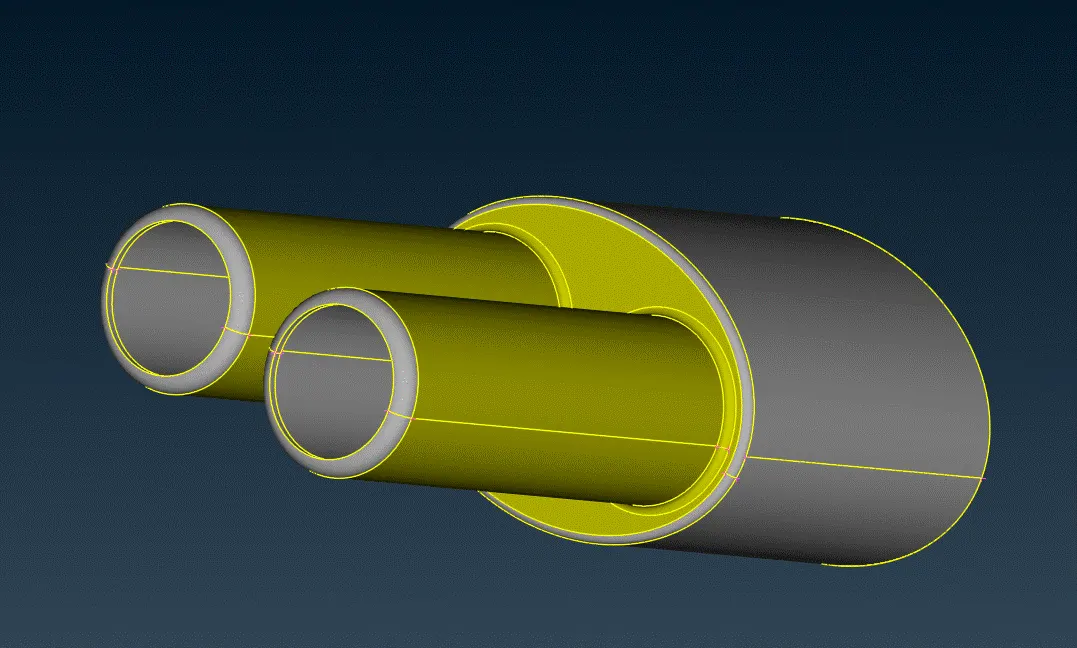

Silencer topo clean up :-
Silencer topo clean up link - https://drive.google.com/file/d/1xZT66klS5zohCgb18qfubYTnMi_lAz0Q/view?usp=share_link

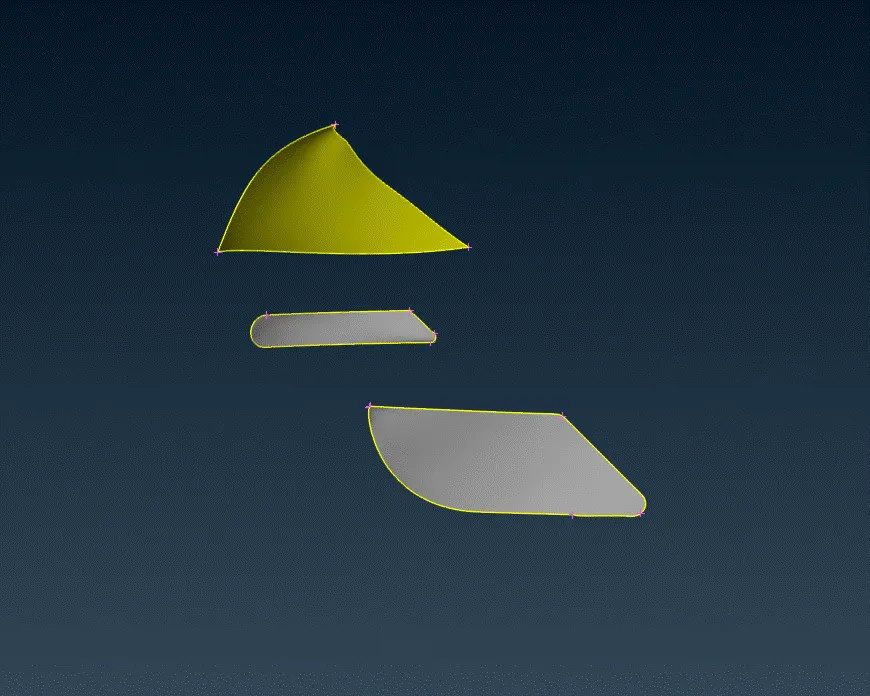

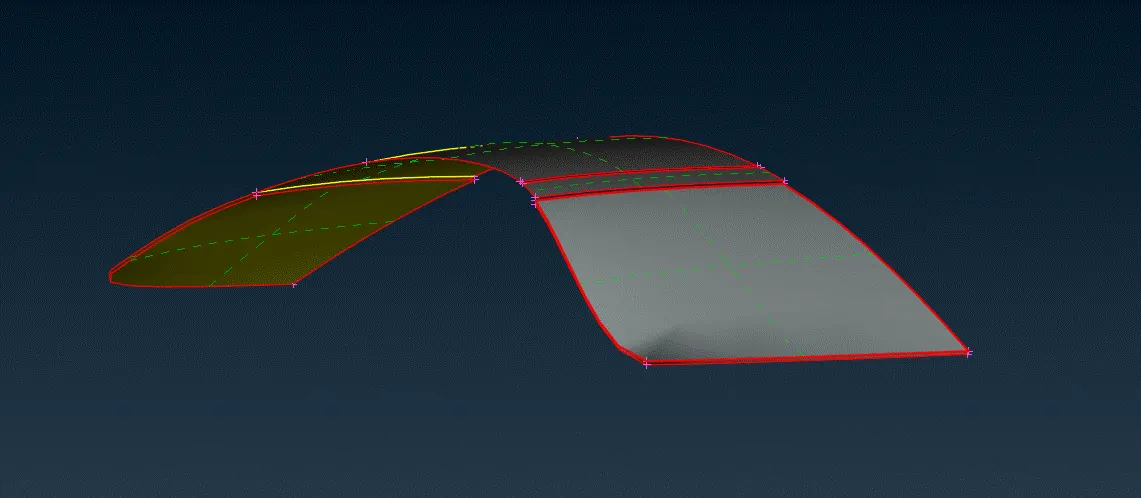

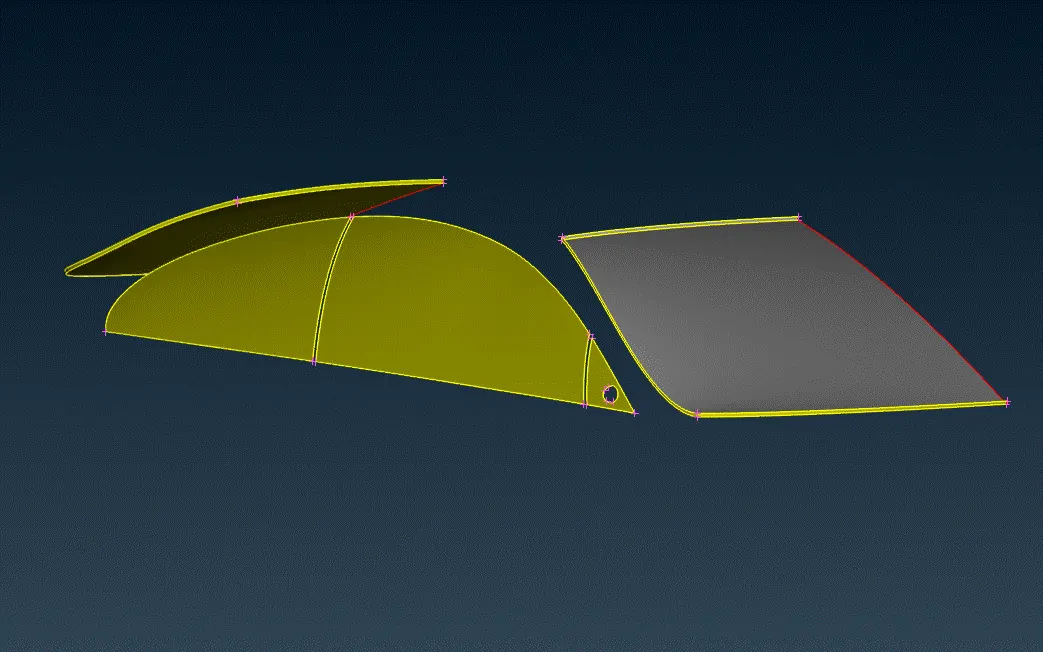

Windows topo clean up :-
Windows topo clean up link
https://drive.google.com/file/d/1KvsWbVZ8a_Nqn0OONFrfI-iGAEBkQxAf/view?usp=share_link

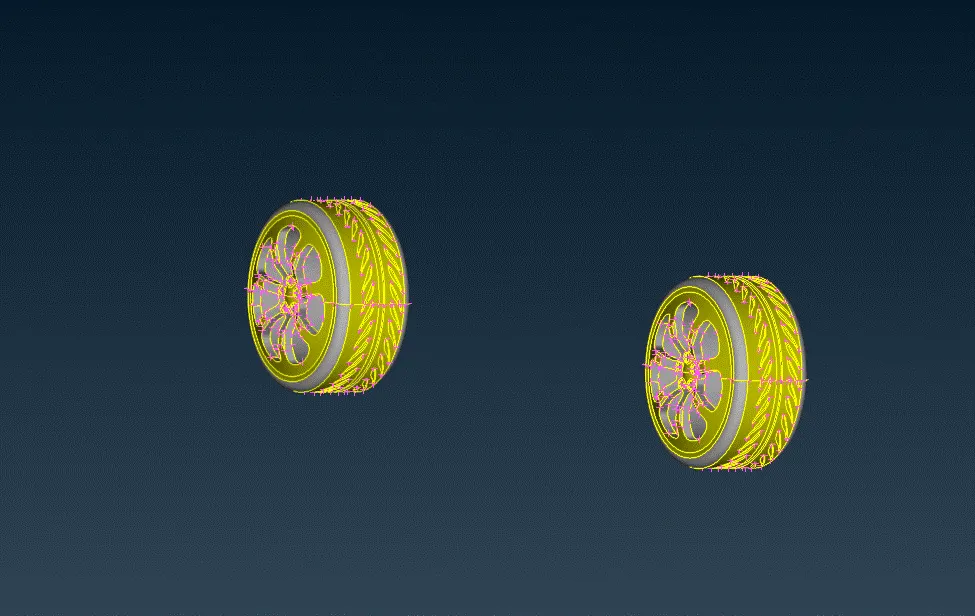

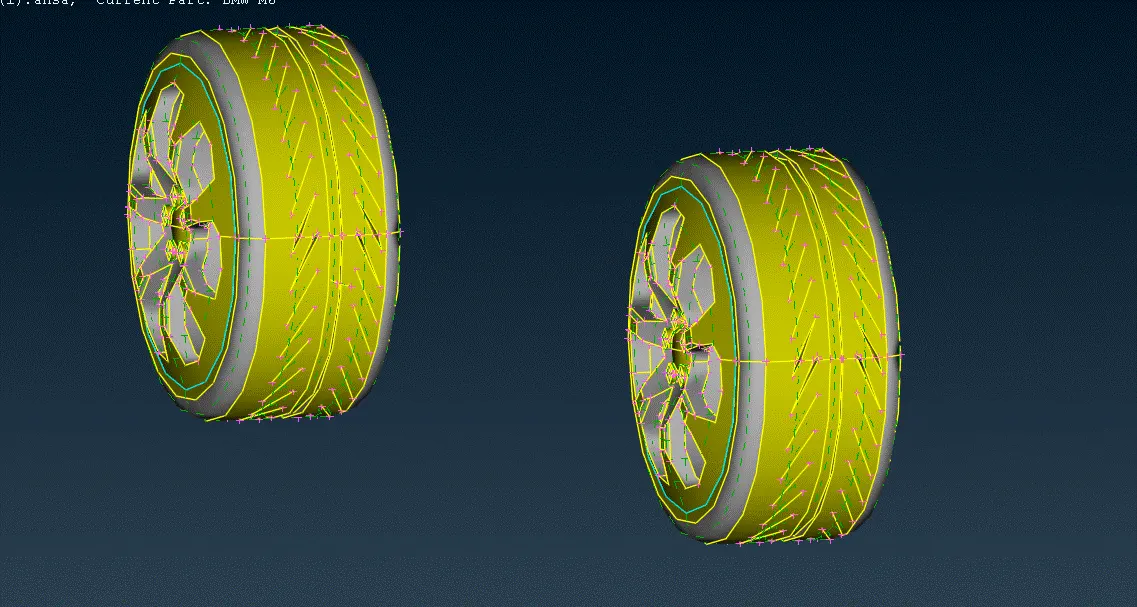

wheels topo clean up :-
wheels topo clean up link - https://drive.google.com/file/d/1KWSId3nwKnbqt4h5QppdmVBAWF-4977S/view?usp=share_link
Light topo clean up :-
Lights topo clean up link - https://drive.google.com/file/d/1n7drZF1YiQ6okJMXiJb6QXM_nsX6JQFb/view?usp=share_link

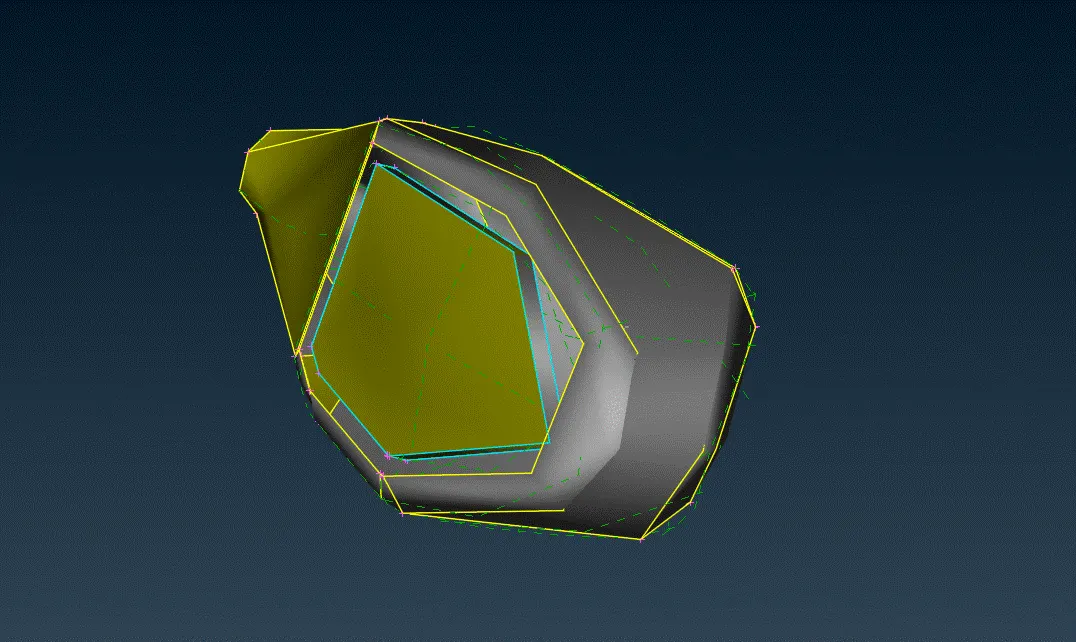

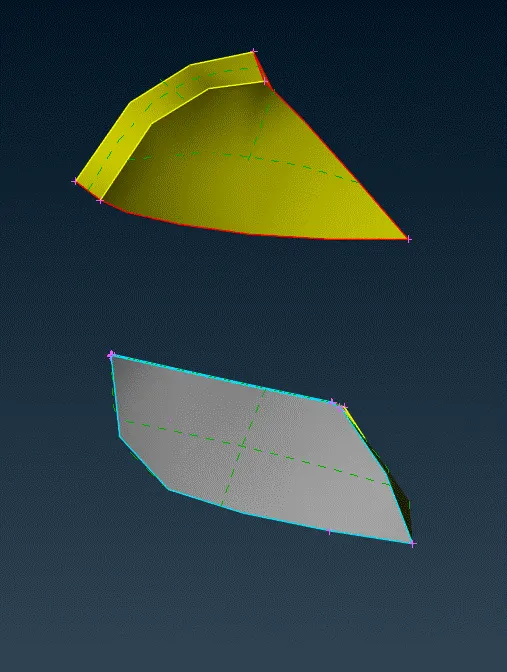

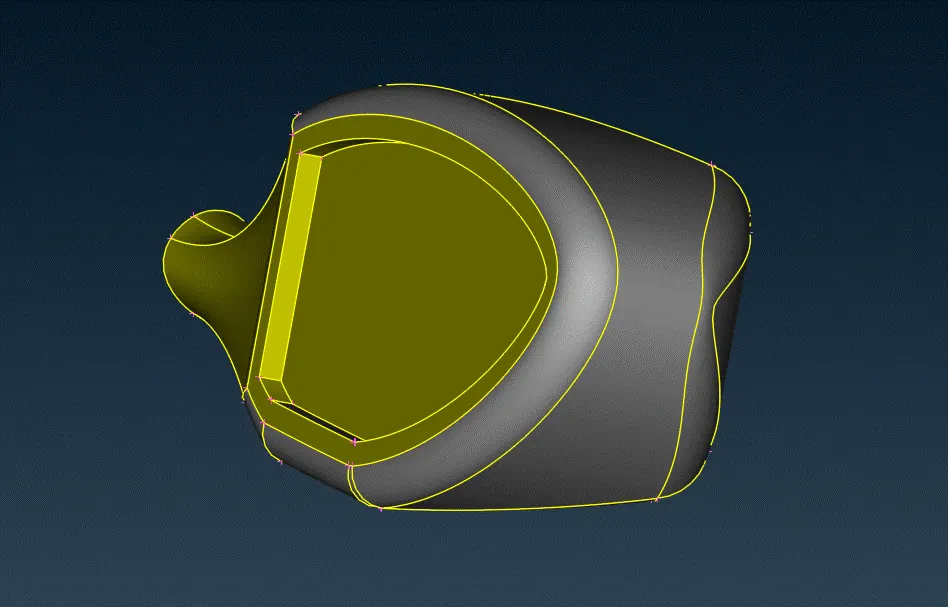

Side mirror topo clean up :-
side mirror topo clean up link - https://drive.google.com/file/d/1l-6V9CV6Srz_wZY_btUUTheOS2nIURD0/view?usp=share_link

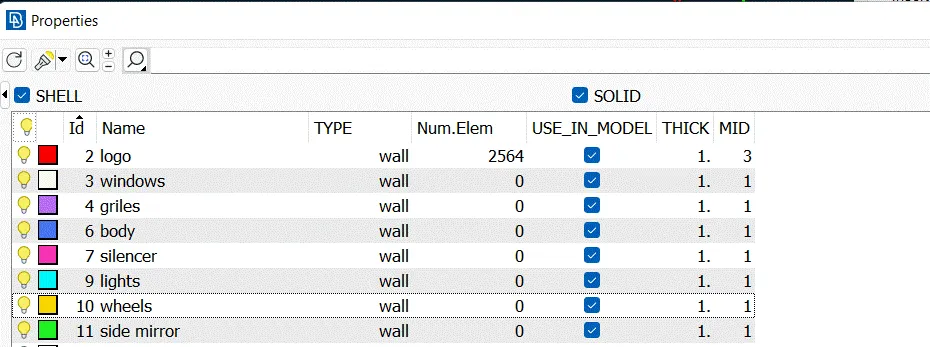

PID's :-

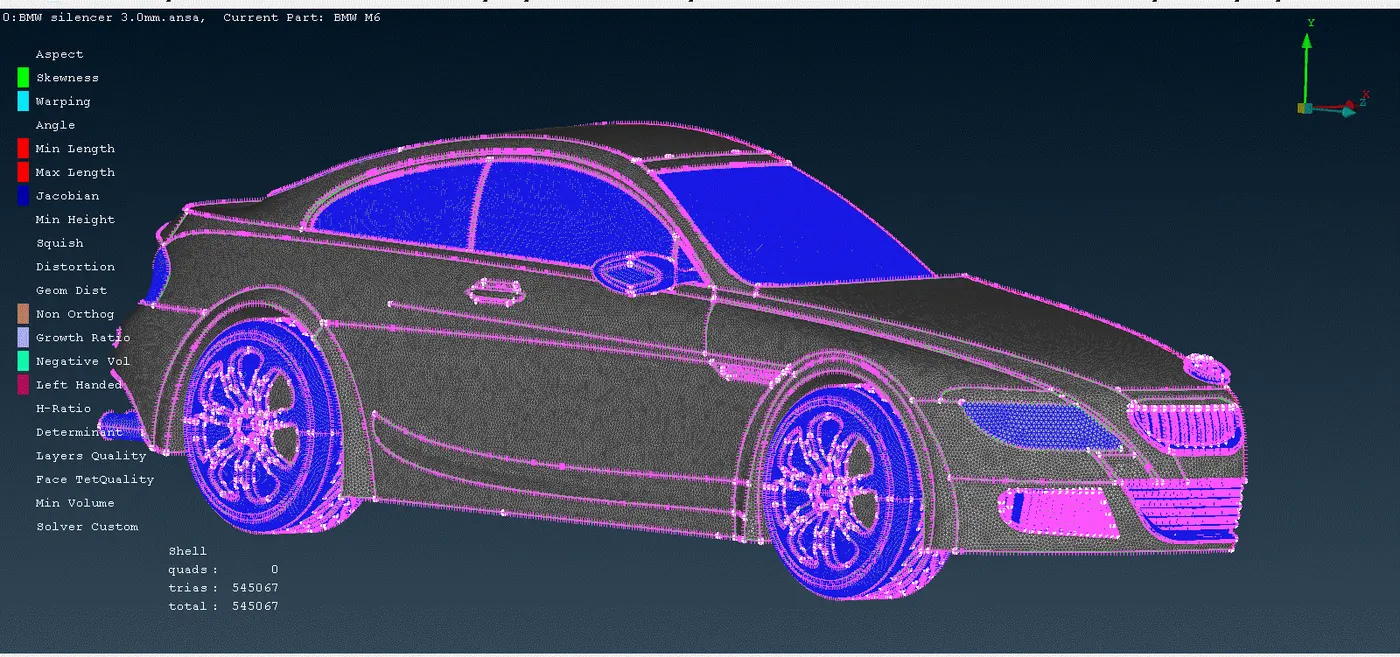

Meshing :-

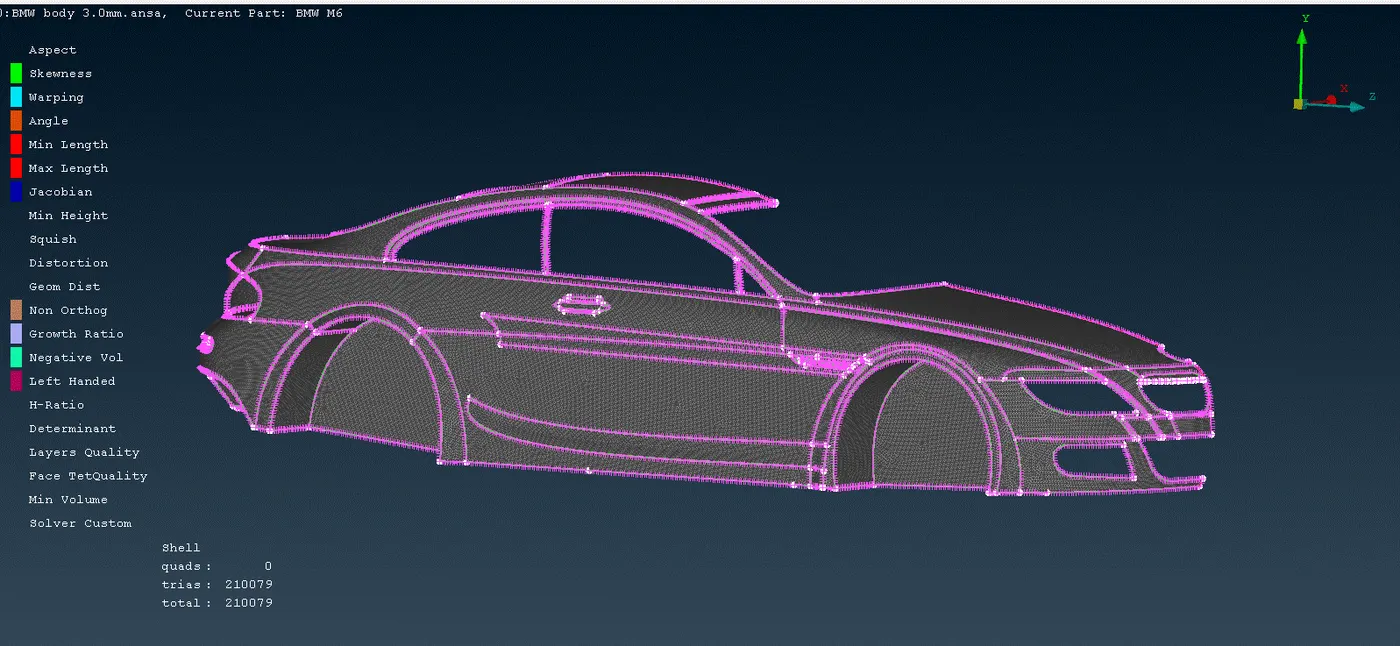

Body :-
3mm
Quality criteria :-
mim length 0.2mm
max length 5mm
link - https://drive.google.com/file/d/19L8QYXovt5CvxrYac9IdweypAaHE5S-q/view?usp=share_link

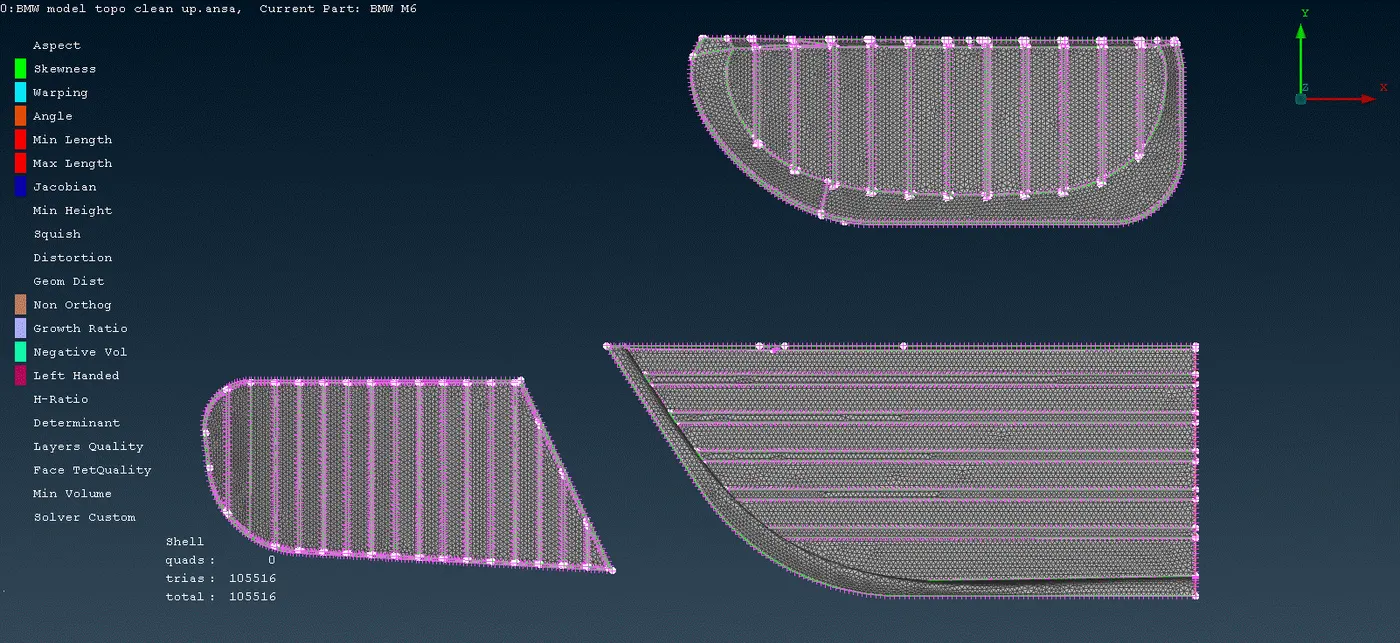

Grills :-
mesh length 1mm
Quality criteria :-
mim length 0.4mm
max length 2mm
link - https://drive.google.com/file/d/13z_oq9f1TwCk_nuXEjPz5hIrAPdA4X0Z/view?usp=share_link

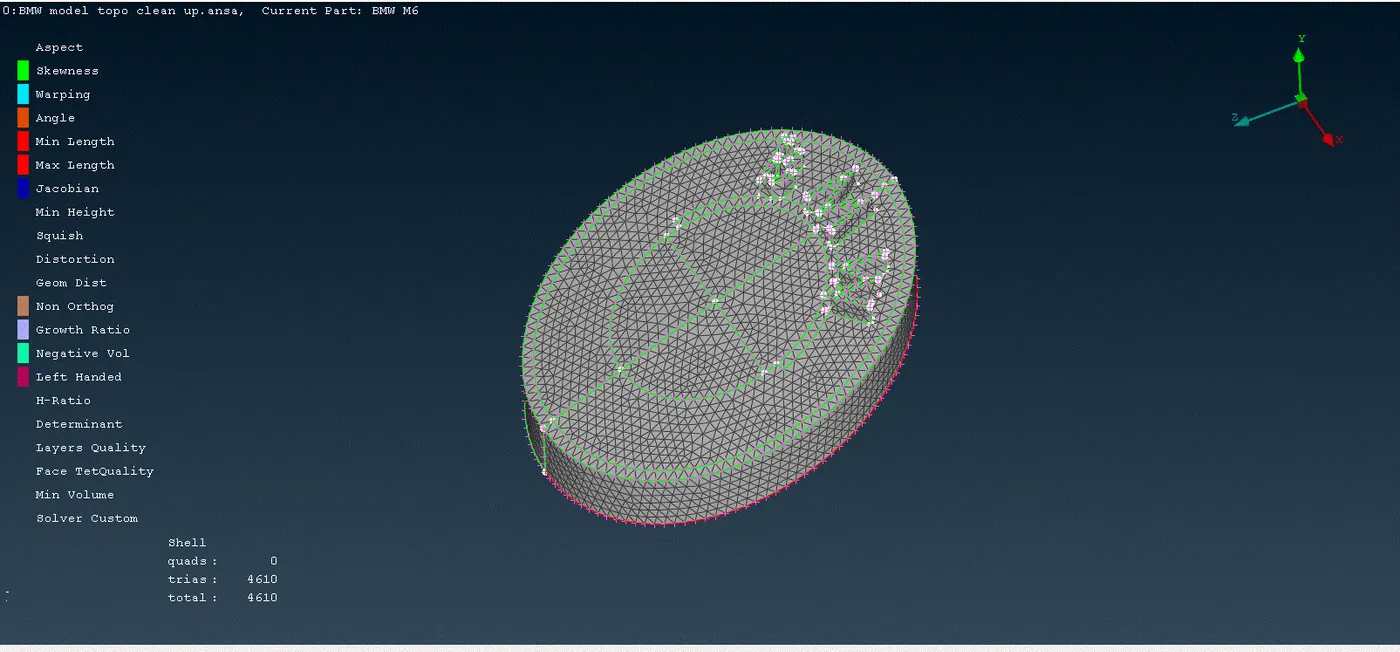

Logo :-
mesh length 1mm
Quality criteria :-
mim length 0.4mm
max length 2mm
link - https://drive.google.com/file/d/1tFeheZm2hOA2BXY45OIdMi5JXXG-vAm6/view?usp=share_link

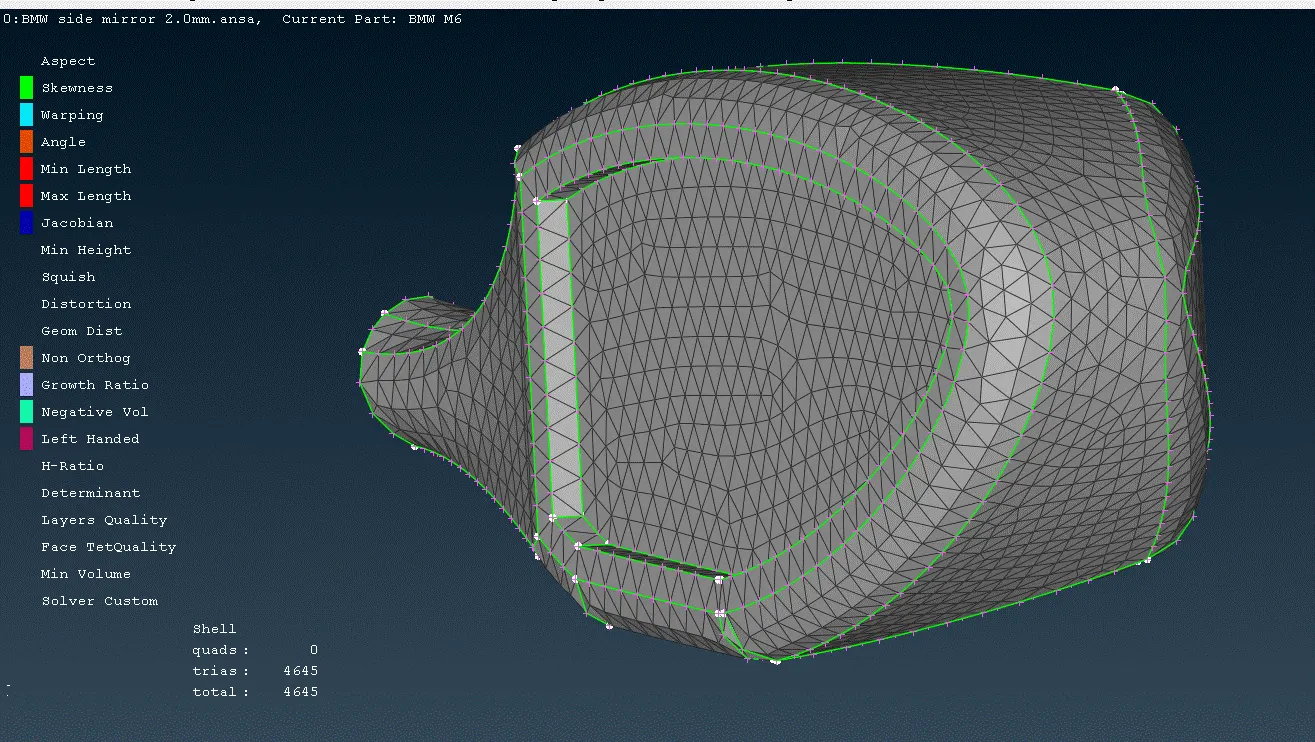

Optical Rear view mirror :-
mesh length 2mm
Quality criteria :-
mim length 1mm
max length 3mm
link -
https://drive.google.com/file/d/1pr5-3wAOQOEqhnWtMd94AYH8YmzWFAql/view?usp=share_link

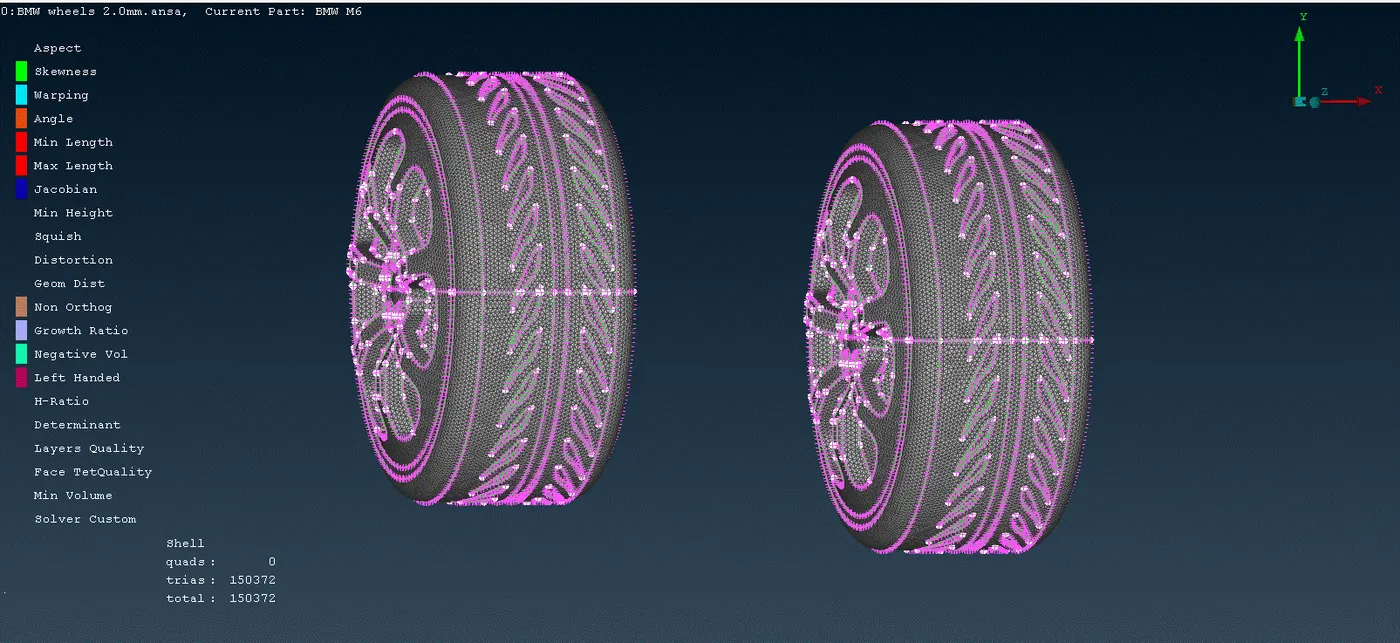

Rims and Tyres :-
mesh length 2mm
Quality criteria :-
mim length 1mm
max length 3mm
link -
https://drive.google.com/file/d/1qfBzVW5EKS7MRVH5_srXWnFbL-b6cY5o/view?usp=share_link
Windows:-
mesh length 2mm
Quality criteria :-
mim length 1mm
max length 3mm
link - https://drive.google.com/file/d/1cM5KaraSctaQBeep7aebnvOMobK6y6fx/view?usp=share_link

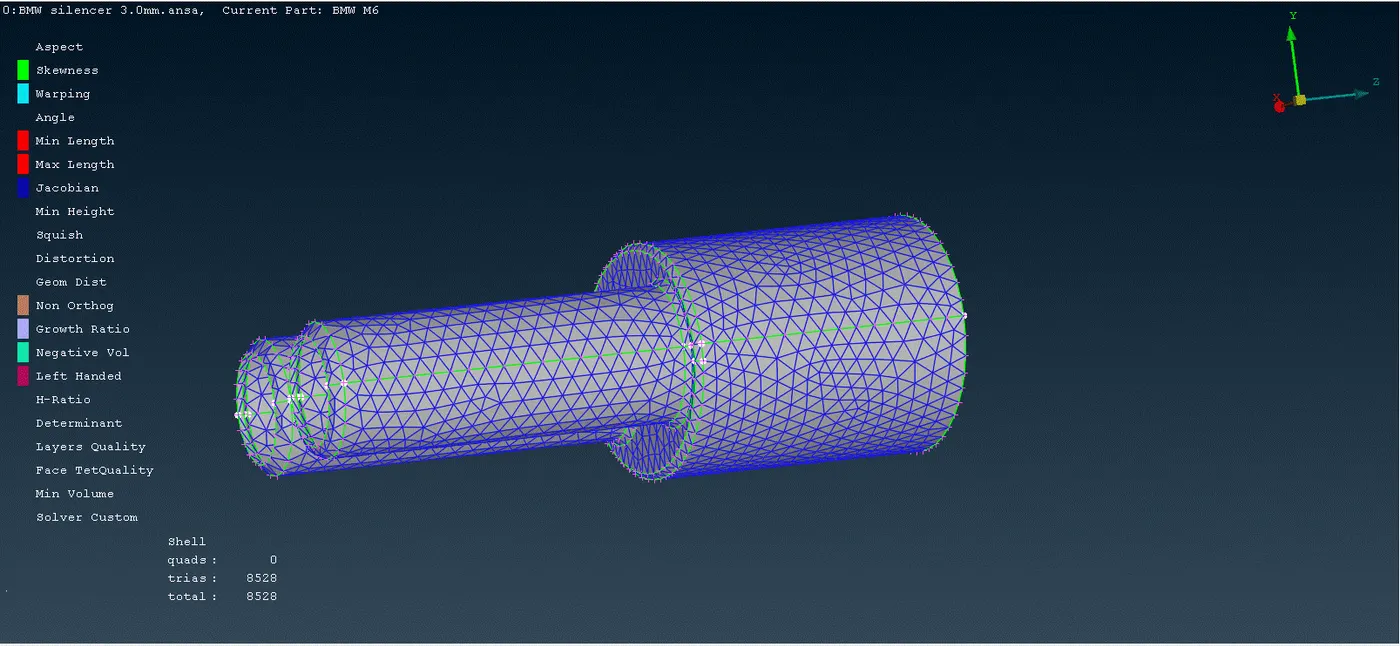

Silencer :-
mesh length 3mm
Quality criteria :-
mim length 1mm
max length 5mm
https://drive.google.com/file/d/1Ry_BcBCmHEju53s43NebWxu4qRKYOmJZ/view?usp=share_link

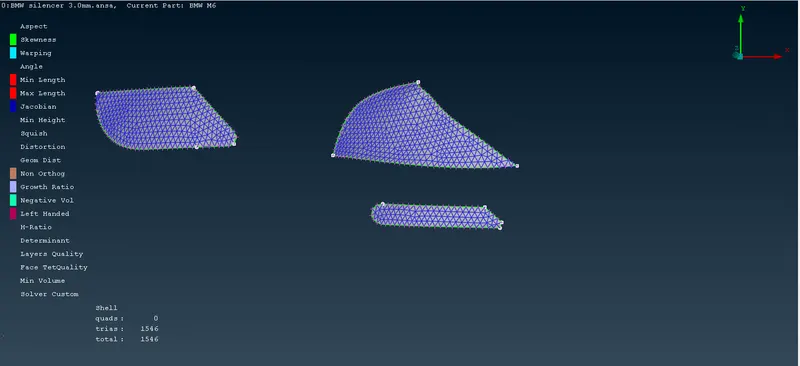

Lights:-
mesh length 3mm
Quality criteria :-
mim length 1mm
max length 5mm
https://drive.google.com/file/d/11Cx9Vr1v0xaxzWtr2zoK5yBYVDBZLyKs/view?usp=share_link

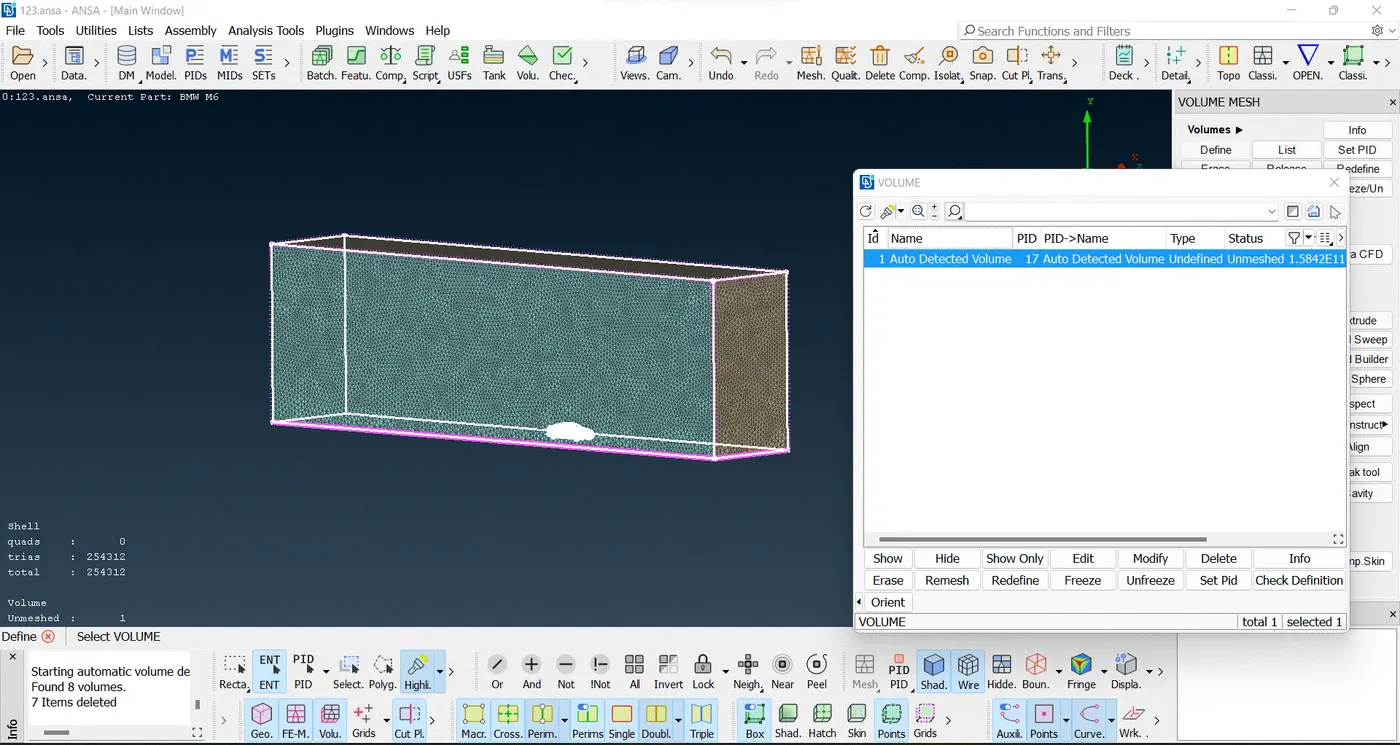

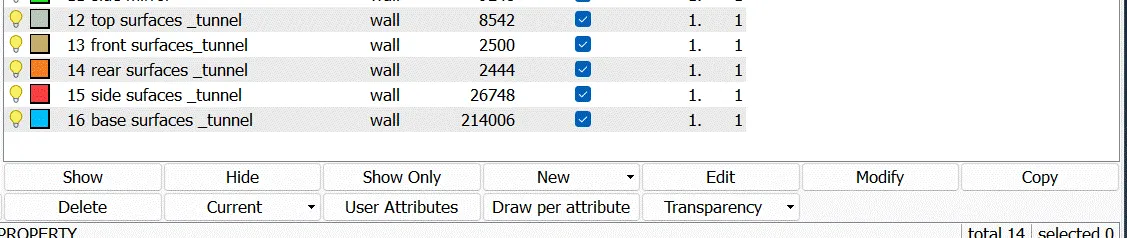

Wind tunnel volume :-

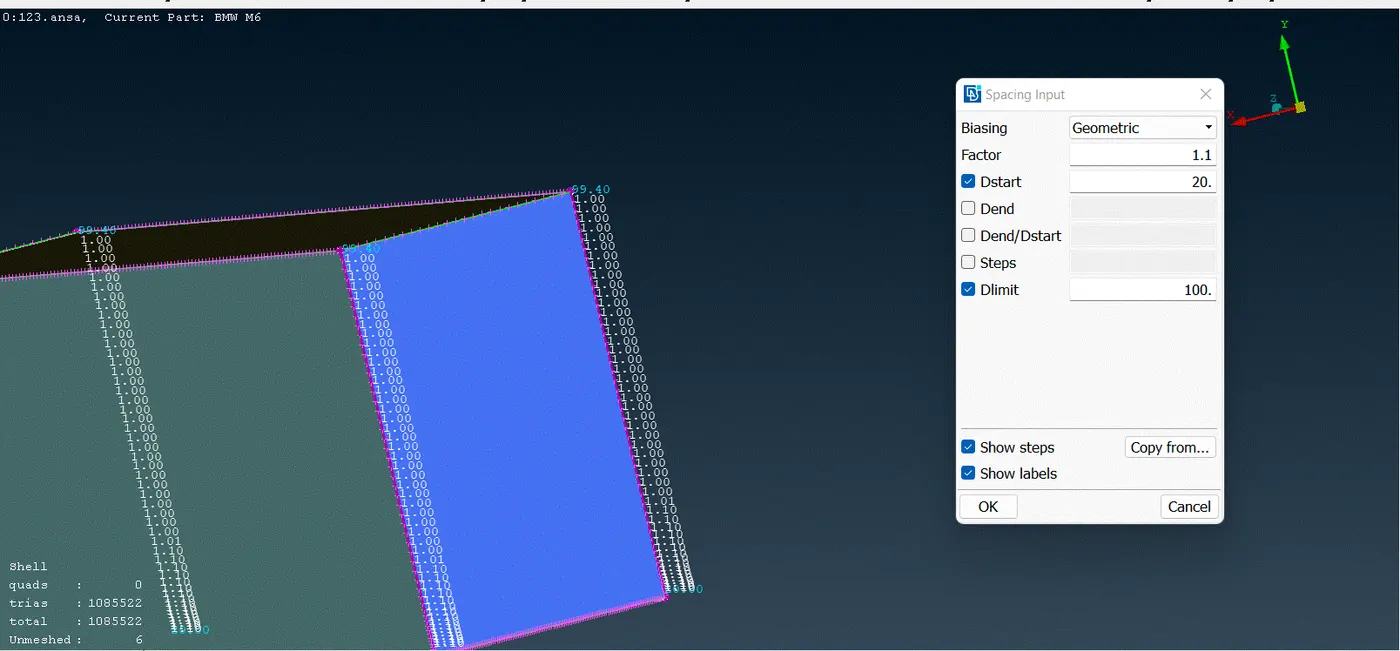

spacing inputs :-
Ready to v.mesh :-
https://drive.google.com/file/d/12NyGePIhCZVo5WWGthYvP00lPR536tDf/view?usp=share_link
