Week 4 Challenge

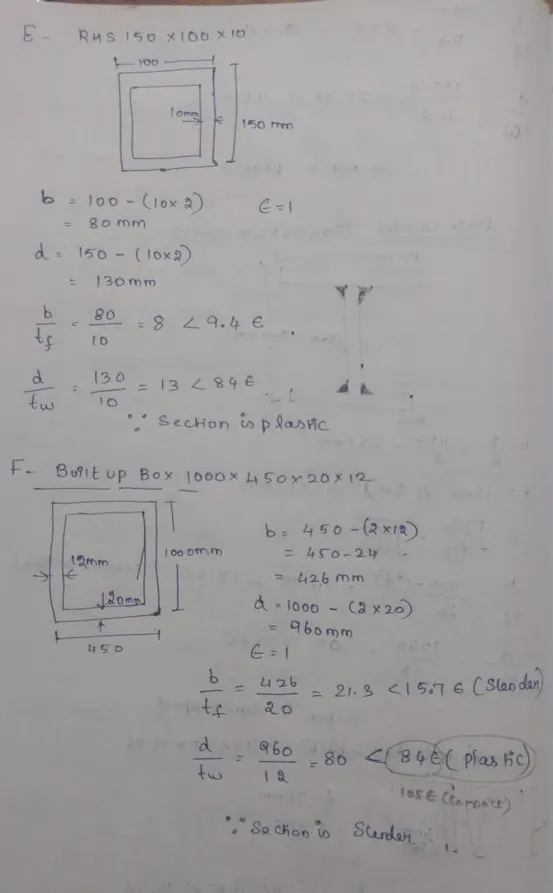

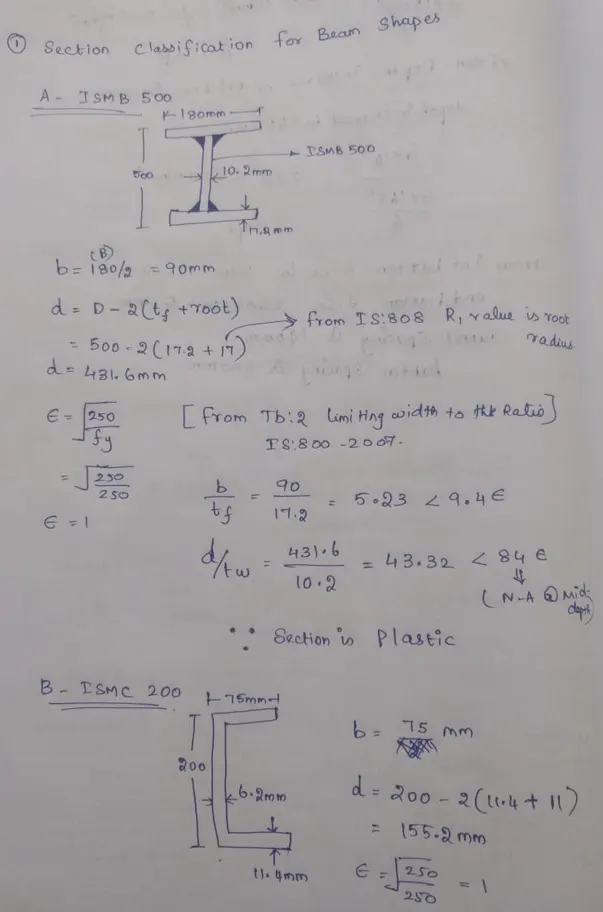

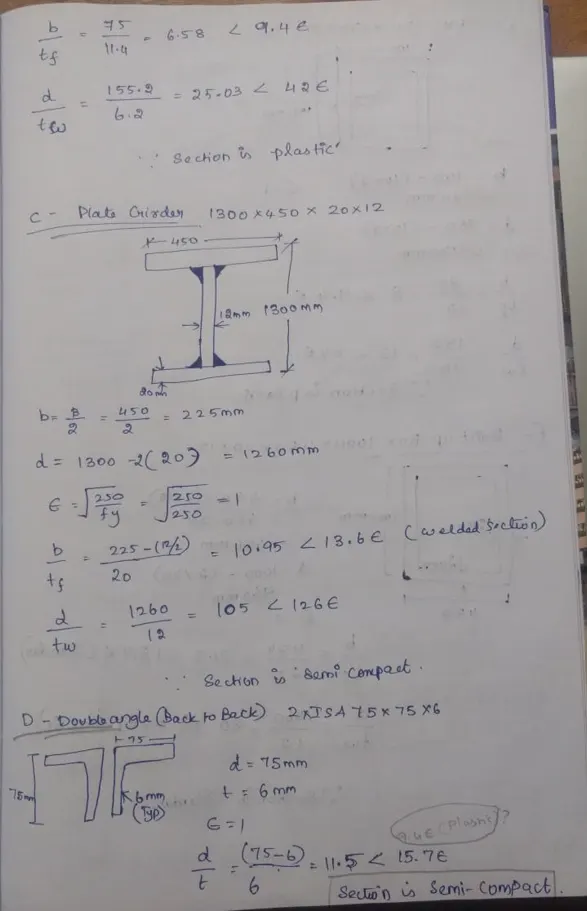

1. Aim and introduction:
To classify the section for various beams given
Procedure:
Result:
the sections has been classified for various beams and built up secitons

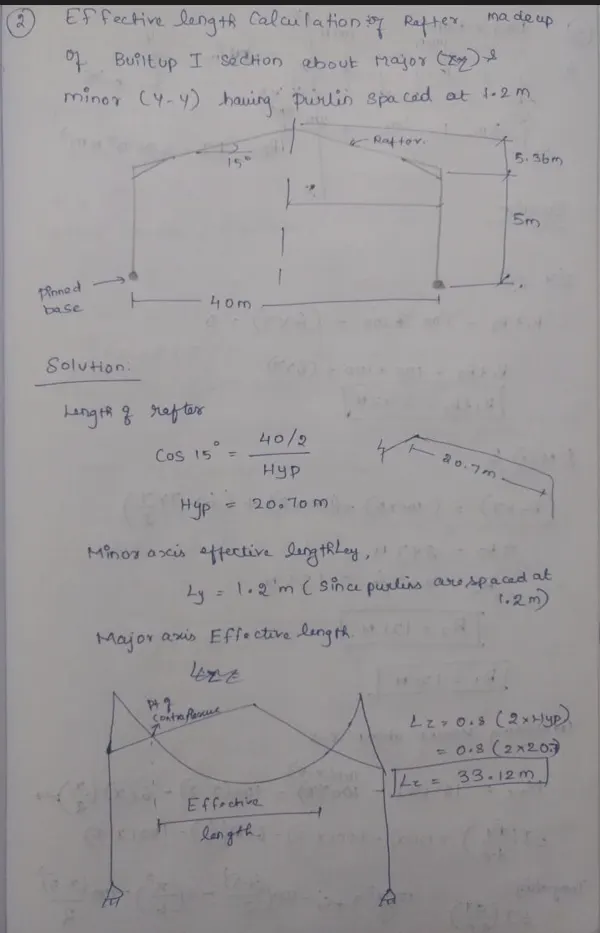

2. Aim and introduction:
to determine the effective length of the rafter
Procedure:

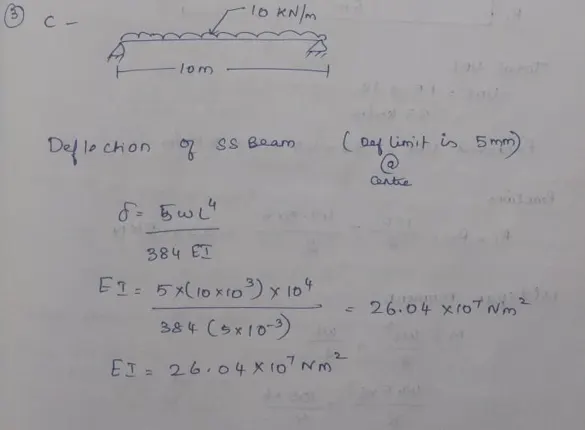

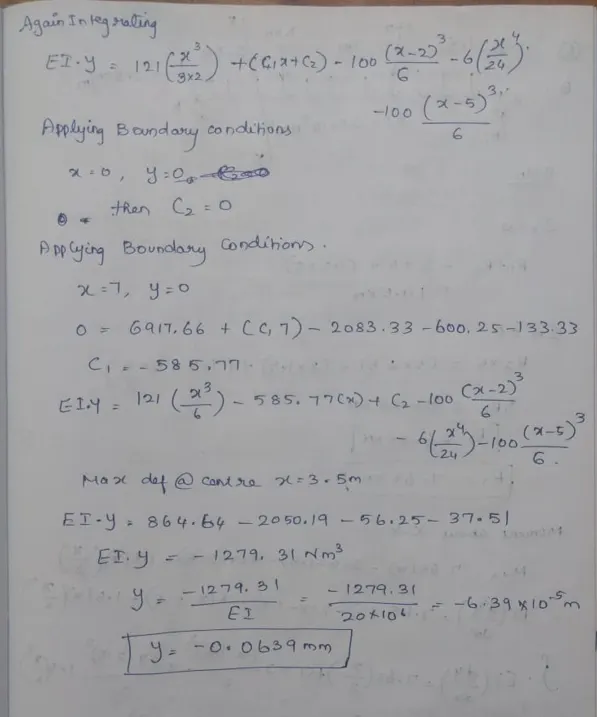

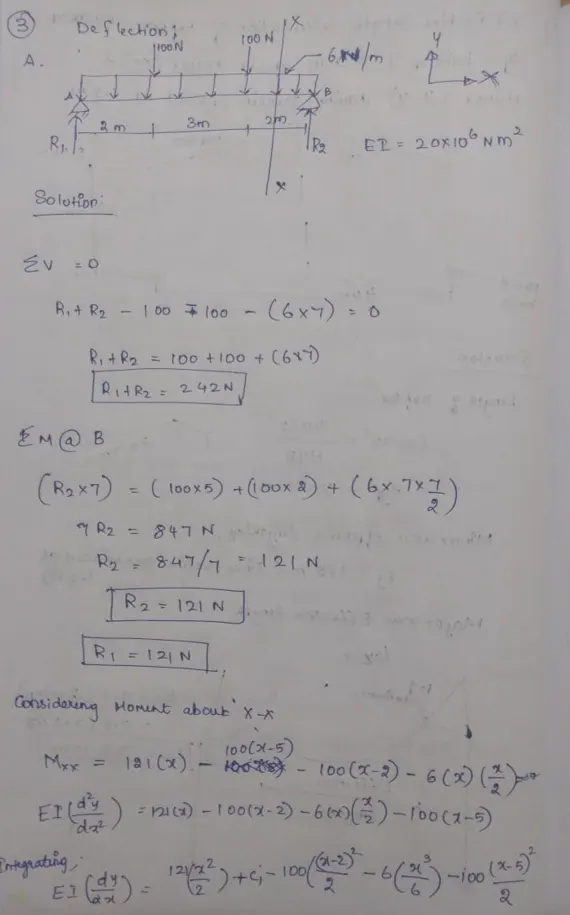

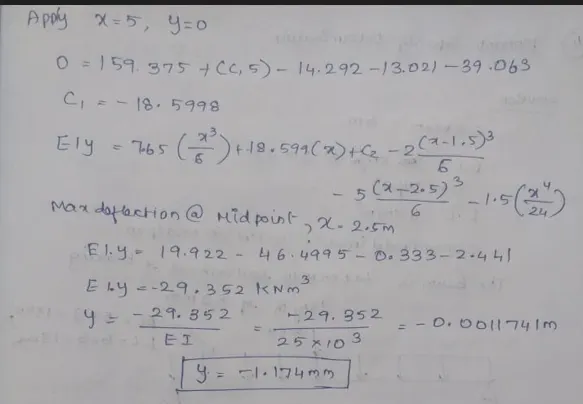

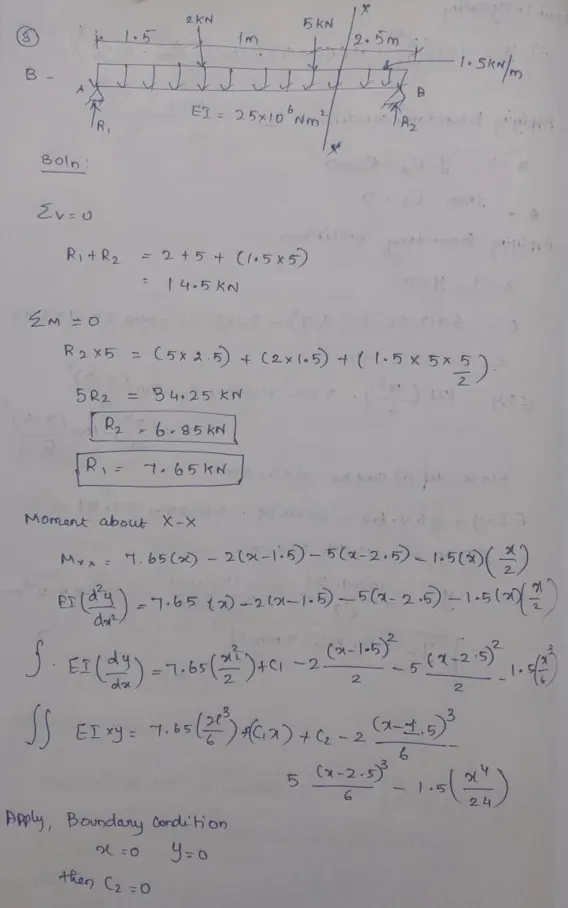

3. Aim and introduction:
To determine the Deflection of a beam
Procedure:
Result:
The defelection of the beam has been determined

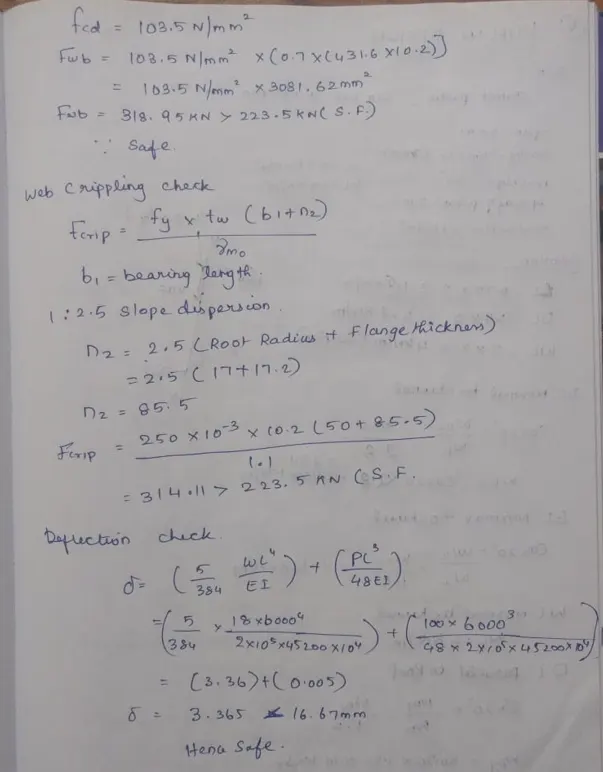

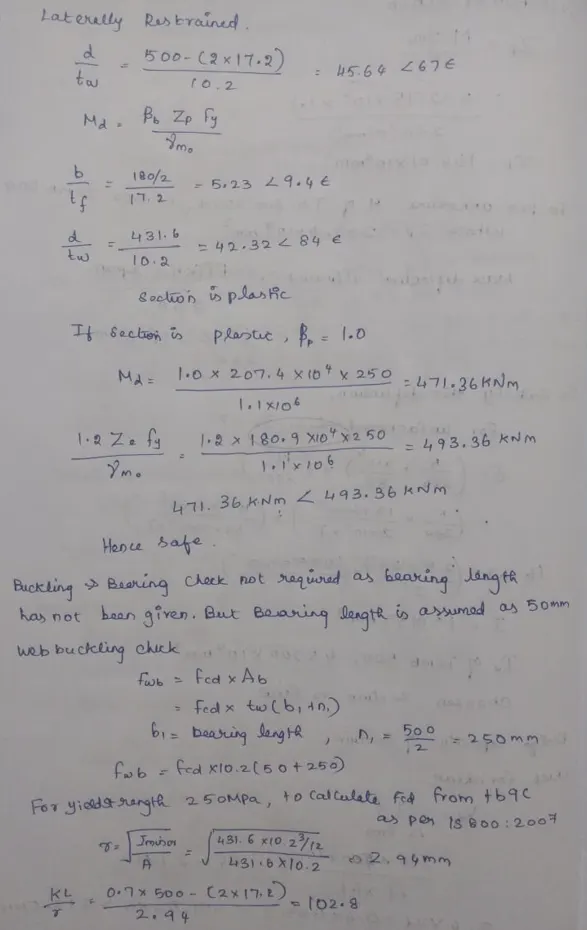

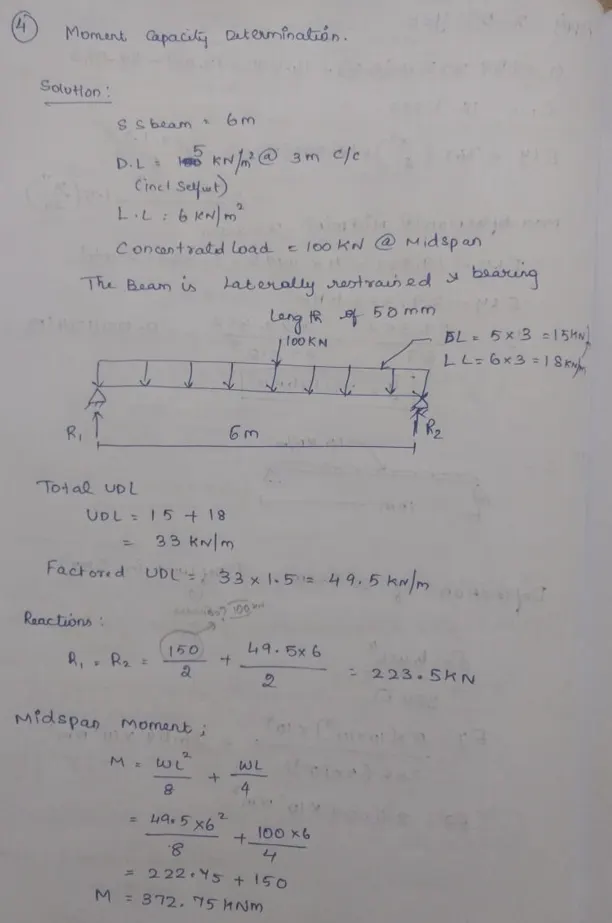

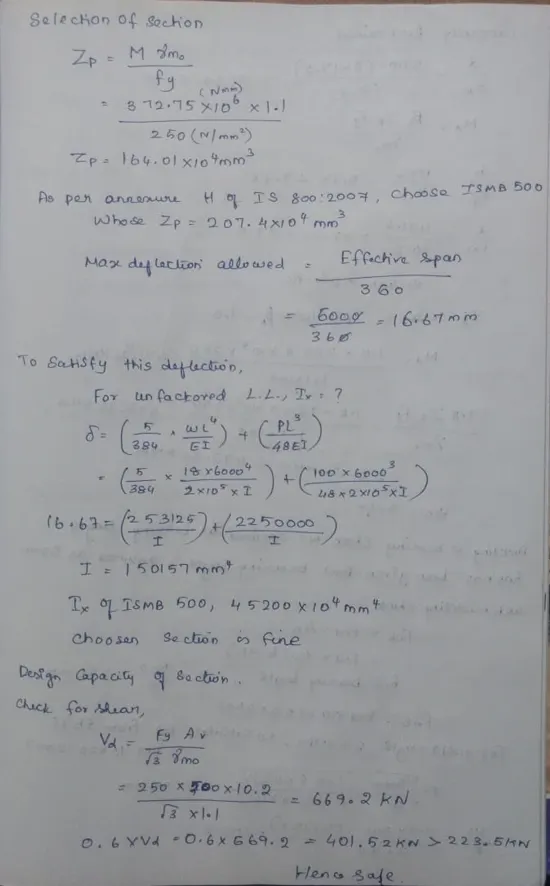

4. Aim and Introduction:
To determine the moment capacity of the section
Procedure;

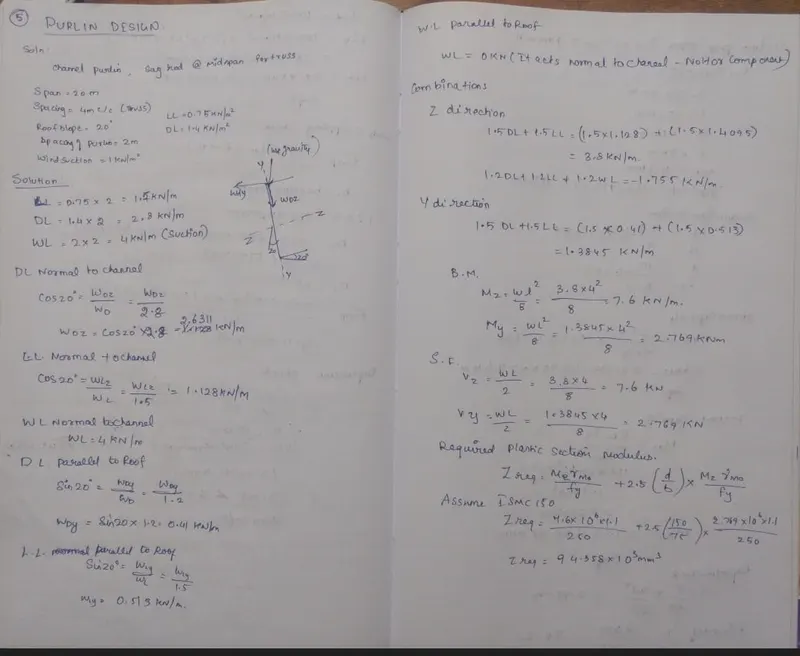

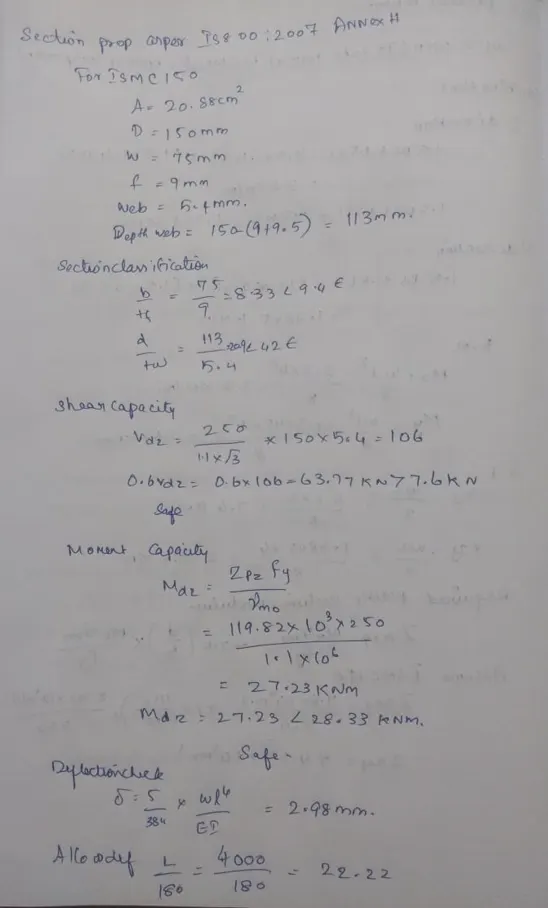

5. Aim and Introduction:
To design the purlin using Channel seciton
Procedure:
Result:
The PUrlin design has been done as per the IS code
