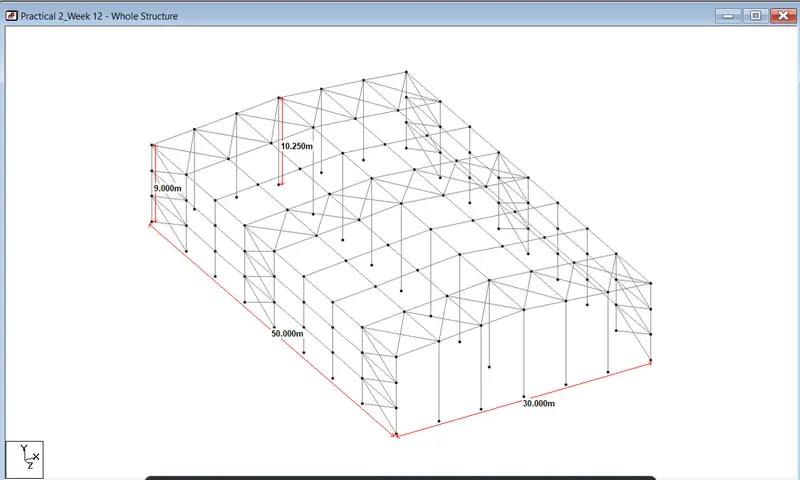

1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition.

Aim and Introduction:

To model and design a warehouse building which was located in chennai

Procedure:

Step 1: Create the model as per the the details of the ware house

2. Load calculation (DL, LL, WL, EQ LOAD)

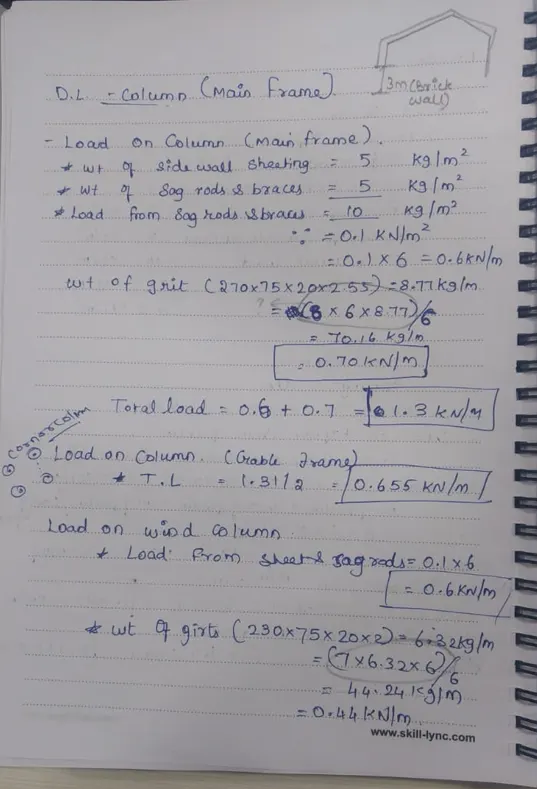

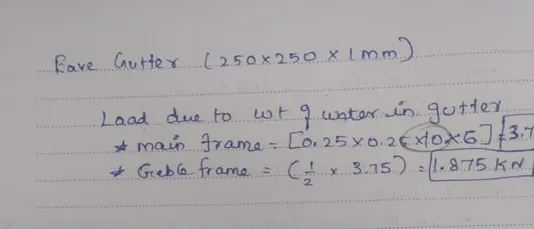

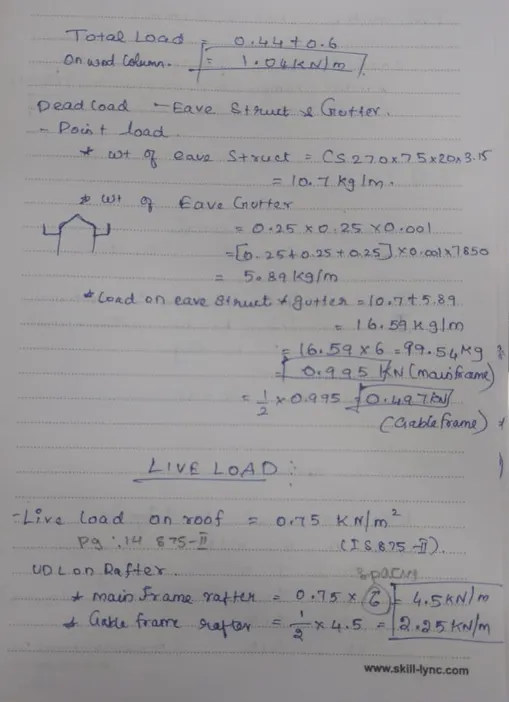

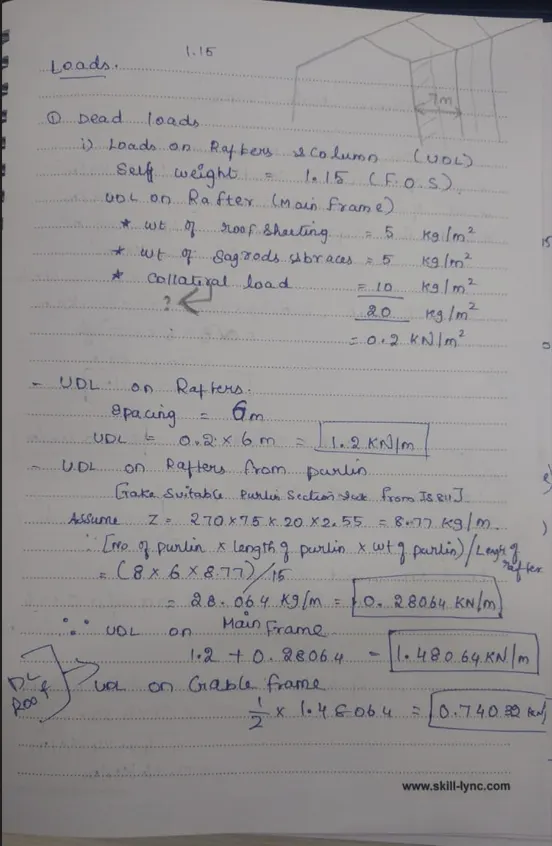

1. DEAD LOAD:

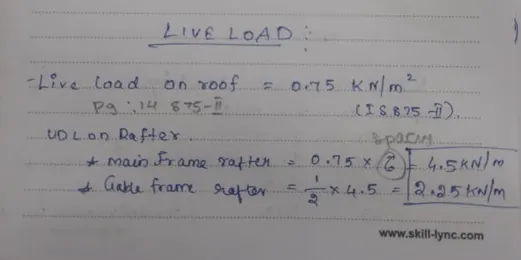

LIVE LOAD:

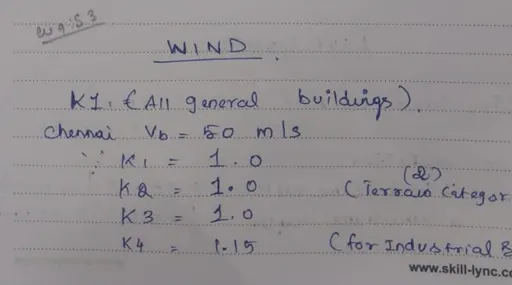

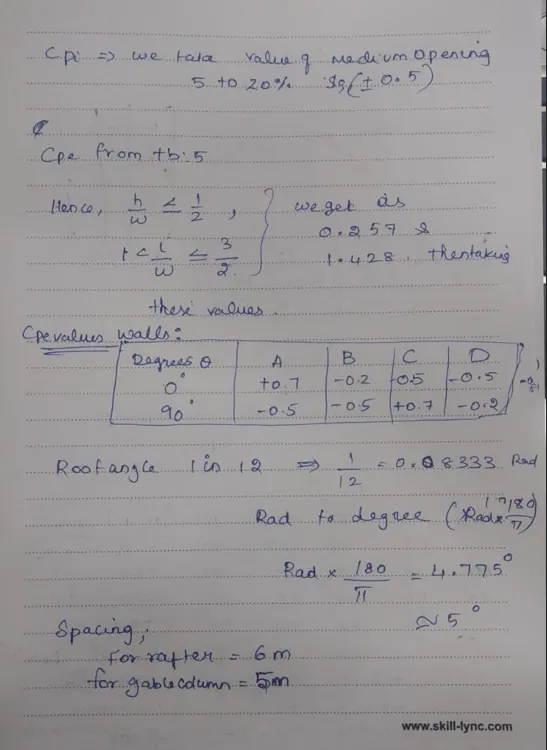

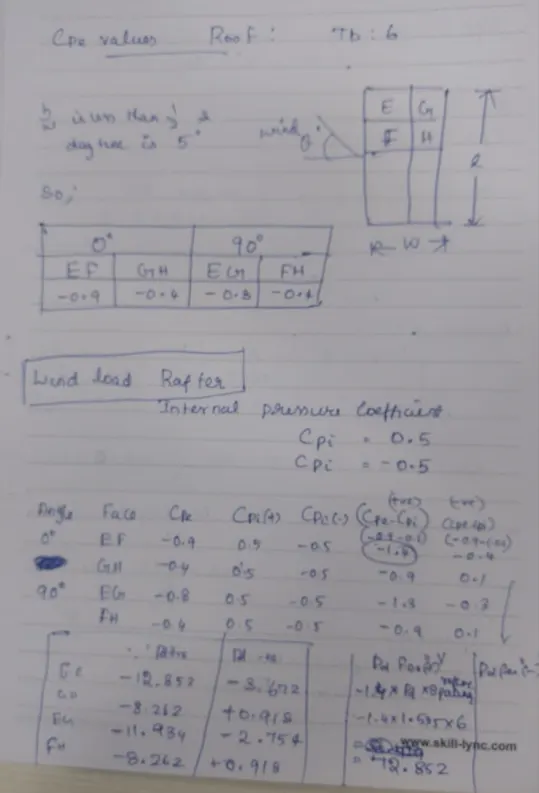

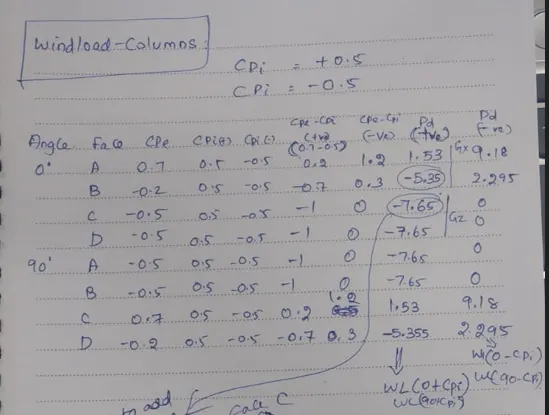

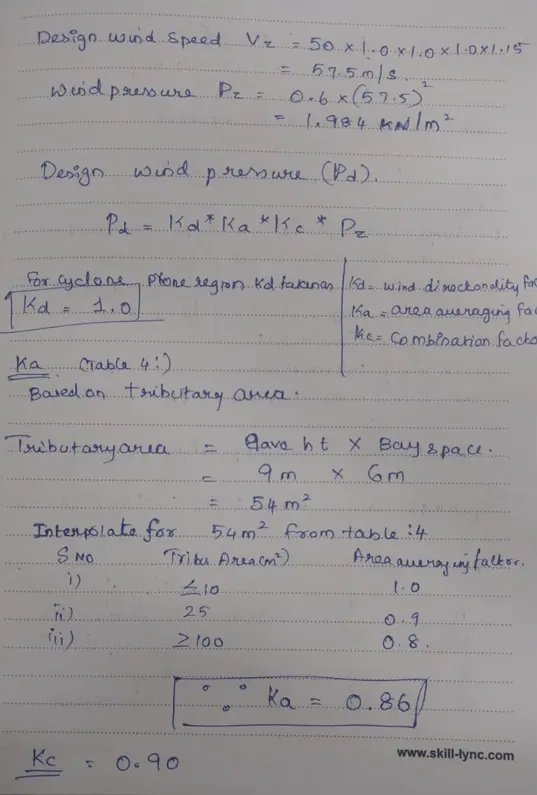

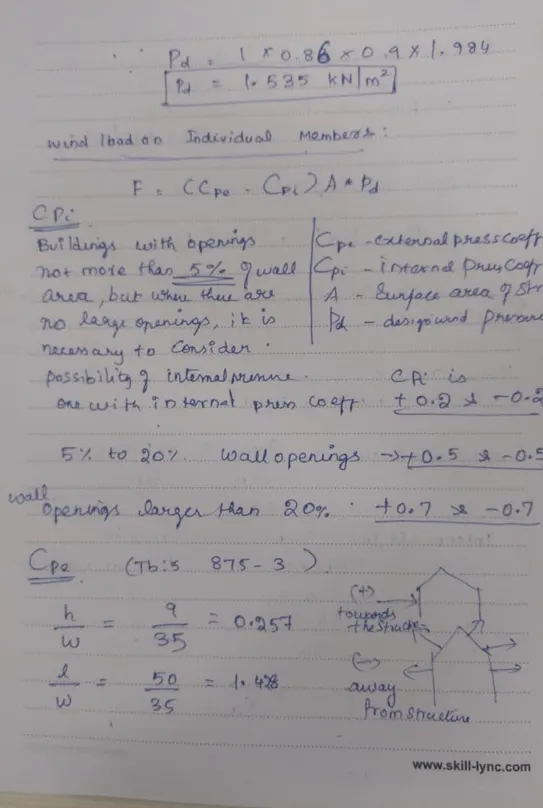

WINDLOAD:

Design of various members:

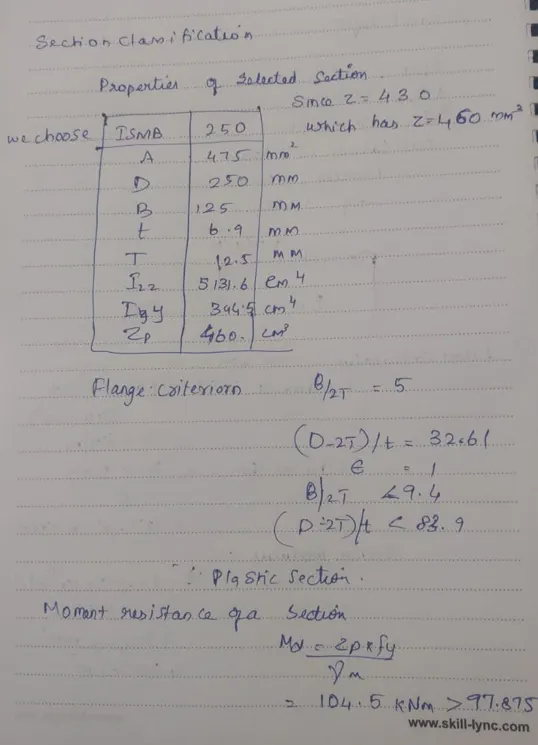

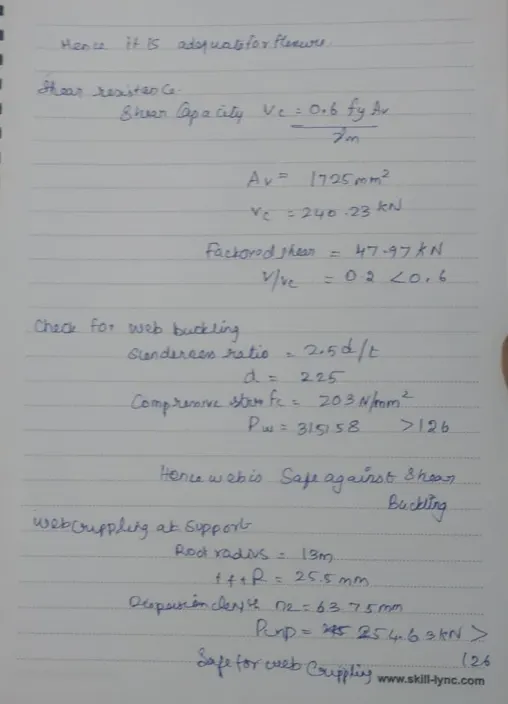

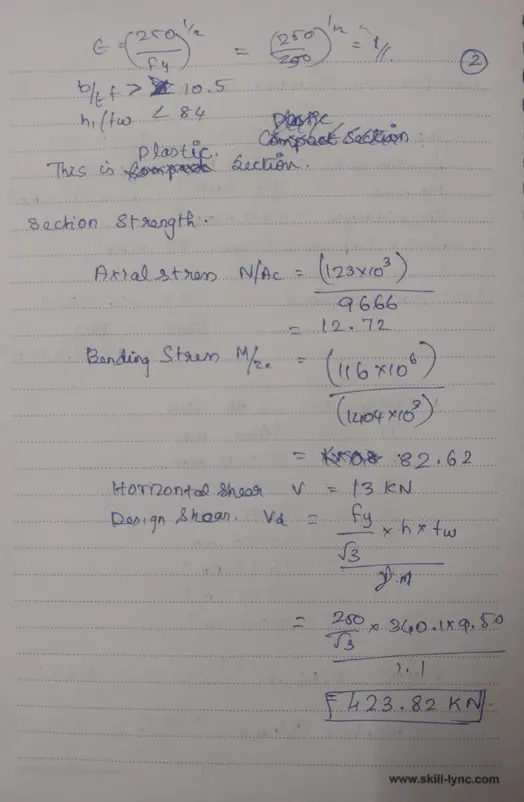

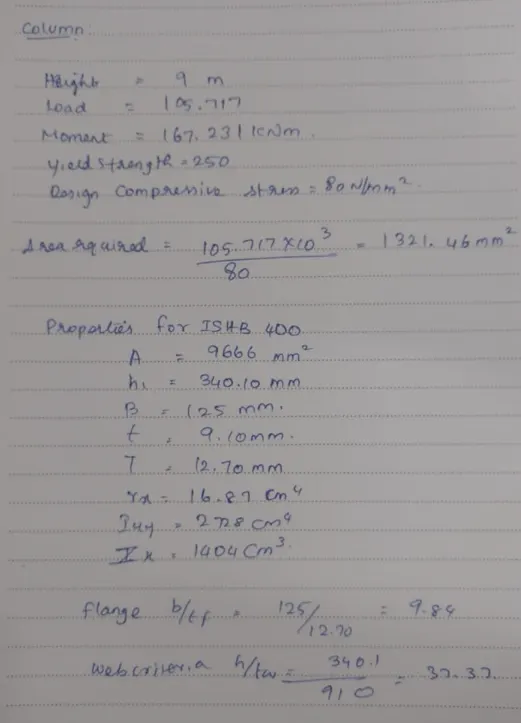

a) Column:

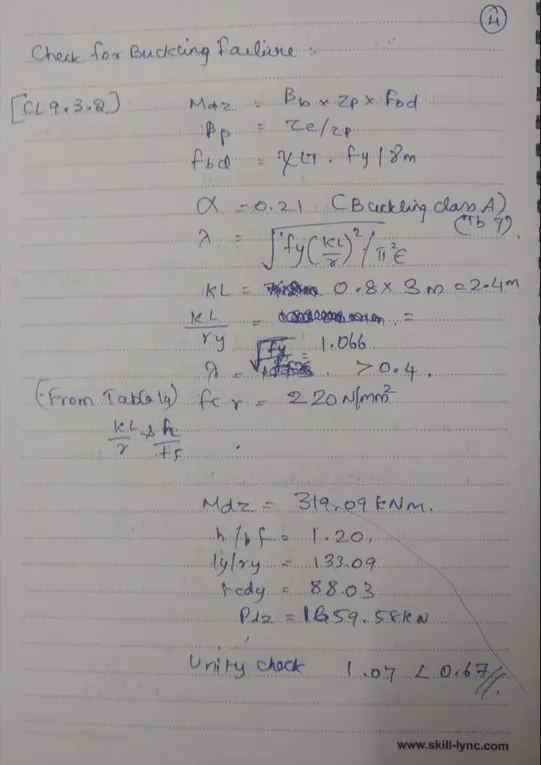

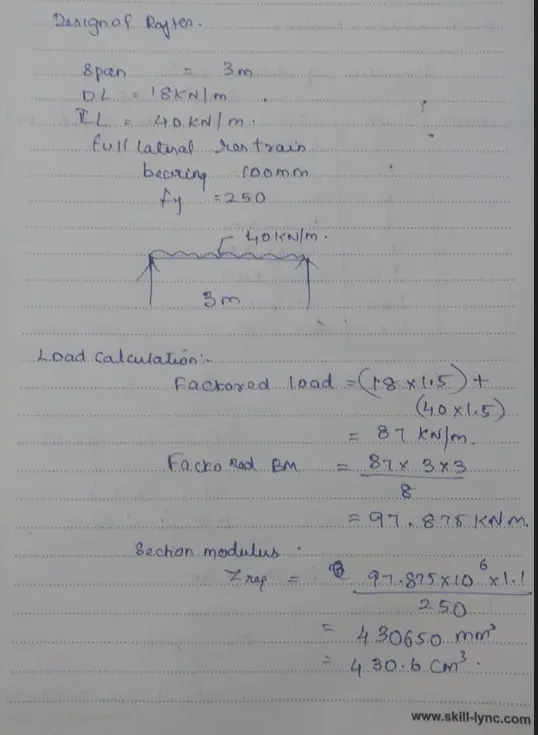

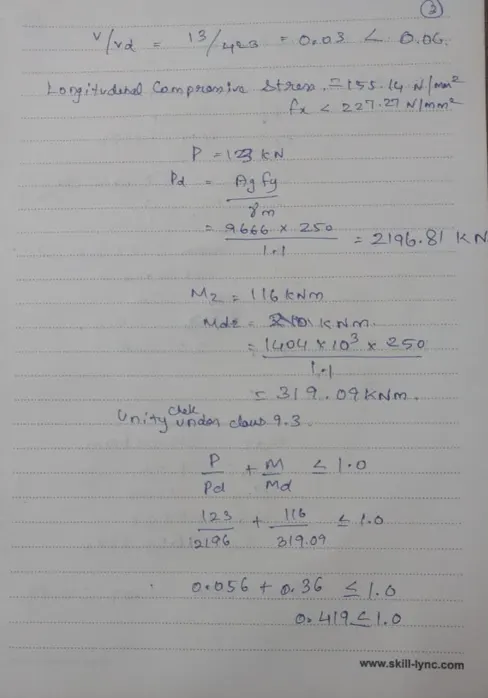

2. Rafter:

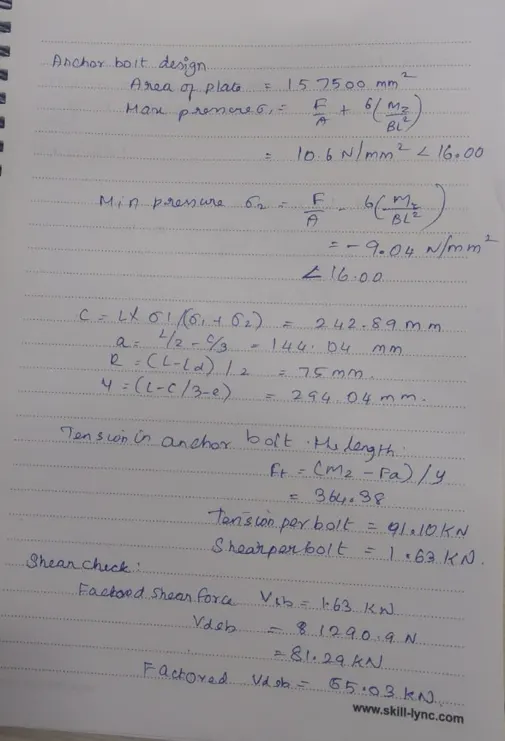

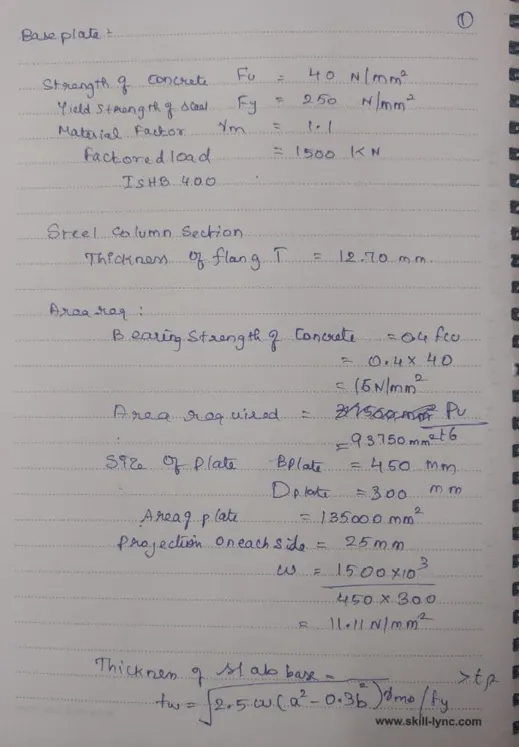

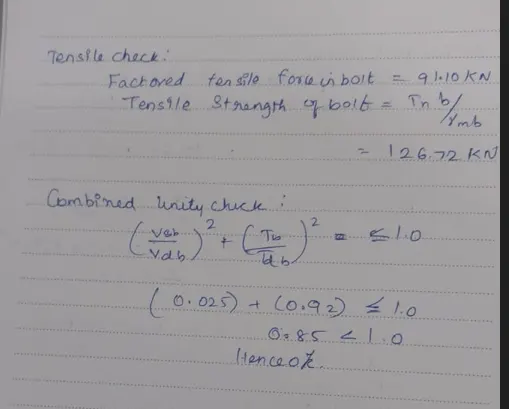

3. baseplate:

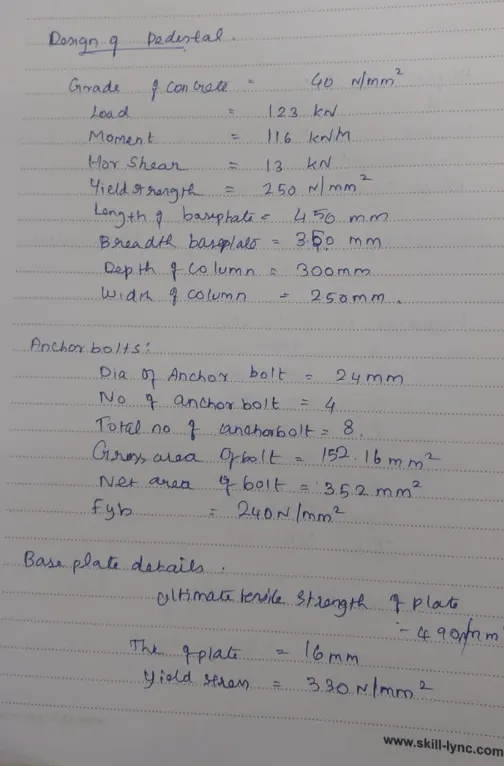

d. Pedestal:
