1. Implement control logic of a “washing machine” using Stateflow as per the given sequence

2. Make a Simulink chart for the “Gear shift” logic as per the below conditions

1. Implement control logic of a “washing machine” using Stateflow as per the given sequence

A working machine by spinning at 800=1600 rpm helps to remove the dirt with it to leave the surface of the cloth via centrifugal force and into outlet pipes utilizing centrifugation to both clean and partially dry the clothes loaded in it. Thus the processes are electrically controlled, such as the drum, valves, pumps, motor, and heating. The valve lets clean water in again into the drums.

Procedure

• soaking
• washing
• rinsing
• dryer
• power supply

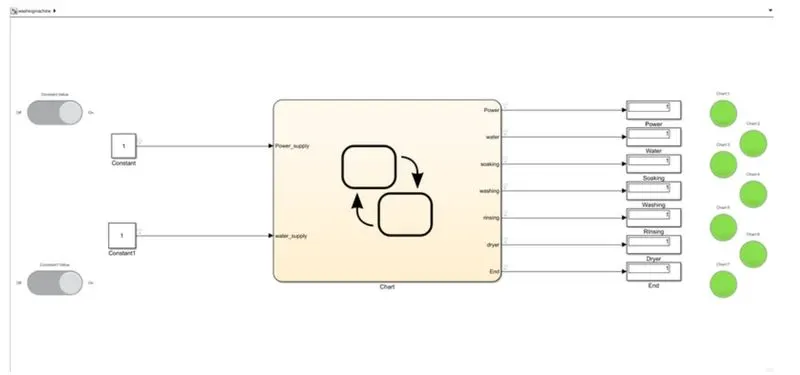

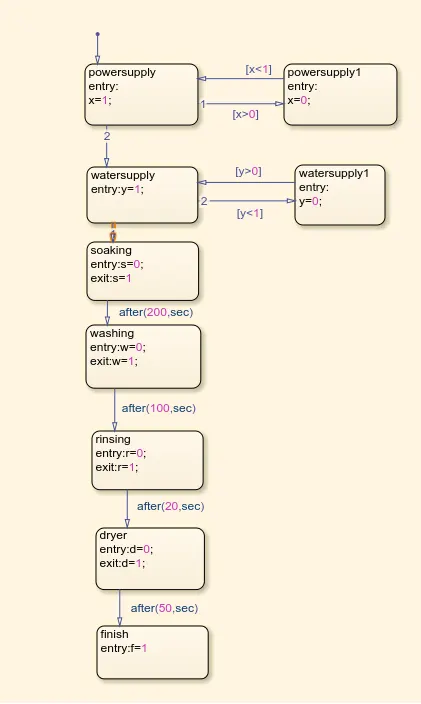

• chart

2. Make a Simulink chart for the “Gear shift” logic as per the below conditions

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

A gear shift mechanism for a manual transmission includes a shaft axially movable for selecting shift planes and rotatable for engaging the gears defining the shift planes. The shaft is held in a reference shift plane by two helical springs.

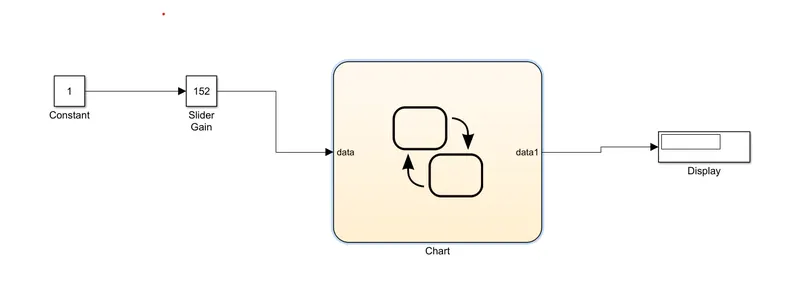

Chart block

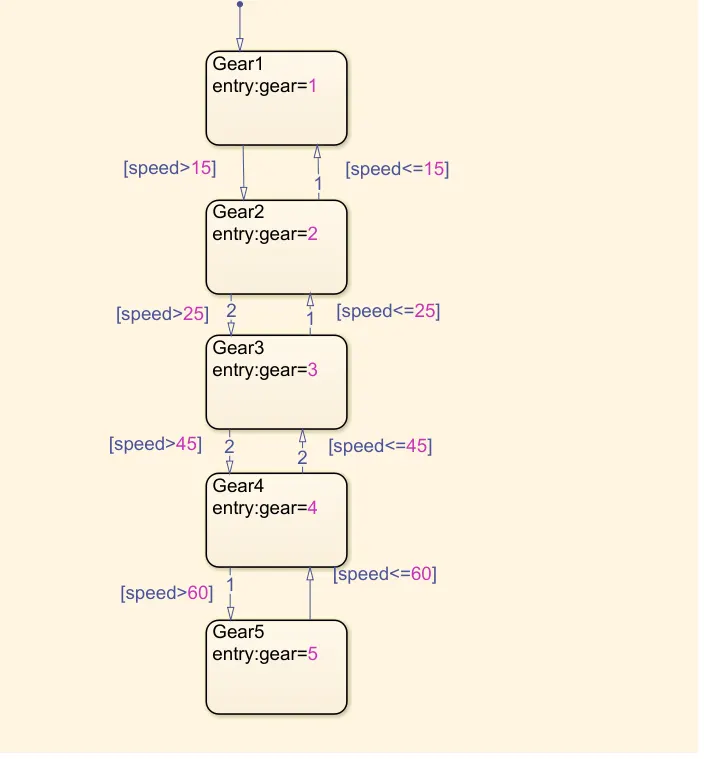

Simulink chart for the “Gear shift” logic

RESULTS

Finally by using the Simulink chart can be completed both “washing machine” &“Gear shift”
