Week - 4

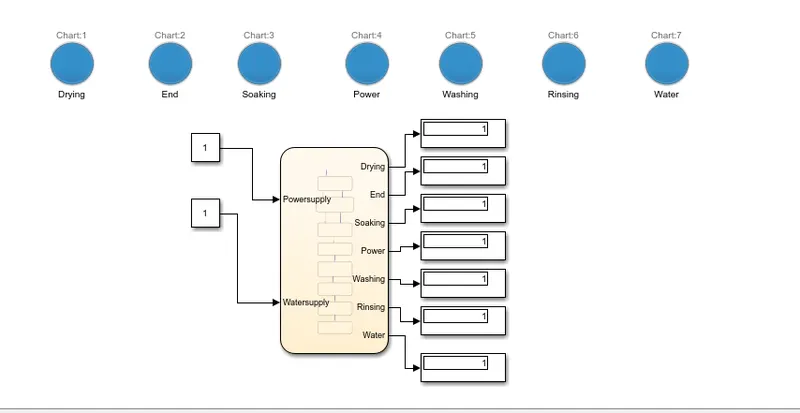

1. The objective is to implement the control logic of a “washing machine” using Stateflow

• The solution is performed through a sequence by which the whole process is initiated when there is Powersupply and Water supply
• If the required water supply is acquired then the soaking process is performed
• Soaking time is simulated for 200sec followed by Washing time for 100sec.
• Then rinsing simulates for next 20sec & dryer runs for 50sec
• In the end, End is indicated by the lamp

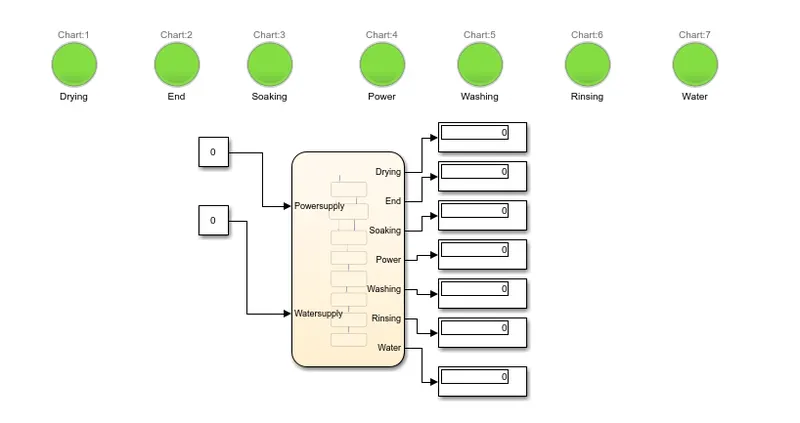

• If the Powersupply and Water supply is not fed as input, then the whole process will not be simulated

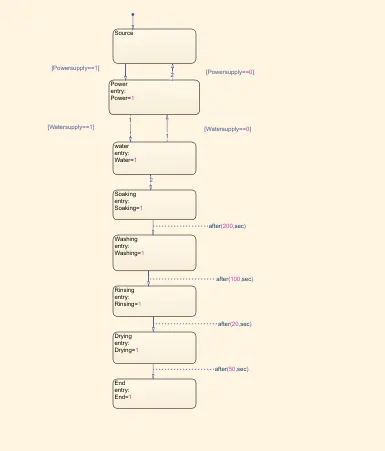

• A Stateflow chart is been developed for the sequential operation of the washing machine

2. The objective is to make a Simulink chart for the “Gear shift” logic for the given speed

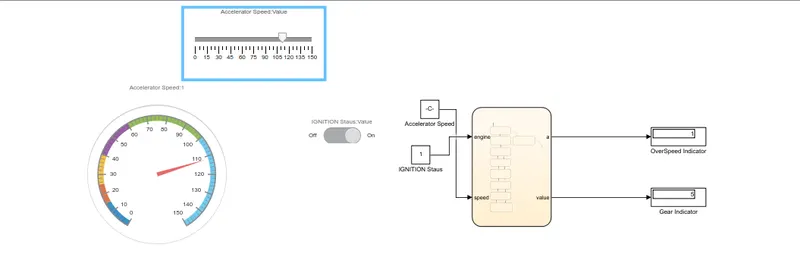

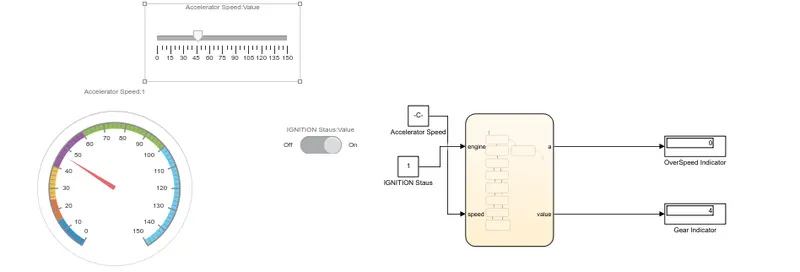

• A Slider is connected to the Stateflow chart which acts as the accelerator speed

• An IGNITION condition is given that when the IGNITION==1, the gear shift actuates or else the vehicle is turned OFF

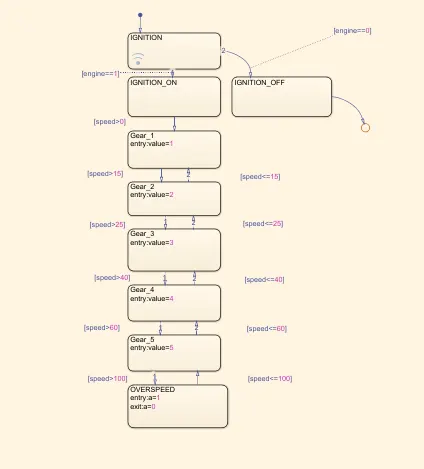

• A Stateflow chart is included to operate the gear shift Logic with the given Speed limit and Gear Ratio

• Speed Range(km/hr) Gear

  0 to 15 1

  16 to 25 2

  26 to 40 3

  41 to 60 4

  Above 61 5
