Project

Using SIMULINK with script and workspace

Objectives:

#Objective A:

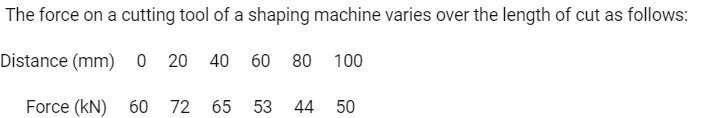

Building the above coordinates using a signal builder:

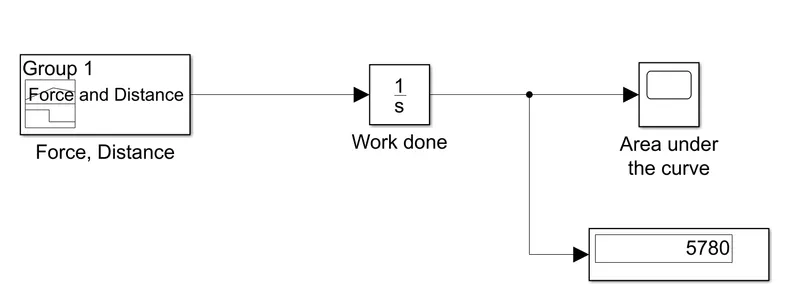

Simulink model:

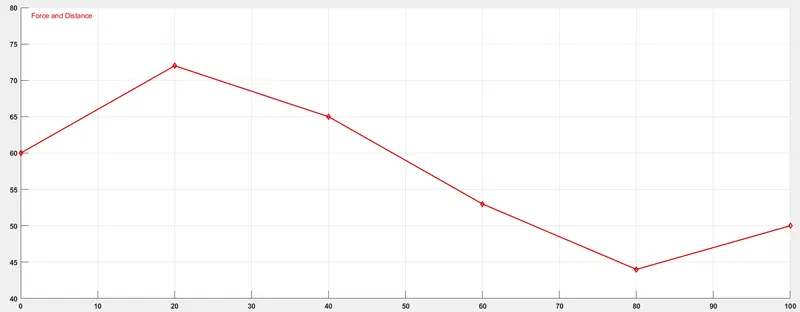

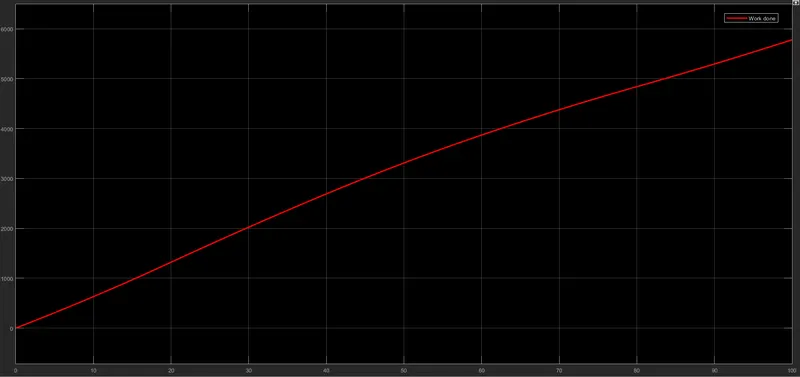

Output:

#Objective B:

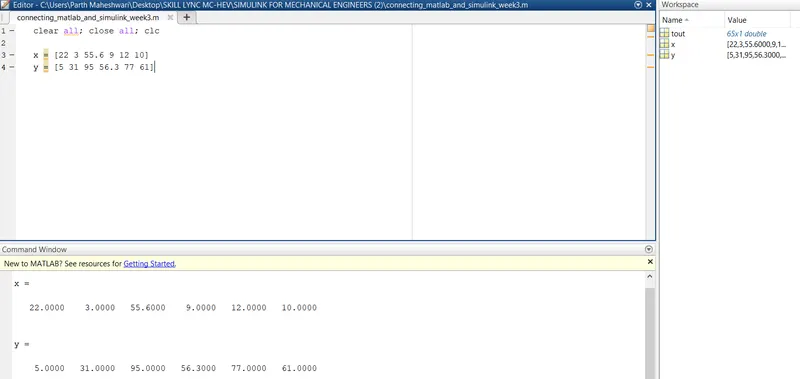

Defining x and y arrays in MATLAB:

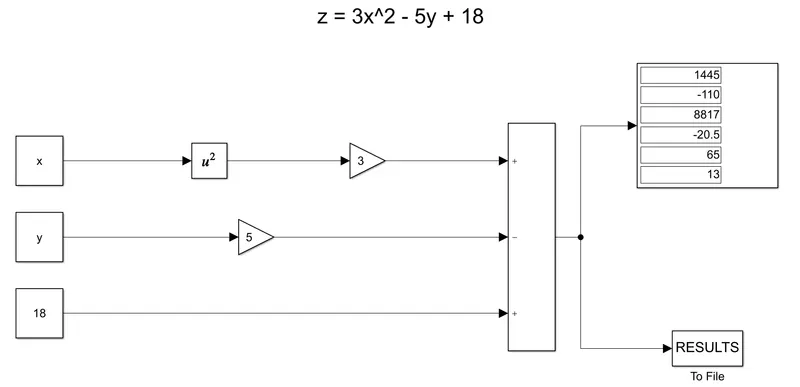

Modeling the function in SIMULINK:

#Objective C:

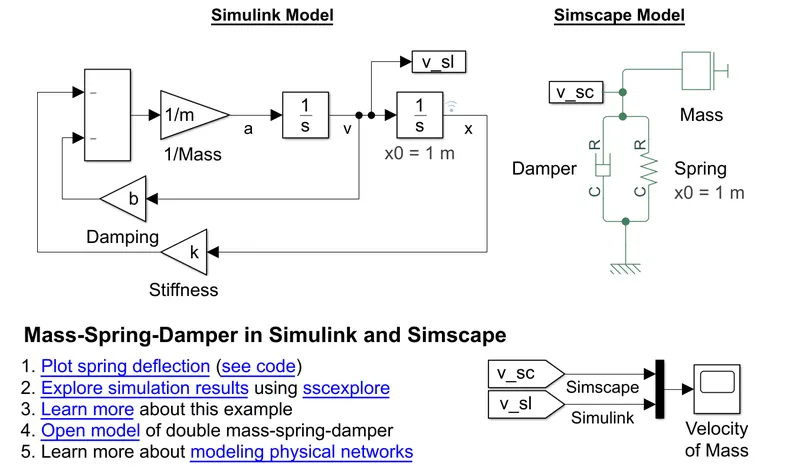

'Mass-Spring-Damper in Simulink and Simscape’ model:

Deriving the governing equation for the model:

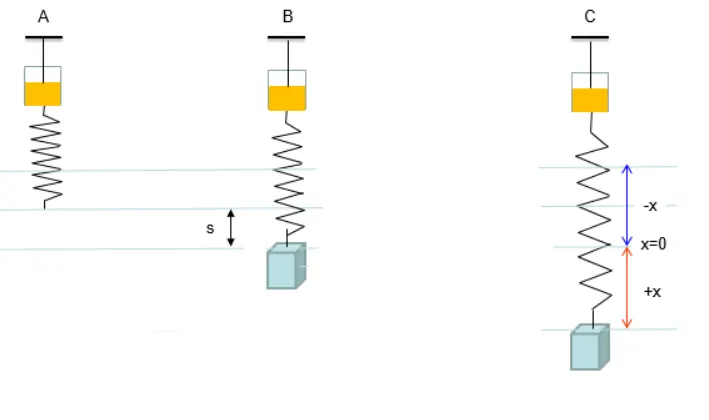

Figure A represents a spring and damper without a mass attached.
When the mass is attached in Figure B, the spring experiences tension and is pulled down a distance of 's'. The system reaches equilibrium with net forces equalling zero, and hence the system experiences no acceleration.
In Figure C, the mass is pulled further down a distance of 'x'. This external pull force allows the system to be 'active' again such that there is a net force acting on the system, which leads to a simple harmonic motion oscillation.

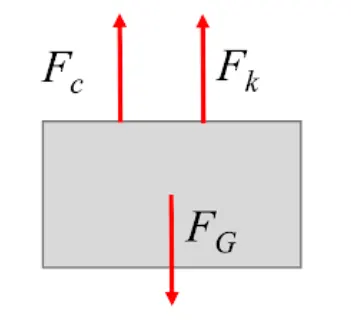

`F_G = mg`

`F_K = k(s+x)`

`F_C = Cv`

Using Newton's second law of motion:

`sumF = mg - ks - kx-Cv = ma`

`mg - ks` equals to 0 because both are of equal magnitude (In Figure B when the system is in equilibrium, it's because mg and ks cancel out)

`sumF = - kx - Cv = ma`

`-kx - Cdx/dt = m(d^2x)/dt^2`

`(d^2x)/dt^2 = -k/m*x - c/m*dx/dt` -------------------------- Governing equation of the model

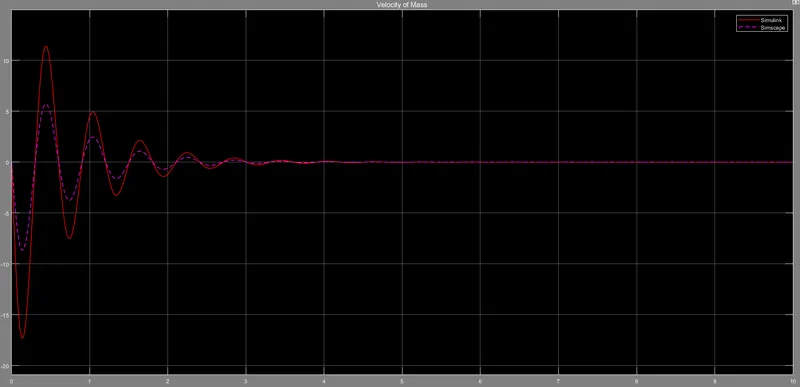

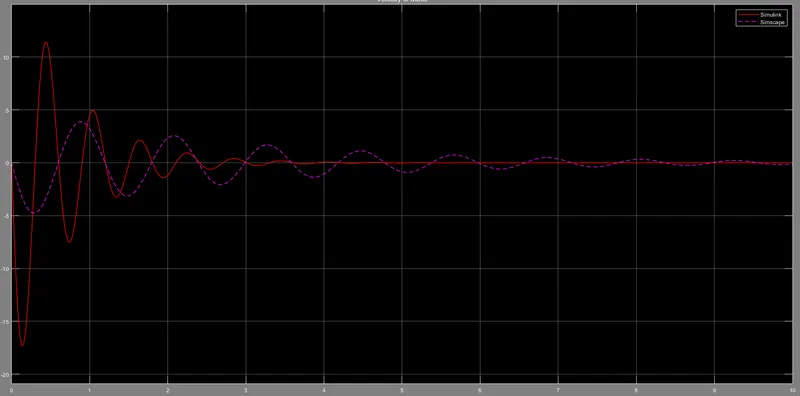

Changing the value of mass, damper, and spring for the Simscape model only:

Common variables for mass (m), damper (b), and spring (k) were assigned for both Simulink and Simscape. To change the output of Simscape only, new variables (m1, b1, k1) and values (mass was doubled, damper and spring constant were halved) were assigned for the three parameters in MATLAB.

Changing the value of Mass x0=2 in the Simulink model only:

Frequency remains the same but the amplitude has doubled when mass x0 changed from 1 to 2

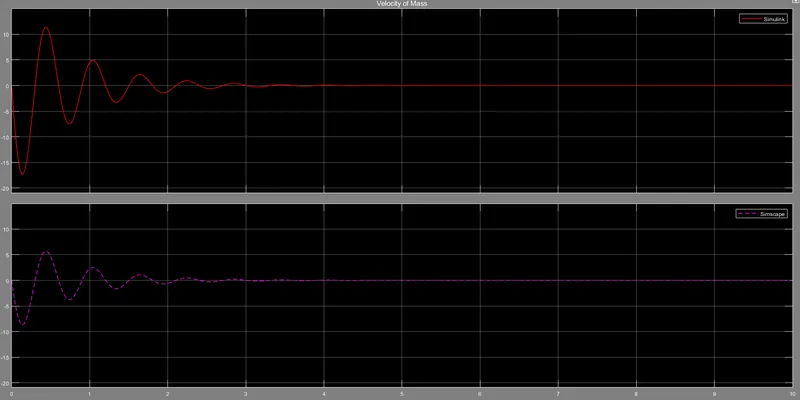

Simulink and Simscape as two separate displays:
