Week 3 - External flow simulation over an Ahmed body.

Q1. Describe Ahmed's body and its importance.

Ans:- The Ahmed body is a simplified car body used in the automotive field to study the impact of the flow pattern on the drag. The external aerodynamics of the car defines many major traits of an automobile like stability, comfort, and fuel consumption at high speeds. The flow around the vehicle is characterized by high turbulent and three-dimensional flow separations as well as there is a growing need for more insight into the physical features of these dynamical flows. The Ahmed Body is a simplified car, used in the automotive field to investigate the flow analysis and find the wake flow around the body. Ahmed body is made up of a round front part, a moveable z slant plane in the rear of the body to study the detachment phenomena at different angles, and a rectangular box which link the front part and the rear slant plane. The principal objective to study such a simplified car body is to tackle the flow processes involved in drag production. Through perceiving the mechanisms involved in creating drag one can be able to design a car to minimize drag and therefore reducing fuel consumption and maximize vehicle performance.

Importance of Ahmed body

An Ahmed body represents a simplified vehicle volume which helps understand the fundamental physics defining by the engineers the lift and drag forces and coefficients at certain characteristically velocities, pressure differences and seeing and analyzing the vortices, turbulence, and Reynolds number obtained. ANSYS is a general-purpose FEA and CFD simulation software. It gives a numerical prediction of the behavior of a system.

These numerical predictions need to be validated by experimental data. People working in vehicle aerodynamics use Ahmed body to validate their numerical model because the experimental data from wind tunnel testing is available for Ahmed body. Once the numerical model invalidated, it is used to design new models of the car.

Its shape is simple enough to allow for accurate flow simulation but retains some important practical features relevant to automobile bodies. This model describes how to calculate the turbulent flow field around a simple car-like geometry using the Turbulent Flow, k-epsilon and k-omega interface. Later, either experimentally or computationally it can be recreated all the same but with the desired geometry, new to come up to the market or research.

The Ahmed body was described originally by S. R. Ahmed in 1984 [1]. Three main features were seen in the wake:

1. The A recirculation region that is formed as the flow separates at the top of the vertical back surface of the model
2. The B recirculation region that is formed due to the separation at the base of the model.
3. The c-pillar vortices that form as the vorticity in the side boundary layers roll up over the slant edges.

The wake was shown to be highly dependent on slant angle. For slant angles less than 12°, the flow remains attached over the slant. The flow is essentially two-dimensional and has low drag. Between 12° and 30°, the flow becomes much more three-dimensional as the c-pillar vortices form. These reach maximum strength at 30°. The drag increases significantly as the low-pressure cores act on the rear surfaces. Past 30° the flow separates fully off the slant. This results in a sudden decrease in drag and weaker c-pillar vortices.

Q2. Explain the reason for the negative pressure in the wake region.

The path lines showing the exact circular motion or vorticity generation just at the rear end of the car. The separation takes two regions of distribution. One at the upper part of the rear and the other at the lower part of the rear end.

The path lines show about the nature of the fluid interaction with the rear end of the Ahmed body which here shows that the fluid just after leaving the contact from the slope still possess the momentum in it and the fluid particles near to the surface almost show the no-slip region which means the very least possible velocity of the fluid particles is in contact with the slope and base of the rear part. Thus the fluid particles away from the rear region having the higher pressure beside the wake region try to approach from the higher pressure region to the lower pressure region thus creating a circularity exactly in the wake region created.

The body penetrating the fluid creates a region of emptiness just beside its end due to the nature of the geometry of the body here which can be seen least in case of a perfectly streamlined shaped body. This emptiness created is a low-pressure region towards which the fluid column exactly behind the wake region which of atmospheric pressure tries to fill the space thus dragging the fluid column with it thus creating the region of vorticity. This also results in the huge pressure gradient in the region exactly rear of the body creating the –ve pressure at the end. Also, this is the layman’s reason why there is negative gauge pressure in the wake region.

Q3. Explain the significance of the point of separation.

The fluid separation point can be defined as a point where the dv/dy i.e. gradient of velocity goes zero along with the dp/dx = 0, for the specific point. In more simplified term we can say that the point where the velocity gradient goes zero and the pressure gradient along the x- direction goes zero the point of separations starts occurring or the negative pressure gradient starts forming after that point. The point of separation cannot be understood just by single contour in hard and fast way. It can be supportively studied with the help of the dp/dx plots or velocity plots w.r.t the Y direction and other such plots in which we can see the nature of such physical properties like dp/dx=0, and dv/dy=0 experiencing in a particular region of fluid and body interaction.

Geometry setup in SpaceClaim:

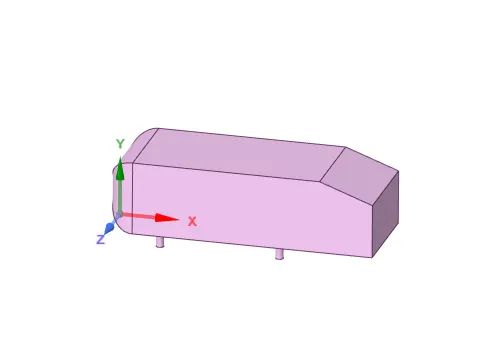

1. Load the Ahmed body model into SpaceClaim and convert the units from millimeters to meters.

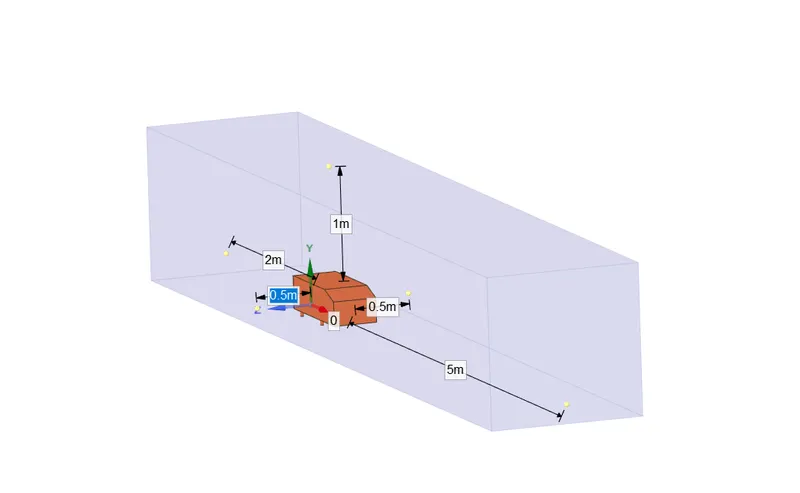

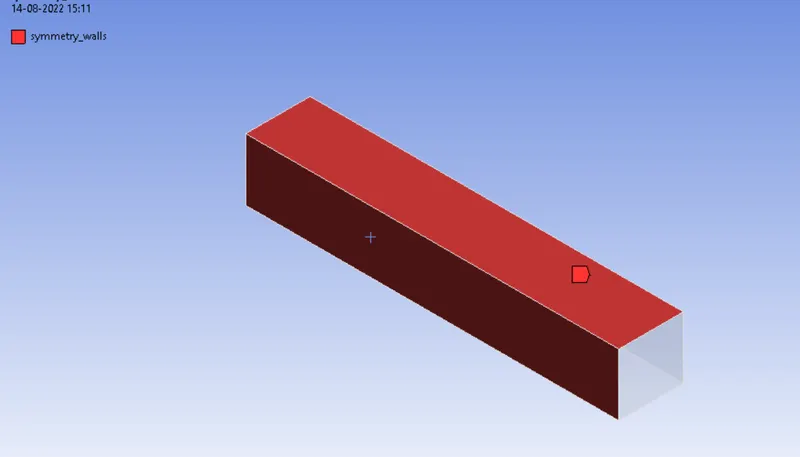

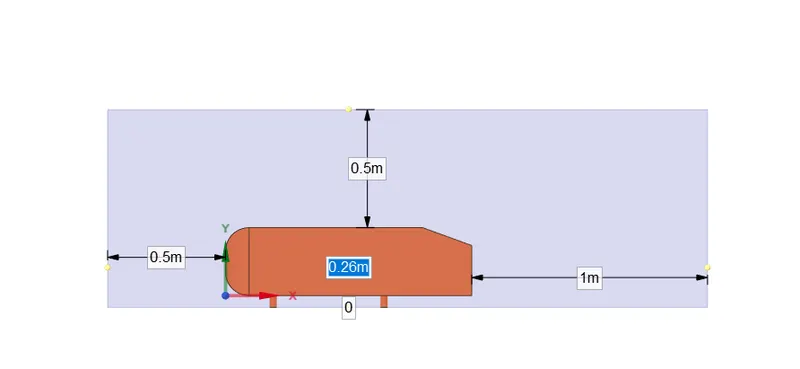

2. Go to prepare and click on the enclosure and select the Ahmed body. Enter the enclosure dimensions as shown in the below snap.And uncheck symmetric option before giving the value

3. once the enclosure is done, we can create another enclosure closely around Ahmed body so that we can refine the mesh in that enclosure and still keep the total cell countless.

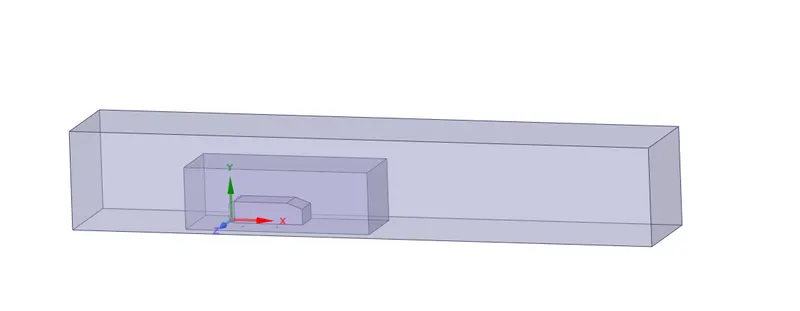

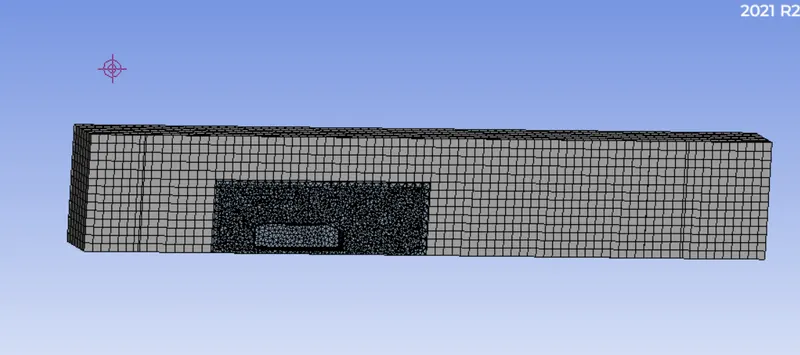

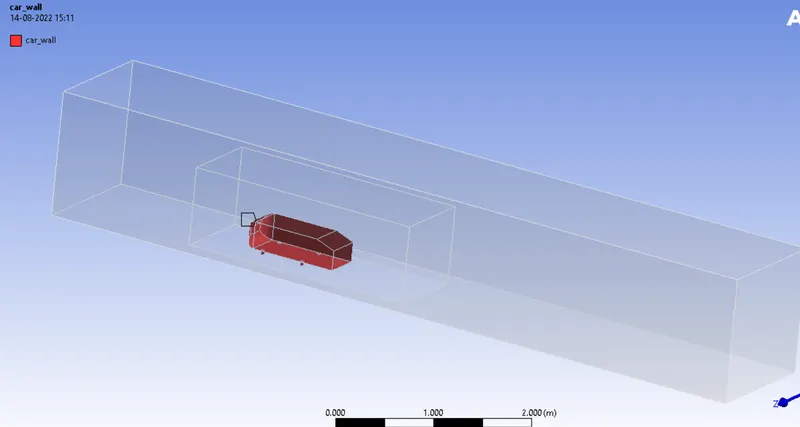

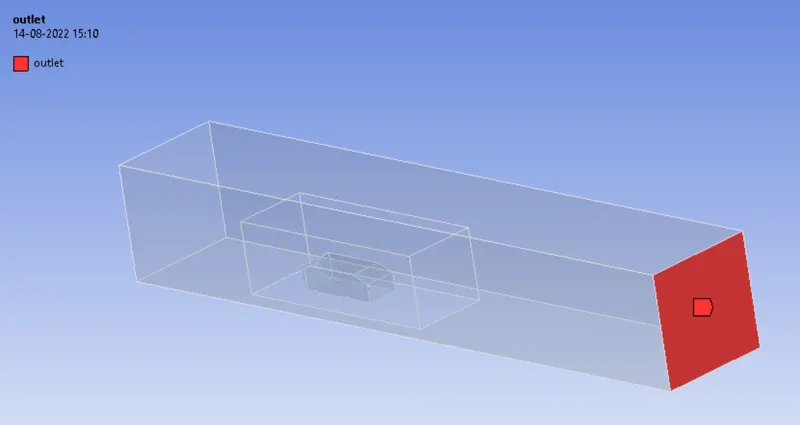

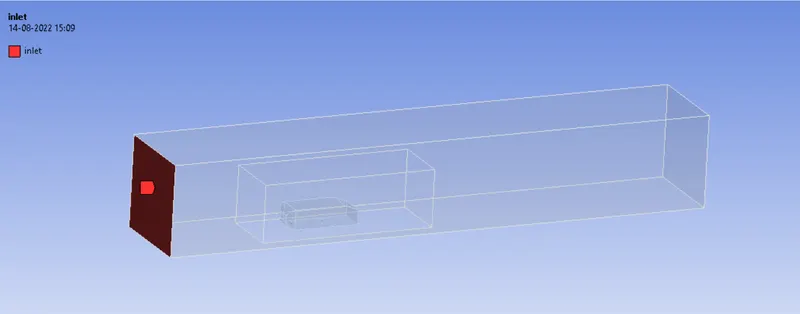

Ahmed body with inner and outer enclosure:

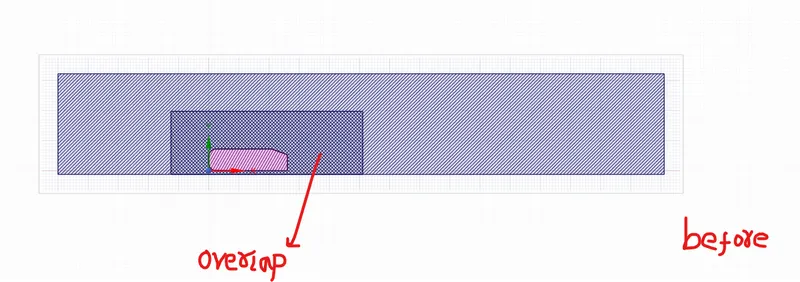

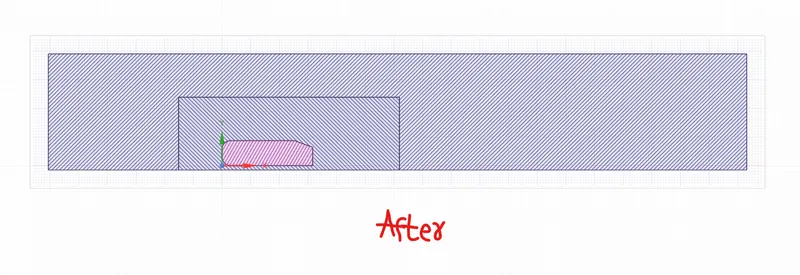

4.After both the enclosure is created, we can check interference and avoid overlapping of meshing in the 2nd enclosure by applying check interference and deleting the overlap. This is automatically done by Spaceclaim when the interference option is selected inside prepare.

5. Click on Ahmed body and select suppress for physics and go to properties, and select Share topology. Now the mesh from both the enclosures can share the information and have a symmetry.

Mesh:

Case 1:

Outer enclosure: 100mm(elemental size) Multizone (element type)

inner enclosure:50mm(elemental size)

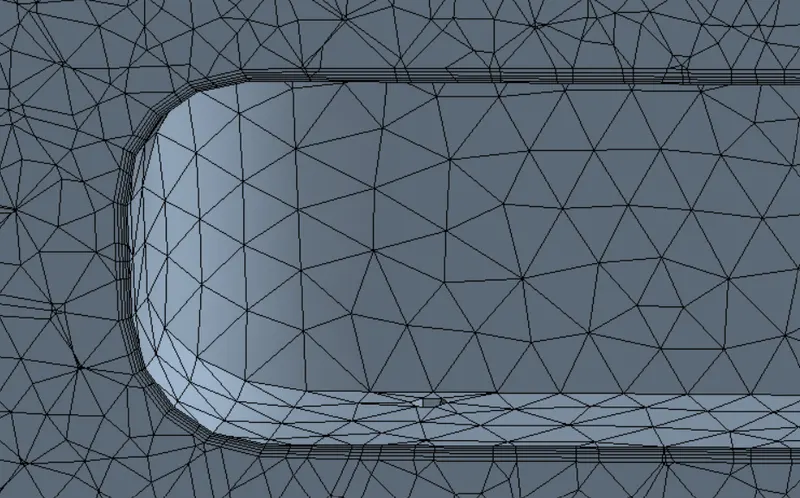

Face sizing for Ahmed body:5mm(elemental size)

inflation for ahmed body :5 layers with total thickness 12.5mm

Fluent Set up procedure:

• Update the mesh before opening the fluent setup and mesh checking should be done

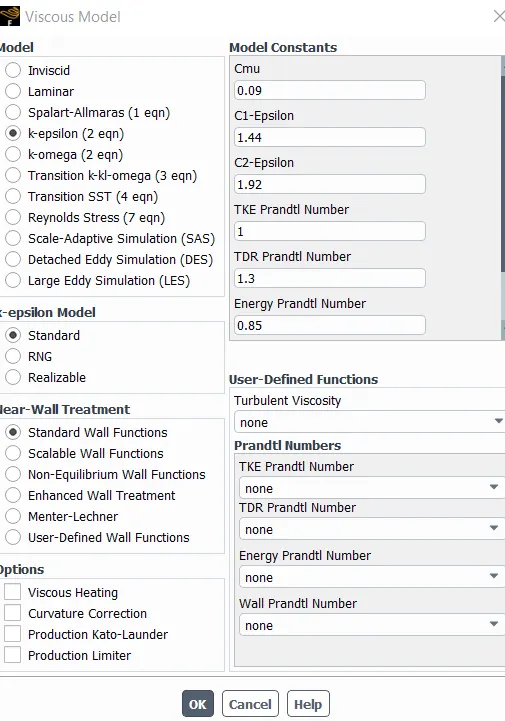

• Take the k-epsilon turbulence model because we are taking the inlet velocity 25m/s which is smaller
• Consider the pressure density solver

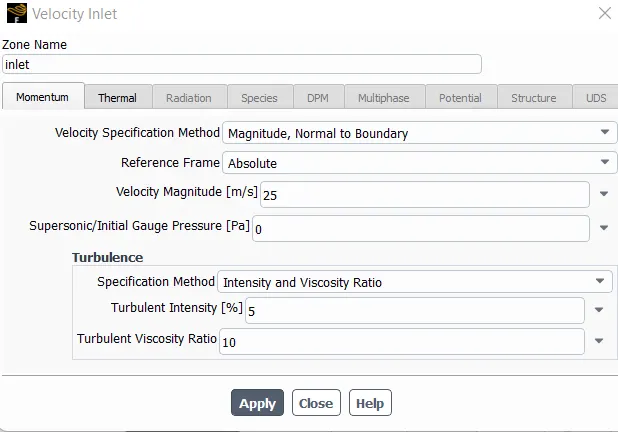

• Take 25m/s as a velocity for the inlet boundary
• Then initialize the solution
• After initialize we should go to the post process to create a cut plane to see the velocity profile on it
• And create a contour plot for both pressure and velocity

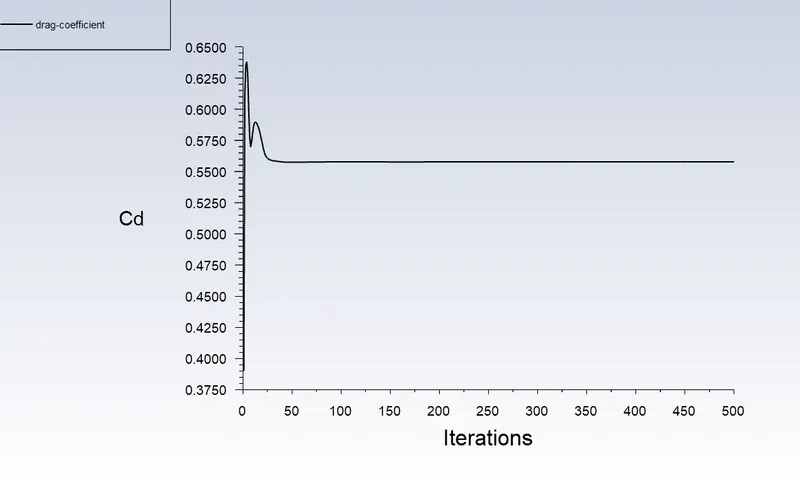

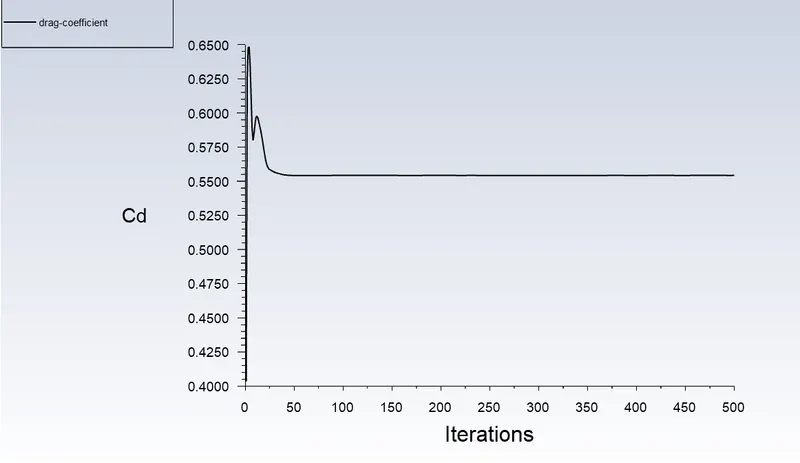

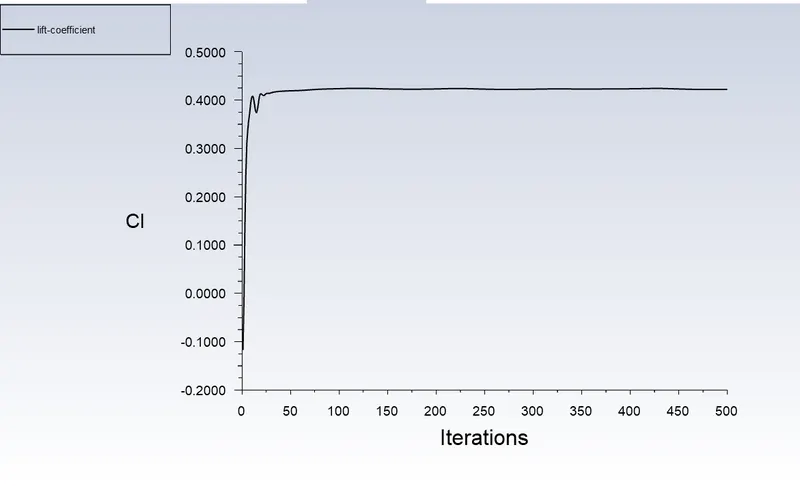

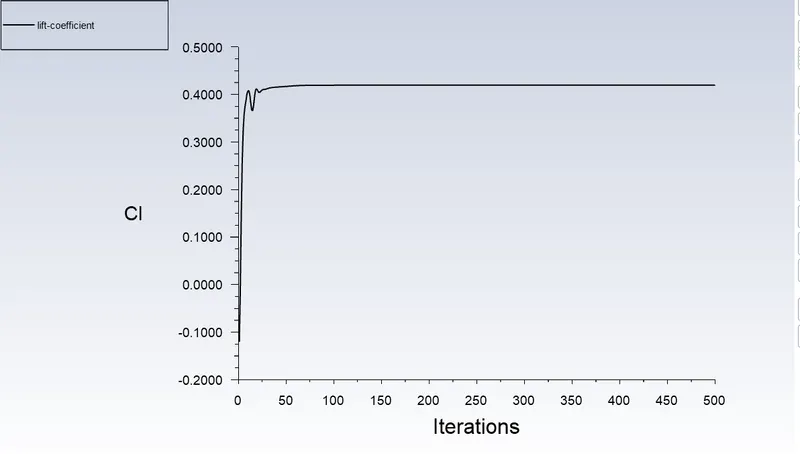

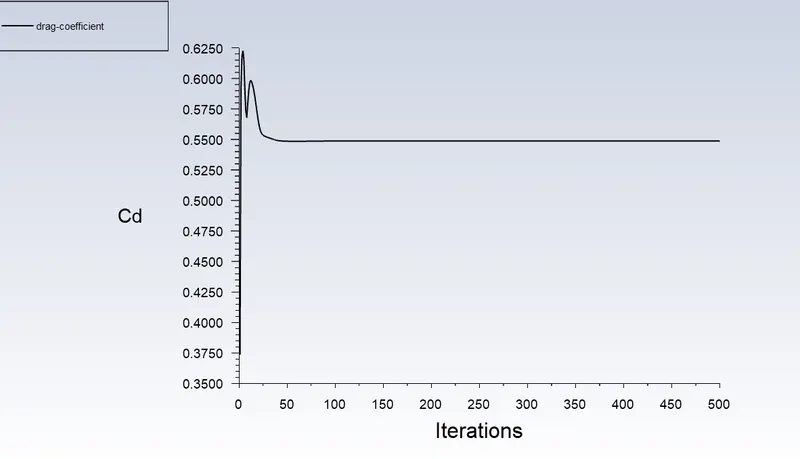

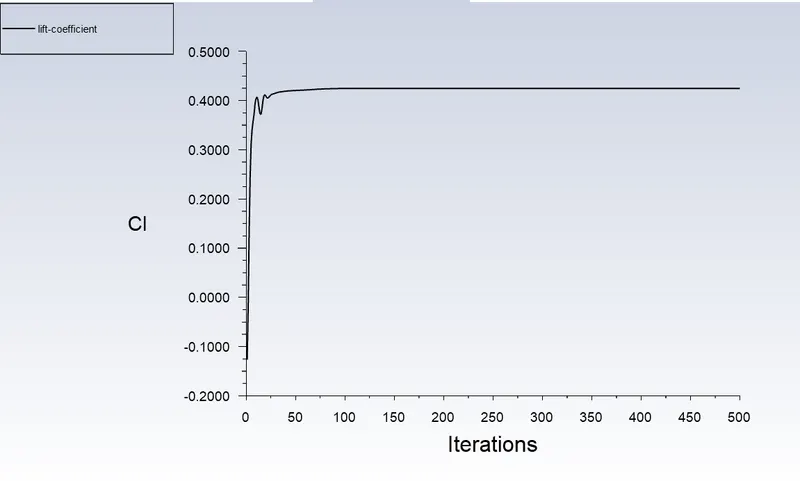

• Also, create a plot for drag and lift using the definition tool
• Create animation file for velocity contour
• And give the reference values for the Ahmed body

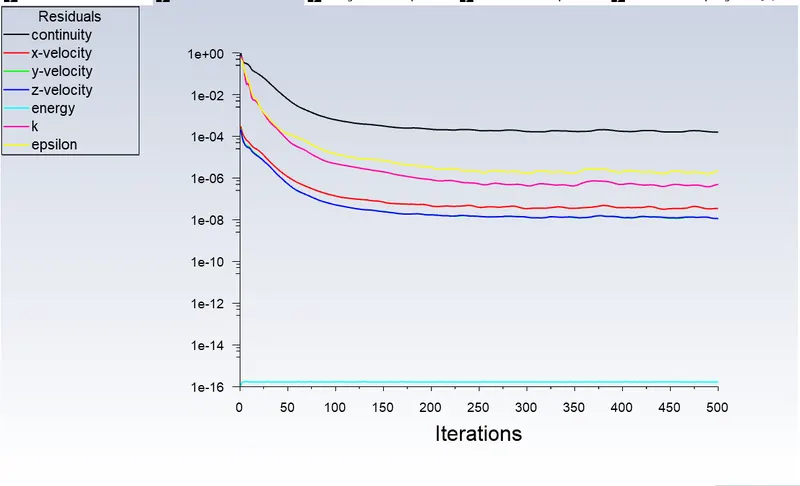

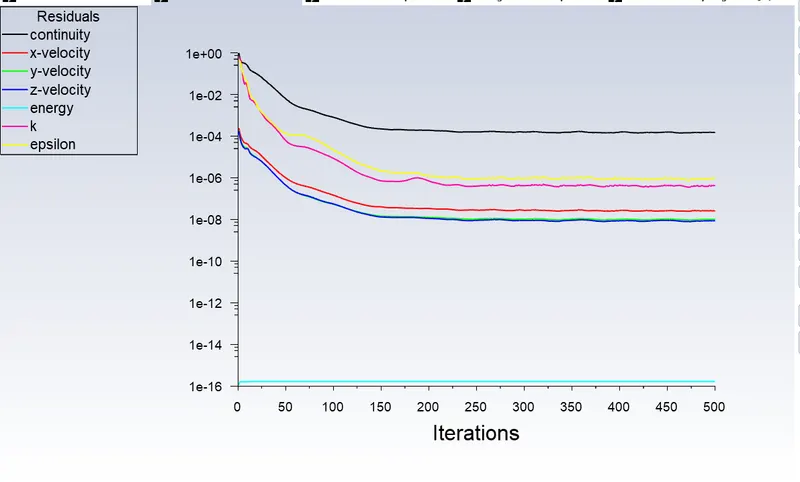

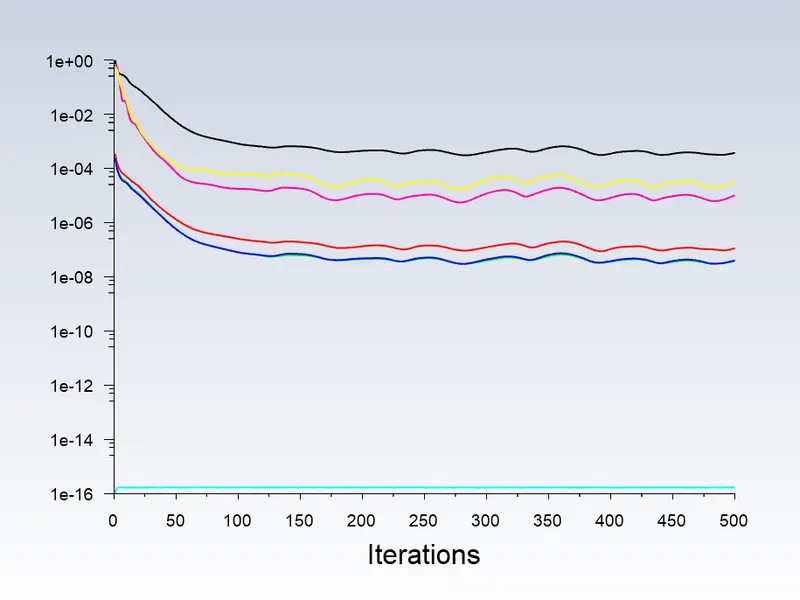

• Run the simulation for 500 iterations.

RESULTS

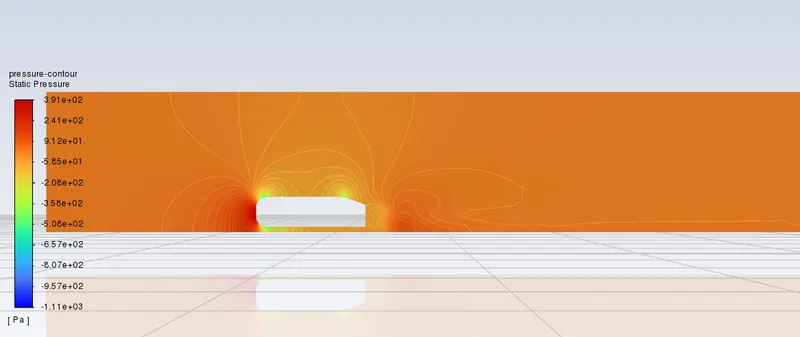

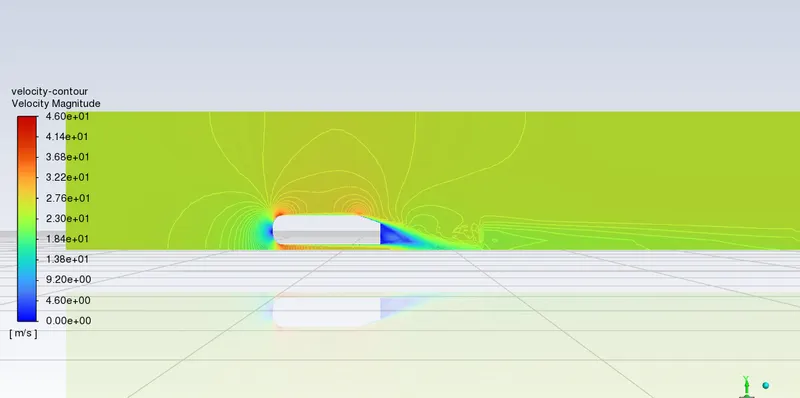

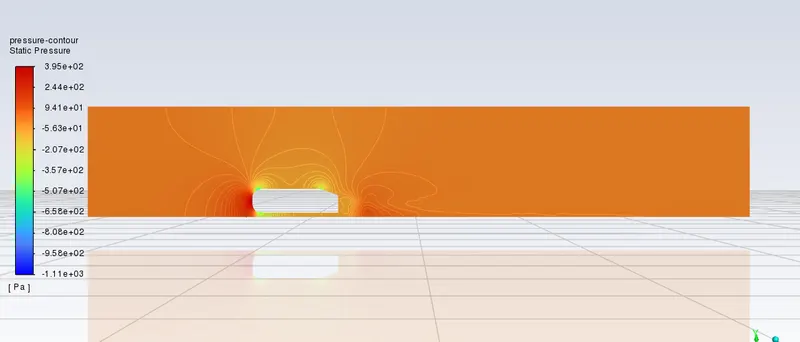

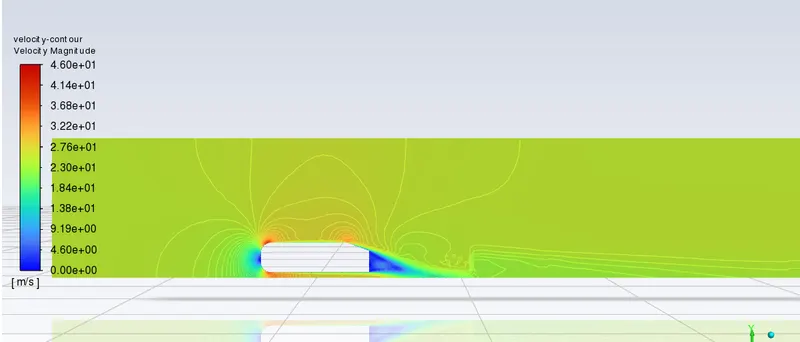

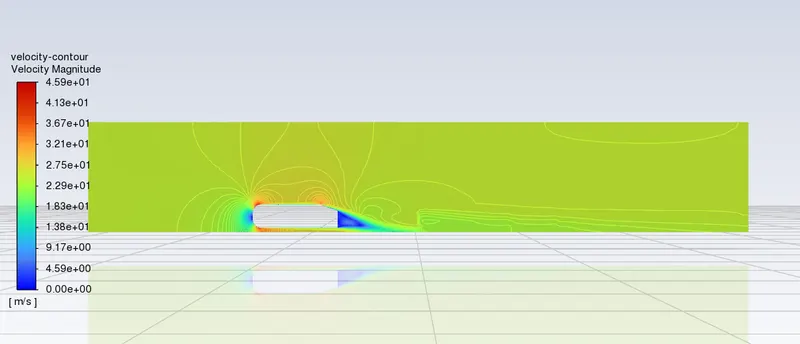

Velocity and Pressure contours

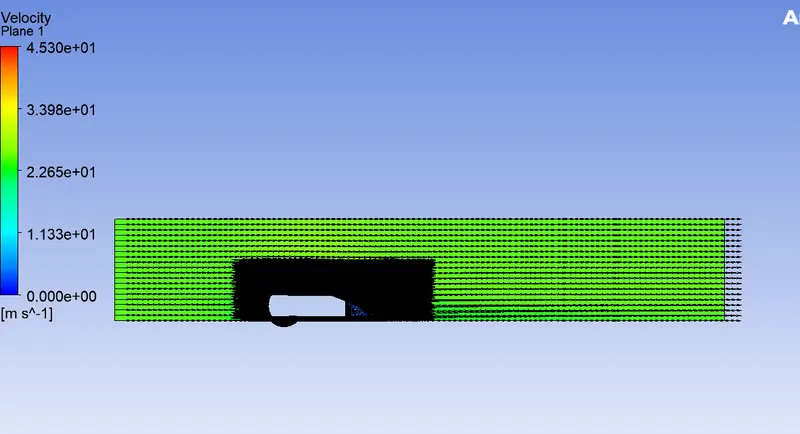

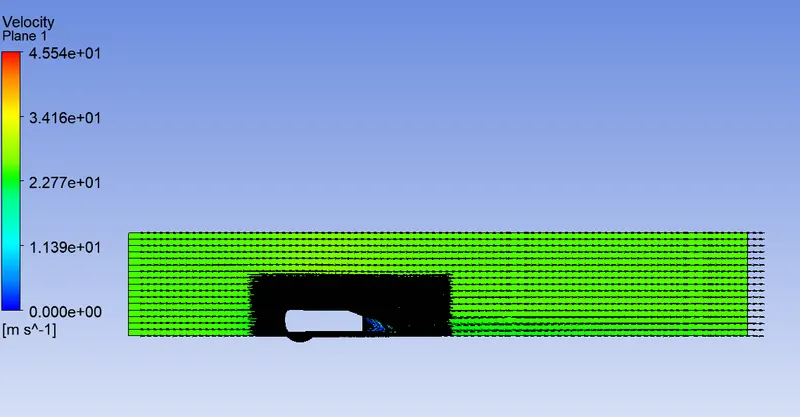

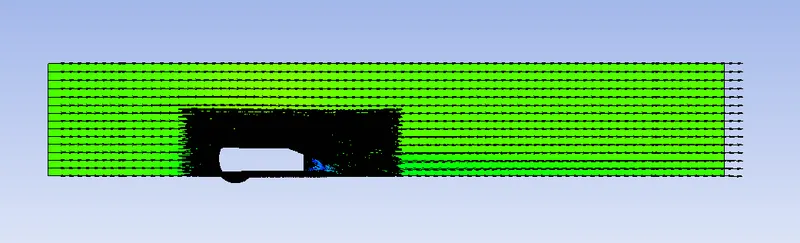

vector plot

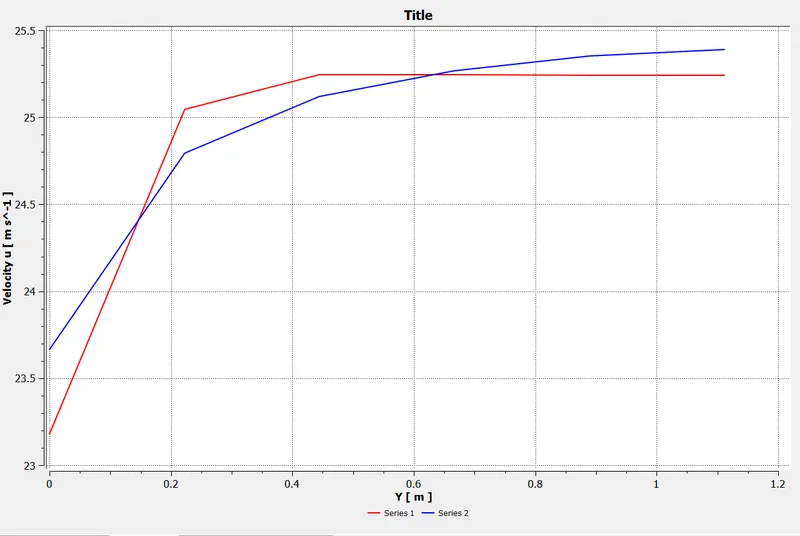

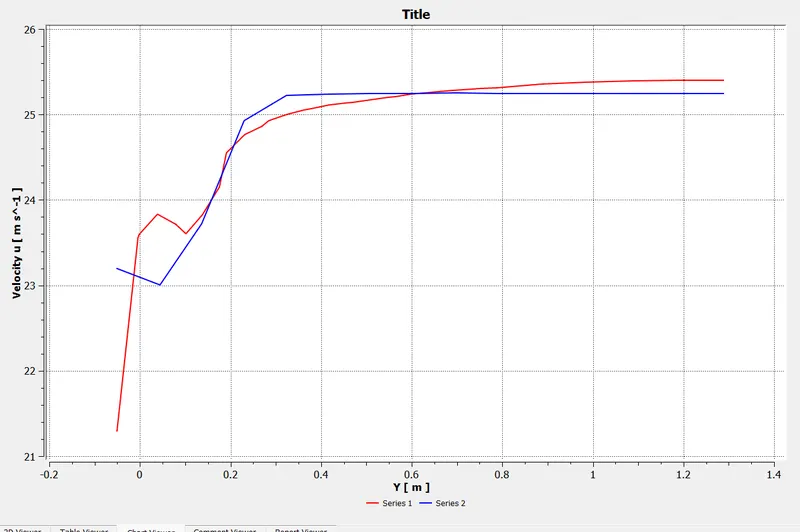

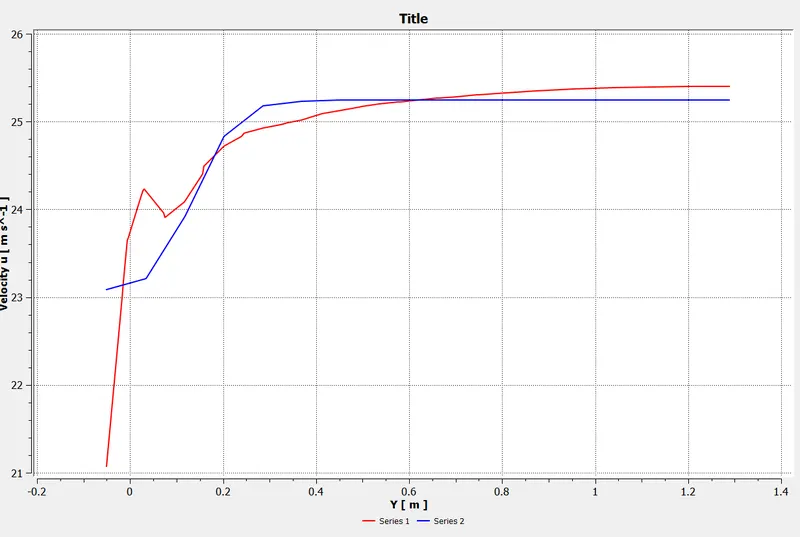

Velocity variation

Case 2:

Outer enclosure: 85mm (elemental size) Multizone (element type)

inner enclosure: 40mm(elemental size)

Face sizing for Ahmed body:5mm(elemental size)

inflation for Ahmed body:5layer with a total thickness of 12.5mm

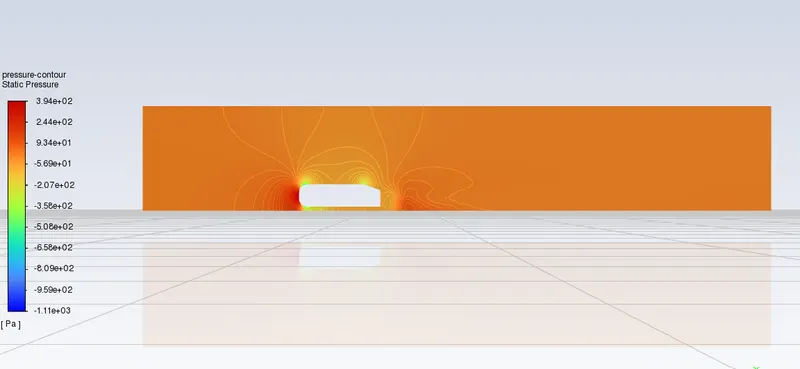

Velocity and Pressure contours

vector plot

Velocity variation

Case 3:

Outer enclosure: 70mm (elemental size) Multizone (element type)

inner enclosure: 30mm(elemental size)

Face sizing for Ahmed body:5mm(elemental size)

inflation for Ahmed body:5layer with a total thickness of 12.5mm

Velocity and Pressure contours

vector plot

Velocity variation

Grid independence test

	number of cells	Cd	Cl
case 1	1686544	0.55772204	0.42217571
case 2	1795699	0.55424417	0.41945407
case 3	2055465	0.54877846	0.42458847

From the above table with the refinement of the mesh drag coefficient approaches closer to the analytical values that are because more cells are assigned at the boundary layer which results in more accurate results of drag coefficients.

Conclusion:

1. High pressure is formed at the frontal area of the Ahmed body due to the loss of kinetic energy of the air.
2. The adverse pressure gradient is created near the wake regions because of the flow separation which is occurring because of the geometry of the model. As a result flow separation alters the pressure gradient which in turn affects the drag and lift coefficients.
3. In order to reduce the size of the wake region, detachment of the fluid should be farther away from the body which can be achieved by an increase in the slant angle.
4. With the decrease in element size, the numerical results approach closer to experimental results.
