Week-3 Challenge: ADVISOR Tool

PROJECT: DESIGN OF AN ELECTRIC VEHICLE     Theory: An electric vehicle(EV) is defined as a vehicle that uses an electric motor or a traction motor for propulsion instead of internal combustion used by conventional vehicles. Electric vehicle use electricity for power instead of fossil fuels like conventional vehicles .…

          Project     AIM: Design and simulation of buck converter For Uxiliary load in EV.  .   Input Voltage is 48V , Output voltage is , 12V. . Output  Current is 5A. . Calculate the duty ratio and load (use resistor as load) . calculate LC   Introduction : …

    PART-A 1. Manufacturer's Empty Weight(MEW): It is the weight of the aircraft "as-built" and includes the weight of the structure, power plant, furnishings, installations, systems, and other equipment that are considered an integral part of an aircraft. This excludes any baggage, passengers, or usable…

Objective: Simulation of all four-quadrant operation of chopper using MATLAB Simulink.  Abstract:  If the semiconductor devices in power converter circuits are arranged appropriately, it can be used to control a variable DC drive. The speed and torque control of a DC motor can be forced by making it operative…

AIM - To perform the tasks that are given to me. GOVERNING EQUATION - The governing equation that is used here for the calculation of braking energy. The braking energy is nothing but the kinetic energy of the vehicle when the brakes are applied. The equation of kinetic energy is given by: K.E - 12⋅MV212⋅��2…

Problem Statement- 1: Which types of power converter circuits are employed in an electric and hybrid electric vehicle?   Answer: From the architecture of the HEV, for: Power converters are used in electric/hybrid vehicles to manipulate the form and magnitude of voltage and current fed from and…

AIM:- 1) To describe the difference between the mapped and dynamic model of engine, motor, and generator & to change the model type.           2) To describe how the model calculates miles per gallon.           3) To run the HEV ReferenceApplication with…

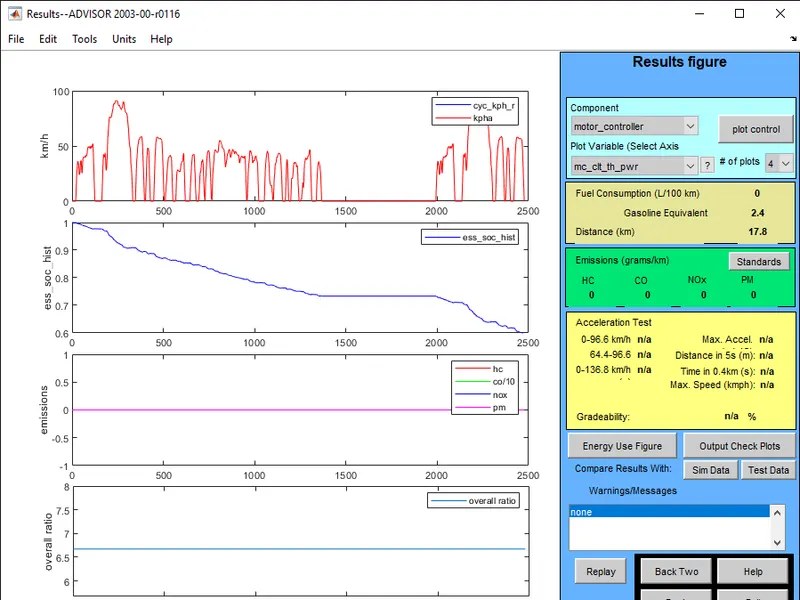

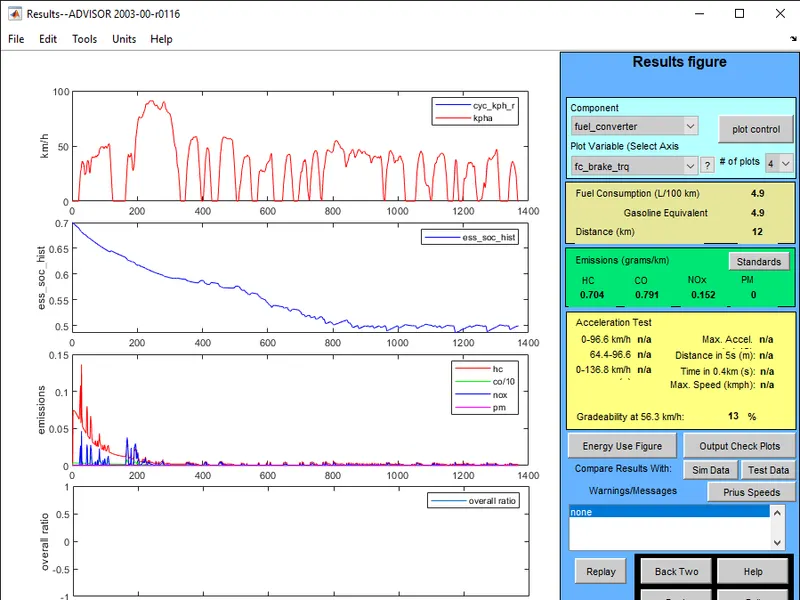

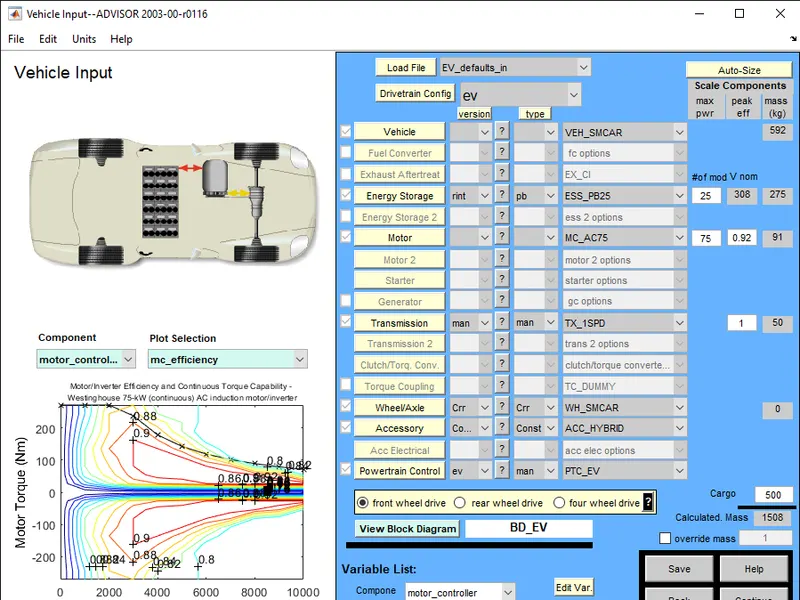

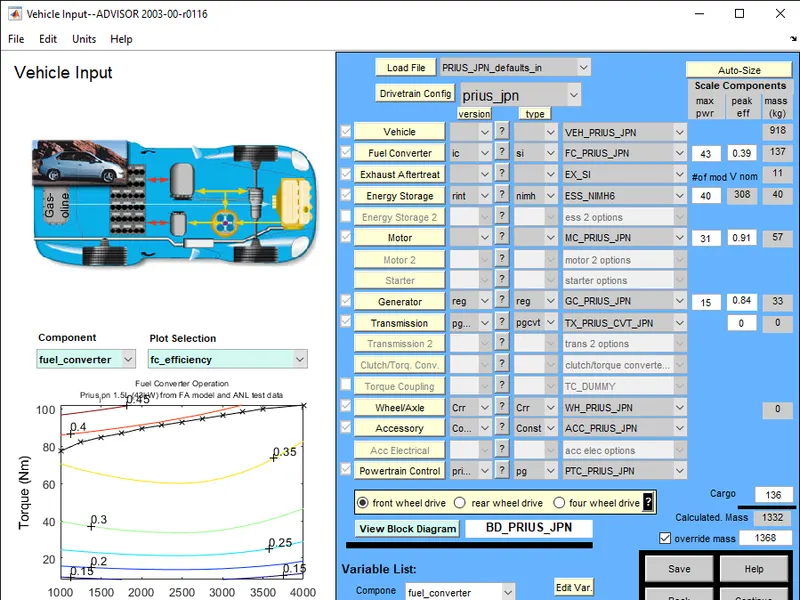

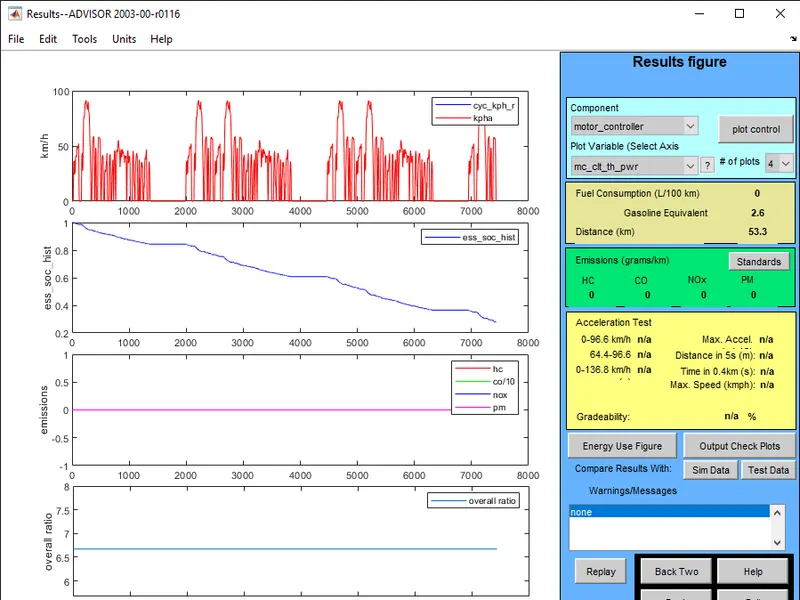

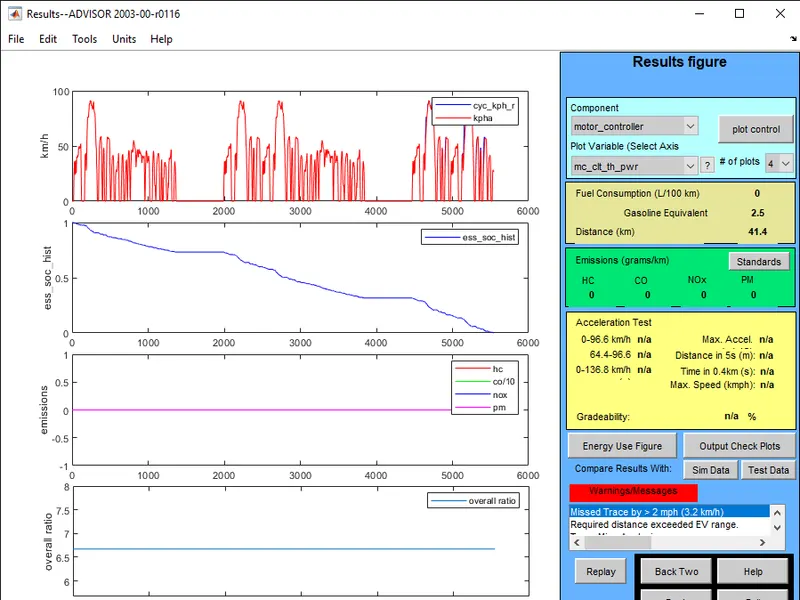

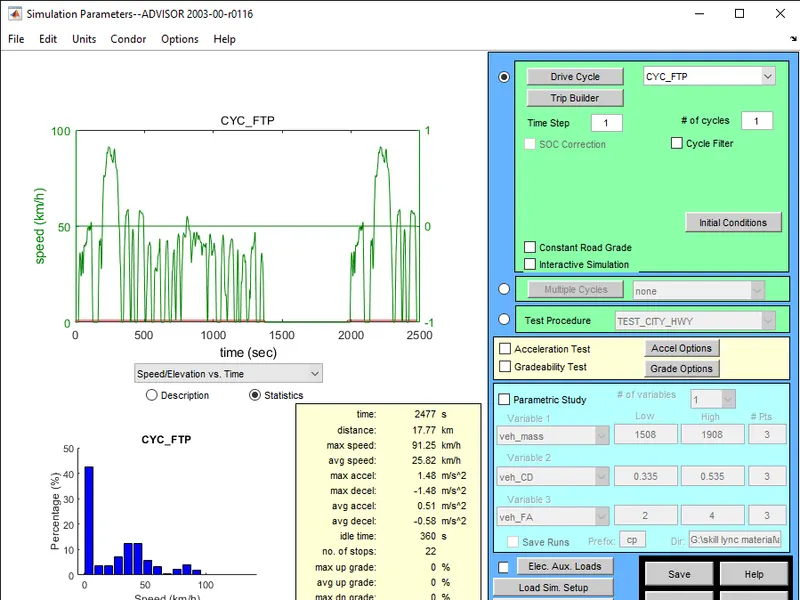

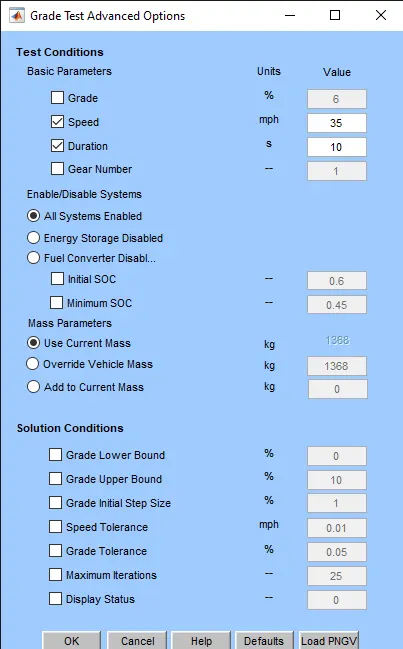

ADVISOR:  A model written in the widely used MATLAB/Simulink software environment. This is a tool stands for 'Advanced Vehicle Simulator' which is used to model different types of vehicles such as some IC engine based and electric vehicles, Hybrid vehicles and Fuel cell-based vehicles, this tool is very useful…

      This circuit uses the AC4 block of Specialized Power Systems library. It models a direct torque control (DTC) induction motor drive with a braking chopper for a 200HP AC motor. The induction motor is fed by a PWM voltage source inverter which is built using a Universal Bridge Block. The speed control…

1. Design an interleaving DC/DC converter system for a data centre application with the following specifications: • Input voltage: 45 – 60 v• Output voltage: 3 V• Output current: 100A• Efficiency > 85% (extra credit for efficiency higher than 90% on a spice-based software simulation tool) Requirements:…

Salution : In the above CCM (40 to 50V and 400 to 5000V), boost CCM(20 to  30 V and 200 to 3000V) and sepic (30 to 60V and 300 to 600V) are cgosen   Buck converter : Buck converter in continuous mode  Buck converter step down DC voltage . it consist of inductor , capacitor and two switch which are transistor and diode…

Aim : To design the a boost converter and calculate its loss of diffrent componant including the power switching device and drive the efficiency of the boost converter        We can observe the output voltae is 198.9Which is aproximatly equal to 200V that what we have desired and the output current…

Objective: In this project a simulink model for the DC motor will be first devloped per the schematic in figure1 use the proportional , integral  and derivative (PID) control design knowledge gained in the training developrd and test a controller to maintain a desire speed for the motor   Key Highlights: Mathematical…

                                                       PWM controlled Fan load Using DC moto   Objective: TO model a fan type load in simulink and control its speed by using the…

                                                     Project 5  Battery pack   Aim . To create is 10 cell series lothium ion battery model  . To simulate the thermal effect…

                                         Project : Design of an Energy analysis of Electric vehical   AIM :  To create a basic eleectric vehical model  Objective: . Explane system level configuration …

Ans   Here we have used the commond 'interpl' for the interpolation . the output xql is put to the text file called 'interpolation' Code for interpolation % open the text file to write the output % define a variable x from excel file % define a variable y from excel file % define the range for interpolation %…

                                                                           Project 4 : calculate the battery pack capacity  …
