Week-3 Challenge: ADVISOR Tool

Objective:

1.Use EV_defaults_in_file,if cargo mass is 500 kg with all others default conditions,find the vehicle can travel for 45 with FTP drive cycle? &conclude the observations.

2.By using above case,try changing battery capacity and repeat the simulation.

3.To perform gradeability test with PRIUS_Jpn_defaults_in_file to compare the results in the tables and conclude.

Solution:

1)To open the matlab file and launch the advisor tool in the matlab lab.

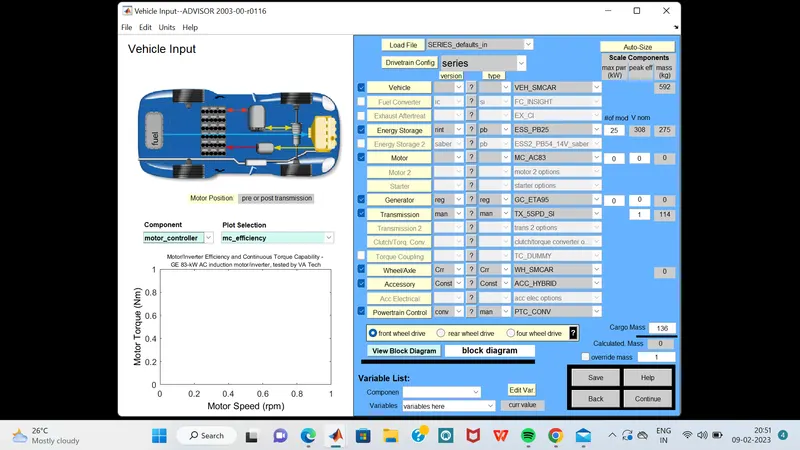

2)Choose the metric option and start the advisor in this tool choose the SERIES_default_in and choose the required parameters in the GUI.

Result of the series_default_in.

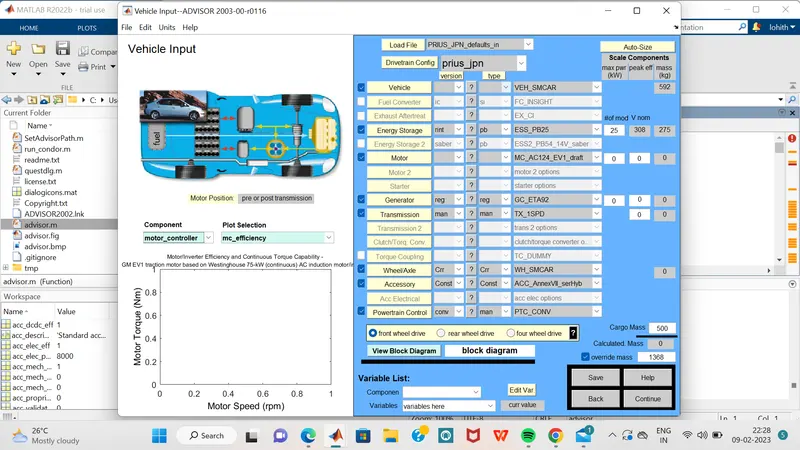

To create the PRIUS_Jpn_in and change the parameters for the GUI.

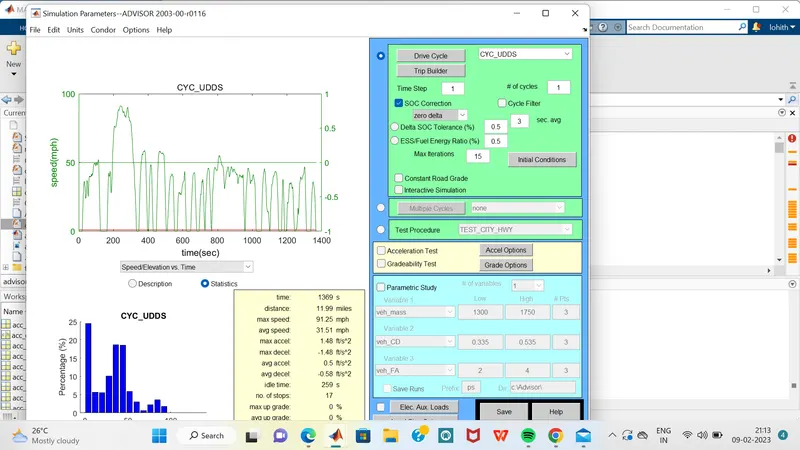

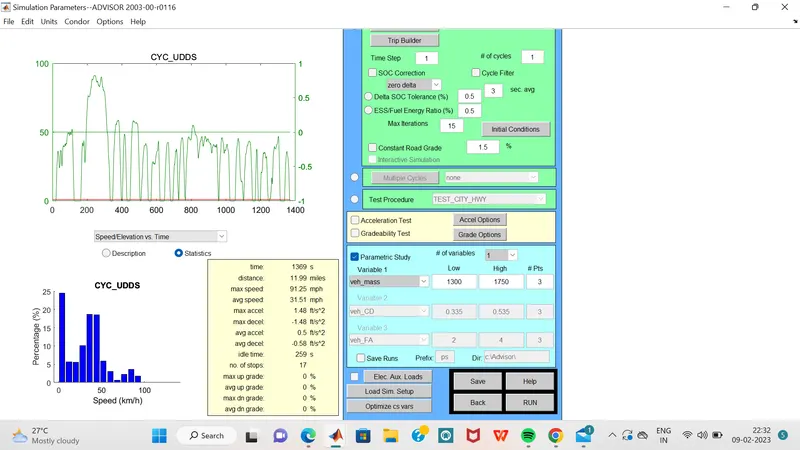

Result of the PRIUS_Jpn_in.
