Week-3 Challenge: ADVISOR Tool

Que 1:

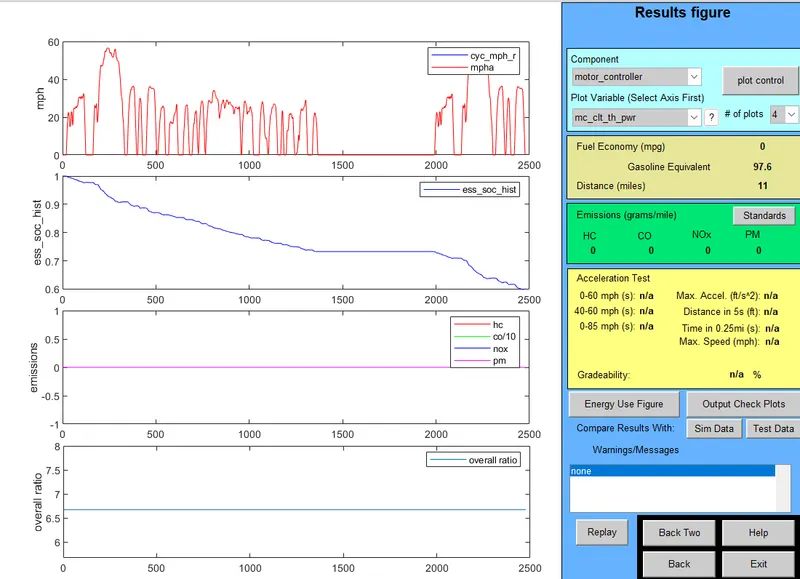

>1 cycle result of FTP drive cycle with cross weight of 500kg in EV_default model

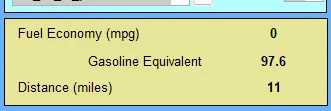

Simulation Results: Vehicle Can travell approx 18 km in 1st drive cycle

> 2 FTP Cycles Result

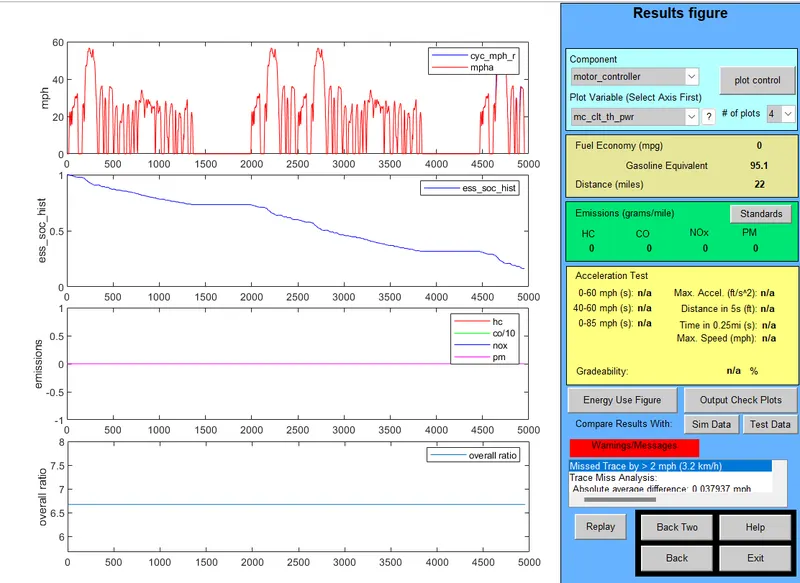

Simulation results: Vehicle can travelled approx 40 km for 2 cycles of FTP

> 3 cycles of FTP

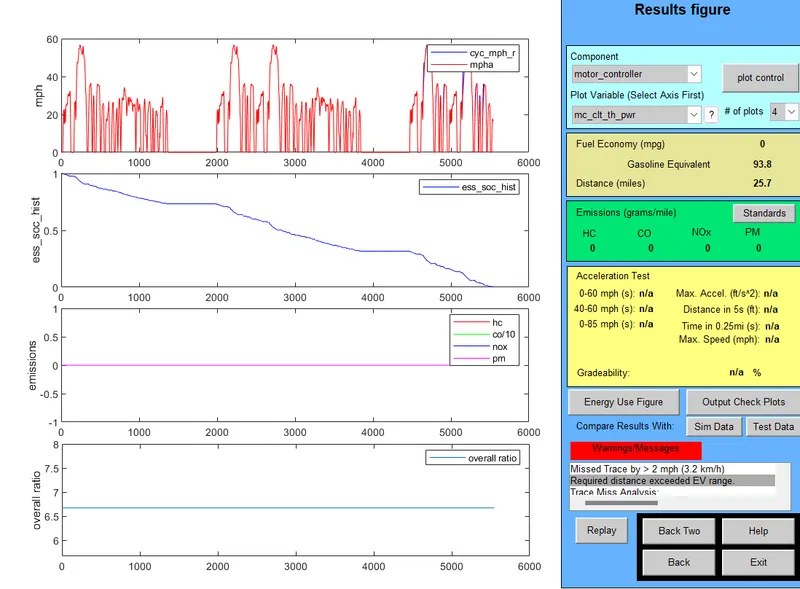

Simulation Result : Simulation stop at distance of 41 km and show warning vehicle exceed its required range

Vehicle can only go upto 41.36 km with FTP drive cycle on EV_default model with cross weight of 500kg

Que 2:

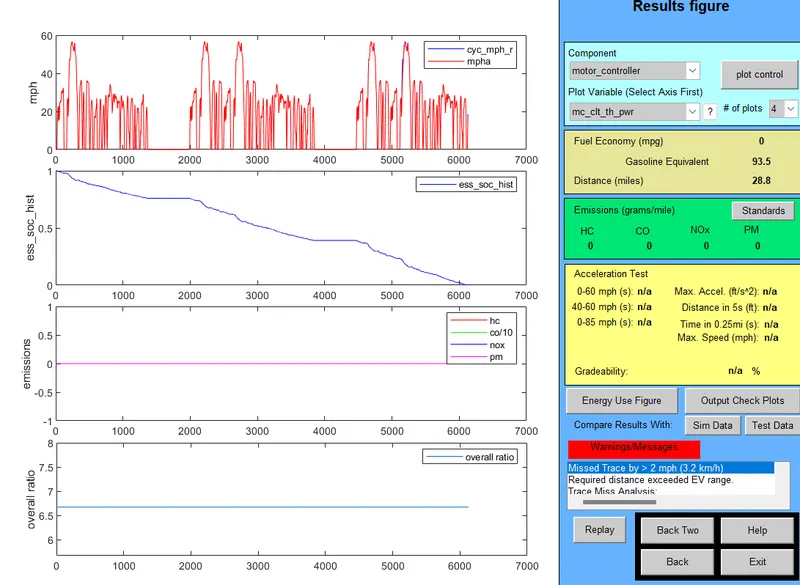

> Default value of battery capacity was 25 when it increased to 30 then Vehicle can covered distance upto 49 km with FTP drive cycle on EV_default model with cross weight of 500kg

Hence by increasing battery capacity we can increase vehicle required distance limit or according to required range we can decide battery capacity.
Hence for to covered distance of 45 km we need battery capacity of 28 as shown below result:

Que 3:

Table of gradeability test with PRIUS_Jpn_defaults_in :

So there is fixed maximum grade for particular speed in autosar PRIUS_Jpn_defaults_in model which is not varrying with time as shown in table and for speed above 20 (mph) maximum gradability result is none
