Week - 4

Question 1:

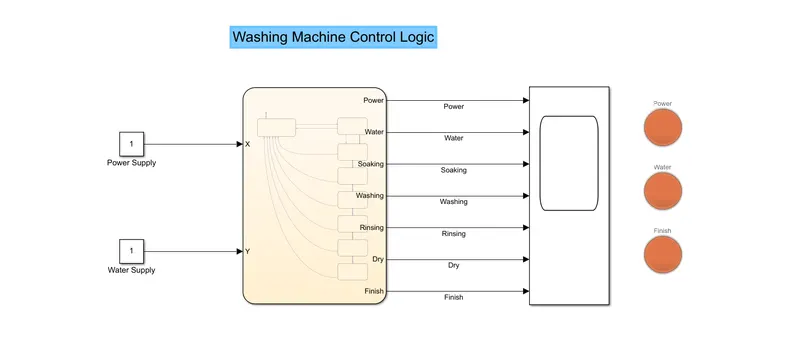

Step 1:Created Washing Machine Control logic

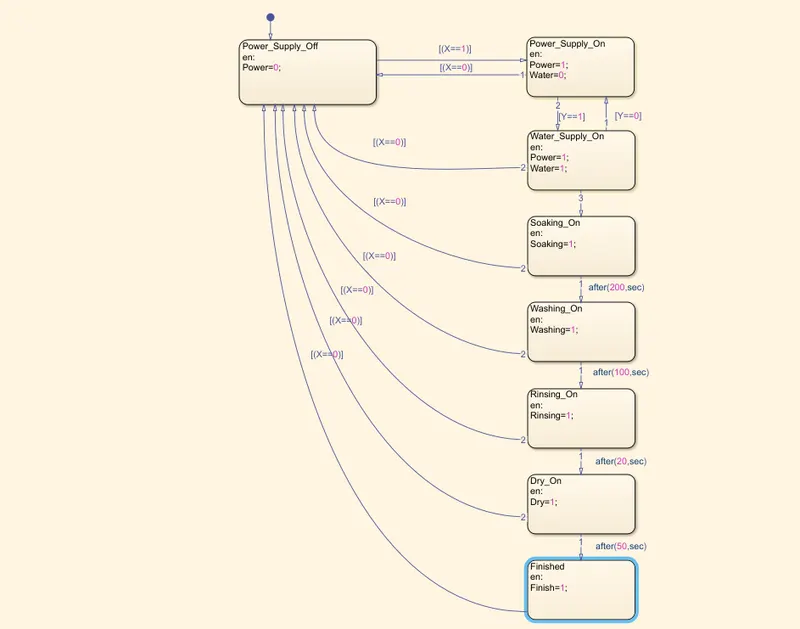

Step 2: State flow of washine machine is created for statisfying given requirement

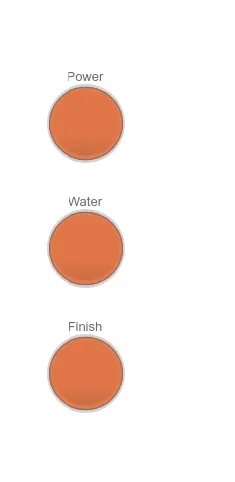

Step 3: Added LED lamps for indicating Power, Water and Finished process

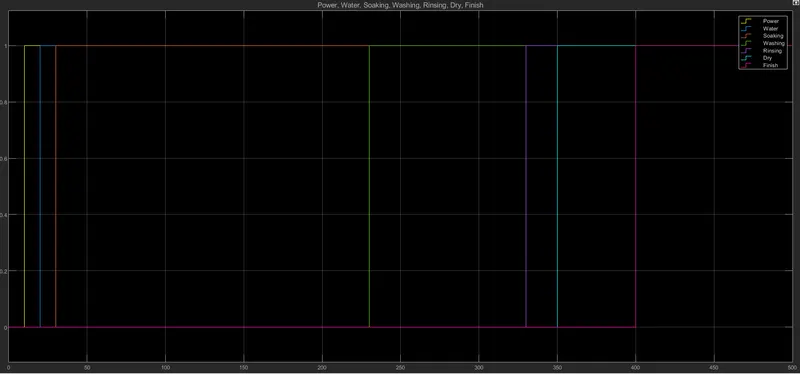

Step 4: Result of Washing machine process wrt to time

Question 2:

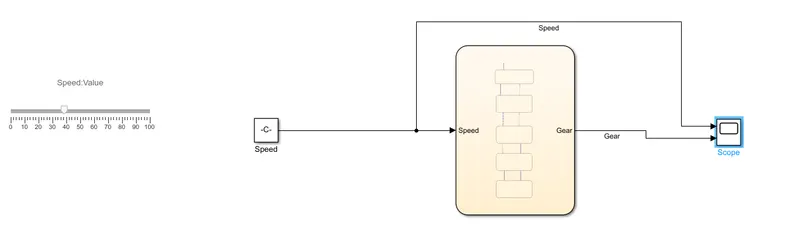

Step 1: Created Model for Gear shifting

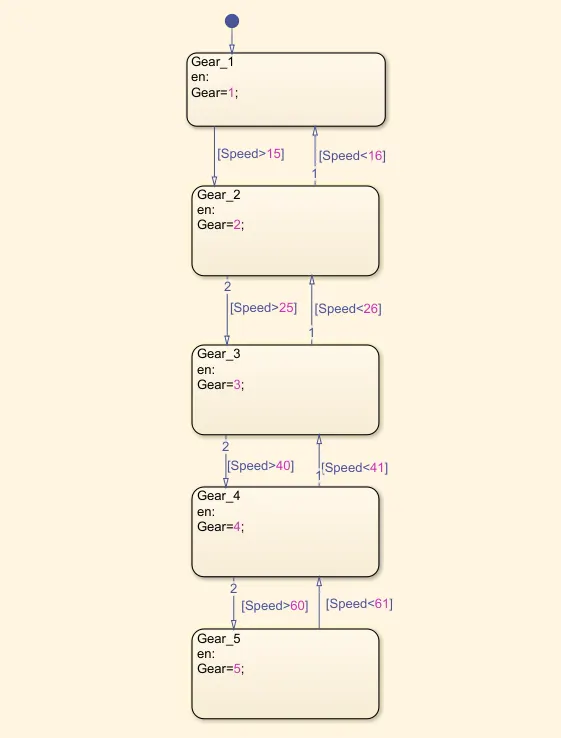

Step 2: Gear Shifting control logic created in state flow as per requirement

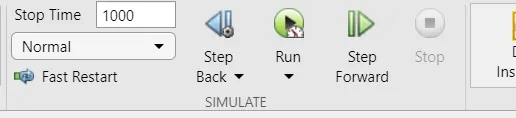

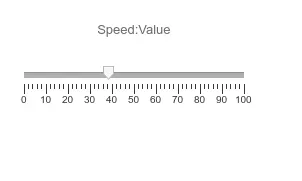

Step 3: To change Speed during simulation is running slider is used and simulating pacing slow down simulation

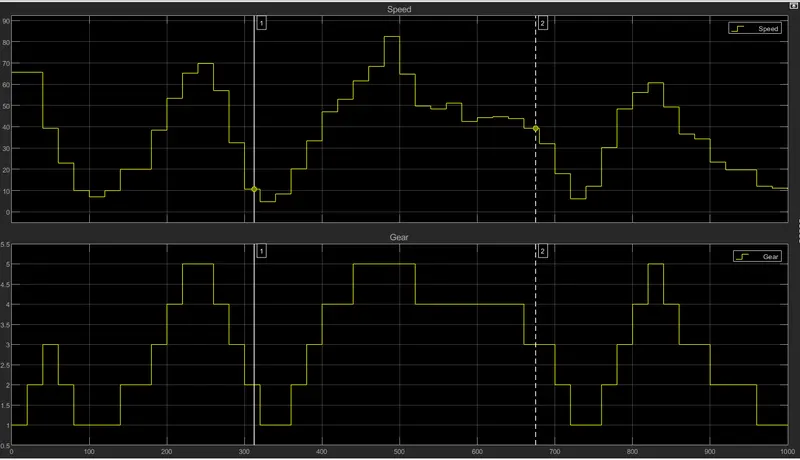

Step 4: Result of gear shifting after changing speed during simulation
