Week-3 Challenge: ADVISOR Tool

ANSWER:-

1.For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle. Conclude your observations.

We have to change the model advisor tool on this given data.

STEP:1

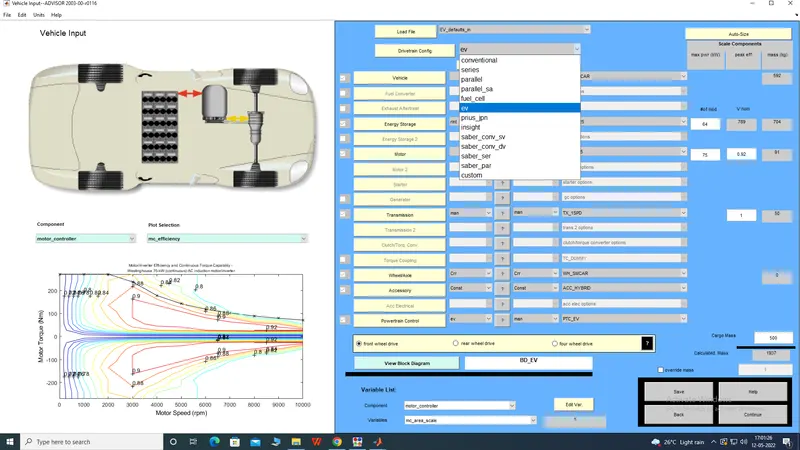

CHANGE THE MODEL Into EV IN DRIVETRAIN CONFIGURATION:-

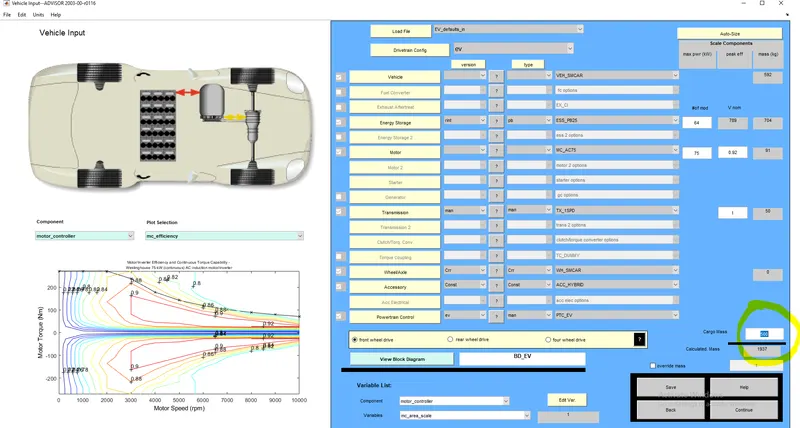

STEP:2 HERE WE CHANGE THE CARGO MASS 500:

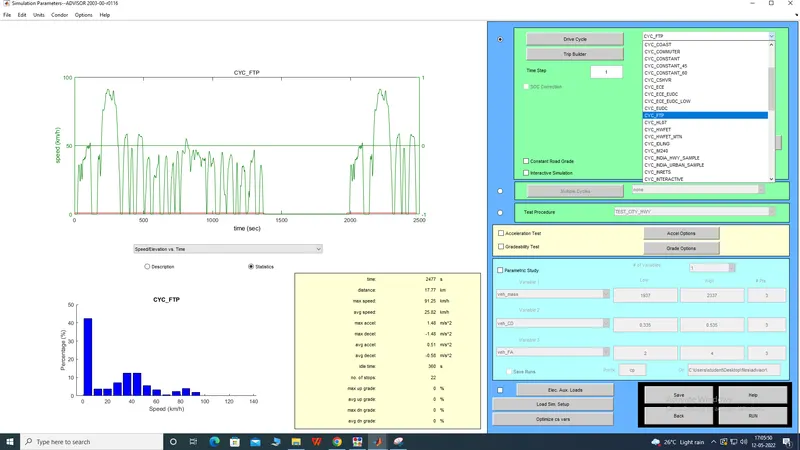

STEP3:-HERE WE HAVE TO CHANGE THE FTB DATA:-

STEP:4

WE HAVE TO CALCULATE STEP BY STEP FOR THE MODULEA:-

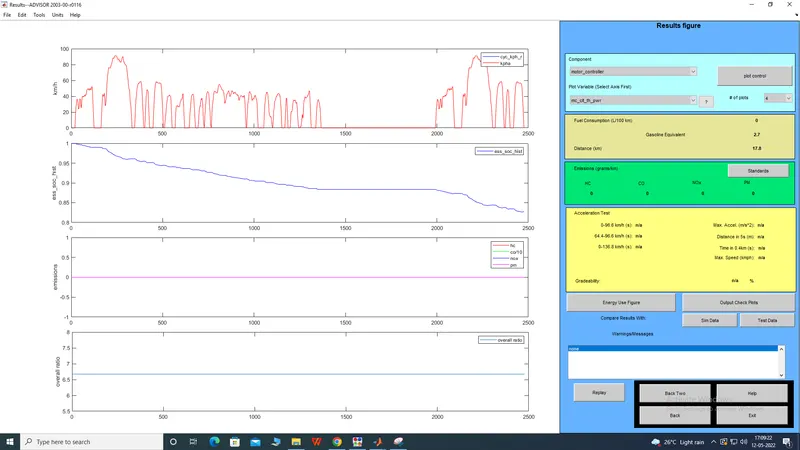

FOR DRIVE CYCLE ONE:-

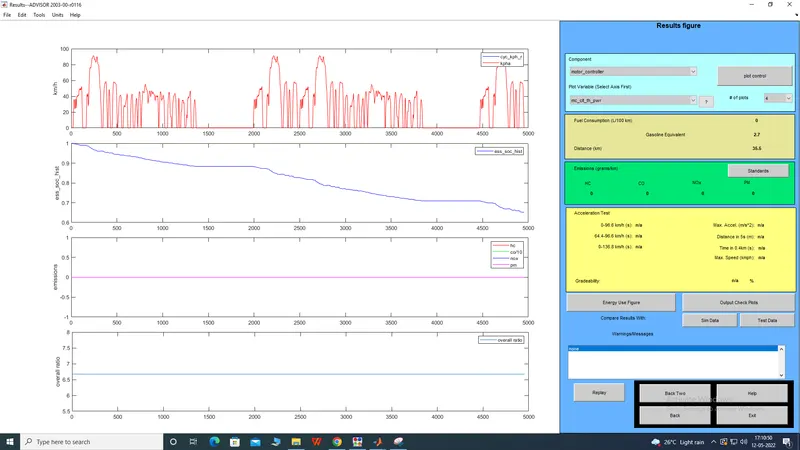

FOR DRIVE CYCLE 2:-

FOR DRIVE CYCLE 3:-

FOR DRIVE CYCLE 4:-

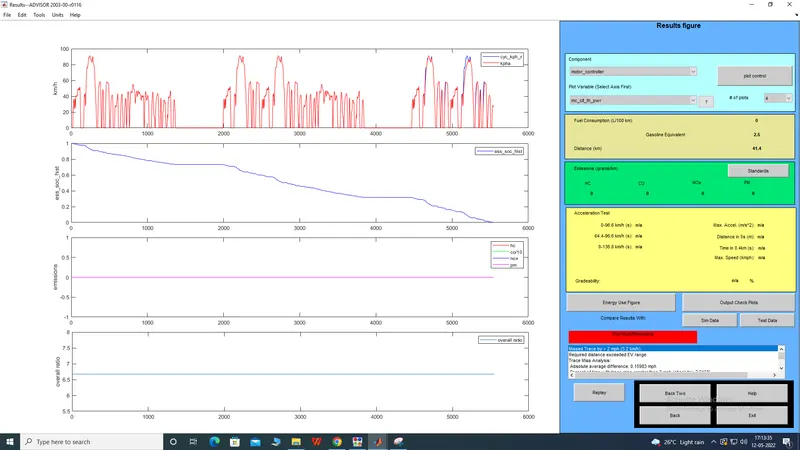

FINALLY WE FIND THE DRIVE CYCLE IN THE FOUR can the vehicle travel for 45 km:-

2. In the above case, try changing the battery capacity and repeat the simulation.

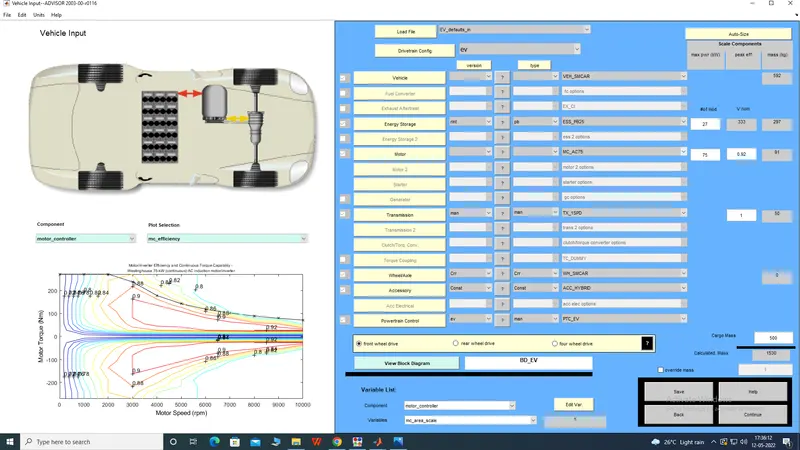

I GIVE THE BATTERY VOLTAGE HERE 27V

RESULT:-

I GIVE THE VALUE OF BATTERY 27 THE DRVIE CYCLE OF 3 THE NAEAREST VALUE OF 45 KM

3. Perform gradeability test with PRIUS_Jpn_defaults_in file Compare your results in table and conclude.

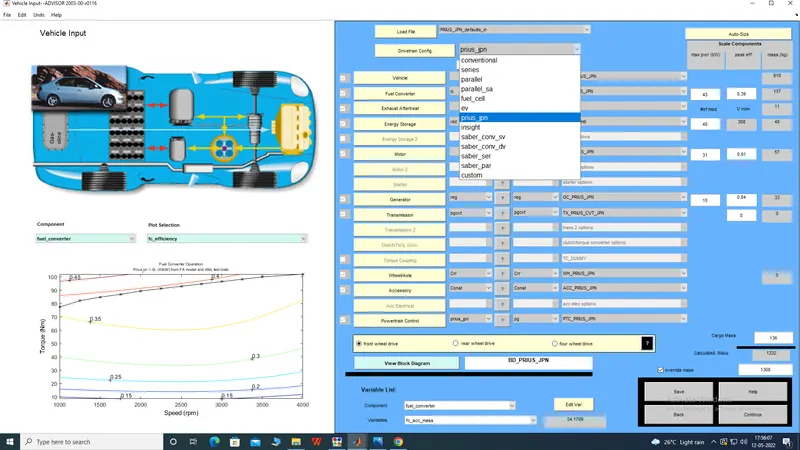

WE CHANGE THE DRIVE TRAIN CONFIGURATION:-

STEP:2

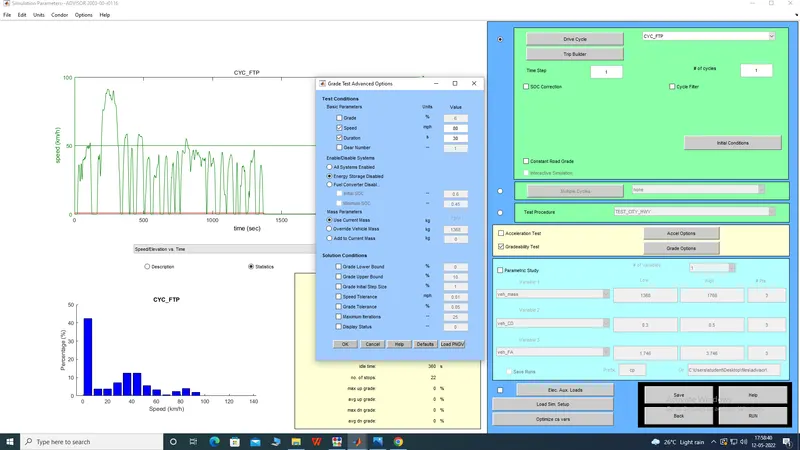

IN GRADEPALITY TEST I GIVE THE VALUE OF SPEED IS 80 AND DURATION SHOULD be 30 s

step:3

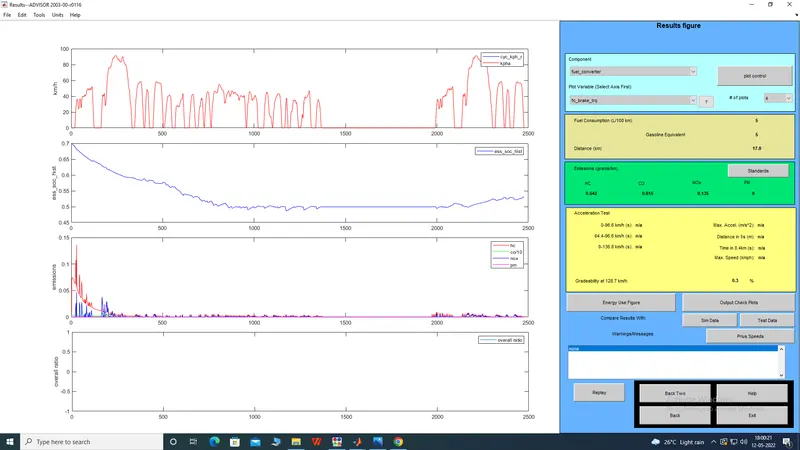

plot of the gradability test we given the value:-

The gradability at 128.7/hr...
