Week-3 Challenge: ADVISOR Tool

1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

solution:

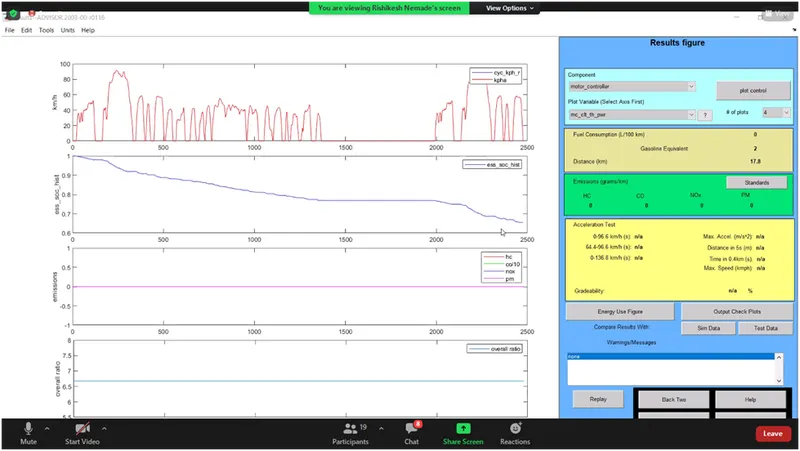

.', For EV_defaults_in file, with FTP Drive cycle; when Cargo mass is 500 kg and rest of the parameters are constant.

Vehicle can travel inly 17.8 Km. (i.e. it cannot travel a distance of 45 Km).

2. In the above case, try changing the battery capacity and repeat the simulation.

solution:

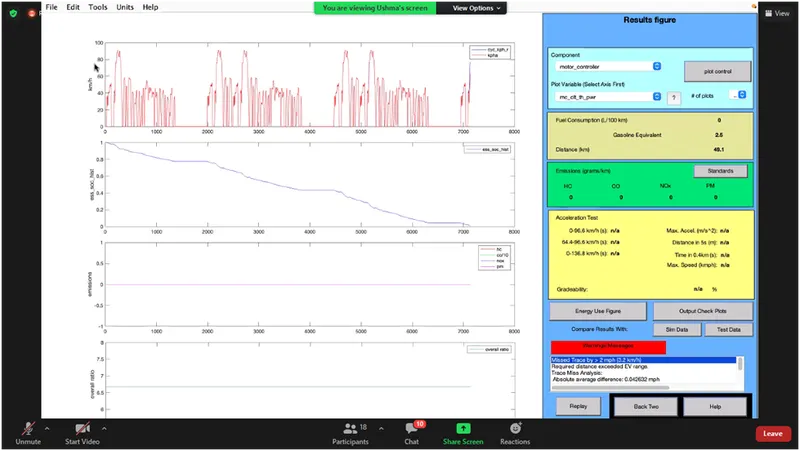

From the above figure, we can conclude that after changing the battery capacity;

1. Battery Drained out but the Distance didn't Increased.
2. When the Battery module is increased, it covered a distance of 45 Km.

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

Compare your results in table and conclude.

solution:

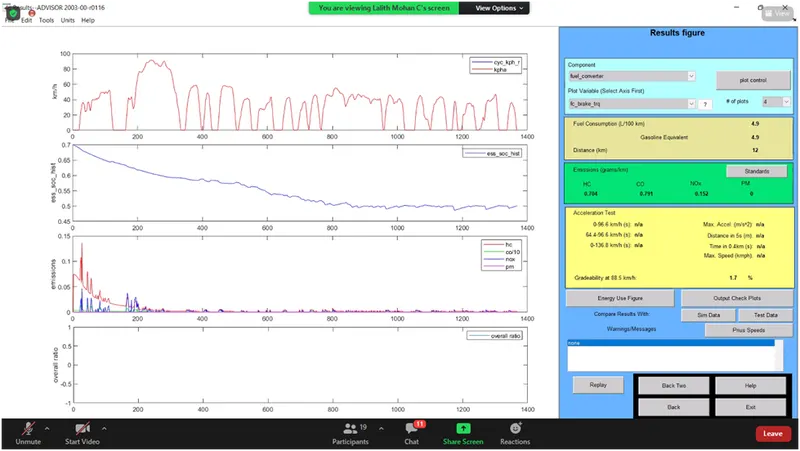

Performing gradeability test with PRIUS_Jpn_defaults_in file;

"Gradeability test of a vehicle can be identified by the value of % shown"

Results:

Sr No.	Grade	Speed (m/hr)	Time (sec)	G%	Pass/Fail
1	6	55	10	1.7	Pass
2	6	100	50	1	Pass
3	6	30	50	2.5	Pass
4	6	100	5	-	Fail

.', From the above results; it is concluded that PIRUS_JPN vehicle failed in the Gradeability test when,

• Grade = 6.
• Speed = 100 m/hr.
• Time = 5 sec.
