Week-3 Challenge: ADVISOR Tool
Q1)

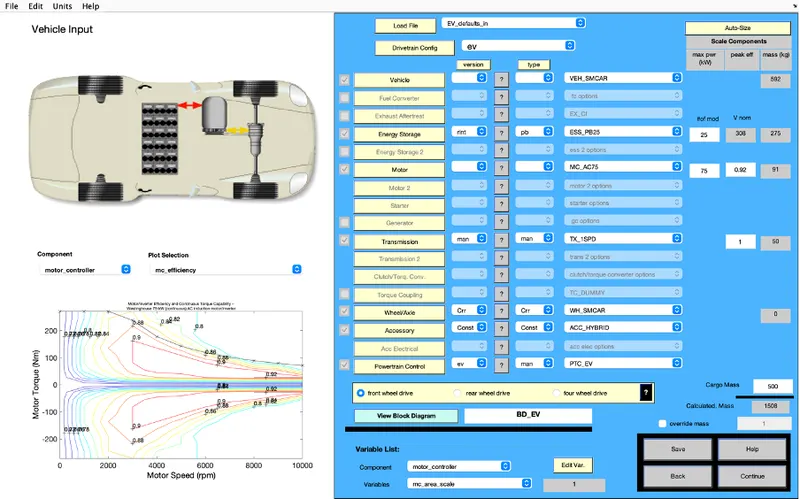

Cargo mass changed to 500 kg

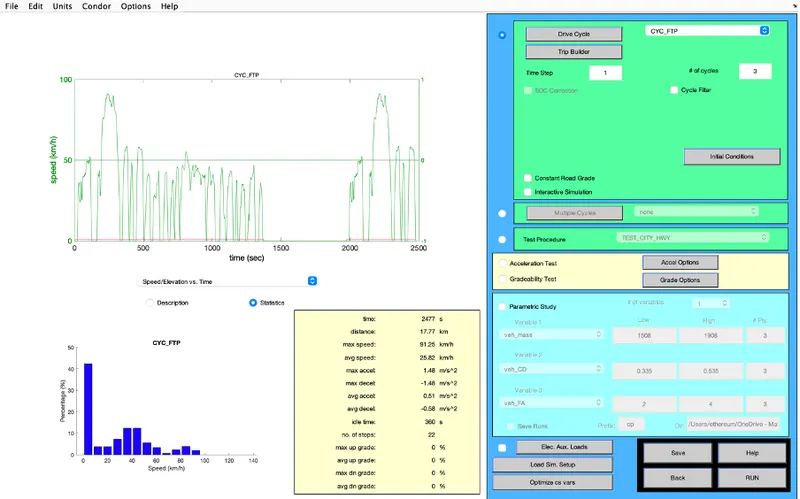

17.77 km was covered in 1 Ftp cycle. Therefore, to travel 45km cycles are changed to 3.
Results
From fig1 we can observe three FTP cycles

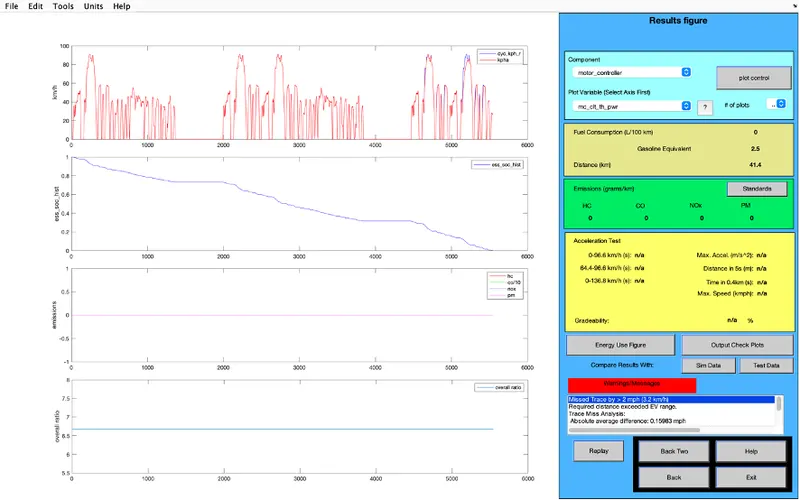

From fig2 we can say after traveling a distance of 41.4 km, battery power is 0
From fig3 we can say emissions is 0 which is very obvious for Electric vehicle
From fig4 we can see the overall ratio
Q2)
Battery capacity has been changed to 40 from 25
Results

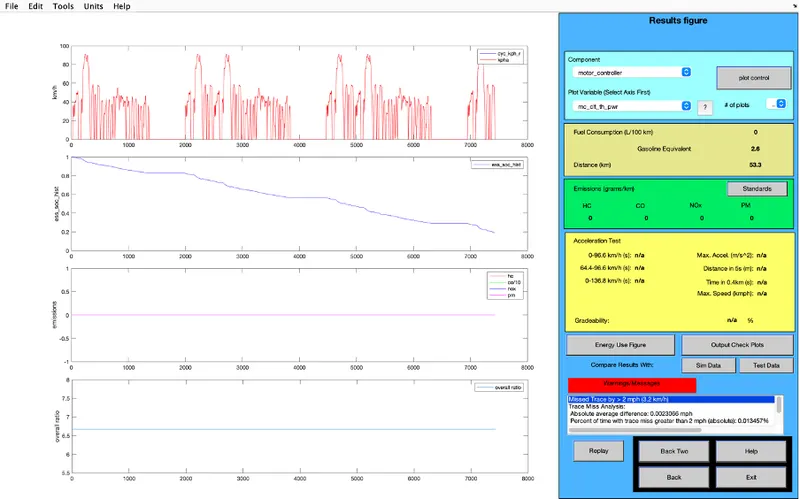

Now, you can see this vehicle can travel more than 45kms, It can travel 53.3 km before the battery gets to 0.
Q3)

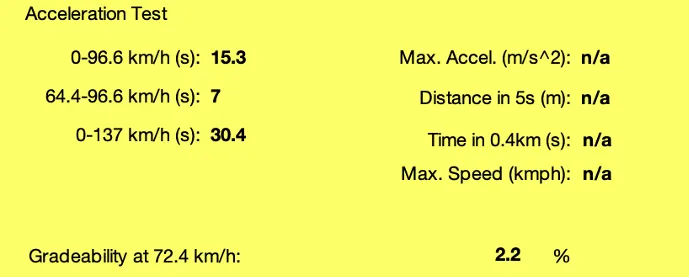

When speed=45mph, Duration=10sec

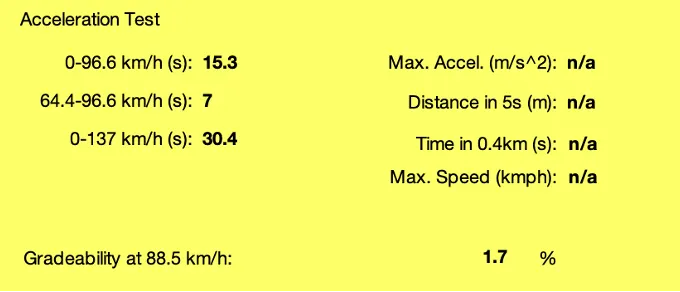

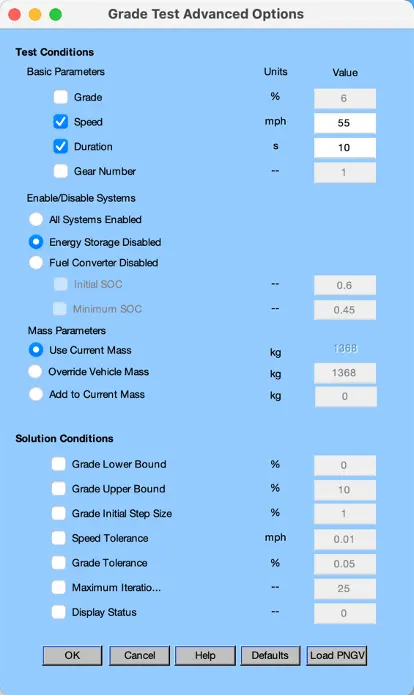

When speed=55mph, Duration=10sec

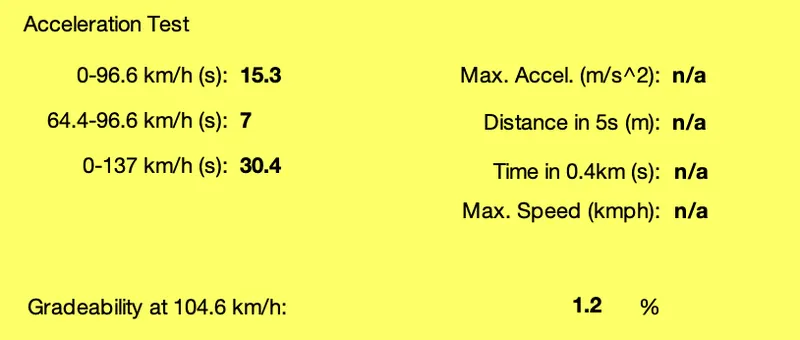

When speed=65mph, Duration=10sec
When speed=75mph, Duration=10sec
|
Sr. No |
Speed |
Gradeability |
|
1 |
45 |
72.4 |
|
2 |
55 |
88.5 |
|
3 |
65 |
104.6 |
|
4 |
75 |
120.7 |
