Week-3 Challenge: ADVISOR Tool
Aim:
1. To Conclude observations, For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle
2. To Conclude observations In the above case,by changing the battery capacity and repeat the simulation.
3. To Perform gradeability test with PRIUS_Jpn_defaults_in file and compare results in table and conclude.
Question 1:

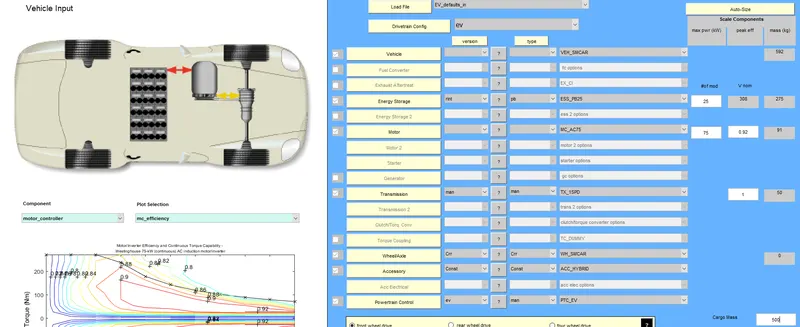

In this case ev vehicle type is chosen and EV_defaults_in file is also chosen. Then cargo mass is changed to 500kg and all other conditions remains same.

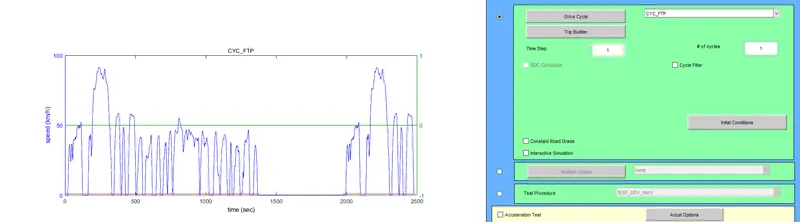

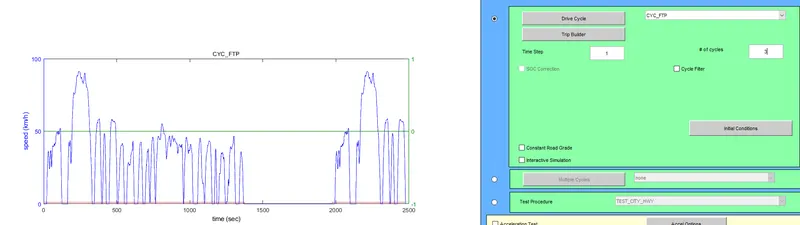

In next step CYC_FTP drive cycle is chosen and number of cycle is entered as one.
From the output result table we came to know that for one FTP drive cycle vehicle runs upto 17.8km but still brattery capacity is not drained out. so we have to increase the cycle till the state of charge recheas zero.

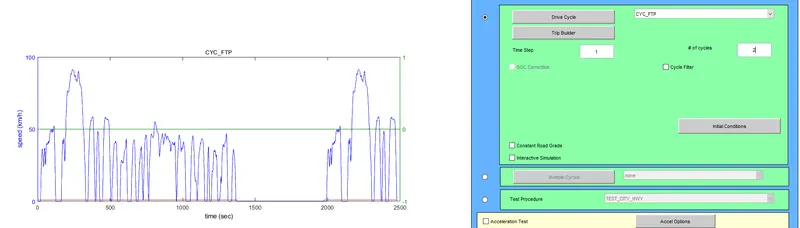

Number of drive cycle is changed to 2.

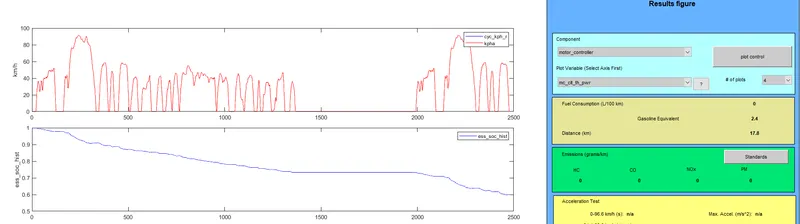

From the output result table we came to know that for two FTP drive cycle vehicle runs upto 36.5km but still brattery capacity is not drained out. so we have to increase the cycle till the state of charge recheas zero.
Number of drive cycle is changed to 3.

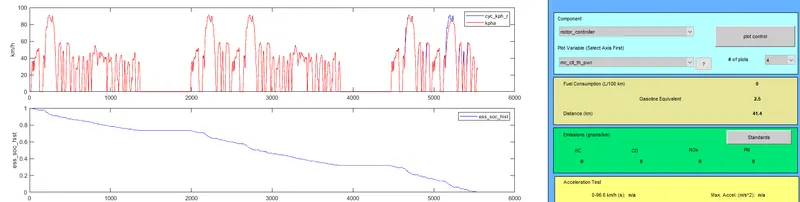

From the output result table we came to know that for three FTP drive cycle vehicle runs upto 41.4km and the state of charge reaches zero so we cannot proced furthure. From this result we came to know that this vehicle model with 500kg cargo mass cannot reach 45km because state of charge reaches zero before vechicle reaches 45km.
Question 2:
In this case we have to perfome the same test as we done is previous case but here we have to increase the battery capacity and conclude the observation.
Now the battery capacity is changed from 25 to 30.

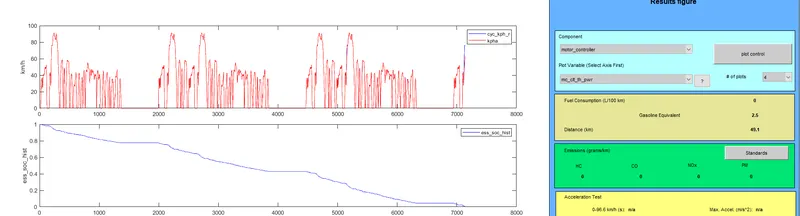

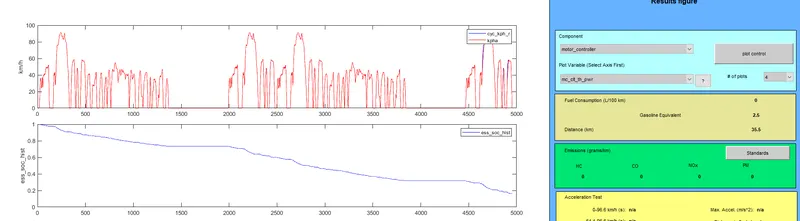

From the below image we came to know that vehicle runs upto 49.1km if we increase battery capacity to 30
Now battery capacity is increased to 32.5

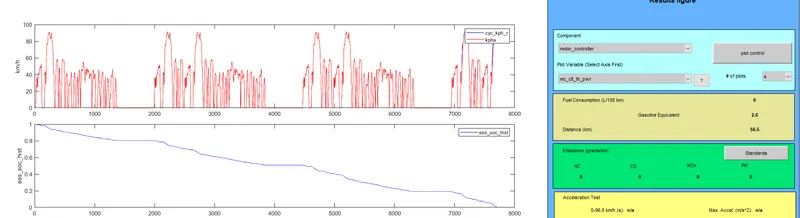

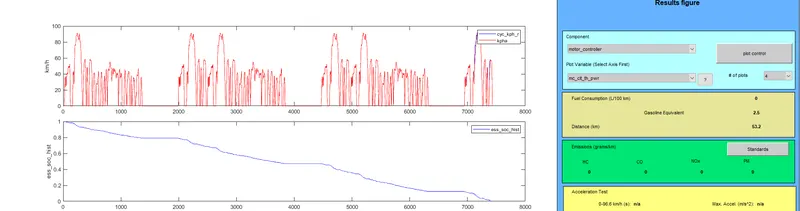

From the below image we came to know that vehicle runs upto 53.2km if we increase battery capacity to 32.5
Now battery capacity is changed to 35
In this case we have increased the number druve cycle to 4 and from the below image we came to know that vehicle runs upto 56.6km if we increase battery capacity to 35
Question 3:

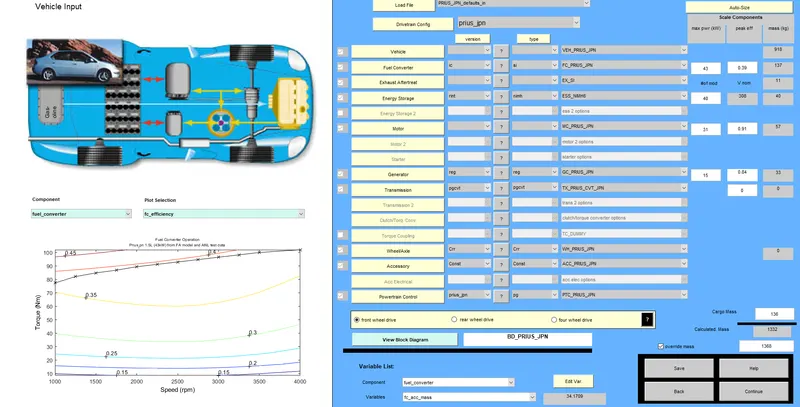

Here we have to Perform gradeability test with PRIUS_Jpn_defaults_in file with all default conditions but we have to change speed of the vehicle while doing gradeability test.

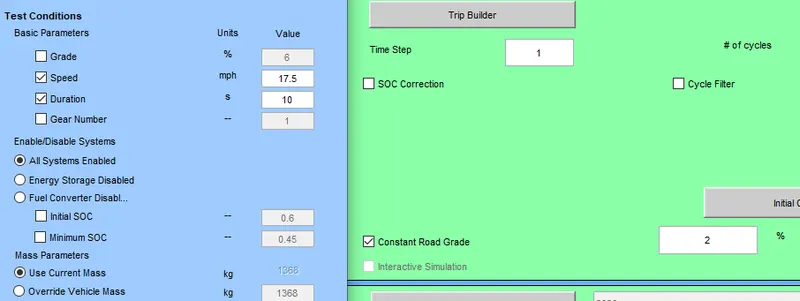

In this case speed of the vehicle is 17.5mph and the duration is 10sec, all systems enabled options is choosen and constant road grade is chosen and set to 2%.
After we perfome the test we got result as this vehicle model has 22% gradeability at 28.2kmph

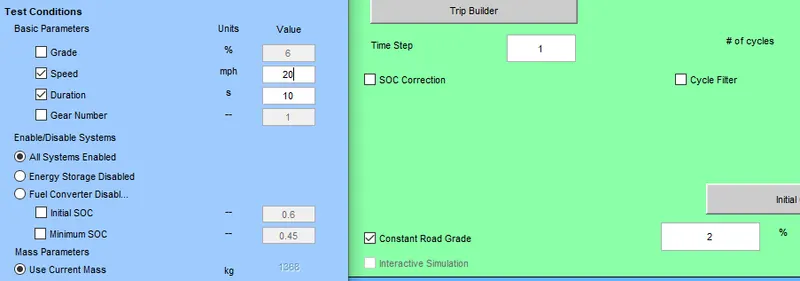

In this case speed of the vehicle is 20mph and the duration is 10sec, all systems enabled options is choosen and constant road grade is chosen and set to 2%.
After we perfome the test we got result as this vehicle model has 19.8% gradeability at 32.2kmph

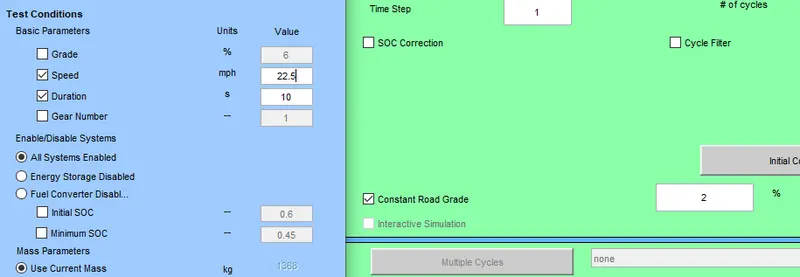

In this case speed of the vehicle is 22.5mph and the duration is 10sec, all systems enabled options is choosen and constant road grade is chosen and set to 2%.
After we perfome the test we got result as this vehicle model has 18% gradeability at 36.2kmph

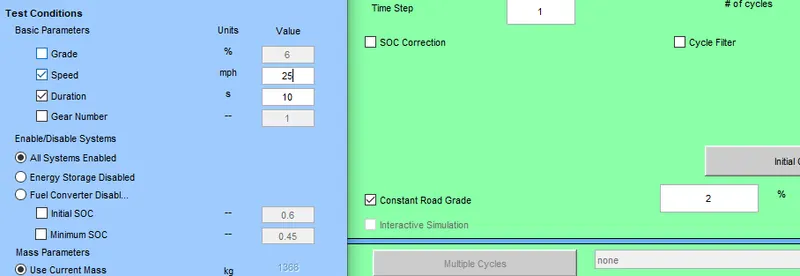

In this case speed of the vehicle is 25mph and the duration is 10sec, all systems enabled options is choosen and constant road grade is chosen and set to 2%.
After we perfome the test we got result as this vehicle model has 16.5% gradeability at 40.2kmph

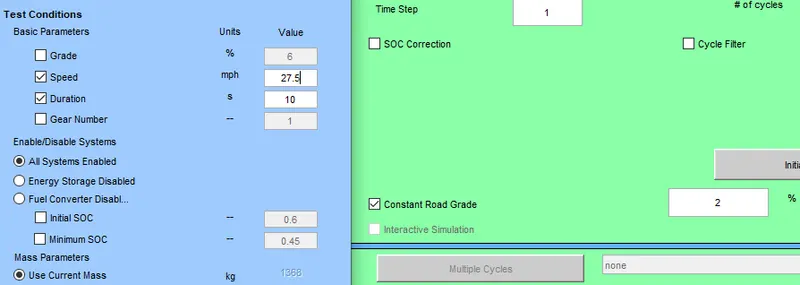

In this case speed of the vehicle is 27.5mph and the duration is 10sec, all systems enabled options is choosen and constant road grade is chosen and set to 2%.
After we perfome the test we got result as this vehicle model has 15.5% gradeability at 44.3kmph

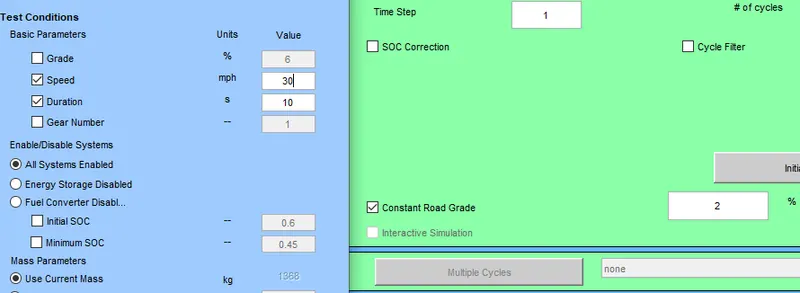

In this case speed of the vehicle is 30mph and the duration is 10sec, all systems enabled options is choosen and constant road grade is chosen and set to 2%.
After we perfome the test we got result as this vehicle model has 14.7% gradeability at 48.3kmph
| S.NO | SPEED (MPH) | GRADEABILITY (%) |
| 1) | 17.5 | 22 |
| 2) | 20 | 19.8 |
| 3) | 22.5 | 18 |
| 4) | 25 | 16.5 |
| 5) | 27.5 | 15.5 |
| 6) | 30 | 14.7 |
