Week 3 Challenge

1. 1. State the primary load cases to be considered for design.
2. What is One – Way slab?
3. What is the value of unit weight of structural steel and soil?
4. Name few sections that can be defined using Properties tab in STAAD Pro.
5. Define Primary Beams.

2. 1. State the factors and parameters that influence the design pressure intensity of a high-rise building.
2. Mention the load transfer process of a Reinforced Concrete Building.

3. 1. Differentiate One-Way and Two way slabs. Elaborate each slab type.
2. Explain the concept of secondary beams with proper sketch.
3. Mention the Primary load cases.
a. State the Indian Standards for each load case
b. Detail the parameters of each load case
c. Brief each load case
4. Detail the steps involved in assigning Properties and Support to a model using STAAD Pro sequentially.
5. Brief the steps to be followed to create and assign secondary beams in STAAD Pro.

AIM:- To explain the answer for each and every question from 1.1.1 to 3.1.5.

INTRODUCTION:- In this section of question from 1.1.1 to 3.1.5, I used staad.pro software to answer these question. Besides this, I have used some reference from recorded video session of skill-lync.

PROCEDURE:- Here first I will mention question one by one then answer then in the same manner.

Question- 1. 1. State the primary load cases to be considered for design.

Ans=

• The Primary Load cases are -

1. Dead Load
2. Live load
3. Seismic Load.
4. Wind Load.

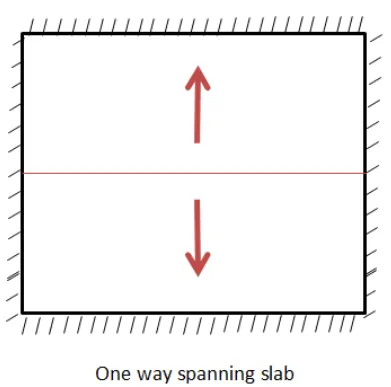

Question- 1. 2. What is One – Way slab?

Ans=

If the ratio of Ly/Lx ( Ly = Longer direction , Lx = Shorter direction ) is greater than or equal to 2 , then we classify it as a One way slab

Features of one way slab-

ii) In one way slab bending is along in one direction only.

iii) In one way slab main reinforcement is provided along the shorter direction because when load is applied it will distributed quickly to the shorter span

iv) A distribution steel is provided to provide resistance against temperature and shrinkage .

v) Eg of one way slab is Slab over the Toilets , Cantilever slab etc.

Question- 1.3. What is the value of unit weight of structural steel and soil?

Ans=

• The unit weight of a structural steel is 7850 kg/m^3
• The unit weight of soil is 18 kN/m^3

Question- 1.4. Name few sections that can be defined using Properties tab in STAAD Pro.

Ans=

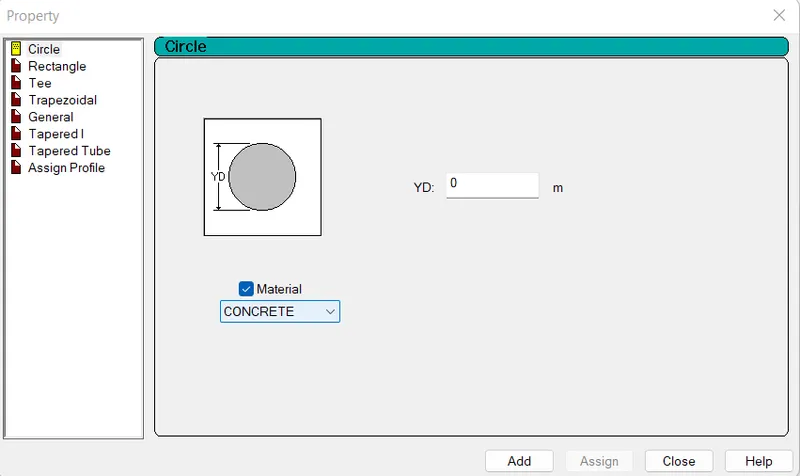

In staad pro we can define following sections to the model

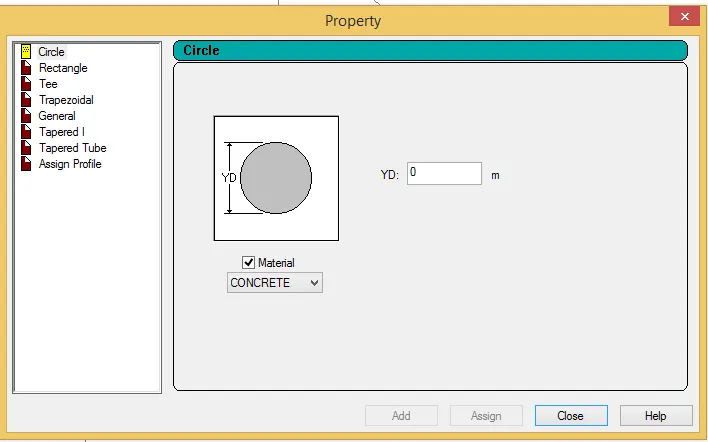

ii) Circular section for columns

iii) Rectangular Sections for beams and column

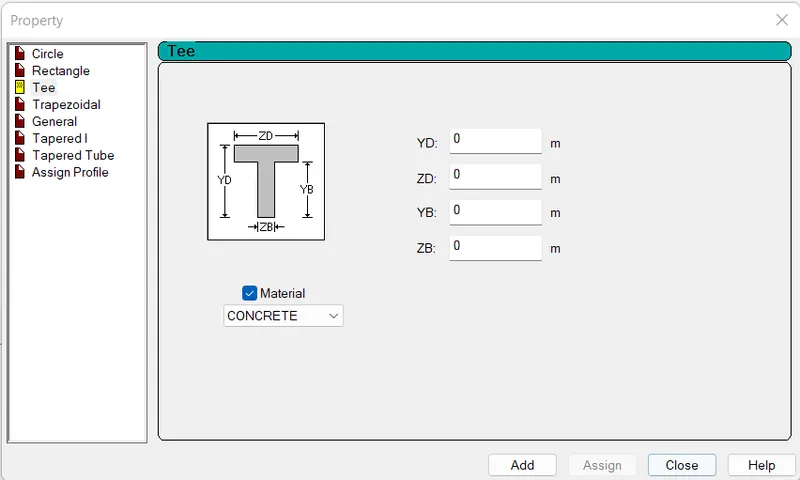

iv) Tee Section

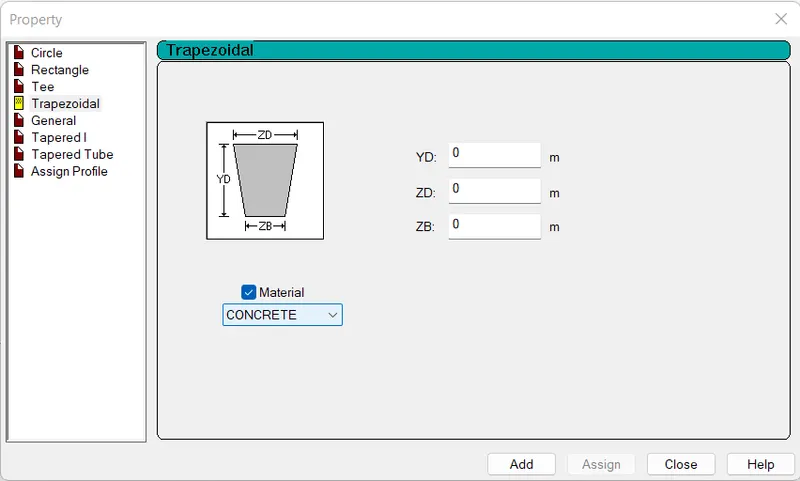

v) Trapezoidal section

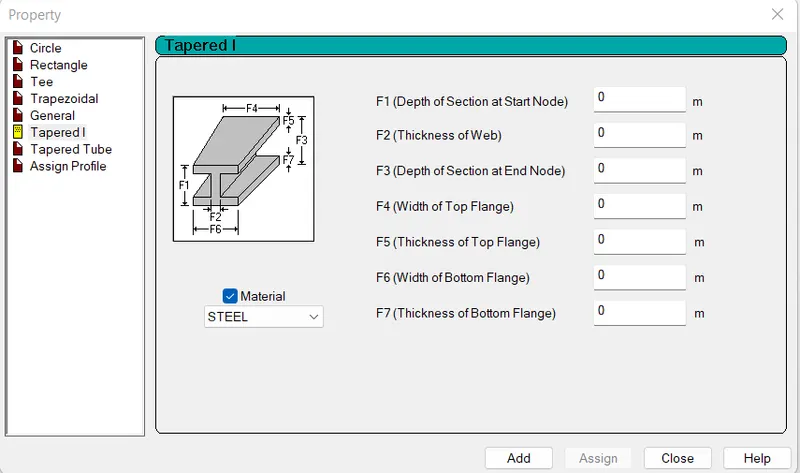

vi) Tapered I section

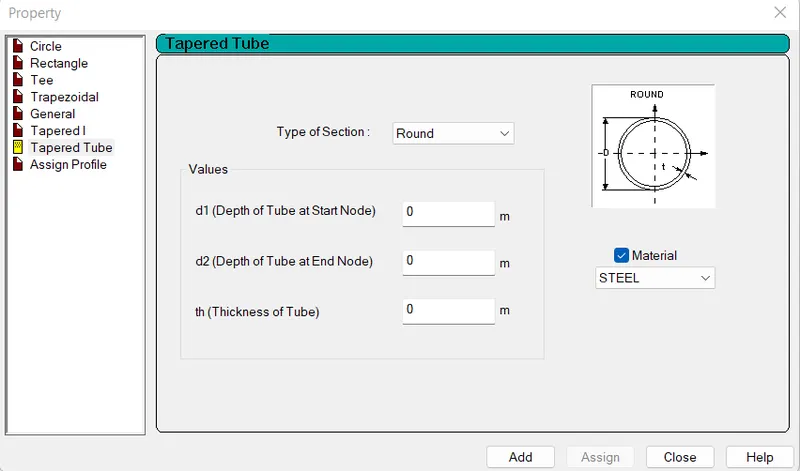

vii) Tapered Tube

Question- 1.5. Define Primary Beams.

Ans=

Primary beams are defined as the beams which are supported on columns on both the sides . Also these beams directly transferred the load to the columns and Primary beams are rest on column which can be fixed support or any other support .

Question- 2.1. State the factors and parameters that influence the design pressure intensity of a high-rise building.

Ans=

The factors and Parameters influence the design pressure Intensity as per IS 875 part 3

1) Design wind speed -

Vz= Vb K1 K2 K3 K4

where ,

Vb=Basic wind speed (m/sec)

K1=Risk coefficient (Table 1 of IS 875 (Part 3)-2015)

K2 = Terrain Roughness and height factor

K3=Topography factor (Clause 6.3.3 of IS 875 (Part 3)-2015)

K4 =Importance factor for Cyclic Region

2) Design wind pressure (pd) -

pd= Kd Ka Kc pz

where

Kd= Wind directionality factor

Ka=area averaging factor

Kc = Combination factoras

3) The wind pressure pz at any height z is given by -

Pz= 0.6 Vz^2

where

Pz= Design Wind speed in N/m2 at height z

Vz= Design wind speed in m/s.

Question- 2.2. Mention the load transfer process of a Reinforced Concrete Building.

Ans=

The load transfer process of a reinforced concrete building is the following-

i) Slab - The load will be transferred from Slab to Primary Beams

ii) Secondary beam - If Secondary beams are provided its load transferred to the Primary beams

iii) Primary beam - The loads from Primary beams to Columns

iv) Columns - The loads from Column to the Foundation

v) Foundation - Foundation transferred the load to the soil beneath the footing.

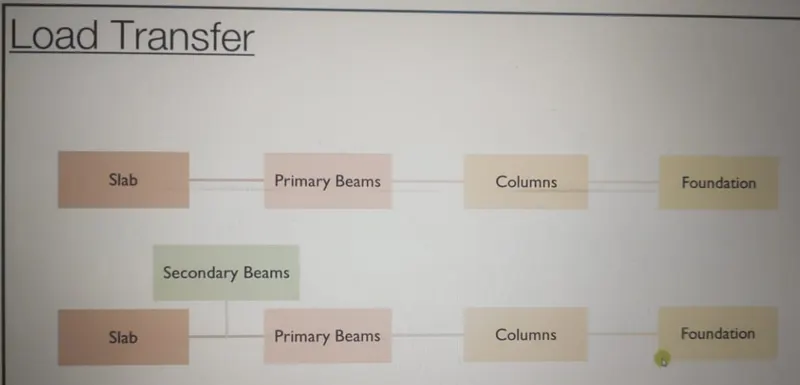

Here is the load transfered diagram mentioned below-

Question- 3. 1. Differentiate One-Way and Two way slabs. Elaborate each slab type.

Ans=

One Way Slab	Two Way Slab
1) The one way slab is supported by a beam on two opposite side only.	1) The two way slab is supported by the beam on all four sides.
2) In one way slab, the load is carried in one direction perpendicular to the supporting beam.	2) In two way slab, the load is carried in both directions.
3) One way slab rest on two opposite side support beam/wall.	3) Two Way Slab rest on four side beam /wall .
4) One way slab is bend only in one spanning side direction while load transfer	4) Two way slab is bend both spanning side direction while load transfer
5) In One way slab the crank is provided in one direction	5) In two-way slab, the crank is provided in four directions.
6) If (Length/bredth) ratio is greater than or equal 2 or then it is considered a one-way slab.	6) If Length/bredth the ratio is less than 2 then it is considered a two-way slab.
7) The deflected shape of the one-way slab is cylindrical.	7) Whereas the deflected shape of the two-way slab is a dish or saucer-like shape.
8) Chajja and Varandha are practical examples of one-way slab.	8) Whereas two-way slabs are used in constructive floors of the Multistorey building.
9) In one-way slab quantity of steel is less.	9) In two-way slab quantity of steel is more as compared to the one-way slab.

Question- 3.2. Explain the concept of secondary beams with proper sketch.

Ans=

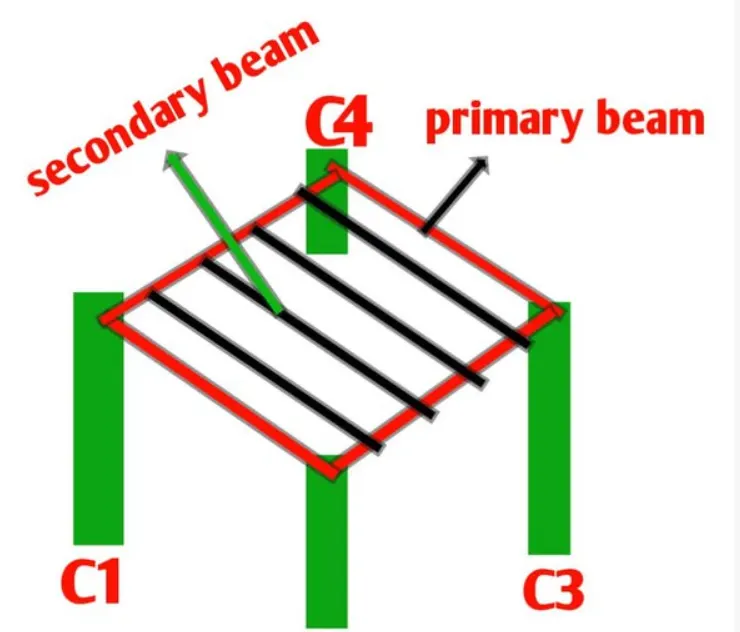

i) From the above Sketch we can see that What is Primary beams and Secondary Beams

ii) Secondary beams are the beams which runs between primary beams or we can say that they rest on primary beams

iii) In normal case loads transferred will be Slabs - Primary beam - Columns - Foundation

iv) But Incase of Secondary beams , Primary beams carry the loads coming from Slab as well as Secondary beams i.e

Slabs - Secondary Beams - Primary Beams - Columns - Foundations

v) The Secondary beams rest on simply supported condition.

vi) As the secondary beams are simply supported the moment will be developed at the support

vii) So therefore my secondary beams should get support from our primary beams with zero moment at the ends

viii) So therefore we have to give moment releases to the secondary beams.

Question- 3. 3. Mention the Primary load cases.
a. State the Indian Standards for each load case
b. Detail the parameters of each load case
c. Brief each load case

Ans=

a) State the Indian Standards for each load case -

i) Dead load - IS 875 part 1.

ii) Super Imposed Dead Load - IS 875 part 1.

ii) Live Load - IS 875 part 2.

b) Detail the parameters of each load case -

i) Dead load - a) Weight of structure

b) It remains constant

c) Volume of the section

ii) Super Imposed Dead Load - a) Floor Finishes

b) Service load

iii) Live Load - a) It is based on usage , occupancy etc .

b) building type residential building ,

c) commercial building

d) industrial building etc

c) Brief each load case -

i) Dead Load - i) Dead load is generally considered as self weight of the structure .

ii) This loads are constant loads which are not going to change throught the life span of structure .

iii) DL of each structural member can be calculated by multiplying L x B x D X Density of concrete

ii) Live Loads - i) Live lods are not constant throughout the life span of structure

ii) It may vary depends upon usage , occupancy etc

iii) It may also vary depends upon the type of building such as residential , commerecial , Industrical etc

iv) For Residential Builidig we assumen LL as 3Kn/m2

Question- 3.4. Detail the steps involved in assigning Properties and Support to a model using STAAD Pro sequentially.

Ans=

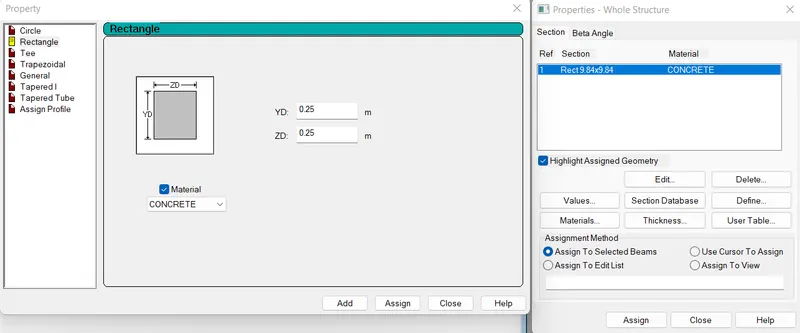

To assign the properties follow the step -

A) For Properties

i) Once geometry is created

ii) Click on Properties -

iii) Click on Define materials

iv) Select the sections whichever you want for eg Rectangular Circular etc

v) Once the section is selected enter the section properties like width depth or dia etc

vi) Select the materials like Concrete , Steel etc

vii) Select the beam or column and Assign it to selected beams .

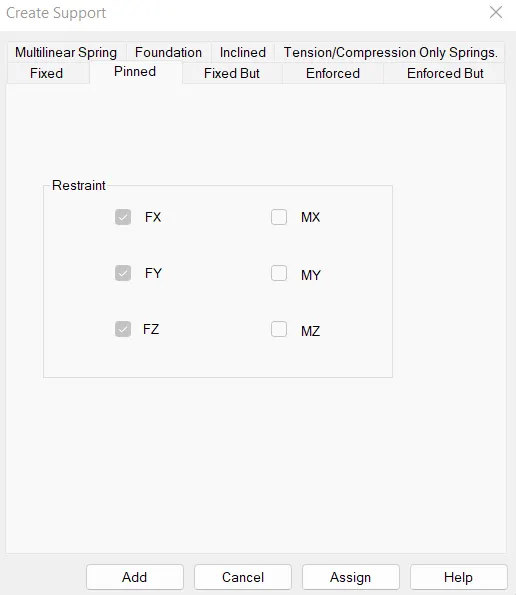

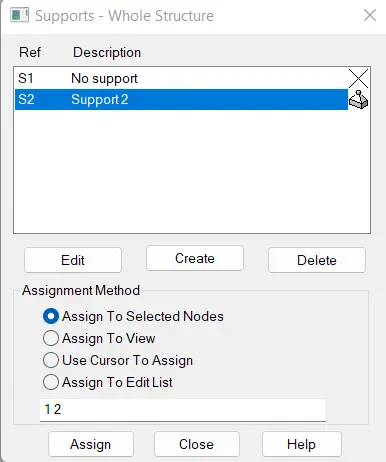

B) For Support -

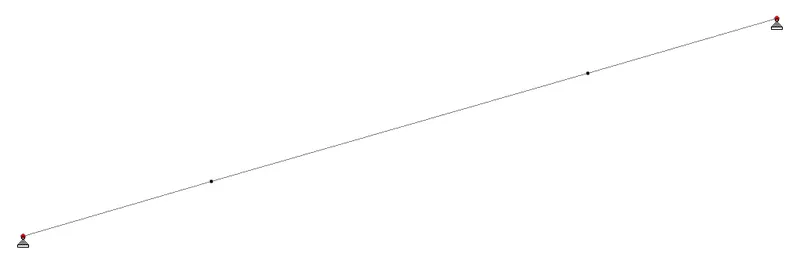

i) Create a two nodes using Grid / coordinate system option

ii) These nodes denotes the end of the beam

iii) Select the nodes by using Node cursor

iv) Go to Support

v) Click on create - and select the pinned support

vi) and Assign it to the selected nodes

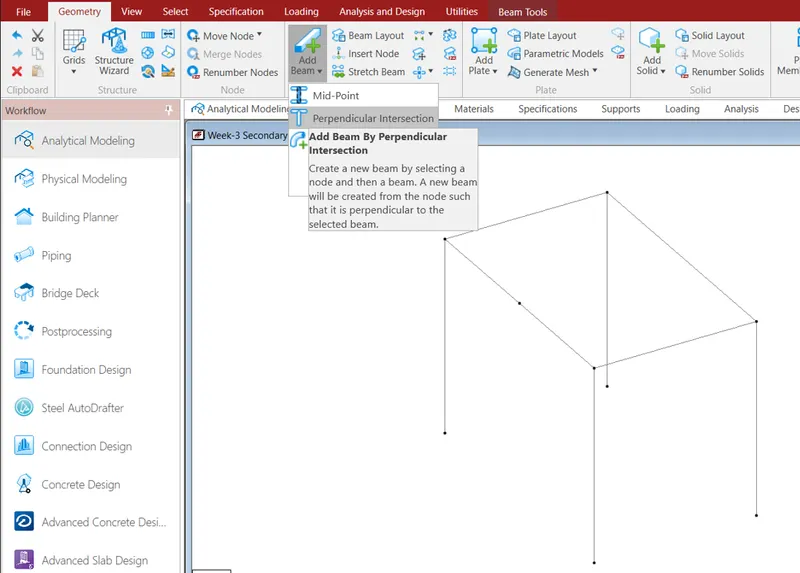

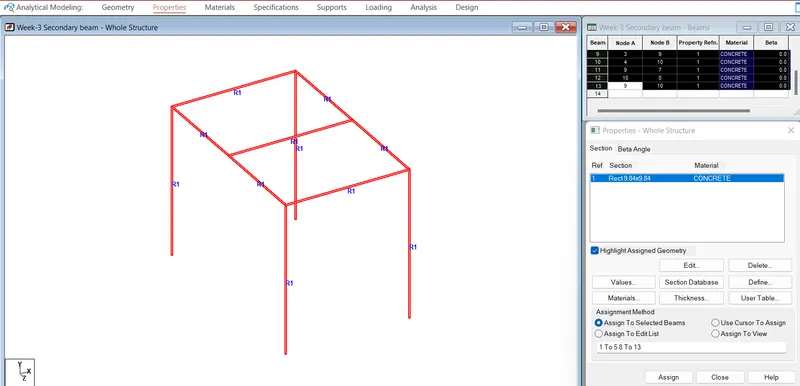

Question- 3.5. Brief the steps to be followed to create and assign secondary beams in STAAD Pro

Ans=

STEP-1:-

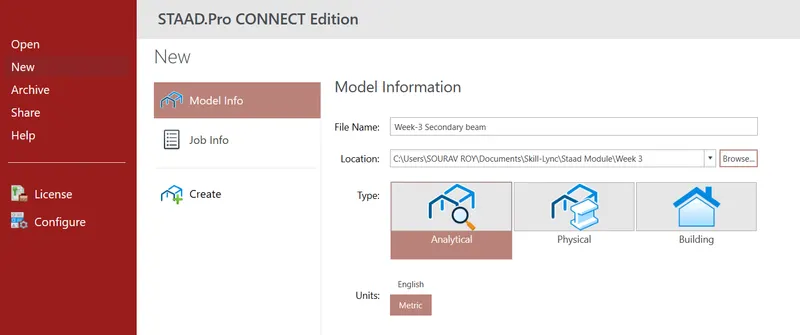

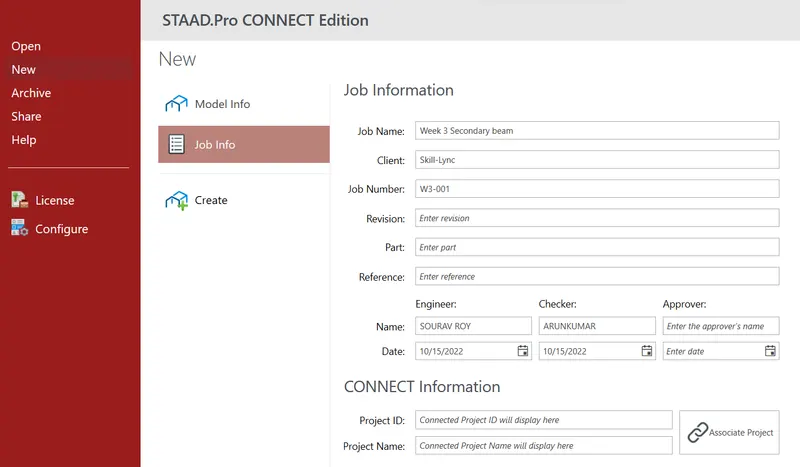

First open the staad.pro software and fill all the project details and select unit system as Metric. Then select the model as analytical.

STEP-2:-

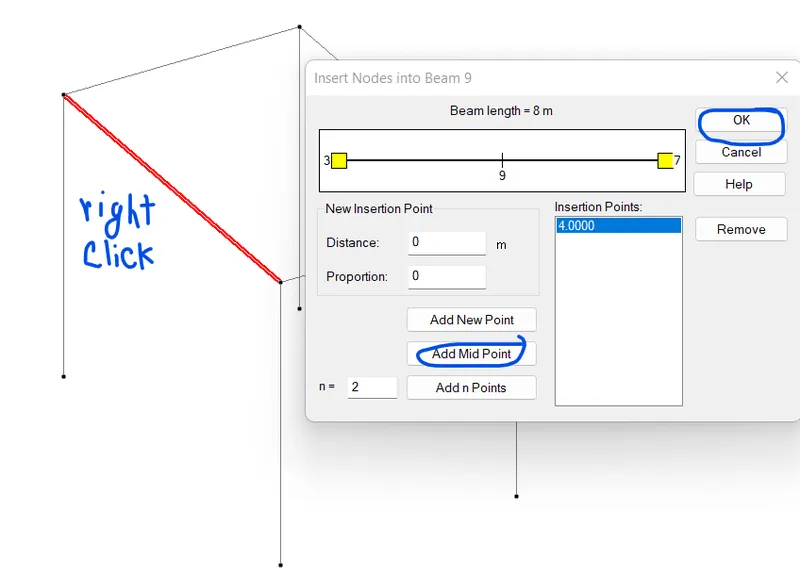

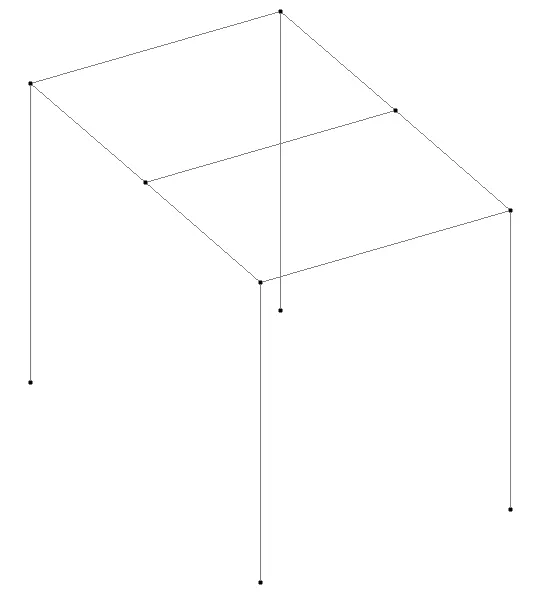

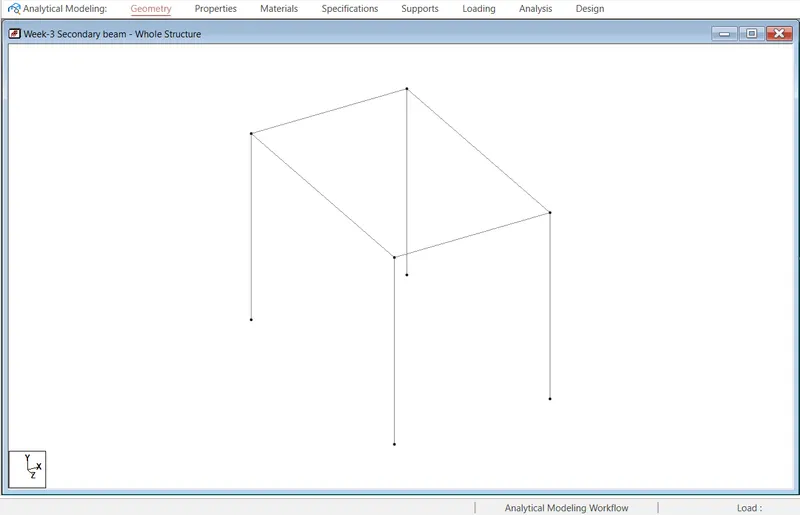

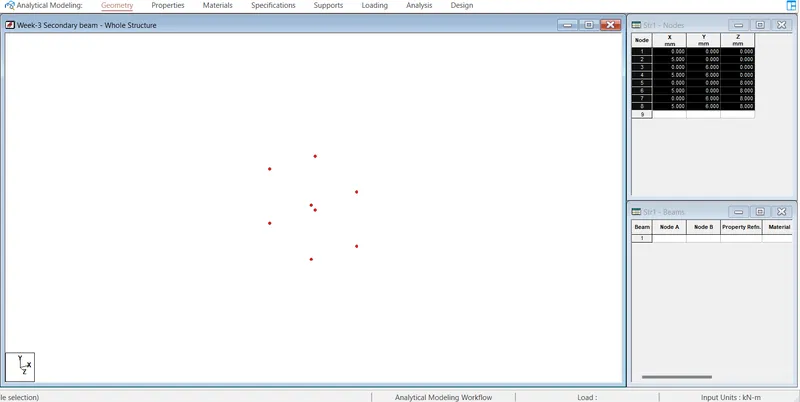

Go to geometry add node then go to node cursor, Then create a cube of (X=5m, y=6, Z=8m)

STEP-3:-

STEP-6:-

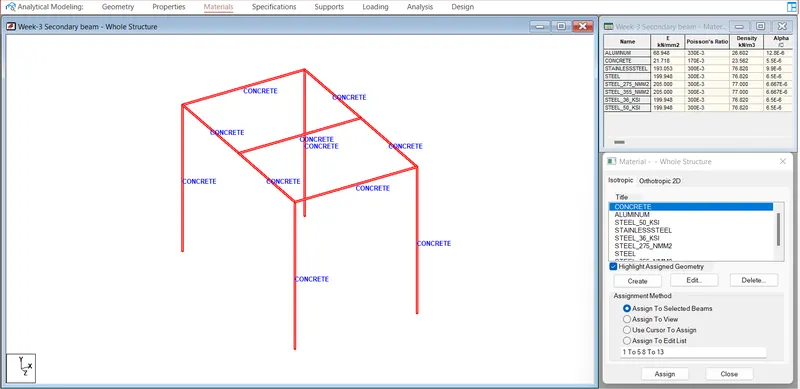

Go to material tab and assign material as concrete.

RESULT:-

All the qusestions from 1.1.1 to 3.1.5 are answered with detailed elaboration.

Practical

1. Calculate the wind pressure for the given building
a. Building Dimension : 20m x 30m x 20m height RCC
b. Building usage : Hospital block in city centre
c. Location : Darjeeling

Ans=

AIM:- To calculate the wind pressure of a 20m hight Reinforced cement concrete building located in Darjeeling

INTRODUCTION:- I calculted wind load by using IS875 part 3, where each and every formula and values are given with detailed explanation. Besides this, all required data for this calculation has already provided by skill-lync side in a excel file.

PROCEDURE:- I will mention each and every steps-

DETAILED PROCEDURE FOR-

1. Calculate the wind pressure for the given building
a. Building Dimension : 20m x 30m x 20m height RCC
b. Building usage : Hospital block in city centre
c. Location : Darjeeling

STEP-1:-

Calculattion for Design Wind Speed:-

We know that

Vz = Vb x k1 x k2 x k3 x k4

where ,

Vb=Basic wind speed (m/sec)

K1=Risk coefficient (Table 1 of IS 875 (Part 3)-2015)

K2 = Terrain Roughness and height factor

K3=Topography factor (Clause 6.3.3 of IS 875 (Part 3)-2015)

K4 =Importance factor for Cyclic Region

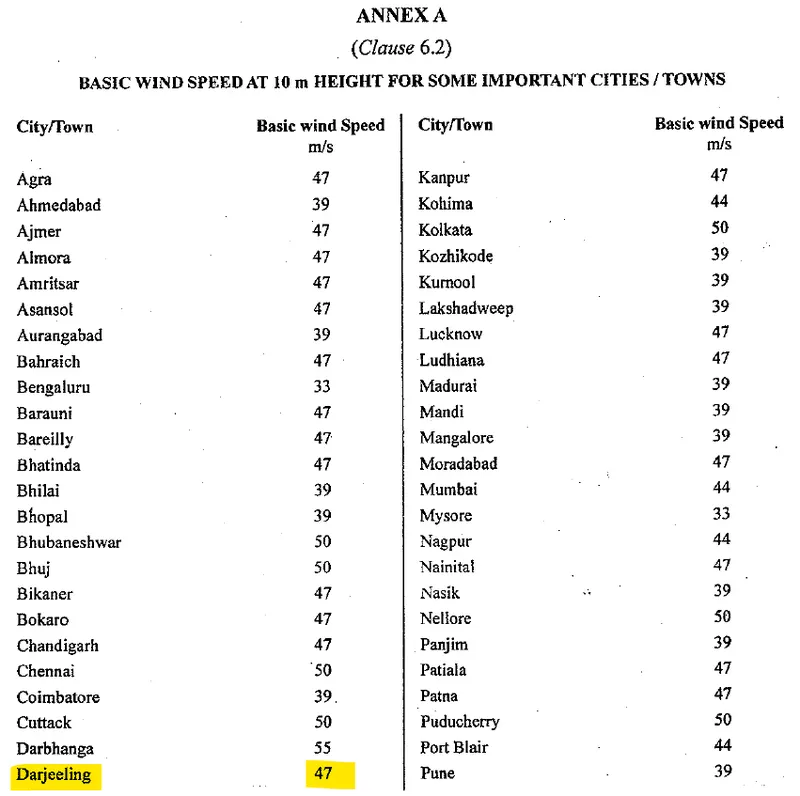

AS Vb = 47 m/s ( Darjeeling ) Is 875 Annexure A

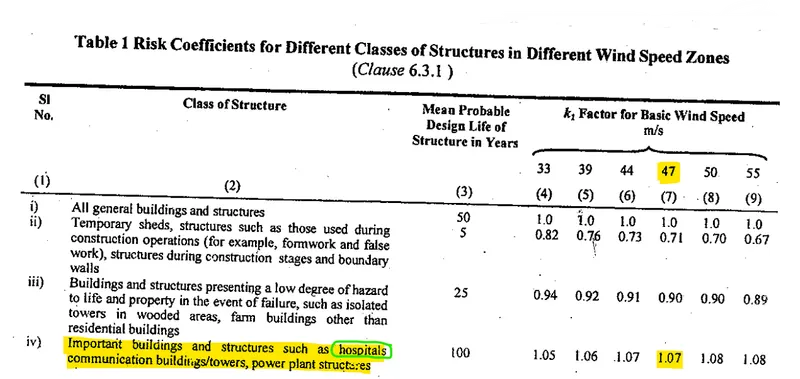

K1 = 1.07 (given in Table 1 of IS-875 part 3)

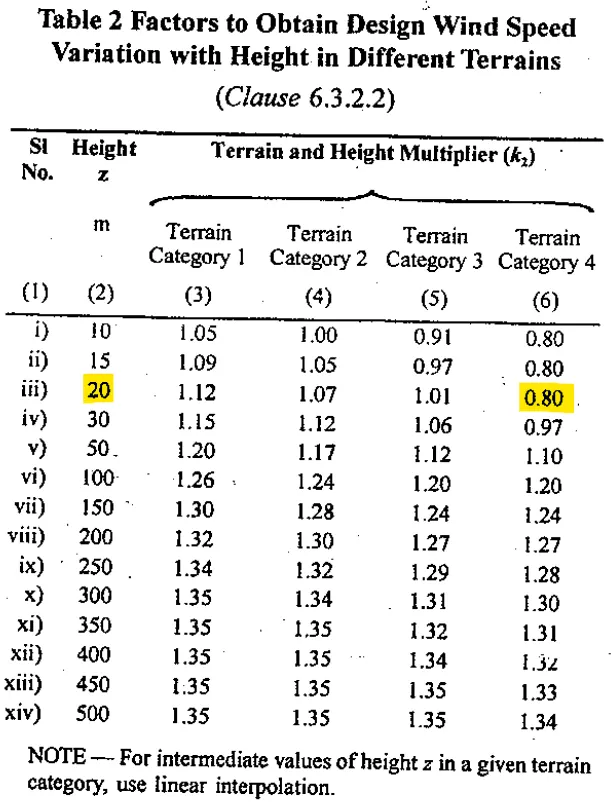

K2 = 0.80 ( Ht for 20m) (Category 4 as building is located in city center)

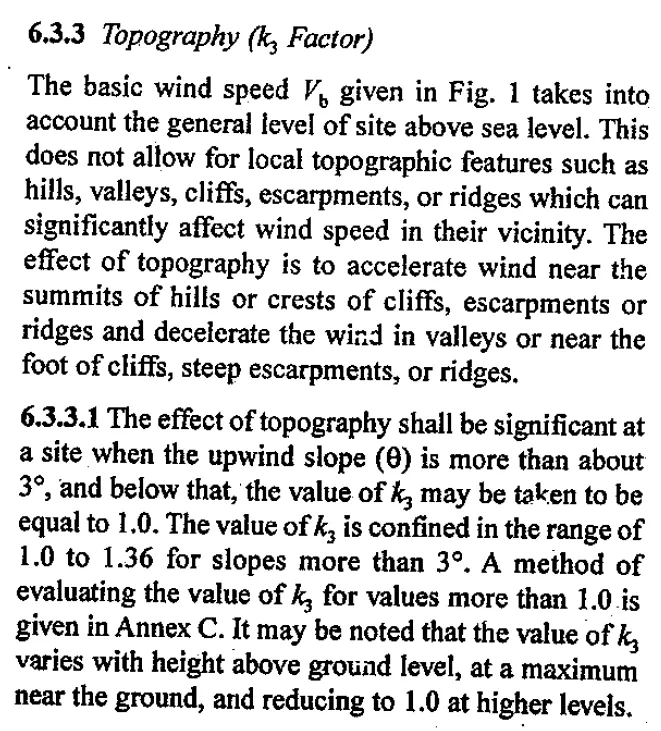

K3 = 1 [Topography factor (Clause 6.3.3 of IS 875 (Part 3)-2015)]

K4 = 1 [Clause 6.3.4 of IS 875 (Part 3)-2015] As this zone does not falls under cyclone zone

Therefore ,

Vz = 47 x 1.07 x 0.80 x 1 x 1

= 40.23 m/s

ii) Wind Pressure = Pz

Pz = 0.6 x Vz ^2

= 0.6 x 40.23 x 40.23

= 971.168 N

= 0.97 Kn

RESULT:-

Similarly we can calculate for different heights

Height (m)	k2	Vz (m/s)	Pz	Pz in kN
3.5	0.80	40.232	971.17	0.97
6.5	0.80	40.232	971.17	0.97
9.5	0.80	40.232	971.17	0.97
12.5	0.80	40.232	971.17	0.97
15.5	0.80	40.232	971.17	0.97
18.5	0.80	40.232	971.17	0.97
20	0.80	40.232	971.17	0.97

Practical-

2. Calculate the Dead load and Live load for the above building with reference to IS standards ( assume suitable sections )

Ans=

AIM:- To calculate the dead load and live load of a 20m x 30m x 20m hight Reinforced cement concrete building located in Darjeeling.

INTRODUCTION:- I calculted live by using IS875 part 2, where each values are given with detailed explanation. Besides this, dead load calculation done manually considering the thickness, width and length of each section.

PROCEDURE:- I will mention each and every steps-

DETAILED PROCEDURE FOR-

1. Calculate the Dead load and Live load-
a. Building Dimension : 20m x 30m x 20m height RCC
b. Building usage : Hospital block in city centre
c. Location : Darjeeling

STEP-1:-

To Calculate Dead Load of Column , Beam , Wall and Slab are as follows -

A) For Column -

i) As we have assume Column Size as (0.5 x 0.5 )

ii) Length of column = 20m (upto roof level)

Therefore

Dead Load = L X B X H x Unit weight of Concrete

= 20 x 0.5 x 0.5 x 25

= 125 KN

So Dead Load of Each Column is 125 KN

2) For Beams -

i) As we have assume Beams Size as ( 0.300 x 0.450 m)

Therefore-

Dead Load = B X H x Unit weight of concrete

= 0.3 x 0.45 x 25

= 3.375 KN/m

So Dead Load of Beam is 3.375 KN/m

3) For wall - As it has Block

i) Assume the Height of wall 2.8 m

ii) Thickness of wall = 0.230 m

iii) Unit weight of Blocks = 20Kn/m^3

Therefore

Dead Load = B X H x unit weight of block

= 0.230 x 2.8 x 20

= 12.88 KN / m

So Dead Load of wall is 12.88 KN /m

4) For Slab

i) Assume the thickness of slab = 200 mm

Therefore

Dead Load = thickness X Unit weight of concrete

= 0.200 x 25

= 5 Kn / m^2

Dead Load of Slab = 5 Kn/m^2

2) For Live Load - As per IS 875 Part 2

Sl. No.	Description	UDL Load (kN/m2)	Concentrated Load (kN)
1.	Bathrooms and toilets in all types of buildings	2	1.8
3	Office rooms in
	(i)Hostel, hotels, hospitals and business building with separate store	2.5	2.7
	(ii)In assembly buildings	3	4.5
4.	Kitchens in
	(i) Dwelling houses	2	1.8
	(ii) Hostels, hotels and hospitals	3	4.5
5.	Banking halls, class rooms, X-ray rooms, operation rooms	3	4.5
6.	Dining rooms in
	(i)Educational buildings, institutional and mercantile buildings	3	2.7
	(ii)Hostels and hotels	4	2.7
7.	Corridors, passages, stair cases in
	(i) Dwelling houses, hotels, and hostels	3	4.5
	(ii)Educational, institutional and assembly buildings	4	4.5
	(iii) Mercantile buildings	5	4.5
8.	Reading rooms in libraries
	(i)With separate storage	3	4.5
	(ii)Without separate storage	4	4.5
9.	Assembly areas in assembly buildings
	(i)With fixed seats	5
	(ii)Without fixed seats	5	3.6
10.	Store rooms in educational buildings	5	4.5
11.	Store room in libraries	6 for a height of 2.24 2kN/m2 for every 1m additional height	4.5
12.	Boiler rooms and plant rooms in
	(i)Hostels, hotels and hospitals, mercantile and industrial buildings	5	4.5
	(ii)Assembly and storage buildings	7.5	4.5

RESULT:-

All the dead and live loads are shown as per given question.
