Week 2 Challenge

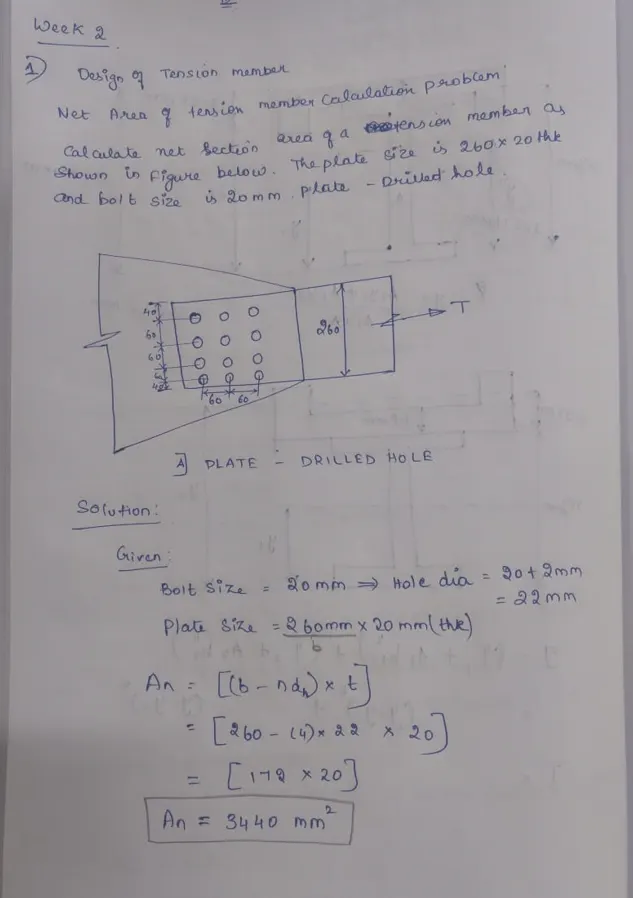

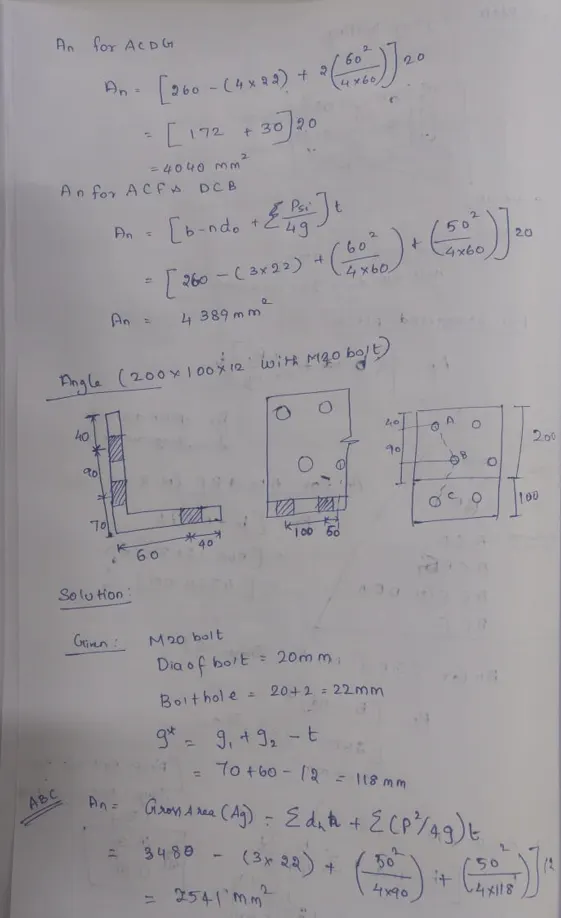

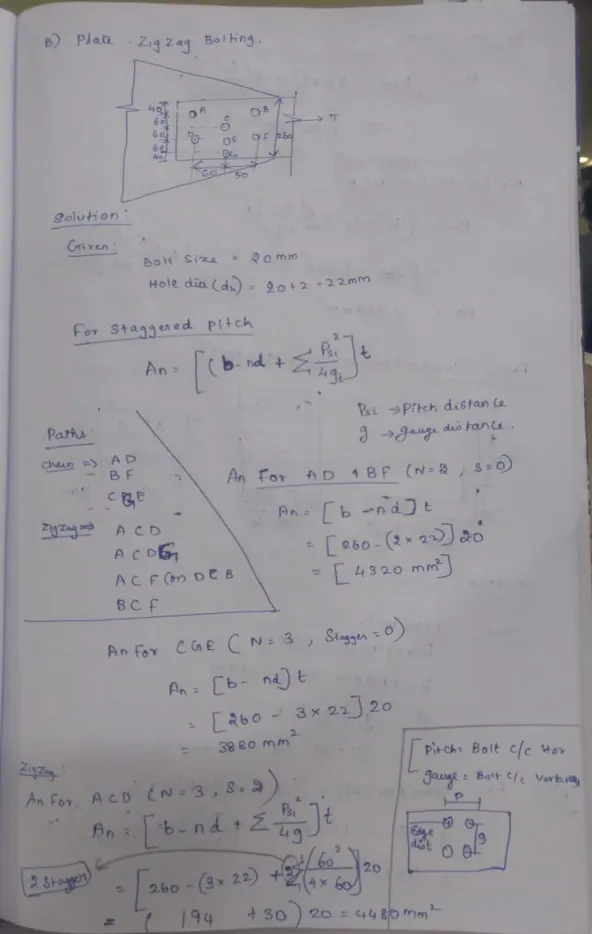

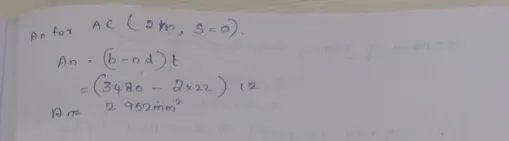

1. Aim and introduction:

To determine the net area of the given sections

Procedure;

Result:

The net sefction area has been determined

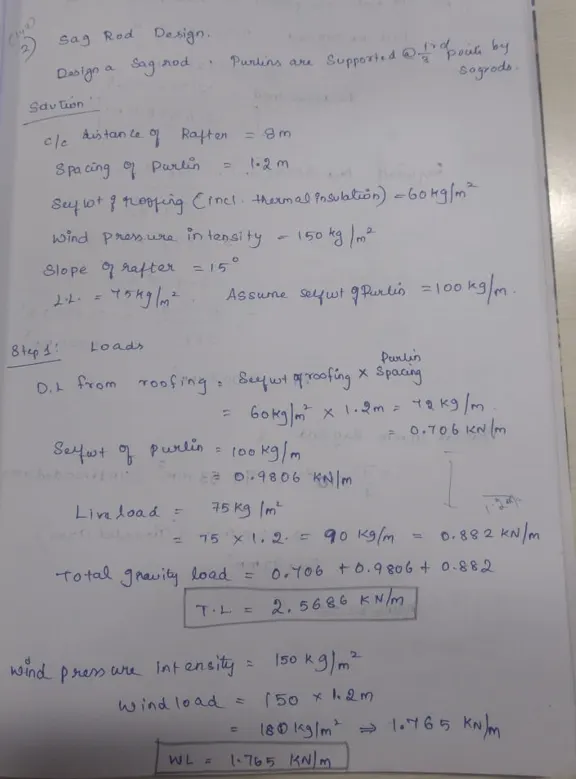

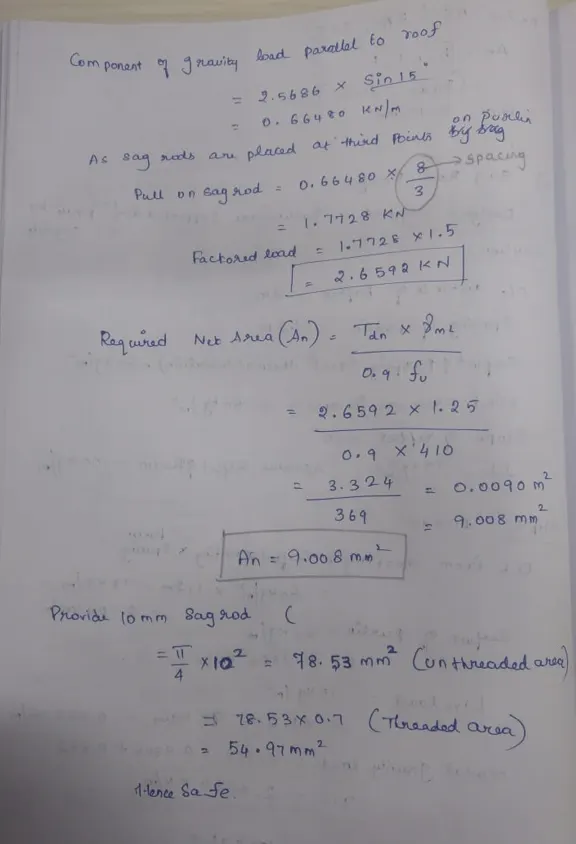

2. Aim and Introduction:

To design the sag rod of the purlin

Procedure:

Result:

Hence the sag rods is designed as per the code

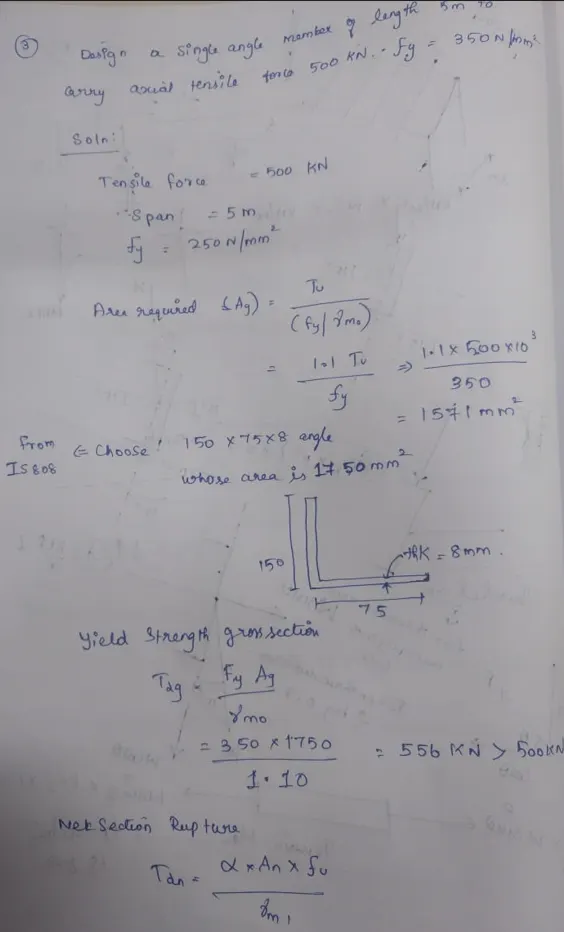

3. Aim and Introduction:

To determine the section for the given tensile load

Procedure

Result:

The section size has been determined
