Week 2 Bevel Gear Challenge
#2 Week Ansys Workbench
Grid Dependency: In terms of FEA Grid Dependency can be defined as refining of mesh until reaching the optimal results in the simulation. Atlast you will obtain a component with perfect mesh
Case-1: Grid Dependency Test on Bevel Gear with Mesh Size of 6mm.

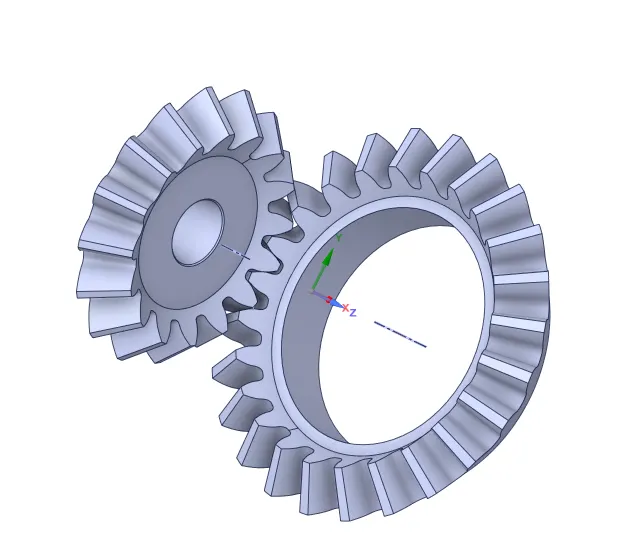

- Import the given Bevel Gear component to the Ansys workbench.

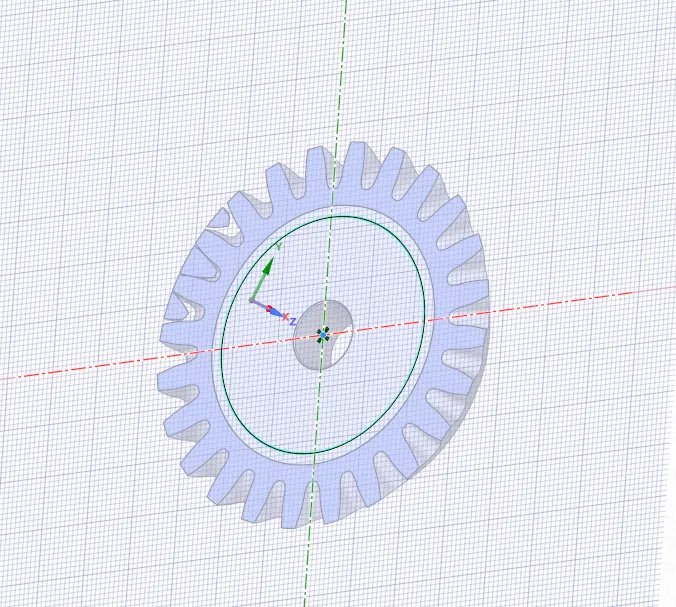

- Edit the spaceclaim geometry and select the inner surface of the gear and create a circle and pullout the unwanted surface.
- Do it also for the small gear.
- Then update the geometry and model.

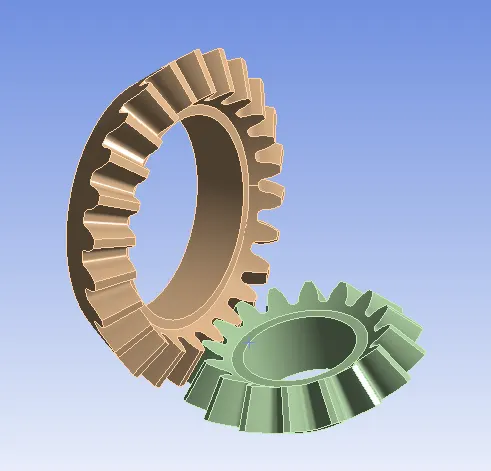

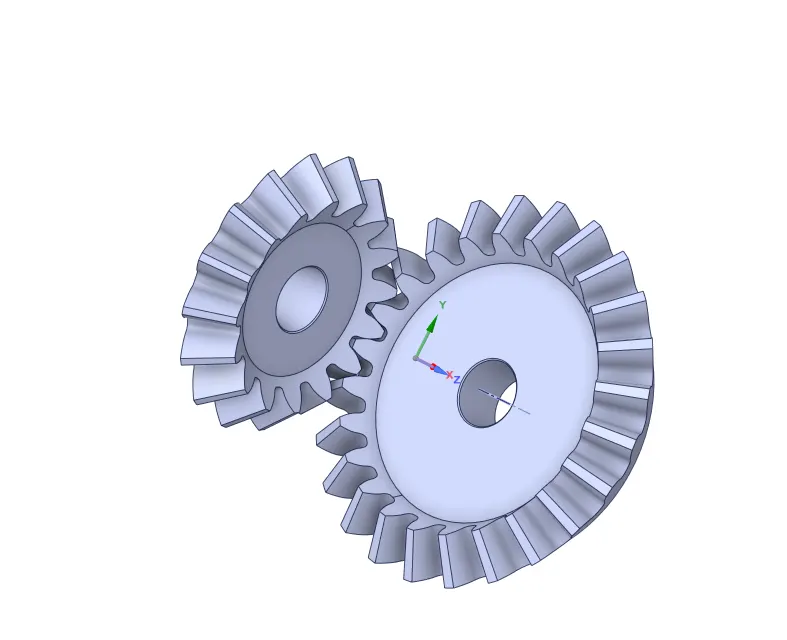

- Then edit the geometry and you can see the below image in the graphical area.

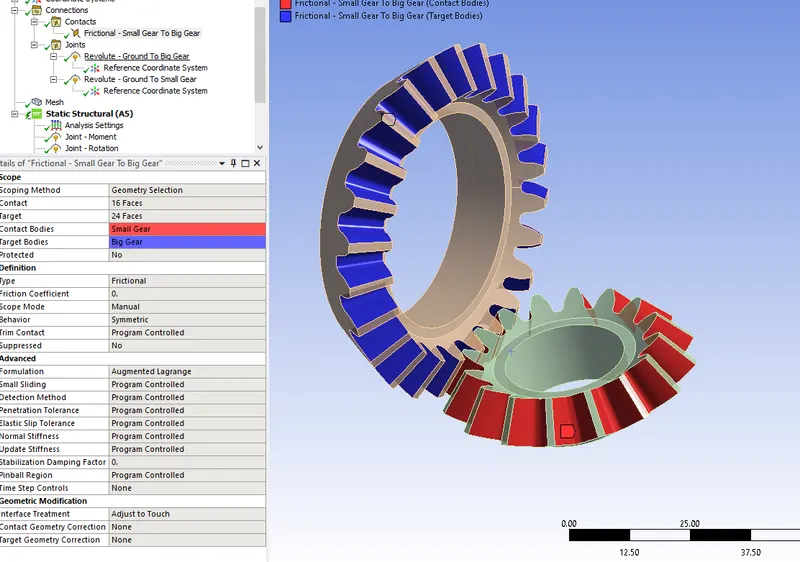

- Select the surfaces of the gear in the geometry both the contact and target body faces.

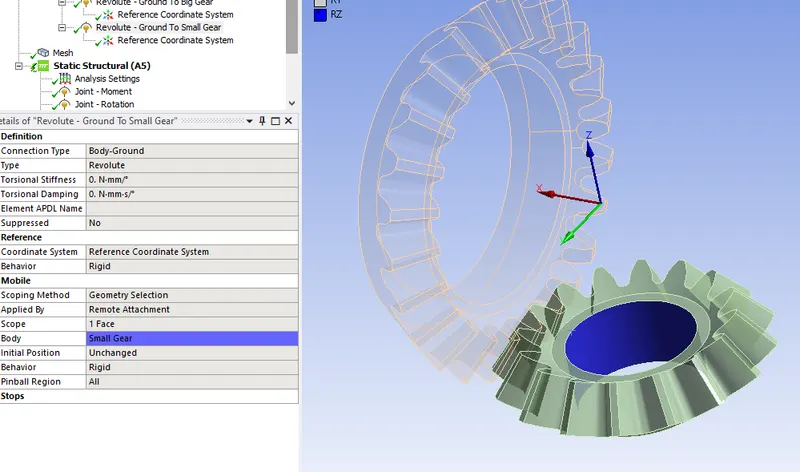

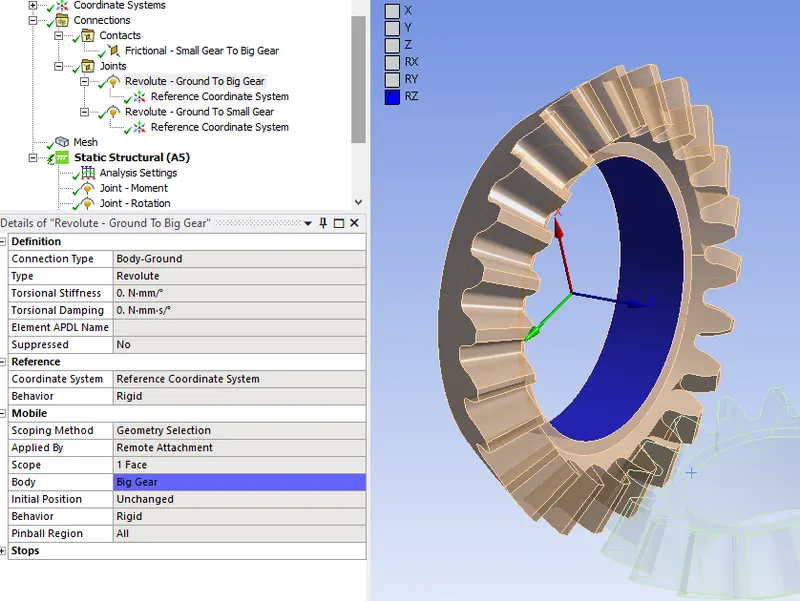

- Create the Joints and select the required parameters.
Goto the Analysis Settings and set all the parameters.
No. of time steps =6
Large Deflection = ON
Initial Time Step=0.2s
Minimum Time Step=0.1s
Maximum Time Step=1s
Insert the requirements in the analysis settings:

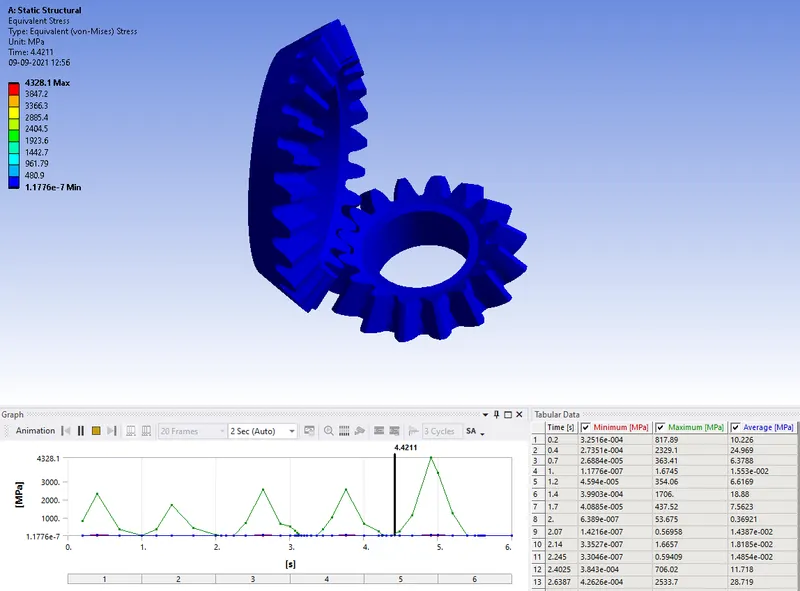

Von-Mises Stress:

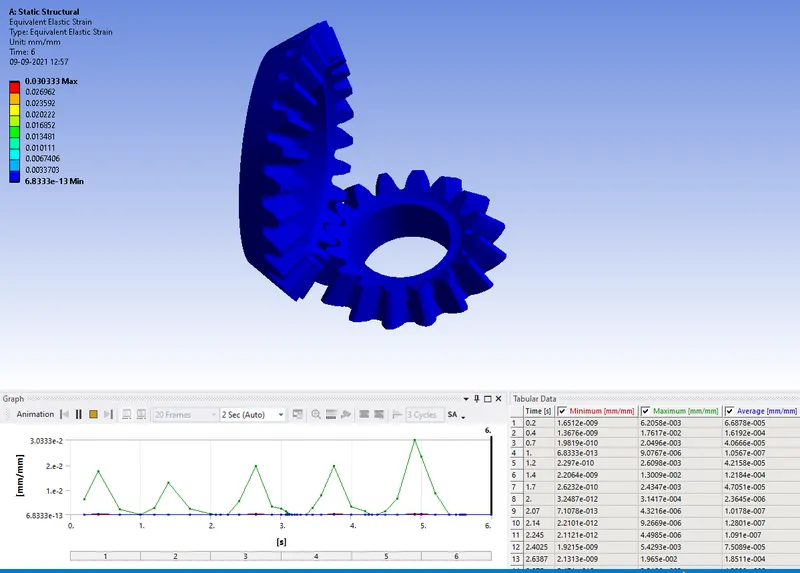

Equivalent Elastic Strain:

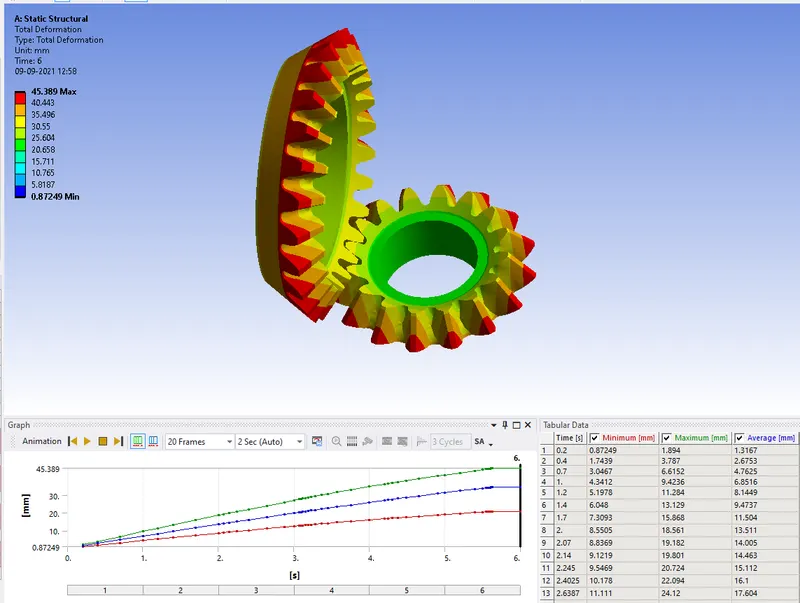

Deformation:
CASE-2: Grid Dependency Test on Bevel Gear with Mesh Size of 5 mm.
Von-Mises Stress:
Equivalent Elastic Strain:
Deformation:
CASE-3: Grid Dependency Test on Bevel Gear with Mesh Size of 4 mm.
- Change the mesh size to 4mm and perform the simulation

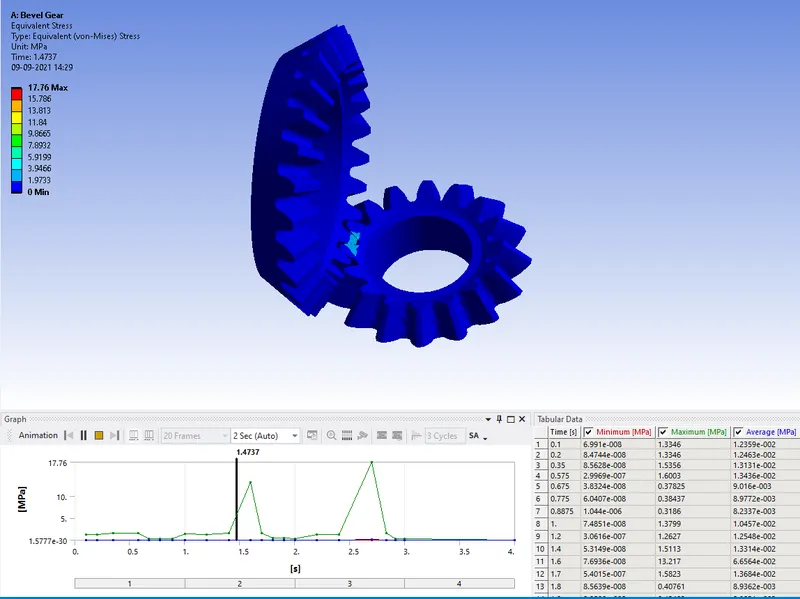

Von-Mises Stress:

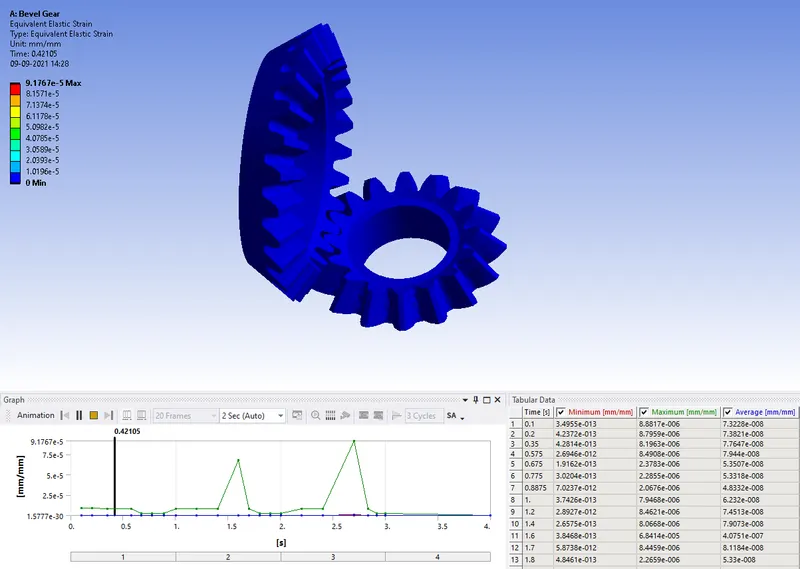

Equivalent Elastic Strain:

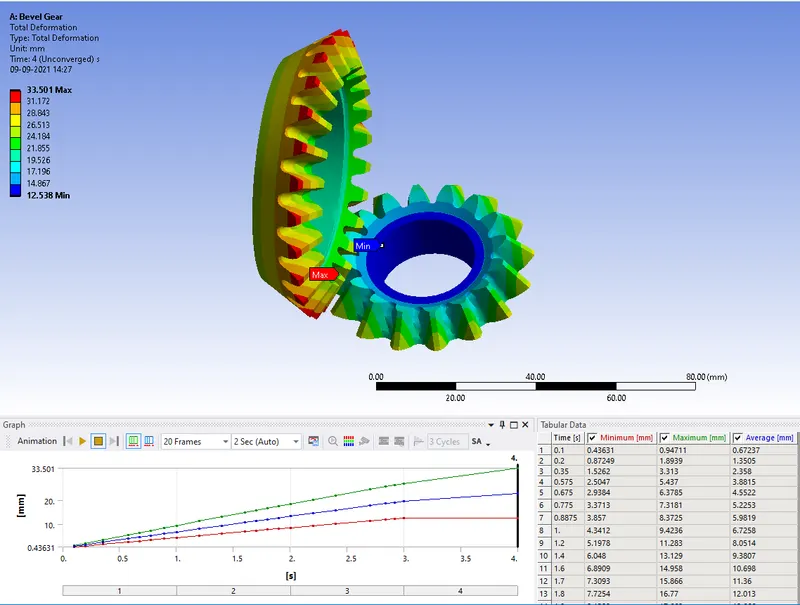

Deformation:
Comparison:
Von Mises Stress Eq Elastic Strain Deformation
| Case | Min Max | Min Max | Min Max |
| Case-1 | 4328.1 1.77e-1 | 6.83e-13 0.030 | 0.8728 45.38 |
| Case-2 | 7.52e-8 821.38 | 6.9e-13 0.0041 | 21.65 47.90 |
| Case-3 | 0 17.76 | 0 9.17e-5 | 12.53 33.50 |
