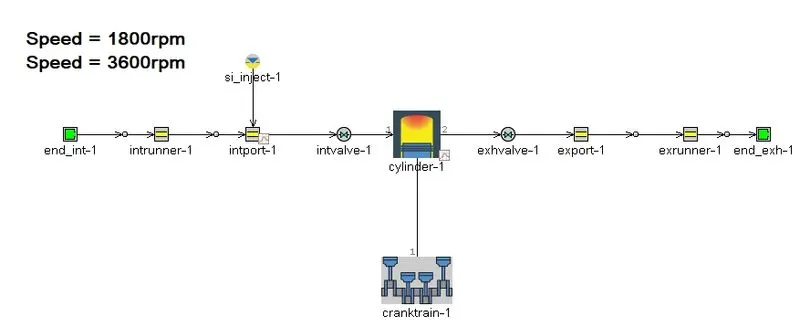

Week 2 : Basic Calibration of Single cylinder SI-Engine

Q-1

Result of simulation @1800rpm

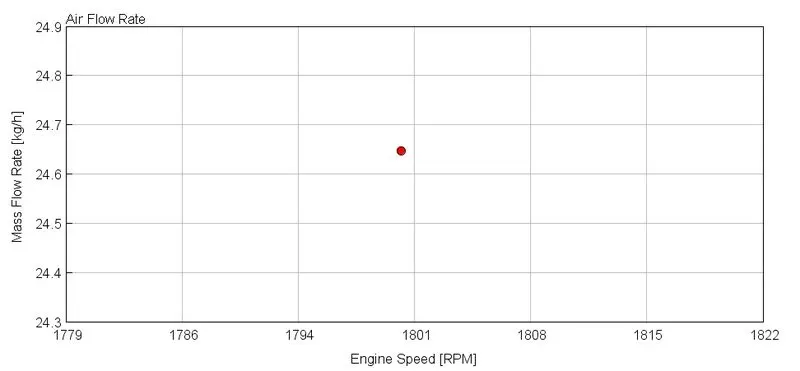

• airflow rate - 24.64 kg/h

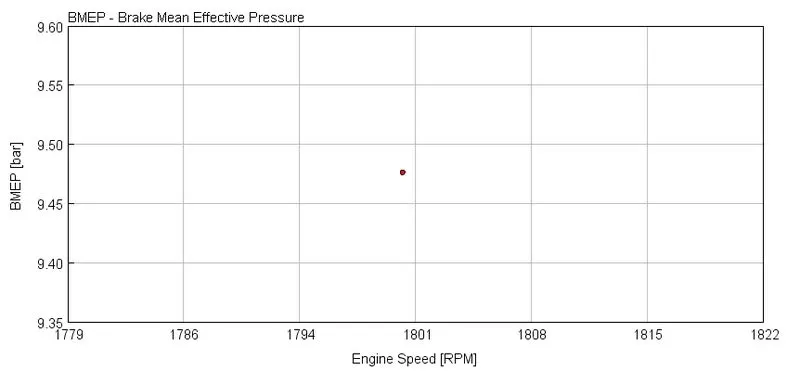

• BMEP - 9.47 bar

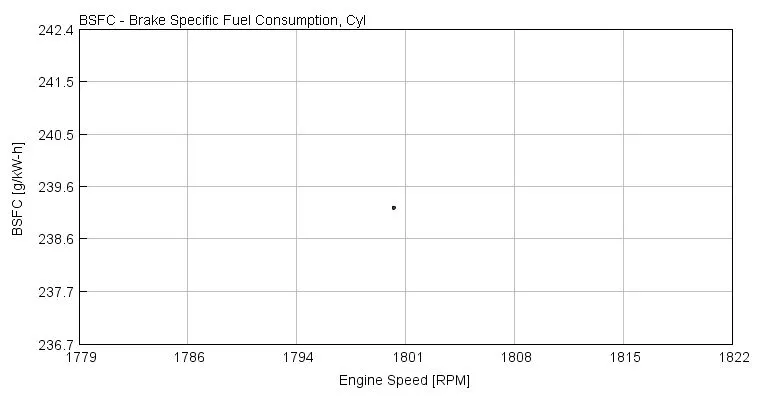

• BSFC - 239.18 g/kW-h

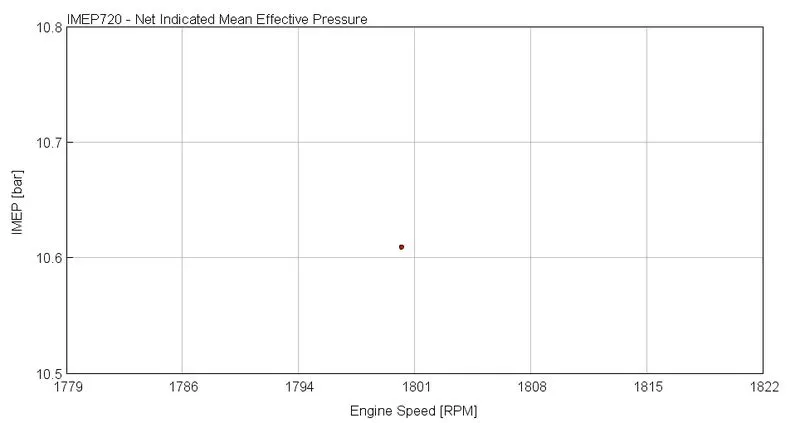

• In-cylinder pressure - 10.60 bar

Q-2

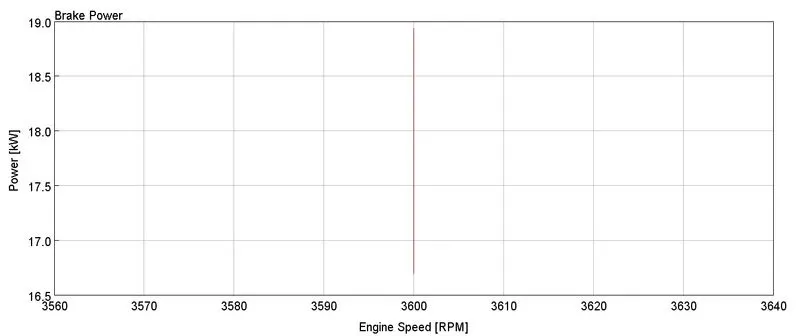

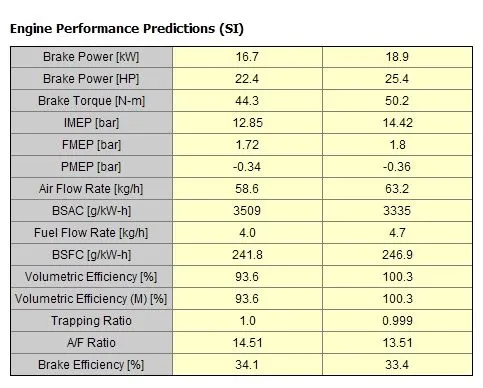

Increase power by 10% @3600 rpm

Initial brake power - 16.69 kW

Increased brake power - 18.93 kW
