Week -2

AIM: To create Plastic design and attach the Engineering features and generate the Draft Analysis for the given Door Applique Class A model. DOOR APPLIQUE DOOR ATTACHMENT SURFACE PROCEDURE: 1.Check for any openings in the given model Door Applique by using BOUNDARY. In BOUNDARY > select edges - select the surface to…

Your Answers *Creating Screw Boss & Dog House for Centre Console Coin Holder. Given PartBody: ScrewBoss: Screw Bosses are components which are present at the B-Surface. They attach to other components with the help of screw bosses. They are commonly found on injection molded components. They are used to aid in the…

Your Answers AIM:- Create the rib for the Centre console coin holder considering the design rules as mentioned in the below image. OBJECTIVE:- Create a Rib for the CoinHolder following Design Rules for Rib creation. Perform Draft analysis. Arrange proper tree structure. Geometrical sets should have a proper name based…

Objective : To design coin holder as per automotive OEM Standard. Create B Class and C Class and tooling axis. Convert close lose the surface into the solid body and provide the thickness of 2.5mm. Performing draft analysis to verify the creation of the Tooling axis and C Class surface. Design Methodology with images:…

Objective : To design coin holder as per automotive OEM Standard. Create B Class and C Class and tooling axis. Convert close lose the surface into the solid body and provide the thickness of 2.5mm. Performing draft analysis to verify the creation of the Tooling axis and C Class surface. Design Methodology with images:…

Aim:- To create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Take the Thickness of the component to be 2.5 mm Objective:-…

Aim:- To create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Introduction:- Class A surface : A surface that is given…

 Aim:- To create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model. Draft:- The draft is an angle provided for the part which is going to be manufactured by a molding process,it is just a taper with some angle on the faces of the…

ELECTRIC VEHICLE MODELLING WITH MATLAB   AIM To Model and Simulate an electric vehicle with SIMULINK.   INTRODUCTION:Any automobile that is propelled by an electric motor, using energy stored in a battery is known as an Pure Electric Vehicle or Battery Electric Vehicle commonly known as Electric Vehicles. Battery…

Aim:- 1 . For a defined driving cycle, calculate the energy required for braking. 2 . Why electric motor can’t develop braking torque at high speed similar to starting? How electric and mechanical brakes are coordinated?  3 . Make a MATLAB program which plots contour of given motor speed, torque and efficiency…

1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’. Answer: 'Speed control of a DC motor using BJT H-bridge. H-bridge:In general an H-bridge is a rather simple circuit,containing four switching element,with the load at the center, in an H-like configuration.     The basic operation…

1.Which types of power converter circuits are employed in electric and hybrid electric vehicle?  Sol: Electronic circuits typically require dc voltage sources in order to function. Ac voltagesare used for bulk power generation, transmission, and local distribution. Thus, an ac-dcconverter is used to interface the…

Aim:-  To Study on Powertrain Blockset in MATLAB .  Objective: -   1) What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type?    2) How does the model calculate miles per gallon? Which factors are considered to model…

Aim: To use the ADVISOR tool for simulation.   Objective: 1. Using EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, To find whether the vehicle can travel for 45 km with FTP drive cycle? and To Conclude observations. 2. In the above case, try changing the battery capacity and repeat the simulation.…

AIM: To study and analysis the BAJA All-Terrain Vehicle (ATV) using Simulink model. OBJECTIVE : To Prepare a technical report explaining the model properties & comments on the results. THEORY : All-Terrain Vehicle                An all-terrain vehicle (ATV), also known as a quad, as defined by the ANSI is a vehicle that…

Implement control logic of a “washing machine” using Stateflow as per given sequence:  If the power supply is available, the system gets activated  If the Water supply is not available, stop the process & indicate through LED Soaking time should be 200s followed by Washing time of 100s. Then rinsing happens for next 20s…

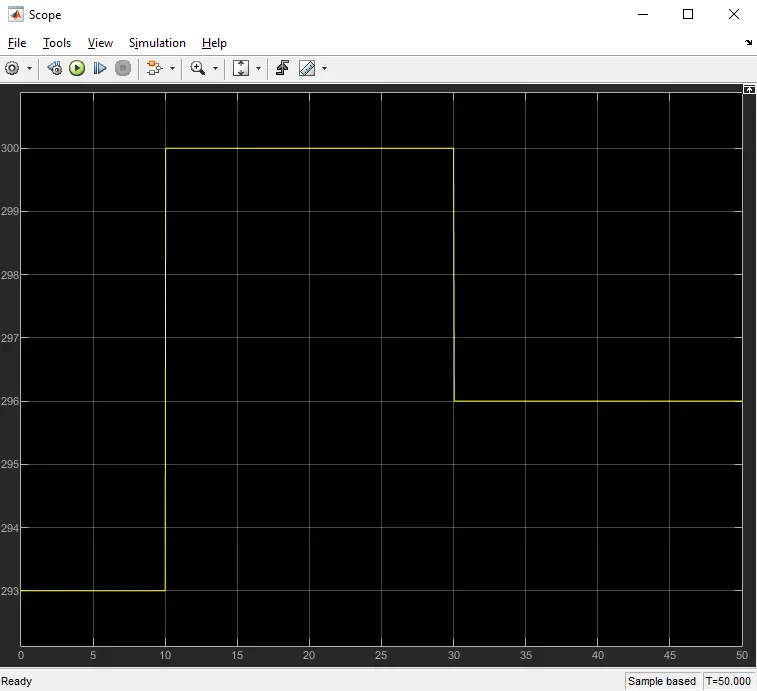

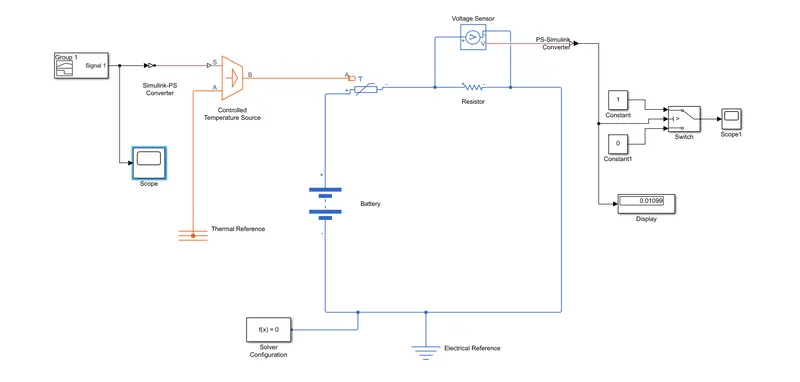

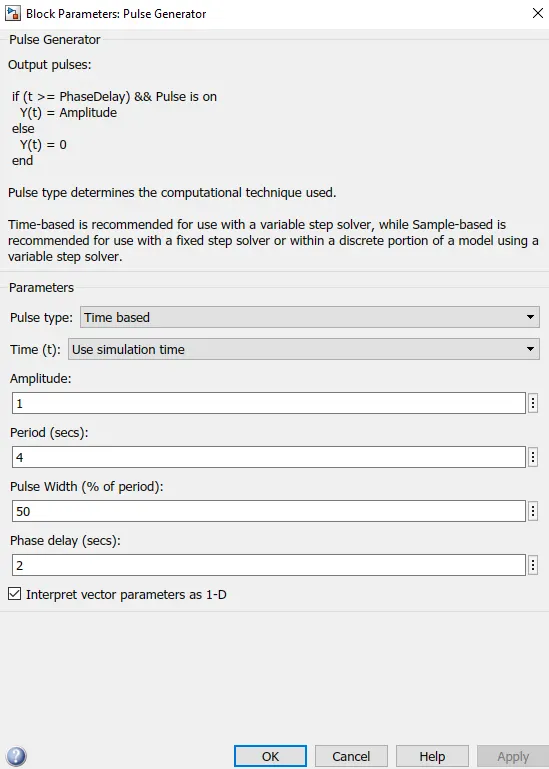

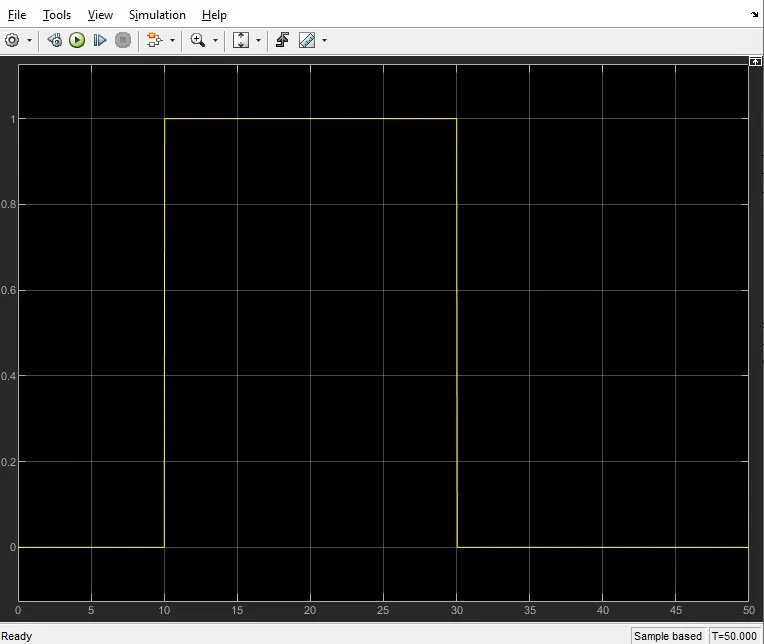

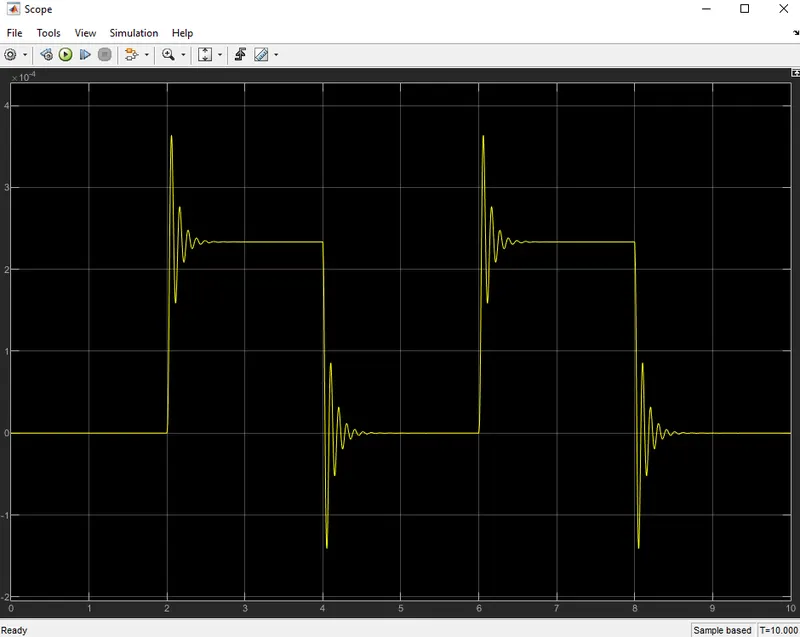

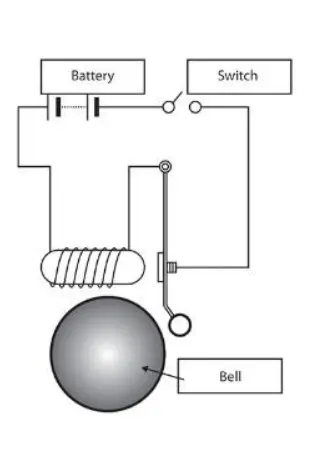

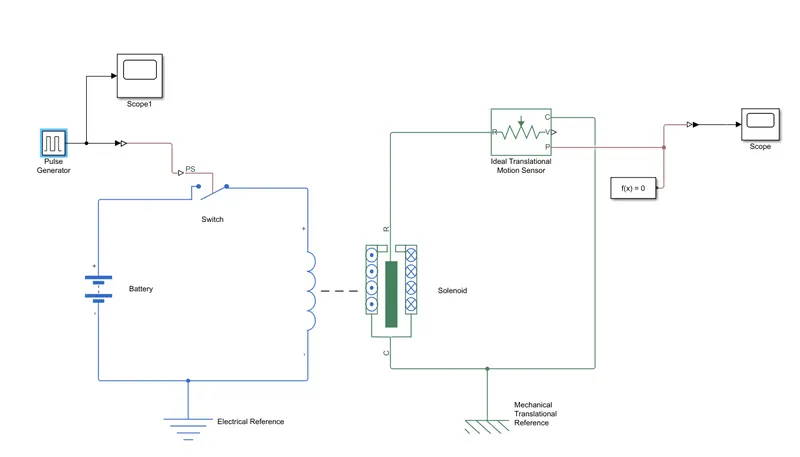

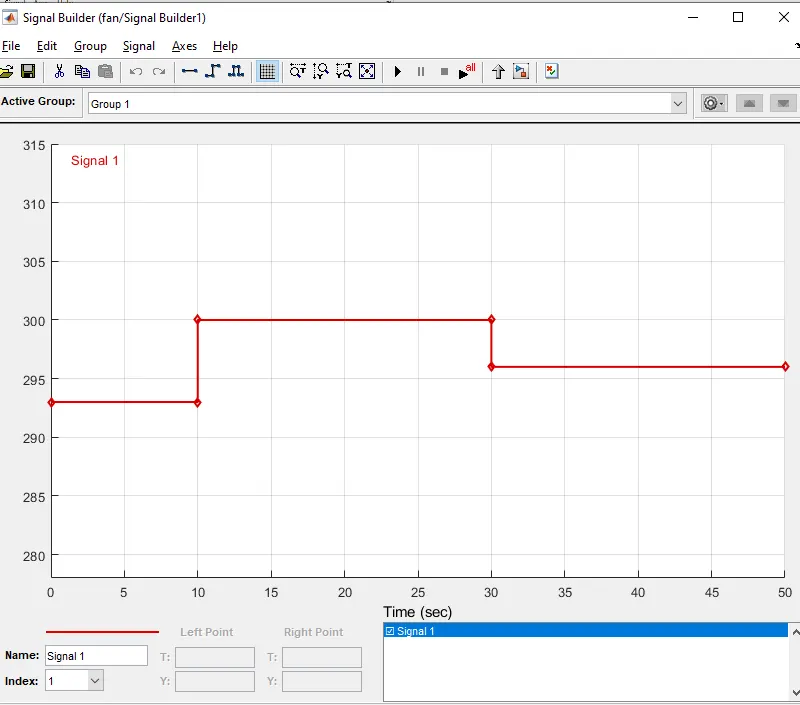

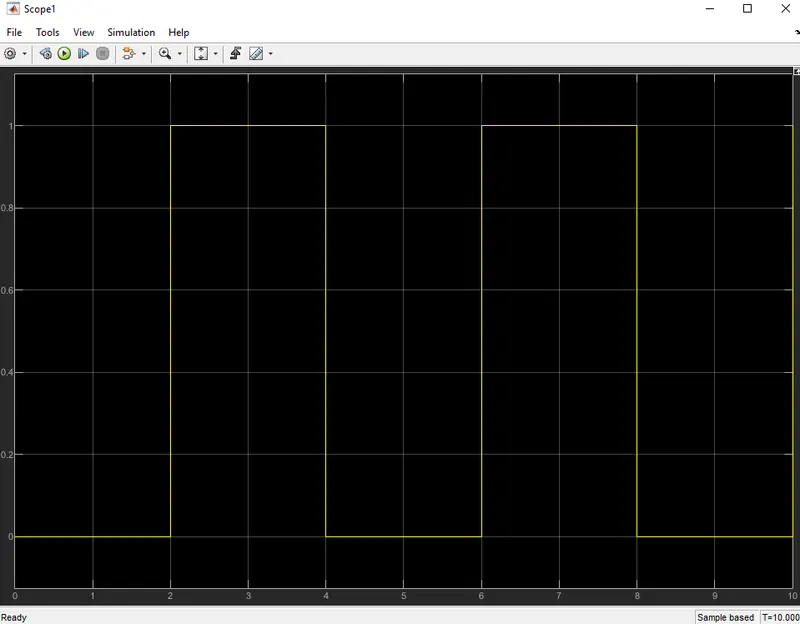

Aim: To make a simulink model of Door Bell using solenoid block. To make a simulink model Using a thermistor to sense the temperature of a heater & turn on or turn off the fan. OBJECTIVES: FOR DOOR BELL: Create a situation where the switch is closed for 2 seconds and then released. Observe the physical movement of…

Introduction: A pendulum is a weight suspended from a pivot so that it can swing freely. When a pendulum is displaced sideways from its resting, equilibrium position, it is subject to a restoring force due to gravity that will accelerate it back toward the equilibrium position.       …

OBJECTIVE : To Write a code in MATLAB to optimise the stalagmite function and to find the global maxima of the function. THEORY : The genetic algorithm GA is a method for solving both constrained and unconstrained optimisation problems that is based on natural selction,the process that drives biological evolution.…

Aim: To extract all the coefficients of the species mentioned in the data file and calculate their parameters like enthalpy, entropy, and specific heat. To plot the variation of these parameters for the specified local temperature range To determine the molecular masses of the individual species mentioned in the data file.…
