Making Doorbell Application using Solenoid

Making a doorbell Application using a solenoid

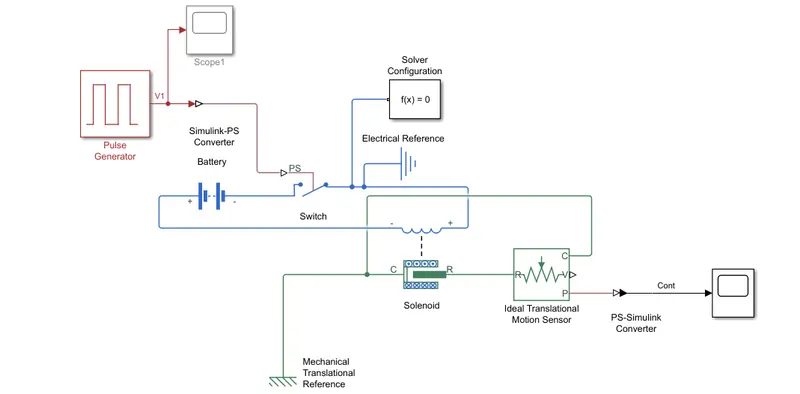

Simulink model has been created for doorbell Application using the solenoid block has shown below

Explanation of the Simulink model:

• For making the doorbell model we have used pulse generator as the input signal to switch that turn on the switch and the voltage from the battery has passed through the coil of the solenoid Block that makes the plunger to ring the bell.

Technical Details:

• Below parameters, values are used in a pulse generator as an input signal to the switch

  Amplitude – 2

  Period -2

  Pulse width - 0.5

  Phase delay – 2

• To turn on the switch we have used 1 as threshold value that will make the switch to turn ON & OFF

• To sense the output of the solenoid we have used ideal motion sensor that will sense the motion of the solenoid

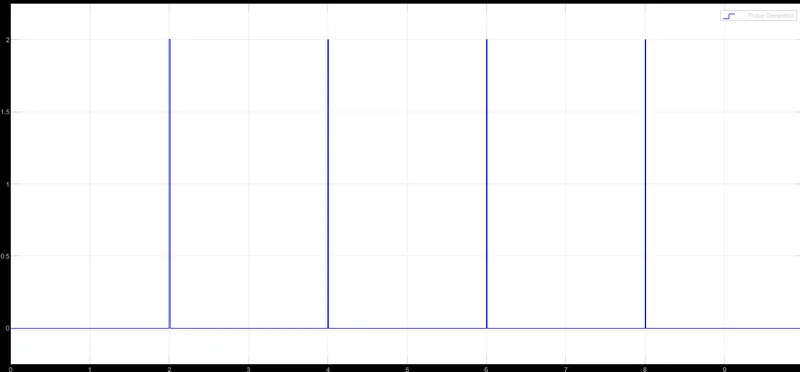

The below plot shows the input signal to the switch which has generated from the pulse generator block

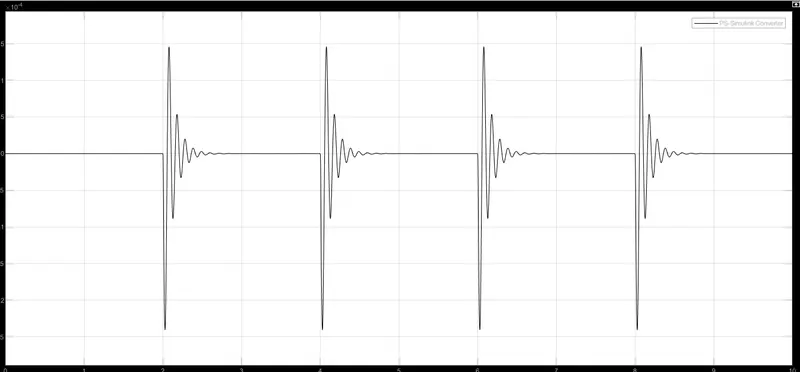

The below diagram shows the output signal generated from the motion sensor where the bell will turn ON for every 2 Sec and the simulation has been done for 10 Sec

Links: https://drive.google.com/file/d/14kcQjCP6OX9y3-QHcWeoPe5Jl6TuJBxs/view?usp=sharing
