Week -2

Ans1)

A solenoid is an electromagnetic device through which a magnetic field produced by electric current, in turn, induces a force on the plunger or rod.

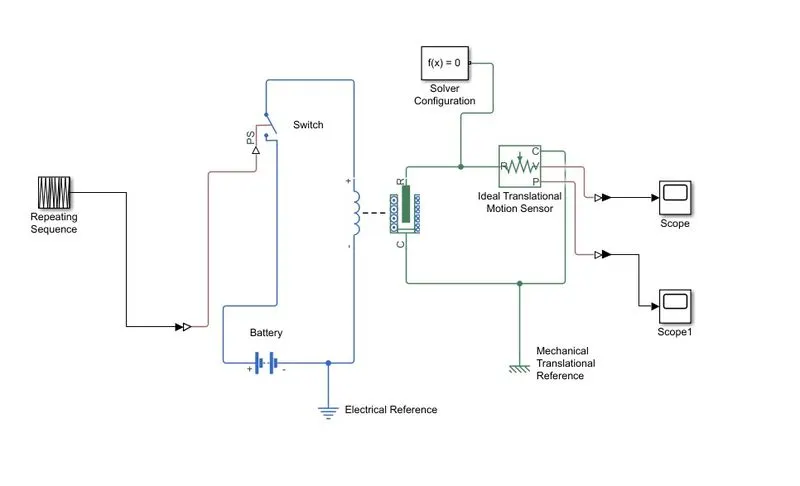

In this model, the left side circuit is an electrical circuit connected to a repeating signal and the right side circuit is a mechanical circuit that is connected to the scope and shows the change in position of the plunger & velocity of the plunger. (Refer image-1)

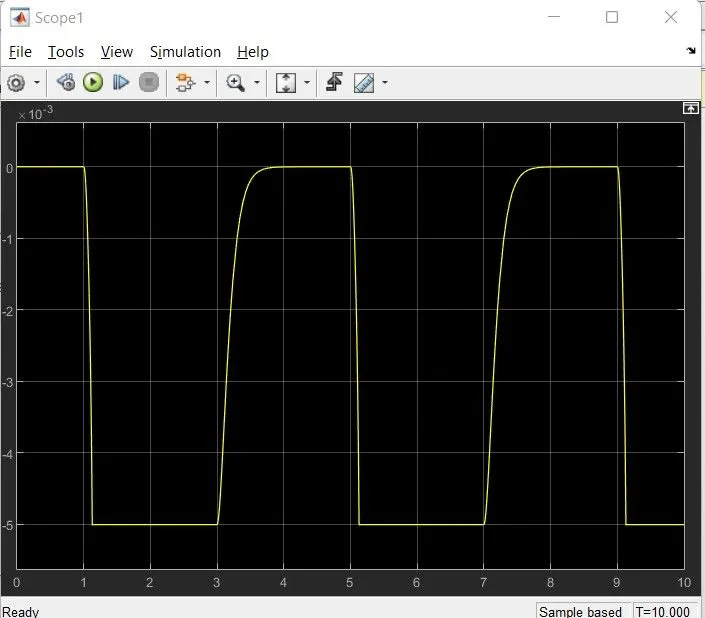

The position of the plunger is traced on the graph as an output(refer image-2)

IMAGE-1

IMAGE-2

Ans-2)

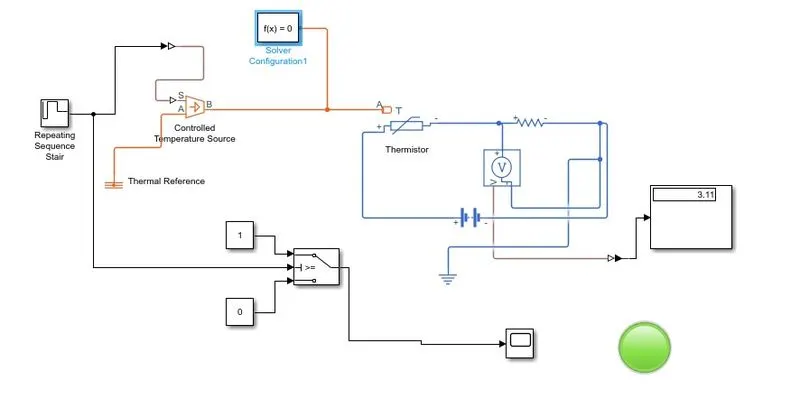

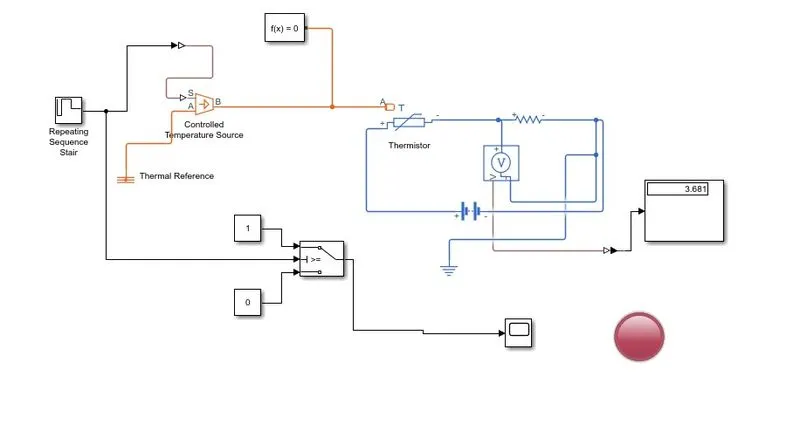

In this model, the repeating source is attached to the controlled temperature source, The Fan condition ON & OFF is governed by the temperature. Red light will glow when fan is OFF (i.e, Temp < 25deg Celsius, refer IMAGE-3) & green light will glow when fan is ON (i.e, temp > 25 deg Celsius, refer IMAGE-4).

Repeating signal has time step of 10sec.

IMAGE-3

IMAGE-4
