Week 14 challenge

Assemble and apply GD&T to the butterfly valve assembly drawing

Creating the Assembly of the Butterfly Valve by using Siemans NX.

Operations

• Move Components
• Assembly Constraints

First inport the all individual parts of the Butterfly valve in the Assembly workbench by using add command.

Body, Stem, Retainer, Plate, Lever, Nut, Screw.

After that by using Move command arrange the required position and after that constraint the parts each other by using Assembly Constraints like touch, alien, etc..

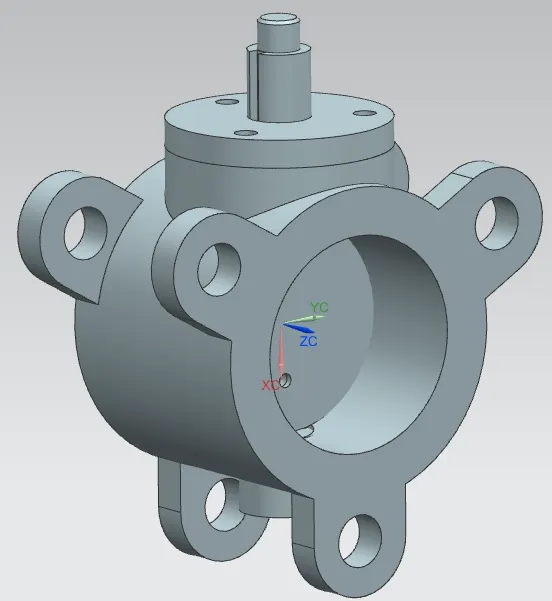

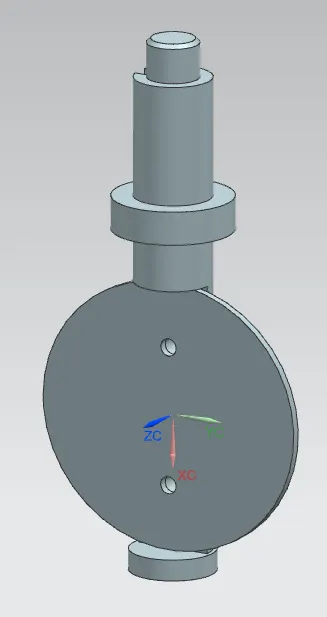

First constraint stem and plate     After constraint those two with Body

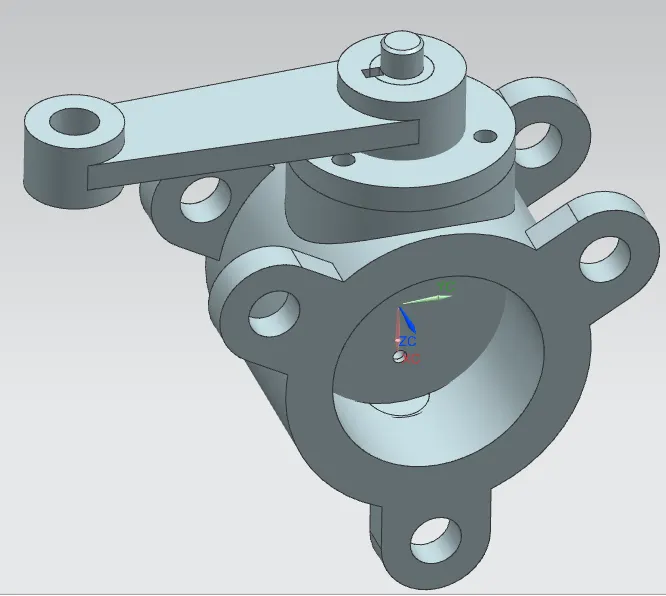

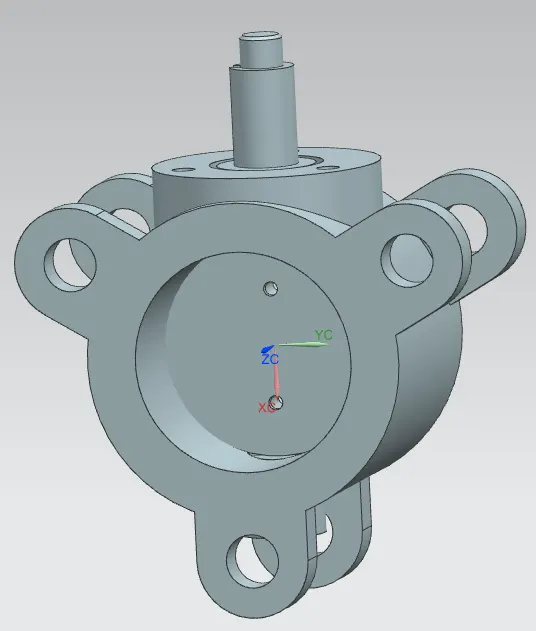

After add Retainer                                               After add Lever

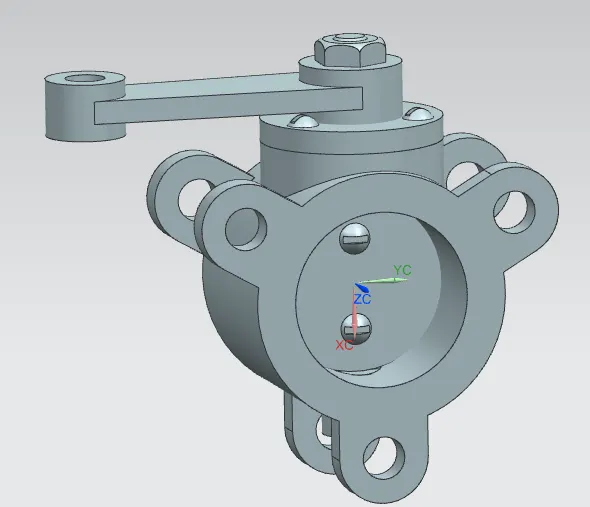

After add Nut & Screws

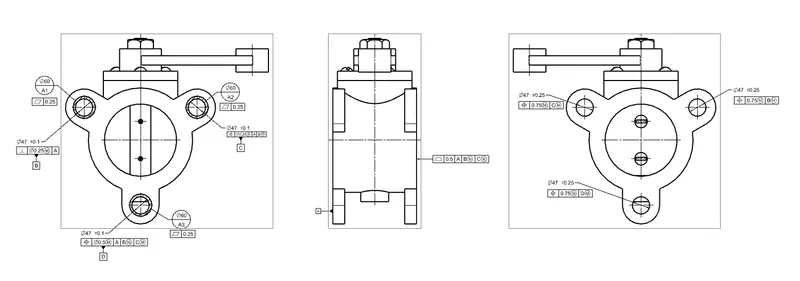

Apply GD&T to the butterfly valve assembly drawing
