Week 14 challenge

Objective : To Create the assembly of all parts of butterfly valve and apply the GD & T on it's drafting.

Software Used : NX CAD (UG)

Given Input : The 2D drawings of all the parts are given input for us. At first we create 3D model for each part and now we are going to create the assembly of all the parts & apply the GD & T on the drawing of the entire assembly.

Assembly Approach : We used the bottom-up assemnly approach

Various constraints :

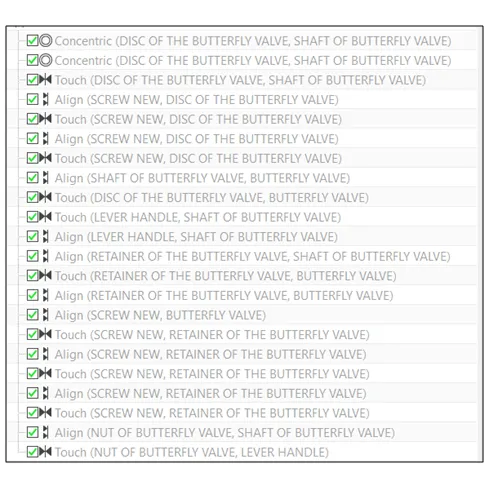

The various constraints used in the assembly of different parts are as follow :

Various views (orientation) of the assembly :

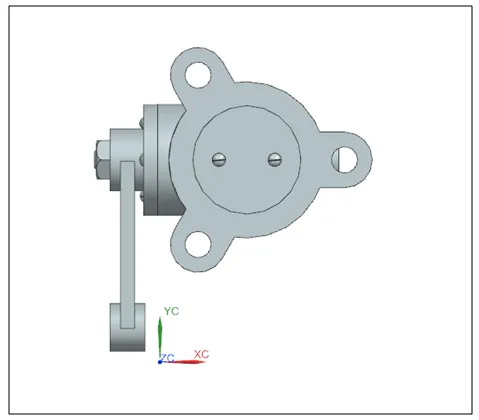

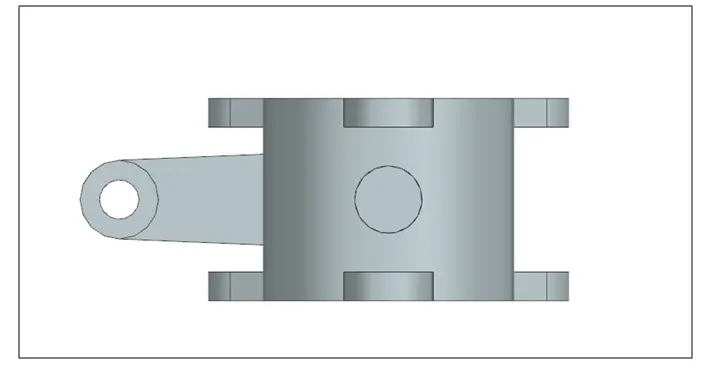

Front View

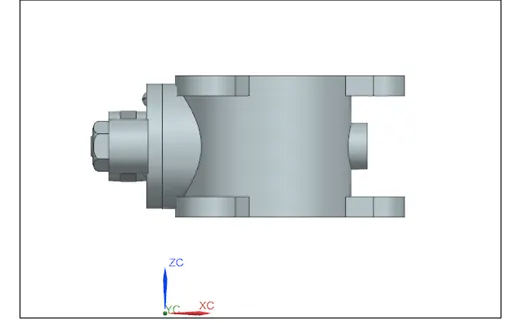

Top View

Right Side View

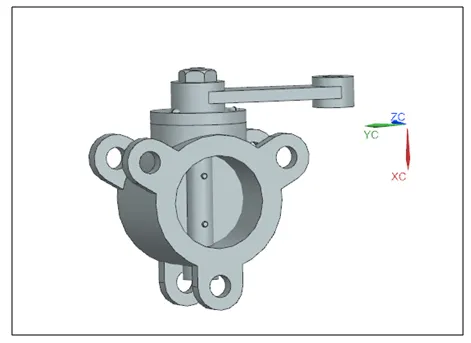

Isometric View

Drafting and GD & T :

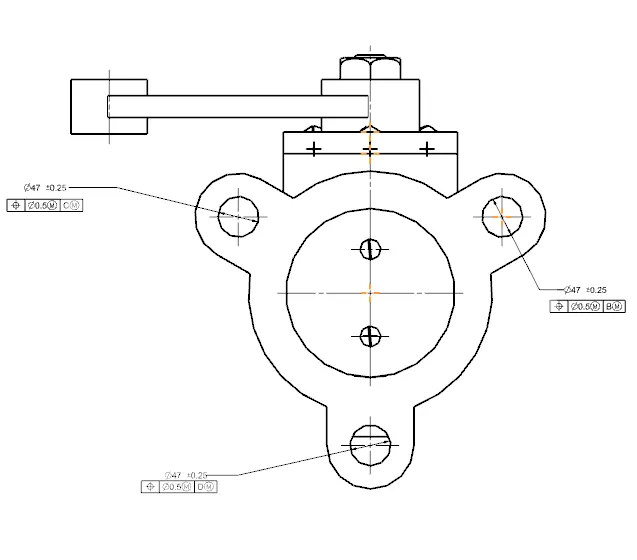

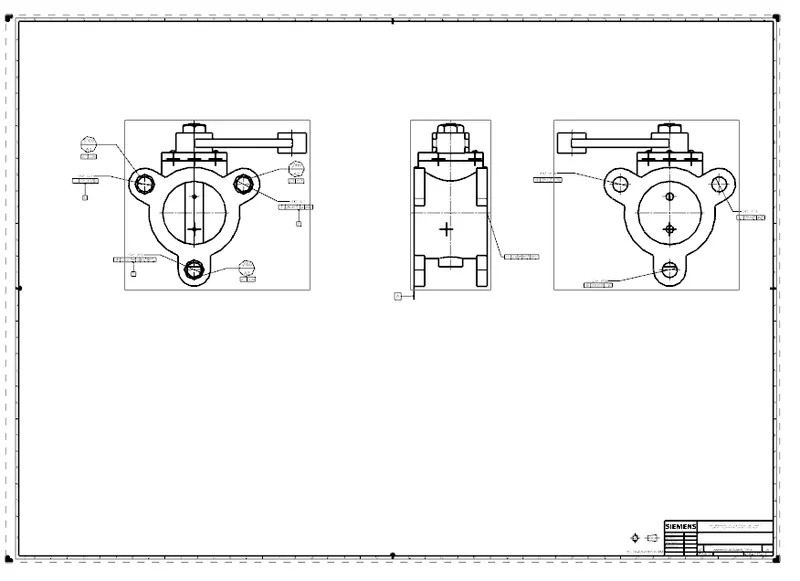

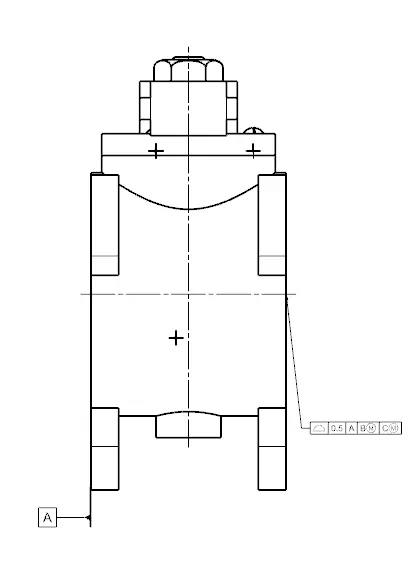

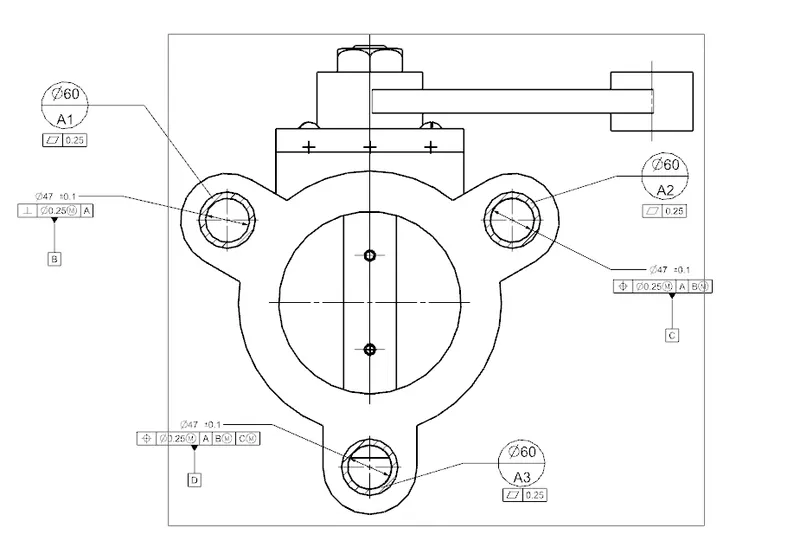

We created the assembly of all the parts of Butterfly valve and create it's drafting . After creating the drawing GD & T is applied on it's drawing. Respective images are attached below, file is also attached.

Note : Assembly file and drafting file are in a single file ,kindly mind it during grading.
