Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Rear Wheel Holder:

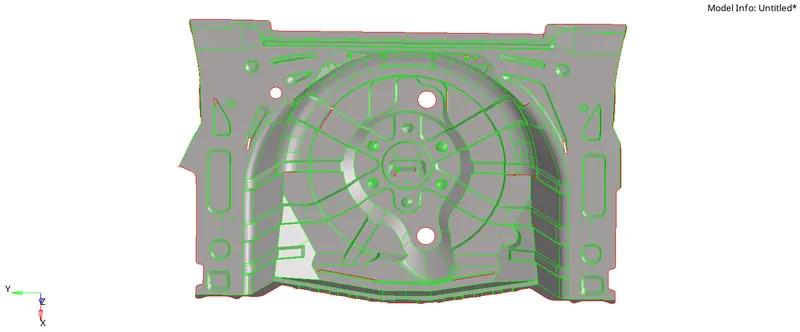

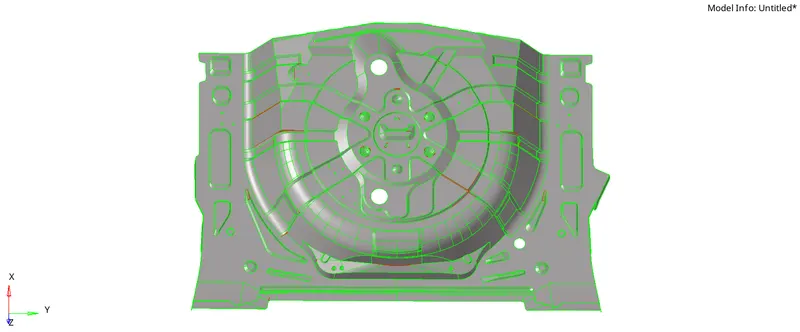

• Import the Geometry.

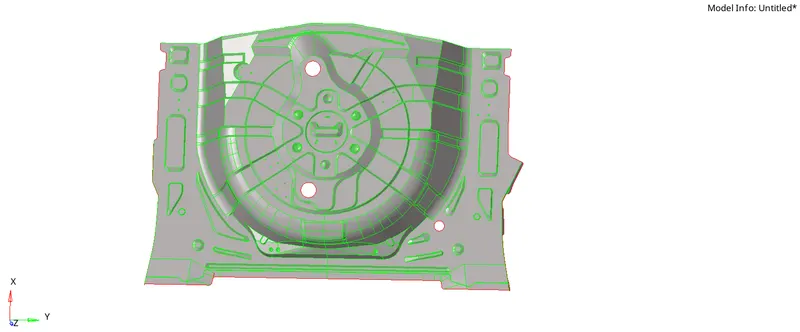

• Create a Mid surface by auto midsurface.



• Perform a geometric cleanup.

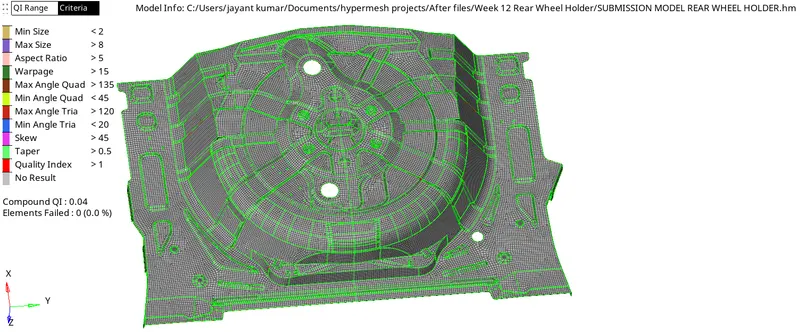

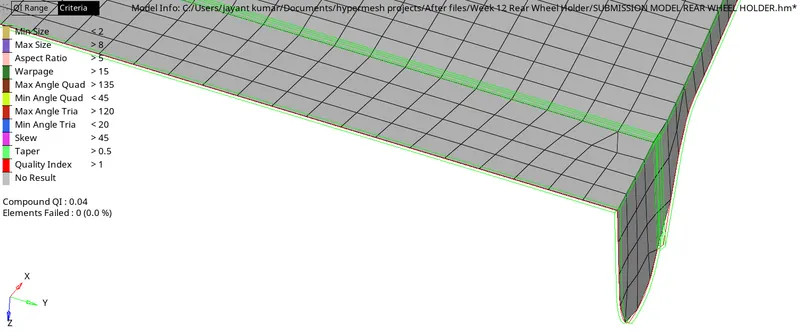

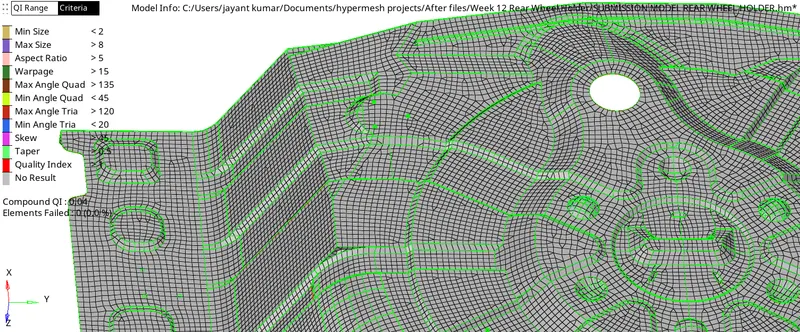

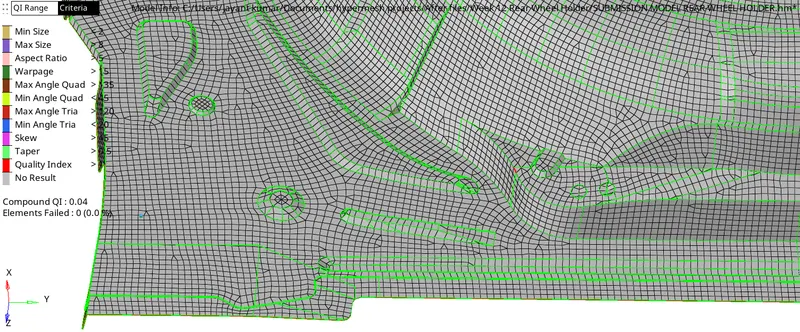

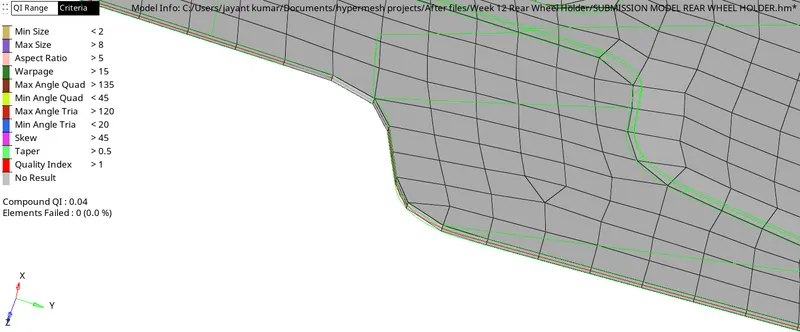

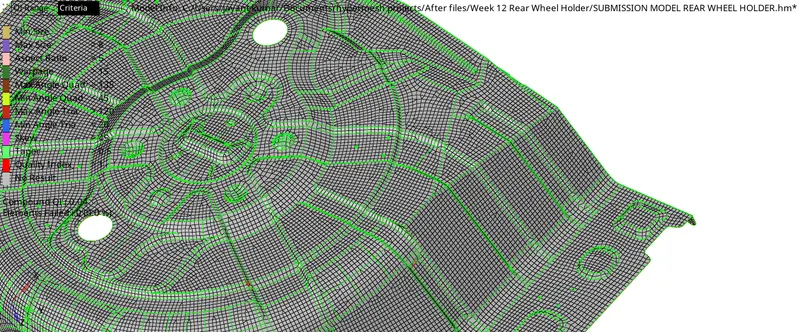

• Mesh the component with respect to the give quality and make sure the flow and geometry is captured properly and the nodes are projected to the midsurface.





• After confirming the quality is passed, Assign the property of 0.75 thickness to the FEA model.
