Week 12 Challenge

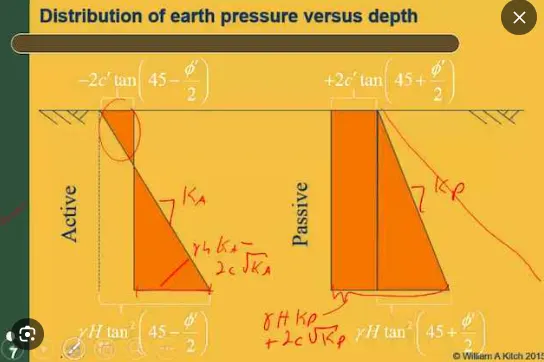

1)What is the difference between active and passive earth pressure?

Active pressure is the condition in which the earth exerts a force on a retaining system and the members tend to move toward the excavation. Passive pressure is a condition in which the retaining system exerts a force on the soil.

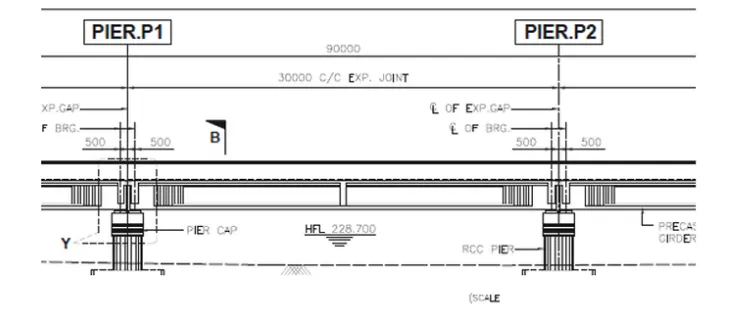

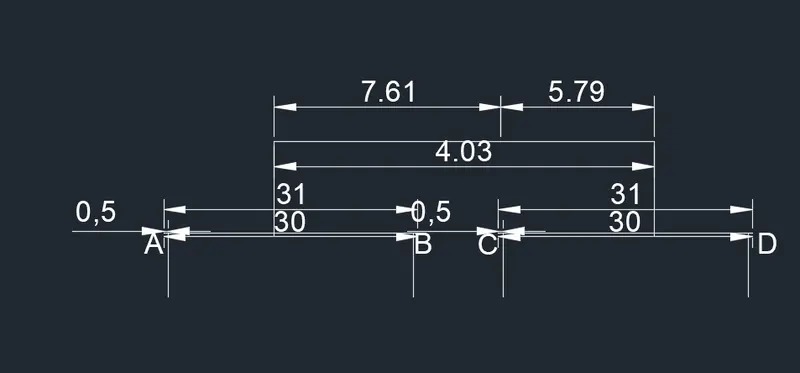

C/C of expansion gap (Left Span ) = 31 m
C/C of bearing (Left Span) = 30 m
Distance of bearing to expansion gap (Left span) = 0.5 m
C/C of expansion gap (Right Span) = 31 m
C/C of bearing (Right Span) = 30 m
Distance of bearing to expansion gap (Right span) = 0.5 m

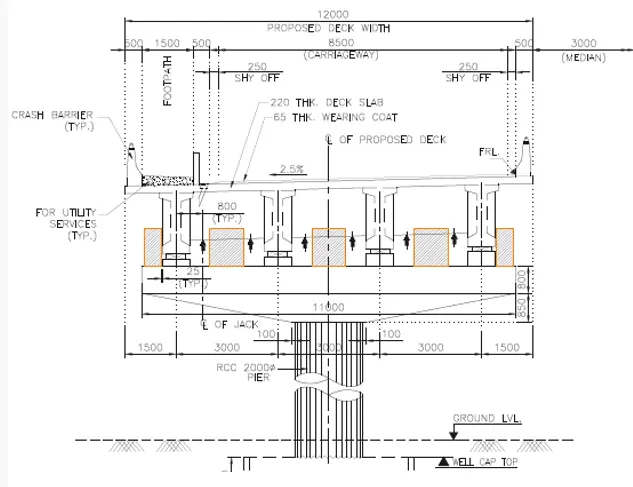

Total width = 12 m
Carriageway width = 8.5 m
No of bearing = 4 Nos
C/c spacing of longitudinal girders = 3
Footpath Width (Left side) = 1.5 m
Footpath Width (Right side) = 1.5 m
Crash Barrier Width (Left side) = 0.5 m
Crash Barrier Width (Right side) = 0.5 m
Handrail Width (Left side) = 0 m
Handrail Width (Right side) = 0 m
Wearing Coat Thickness = 0.065 m
Depth of superstructure (Left Span) = 1.32 m
Depth of superstructure (Right Span) = 1.32 m
CG of the superstructure from the bottom (Left Span) = 0.88 m
CG of the superstructure from the bottom (Right Span) = 0.88 m
Height of crash barrier = 0.9 m
Bearing thickness (Max) = 0.15 m
Height of pedestal = 0.25 m
Hozi. Distance of FRL from the pedestal of least height = 0 m
Expansion joint = 0.04 m
Skew Angle = 0 m
Superelevation/camber = 2.5 %
Type of superstructure (Left Span) = PSC Girder and Deck
Type of superstructure (Right span) = PSC Girder and Deck

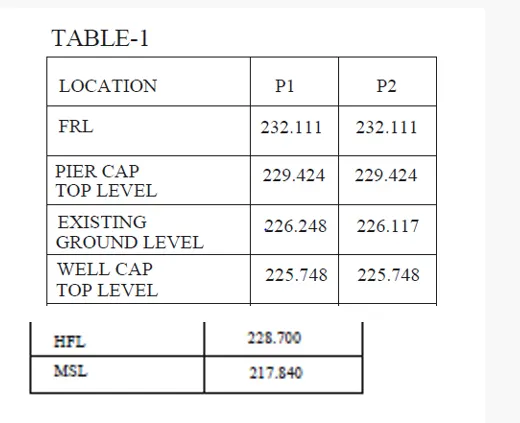

Levels:-

Finished Road Level = 232.1 m
Bearing Level = 229.8 m
Pier Cap Top Level = 229.4 m
High Flood Level = 228.7 m
Ground Level = 226.2 m
Wellcap Top Level = 225.7 m
Wellcap Bottom Level = 223.7 m
Maximum Scour Level = 217.8 m
Zero Shear Level = 205.2 m
Founding Level = 198.7 m

MATERIALS CHARACTERISTICS:-

For Pier cap, pier and Footing
Grade of concrete fck = M 35
Design strength of concrete fcd 15.63 Mpa
Modulus of Elasticity of steel Es = 2.10E+05
Modulus of Elasticity of concrete Ec = 3.20E+04
Mean tensile strength of concrete fctm = 2.8
For Well stening
Grade of concrete fck = M 30
Design strength of concrete fcd 13.4 Mpa
Modulus of Elasticity of steel Es = 2.10E+05
Modulus of Elasticity of concrete Ec = 3.10E+04
Mean tensile strength of concrete fctm = 2.8
Grade of steel fyk Fe 500
Design strength of steel Fyd 434.8 Mpa
Density of concrete (RCC) 2.5 t/m3
Density of wearing course 2.2 t/m3
Coefficient of Thermal Expansion 1E+07
Shrinkage Strain For Concrete 20000

Material Basic Comb Seismic
Comb
Concrete 1.5 1.5
Reinforcing steel 1.15 1.15

llllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll

LOAD CHARACTERISICS:-

Dead Load
Left Span
Total weight of superstructure 592 t
Right Span
Total weight of superstructure 592 t
SIDL
Load Intensity due to wearing course 0.22 t/m2
Self weight of crash barrier 34.1 t/m
FPLL
Maximum intensity of footpath live load 500 kg/m2

LIVE LOAD CONSIDERATION:-

Single /Both span Loaded

1 Lane 70R Wheeled

1 Lane Class A

3 Lane Class A

1 Lane Class A + 1 Lane 70R Wheeled

%reduction = 90 %
Fraction of live load remaining in seismc case = 0.2
Factor by which seismic force should be increase for design = 0
Wind Load Data
Basic Wind Speed = 50 m/s
Type of tarrain = plain terrain
Factors For DL+SIDL For LL
Gust Factor, G 2 2
Drag Coeficient, CD 2.1 1.2
Lift Coeficient, CL 0.75 0
Parameter for wind forces on substructure
For Cap
Gust Factor 2
Height/Breadth 0.15
Drag Coefficient, CD 1.2
For Shaft
Gust Factor 2
Height / Breadth 0.68
Drag Cpefficient, CD 0.8
For Circular well
Gust Factor 2
Height / Breadth 1.92
Drag Coefficient, CD 72

Bearing Data
Type of bearing POT-PTFE
No. of Bearing over pier on support line 8 Nos
Type of Substructure Circular pier with pier cap
Number of pier shaft 1
Transerse eccentricity of substructure with footing/cap 0 m
Pedestal
Length 0.9 m
Width 0.9 m
Height 0.25 m

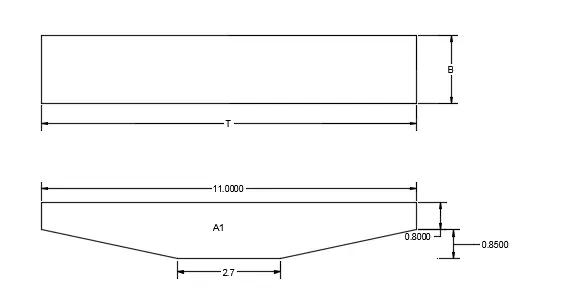

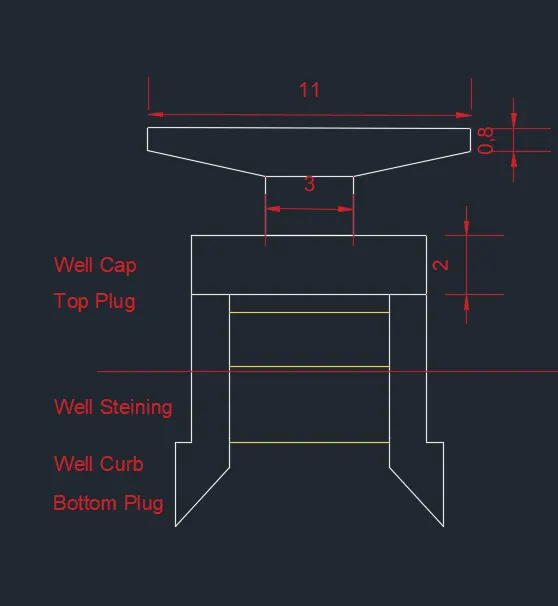

Pier Cap
Rectangular Part
Length (T-T) 11 m
Length (L-L) 3.8 m
Height 0.8 m
Trapoizodal Part
Length (T-T) 2.7 m
Length (T-L) 3.8 m
Height 0.85 m
Pier Shaft

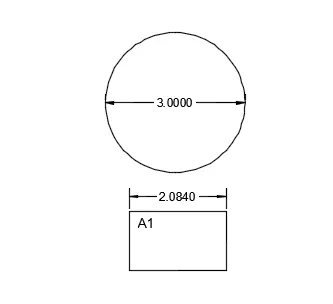

Dimension along traffic 3 m
Dimension perpendicular to traffic 3 m

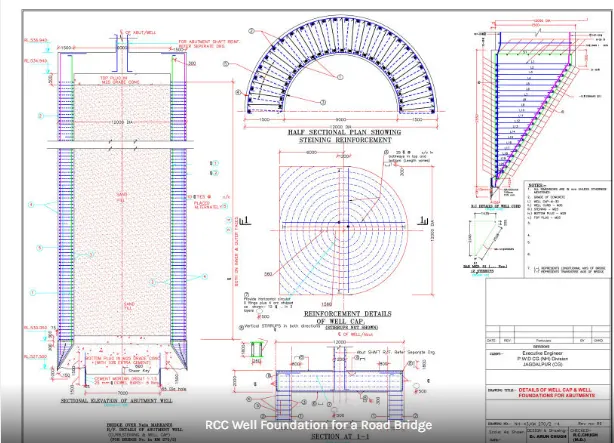

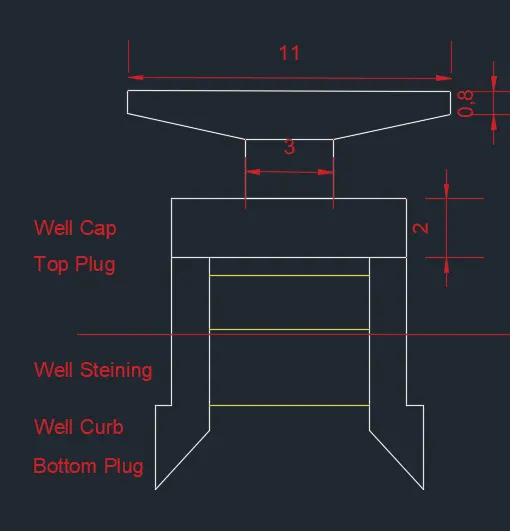

For Well Foundation:-

Total No of circular well 1
Dia of well cap 7.3 m
External dia of well 7.3 m
Thickness of well cap 2 m
Thickness of stening required 1.138 m
Thickness of stening 1.15 m
Thickness of top plug 0 m
Thickness of intermediate plug 0 m
Thickness of bottom plug ( top cylindrical portion) 0.3 m
Thickness of bottom plug ( Bottom cylindrical portion) 1.9 m
Height of well curb 2.2 m
Projection of well curb from outer face of stening 0.075 m
Thickness of well curb at bottom 0.15 m
Depth of Bottom plug above well curb top 0.3 m
Grip length of well 12.95 m
Height of water fill 22.5 m
Height of sand fill 0 m
Clear Cover
Pier Cap 50 mm
Pier Shaft 50 mm
Foundation 75 mm

Calculation of Loads:-

Dead Laod Of Superstructure
Left Span
Reaction from left span 592 t
Reaction from Right span 592 t
Total reaction on pier 1184 t
Longitudinal movement 0 t-m
Transverse ecc. Of DL from c/l from of pier 0 t
Transverse movement 0 t
SIDL (Crash barrier, railing, foothpath) - Excluding wearing course
Left span
Crash barrier weight 85.25 t
Railing weight 0 t
Footpath / service weight 0 t
Right span
Crash barrier weight 85.25 t
Railing weight 0 t
Footpath / service weight 0 t
Total reaction on pier (SIDL excluding w/c) 170.5
Longitudinal Movement (CB) 0 t-m
Total Longitudinal Movement (SIDL excluding w/c) 0 t-m
SIDL ( Wearing course)
load intensity ue to wearing course 0.22 t/m2
Left span
DL of wearing course 37.68
Right span
DL of wearing course 37.68
Total Reaction on pier (SIDL/ w/c) 75.36

Force Summary:-

Bearing Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 1184 1184 0 0 0 0
SIDL (excluding w/c) 170.5 170.5 0 0 0 0
SIDL w/c) 75.4 75.4 0 0 0 0
Pier bottom Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 1184 1184 0 0 0 0
SIDL (excluding w/c) 170.5 170.5 0 0 0 0
SIDL w/c) 75.4 75.4 0 0 0 0
Cap Bottom level
load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 1184 1184 0 0 0 0
SIDL (excluding w/c) 170.5 170.5 0 0 0 0
SIDL w/c) 75.4 75.4 0 0 0 0
Point of zero shear
load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 1184 1184 0 0 0 0
SIDL (excluding w/c) 170.5 170.5 0 0 0 0
SIDL w/c) 75.4 75.4 0 0 0 0
Founding Level
load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 1184 1184 0 0 0 0
SIDL (excluding w/c) 170.5 170.5 0 0 0 0
SIDL w/c) 75.4 75.4 0 0 0 0

One Span Dislodged cond.

Dead Load Of Superstructure
Vertical load on pier 592 t
Longitudinal Movement 296 t- m
Transverse Movement
SIDL without WC
Vertical load on pier 85.25 t
Longitudinal Movement 42.63 t- m
Transverse Movement
SIDL ( Wearing course)
Vertical load on pier 37.68 t
Longitudinal Movement 18.84 t- m
Transverse Movement
Total Load 714.9
Longitudinal Movement 357.5
Bearing Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 296 592 148 0 0 0
SIDL (excluding w/c) 85.3 85.3 42.6 0 0 0
SIDL w/c) 37.7 37.7 18.8 0 0 0
Pier bottom Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 296 592 148 0 0 0
SIDL (excluding w/c) 85.3 85.3 42.6 0 0 0
SIDL w/c) 37.7 37.7 18.8 0 0 0
Well Cap Bottom level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 296 592 49.8 0 0 0
SIDL (excluding w/c) 85.3 85.3 6.7 0 0 0
SIDL w/c) 37.7 37.7 5.7 0 0 0
Max scour Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 296 592 49.8 0 0 0
SIDL (excluding w/c) 85.25 85.25 6.7 0 0 0
SIDL w/c) 37.68 37.68 5.7 0 0 0
Point of zero shear
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 296 592 49.8 0 0 0
SIDL (excluding w/c) 85.25 85.25 6.7 0 0 0
SIDL w/c) 37.68 37.68 5.7 0 0 0
Founding Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
DL 296 592 49.8 0 0 0
SIDL (excluding w/c) 85.25 85.25 6.7 0 0 0
SIDL w/c) 37.68 37.68 5.7 0 0 0

FOR LIVE LOAD CONSIDERATION:-

1 Lane 70R Wheeled

1 Lane of Class A

3 Lane Class A

1 Lane 70R Wheeled+ 1 Lane of Class A

DL + SIDL reaction from left span 715 t
DL + SIDL reaction from Right span 715 t
1 lane 70 R- Wheeled
Load Distance from 17t
17 0 0
17 1.37 23.29
17 4.42 75.14
17 5.79 98.43
12 7.92 95.04
12 9.44 113.28
8 13.4 107.2

Live Load Reaction
Ra 5.76 t
Rb 43.24 t
Rc 48.57 t
Rd 2.43 t
Breaking force in Left span 9.8
Decrease in Rb due to breaking force 1
Breaking force in Right span 10.2
Decrease in Rc due to breaking force 0.4
Net Rb 42.24
Net Rc 48.17

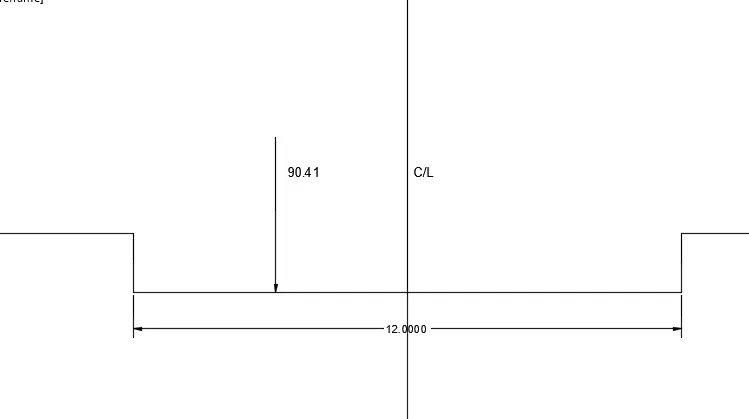

Vertical force on pier 90.41
Longitudinal moment 21.12
Total braking force at bearing level 10 t
Total Horizontal force (Longtudinal) 10 t

Eccentricity=2.905

MT= 262.631367

1 lane Class A
Load Distance from 17t
2.7 0 0
2.7 1.1 2.97
11.4 4.3 49.02
11.4 5.5 62.7
6.8 9.8 66.64
6.8 12.8 87.04
6.8 15.8 107.44
6.8 18.8 127.84
55.4 503.65

sum

CG Left Span CG Right Span
6.8 3 20.4 2.7 0 0
6.8 6 40.8 2.7 1.1 2.97
6.8 9 61.2 11.4 4.3 49.02
11.4 5.5 62.7
6.8 9.8 66.64
20.4 122.4 35 181.33
Live Load Reaction
Ra 3.74 t
Rb 16.66 t
Rc 29.54 t
Rd 5.46 t
Breaking force in Left span 4.08
Decrease in Rb due to breaking force 0.8
Breaking force in Right span 7
Decrease in Rc due to breaking force 0.8
Net Rb 15.86
Net Rc 28.74
Vertical force on pier 44.6
Longitudinal moment 6.4395
Total braking force at bearing level 5.5 t
Total Horizontal force (Longtudinal) 5.5 t

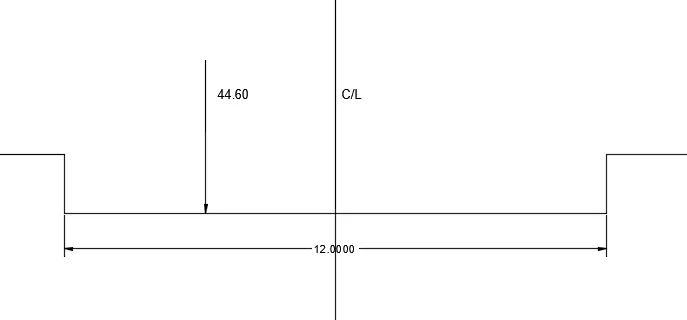

Eccentricity=4.45 M

MT= 198.47 T-M

(3) 3 lane Class A
Live Load Reaction
Ra 10.1 t
Rb 44.98 t
Rc 79.76 t
Rd 14.74 t
Breaking force in Left span 5.1
Decrease in Rb due to breaking force 1
Breaking force in Right span 8.75
Decrease in Rc due to breaking force 1
Net Rb 43.98
Net Rc 78.76

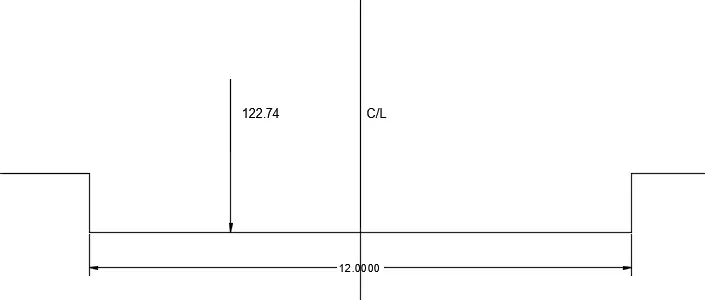

Vertical force on pier 122.74
Longitudinal moment 17.39
Total braking force at bearing level 12.5 t
Total Horizontal force (Longtudinal) 12.5 t
Total Horizontal force (Transverse) 0 t

4) 1 lane 70 R- Wheeled + 1 lane Class A
Live Load Reaction
Ra 8.55 t
Rb 55.91 t
Rc 70.3 t
Rd 7.1 t
Breaking force in Left span 10.82
Decrease in Rb due to breaking force 2.1
Breaking force in Right span 11.95
Decrease in Rc due to breaking force 2.1
Net Rb 51.81
Net Rc 68.2
Vertical force on pier 120.01
Longitudinal moment 18.1
Total braking force at bearing level 11.4 t
Total Horizontal force (Longtudinal) 11.4 t
Total Horizontal force (Transverse) 0 t

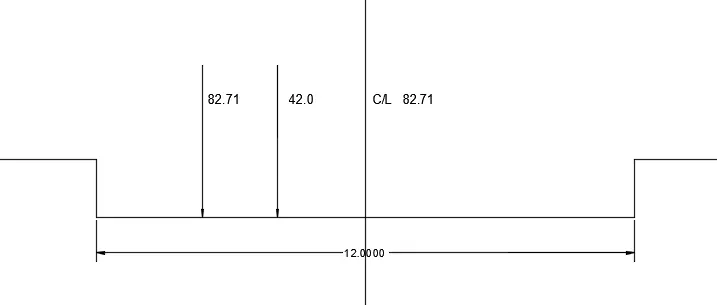

Eccentricity OF 70R Wheeled =0.955 M

Eccentricity of ClassA = 3.3m

MT= 192.85 T-M

Force Summary:-

Both Span Loaded
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
1 Lane 70 R - W 90.4 90.4 21.1 262.6 10 0
1 Lane Class A 44.6 44.6 6.4 198.5 5.5 0
3 Lane Class A 122.7 122.7 43.4 178 12.5 0
1 L 70 R -W + 1 L Class A 120.01 120.01 8.19 192.85 11.4 0
Final Summary
Normal Case
Bearing Case
Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 122.74 122.74 43.38 177.97 12.5 0
LL 2 122.74 122.74 43.38 177.97 12.5 0
LL 3 90.4 90.4 21.1 262.6 10 0
Pier bottom level
Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 122.74 122.74 43.38 177.97 12.5 0
LL 2 122.74 122.74 43.38 177.97 12.5 0
LL 3 90.4 90.4 21.1 262.6 10 0
Cap bottom level
Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 122.74 122.74 43.38 177.97 12.5 0
LL 2 122.74 122.74 43.38 177.97 12.5 0
LL 3 90.4 90.4 21.1 262.6 10 0
Max scour level
Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 122.74 122.74 43.38 177.97 12.5 0
LL 2 122.74 122.74 43.38 177.97 12.5 0
LL 3 90.4 90.4 21.1 262.6 10 0
Point of zero shear
Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 122.74 122.74 43.38 177.97 12.5 0
LL 2 122.74 122.74 43.38 177.97 12.5 0
LL 3 90.4 90.4 21.1 262.6 10 0
Founding level
Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 122.74 122.74 43.38 177.97 12.5 0
LL 2 122.74 122.74 43.38 177.97 12.5 0
LL 3 90.4 90.4 21.1 262.6 10 0

Normal Case
Calculation Of Self Weight
Pedestal
Length 0.9 m
Weidth 0.9 m
Height 0.25 m
Nos. 4 Nos
Total Weight of pedestial 2.025 t
Pier Cap
Rectangular part
Length 11 m
Width 3.8 m
Height 0.8 m
Volume 33.44 m3
Weight 83.6 t
Length (Top) 11 m
Width (Top) 3.8 m
Length (Bottom) 2.7 m
Width (Bottom) 3.8 m
Height 0.85 m
Top plan area 41.8 m2
Bottom plan area 10.26 m2
volume 20.61792 m3
weight 51.5448 t
Total weight of pier cap 135.1448 t
Pier shaft
Area of Cross section of rectangular 7.07 m2
Height 2.026 m
Nos. 1
weight 35.80955 t
Total Weight of Substructure 172.9793 t
Transverse Movement 0 t-m
Loads at Wellcap bottom Level
Normal Cases
Calculation of Self weight
Rectangular part 196.8 m3
Total volume 196.8 m3
Weight 492
LWL Case
Total wight of footing 492 t
Longitudinal Moment 0 t-m
Transverse Movement 0 t-m

Force Summary:-

Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t t
Substructure Weight 172.9793 172.9793 0 0 0 0
Weight of footing 492 492 0 0 0 0
Weight of soil on footing 0 0 0 0 0 0

Wind Loadings Calculations:-

Basic Wind Speed 47
Type of terrain Plain terrain
Type of Superstructure slab
Type of substructure Circular pier with pier cap
Left Span
Length of superstructure in L-L direction (Square) 31 m
Length of superstructure in L-L direction (Square) 31 m
Length of superstructure in L-L direction (Square) 12 m
Total dept of superstructure (include Cras barrier) 1.875 m
Average height of exposes surface from ground level 6.86 m
Vz 47.58 m/s
Pz 1116.9 N/m2
Wind Forces On DL + SIDL
Gust factor 2
Drag coefficient 2.1
Exposed solid area A1 58.125 m2
Force in transverse direction FT 6.8 t
acting at RL 230.61 m
Force in longitudinal direction FL 1.7 t
acting at RL 230.6115 m
Plan Area A3 372 m2
Lift coefficient CL 0.75
Force in veertical direction FV -62 t
Right Span
Length of superstructure in L-L direction (Square) 31 m
Length of superstructure in L-L direction (Square) 31 m
Length of superstructure in L-L direction (Square) 12 m
Total dept of superstructure (include Cras barrier) 1.87 m
Average height of exposes surface from ground level 6.8635 m
Vz 39.6 m/s
Pz 940.6 N/m2
Wind Forces On DL + SIDL
Gust factor 2
Drag coefficient 1.3
Exposed solid area A1 57.97 m2
Force in transverse direction FT 6.8 t
acting at RL 230.609 m
Force in longitudinal direction FL 1.7 t
acting at RL 230.609 m
Plan Area A3 372 m2
Lift coefficient CL 0.75
Force in veertical direction FV -90 t
Total Wind forces at bearing level from superstructure
Both Span present One Span present
HL wind 1.7 HL wind 0.9
HT wind 6.8 HT wind 3.4
P wind -90 P wind -45
Forces at Pier shaft bottom level
Both Span present One Span present
HL wind 1.7 HL wind 0.9
HT wind 6.8 HT wind 3.4
P wind -90 P wind -45
ML due to HL 9.6 ML due to HL 4.8
ML due to P 0 ML due to P 0
MT 38.6 MT 19.3
Fores at Foundation bottom level
Both Span present One Span present
HL wind 1.7 HL wind 0.9
HT wind 6.8 HT wind 3.4
P wind -90 P wind -45
ML due to HL 9.6 ML due to HL 4.8
ML due to P 0 ML due to P 0
MT 38.6 MT 19.3

Average height of exposed surface from the ground level 5.676 m
Vz 39.6 m/s
Pz 940.6 N/m2
Exposed solid area A1 5.8 m2
Gust factor G 2
Width of Cap b 3.8 m
Length of Cap t 11 m
t/b 2.89
Height / Breadth 0.43
Drag coefficient 0.7
Force in transverse direction FT 0.801 t
acting at RL 229.674 m
Forces at Pier shaft bottom level due to wind forces on pier cap
HL wind 0 t
HT wind 0.8 t
ML 0 t-m
MT 16.1584 t-m
Forces at Footing bottom level due to wind forces on pier cap
HL wind 0 t
HT wind 0.8 t
ML 0 t-m
MT 17.5984 t-m

Projected area in elevation in transverse direction ( Expose area )
Average height of exposed surface from the ground level 9.3 m
Vz 39.6 m/s
Pz 940.6 N/m2
Exposed solid area LWL case A1 6.192 m2
Gust factor G 2
t/b 0
Height / Breadth 0.688
Drag coefficient CD 1.2
Force in transverse direction FT 8.747 t
acting at RL 228.392 m
Forces at Pier shaft bottom level due to wind forces on pier shaft
HL wind 0 t
HT wind 8.747 t
ML 0 t-m
MT 176.6719 t-m
Forces at Footing bottom level due to wind forces on pier shaft
HL wind 0 t
HT wind 8.747 t
ML 0 t-m
MT 192.4165 t-m

Force Summary:-

Both span present
At pier Bottom Level
Pmax Pmin ML MT HL HT
t t t t t t
90 -90 9.6 231.4 1.7 16.35
At pier Footing Level
Pmax Pmin ML MT HL HT
t t t t t t
90 -90 9.6 248.6 1.7 16.35
One Span Dislodged
At pier Bottom Level
Pmax Pmin ML MT HL HT
t t t t t t
45 -45 4.8 212.1 0.85 12.95
At pier Footing Level
Pmax Pmin ML MT HL HT
t t t t t t
45 -45 4.8246 229.3 0.85 12.95
Calculation of weight of well
Length of well cap (revised as per new arrangement) 7.95 m
Width of well cap (revised as per new arrangement) 8.1 m
Thickness of well cap 2 m
Weight of well cap 321.975 t
Weight of top plug
Internal dia of well 5 m
Height of top plug 0 m
Weight of top plug 0 t
Weight of steining
External dia of well 7.3 m
Internal dia of well 5 m
Height of steining at point of zero shear 18.5 m
Weight of steining at point of zero shear 1027.6 t
Height of steining at founding level 25 m
Weight of steining at founding level 1266.5 t
Weight of water fill
Internal dia of well 5 m
Height of water fill at point of zero shear 18.5 m
Weight of water fill at point of zero shear 362.2 t
Height of water fill at founding level 22.5 m
Weight of water fill at founding level 441.8 t
Weight of intermediate plug
Internal dia of well 5 m
Height of intermediate plug 0.3 m
Weight of intermediate plug 14.7 t
Weight of sand fill
Internal dia of well 5 m
Height of sand fill at point of zero shear 6.1 m
Weight of sand fill at point of zero shear 241.5 t
Height of sand fill at founding level 0 m
Weight of sand fill at founding level 0 t
Weight of bottom plug
Dia of bottom plug in cylindrical portion 5 m
Area of c/s of bottom plug in cylindrical portion 19.6 m2
Dia of bottom plug at founding level 7.2 m
Area of c/s of bottom plug at founding level 40.2 m2
Height of top cylindrical portion 0.6 m
Height of bottom conical portion 1.9 m
Weight of bottom plug 168.6 t
Weight of well curb
Area of c/s of well curb 1.531 m2
Average dia of ring 5.667 m
Weight of well curb 68.1 t
Total weight of well at zero shear level 1953.275 t
Total weight of well 2281.675 t
Weight of soil on curb projection
External dia of well 7.3 m
Length of projection 0.075 m
Area of c/s of soil on projection 1.738 m2
Normal case 24.6 m
Height of soil on projection (LWL case without scour)
Calculation of buoyancy on well
HFL CASE
Volume of well upto FL 1130.05 m3
Buoyancy force on well upto FL -1130.1 t
Buoyancy force on well upto ZSL -858 t
At Zero shear Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t t
Weight of well 1954.4 1954.4 0 0 0 0
Wt of soil on projection 0 0 0 0 0 0
Buoyancy on well -1130.1 -1130.1 0 0 0 0
At Founding Level
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t t
Weight of well 2281.7 2281.7 0 0 0 0
Wt of soil on projection 0 0 0 0 0 0
Buoyancy on well -1130.1 -1130.1 0 0 0 0
ACTIVE EARTH PRESSURE
Sl No. Description RL at top RL at bottom height width b = angle of inclination of wall with horizontal f = angle of shearing resistance d = angle of friction between soil and wall I = angle of inclination of soil with horizontal kah kph c g kah.g.h top kah.g.h bottom -2c.(kah)^0.5 Int of Active Earth Pressure at top Int of Active Earth pressure at bottom FOS Force -normal RL of acting force M - founding level -normal
1 FRL-Well cap top 214.5 204.5 10 1.8 1.571 0 0 0 1 1 0 0 0 0 0 0 0 1 0 0
2 Well cap top-lbl 204.5 204 0.5 7.3 1.571 0 0 0 1 1 0 0 0 0 0 0 0 1 0 204.165 0
3 lbl-lay1 204 193.071 10.929 7.3 1.571 0.524 0.349 0 0.279 5.737 0 1.03 0 3.145 0 0 3.145 2 0 196.678 0
4 layer 1-MSL 193.071 190.45 2.621 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.01 3.145 3.794 0 3.145 3.794 2 0 191.72 0
5 MSL -Layer 2 190.45 190.45 0 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.01 3.794 3.794 0 3.794 3.794 2 0 190.45 0
6 Layer 2- Layer 3 190.45 190.071 0.379 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.01 3.794 3.888 0 3.794 3.888 2 5.3 190.26 67.8
7 Layer 3- Layer 4 190.071 185.571 4.5 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.02 3.888 5.013 0 3.888 5.013 2 73.1 187.726 747.6
8 Layer 4- well curb top 185.571 179.571 6 7.3 1.571 0.593 0.393 0 0.235 8.197 0 1.03 5.013 6.465 0 5.013 6.465 2 125.7 182.445 621.5
9 well kerb top-Layer 5 179.571 179.571 0 7.3 1.571 0.593 0.393 0 0.235 8.197 0 1.03 6.465 6.465 0 6.465 6.465 2 0 179.571 0
10 Layer 5- FL 179.571 177.5 2.071 7.3 1.571 0.593 0.393 0 0.235 8.197 0 1.03 6.465 6.966 0 6.465 6.966 2 50.8 178.523 51.9
254.9 1488.8
PASSIVE EARTH PRESSURE
Sl No. Description RL at top RL at bottom height width b = angle of inclination of wall with horizontal f = angle of shearing resistance d = angle of friction between soil and wall I = angle of inclination of soil with horizontal kah kph c g kah.g.h top kah.g.h bottom -2c.(kah)^0.5 Int of Active Earth Pressure at top Int of Active Earth pressure at bottom FOS Force -normal RL of acting force M - founding level -normal
1 MSL -Layer 2 190.45 190.45 0 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.01 0 0 0 0 0 2 0 190.45 0
2 Layer 2- Layer 3 190.45 190.071 0.379 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.01 0 2.869 0 0 2.869 2 2 190.196 25.2
3 Layer 3- Layer 4 190.071 185.571 4.5 7.3 1.571 0.576 0.384 0 0.245 7.496 0 1.02 2.869 37.274 0 2.869 37.274 2 329.7 187.178 3190.7
4 Layer 4- well curb top 185.571 179.571 6 7.3 1.571 0.593 0.393 0 0.235 8.197 0 1.03 37.274 87.933 0 37.274 87.933 2 1371 182.166 6397.7
5 well kerb top-Layer 5 179.571 179.571 0 7.3 1.571 0.593 0.393 0 0.235 8.197 0 1.03 87.933 87.933 0 87.933 87.933 2 0 179.571 0
6 Layer 5- FL 179.571 177.5 2.071 7.3 1.571 0.593 0.393 0 0.235 8.197 0 1.03 87.933 105.419 0 87.933 105.419 2 730.8 178.504 733.9
2433.5 10347.5
Normal case - LWL
Case Force (t) Moment (tm)
Active Pressure 254.87 1488.8
Passive Pressure 2433.47 10348
Let point of zero shear occure at Y m below MSL
Assume Y 4.088 m
Horizontal force HR 72.68 t
Now, total active force + FR-total passive force 0
Combination Of Base Pressure
Normal Case
Both Span present
LWL (Low Water Level) WITHOUT SCOUR
Maximum Reaction case (P)
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 1184 1184 0 0 0 0
SIDL (Excluding W/C) 170.5 170.5 0 0 0 0
SIDL (w/c) 75.4 75.4 0 0 0 0
LL1 118.3 118.3 542.1 256.3 11.4 0
Sustructure Weight 173 173 0 0 0 0
Weight of soil on footing 0 0 0 0 0 0
Weight of footing 492 492 0 0 0 0
Wind Load 90 -90 9.6 248.6 1.7 16.3
Total for unfactored load 2303.2 2123.2 551.8 504.9 13.1 16.3
Maximum Longitudinal Movement case (ML)
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 1184 1184 0 0 0 0
SIDL (Excluding W/C) 170.5 170.5 0 0 0 0
SIDL (w/c) 75.4 75.4 0 0 0 0
LL2 118.3 118.3 542.1 256.3 11.4 0
Sustructure Weight 173 173 0 0 0 0
Weight of soil on footing 0 0 0 0 0 0
Weight of footing 492 492 0 0 0 0
Wind Load 90 -90 9.6 248.6 1.7 16.3
Total for unfactored load 2303.2 2123.2 551.8 504.9 13.1 16.3
Maximum Transverse Case
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 1184 1184 0 0 0 0
SIDL (Excluding W/C) 170.5 170.5 0 0 0 0
SIDL (w/c) 75.4 75.4 0 0 0 0
LL3 82 82 438.8 385.8 10 0
Sustructure Weight 173 173 0 0 0 0
Weight of soil on footing 0 0 0 0 0 0
Weight of footing 492 492 0 0 0 0
Wind Load 90 -90 9.6 248.6 1.7 16.3
Total for unfactored load 2266.8 2086.8 448.4 634.4 11.7 16.3
One Span Dislodge Condition
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 592 592 49.8 0 0 0
SIDL (Excluding W/C) 85.3 85.3 6.7 0 0 0
SIDL (w/c) 37.7 37.7 5.7 0 0 0
Sustructure Weight 173 173 0 0 0 0
Weight of soil on footing 0 0 0 0 0 0
Weight of footing 492 492 0 0 0 0
Wind Load 45 -45 4.8 229.3 0.9 12.9
Total for unfactored load 1424.9 1334.9 67 229.3 0.9 12.9
SUMMARY OF LOAD CASES FOR NORMAL CASE
LWL Without Scour
Both Span Present Condition
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t t
N1 2303.2 2123.2 551.8 504.9 13.1 16.3
N2 2303.2 2123.2 551.8 504.9 13.1 16.3
N3 2266.8 2086.8 448.4 634.4 11.7 16.3
One Span Dislodged Condition
Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t t
N4 1424.9 1334.9 67 229.3 1 11.2
Base pressure check
Dia of well at the base 7.45 m
Area of well at base A 43.59 m^2
Section modulus of well at baZ 40.59 m^3
Actual tilt in longitudinal direction 1 in 36.5
Actual tilt inn transverse direction 1 in 35.6
Actual shift at bottom in long direction -0.06
Actual shift at bottom in tran direction 0.108 m
Well cap shift in long. Direction from bottom 0.34
Well cap shift in tran. Direction from bottom 0.433
Gross SBC (LEL) 80 t/m^3
Basic Combination
Both Span present (LWL, Low Water Level Case)
Maximum Reaction Case P

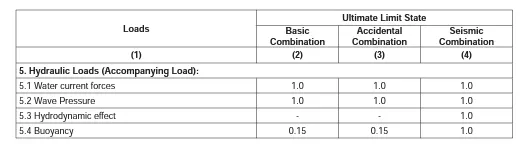

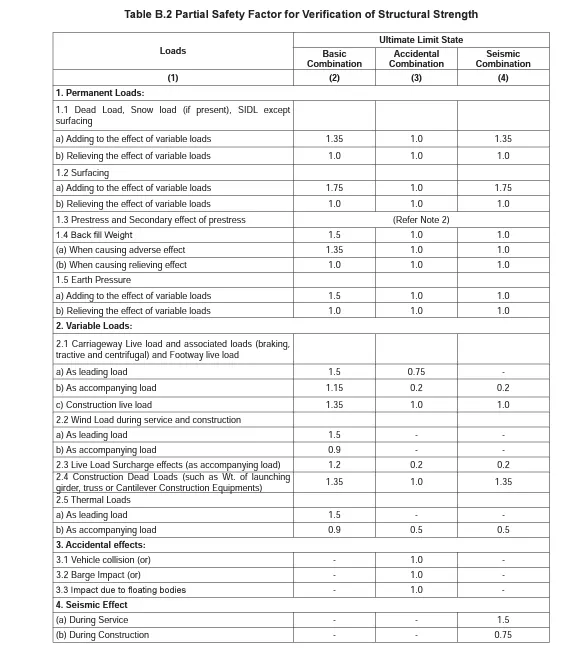

Load Item Partial Factor of safety Unfactored Forces Factored Forces
Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 1184 1184 0 0 0 0 1598 1598 0 0 0 0
SIDL (Excluding W/C) 1.35 170.5 170.5 0 0 0 0 230.2 230.2 0 0 0 0
SIDL (w/c) 1.75 75.36 75.36 0 0 0 0 131.9 131.9 0 0 0 0
LL1 (Leading) 1.5 118.3 118.3 542.1 256.3 11.4 0 177.5 177.5 813 384 17 0
LL1 (Accompanying) 1.15 118.3 118.3 542.1 256.3 11.4 0 136.1 136.1 623 295 13 0
Thermal Load (Accompanying) 0 0 0 0 0 0 0 0 0 0 0 0 0
Sustructure Weight 1.35 173 173 0 0 0 0 233.5 233.5 0 0 0 0
Weight of soil on footing 1.35 0 0 0 0 0 0 0 0 0 0 0 0
Weight of footing 1.35 492 492 0 0 0 0 664.2 664.2 0 0 0 0
Wind Load (Leading) 1.5 90 -90 9.6 248.6 1.7 16 135 -135 14.5 373 2.6 24.521
Wind Load (Accompanying) 0.9 90 -90 9.6 248.6 1.7 16 81 -81 8.7 224 1.5 14.712
Total LL Leading 3171 2901 828 757 20 24.5
LL Accompanying 3075 2913 632 519 15 14.7
Maximum Longitudinal Movement Case (ML)
Load Item Partial
Safety
Factor
Unfactored Forces Factored Forces
Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 1184.0 1184.0 0.0 0.0 0.0 0.0 1598.4 1598.4 0.0 0.0 0.0 0
SIDL (Excluding W/C) 1.35 170.5 170.5 0.0 0.0 0.0 0.0 230.2 230.2 0.0 0.0 0.0 0
SIDL (w/c) 1.75 75.4 75.4 0.0 0.0 0.0 0.0 131.9 131.9 0.0 0.0 0.0 0
LL2 (Leading) 1.5 118.3 118.3 542.1 256.3 11.4 0.0 177.5 177.5 813.2 384.4 17.1 0
LL2 (Accompanying) 1.15 118.3 118.3 542.1 256.3 11.4 0.0 136.1 136.1 623.4 294.7 13.1 0
Thermal Load (Accompanying) 0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Sustructure Weight 1.35 173.0 173.0 0.0 0.0 0.0 0.0 233.5 233.5 0.0 0.0 0.0 0
Weight of soil on footing 1.35 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Weight of footing 1.35 492.0 492.0 0.0 0.0 0.0 0.0 664.2 664.2 0.0 0.0 0.0 0
Wind Load (Leading) 1.5 90.0 -90.0 9.6 248.6 1.7 16.35 135.0 -135.0 14.5 372.9 2.6 24.5205
Wind Load (Accompanying) 0.9 90.0 -90.0 9.6 248.6 1.7 16.35 81.0 -81.0 8.7 223.8 1.5 14.7123
Total LL Leading 3170.7 2900.7 827.6 757.3 19.7 24.5
LL Accompanying 3075.2 2913.2 632.1 518.5 14.6 14.7
Maximum Transverse Movement Case (MT)
Load Item Partial
Safety
Factor
Unfactored Forces Factored Forces
Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 1184.00 1184.00 0.00 0.00 0.00 0.00 1598.4 1598.4 0.0 0.0 0.0 0
SIDL (Excluding W/C) 1.35 170.50 170.50 0.00 0.00 0.00 0.00 230.2 230.2 0.0 0.0 0.0 0
SIDL (w/c) 1.75 75.36 75.36 0.00 0.00 0.00 0.00 131.9 131.9 0.0 0.0 0.0 0
LL3 (Leading) 1.5 81.99 81.99 438.78 385.78 10.00 0.00 123.0 123.0 658.2 578.7 15.0 0
LL3 (Accompanying) 1.15 81.99 81.99 438.78 385.78 10.00 0.00 94.3 94.3 504.6 443.7 11.5 0
Thermal Load (Accompanying) 0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Sustructure Weight 1.35 172.98 172.98 0.00 0.00 0.00 0.00 233.5 233.5 0.0 0.0 0.0 0
Weight of soil on footing 1.35 0.0 0.0 0.0 0.00 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Weight of footing 1.35 492.00 492.00 0.00 0.00 0.00 0.00 664.2 664.2 0.0 0.0 0.0 0
Wind Load (Leading) 1.5 90.0 -90.0 9.6 248.61 1.7 16.3 135.0 -135.0 14.5 372.9 2.6 24.5205
Wind Load (Accompanying) 0.9 90.0 -90.0 9.6 248.61 1.7 16.3 81.0 -81.0 8.7 223.8 1.5 14.7123
Total LL Leading 3116.2 2846.2 672.6 951.6 17.6 24.5
LL Accompanying 3033.5 2871.5 513.3 667.4 13.0 14.7
One Span Dislodged Condition
Maximum Transverse Movement Case (MT)
Load Item Partial
Safety
Factor
Unfactored Forces Factored Forces
Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 592.0 592.0 49.8 0.0 0.0 0.0 799.2 799.2 67.2 0.0 0.0 0
SIDL (Excluding W/C) 1.35 85.3 85.3 6.7 0.0 0.0 0.0 115.1 115.1 9.0 0.0 0.0 0
SIDL (w/c) 1.75 37.7 37.7 5.7 0.0 0.0 0.0 65.9 65.9 10.0 0.0 0.0 0
LL3 (Leading) 1.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
LL3 (Accompanying) 1.15 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Thermal Load (Accompanying) 0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Sustructure Weight 1.35 173.0 173.0 0.0 0.0 0.0 0.0 233.5 233.5 0.0 0.0 0.0 0
Weight of soil on footing 1.35 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0
Weight of footing 1.35 492.0 492.0 0.0 0.0 0.0 0.0 664.2 664.2 0.0 0.0 0.0 0
Wind Load (Leading) 1.5 45.0 -45.0 4.8 229.3 0.9 12.95 67.5 -67.5 7.2 344.0 1.3 19.4205
Wind Load (Accompanying) 0.9 45.0 -45.0 4.8 229.3 0.9 12.95 40.5 -40.5 4.3 206.4 0.8 11.6523
Total LL Leading 1945.5 1810.5 93.5 344.0 1.3 19.4
LL Accompanying 1918.5 1837.5 90.6 206.4 0.8 11.7

Force Summary:-

Both Span present condition (LWL Case)
Load Case No. Live Load LL Pmax Pmin ML MT HL HT
Case Leading / Accomp
t t t-m t-m t t
(C-1)1 LL 1 Case LL Leading 3170.7 2900.7 827.6 757.3 19.7 24.5
(C-1)2 LL Accompanying 3075.2 2913.2 632.1 518.5 14.6 14.7
(C-1)3 LL 2 Case LL Leading 3170.7 2900.7 827.6 757.3 19.7 24.5
(C-1)4 LL Accompanying 3075.2 2913.2 632.1 518.5 14.6 14.7
(C-1)5 LL 3 Case LL Leading 3116.2 2846.2 672.6 951.6 17.6 24.5
(C-1)6 LL Accompanying 3033.5 2871.5 513.3 667.4 13 14.7
One Span Dislodge condition (LWL Case)
Load Case No. LL Pmax Pmin ML MT HL HT
Leading / Accomp
t t t-m t-m t t
(C - 1) 7 LL Leading 1945.5 1810.5 93.5 344 1.3 19.4
(C - 1) 8 LL Accompanying 1918.5 1837.5 90.6 206.4 0.8 11.7
Steining Check
Dia of well at the base 7.45 m
Area of well at base A 43.59 m^2
Section modulus of well at baZ 40.59 m^3
Actual tilt in longitudinal direction 1 in 36.5
Actual tilt inn transverse direction 1 in 35.6
Actual shift at bottom in long direction -0.06
Actual shift at bottom in tran direction 0.108 m
Well cap shift in long. Direction from bottom 0.34
Well cap shift in tran. Direction from bottom 0.433
LWL without scour
Gross SBC (LEL) 80 t/m^3
Load case No. Pmax Pmin ML MT HL HT ML due to tilt & shift MT due to tilt and shift M Moment due to passive resistance Moment due to active resisttance Net moment P/A+M/Z P/A-M/Z Check
t t tm tm t t tm tm tm tm tm tm tm tm
N1 3170.7 2846.2 827.6 951.6 19.7 24.5 72.73 46.335 57.73 774.8 1774 10348 150.3
Steining is designed as PCC section with minimum 0.12% of steel asCL.708.304 of IRC:78-2014. Capacity of section, stress and crack width is checked for the assumed steining section and following reinforcements.
Clear cover 75 mm
Minimum area of vertical reinforcement required 26662.7 mm^2
Provide 120 nos 12 nos. on outer face 12 on inner face
Area of vertical rein. Provided 27143.36 mm^2

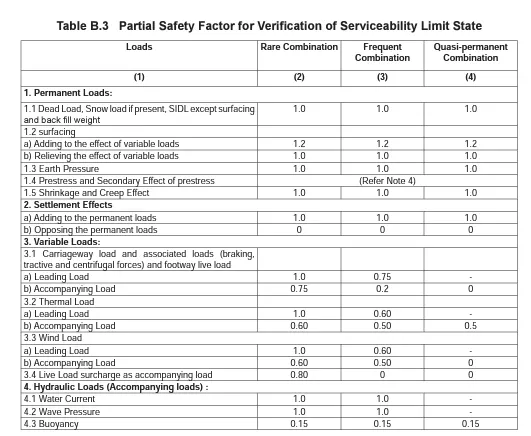

The minimum stress in steining is 0.94 Mpa (as shown in Annexure-A) for rare combination of loads.
Hoop reinforcement shall not be less than 0.04% of the volume/ unit length of the steining
Volume of hoop reinforcement 8887566 mm^3/m
Provide 10 mm dia @ 300 mm c/c
Length of outer hoop steel 22493.8 mm
Length of inner hoop steel 15847.96 mm
Volume of hoop reinforcement 10037851 mm^3/m
Well Curb Reinforcement
Outer dia. Of well 7.3 m
Inner dia. Of well 5 m
Height of well curb 2.2 m
Area of c/s of well curb 1.53 m^2
Avg. dia of ring 5.6 m
Weight of well curb 68.15 t
Min area of rein. required 72 kg/m^3 of concrete IRC78-2014:CL.708.7.3
Min required wt of reinfocement 1962.71 Kg
Reinforcement provided
Discription No Bar Dia Af(m^2) Dia of ring Length (m) Weight (kg)
W1, outer ring 8 160 7.351 23.09 291.6
W3, innner top ring 7 120 6.267 19.69 122.35
W2, inner bottom ring 9 160 6.233 19.58 278.16
W5, ring connector 120 160 5.5 1041.3
W6, hora connector 960 100 0.559 330.86
Total Reinforcement 2063.4 mm^2 OK

Reinforcement for RCC well Foundation.

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
