Week 11 - Project - A pillar Design with Master Section

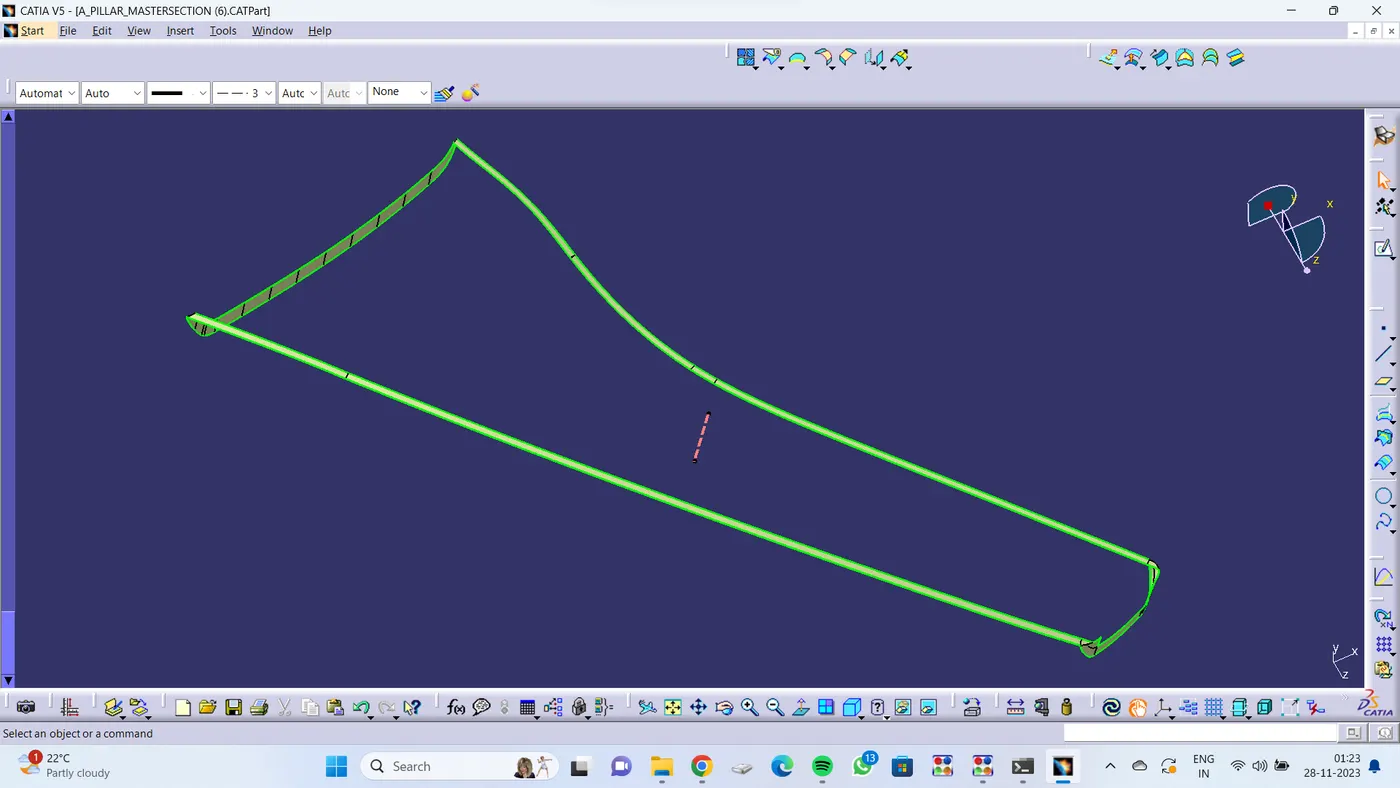

1. Tooling Axis :

• Taken reference of  four Lines From Master Section
• And using bisecting Method formed 1 Line and by same method formed another Line 2
• Finally tooling Axis is formed By Bisecting the  2 output Lines .

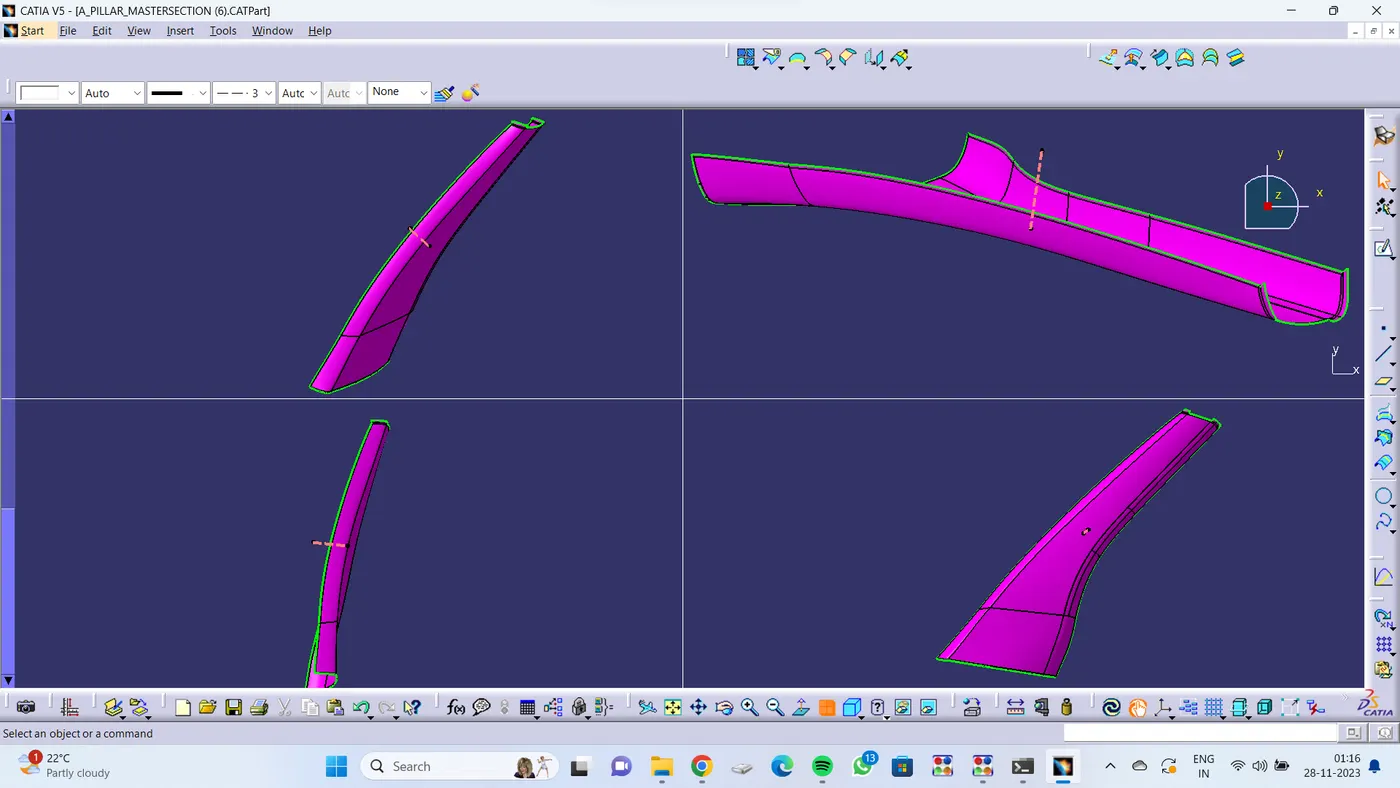

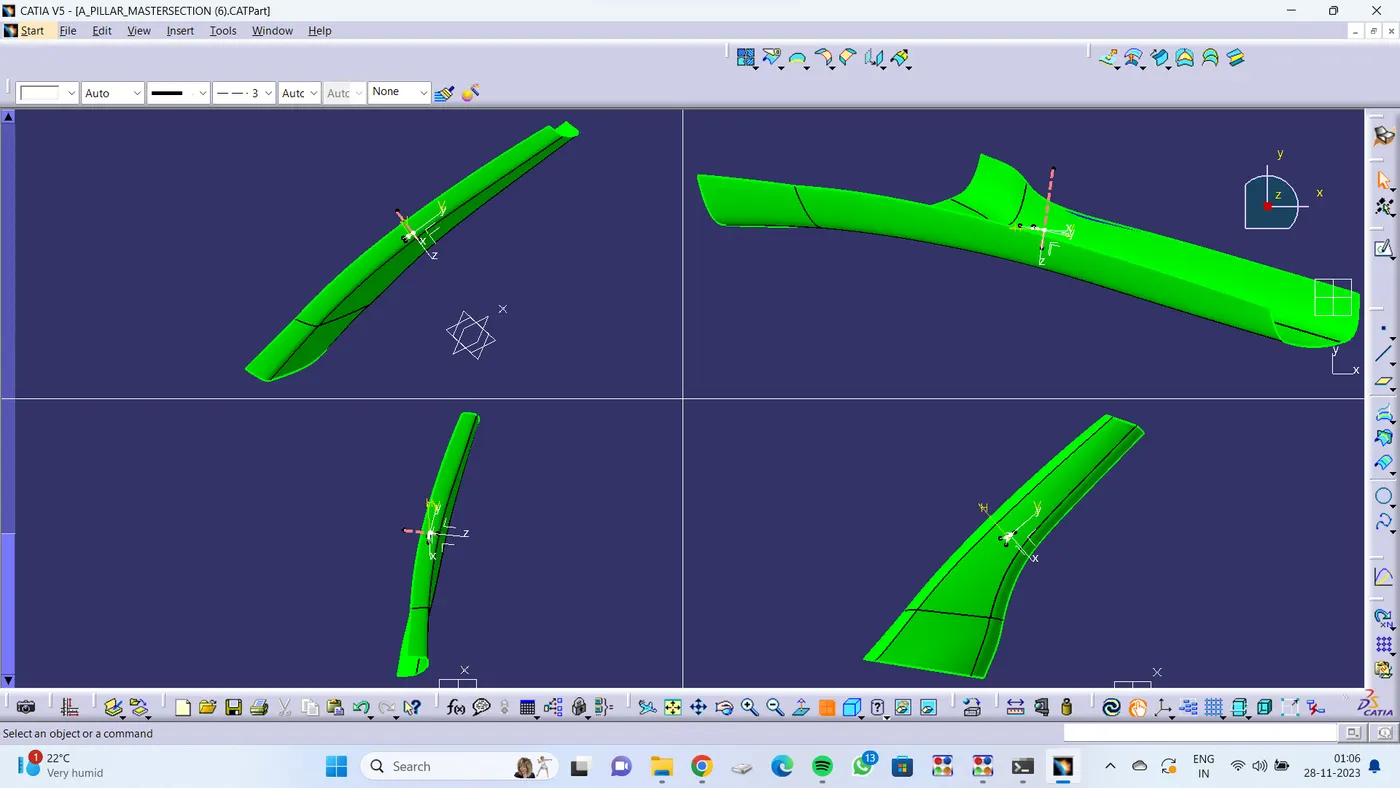

2.Draft Analysis of class A :

 Before drafting analysis we have to make sure that in the view mode it is selected for the materials .

• After selecting draft analysis tool need to drag the compass and position it to the main tooling axis
• Lock the compass and select on the component
• change the minimum draft to 3deg.
• use running point tool to check the component.
• Found Good to proceed.

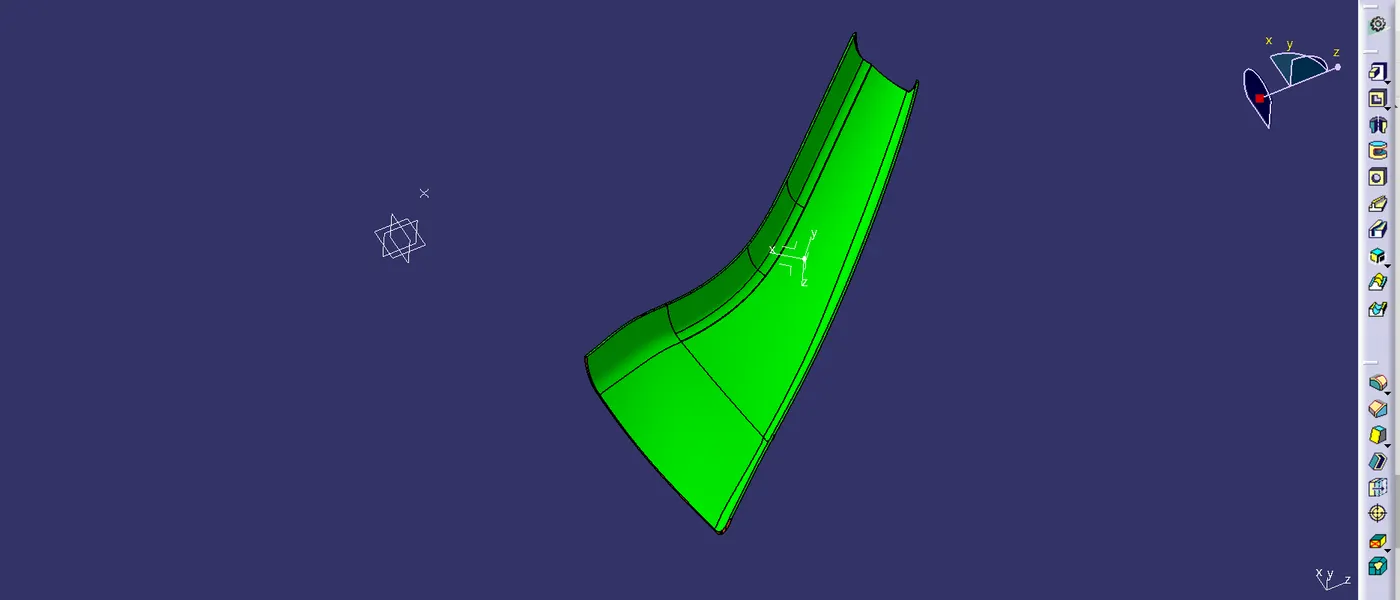

3. B Surface Creation :

• Class A Surface is Offseted 2.5 mm
• And Found one Fillet patch is not being Formed
• Used Sweep with reference surface and Formed that face
• Joined to get complete surface
• Extrapolated overall B surface for Triming.

4. C Surface Creation :

•  Used Sweep Option with Draft direction 3 deg  and Reference surface 90 deg  on required areas in Class A Surface
• Trimed all sweeps as one  C surface
• Joined Class A surface and C surface

 5. Closed Trim :

• C join A Surface is trimmed with B surface to get a closed surface.

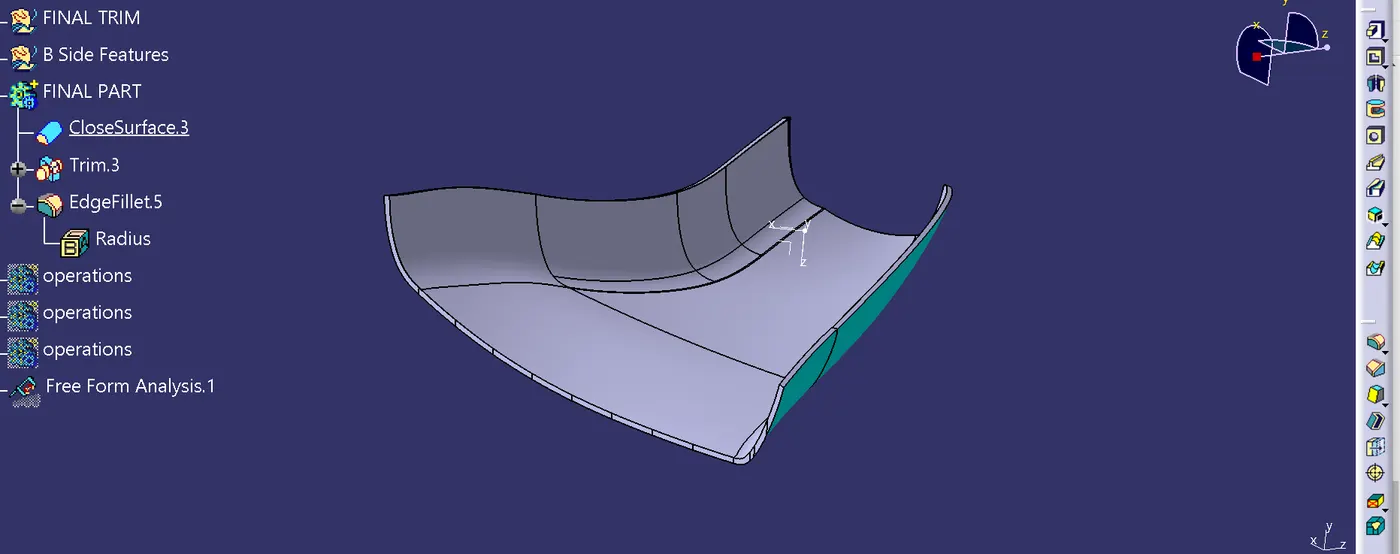

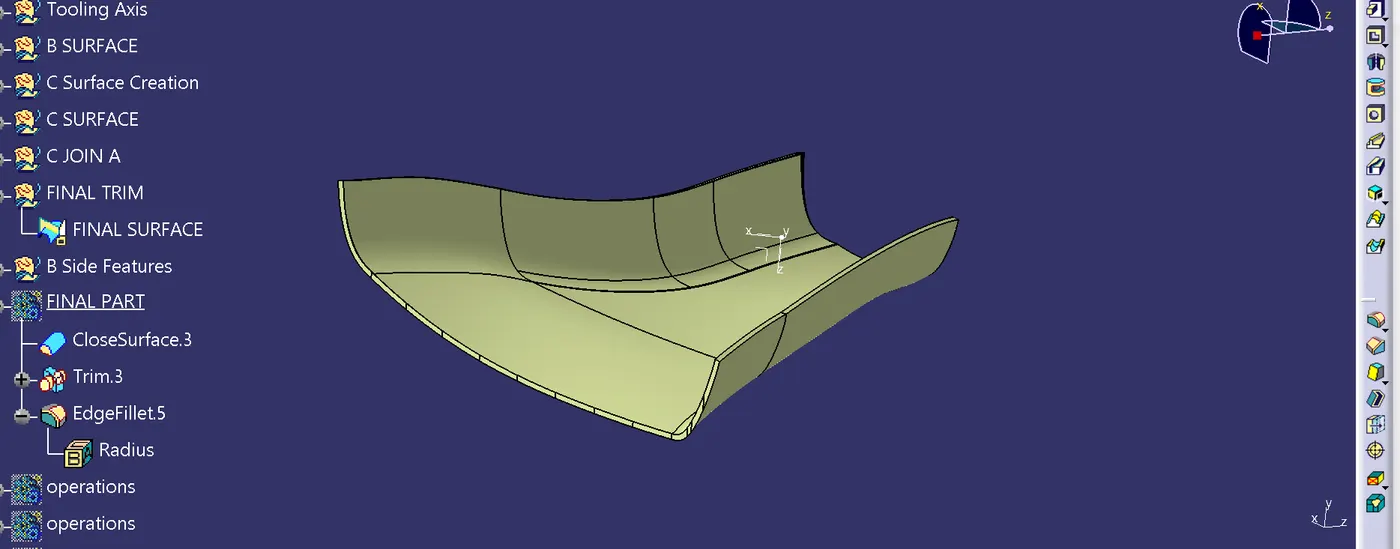

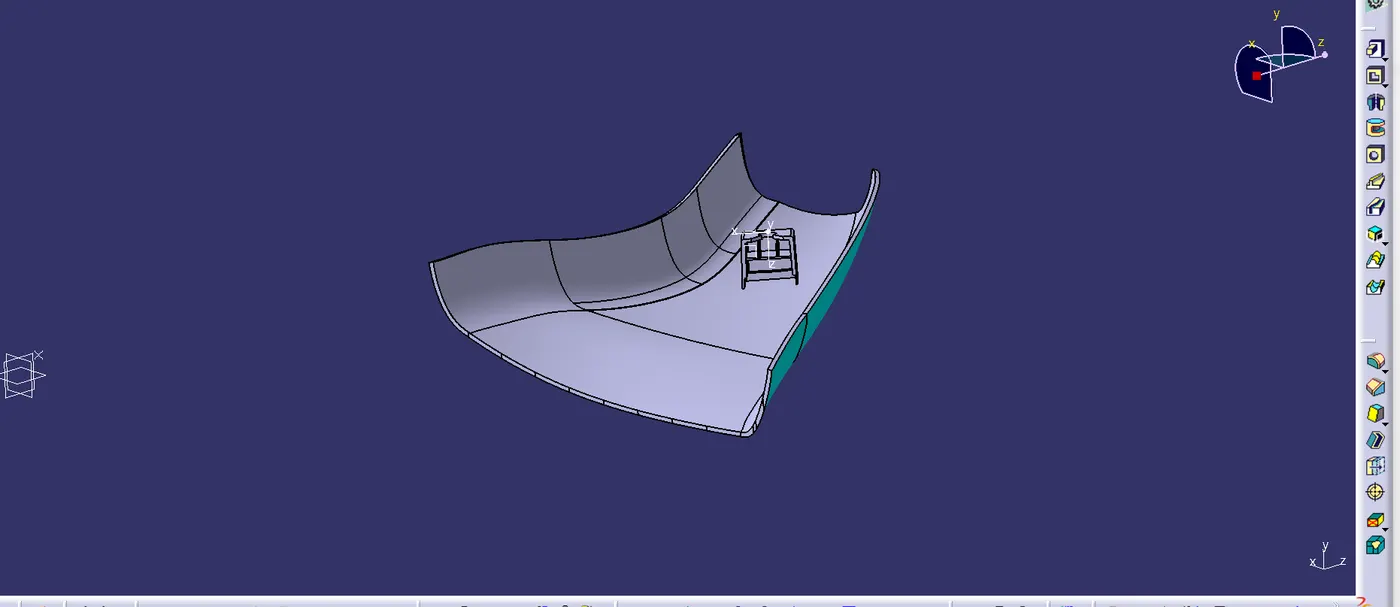

6. Closed Part :

Used Closed Surface option in  trimmed surface and formed closed Body..



7.Draft Analysis Of Closed Part :

• we have to make sure that the view mode is in materials.
• Drag the compass and position it to the main tooling axis
• Fix the compass using lock option.
• Draft Angle of 3 deg is given .
• use running point tool to check draft.
• Using colour codes checked the draft and found good .

8. Engineering Features :

• Created Dog House with ribs using Master section Given as reference .

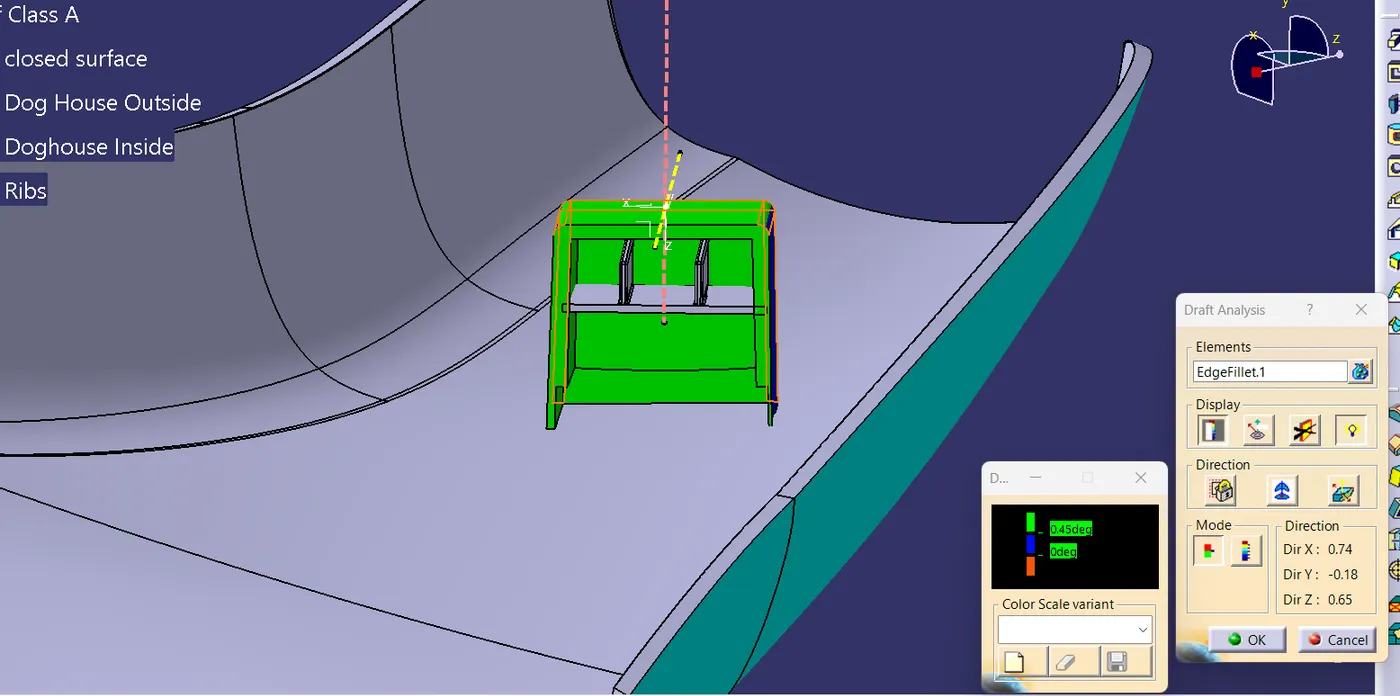

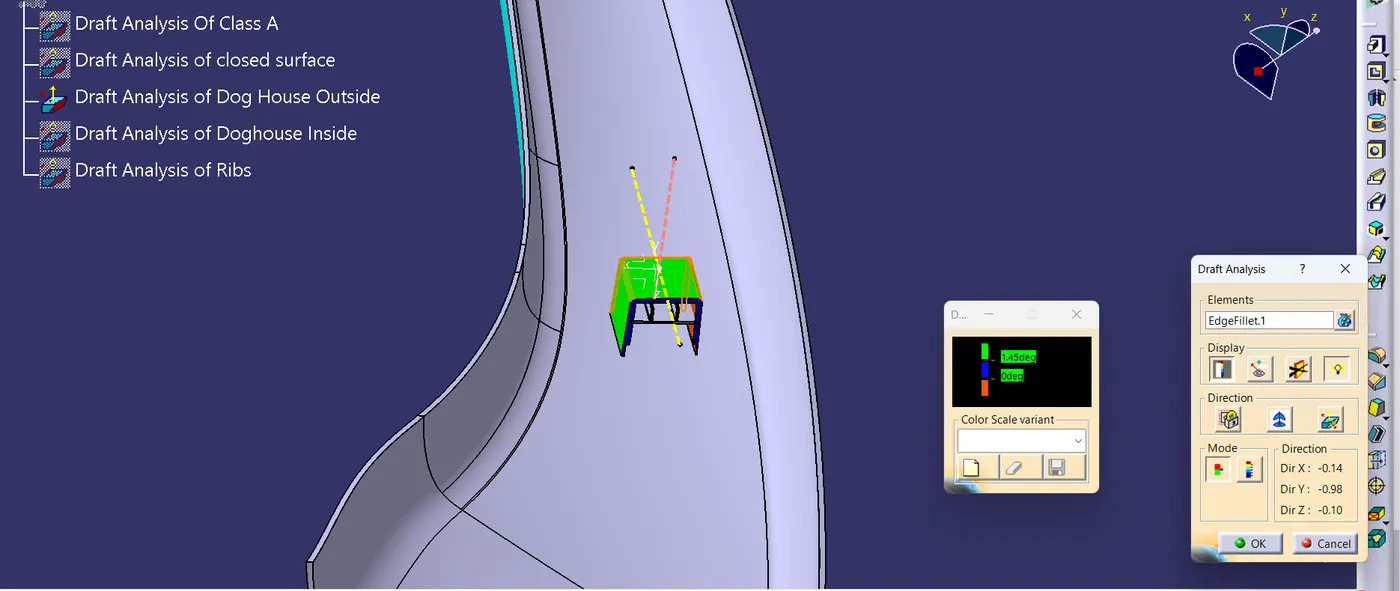

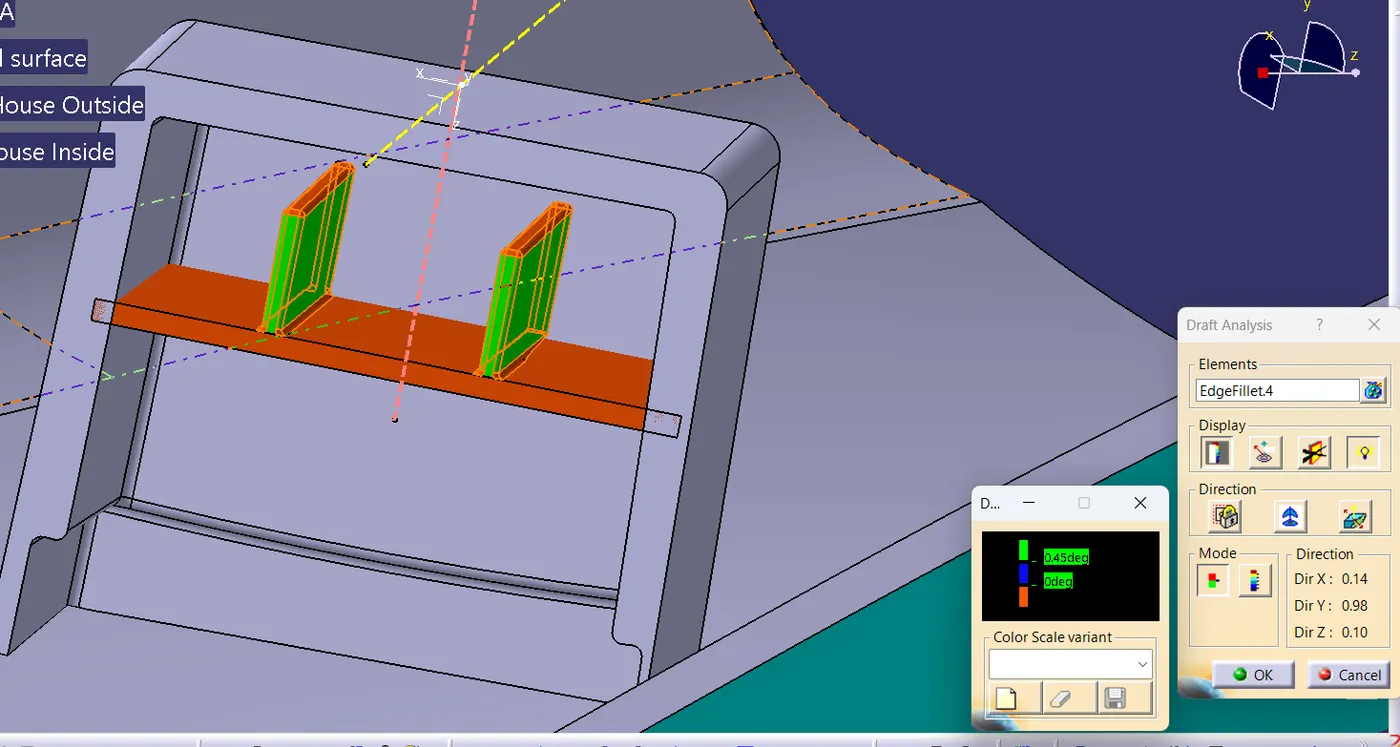

9. Draft Analysis Of Engineering Features :

• For Checking Engineering Features compass is positioned on main tooling axis to check the Dog House outer and inner surface & Ribs .
• Draft angle of 1.5  deg is given to check dog house outer surface & 0.5 deg to check dog house inner surface & 0.5 deg to check Ribs.
• used running point tool to check
• Using colour codes checked the draft and found good.
