Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Greetings !!

1. Creation Of Tooling Axis :

• Created a Point on curve
• Drawn 2 Lines which are found  parallel to the tooling axis
• By using Bisecting Method  created a centre Line
• Checked for clearing , and made it as tooling Axis.

2. Creation of Draft Analysis for Class A Surface :

• Changed to Material mode , and Selected Draft Analysis tool.
• Dragged the compass to the Tooling Axis for draft direction and locked.
• By using analysis under running point option checked on all surfaces .
• by using colour scale variant dialogue box checked for clearing 3 degree as it is indicating Green colour.
• Thus Proceed for creating Class B.

3. Creation of Draft Analysis for Final Product :

• In material mode selcted Draft analysis tool.
• Compass made in angle with the tooling axis created. and locked.
• Checked with analysis under running point for finding the error.
• And found some area under 3 deg , by using colour scale variant tool
• By decreasing draft angle to minimum level , found it to be clearing the tooling axis.
• And thus found our Final Product to be toolable.

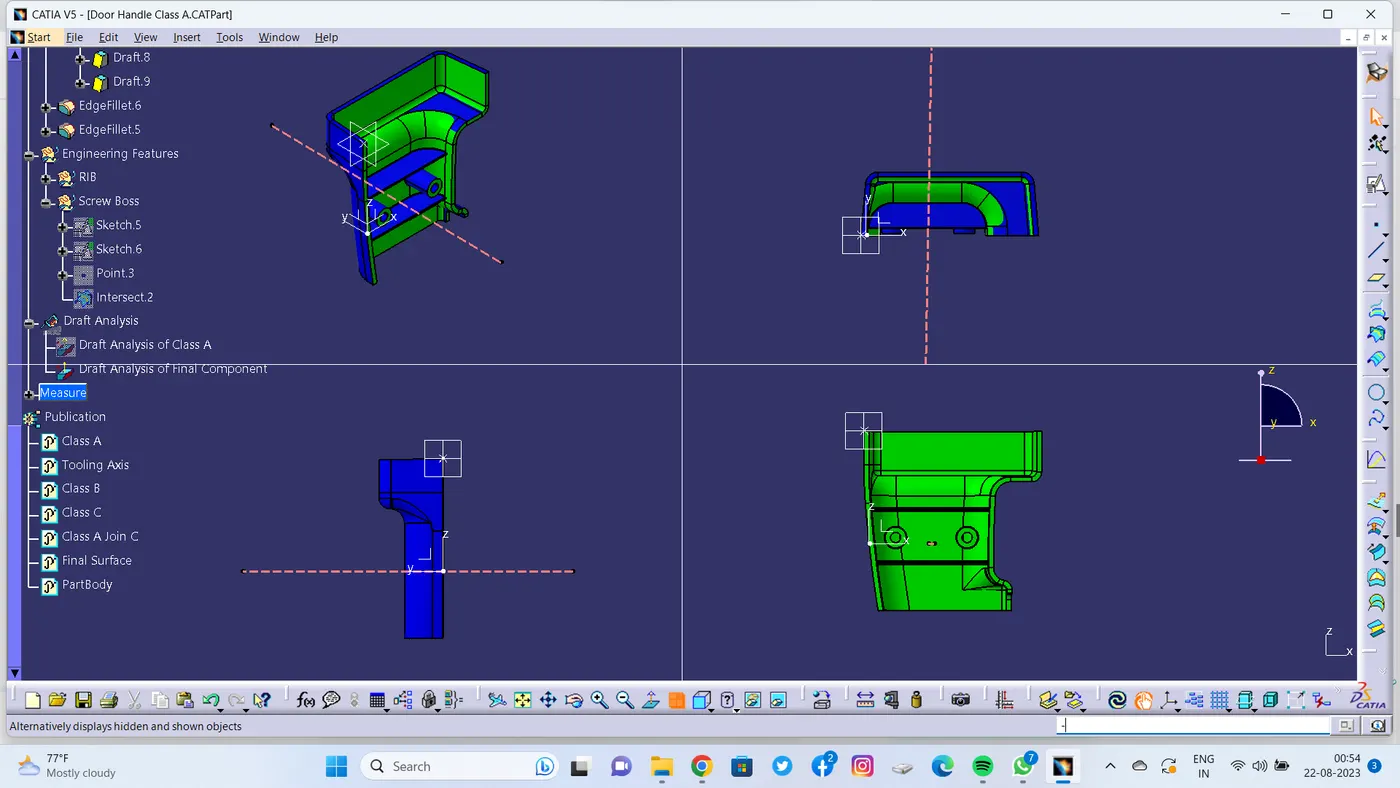

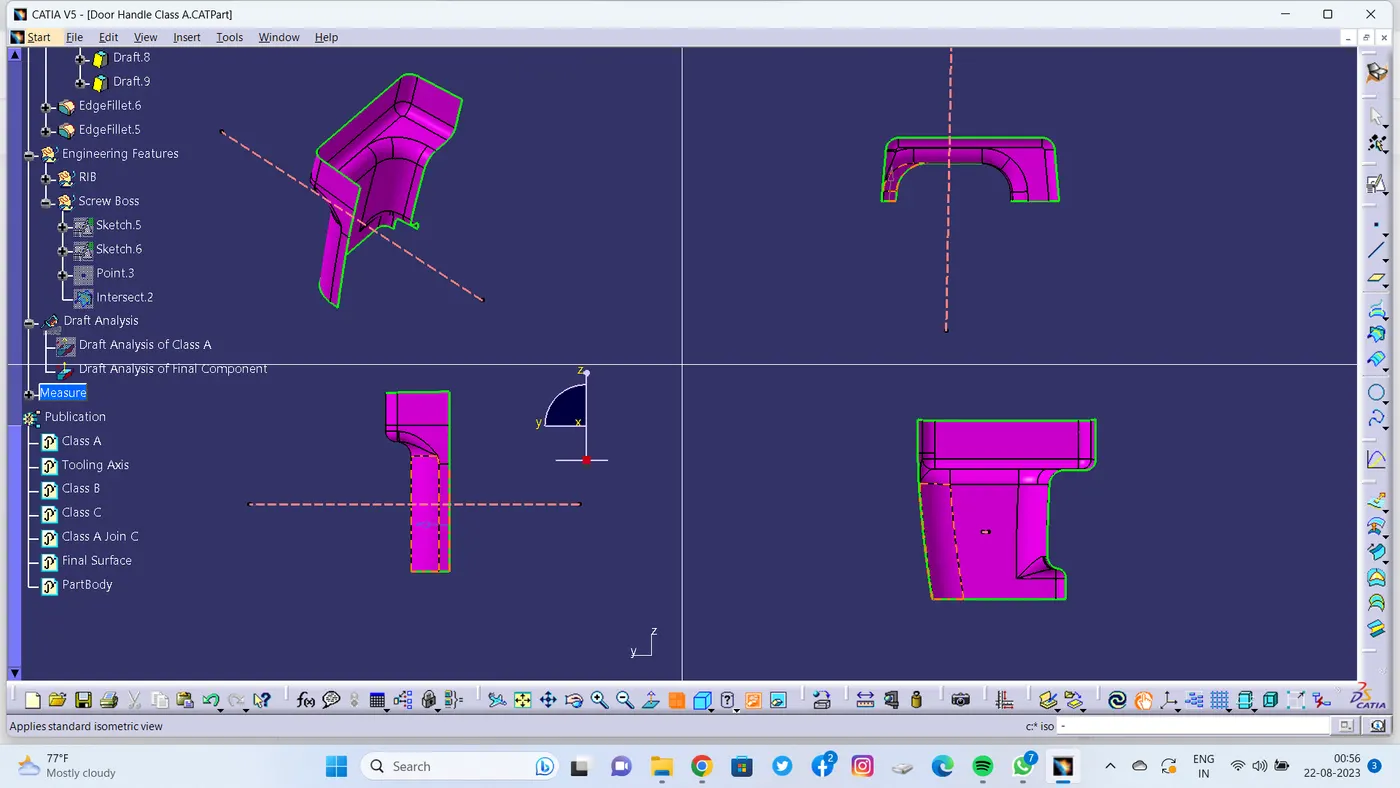

4. Images of Draft Analysis of Class A Surface :

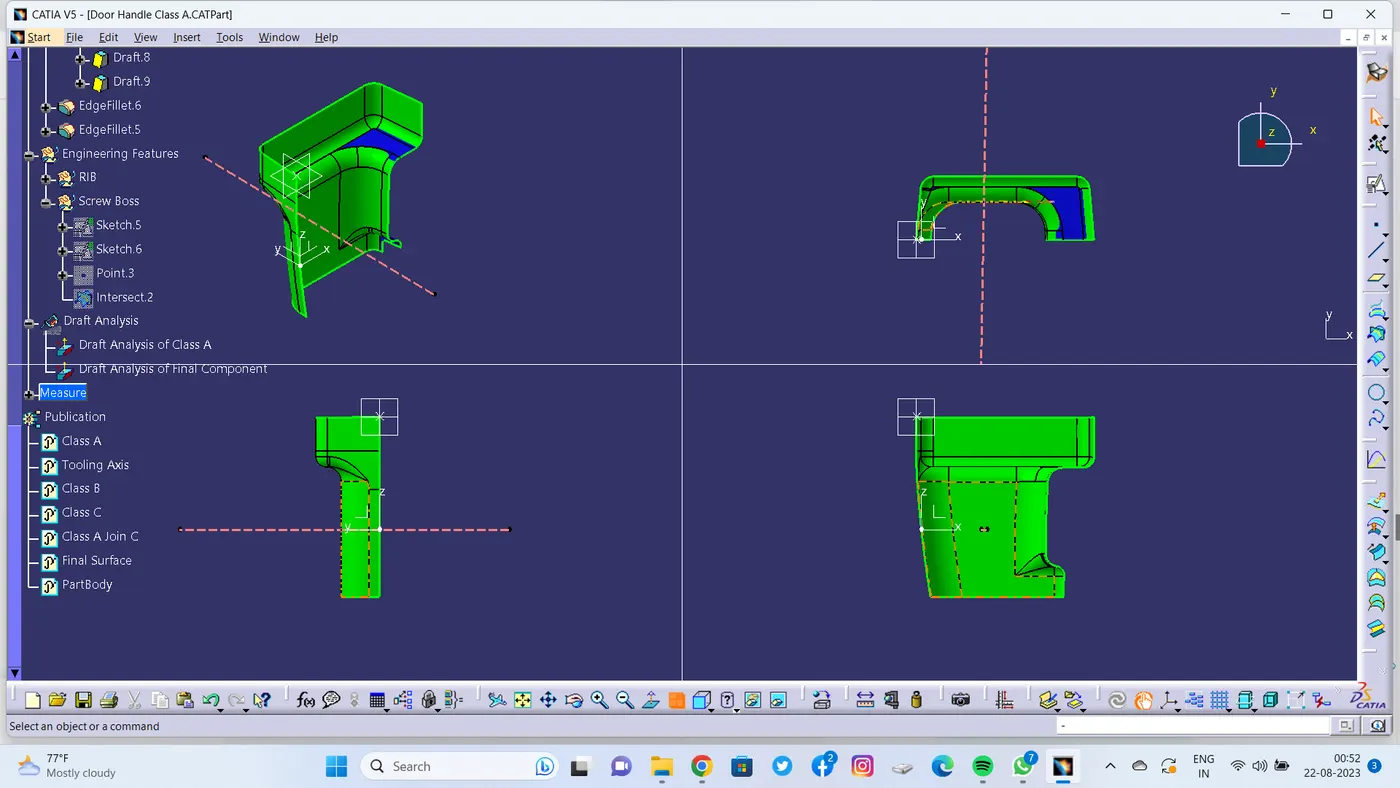

5. Images of Draft Analysis of Final Product:

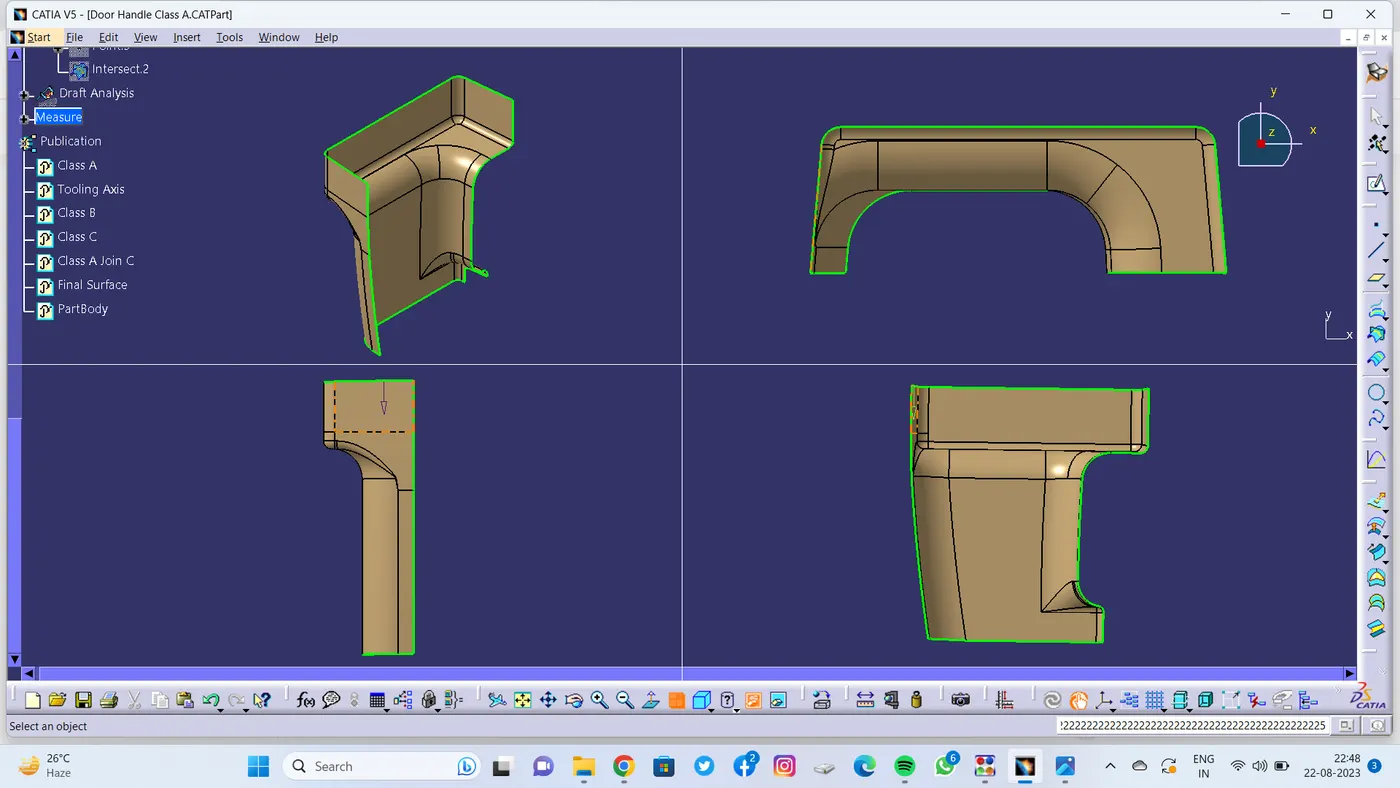

6. Image of Class A Surface:

6. Image of Tooling Axis :

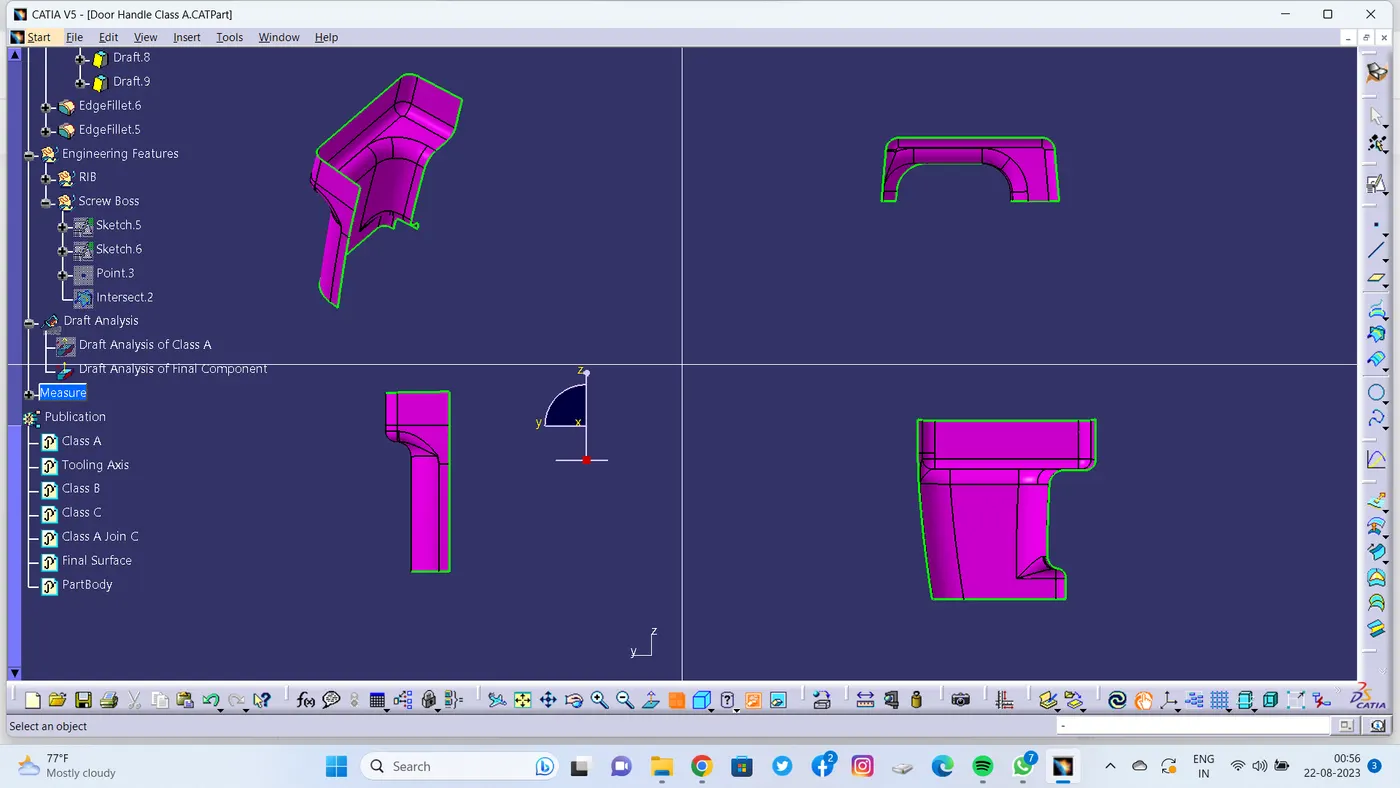

7. Image of CLASS C Surface :

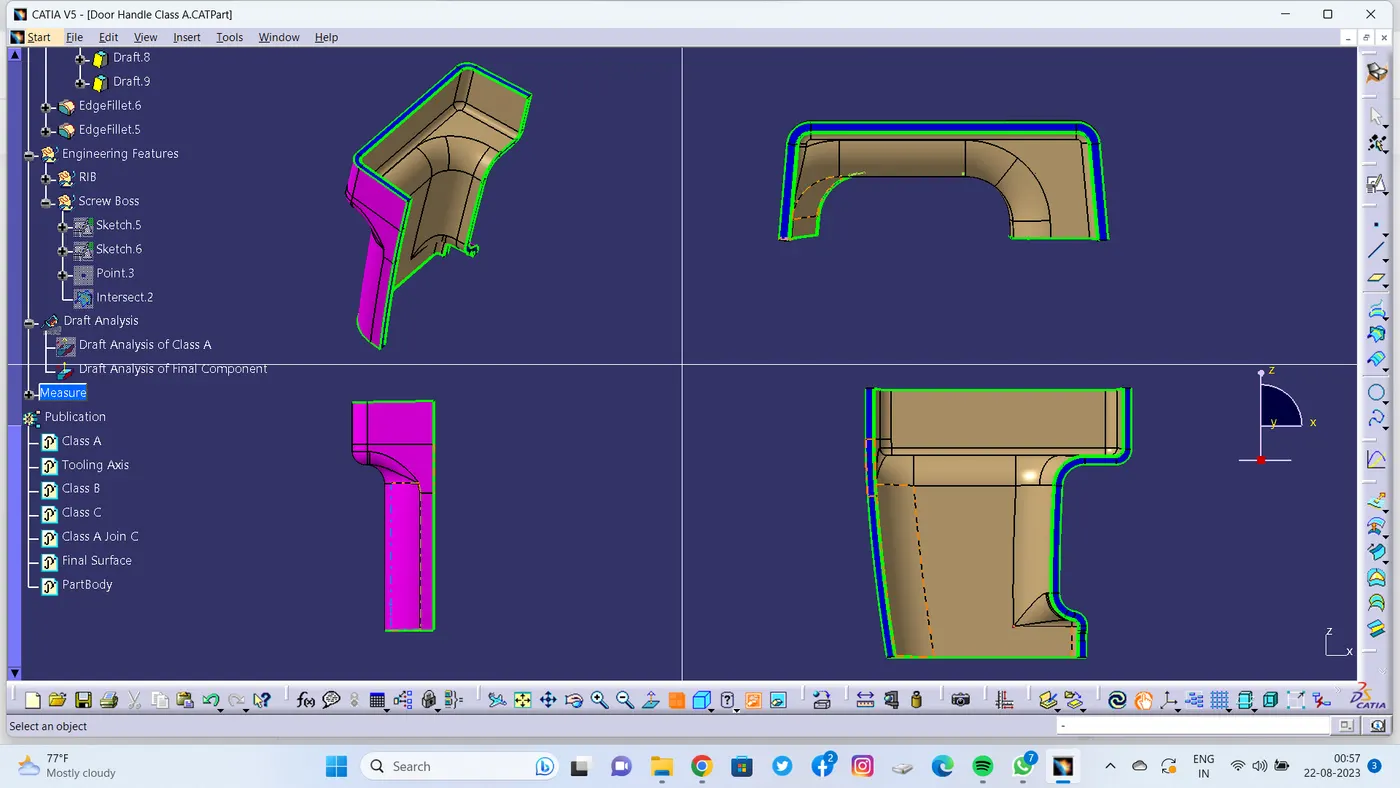

8. Image of Class A & C Join :

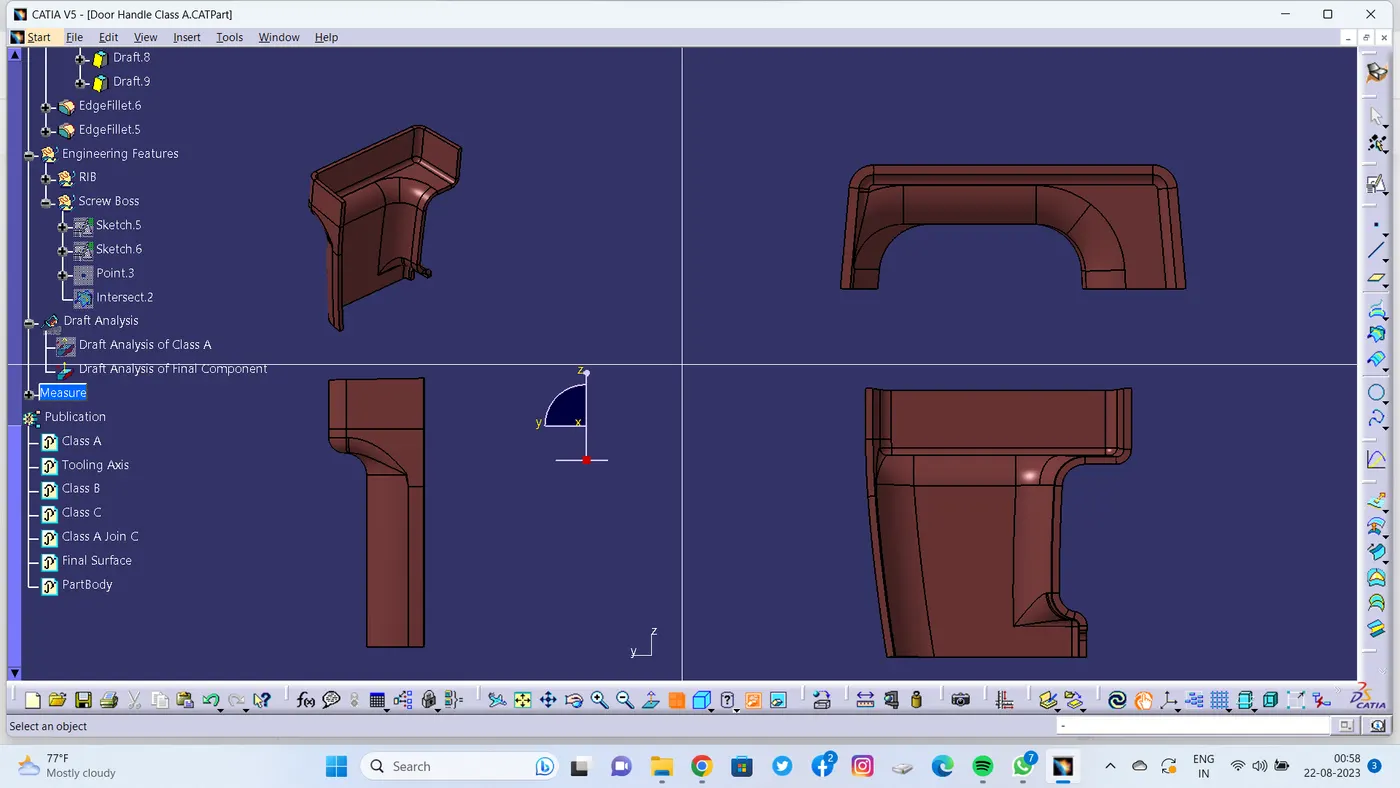

9. Image of Class B Surface :

10. Final component & Closed Part :

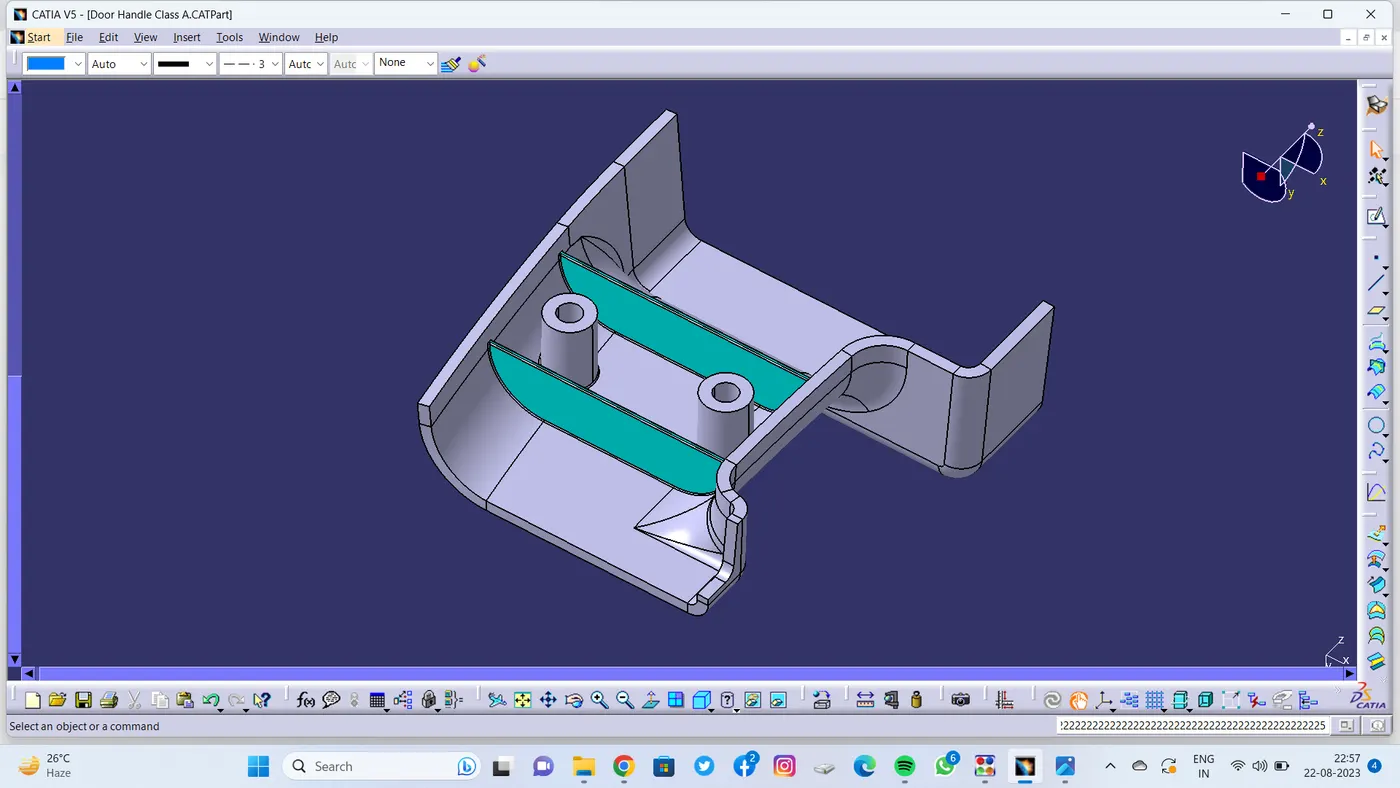

11. RIB :

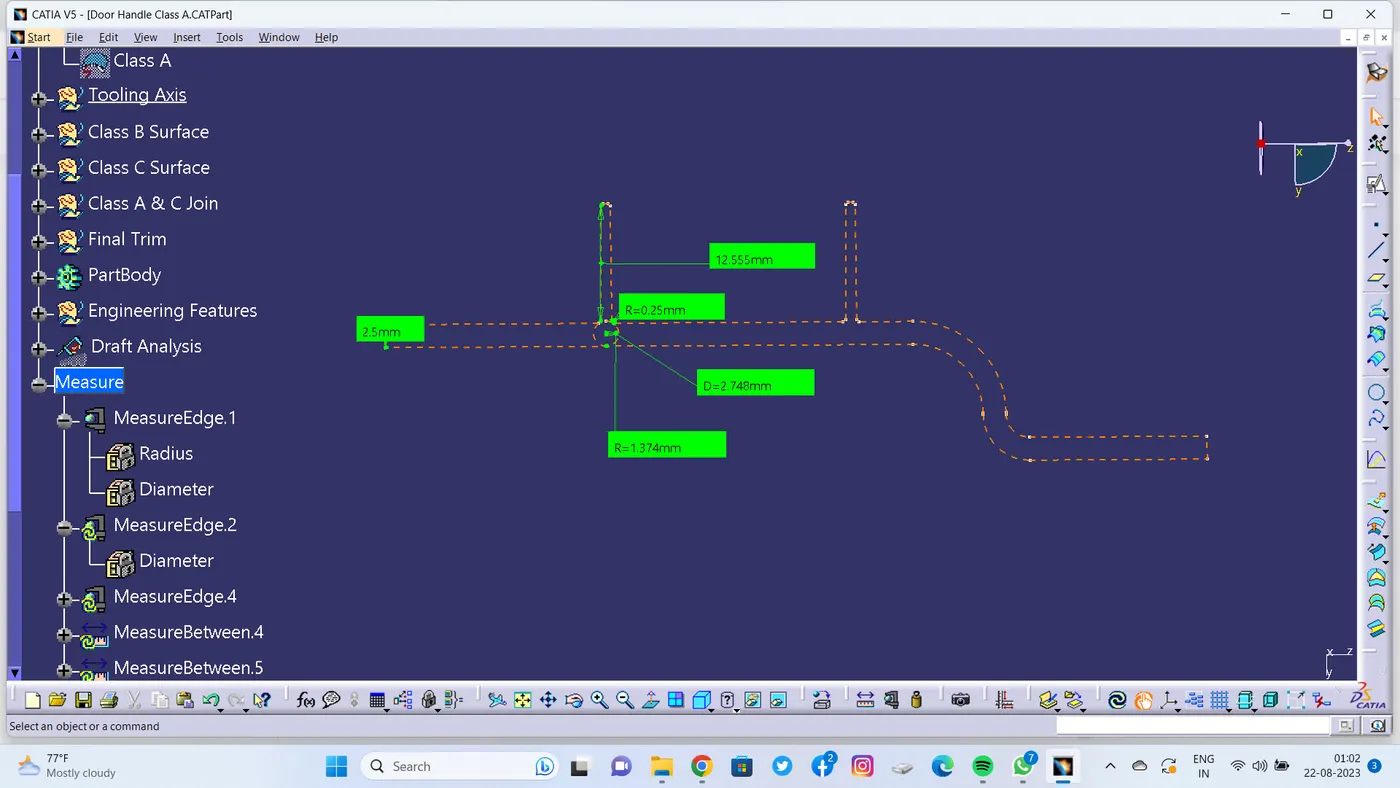

12. Rib Root Thickness :

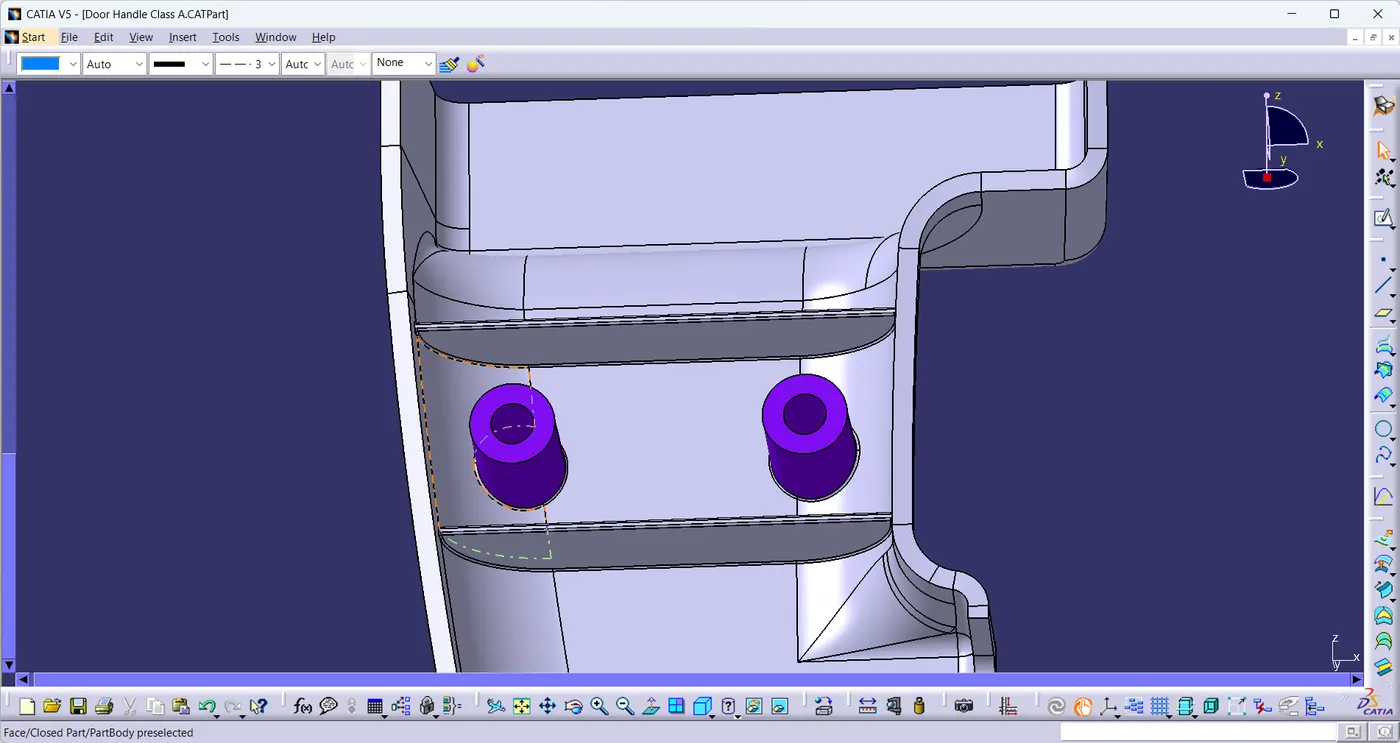

13. Screw Boss :

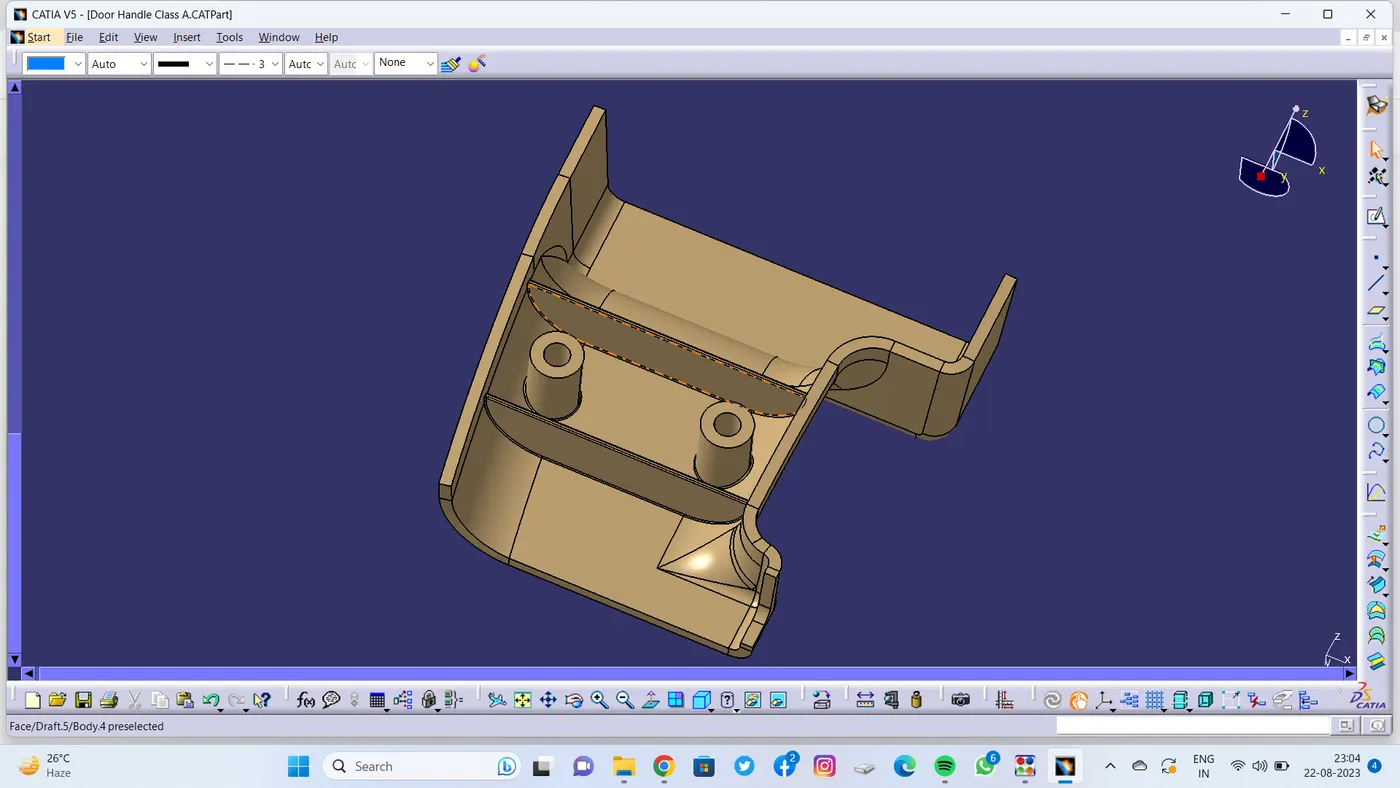

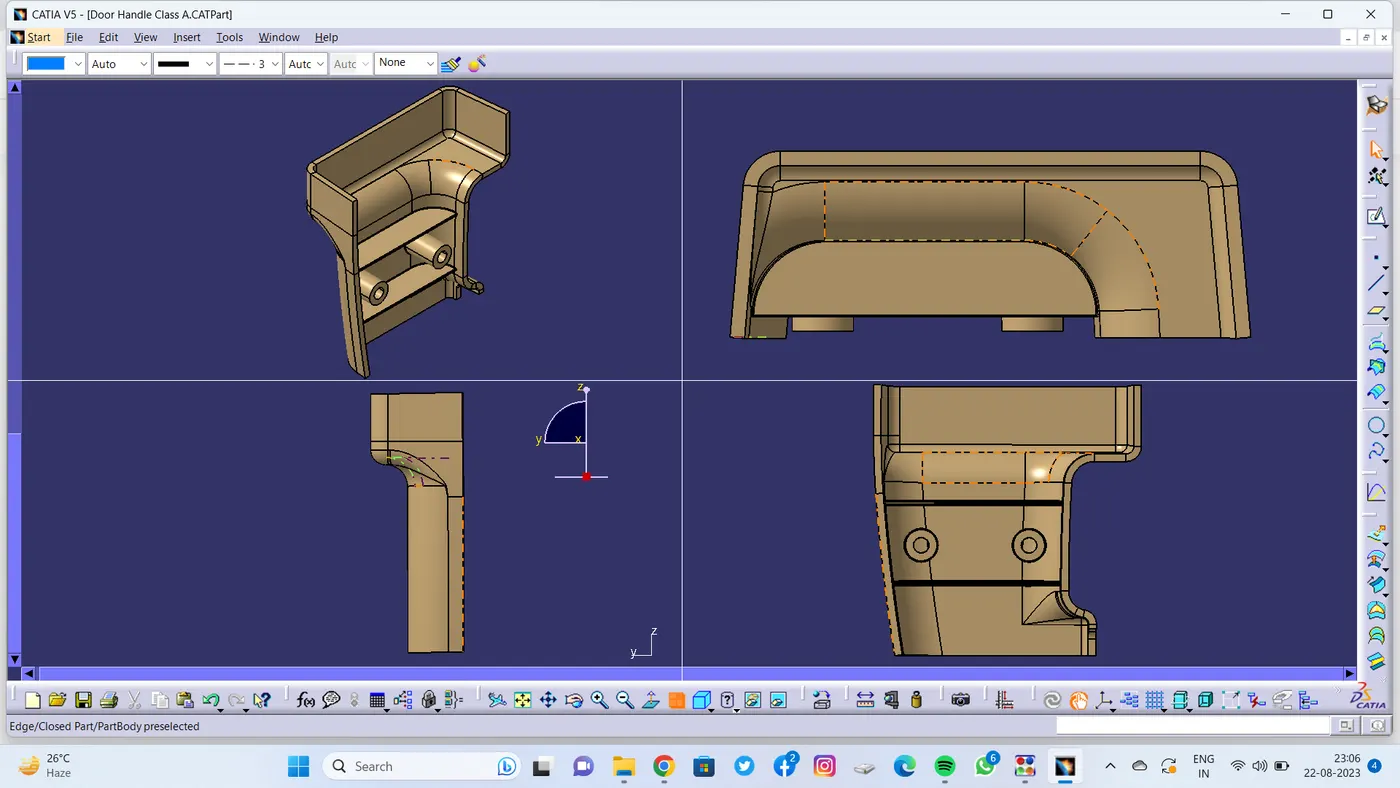

14.  Final Part With Engineering Features :

THANK YOU  !
