Week 11 - Project - A pillar Design with Master Section

• A PILLAR DESIGN

                               AIM : To Create A Pillar Design With Master Section

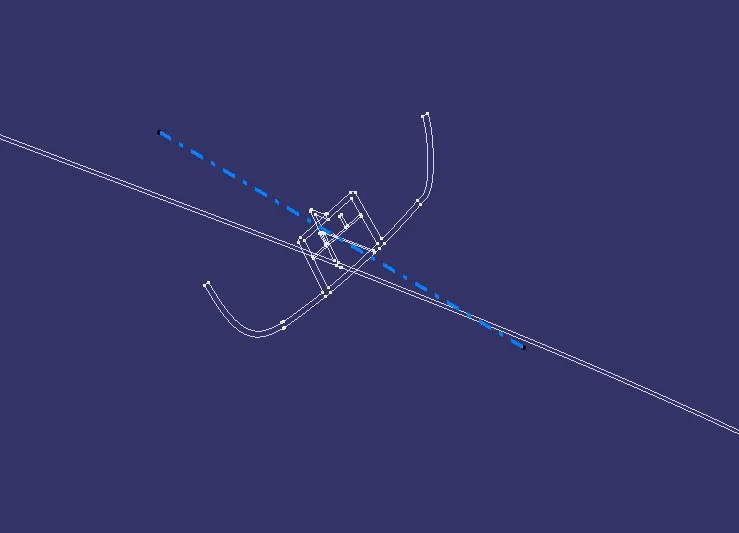

• Main Tooling axis

1. Ensure the class A surface is properly joined
2. Analyse which direction is suitable for tooling axis
3. Extract the line, create the point
4. create the bisecting line with the help of extracting line & point.

• Side Core Axis

1. Side core axis was created with the help of point - direction method

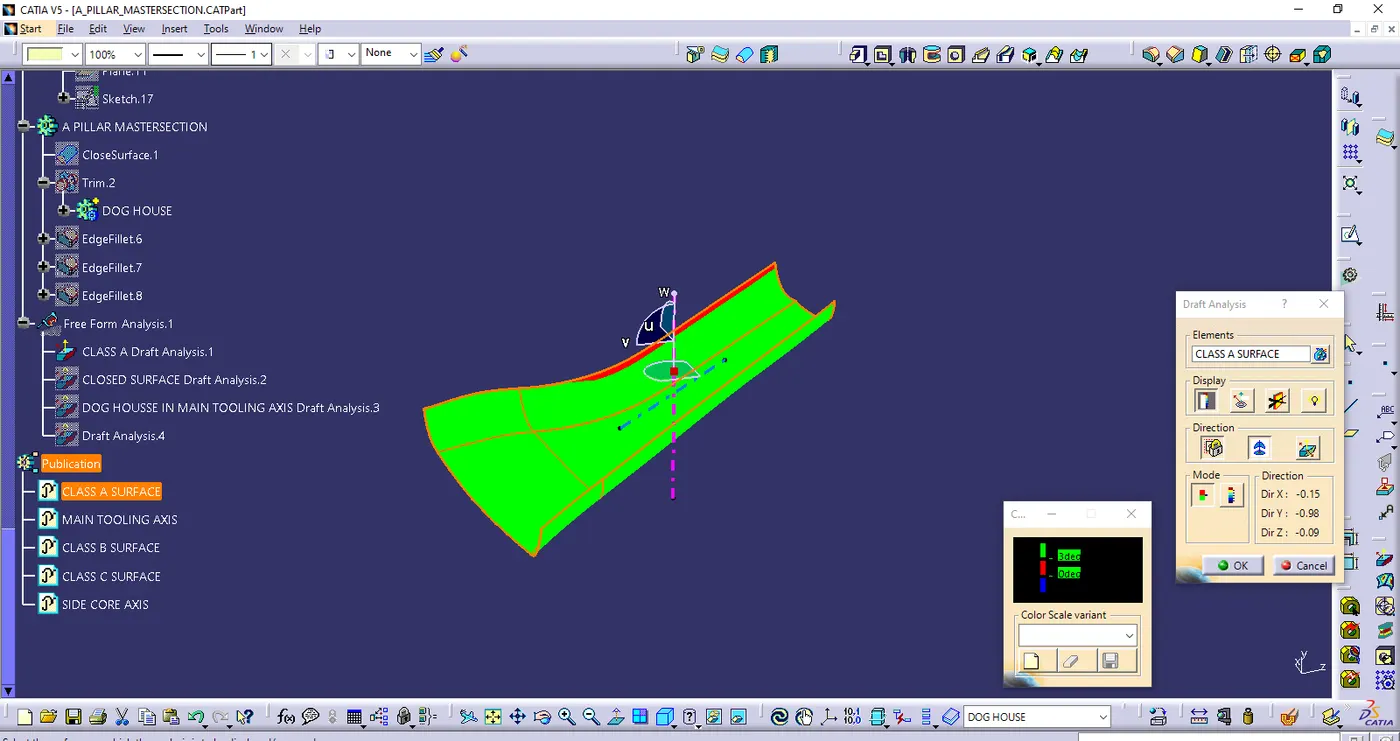

• Draft analysis on Class A surface

1. Ensure the view mode in material
2. Use the compass to define the new current draft direction & place it on the Main Tooling axis & lock it
3. Click the Class a surface it shows the Green colour area it satisfies
4. In this Class A surface some surface are not satisfied. So it needs to correction in the Class a creation team.

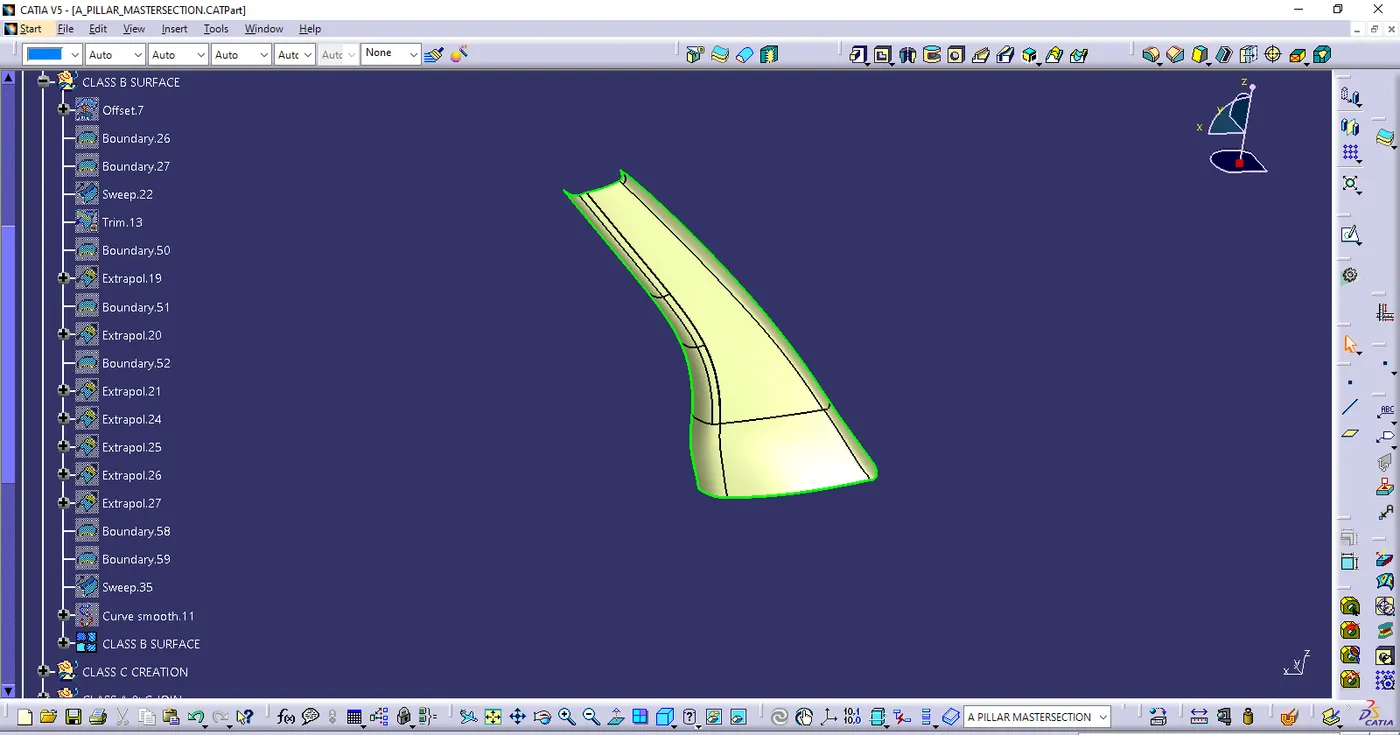

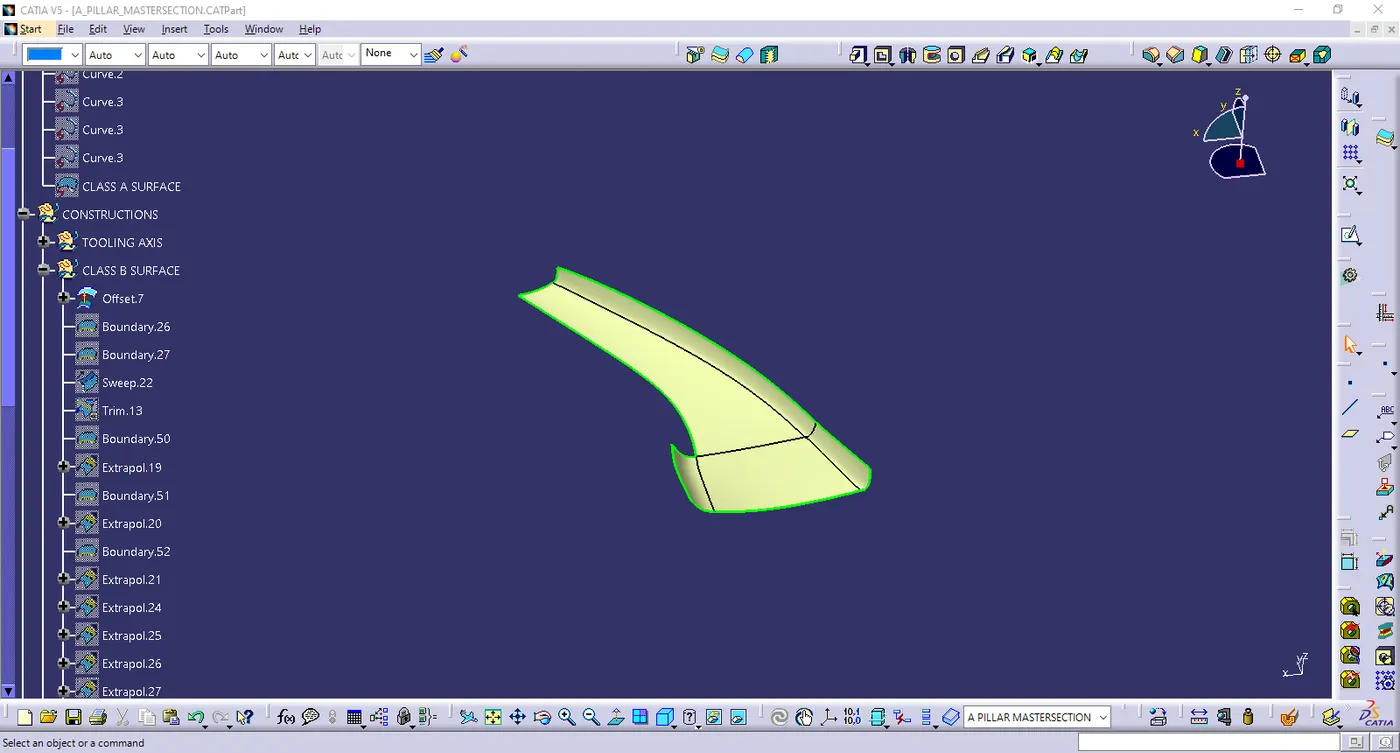

• Class B surface

1. Offset the class A surface in 2.5mm in proper direction
2. Once offset is done some patches are missing
3. Then missing patches are obtained with the help of Boundary, Sweep, Trim, extrapolate & join commands.

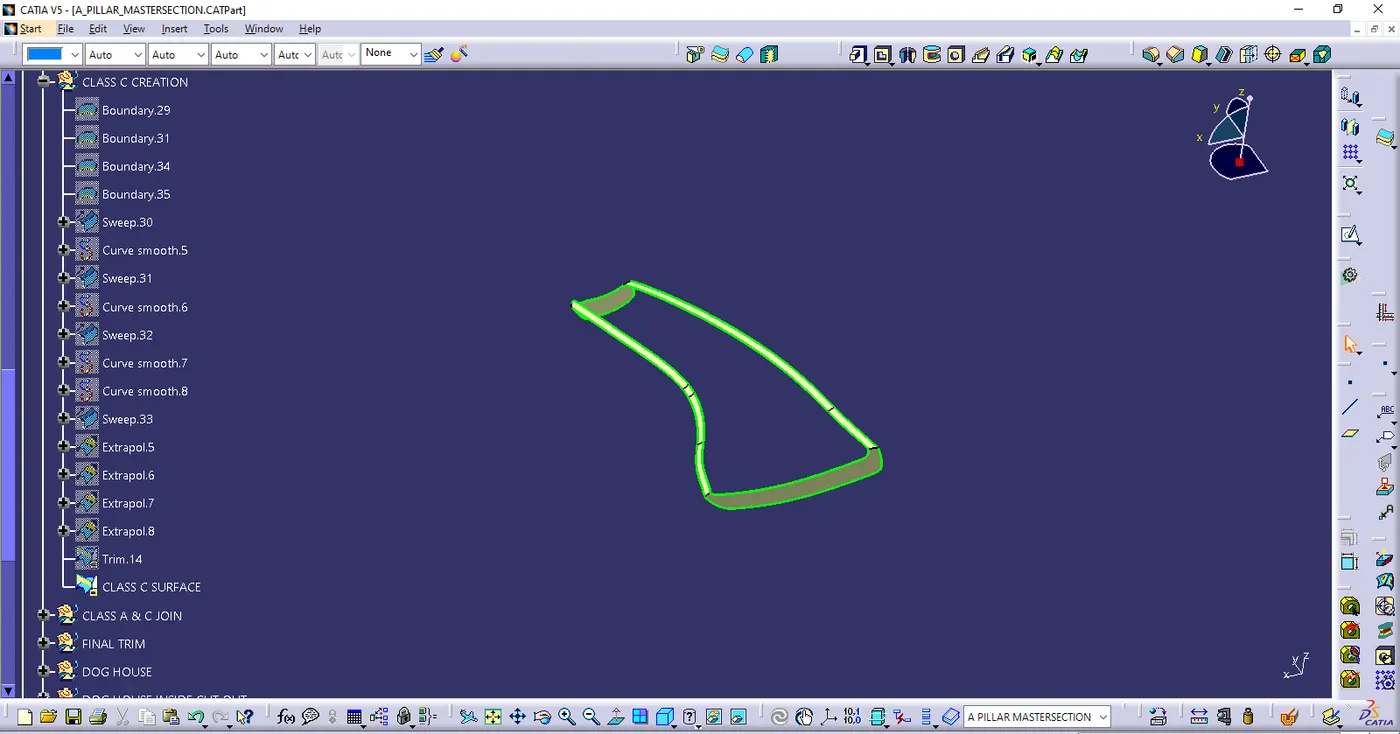

• CLASS C SURFACE

1. Create seperate boundaries from one vertex to another vertex in the class A surface
2. In sweep command with draft direction 3 degree was given to the boundaries with the help of tooling axis
3. In sweep command with reference surface 90degree was given to the boundaries
4. Then extrapolated the edges & trim it
5. Join the Class A & C surface together
6. Finally closed suface is obtained with the trim command

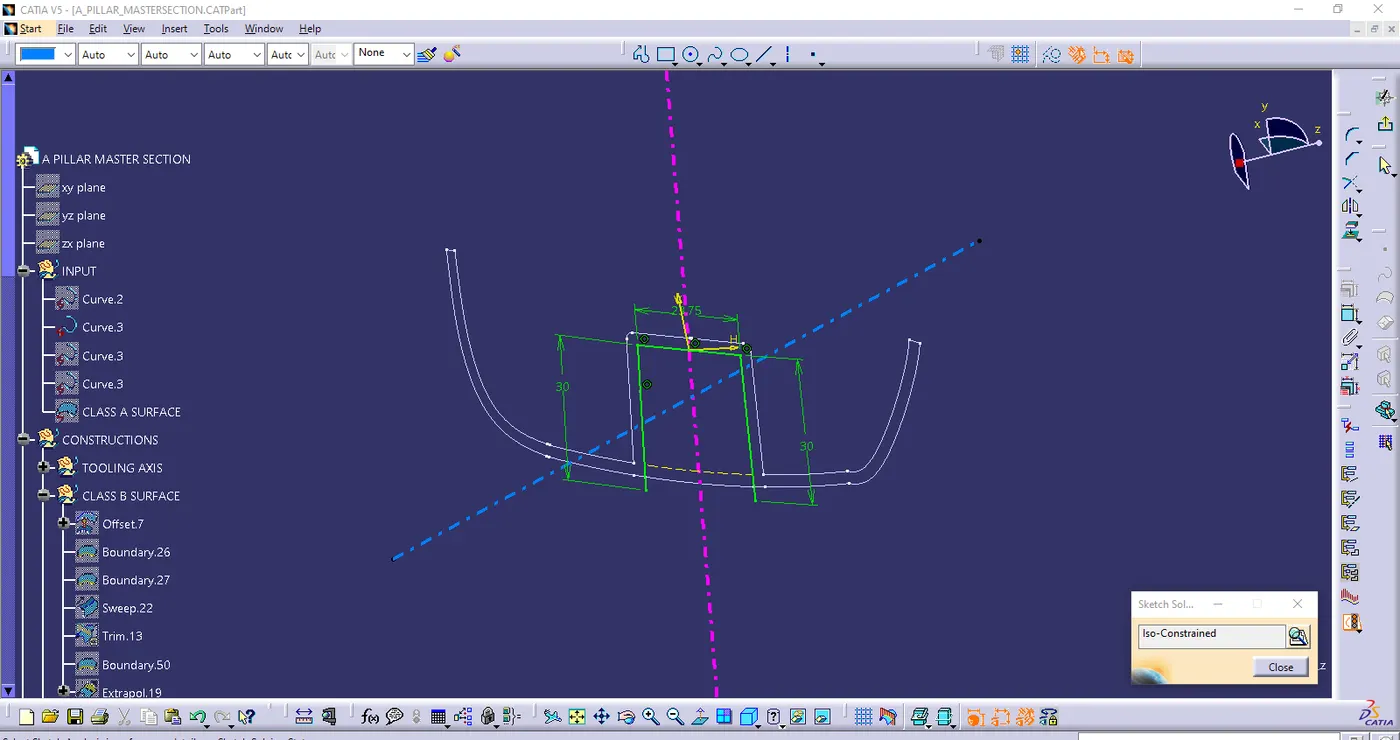

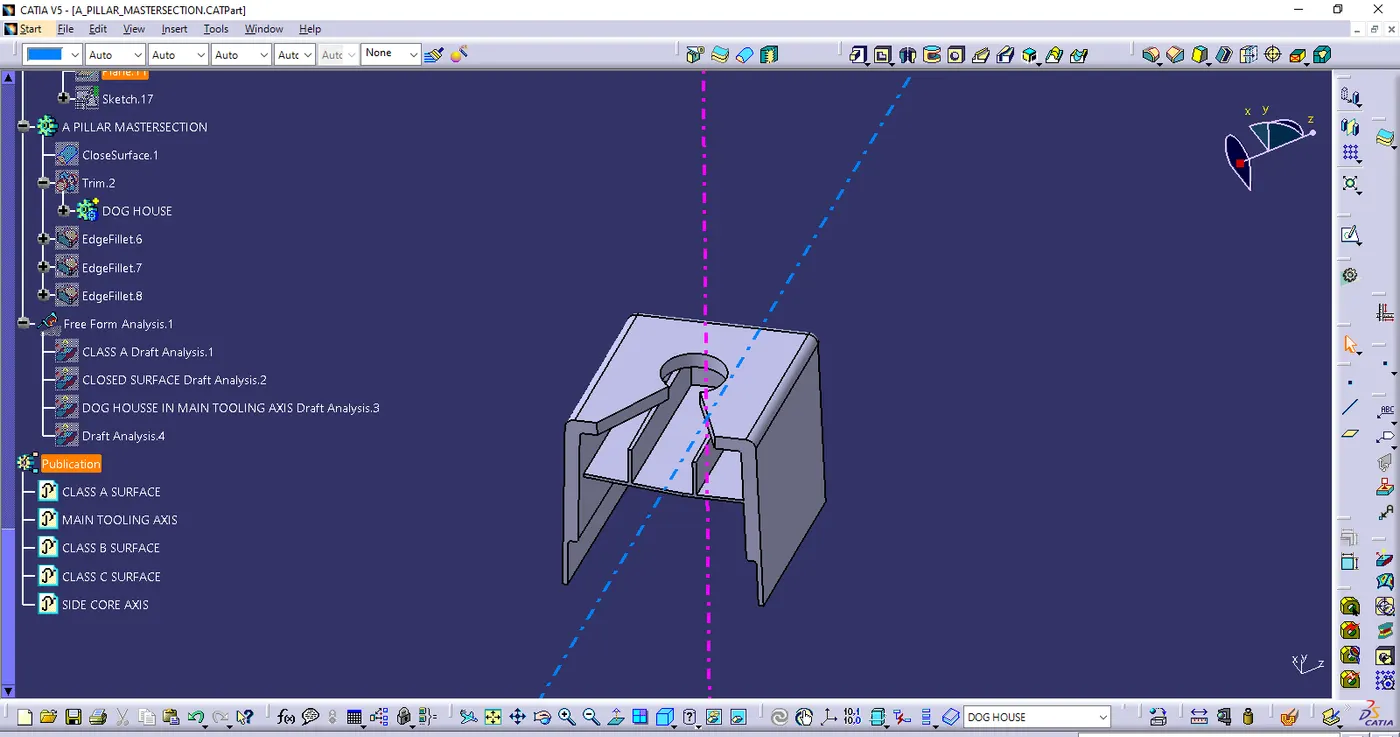

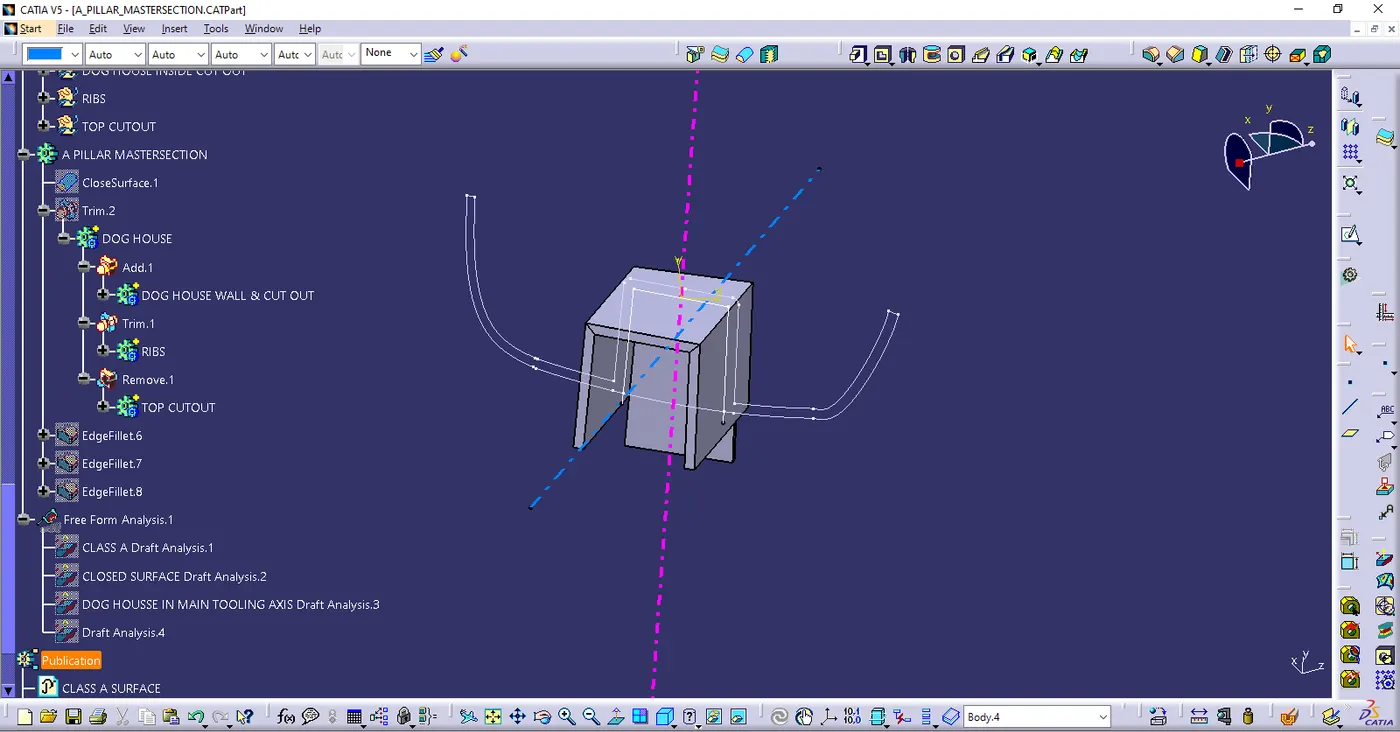

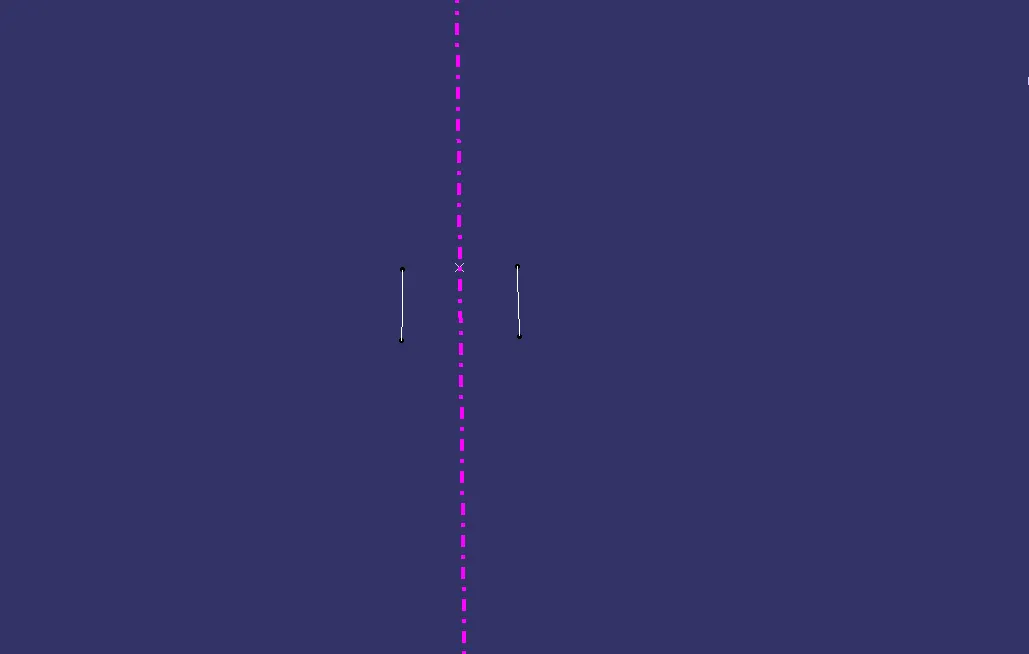

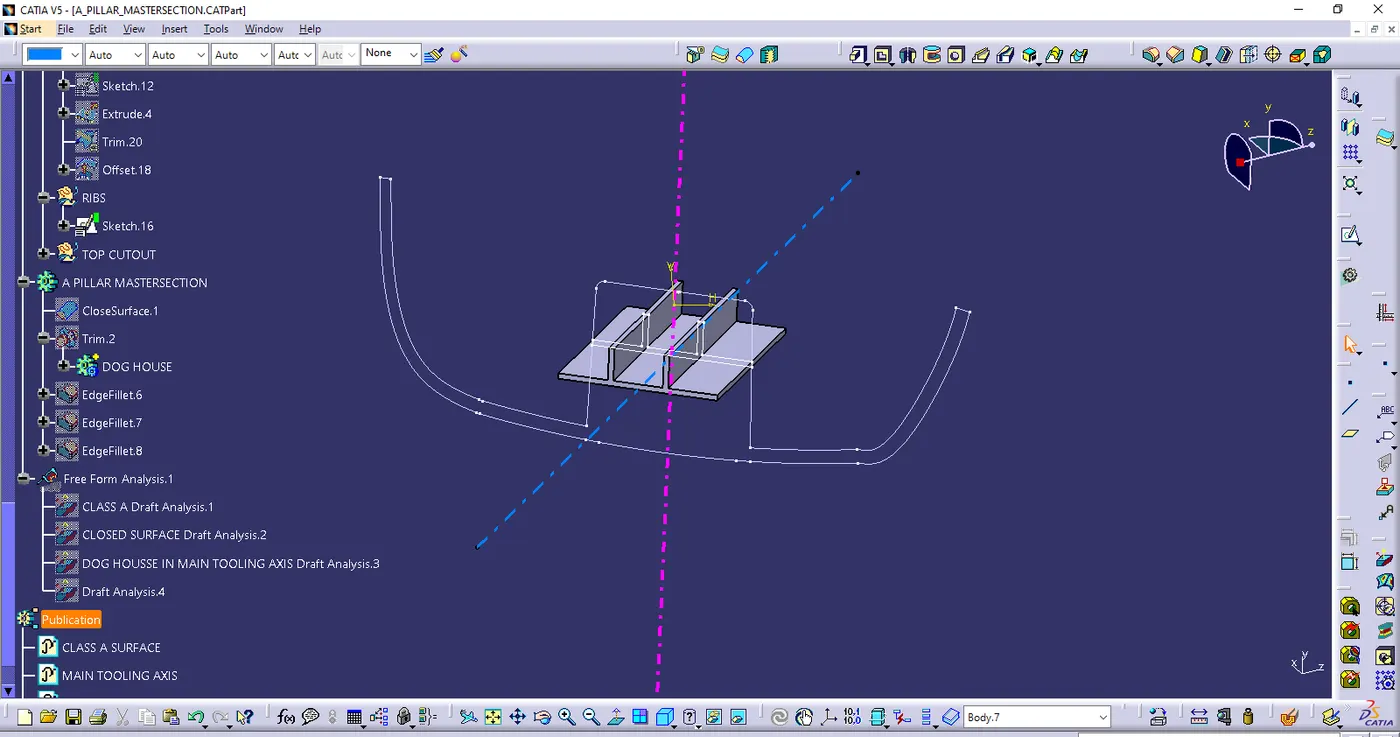

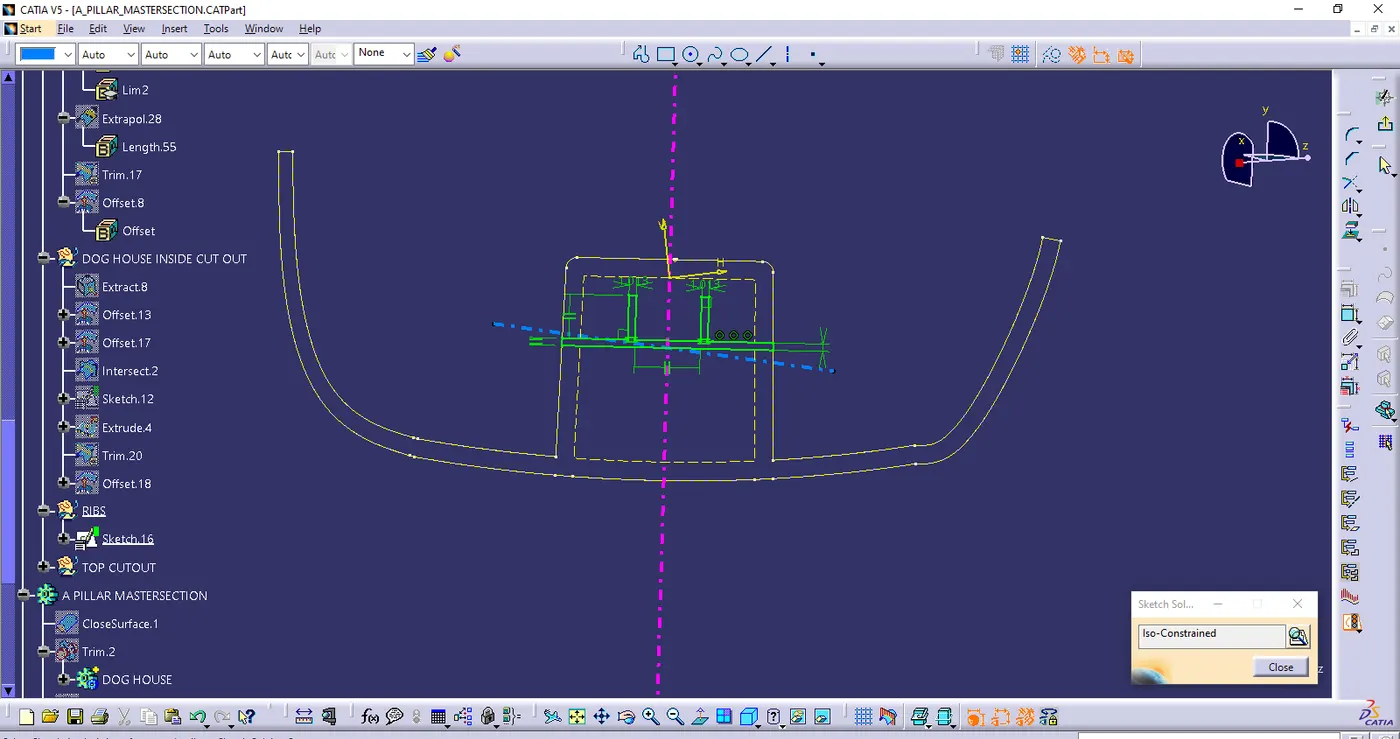

• Sketch For Dog House

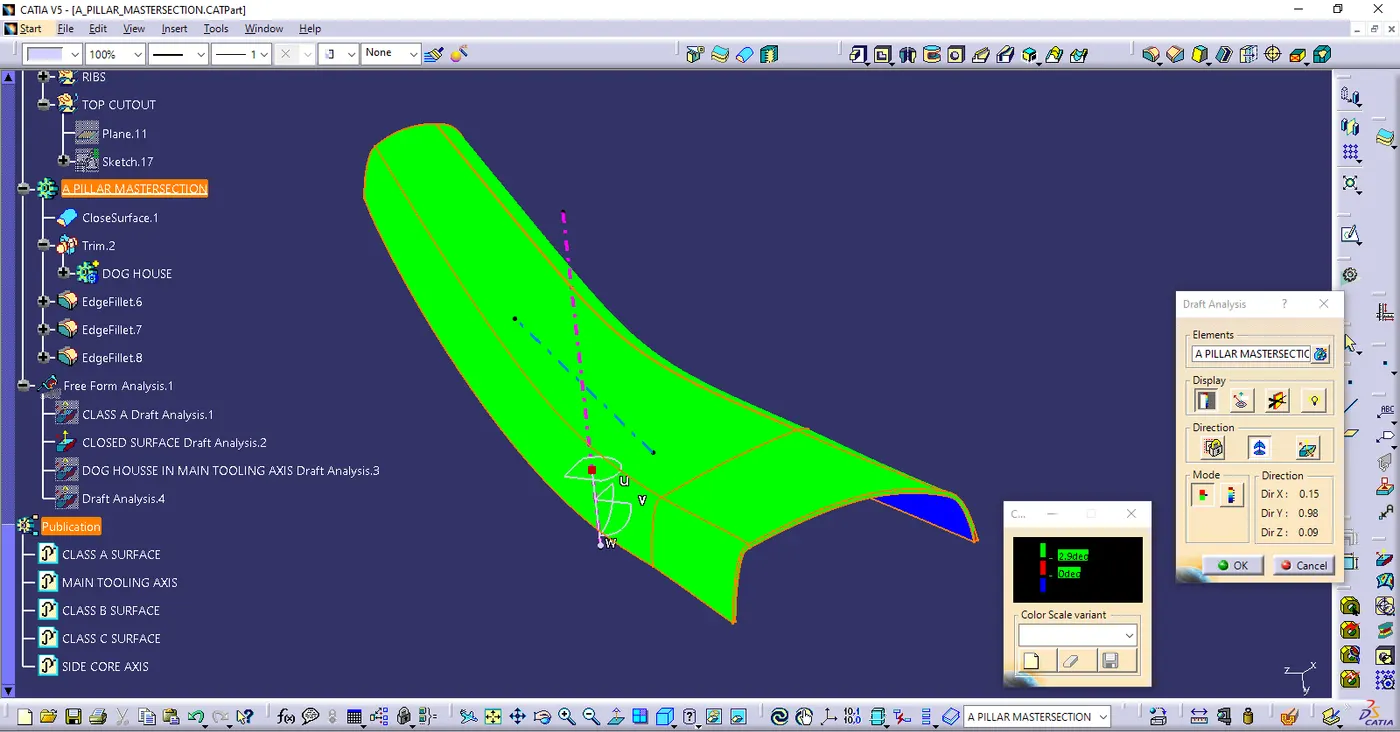

• Draft analysis on Final component

1. Ensure the view mode in material
2. Use the compass to define the new current draft direction & place it on the Tooling axis & lock it
3. Click the final componet it satisfied with the proper draft angle. If it not satisfied use the Analysis under running point tool & correct the values of an draft angle

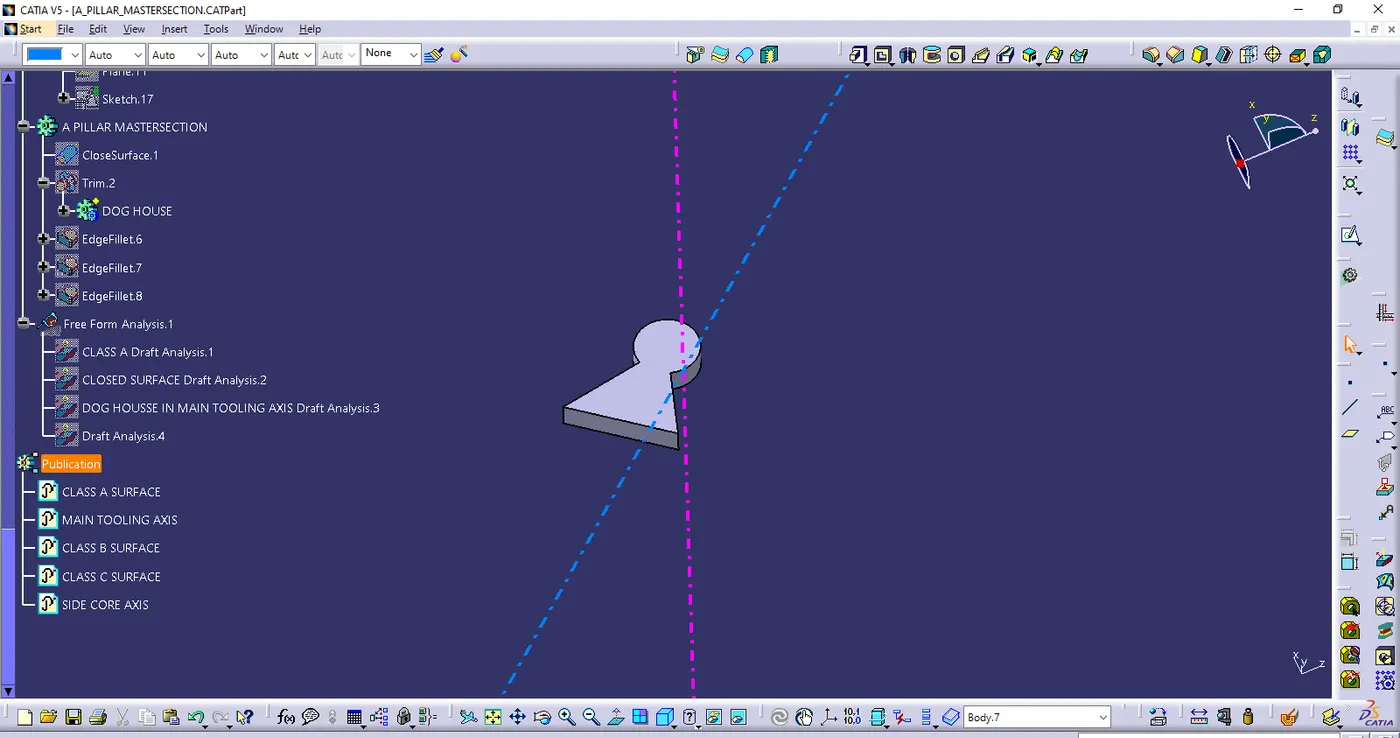

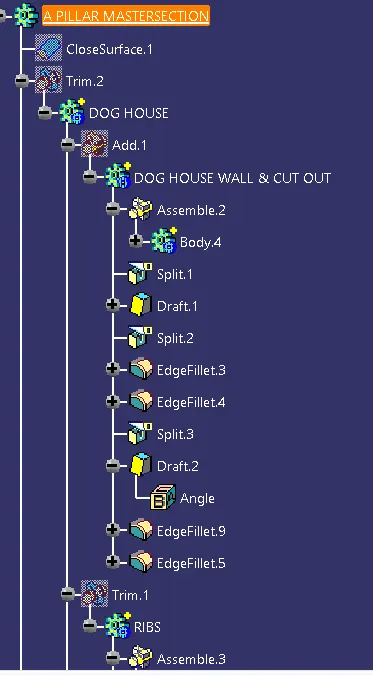

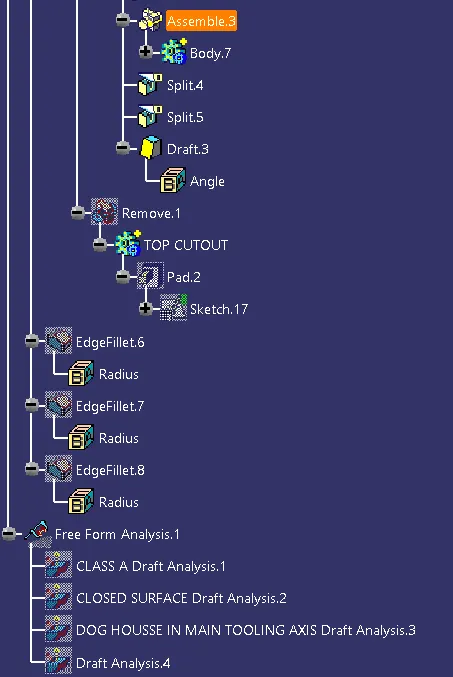

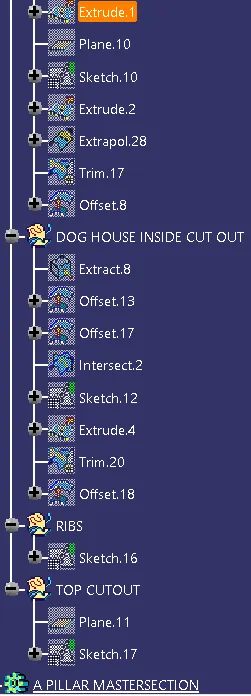

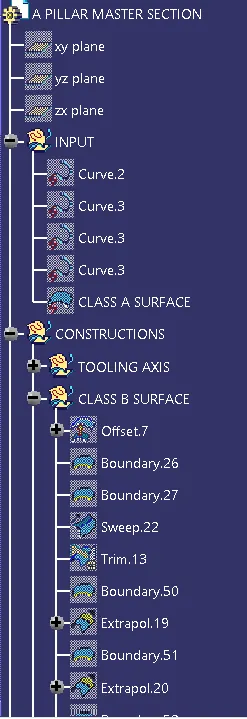

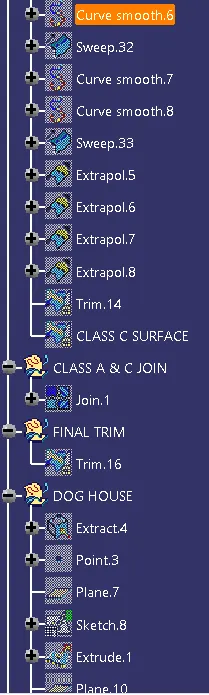

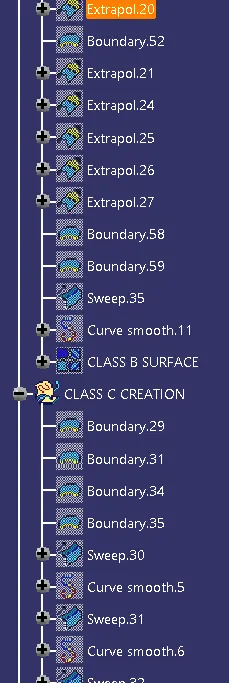

• Tree Structure

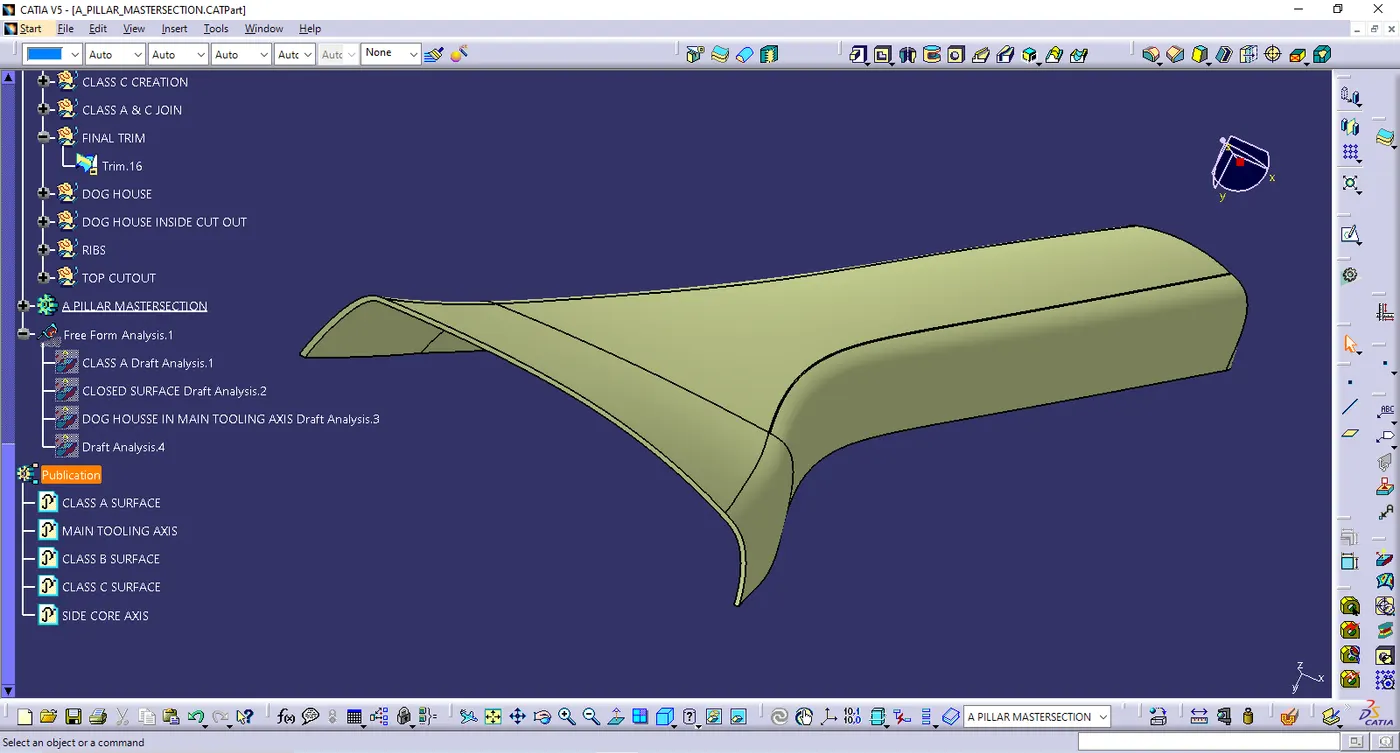

• Close surface feature

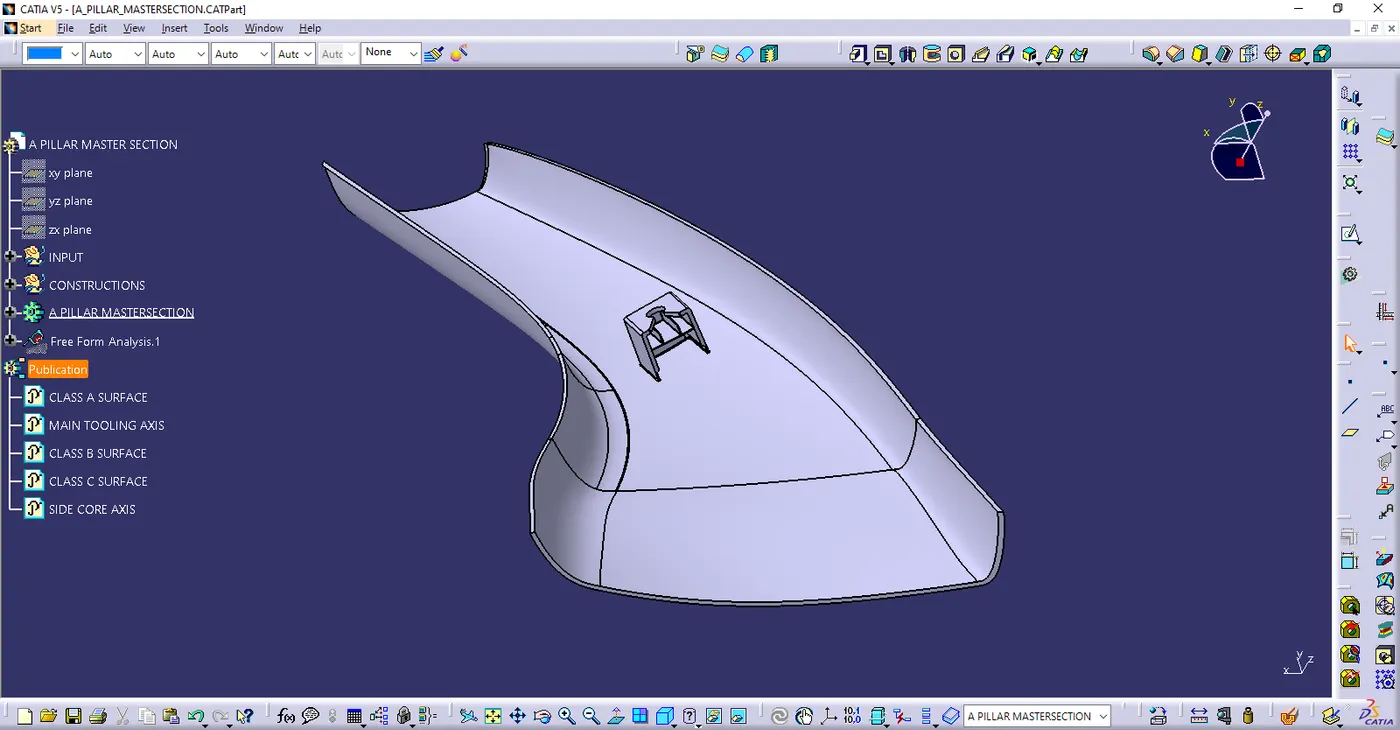

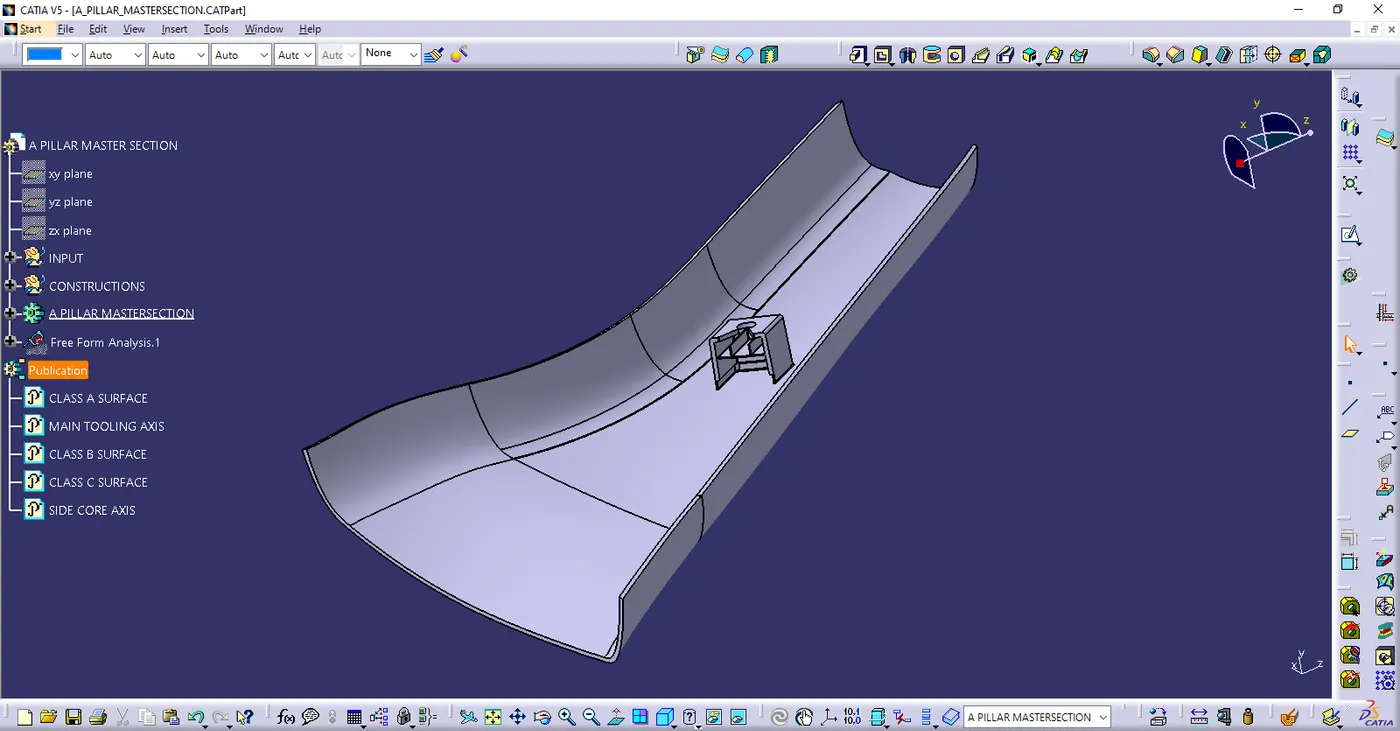

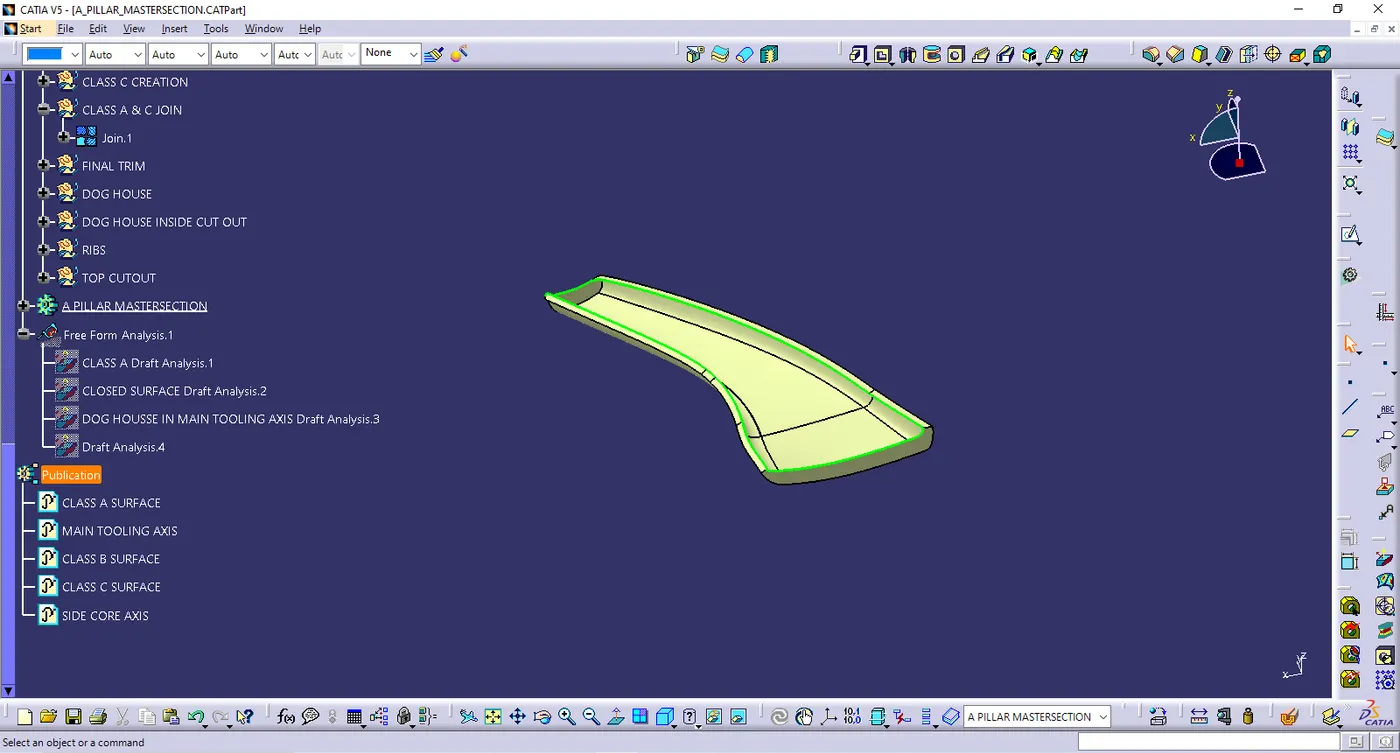

• Isometric view

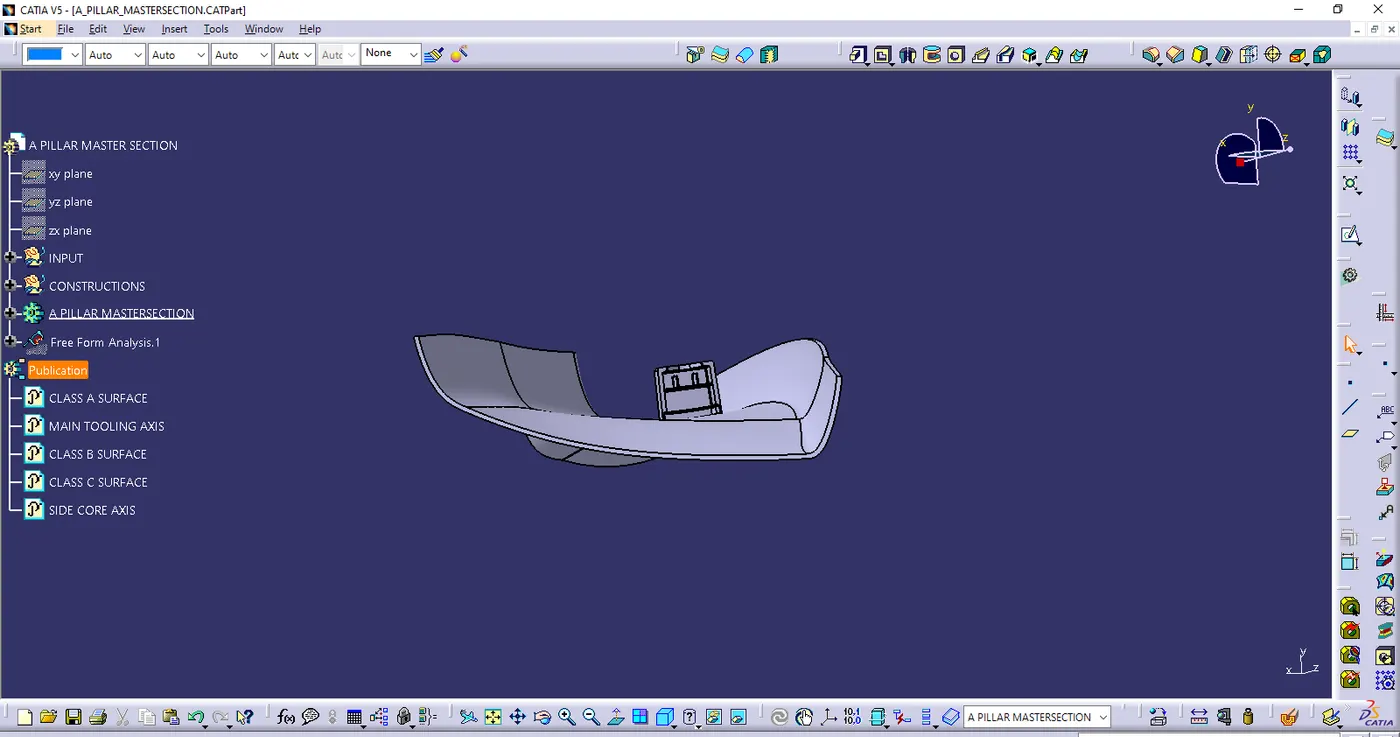

• FRONT VIEW

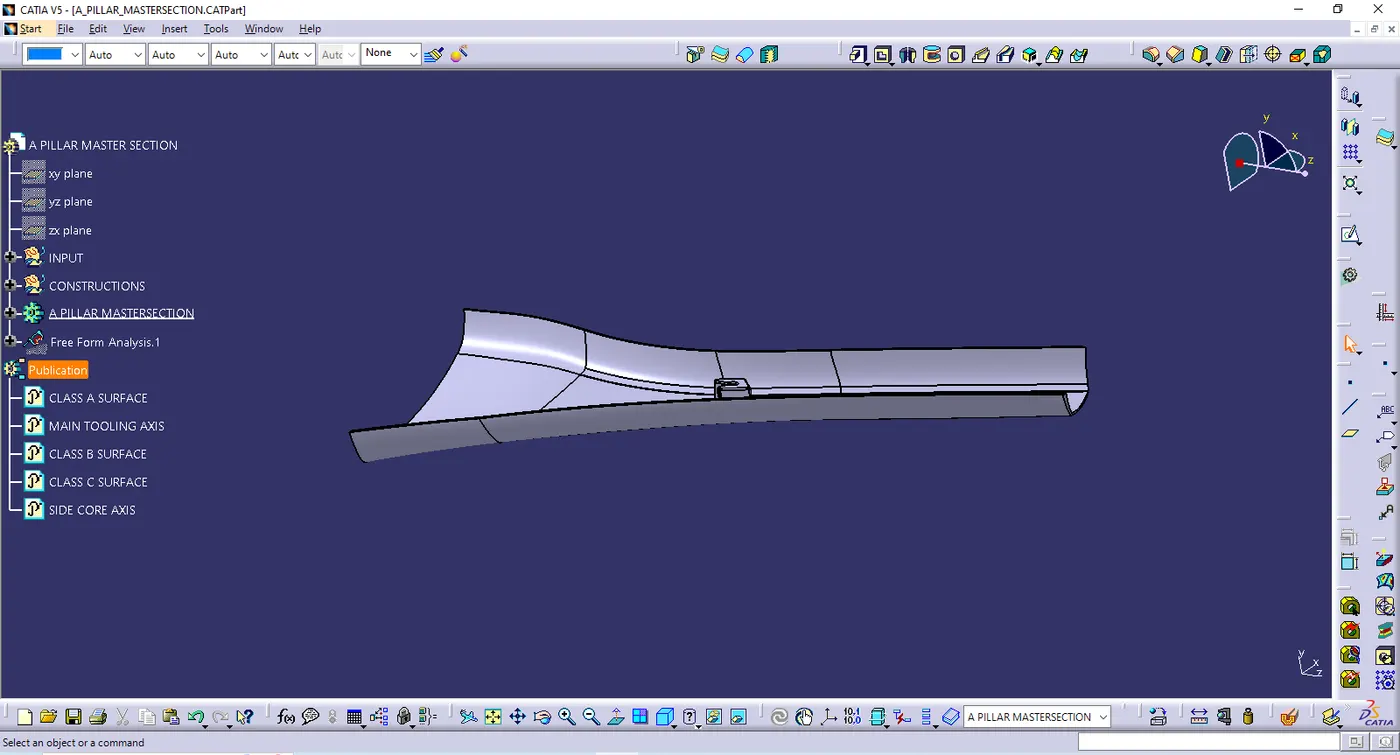

• SIDE VIEW

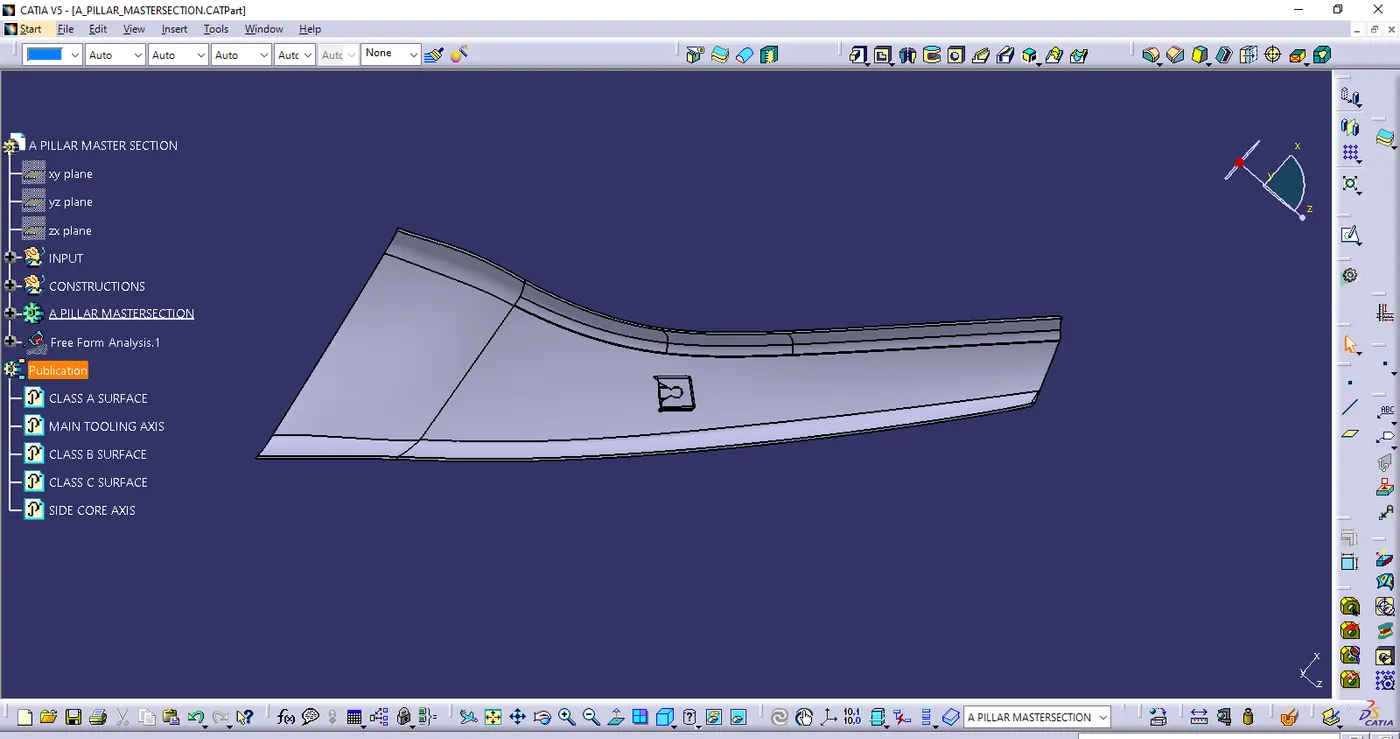

• TOP VIEW
