Week 11 - Project - A pillar Design with Master Section

REPORT BY TOOLING AXIS:

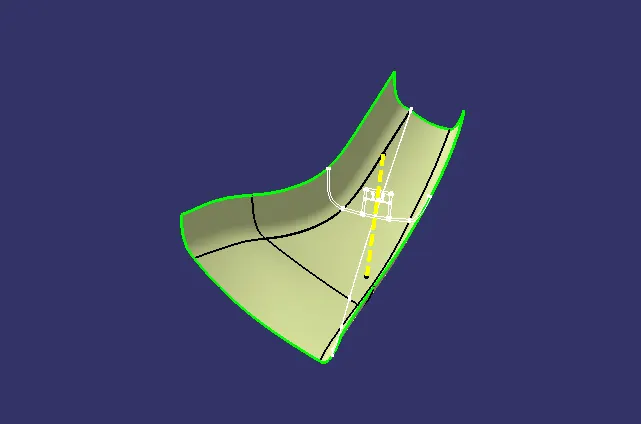

                                            The tooling axis create by  bisecting method used to master section. At first see the master section than create line used point to point command. use this method create 4 lines then create a point help to 2 line middle point. Next used to bisecting method and create a TOOLING Axis.

REPORT BY SIDE CORE AXIS:

                                              The side core axis create by normal to surface method used to master section of dog house. create a point in dog house front side well to middle point and plan. This line is side core aixs.

REPORT BY DRAFT ANALYSIS :

    The draft allow part to reject or eject from the mold. The draft analysis is to identify the draft angle of the part.

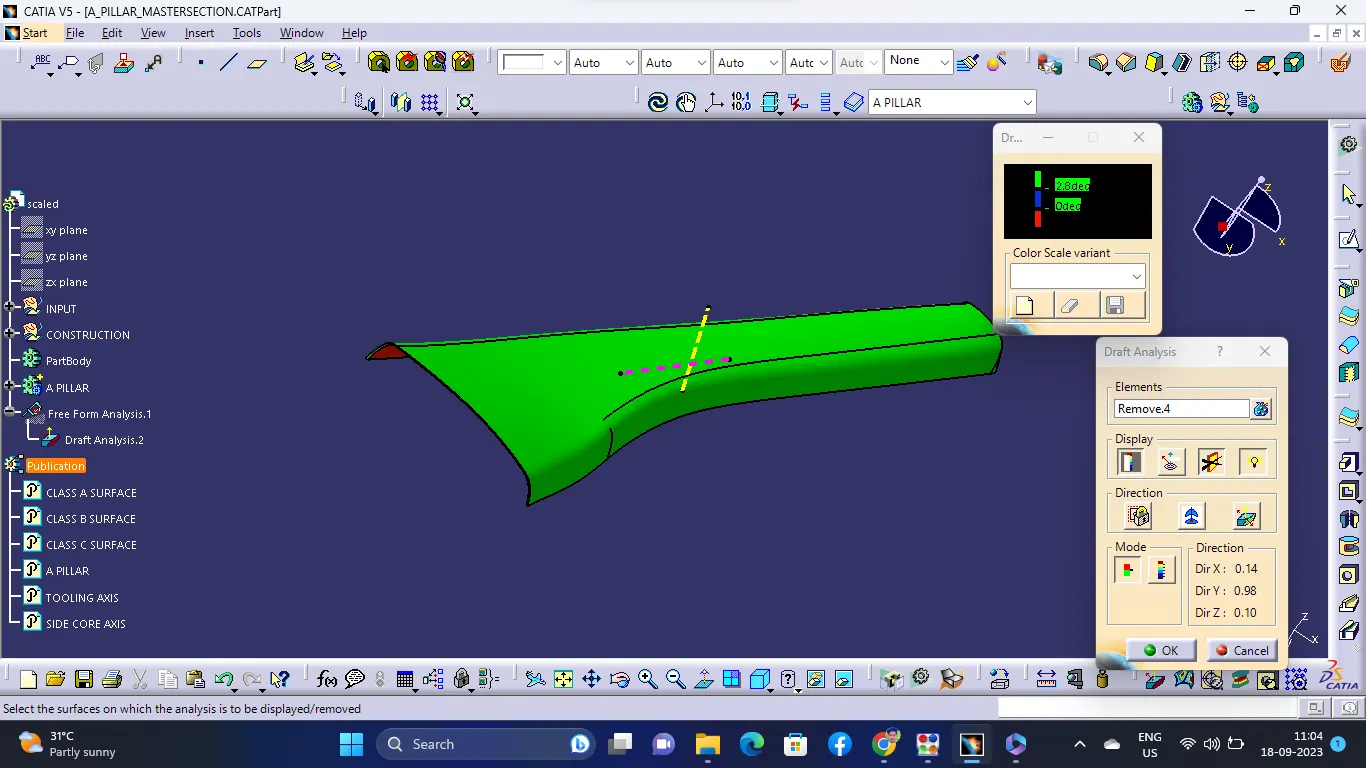

1. A PILLAR: Minimum darft angle is 3 deg. in the given part green indicate the 2.8 deg. and red indicate the negitive value.

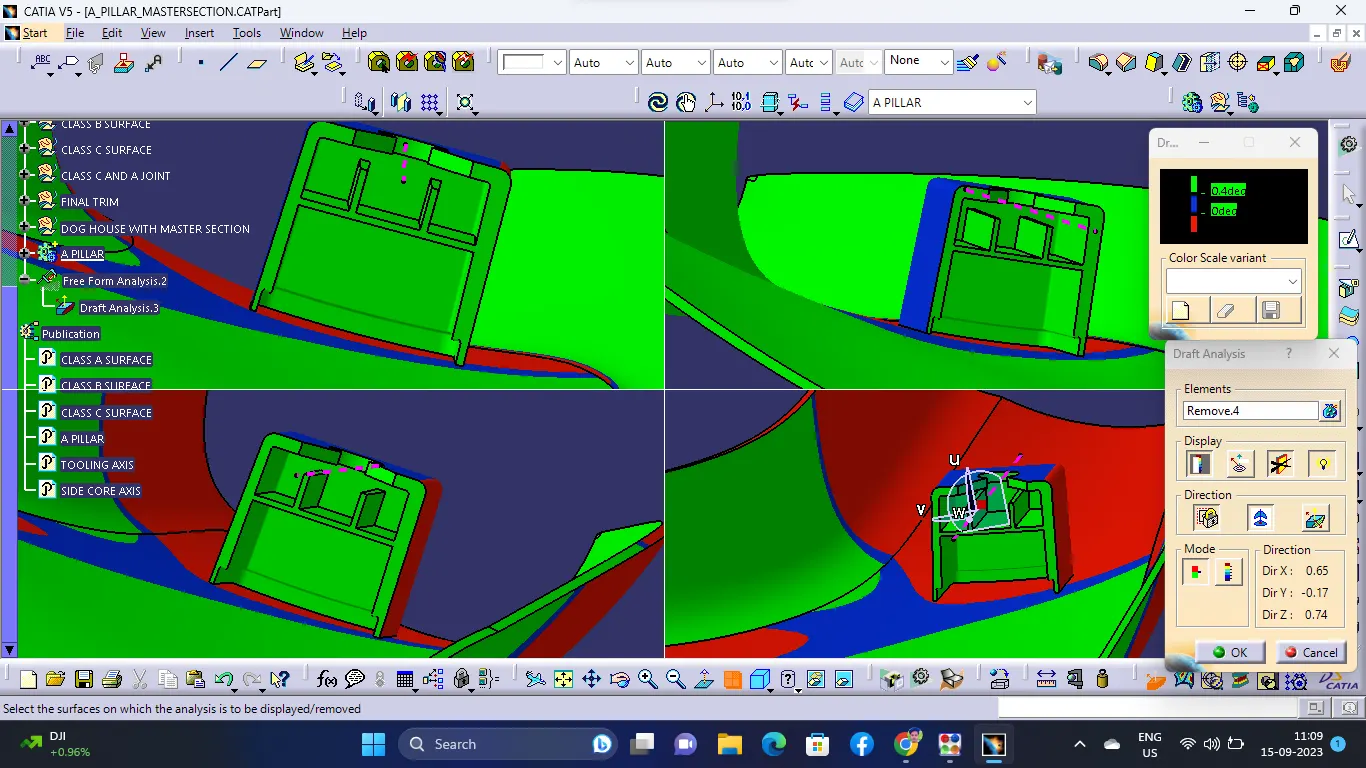

2. DOG HOUSE WITH MAIN TOOLING AXIS : Minimum darft angle is 1.5 deg. in the given part green indicate the 1.4 deg. and red indicate the negitive value.

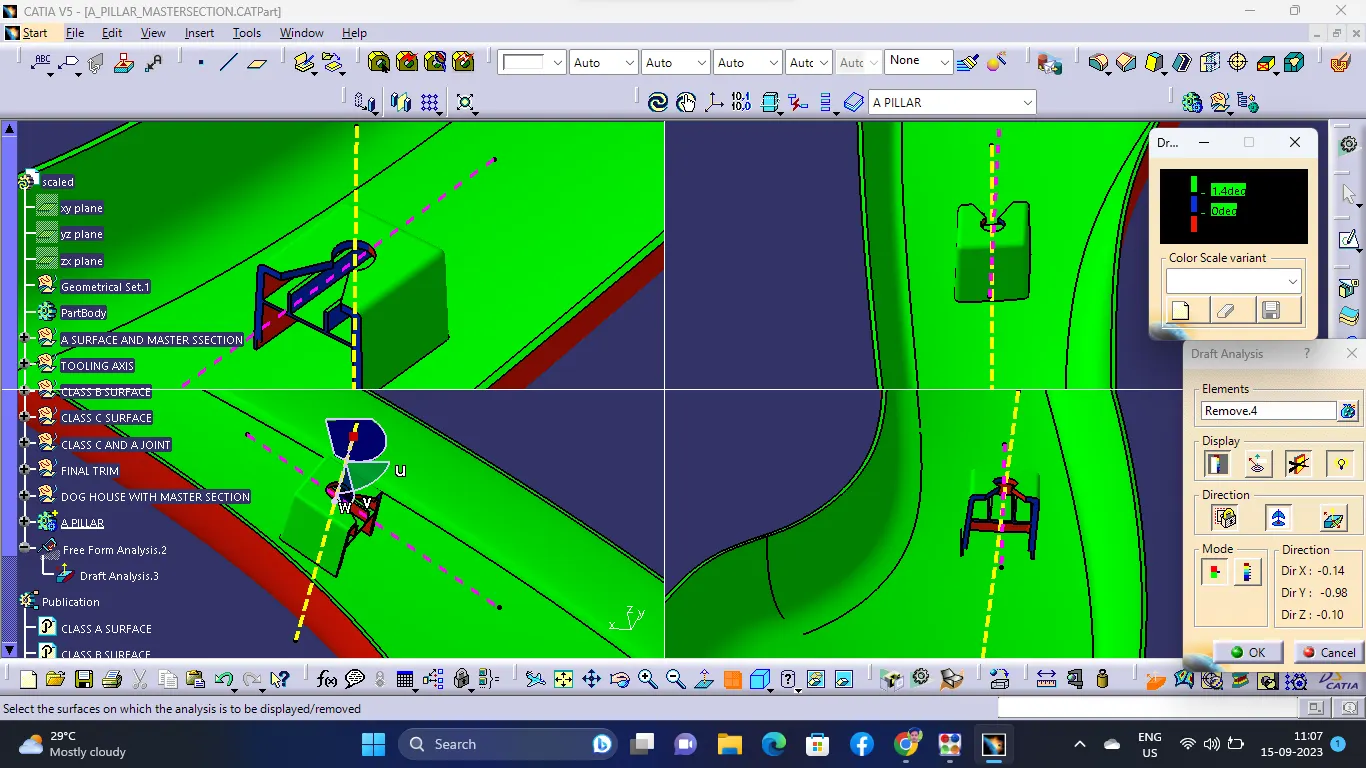

3. DOG HOUSE WITH SIDE CORE AXIS : Minimum darft angle is 0.5 deg. in the given part green indicate the 0.4 deg. and red indicate the negitive value.

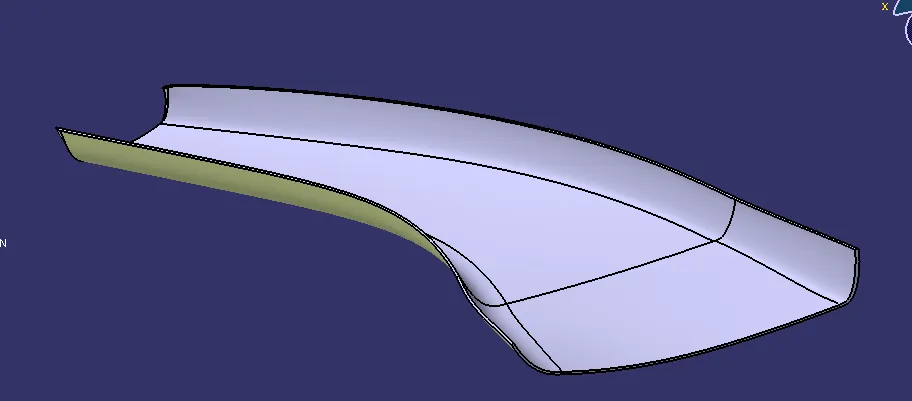

THIS CLASS B SURFACE

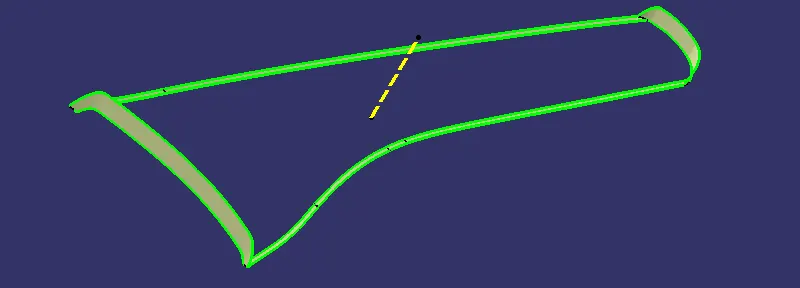

THIS CLASS C SURFACE

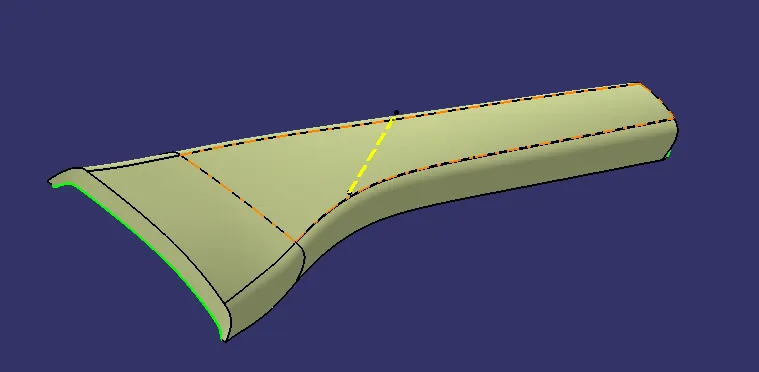

THIS CLASS A AND C JOINT SURFACE

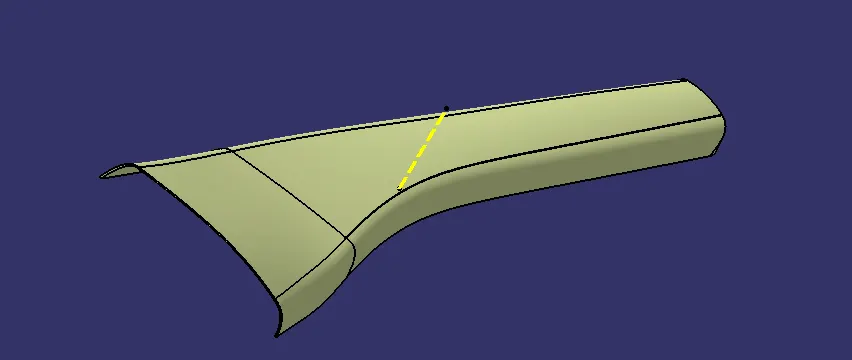

THIS TRIM SURFACE

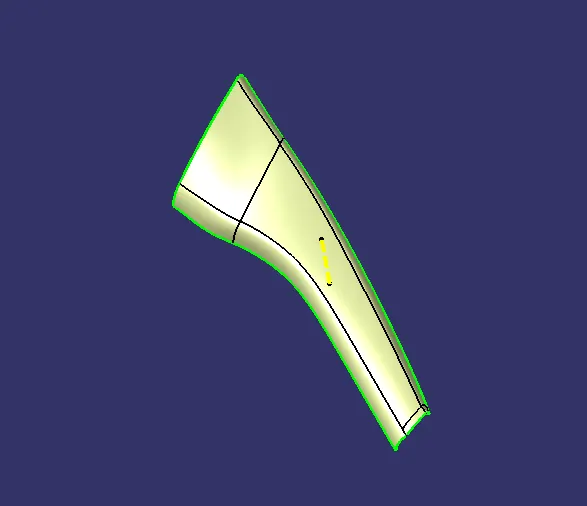

THIS A PILLAR SOLID BODY
