Week 9 - Challenge 3 - Bumper

REPORT BY TOOLING AXIS

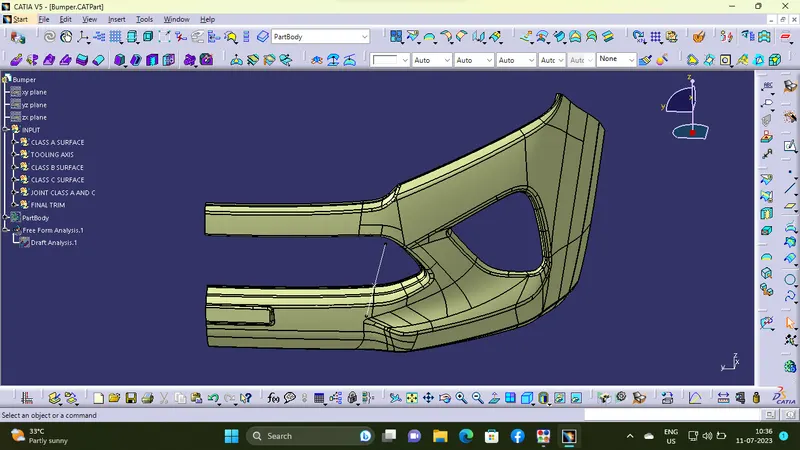

The tooling axis created by X direction because the x direction are visual the all surface.At frist i created a point in any of the cruve in class a surface then used by a line point and direction . point is there and the diection in x direction. this the line is the main tooling axis.

REPORT BY DRAFT ANALYSIS

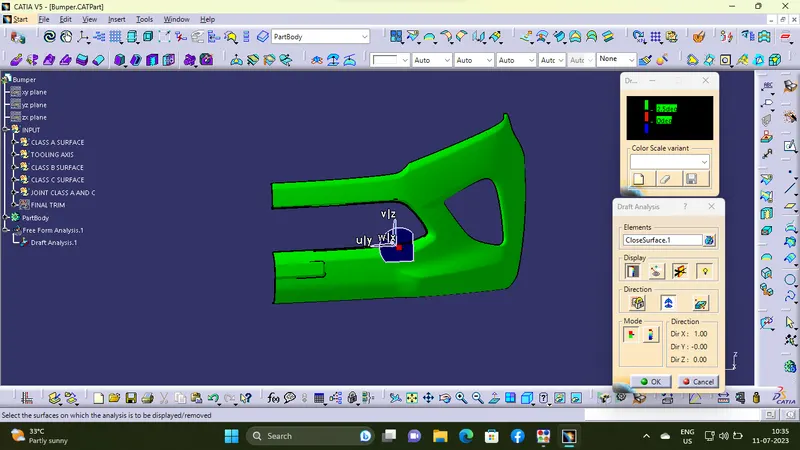

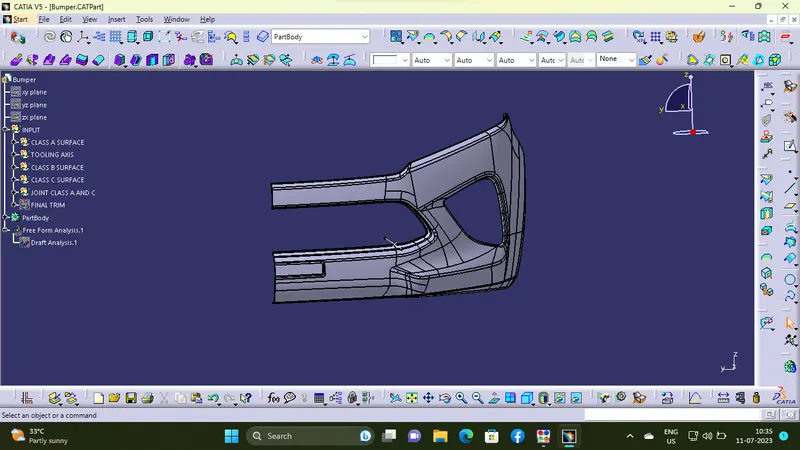

The draft allow part to reject or eject from the mold. The draft analysis is to identify the draft angle of the part.The minimum darft angle 3 deg. In the given part Green indicate the 2.5 deg and Blue indicate the negitive value.
