Week 11 - Project - A pillar Design with Master Section

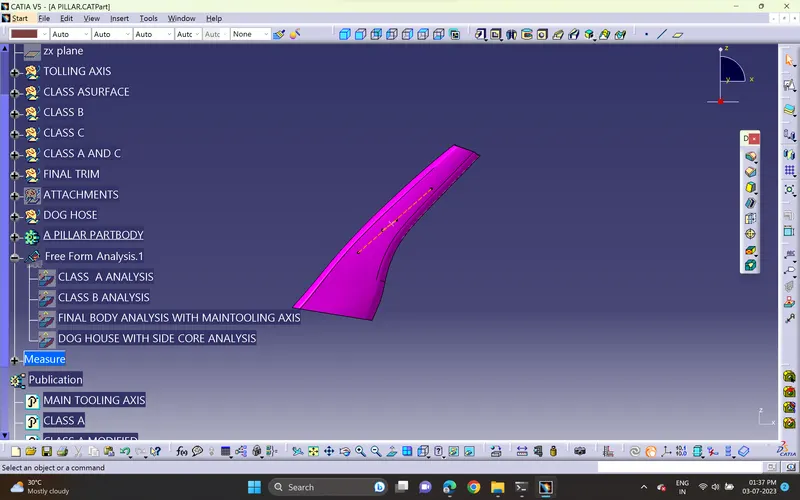

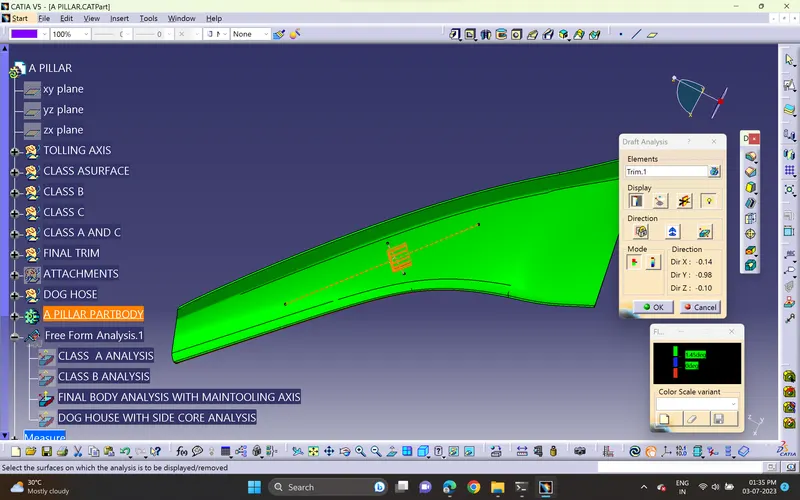

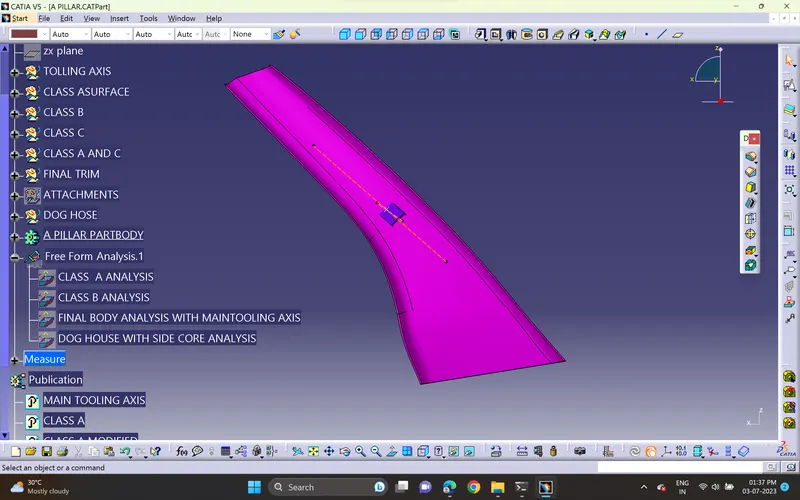

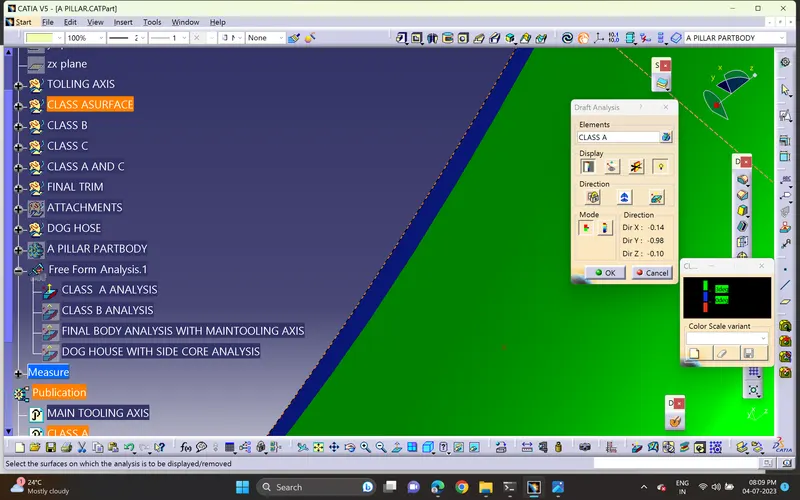

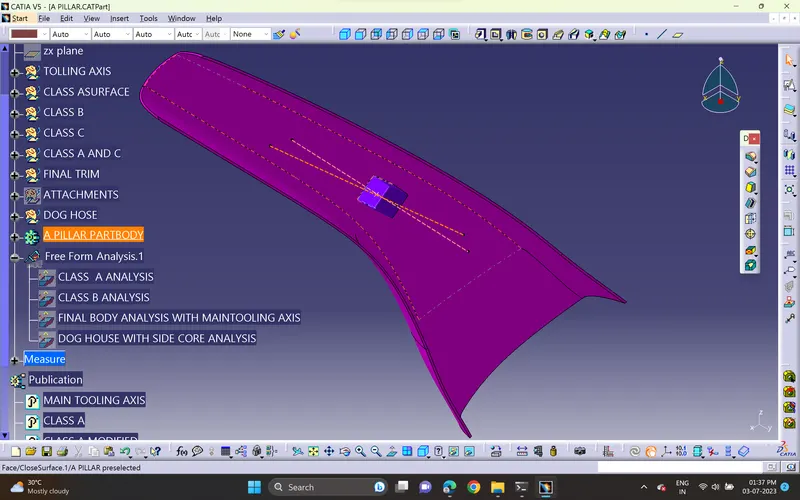

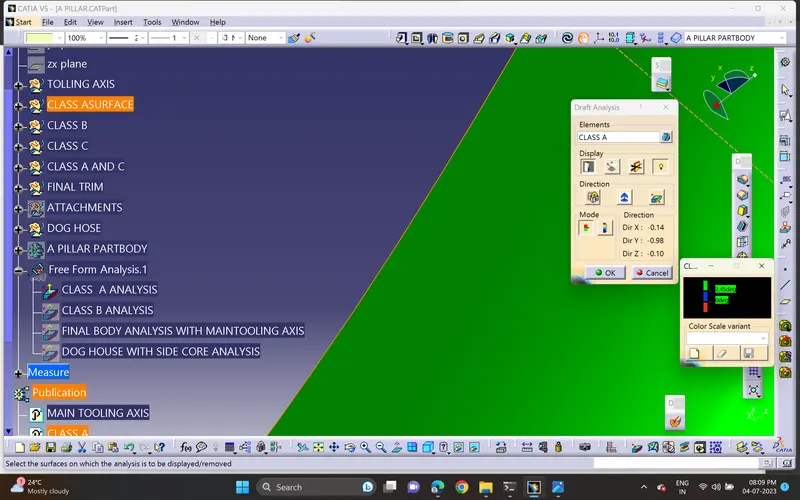

TOOLING AXIS:- IN THIS THE TOOLING DIRECTION IS CLEAR WITH IN Y-DIRECTION BUT SOME OF THE PORTION OF CLASS-A IS NOT FUULY GREEN WITH 3DEGREE ANGLE .ITS CLEAR WITH 2.45 DEGREE ONLY.

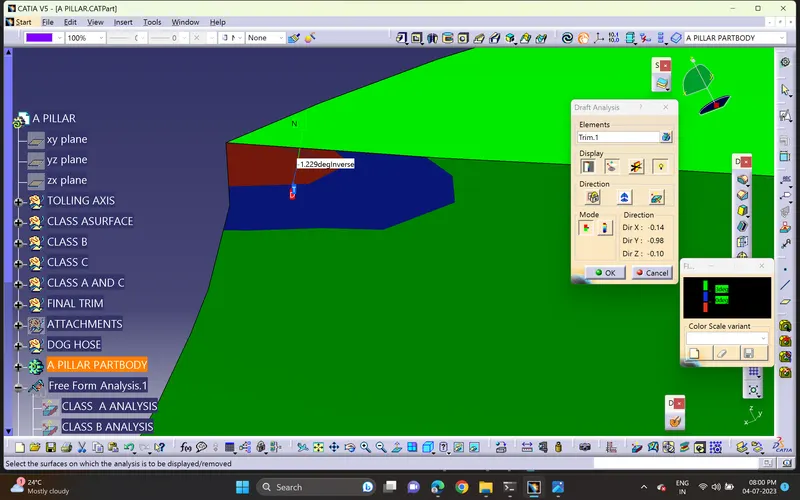

WHEN WE DID DRAFT ANALYSIS ON FINAL COMPONENT THE AREA OF EDGE IS IN -VE DEGREE

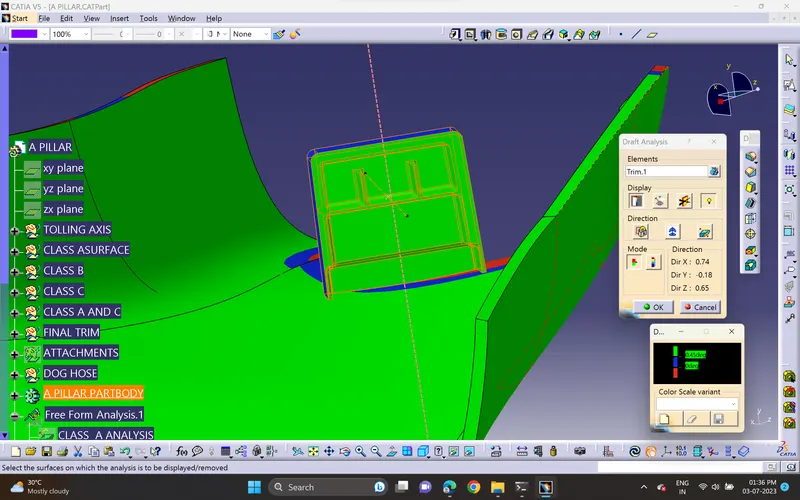

SIDE CORE TOOLING AXIS: WE USED SIDE CORE TOOLING AXIS TO CLEAR ALL THE INNER SURFACE OF DOG HOUSE THE AXIS CREATED BASED ON THE POINT DIRECTION.
