Week 11 - Final project
FINAL PROJECT DOOR ASSEMBLE.

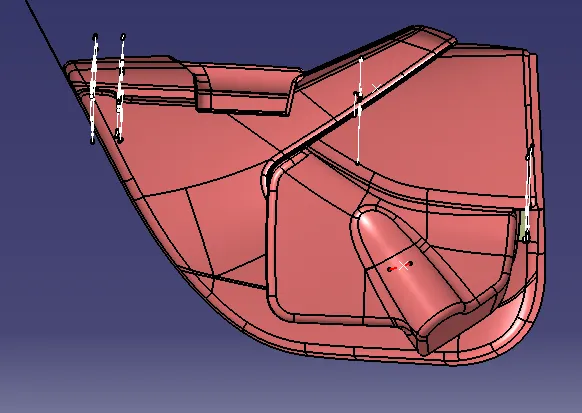

BOTTLE HOLDER:
CLASS A surface and the master section lines.
support them by using the MULTI EXTRACT.
create a support part body and the support tooling axis.
after creating the support part body do draft analysis and the chick the running analysis of the part body.

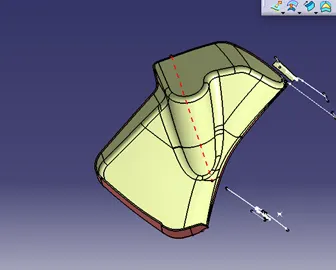

Do the same operation to the armrest and map pocket.
Create the B SURFACE by using the offset command at the length of 2.5 mm make sure not there are no gaps in the b surface.
if have any gaps then proved a suitable command and replace them.

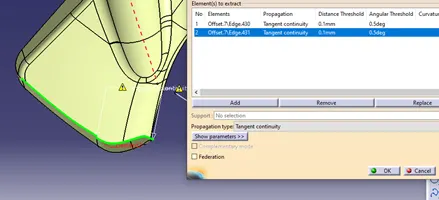

Extrapolate surface B by using the multi-extract.
after extrapolating the use boundary to check the gaps of the surface B.
if find any gaps replace them.
CLASS C SURFACE.
USE MULTI EXTRACT SELECT THE BOUNDARY
use sweep to create the surface c at the angle of 90 degrees to create a sweep according to the requirement.
length of 3mm surface.
after creating the CLASS C SURFACE check with the boundary and might find any gaps.
IF find any loops in the class c surface replace and re-create them.
surface as to be without gaps.
Trimming operation:
perform the trim with class b surface and class c surface.
check with the intersection section command
might find any air gaps between the class c and class b surfaces.
Operate according to the requirement.
after a trim operation is performed then it is in a perfect operation.
after trim between the class c and class, b surface join with the class a surface
Final operation:
After joining surface c and surface b check with boundary command.
If any boundary is formed then it is not the perfect closed body.
if not form any boundary, then it is a closed body.
Solid operation:
use the close surface command to create the solid body.
IN A SIMILAR WAY ANOTHER PART OPERATION AS TO DONE.

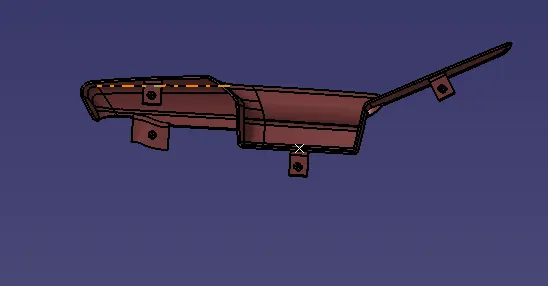

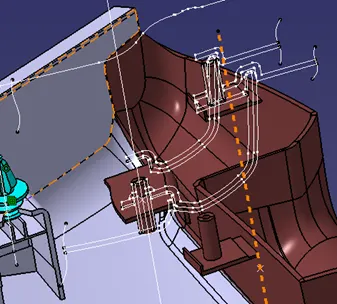

HEAT STACKS AND FLANGES:
by using the master section line have to create the heat stacks and flanges
draft them at the angle of 0.5 degrees and by using the tooling axis.
inner and outer surface.
make the flanges accounting to the requirement.
flanges can be made according to the requirement
gap between the flange solid-body as to by around 15mm to 10 mm
heat stack height at a length of 15mm to 20mm above the flange.
flanges and placed according to the requirement.
DOG HOUSE.
dog draft placed according to the requirement.
make the sure gap between the wall and dog house to be 2mm to 3mm.
make the undercut by using the extract.
split at the length of 0.8 mm
draft the angle at 0.5 degrees.
length between the wall and upper surface as to be 2.5mm
the circle at diameter 3mm.
undercut as a draft at the angle of 0.5 degrees.

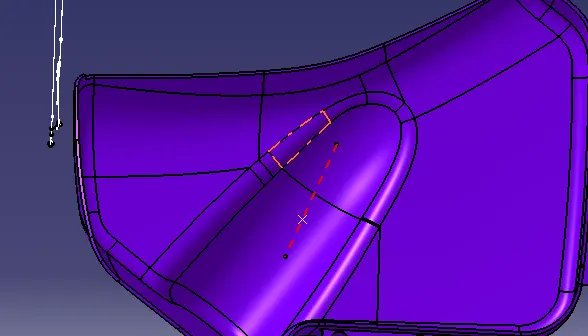

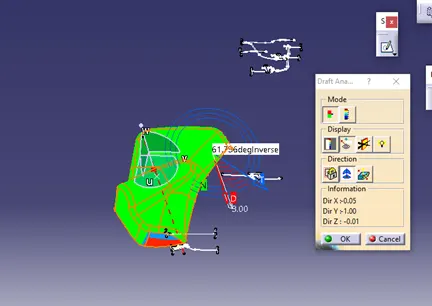

DRAFT ANALYSIS:
RUNNING DRAFT ANALYSIS.

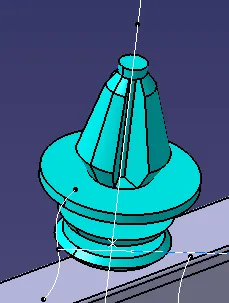

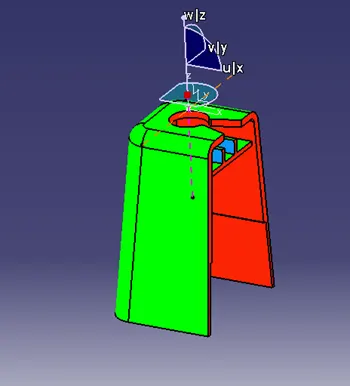

PUSH CLIPS

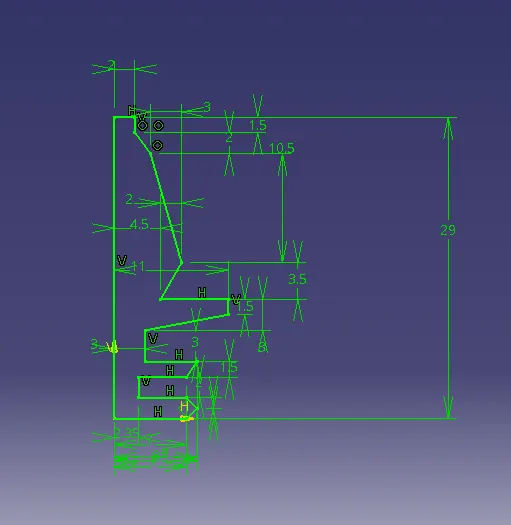

Make shape by using the shaft.
the shape is made by using the groove command and then multi-section use circle rotation.
make sure lines are in iso constrain
copy and paste the similar operation.
then added to a assemble operation by using the new command.

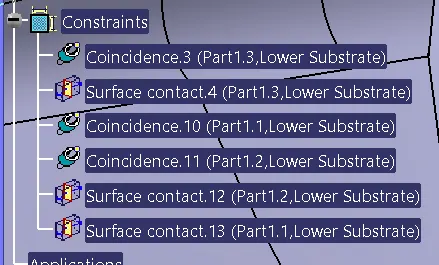

ASSEMBLE DESIGN.
BY USING THE COINCIDINE CONSTRAIN COMMAND THEN USE THE CONTACT COMMAND TO SELECT THE REQUIRED SURFACE OF THE PART BODY.
similarly, the operation does another dog house.

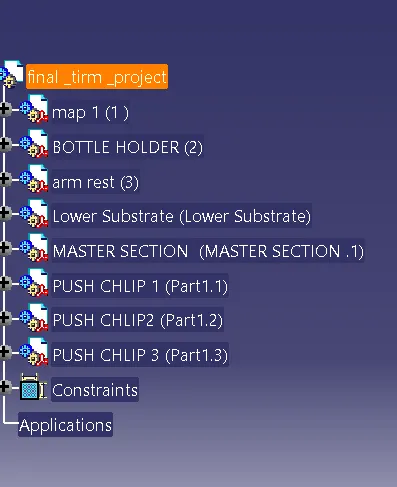

TREE STRUCTURE:

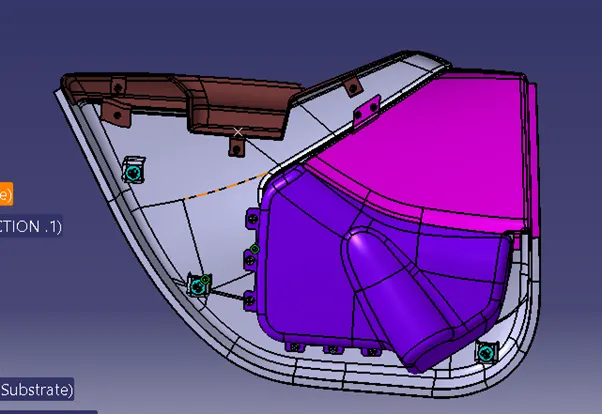

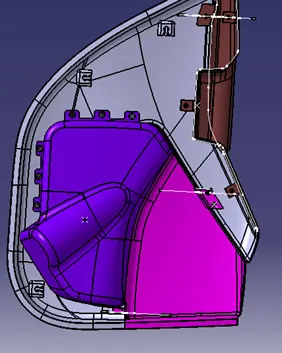

FINAL OUTPUT OF DOOR ASSEMBLE :
THANK YOU .......
