Week-11 : Discretization of 3D intake manifold using GEM-3D

• Single cyl DI add case 2 with discretization length 0.1 mm for intake runner and compare with default case 1

Firstly, we going to open the model 1cyIDI-Final, and run as standard to see what we got as parameters.

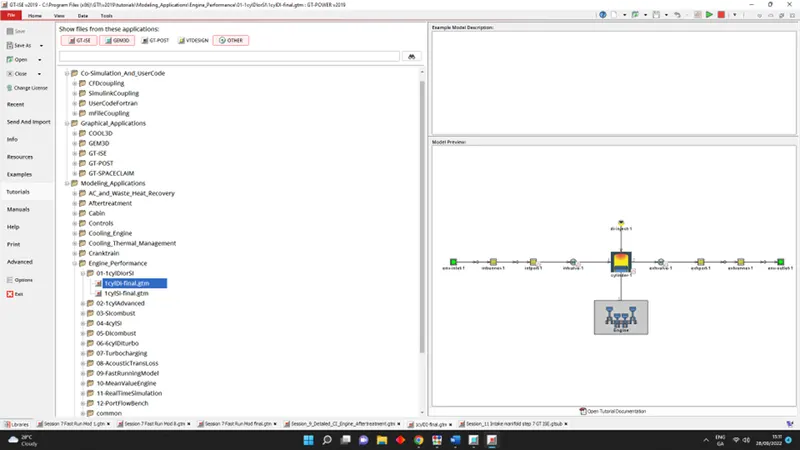

Opening the model

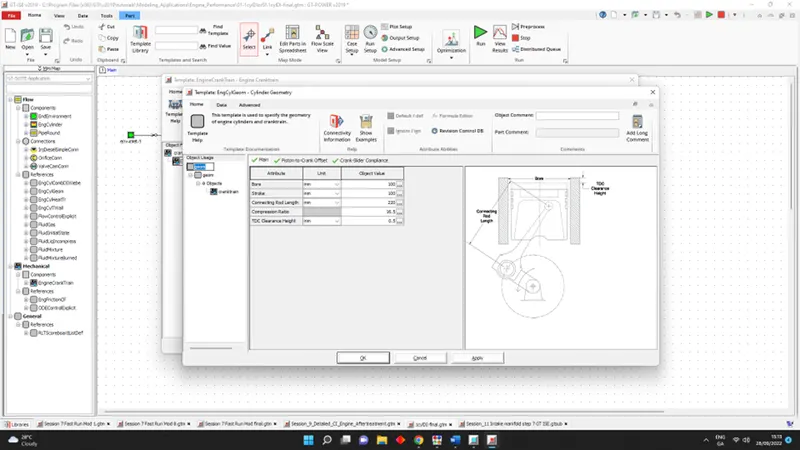

Geometry engine details

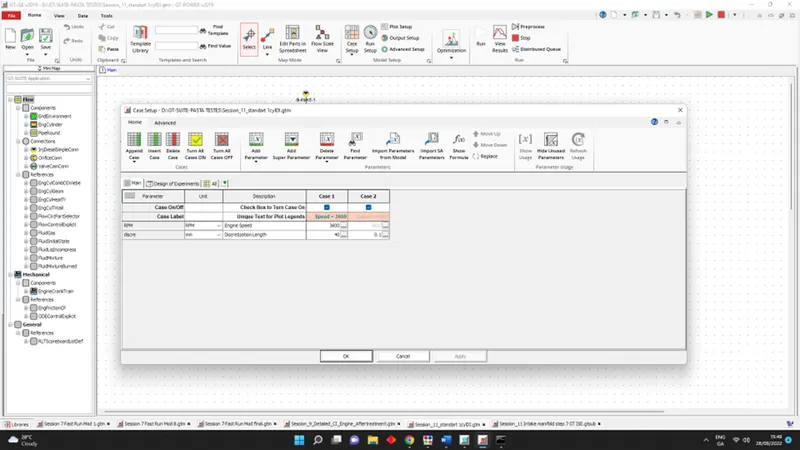

We`re going to run the model with 3600RPM with standard discretization size 40 mm and 0.1 mm for comparation

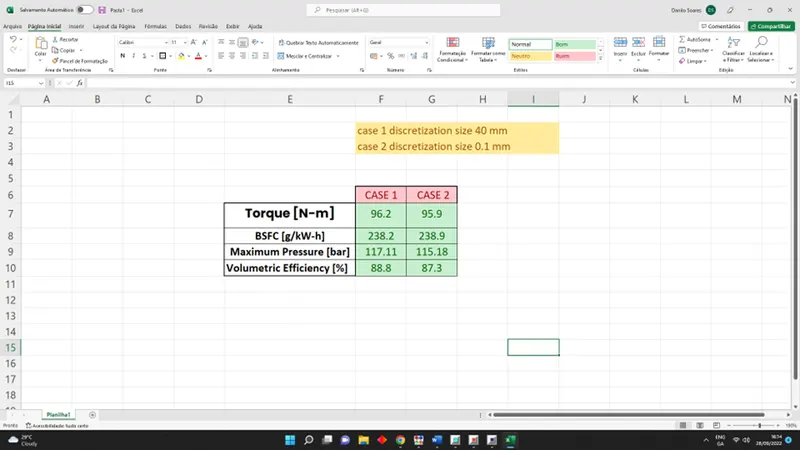

• Parameters -Torque, BSFC, max cylinder pressure

We did not find any big divergency in any of these parameters

• simulation time

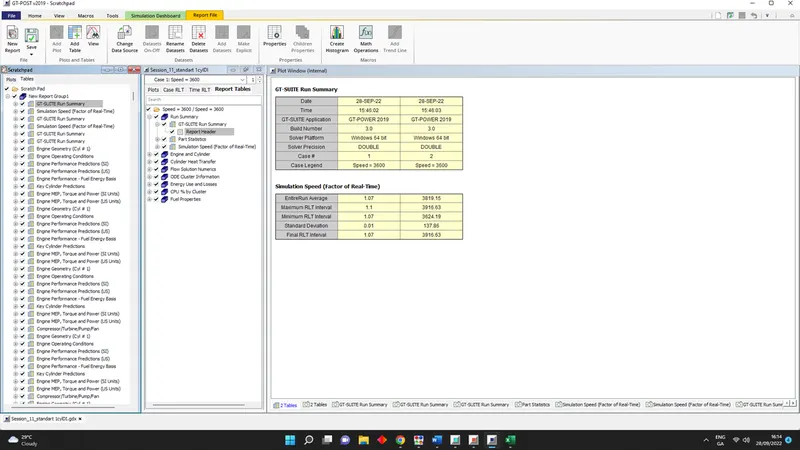

The smallest discretization size we found a value of 3819.15 times slower than the standard settings.

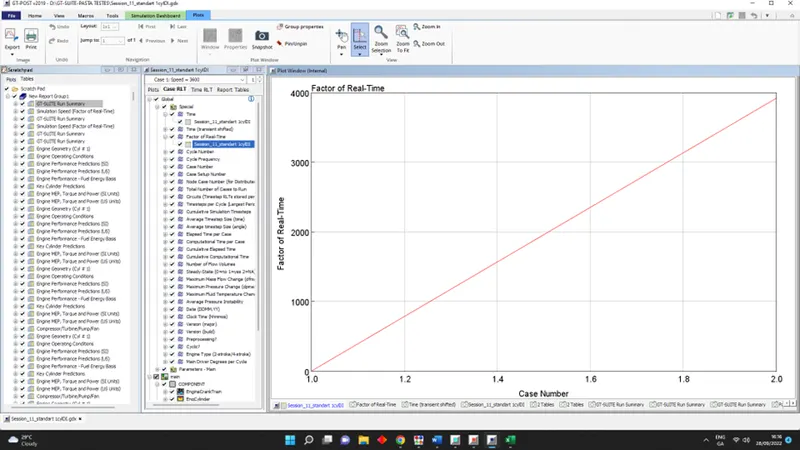

Factor of a Real time chart

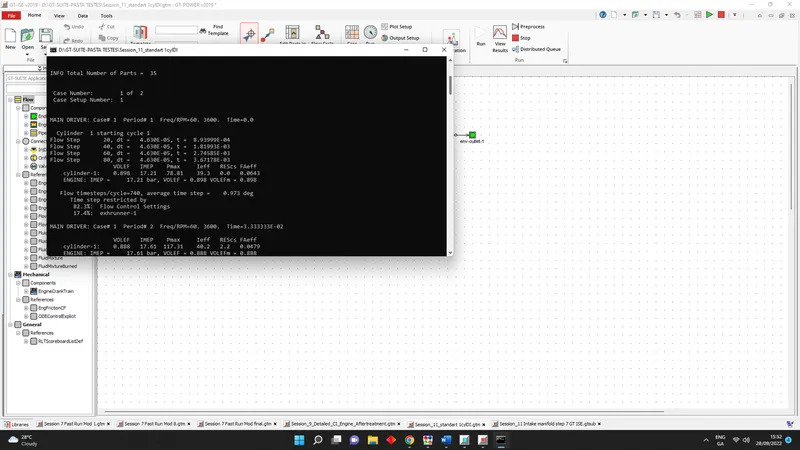

Case 1 average time step = 0.973 deg

Case 2 average time step = 0.004 deg

IMPORTANT: Its very important always to be very aware about the simulation discretization time. Its by standard use as discretization size using (0,4*bore diameter).

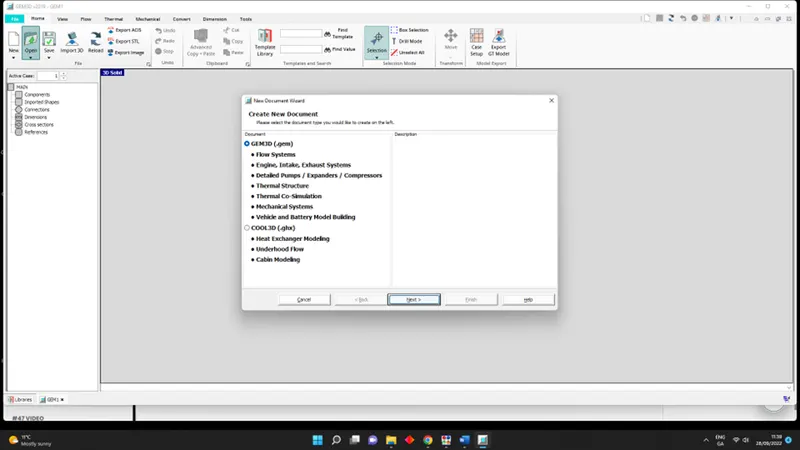

• Exploring GEM 3D

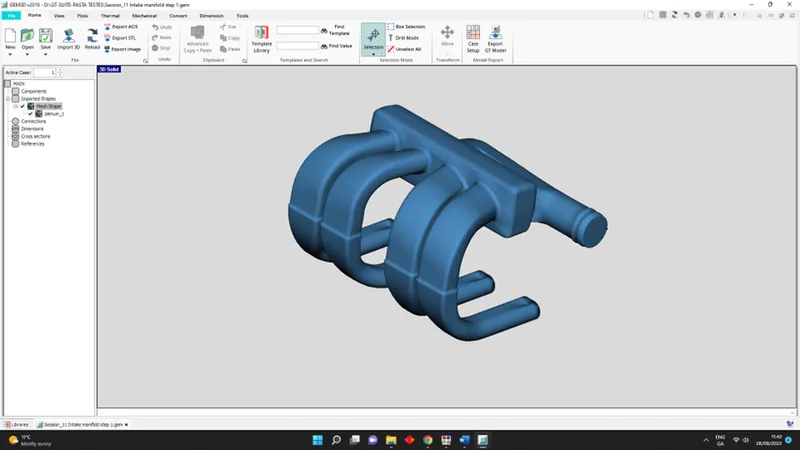

Exporting Plenum from the data examples

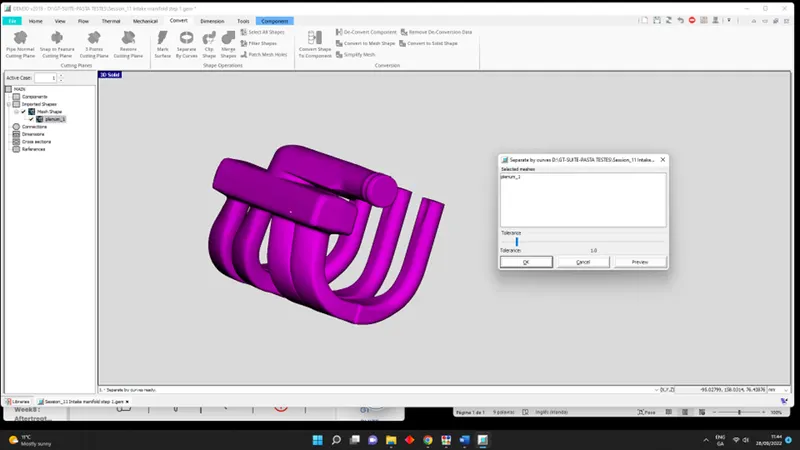

Separating by curves

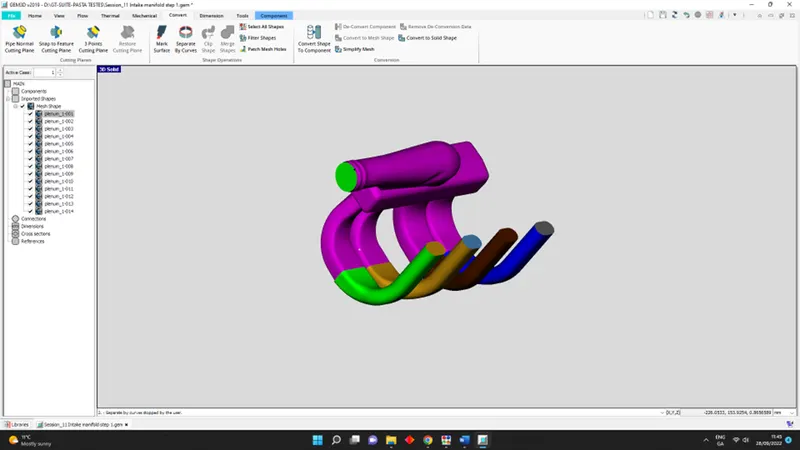

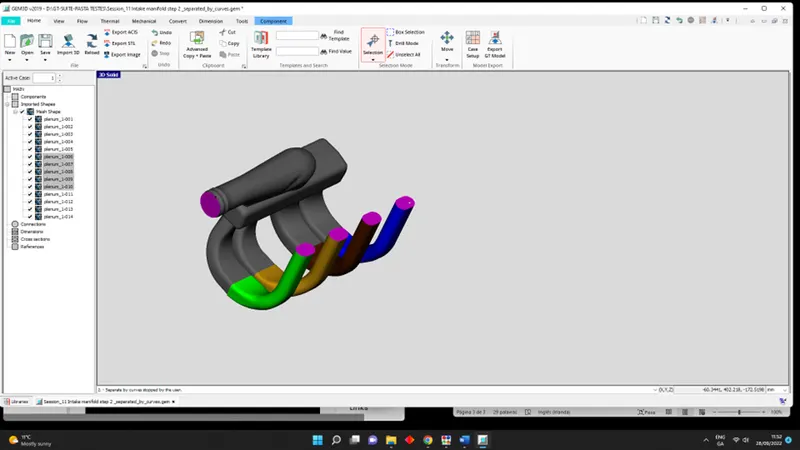

After separating by curves command

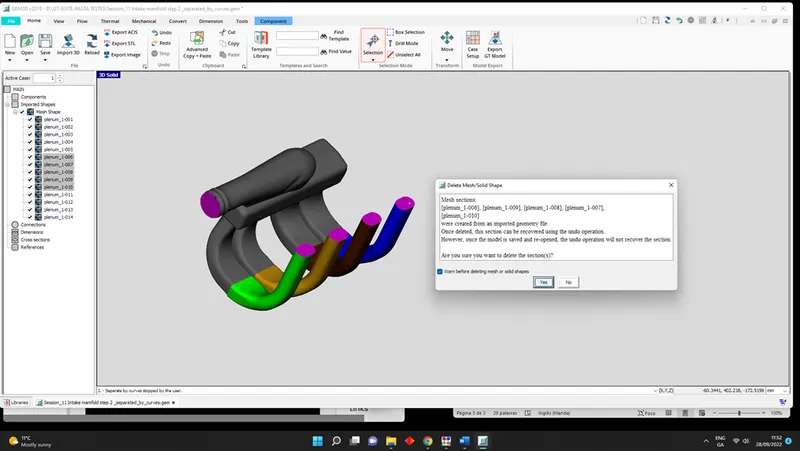

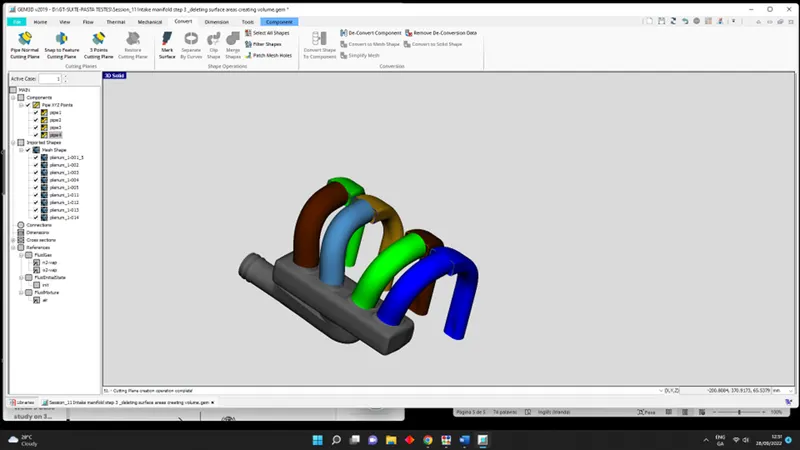

Creating the intern volume by deleting the surface areas from the model

Meshing sections

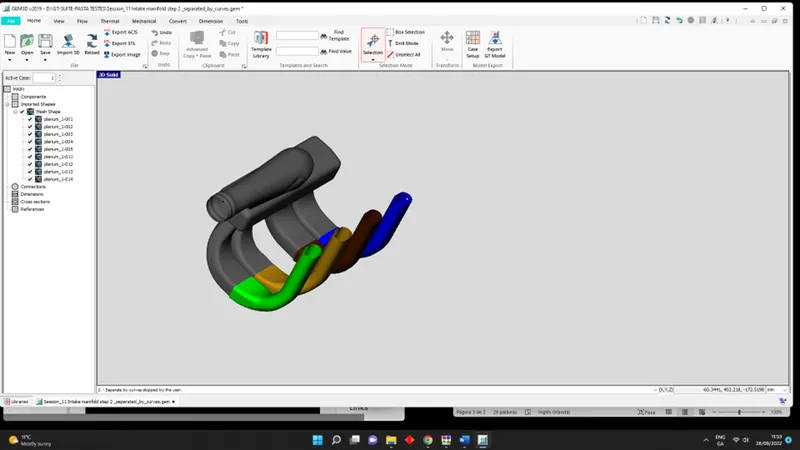

Intern volume created

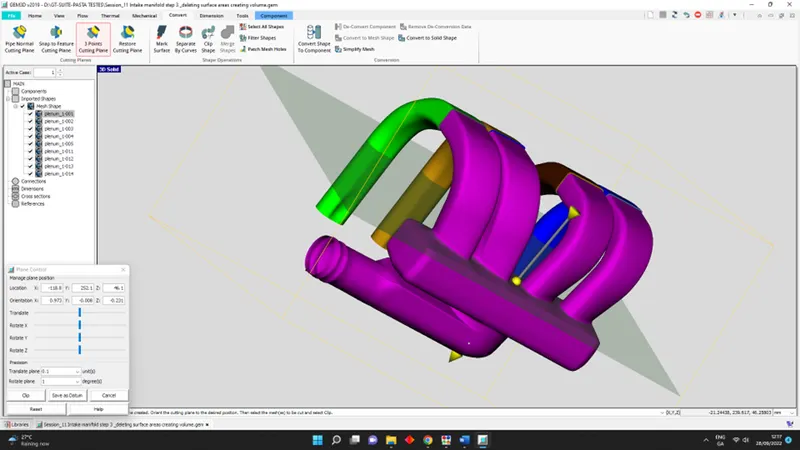

Separating the pipes from the plenum using 3 points cutting plane from convert menu. After we must convert that 4 intake runners to some other shape that the software could work in it.

Converting shape to component

Preview settings

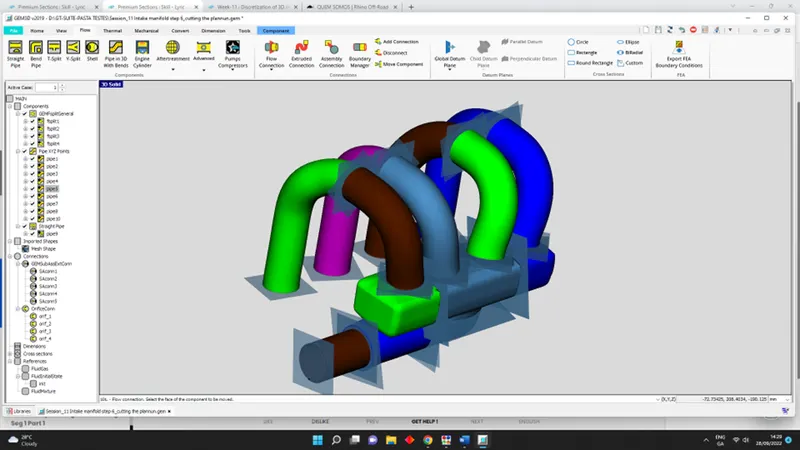

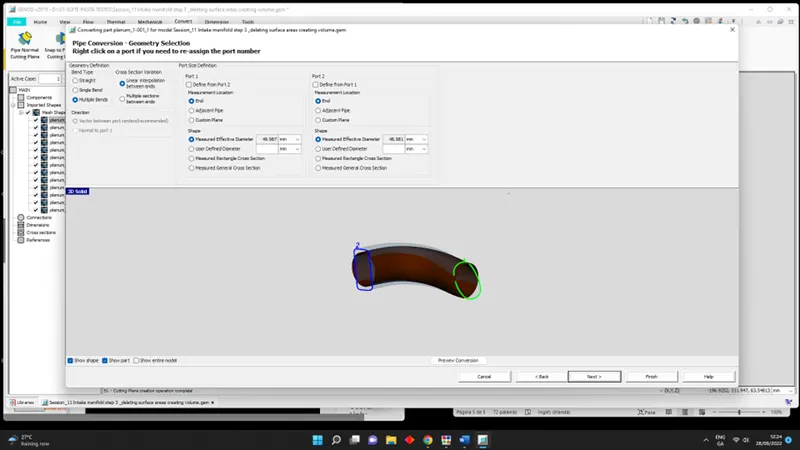

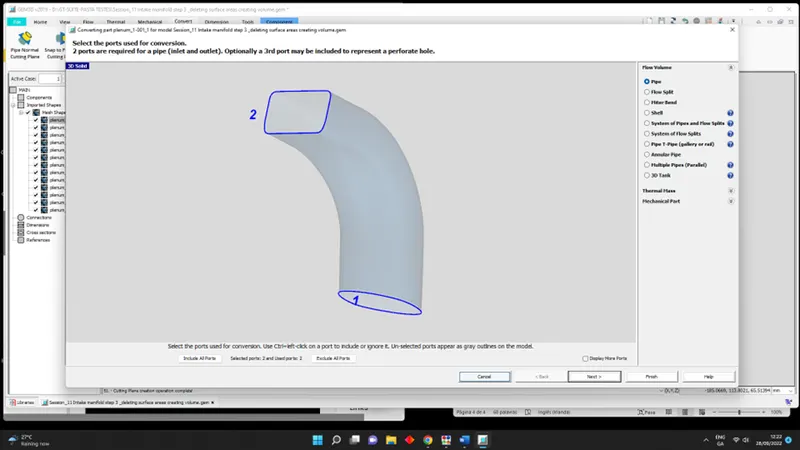

Converting shapes to pipes fase 1

Converting shapes to pipes fase 2

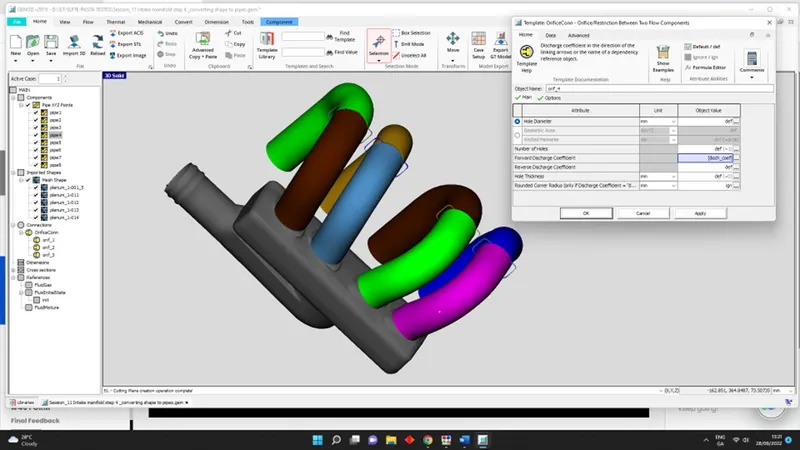

Converting shapes to pipes fase 3: orifice connection using Forward Discharge Coefficient 0.95

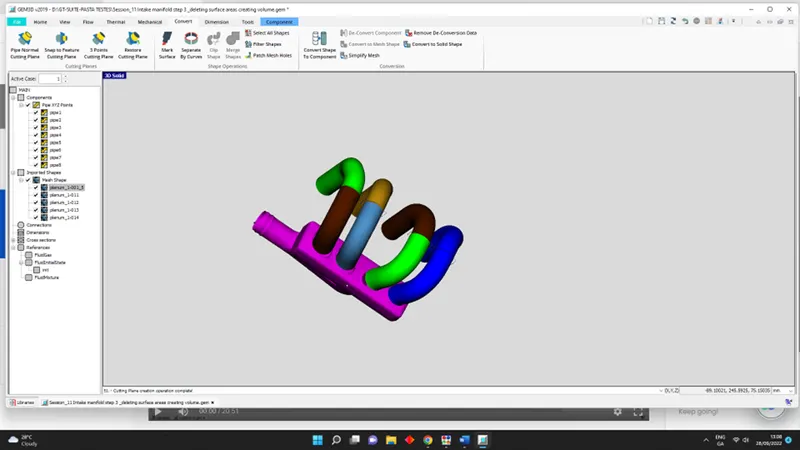

Showing flow connections

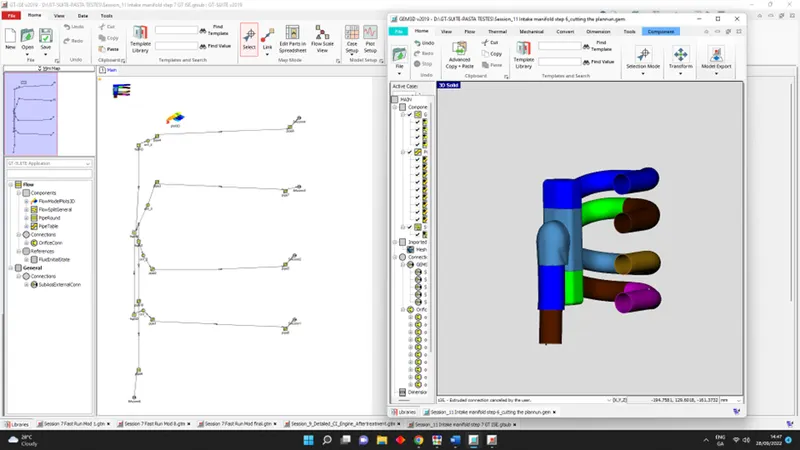

Final model discretised on GT-ISE (left) and final model on GEM3D (right).
