Week 11 Challenge

1. Aim and introduction:

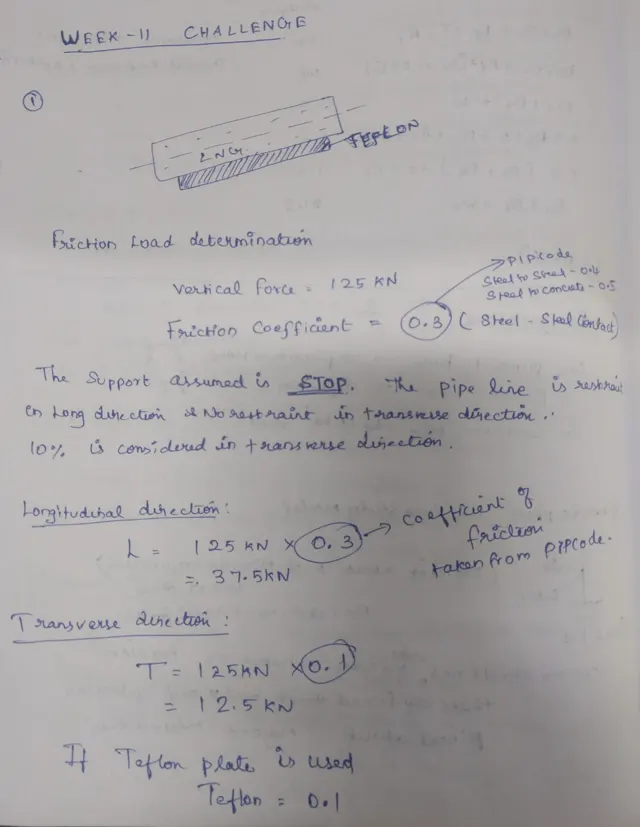

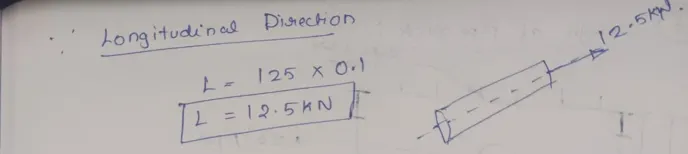

To determine the friction load for the pipe

Procedure;

2. Aim and introduction:

To determine the typoe of support for the given imges

Procedure:

Figure 1: Spring

Figure 2: Rigid strut

Figure 3: Stop + Rest

Figure 4: Guyed + Stop + Rest

Figure 5: Guyed + Rest

Figure 6: Guyed

3. Aim and Introduction:

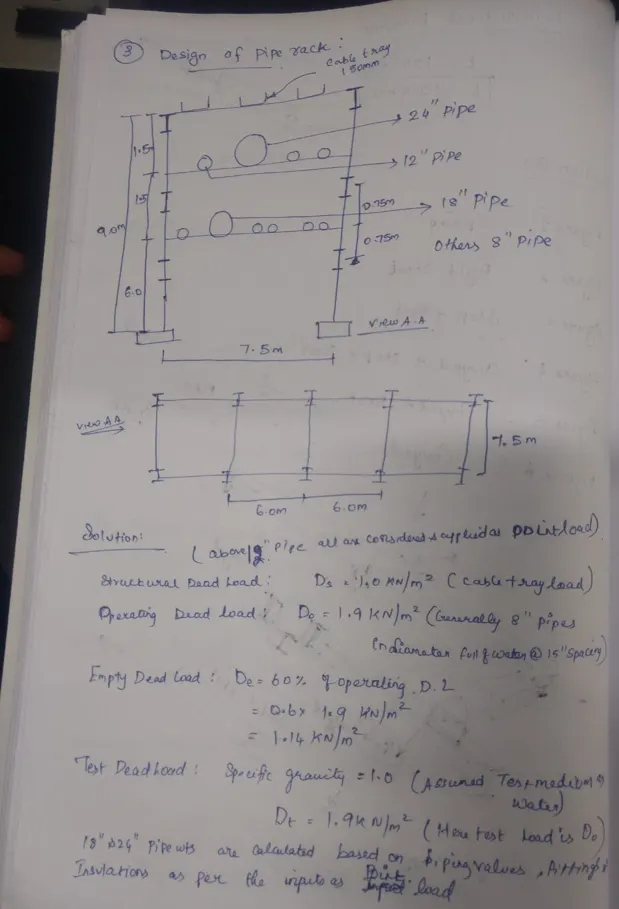

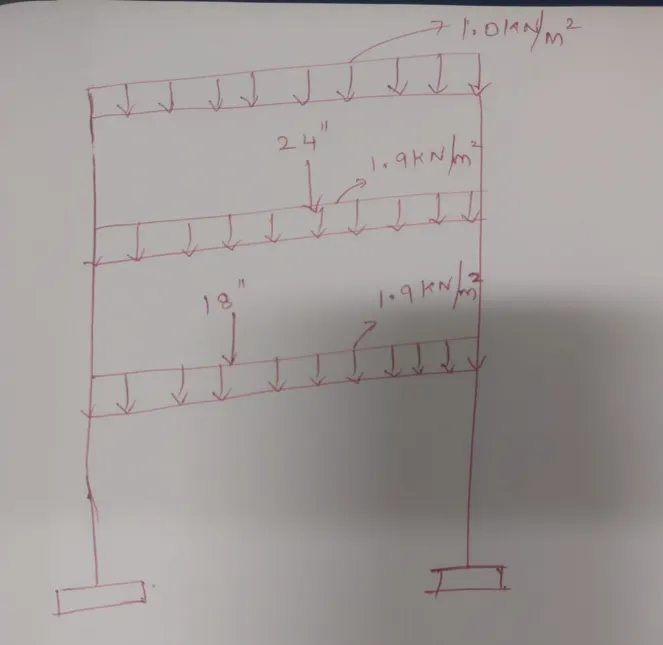

To deisgn the pipe rack strucutre for the given loads

Procedure:
