Week 11 Challenge

AIM : To perform the assembly of Yacht. OBJECTIVE : To create different parts of the Yacht in very realistic way in the very realistic way. To perform assembly on the Yacht.  PROCEDURE : Methodology     Tools and Features used while Designing the Tacht. SKETCH : 2D to create sketches on the plane references.…

 AIM : To create design Photo realistic Design and rendering of American Chopper. OBJECTIVE : To create parts of American chopper. To explore the tols that are using in SolidWorks for designing. To create the assembly of American chopper. To perform Photo Realistic rendering rendering. PARTS : TRANSMISSION BELT…

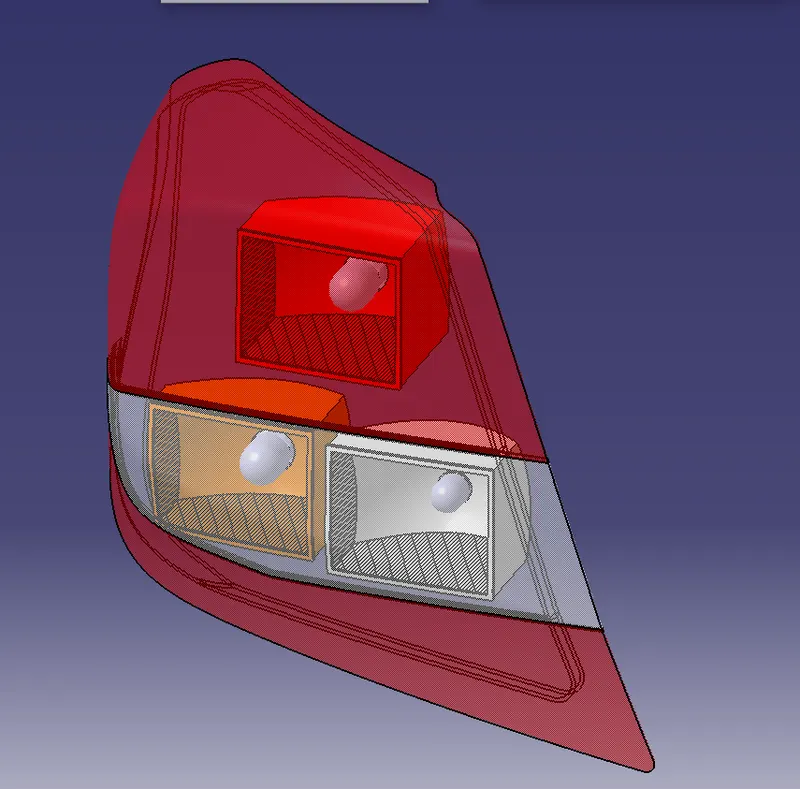

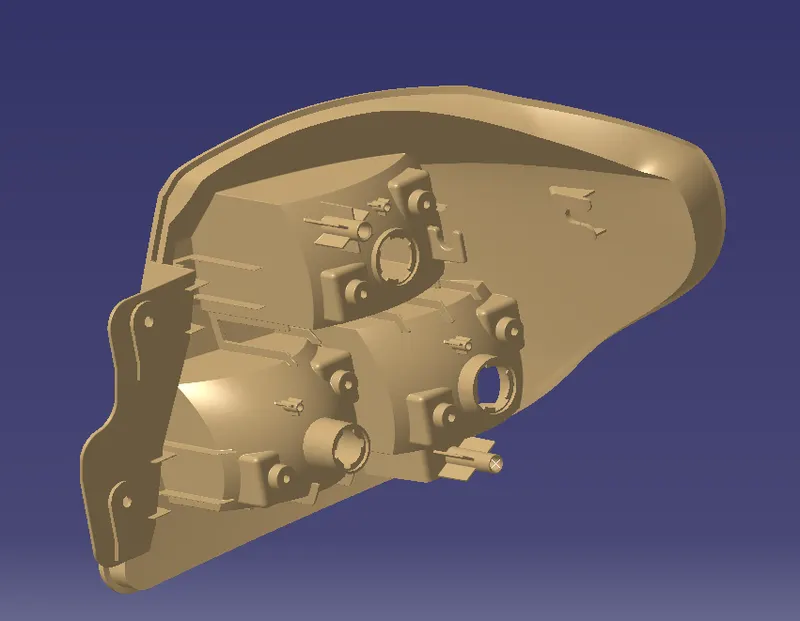

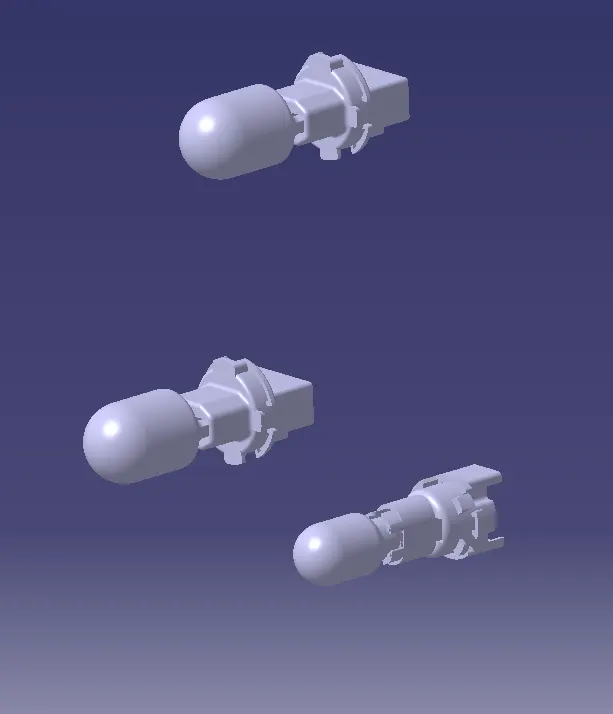

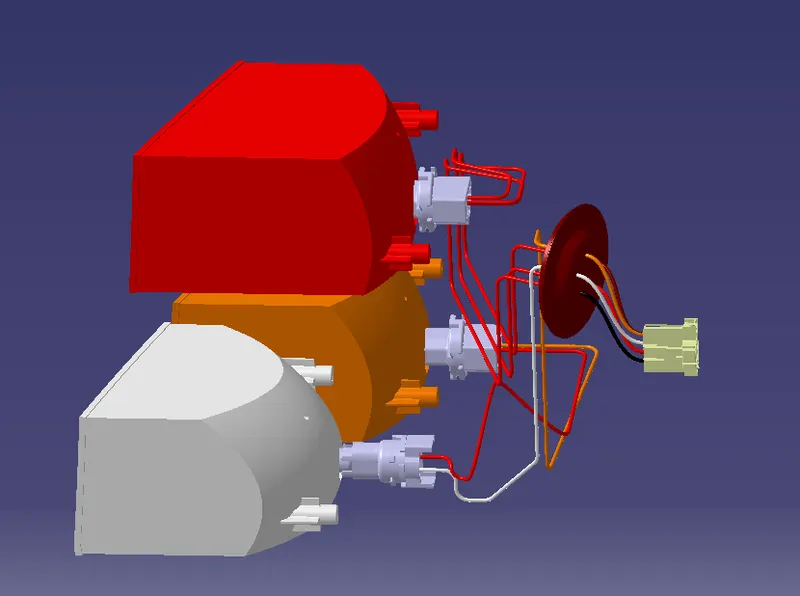

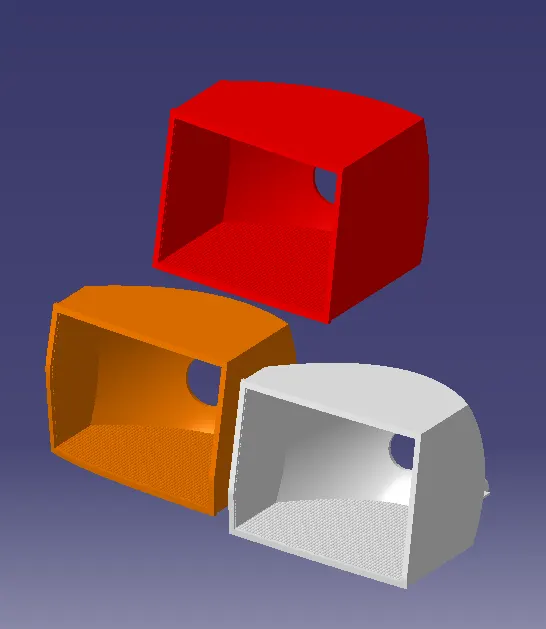

IMPORTANCE OF LIGHTING : Most drivers simply get into the car, start it and doesn’t even think of lighting or the fact that it can provide security. But most of the light is about security and communications. The headlights and tail lamps ensure that other drivers see you, even in reduced visibility.…

 AIM : To develop back door or tail gate from given outer panel under design guideline and regulation. OBJECTIVE :  To develop tail gate inner panel with sealing flange. To develop embosses on inner panel to prvide strength to inner panel. To develop Hinge, Gas stay, Wiper motor, and Striker embosses. To develop…

AIM : To develop Roof outer panel flanges along with bow's and reinforcement and perform calculation and draft analysis. OBJECTIVE : To create flanges on given roof using input roof styling and master section. To  create Bow's and Reinforcement using input roof styling and master section. To do curvature study…

AIM : Calculate the section modulus of Hood by using thee formula S = I/Y. And to improve the section of modulus come up with new Design with increase in section. INTRODUCTION  : SECTION MODULUS : Section modulus is a geometric property for a given cross section used in a design of a beamor flexural members,…

AIM : Create the Drip area and other mounting for FENDER. OBJECTIVE : To create a Drip area mounting as per the Master Sketch. To create A-Pillar, Bumper, Sill, Splash mountings. FENDER : Fender is the part of automobile that frames a wheel well. Its primery purpose is to prevent sand, mud,rocks,liquid and other road…

AIM : DEVELOP B-PILLAR FROM GIVEN CLASS-A SURFACE AND MASTER SECTIONS. ALSO ADD ENGINEERING FEATURES. OBJECTIVE :  Draft analysis of given Class-A surface. Create Class-B and Class-C surface with reference to Class-A surface. Add material to close body. And Create Engineering features. Draft analysis of the B-Pillar…

 REPORT AND PRESENTATION OF HOOD DESIGN AIM :  Create the hood inner panel and its assembly as per the given hood outer panel and master-section. Objective :  To create Hood inner panel as per the master section, and design consideration. To create complete Hood assembly with proper positioning of Hinge,…

REPORT ON UNDERBODY COATING AND ITS PURPOSE  UNDERBODY COATING :  Underody coating is usually a dense cladding upplied uniformly to the undercarriage of the automobile. Underbody coating proves long term protection from corrosion to car's underbody. It is also protects paert like internal body panel, frame rails…

AIM : TO CREATE AUTOMOTIVE DOOR TRIM PANEL AND ENGINEERING FEATURES. OBJECTIVE : To perform Draft analysis on given Class-A surface. To create Class-B and Class-C surface to Create thicken body of Door Panel. To create engineering features like DogHouse, Push pin, Flanges, heat Stake, Locators, Ribs. To perform Draft…

AIM : Create the boss and dog house for the centre console coin holder considering the design rule. OBJECTIVE : Create tooling axis and perform draft analysis on class-A surface. Create Class-B and Class-C surface, make close surface. Create a Rib, Boss, and Dog House consider the design rule. DRAFT ANALYSIS : When…

AIM: Create the Base Bracket Plastic component through a given Class-A surface. OBJECTIVE:  Create tooling axis for the given Class-A surface. Perform Draft ANalysis on Class-A surface and final componen. Create the Base Bracket Plastic component through a given Class-A surface. Create the Heat Stake and the…

 AIM :  To create a Coin Holder Plastic component through the given Class-A surface. Perform the Draft analysis on the model.  DRAFT ANALYSIS:  When creating Plastic component in core and cavity it is very difficult to eject part from tool of an angle of 90 degree. A small draft angle provide to each…

Aim: Implement control logic of a 'washing machine' using Stateflow as per the given sequence. Make a Simulink chart for the 'Gear shift' logic. Theory: State Flow: Stateflow is a technique to convert a flow chart or logic into a systematical arrangement. Stateflow provides a graphical language that includes state…

Aim: To make a Simulink model of doorbell using Solenoid block.         To sense the temperature of a heater & turn on or turn off the fan using Thermistor. Objective: Make a Simulink model of doorbell using Solenoid block. Sense the temperature of a heater & turn on or turn off the fan using…

Aim: To create a Rankine cycle simulator using MATLAB. Objective:  Create a code for the Rankine cycle simulator using MATLAB. Plot T-s and h-s plots for given Rankine cycle. Calculate Thermal efficiency, Net-work output, and Back work ratio. Theory: RANKINE CYCLE: The Rankine cycle is a model used to predict…

Aim: To simulate the Forward kinematic of a 2R robotic arm using MATLAB. Objective: Write a program to simulate the forward kinematics of a 2R robotic arm. Animating and creating a movie for arm workspace. Introduction:   Forward kinematics refers to users of the kinematic equation of a robot to compute the position…

Aim: Write a code to curve fitting using MATLAB. Objective: Write a code to fit a linear and cubic polynomial for Cp data. Write a code to a cubic polynomial using split. Plot the linear and cubic fit curve along with the data point. Theory: Curve fitting: Curve fitting is the process of constructing a curve…

Aim: To solve second order ODE with the help of MATLAB. Objective: Plot a graph for displacement, velocity w.r.t. time. Create an animation to show the movement of the pendulum. Theory: Ordinary Differential Equation(ODE): An Ordinary Differential Equation(ODE) is a differential equation containing one or more functions…

Aim: Write a code to optimize the stalagmite function using MATLAB Objective: Write a code for the stalagmite function using “ga(genetic algorithm)” command. Find the global maxima for the function. Plot stalagmite function and 3 studies showing the global maxima. Theory: General Algorithm(GA/ga): A Genetic…

AIM: To write a program for the Otto cycle using MATLAB. OBJECTIVE: Create code for Otto cycle using MATLAB command and syntax. Plot a P-V diagram to show different process occurs in the Otto cycle. Find the thermal efficiency of the engine.   THEORY: Engine: A device that converts Thermal energy into Mechanical…
