Week 11- Assembly Workbench

AIM:
To develop two assemblies based on the information presented in the course videos. You will be given 2D schematics of the components and will be required to build individual part files before creating a complete assembly of those part files in the assembly workbench.
After you've completed the assembly, use the drafting tools to generate a 2D drawing identical to the one in the assignment folder.
SOFTWARE REQUIRED:
CATIA_V5 R21
PROCEDURES:
initially we creating a solid models by using given inputs( part dimensions). Once we get it, and we go to assembly design workbench. Assembly design tool commands

Quick Return Mechanism: The major objective of this mechanism, as the name implies, is to conduct return motion faster than forward motion. It is mostly employed in situations where the force required for reverse motion is not required, as it serves no function in reverse motion. The Crank and Slotted Leaver Mechanism pictured below is an example of a Quick Return Mechanism.

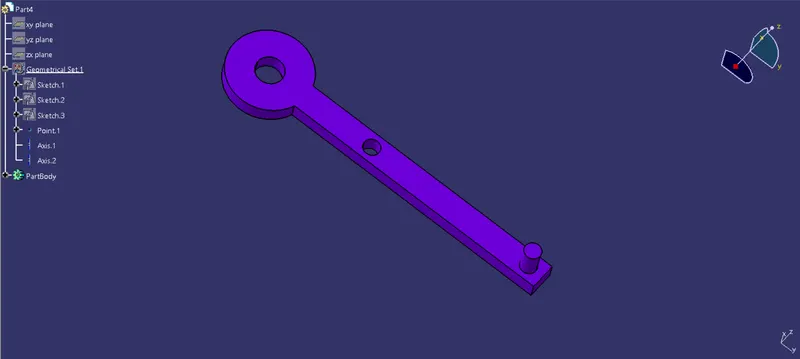

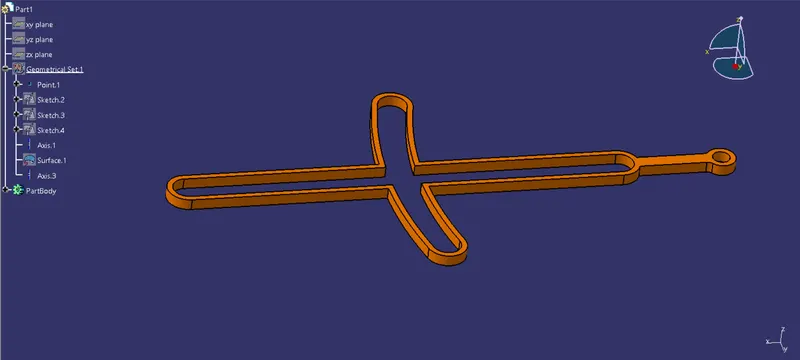

4 WAY PART

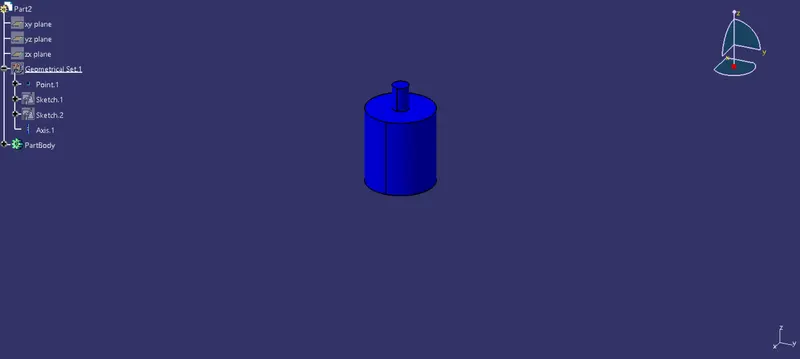

CIRCULAR MOT PART

RECTANGULAR PART

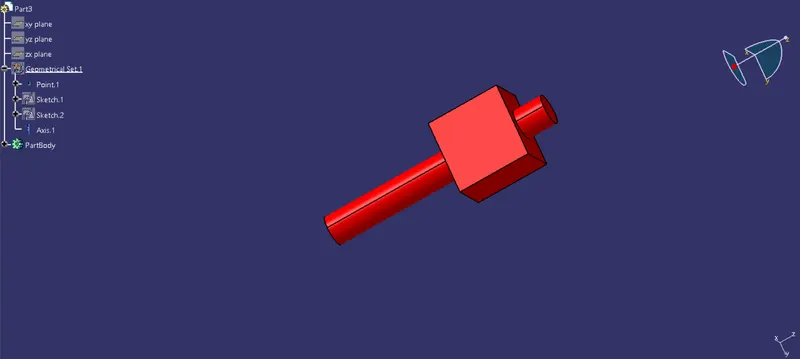

KEY PART

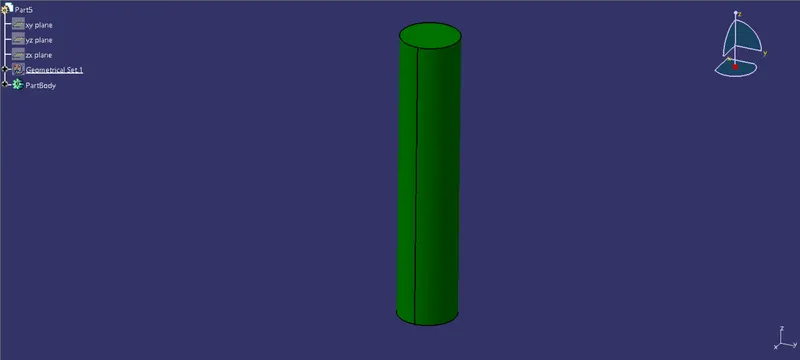

VERTICAL ROD

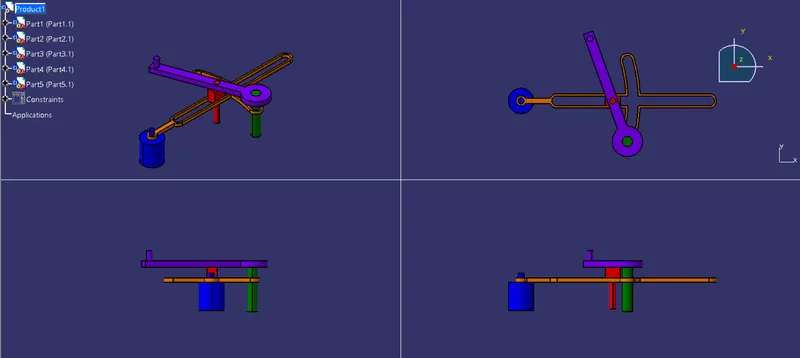

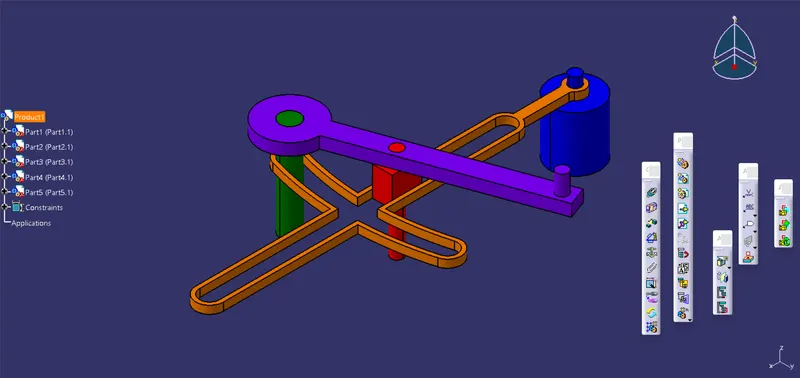

QUICK RETURN MECHANISM

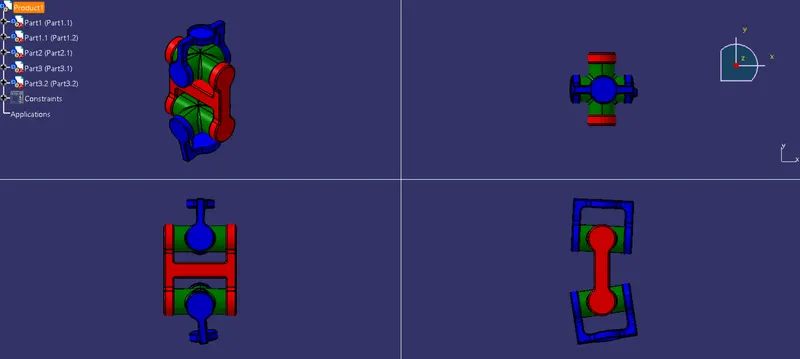

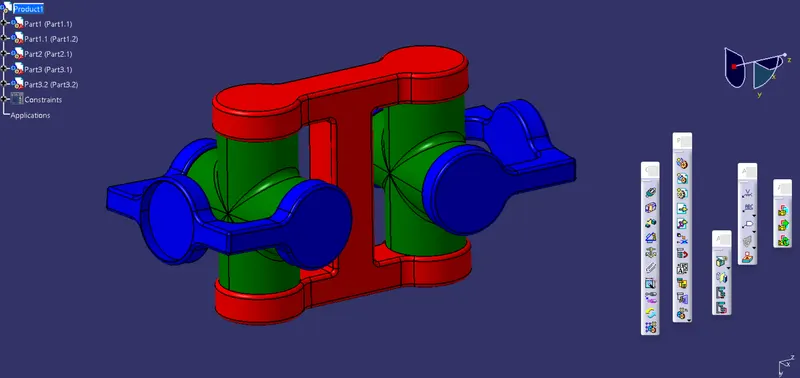

CV Joint:The purpose of the CV Joint is to transmit force and motion to functional components in an automotive system. It is mainly observed in engaging components like, transmission and differential, differential and wheel. In two wheel and four wheel drives the power from the differential is transmitted to wheels with the help of this system.

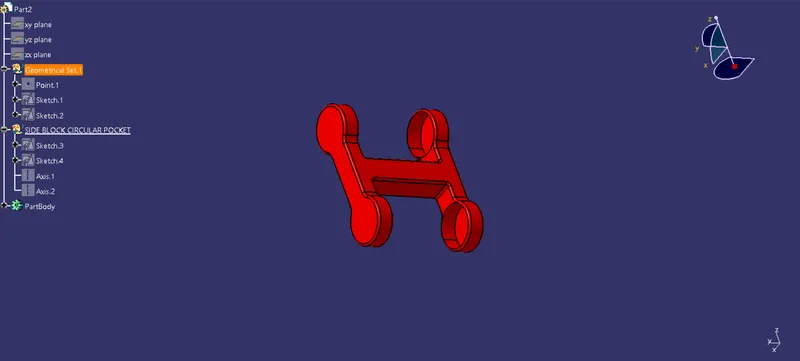

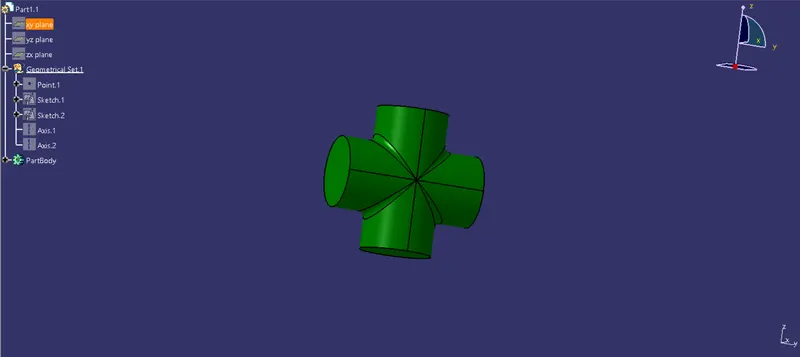

4 WAY CAT PART

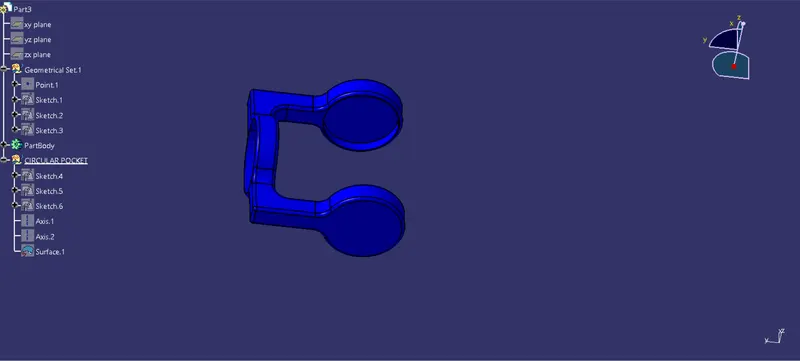

2 SET THUMB PART

3 BOXES PART

RESULTS:
2 assemblies were constructed based on the course videos' material. You will be given 2D schematics of the components and will be required to build individual part files before creating a complete assembly of those part files in the assembly workbench. After completing the assembly, use the drafting tools to generate a 2D drawing that is comparable to the one provided in the assignment folder. thus, it is proven.
