Week 10 Challenge

1.

• create the model with the given data.
• given purlin spacing = 1.2m
• and rafer span is 50m
• therefore no of purlins is equal to = (50/1.2)*2 = 42*2 = 84
• No of grits = ((12-2)/1.5)*2 = 14

2.

• Download the attached file

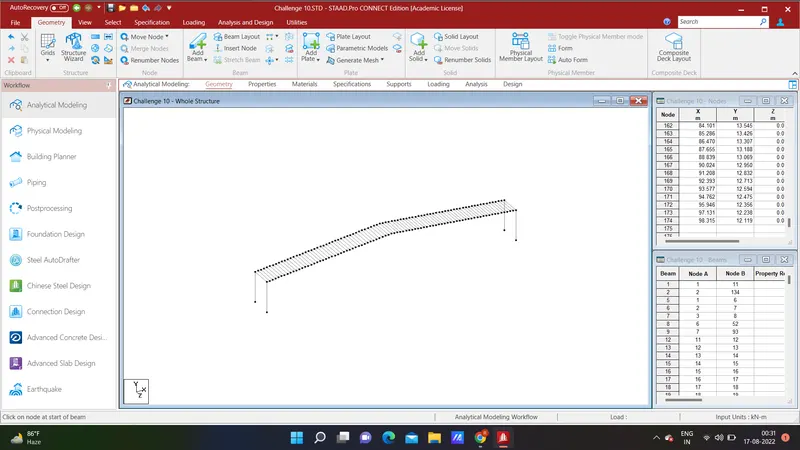

• And open the structure
• And select the required beams and taper the beams
• after tapering of beams
• go to design parameters and check utility ratio and it should be within 1 as per codes.

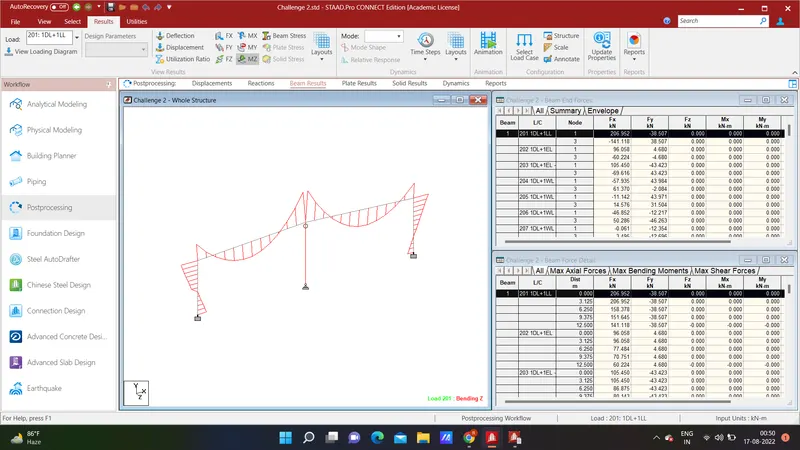

• after run analysis and check bending envelope.

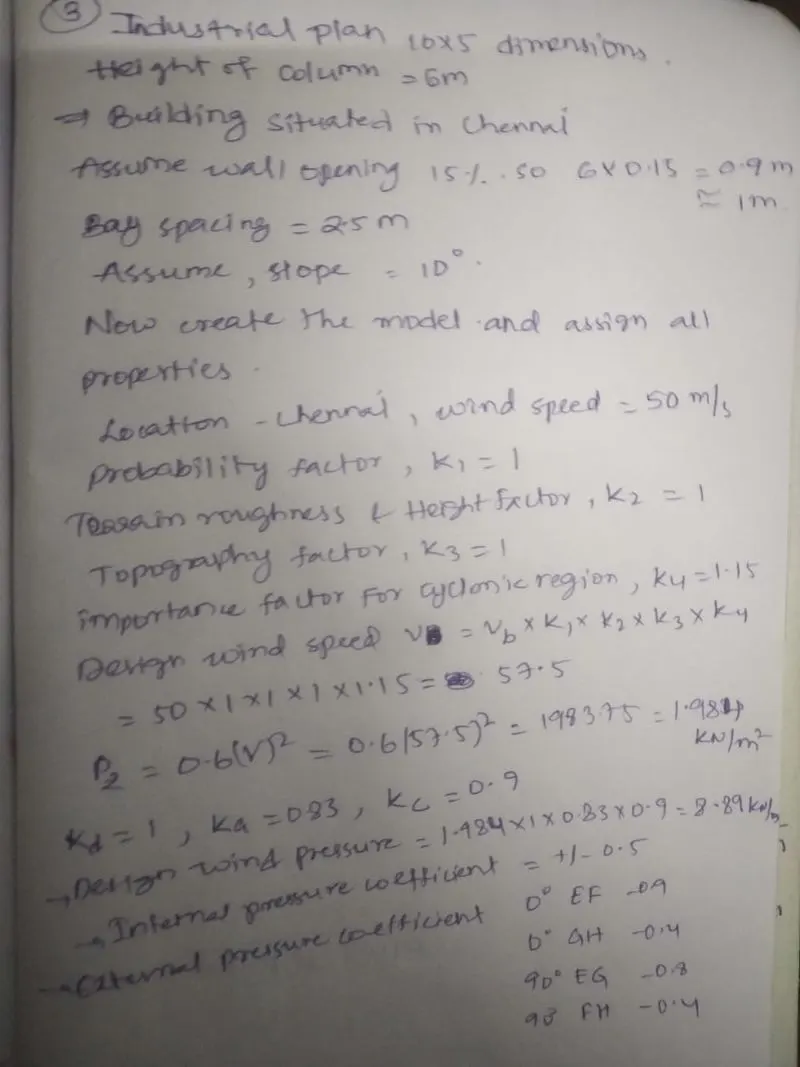

3.

4.
