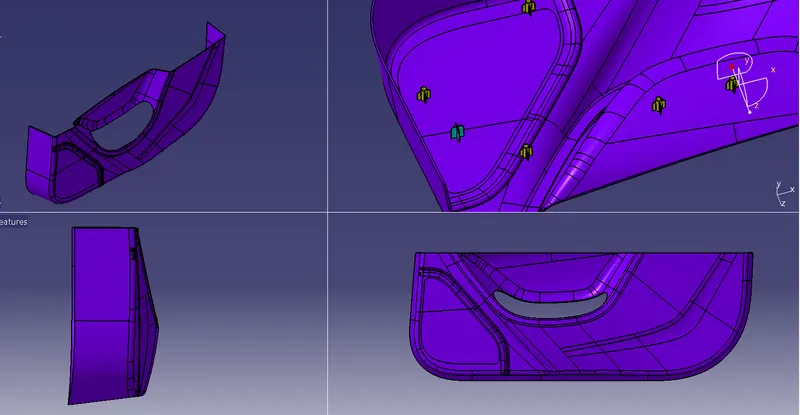

Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

SSandeep M4 Apr 2023

AIM

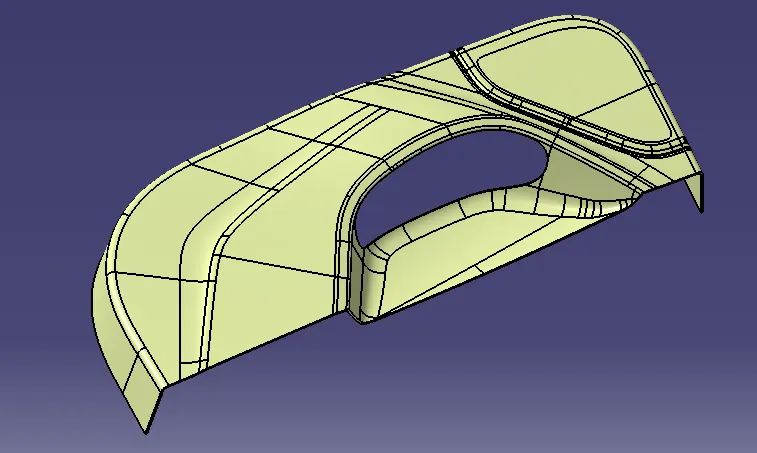

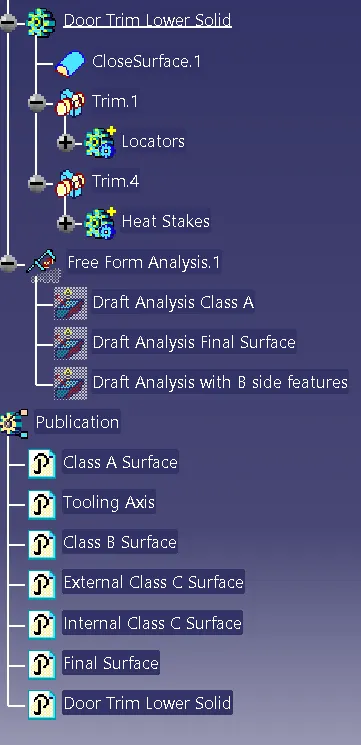

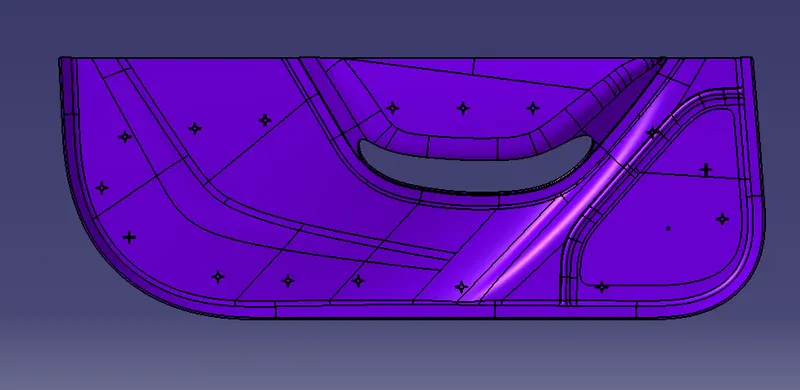

To Create the Door Trim Lower Plastic component through the given Class-A surface.

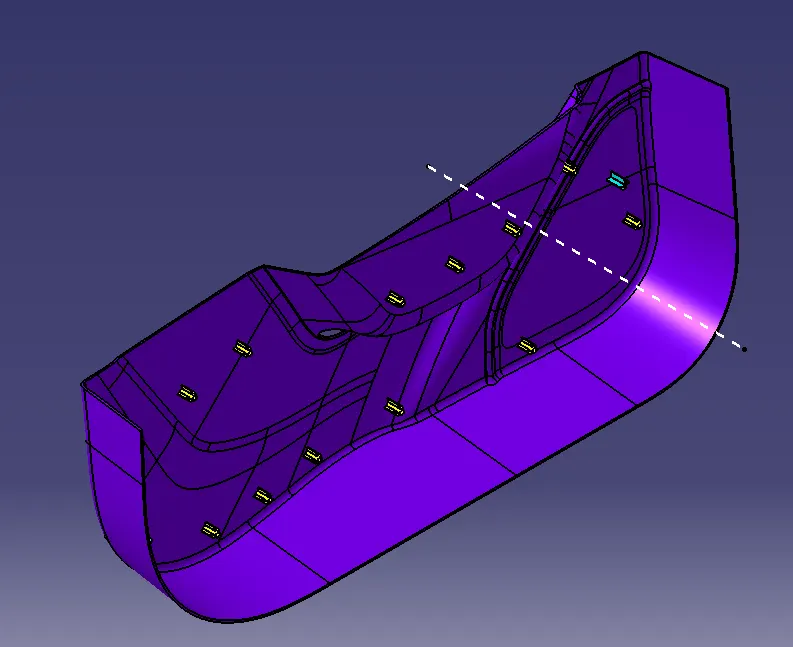

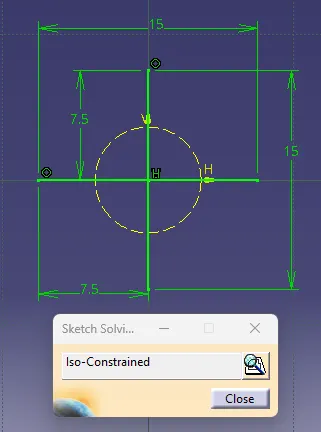

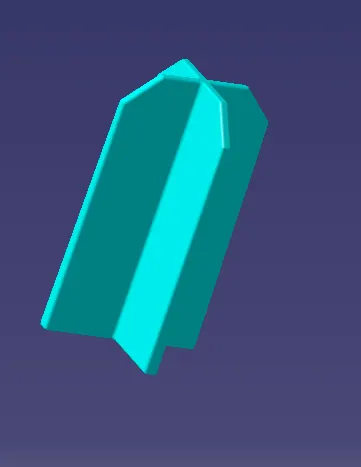

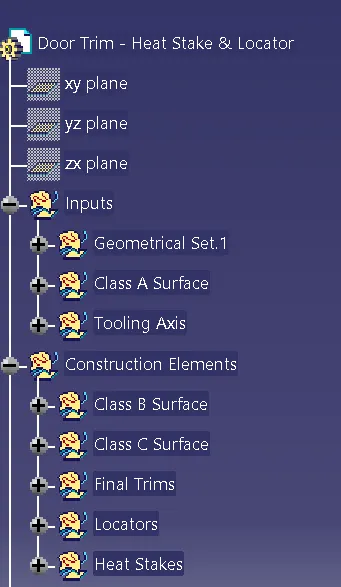

To Create the Heat Stakes and the locators considering the design rules.

THEORY

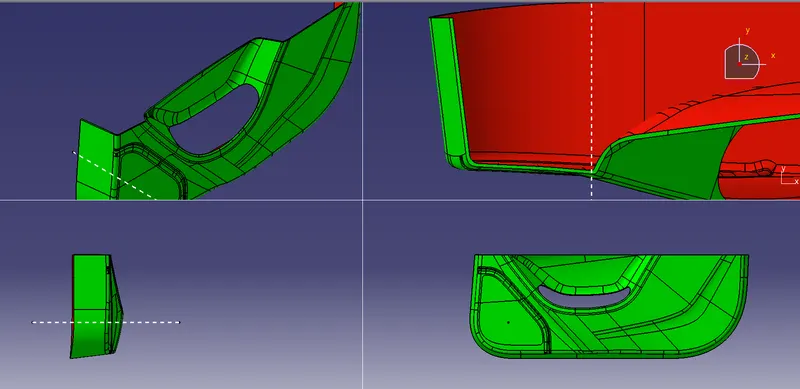

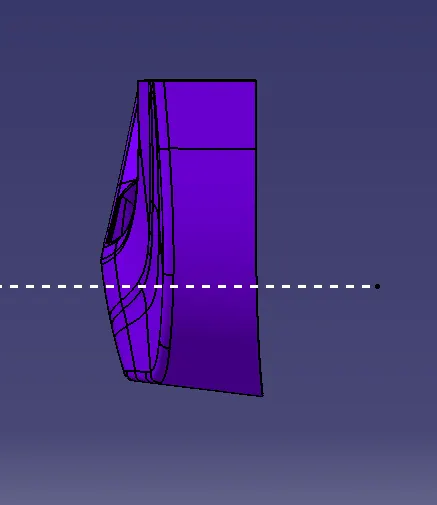

Tooling Axis

Tooling Axis is the direction in which the mold or core and cavity opens and closes. While designing a component first thing is to define the tooling axis.

Procedure

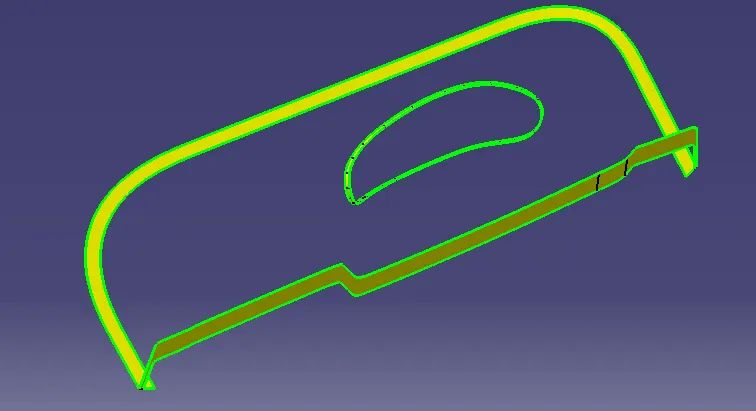

Check the connectivity of given Class A Surface i.e no gaps between the surfaces.
Analyse the component along x,y,z direction and check which is the best possible tooling direction (Here Y)
Create a point at flat surface by extracting it.
Draw a line perpendicular to extracted flat surface through the point and that is the tooling axis.

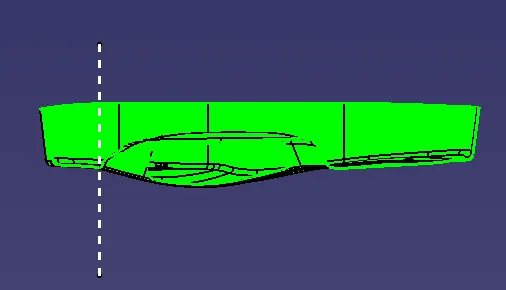

Tooling Axis By Bisecting Method

Check the connectivity of given Class A Surface i.e no gaps between the surfaces.
Analyse the component along x,y,z direction and check which is the best possible tooling direction (Here Y)
Create a point at base surface by extracting it.
Create an axis system with that point as origin.
Create an intersection of class A in xy axis
Create two lines with reference of faces which we think will create problems.
Create a bisecting line with the lines drawn, which will gives us the tooling axis.

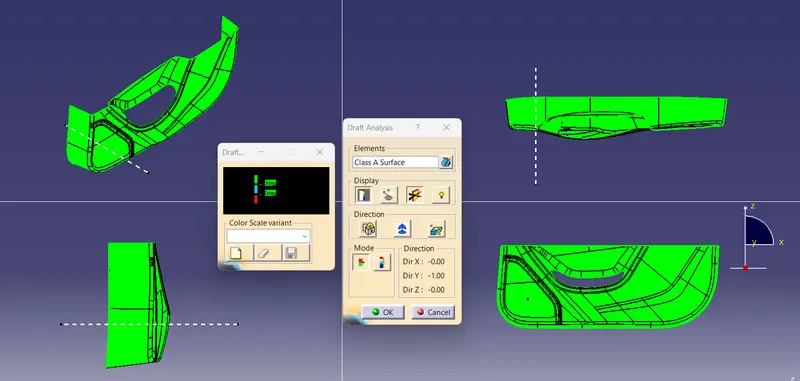

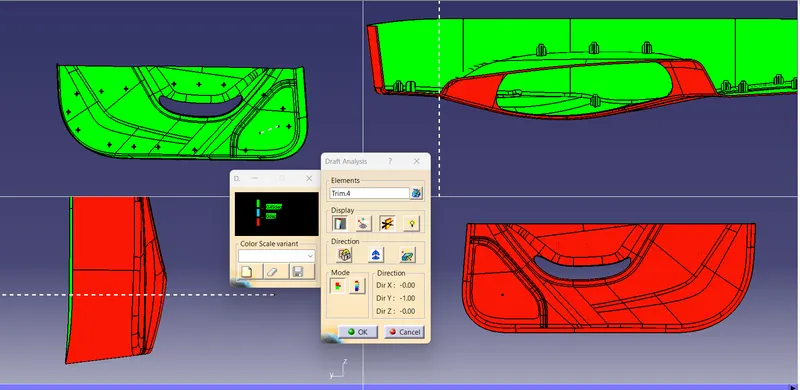

Draft Analysis

Draft analysis is used to analyze whether the part model created in CAD id manufacturable based on the draft condition applied.

Draft is required on all parts in the direction of mold movement in order to allow parts to release or eject from the mold properly. Most part or application require minimum `0.5^o - 1^o` as draft angle, however `3^o` is widely accepted as the norm.

Procedure

First change the view to " Customize View Parameters" and select Material option.
Select Feature Draft Analysis from the tool bar.
Click on the direction, drag and drop the compass to the component such that it should coincide with the tooling axis.
Lock the draft direction and click on the component.
Green colour shows the positive draft, cyan as zero degree and red as negative draft

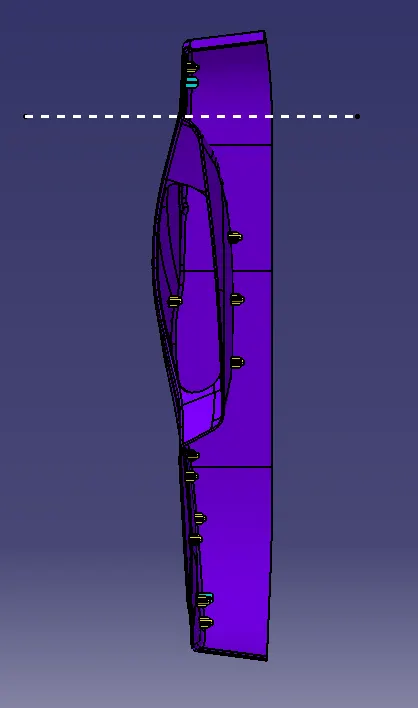

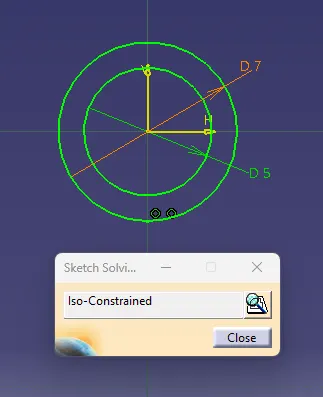

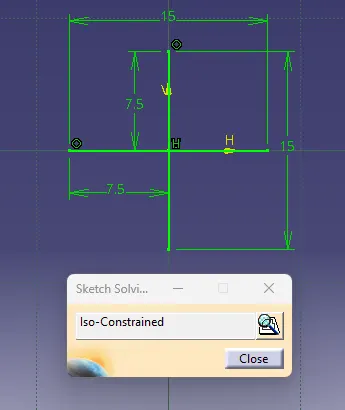

Heat Staking

In manufacturing products with thermoplastic components, it is often necessary to join a thermoplastic to apart of dissimilar material, whether it be a metal, dissimilar plastic or other material. This technical information sheet provides design guidelines, configurations and techniques for successful heat staking.

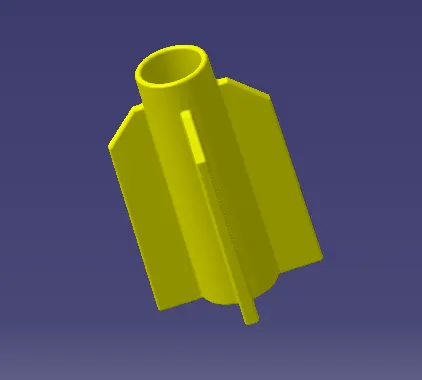

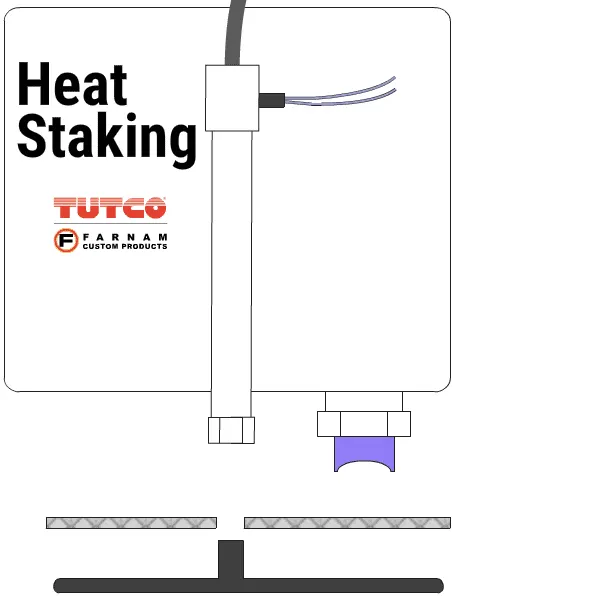

Thermal Staking or Heat staking is an assembly method that uses the controlled melting and reforming of plastic stud or boss to capture or lock another plastic or metal component of an assembly in place. The plastic stud protrudes through a hole in the component to be locked in place. The heated thermal tip contacts the top of stud, which melts and fills the volume of the tip cavity to produce a head, locking the component in place. The progressive melting of plastic under continuous pressure forms the head. When staking, the right combination of heat and pressure for the application is critical.

Heat staking also known as thermoplastic staking is the process of joining two dissimilar materials together. In heat staking we use local heating and cooling to raise the temperature of plastic components and allow plastic reforming to be carried out. This reforming can be used in a wide variety of applications.

Applications range from staking plastic boss’s for assembly of car door panels to joining PCB’s to plastic housings.

Advantages

Simplification of machinery
Reduced cost of machinery
No vibration damage
No particulates
The ability to stake metalized coated applications
The capability to stake in difficult to access or restricted areas.
Multiple fastening points
Allow higher density of welds compared to hot air cold form or ultrasonic welding.

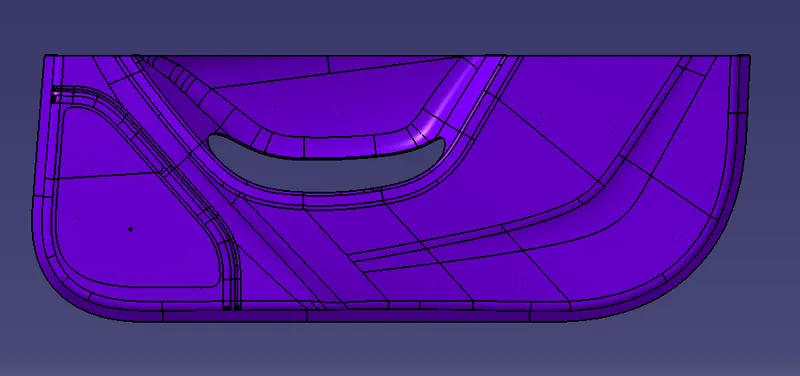

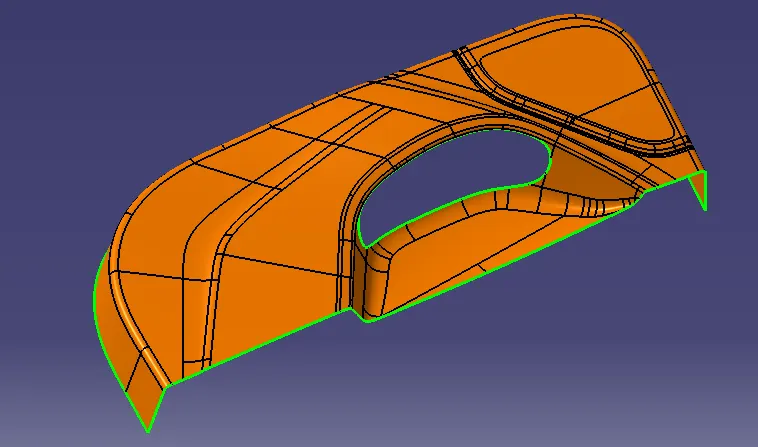

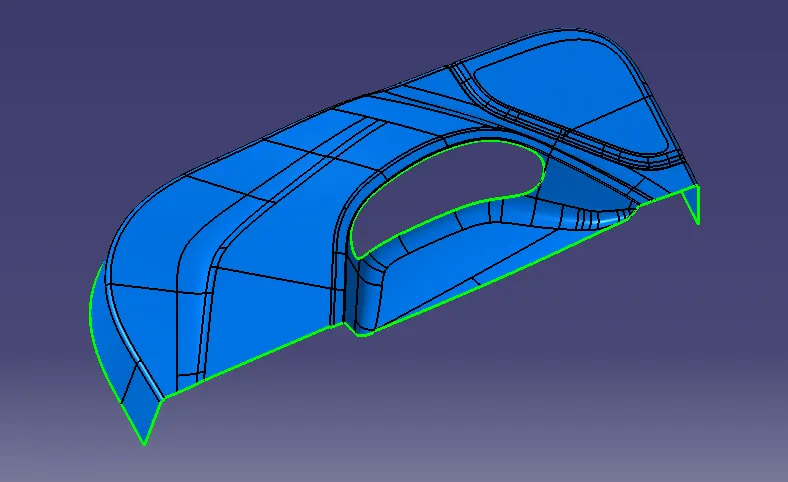

Class A Surface: Class A surface is any of a set of freeform surfaces of high efficiency and quality. In other words, Class A surface is the aesthetic surface.
