Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

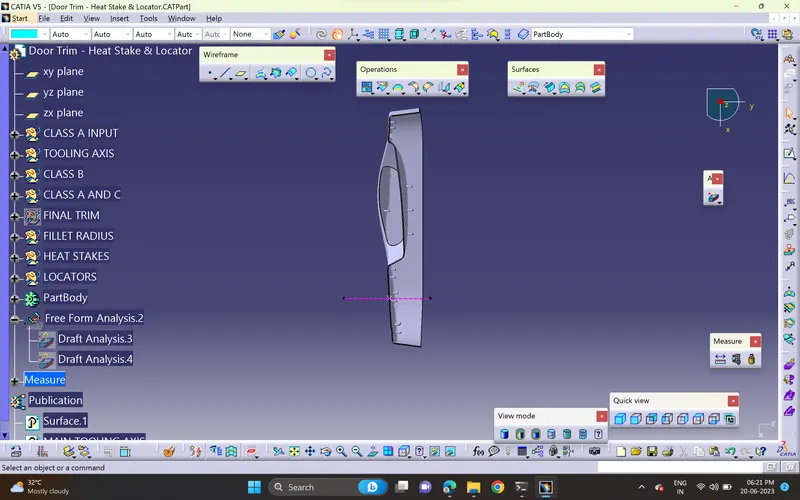

MAIN TOOLING AXIS:- IN THIS WE USE ONLY ONE TOOLING AXIS BY VISUALLY CHECK WITH AN X,Y,Z, DIRECTIONS Y DIRECTION IS APPEARING ALL SURFACES .

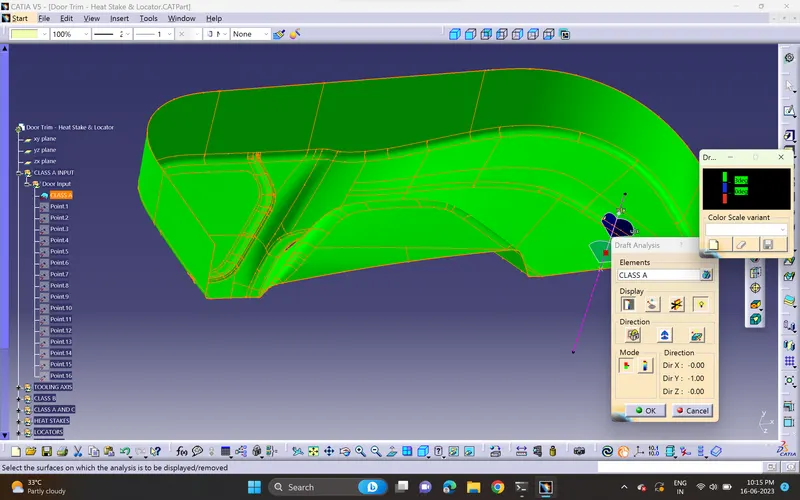

DRAFT ANALYSIS:- FIRSTLY AFTER COMPLETION OF CLOSED SURFACE CHANGE TO MATERIAL MODE BY SELECTING VIEW TOOLBAR.AFTER CLICKING MATERIAL OK.THEN GO TO TOOL<ANALYSIS<FEATURE DRAFT ANALYIS <CLICK ON IT.THEN YOU WILL GET DRAFT ANALYSIS DIALOUGE BOX SELECT COMPASS DRAG ON TO MAIN TOOLING AXIS AND FIX IT,THEN CLICK ON SURFACE IT SHOWS GREEN,BLUE,RED COLOURS.

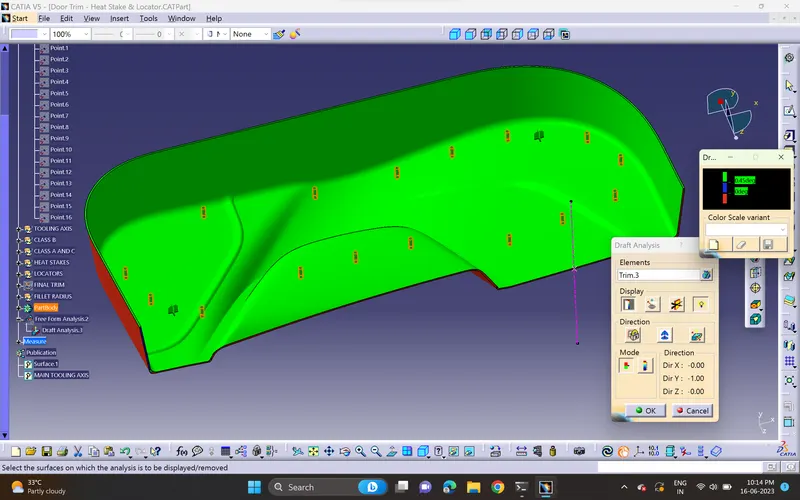

DRAFT ANALYSIS RESULT:-IN THIS WE ANALYSIS COMPONEN WITH LOCATORS AND HEATSTAKES WITH AN (.45DEGREE) BECAUSE IN DRAFTED LOCATORS AND HEATSTAKES WITH (.5DEGREE).AFTER CHECKING WITH THIS DEGREE THE COMPONENT IS PERFECTLY SAFE AND HAS THE EJECTION ALSO SAFE.
