Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

AIM: TO CREATE DOG HOUSE IN GIVEN DOOR TRIM AND THICKNESS OF 2.5MM

THERE ARE TWO LOCATIONS FOR DOG HOUSE

CLASS A:

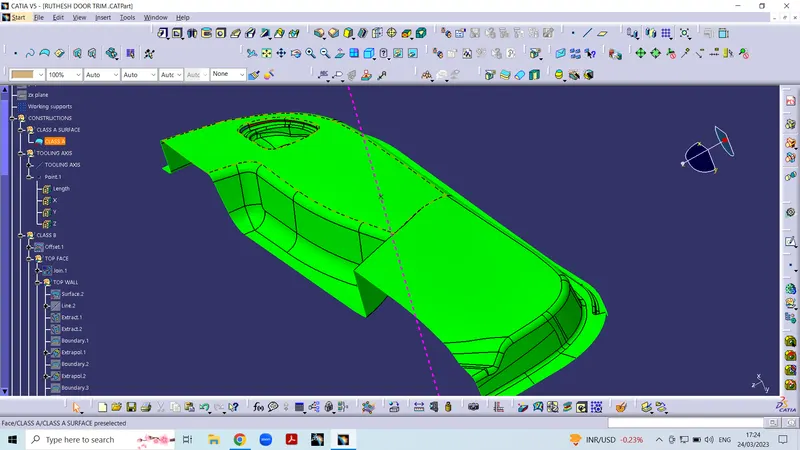

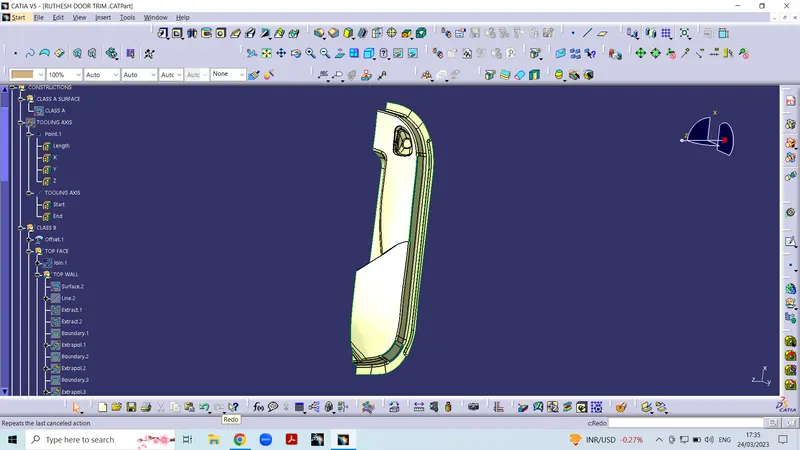

THIS IS THE GIVEN CLASS A SURFACE

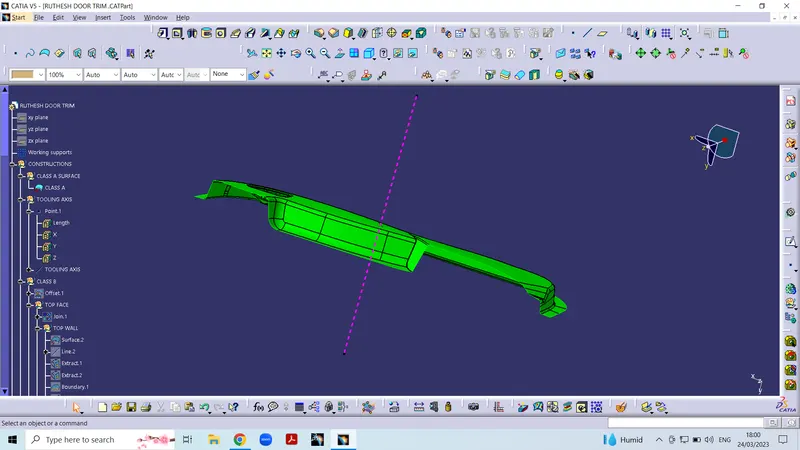

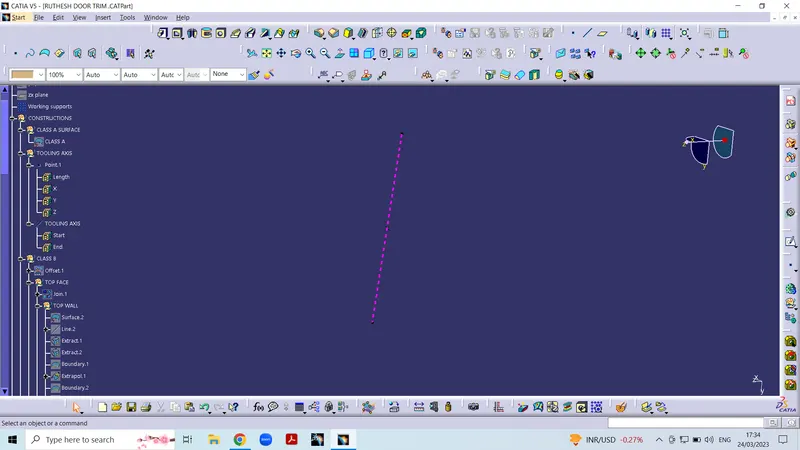

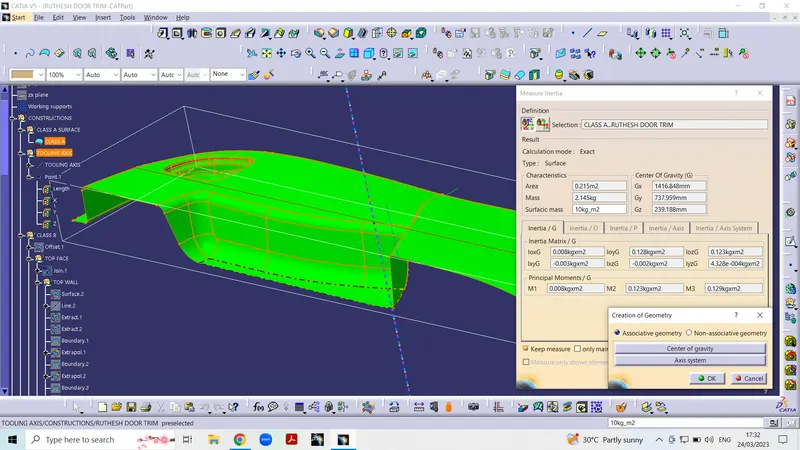

TOOLING AXIS

AND THE LINE IS CREATED THROUGH THE GIVEN POINT SO THE LINE IS OUR TOOLING AXIS

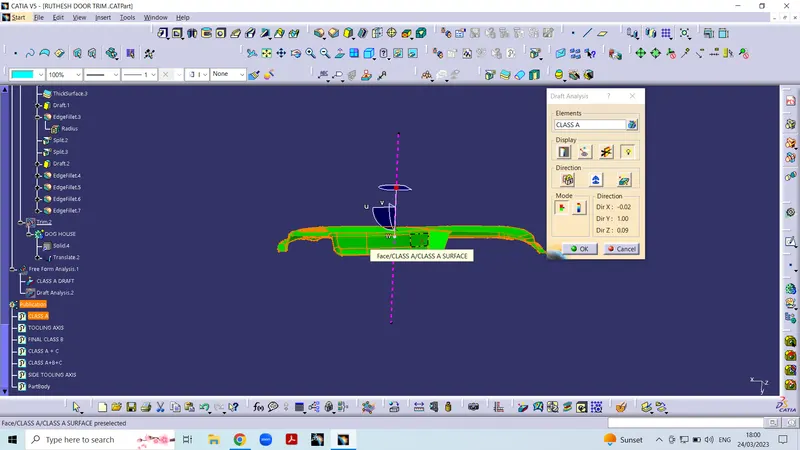

DRAFT ANALYSIS:

ONCE THE TOOLING AXIS IS CREATED IT IS TAKEN FOR DRATANALYSIS
THE VIEW MODE IS CHANGED TO MATERIAL MODE
AND THE COMPASS IS MOVED TOWARDS THE TOOLING AXIS ANDD THE SURFACE IS CLICKED AT A POINT SO THE DRAFT ANALYSIS IS DONE

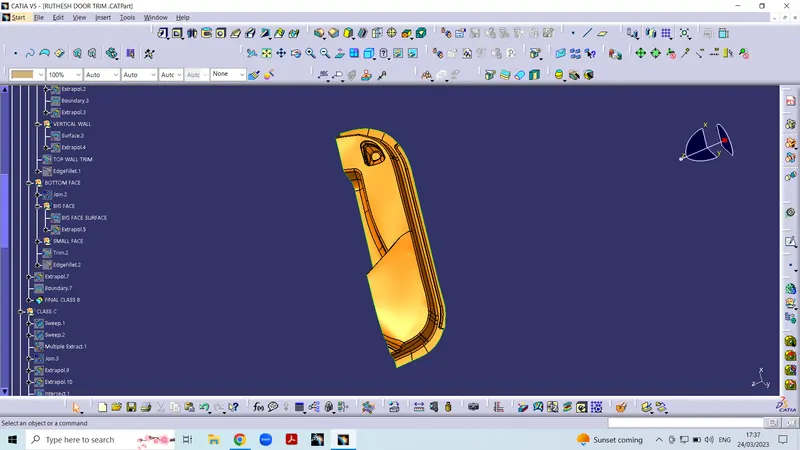

CLASS B:

CLASS B SURFACE IS CREATED USING OFFSET,
JOIN
EXTRACT
BOUNDARY
EXTRAPOLATE
AND TRIM COMMANDS
BY SELECTING THE CLASS A SURFACE IT IS OFFSETTED FOR 2.5 MM SOME PATCHES ARE MISSED
BY USING THOSE COMMANDS THE PATCHES ARE CLEARED AND THE CLASS B SURFACE IS FORMED WITH NO MISSING PATCHES

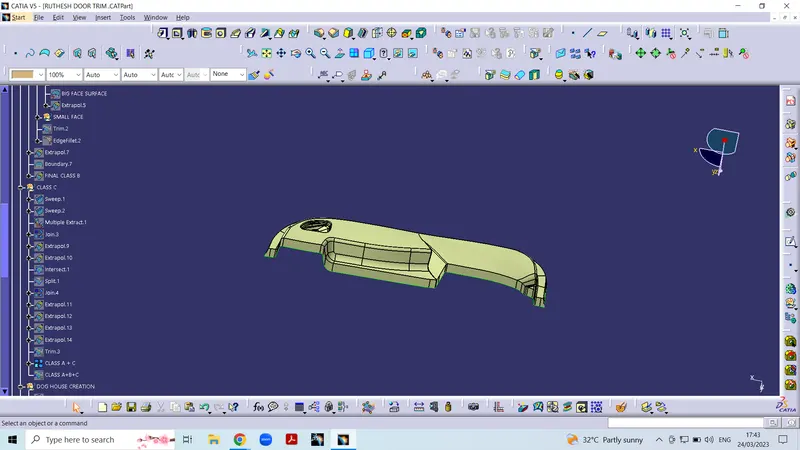

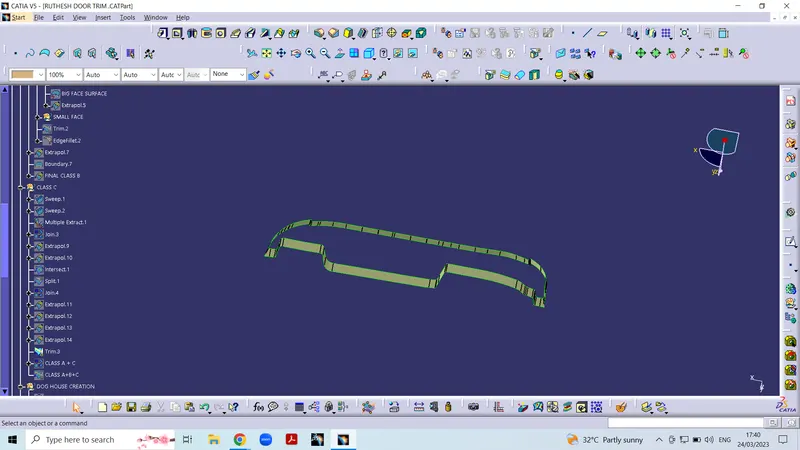

CLASS C SURFACE

CLASS C SURFACE IS CREATED USING SWEEP
MULTIPLE EXTRACT
JOIN
EXTRAPOLATE
INTERSECT AND SPLIT COMMANDS
SURFACE WHICH ARE PERPENDICULAR TO THE TOOLING AXIS SWEEP COMMAND IS USED WITH REFERNCE SURFACE WITH 90DEG
FOR PARALLEL TO THE TOOLING AXIS SWEEP IS CREATED WITH DRAFT DIRECTION WITH 3 DEG
USING EXTRAPOLATED THE SURFACE IS INCREASED AND IT IS TRIMMED THEN THE C SURFACE IS FORMED

AND IT IS JOINED WITH CLASS A

AND THE CLASS A+C IS JOINED WITH B

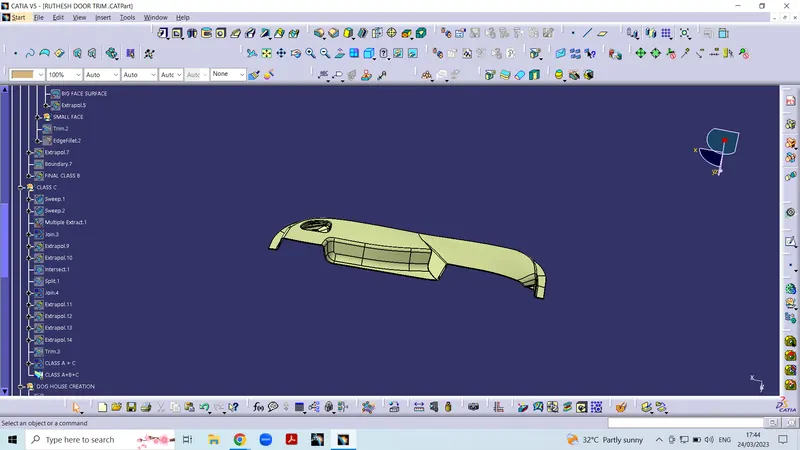

FINAL PART BODY:

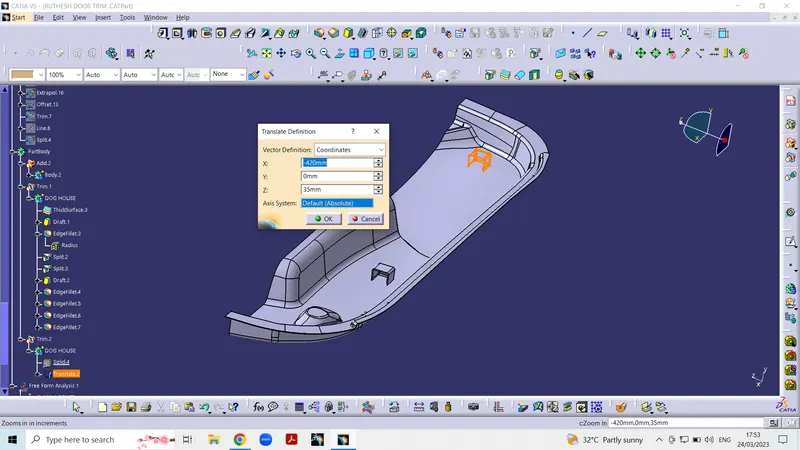

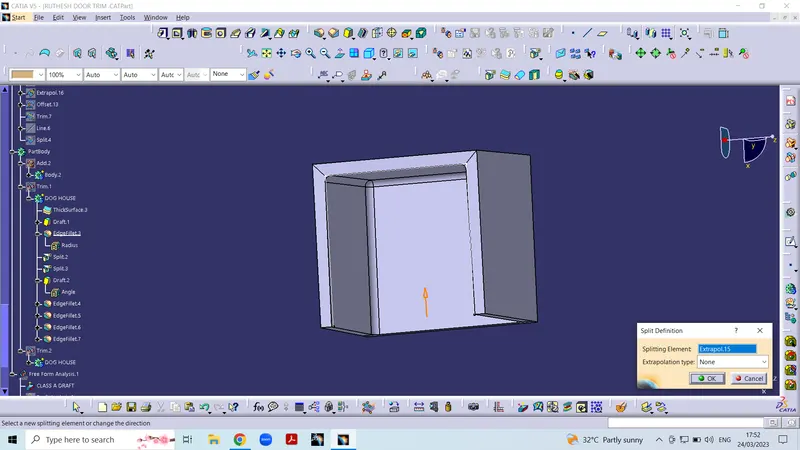

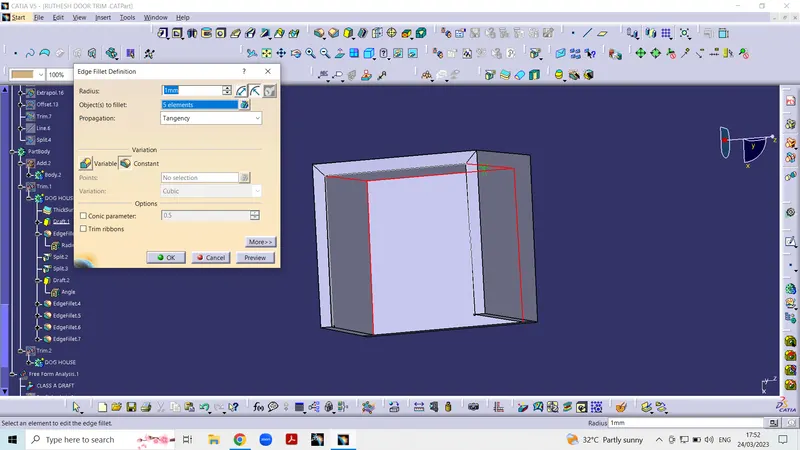

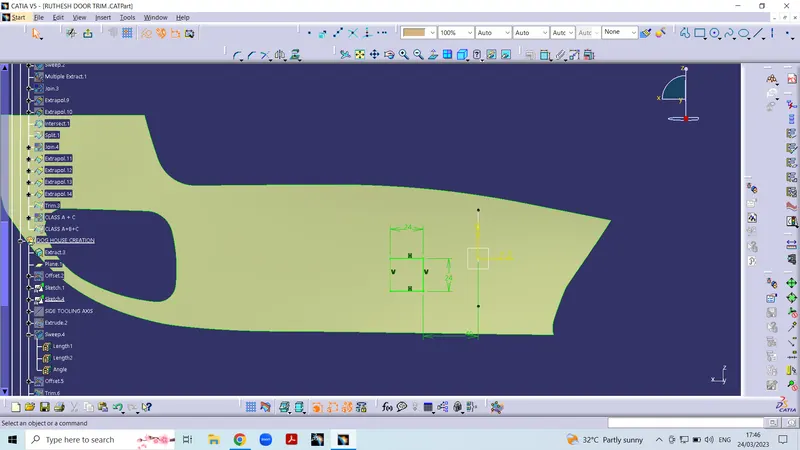

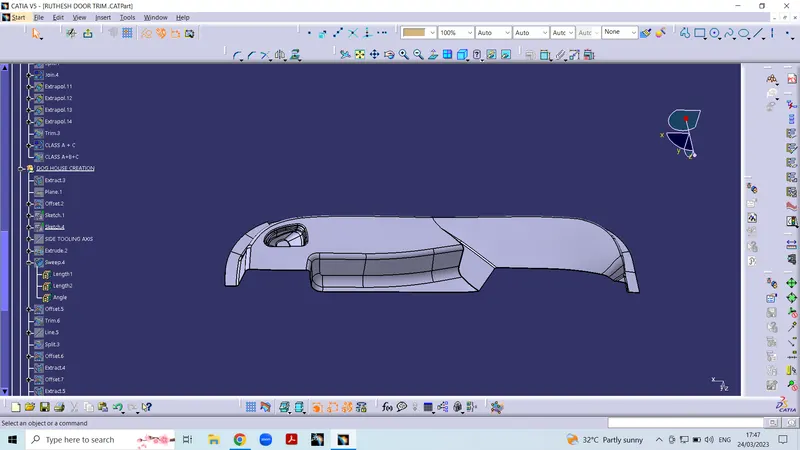

DOGHOUSE CREATION

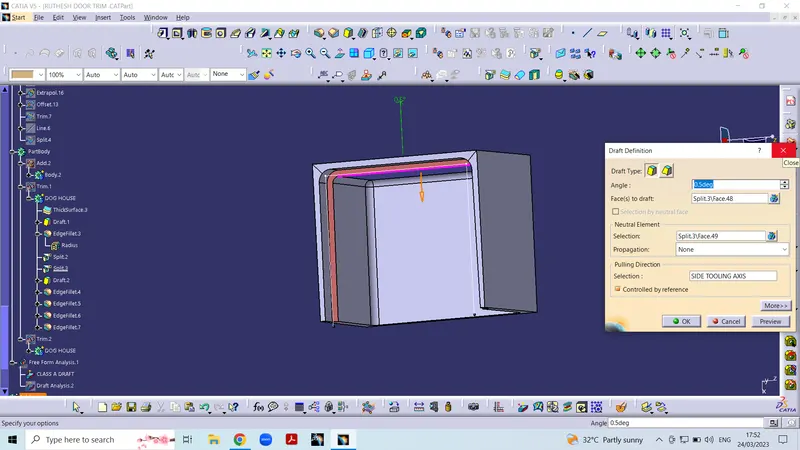

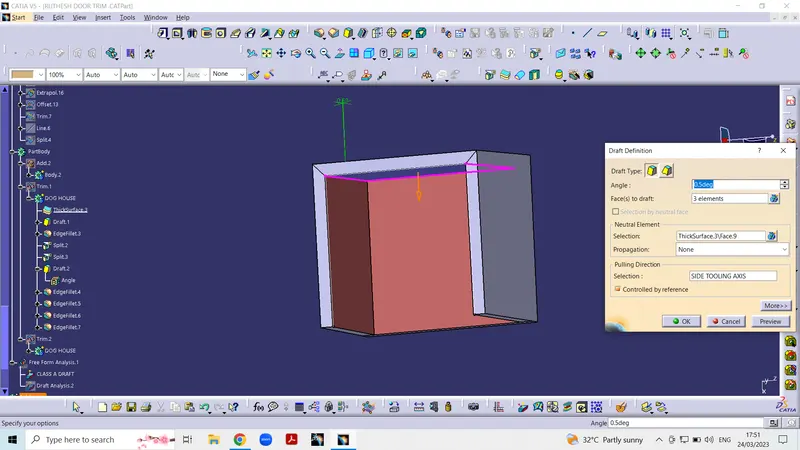

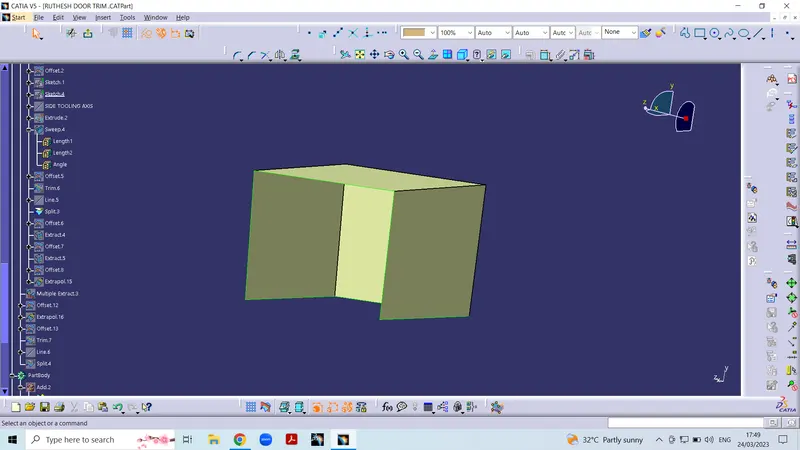

INSTRUCTIONS FOR DOGHOUSE CREATION

DOG HOUSE IS A ENGINEERING FEATURE WHICH IS USED IN PLASTIC TRIM DESGIN

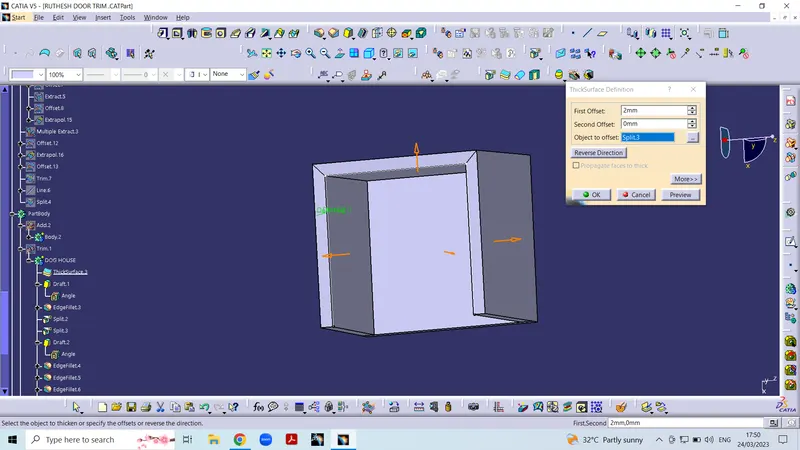

AND ITS IS GOES TO PART DESIGN AND IT IS THICKNEED FOR 2MM

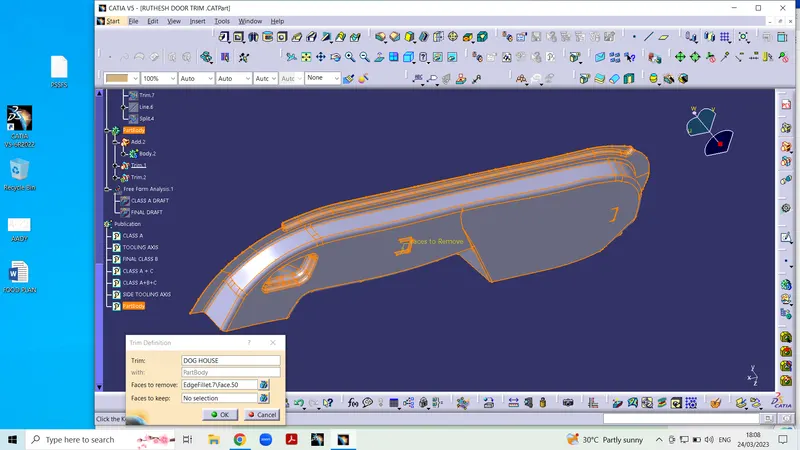

AND USING BOOLEAN OPERATIONS ITS IS JOINED AND OUTER FACES ARE REMOVED USING TRIM COMMAND THE DESIRED DOGHOUSE CREATION HAS BEEN DONE SUCCESFULLY

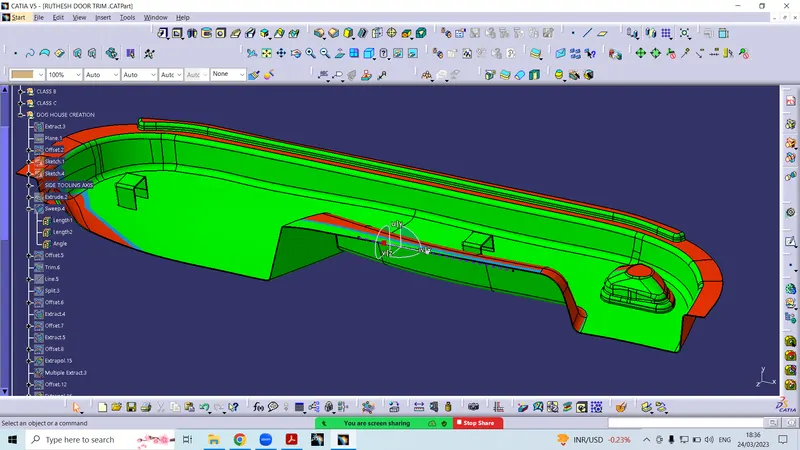

FINAL DRAFT ANALYSIS ON COMPONENT:

THE VIEW MODE IS CHANGED TO MATERIAL MODE
AND THE COMPASS IS MOVED TOWARDS THE SIDE TOOLING AXIS AND THE SURFACE IS CLICKED AT A POINT SO THE DRAFT ANALYSIS IS DONE
