Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

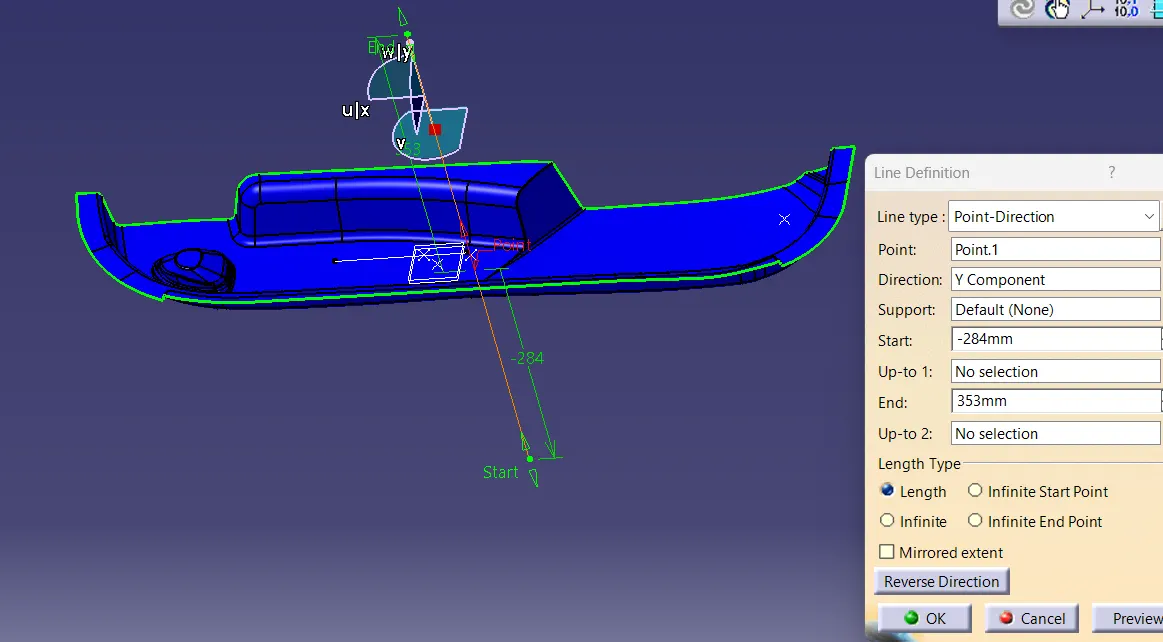

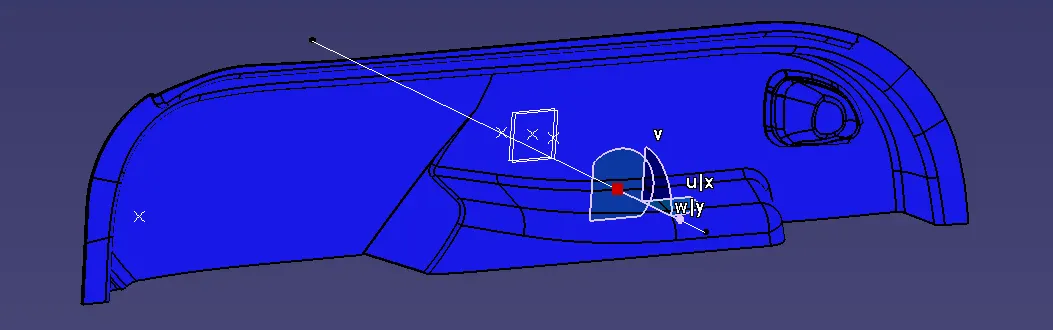

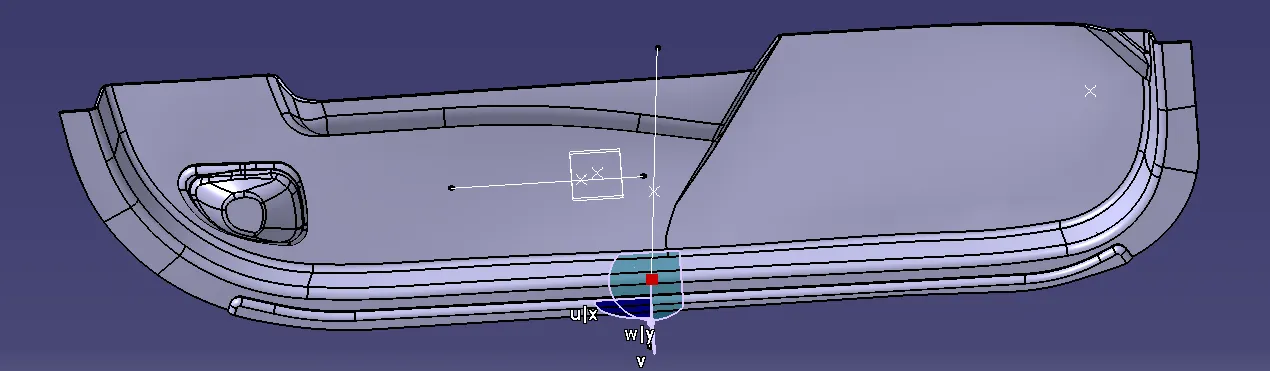

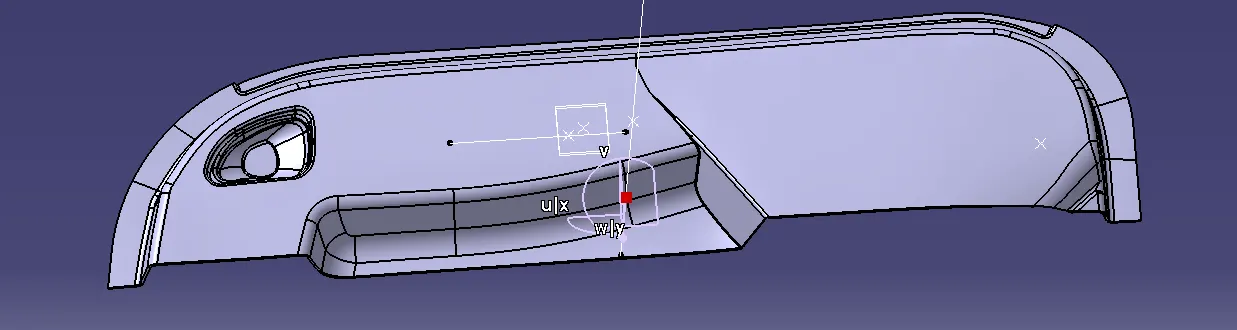

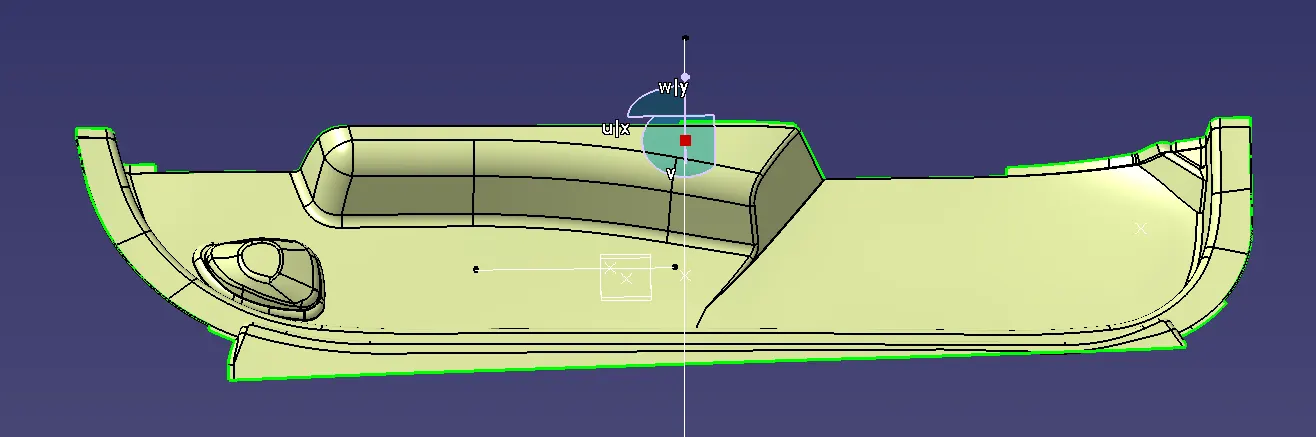

TOOLING AXIS

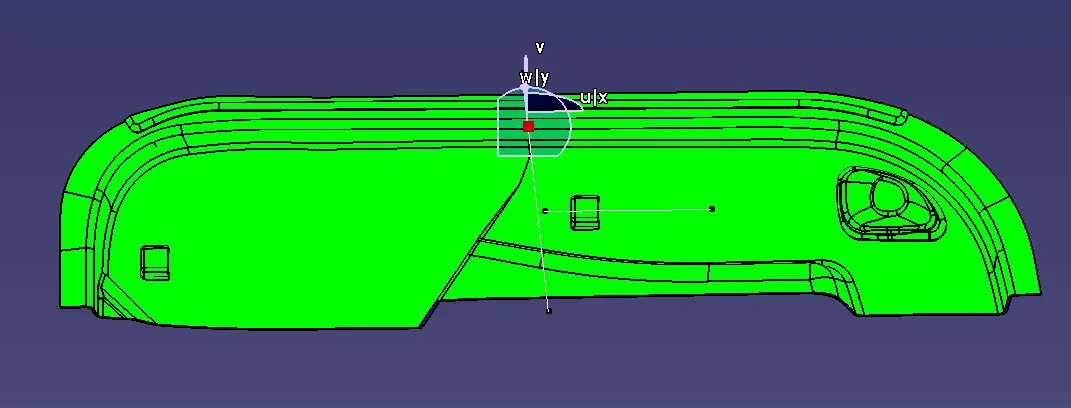

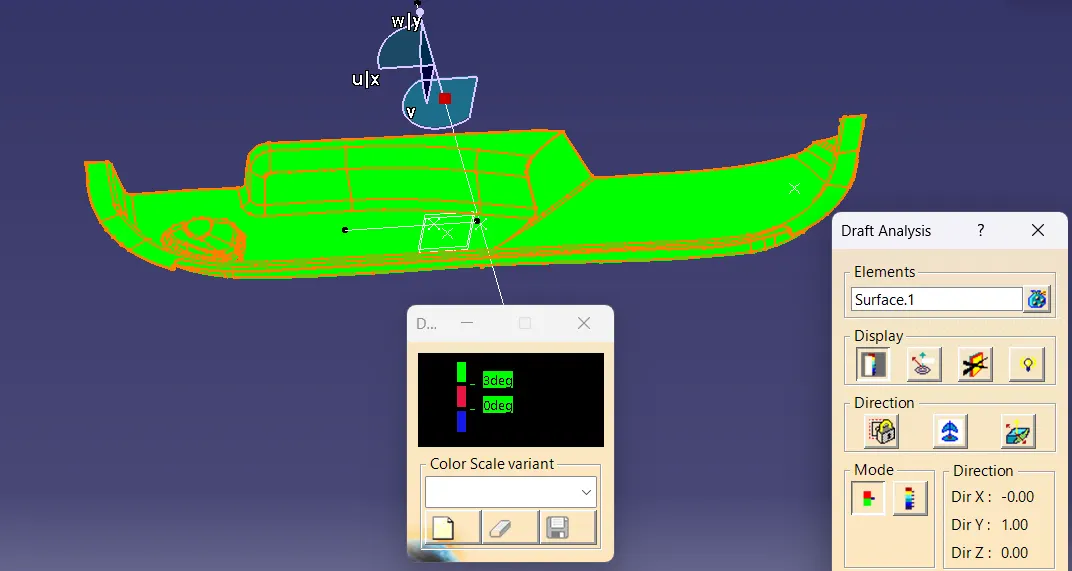

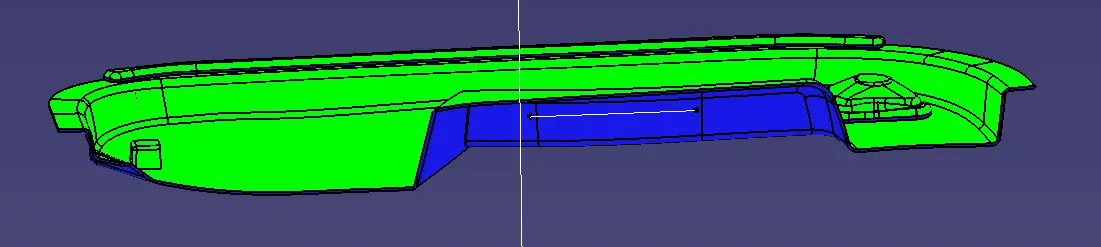

DRAFT ANALYSIS OF CLASS A SURFACE

class a surface is checked with minimum draft angle with respect to main tooling axis .some parts are not clearing with the minimun draft angle .

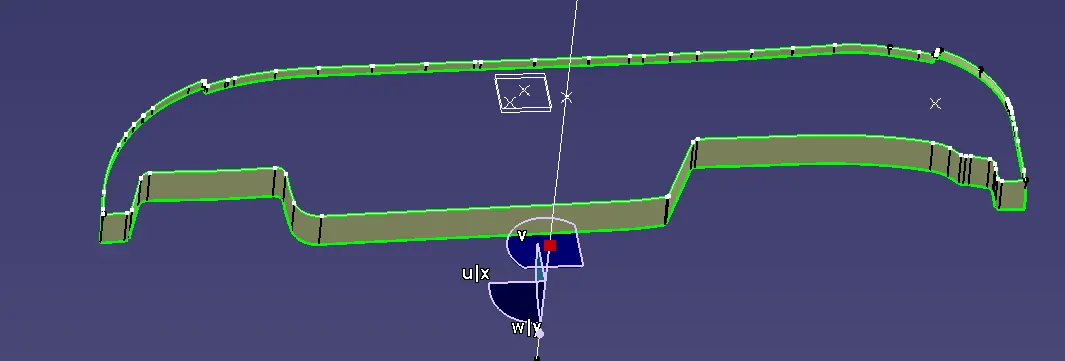

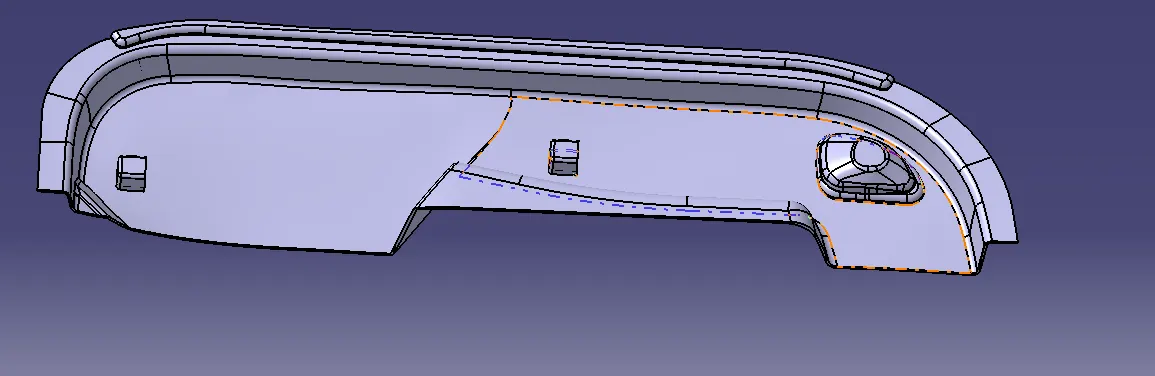

CLASS B SURFACE

CLASS C SURFACE

CLOSED BODY

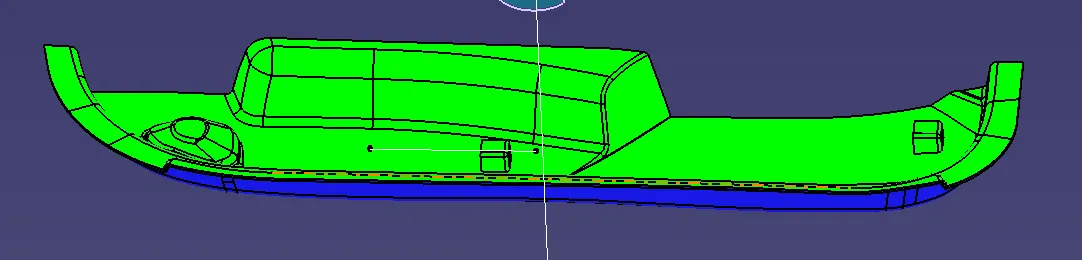

DRAFT ANALYSIS OF CLOSED BODY

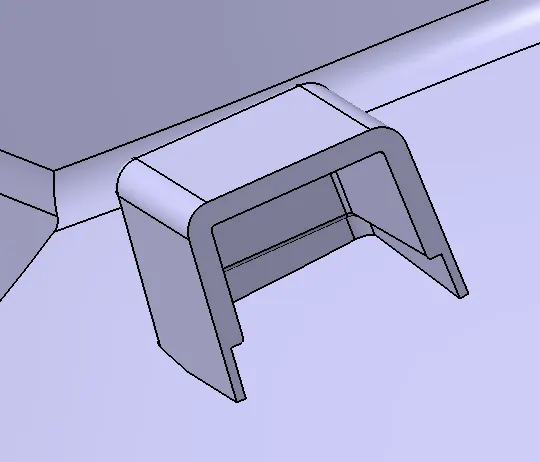

DOG HOUSE CREATION

dog house is an engineering feature used in plastic trim design. dog houses are used as supporting featuresometimes other engineering features like snaps ,locators etc.are mounted on them to increase their strength. they are built on b surface.

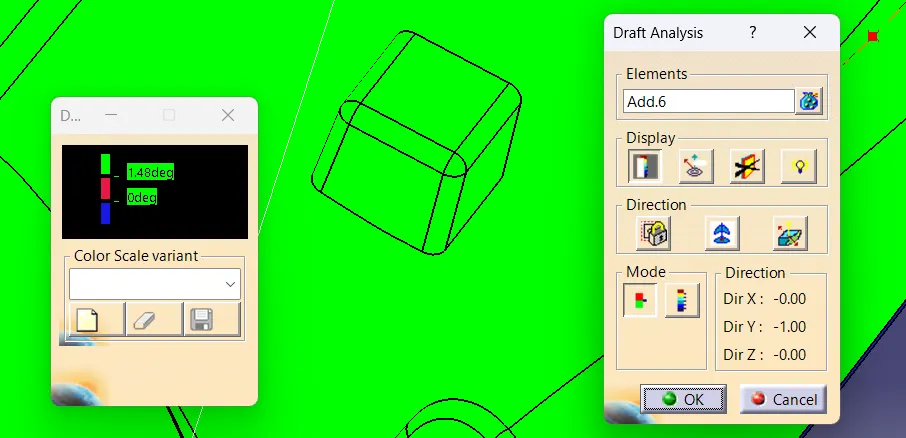

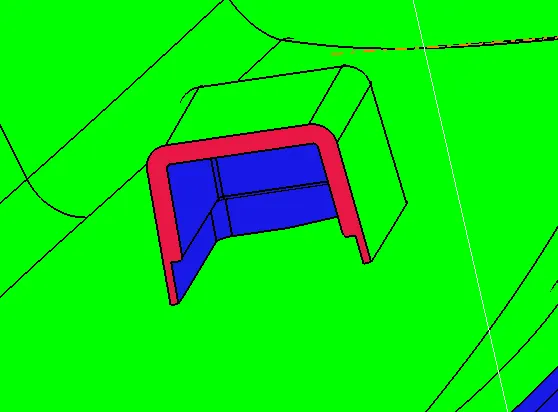

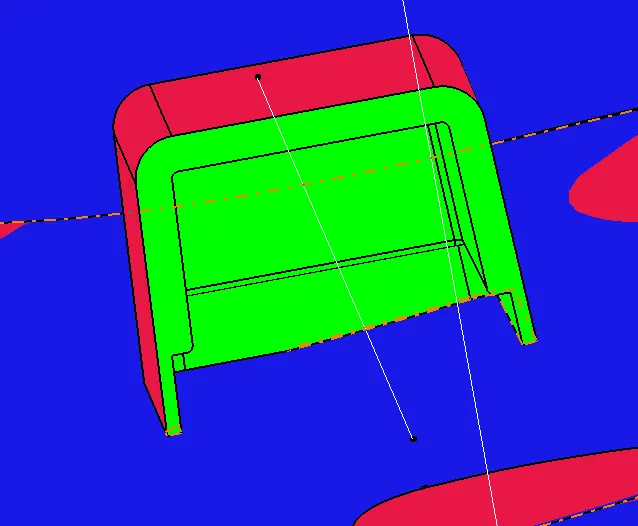

DRAFT ANALYSIS IN DOG HOUSE WITH MAIN TOOLING AXIS

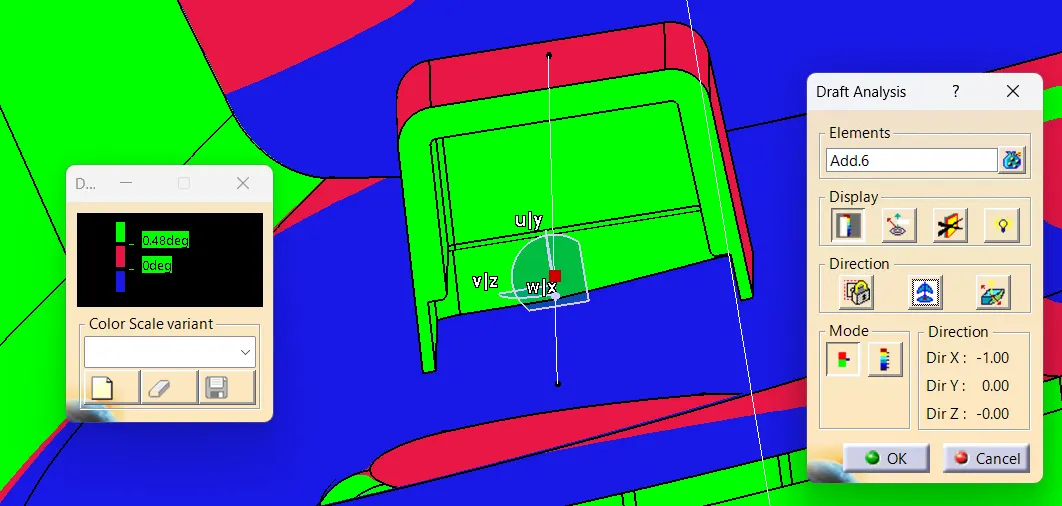

DRAFT ANALYSIS IN DOG HOUSE WITH SIDE CORE AXIS

FINAL BODY

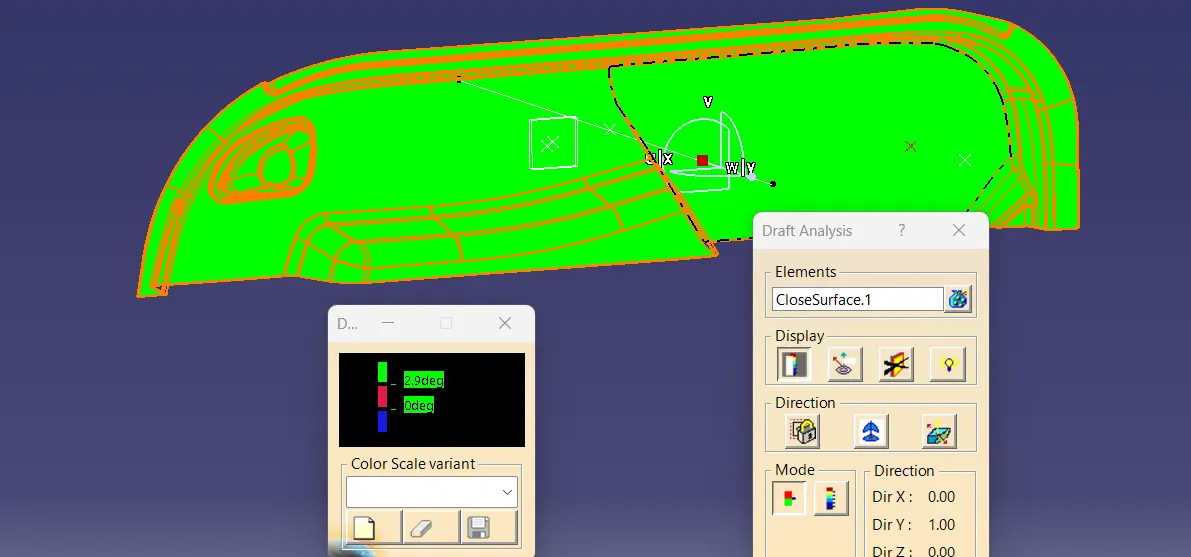

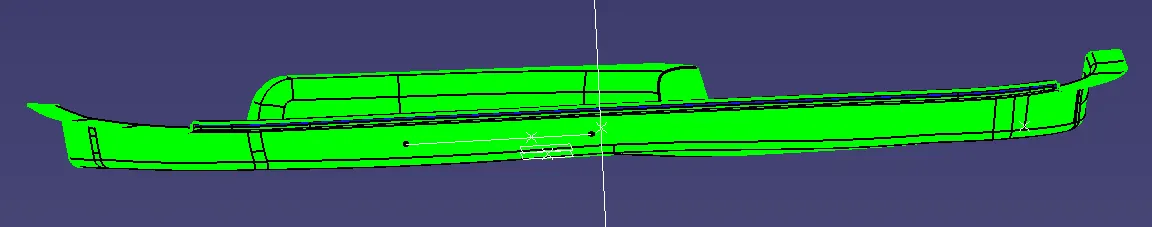

DRAFT ANALYSIS OF FINAL BODY

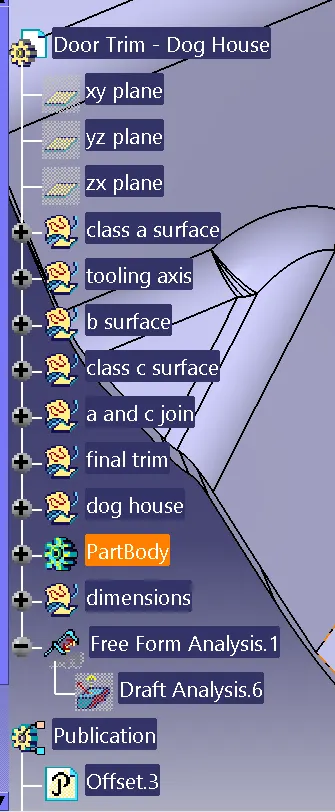

TREE STRUCTURE

FINAL REPORT

create the correct tooling axis for the A surface given and perform draft analysis of 3 degree ,if it is clearing then create b surface and c surface with respect to the tooling axis and after final trim convert it into closed body using closed body command. check draft analysis of closed body for 3 degree minimum draft angle.

create dog house and check the draft angle with respect to main tooling axis and side core axis and attached it to the closed body created.
